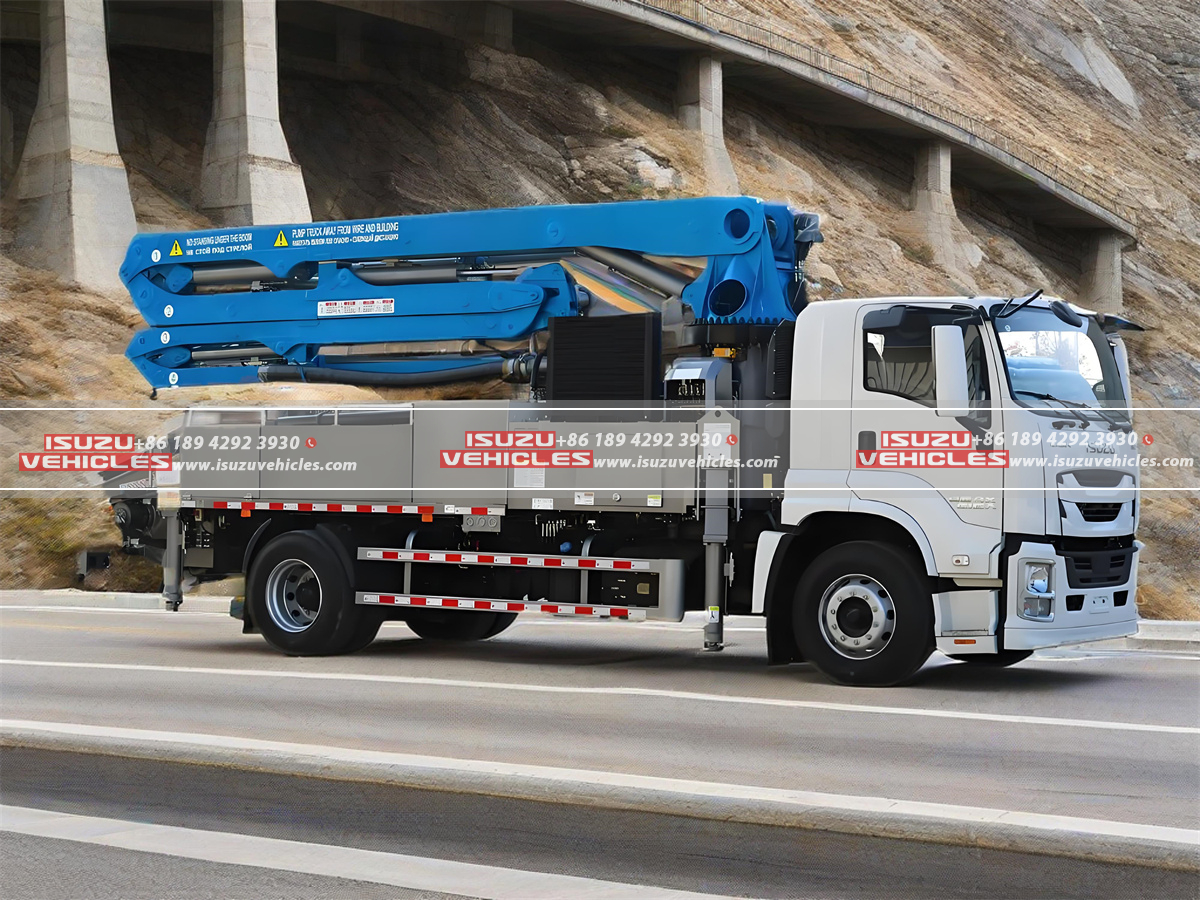

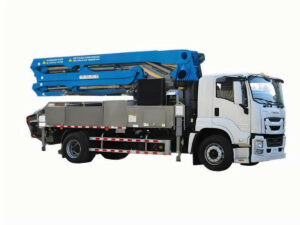

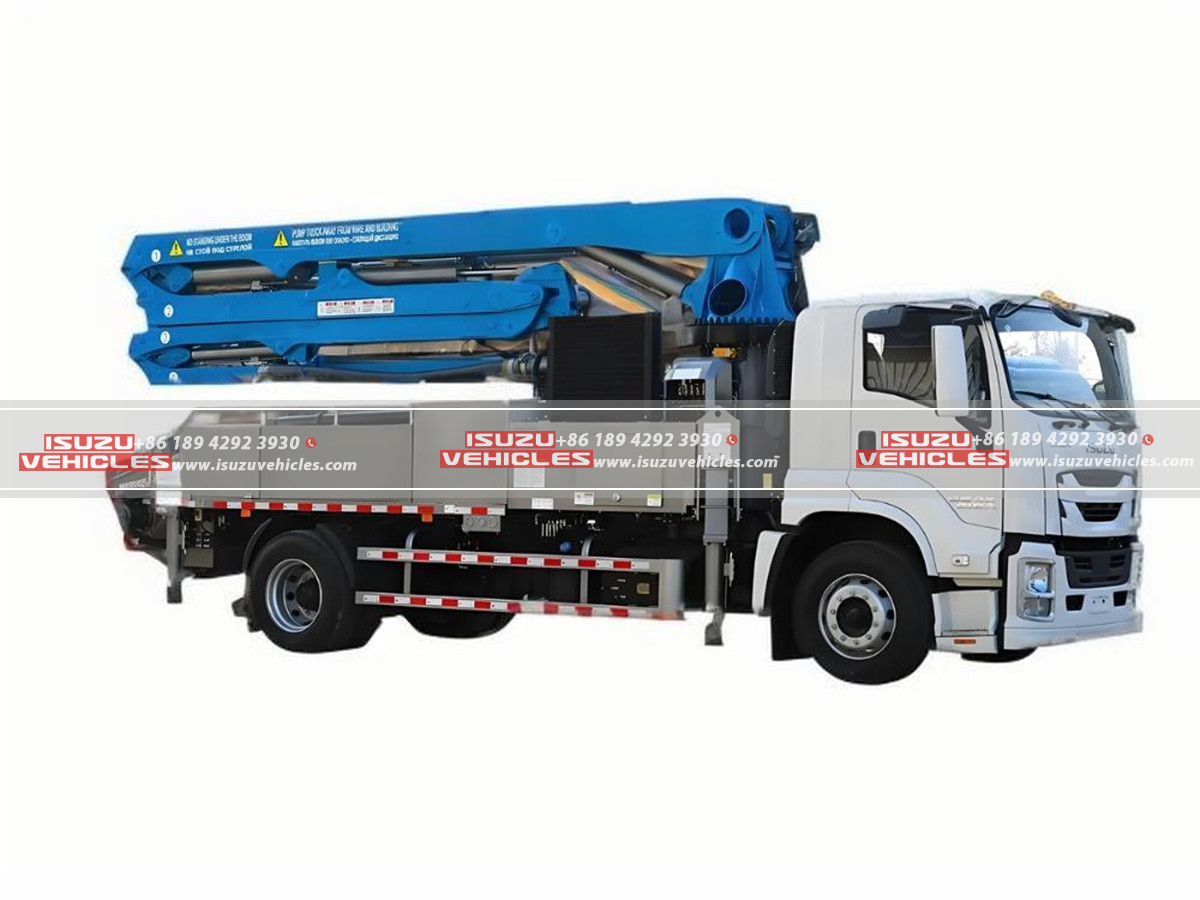

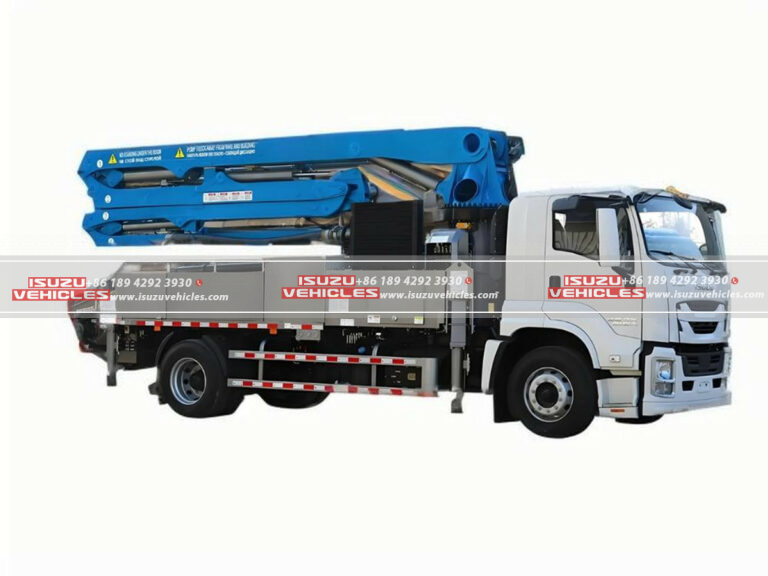

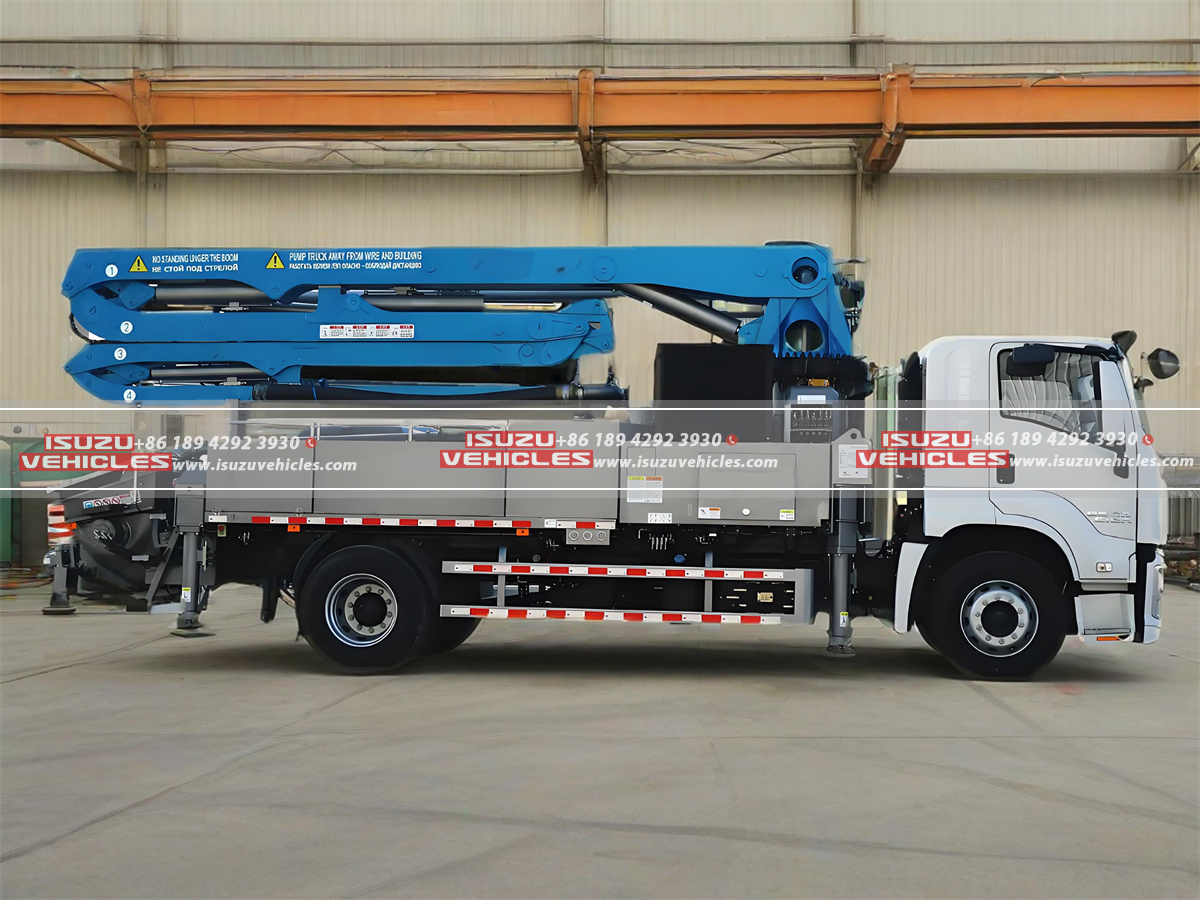

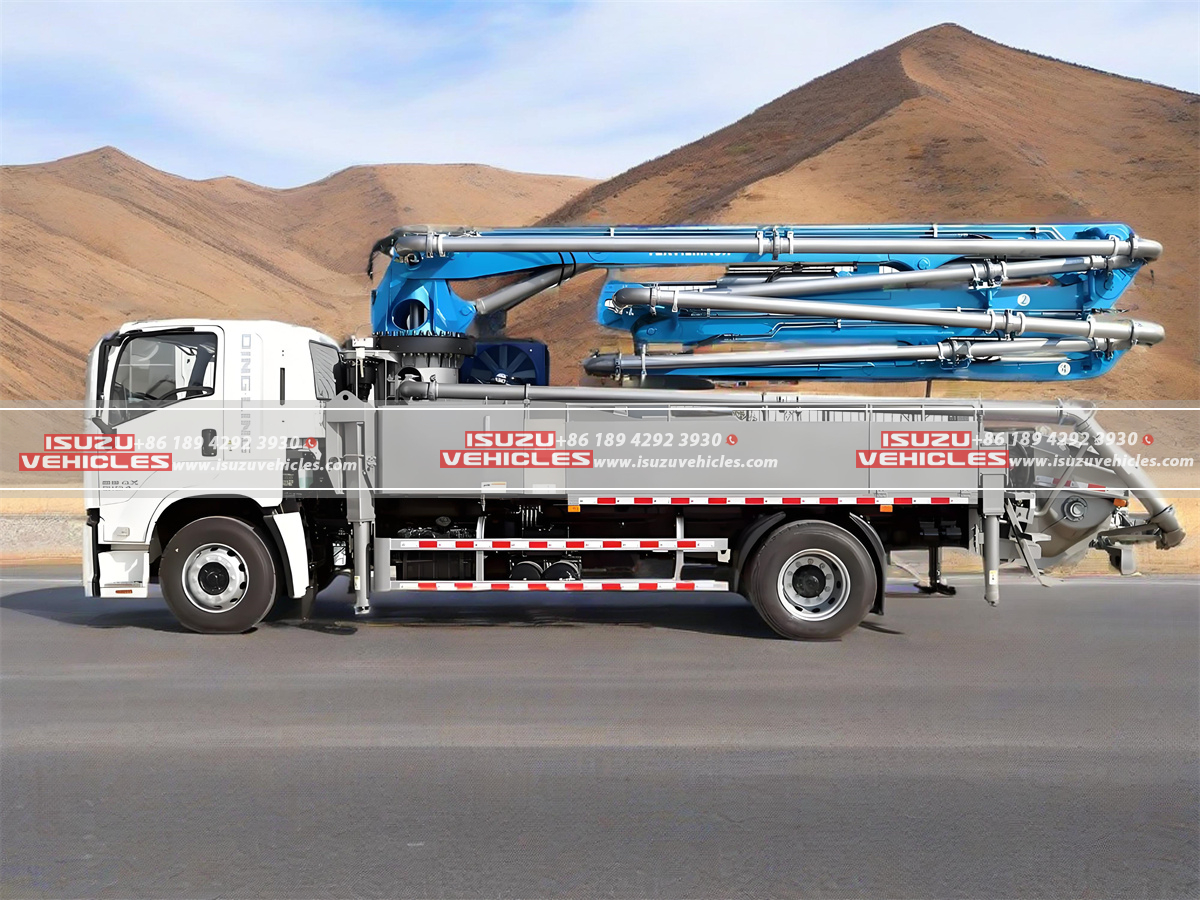

ISUZU 17M Concrete Pump Truck
The ISUZU 17M Concrete Pump Truck integrates robust engineering and advanced hydraulics to deliver exceptional performance-driven solutions for modern construction challenges. Mounted on an ISUZU chassis with a 220 HP Euro VI-compliant engine, this model excels in power efficiency and environmental compliance, achieving a maximum driving speed of 89 km/h for rapid site transitions. Its 24.2m vertical reach and X-H leg stability system ensure versatile operation across high-rise, infrastructure, and confined urban projects, making it a cornerstone of productivity and reliability.
Key Features
2.1 Chassis & Powertrain
- ISUZU Heavy-Duty Chassis: Engineered for rugged terrain resilience and long-term durability, supporting sustained operational demands.
- Euro VI Emission Standard: Minimizes environmental impact while maintaining 220 HP engine power for optimal torque and fuel efficiency.
- Mobility Specifications: A 4800 mm wheelbase enhances maneuverability, coupled with an 89 km/h top speed for efficient logistics.
2.2 Boom System & Placement Precision
- Max. Vertical Height: 24.2m vertical reach and 20.6m horizontal radius enable agile concrete placement in complex structures.
- Turret & Boom Articulation: 470° turret rotation and multi-axis boom movement (90°/180°/230°/245°) allow precise positioning around obstacles.
- Stability Engineering: X-H leg open mode with 5842 mm front / 4457 mm rear spans and 6260 mm longitudinal leg distance ensures unwavering balance on uneven ground.
2.3 Hydraulic & Pumping Systems
- Open Hydraulic Circuit: Delivers high-efficiency power transfer with a 31.5 MPa system pressure and 190 L/min pump displacement.
- S-Valve Concrete Distribution: Ensures consistent flow with 8 MPa max. outlet pressure and 105 m³/h theoretical pumping capacity, reducing blockages and downtime.
- 400L Hydraulic Oil Tank: Supports extended operation cycles with minimized maintenance interruptions.
2.4 Dimensions & Load Management
- Compact Footprint: 9,538 × 2,350 × 3,375 mm (L×W×H) facilitates access to restricted urban sites while maintaining structural integrity.
- Weight Distribution: 18.3-ton gross weight (with 12.5-ton bare chassis weight) ensures optimized load balance and road safety compliance.
SPECIFICATIONS
| Category | Specification | Value/Detail |
|---|---|---|
| Model | Model | 17M ISUZU Bucket Truck |
| Chassis | Chassis Brand | ISUZU |
| Emission Standard | Euro VI | |
| Engine Power | 220 HP | |
| Wheelbase | 4,800 mm | |
| Max. Driving Speed | 89 km/h | |
| Boom System | Max. Vertical Height | 24.2 m |
| Concrete Placing Radius | 20.6 m | |
| Concrete Placing Depth | 13.8 m | |
| Boom Rotation Angles | 90°/180°/230°/245° | |
| Turret Rotation Angle | 470° | |
| Front Leg Span | 5,842 mm | |
| Rear Leg Span | 4,457 mm | |
| Front-Rear Leg Distance | 6,260 mm | |
| Legs Open Mode | X-H | |
| Hydraulic System | Hydraulic System Type | Open Type |
| System Working Pressure | 31.5 MPa | |
| Hydraulic Pump Displacement | 190 L/min | |
| Hydraulic Oil Tank Volume | 400 L | |
| Size & Weight | Length | 9,538 mm |
| Width | 2,350 mm | |
| Height | 3,375 mm | |
| Whole Truck Weight | 18.3 tons | |
| Chassis Weight | 12.5 tons | |
| Pumping System | Concrete Distribution Valve | S Valve |
| Max. Concrete Outlet Pressure | 8 MPa | |
| Max. Theoretical Pumping Capacity | 105 m³/h |
