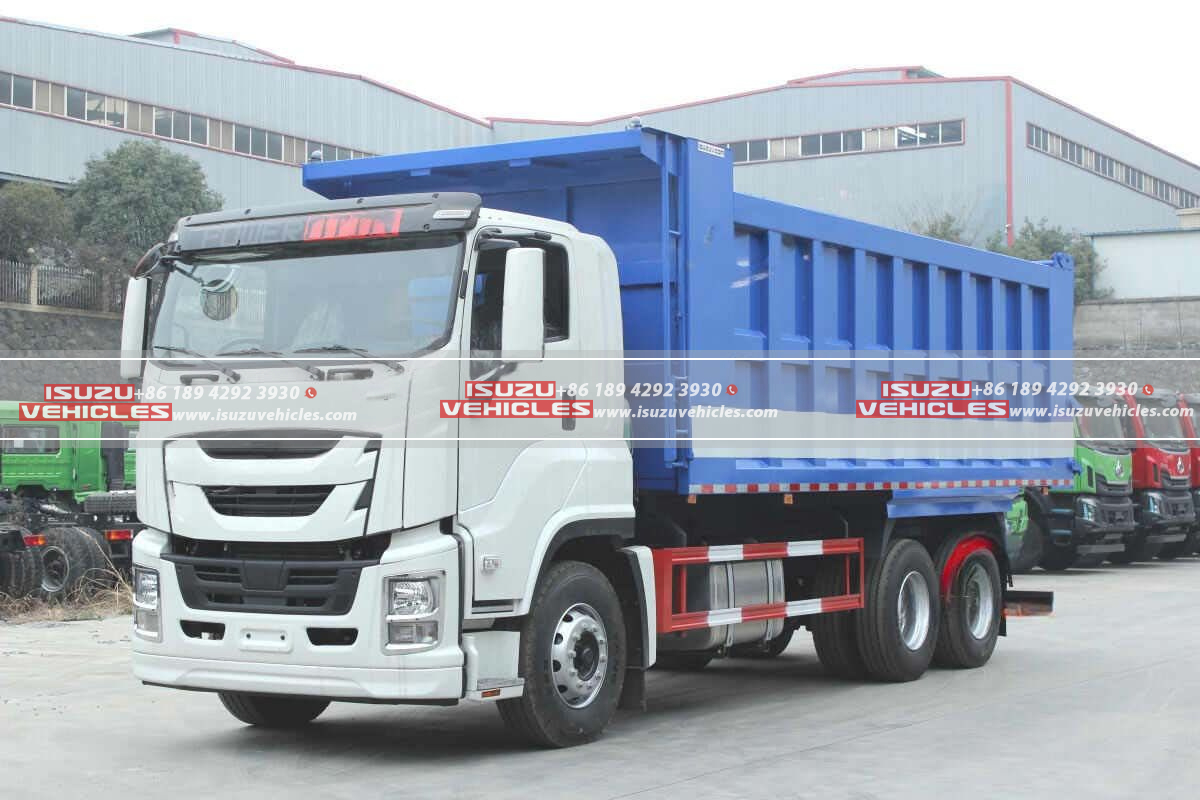

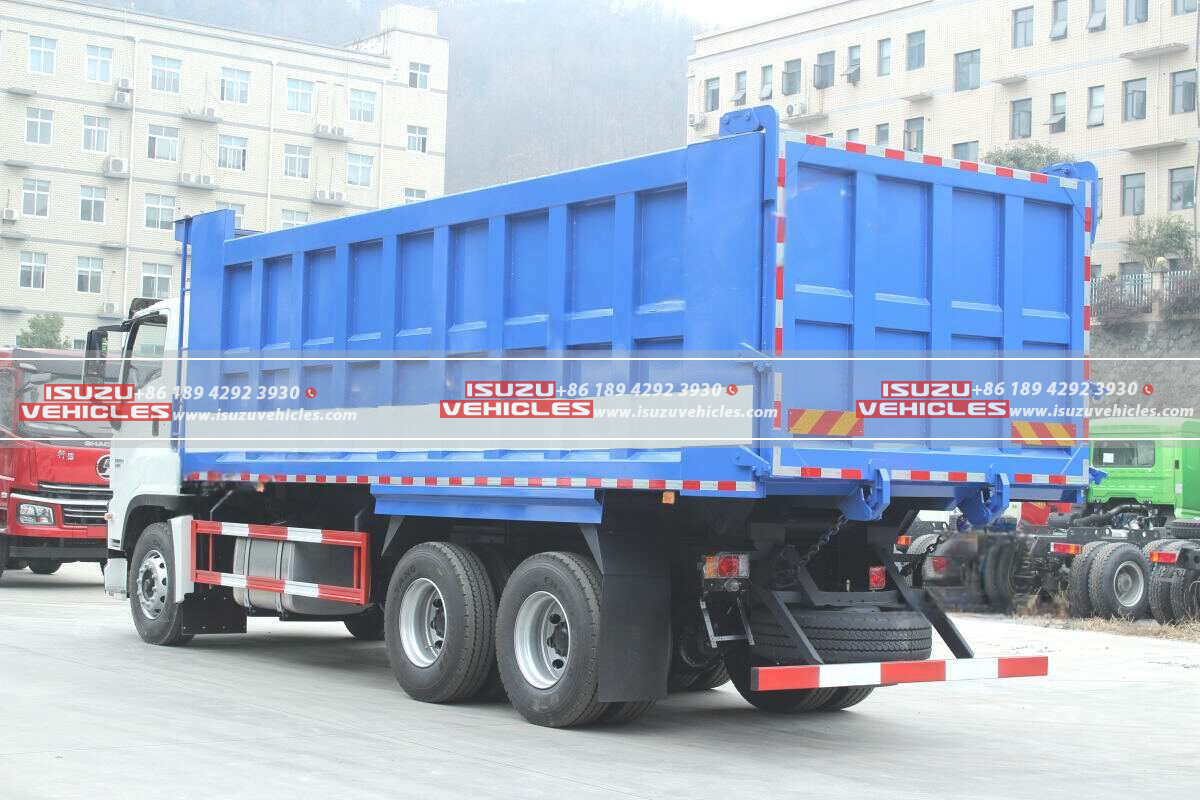

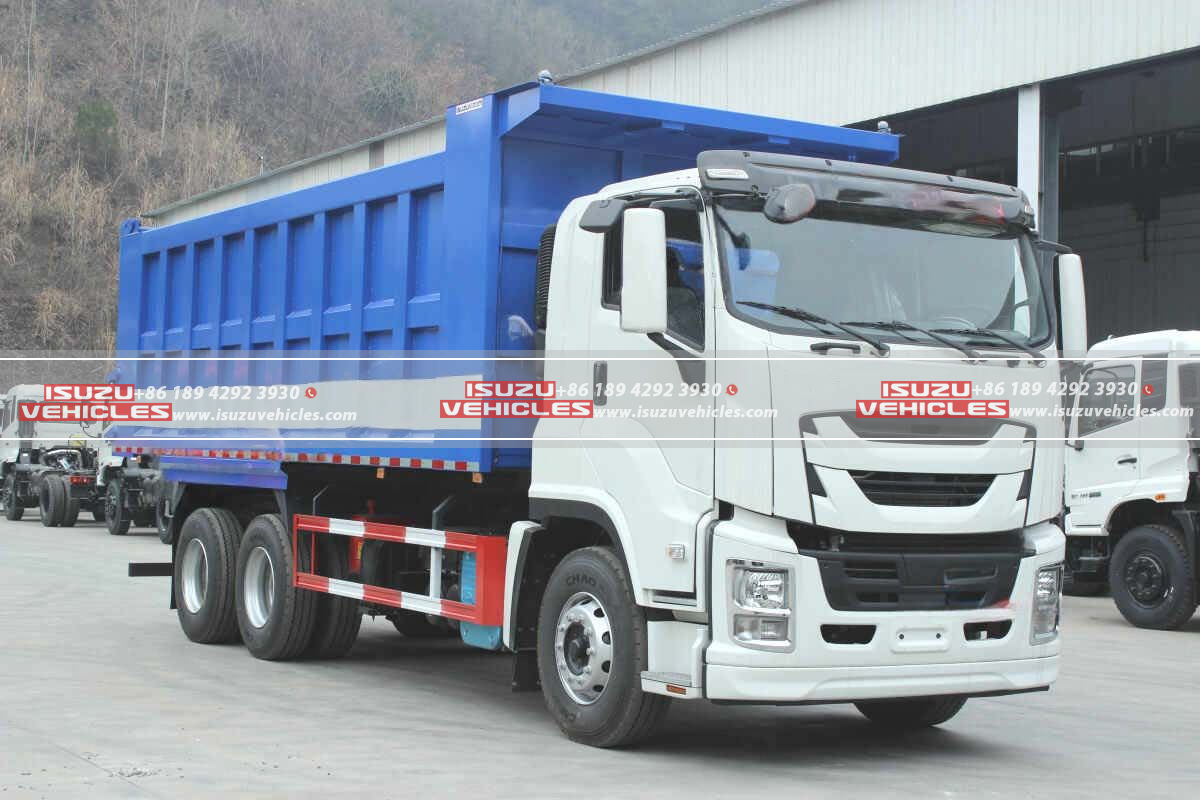

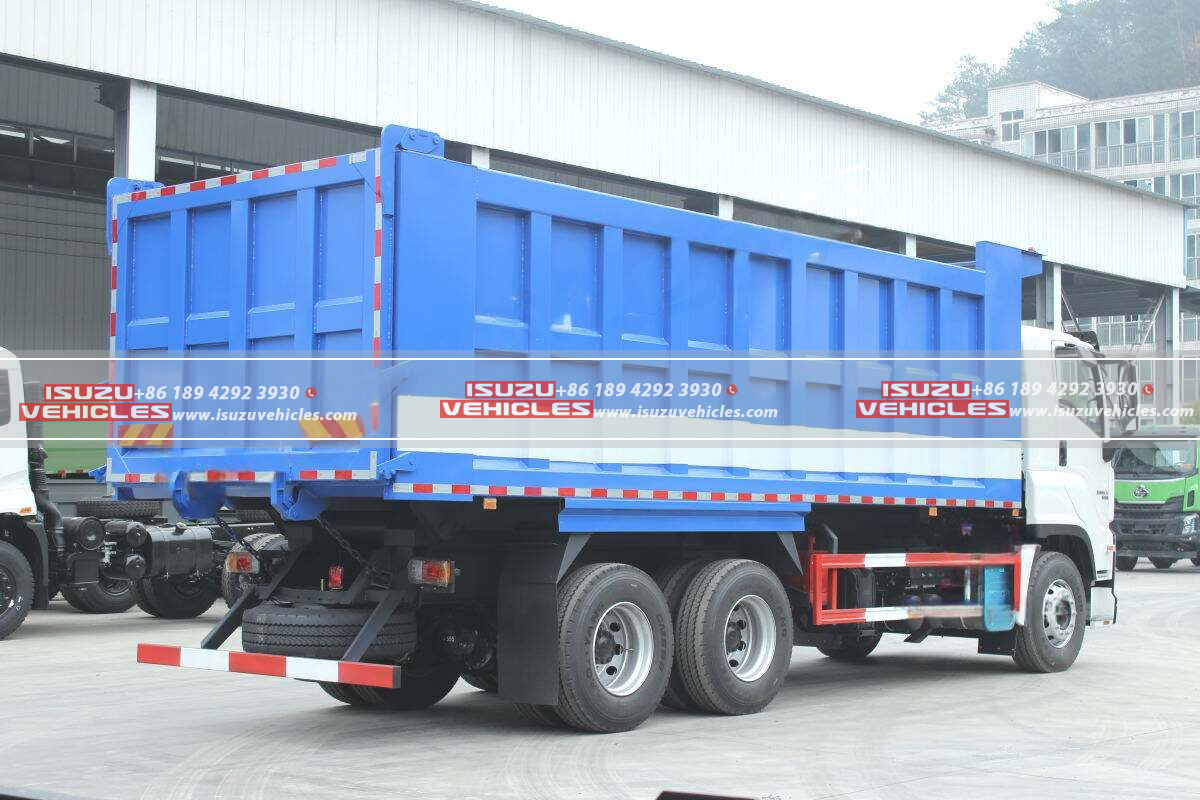

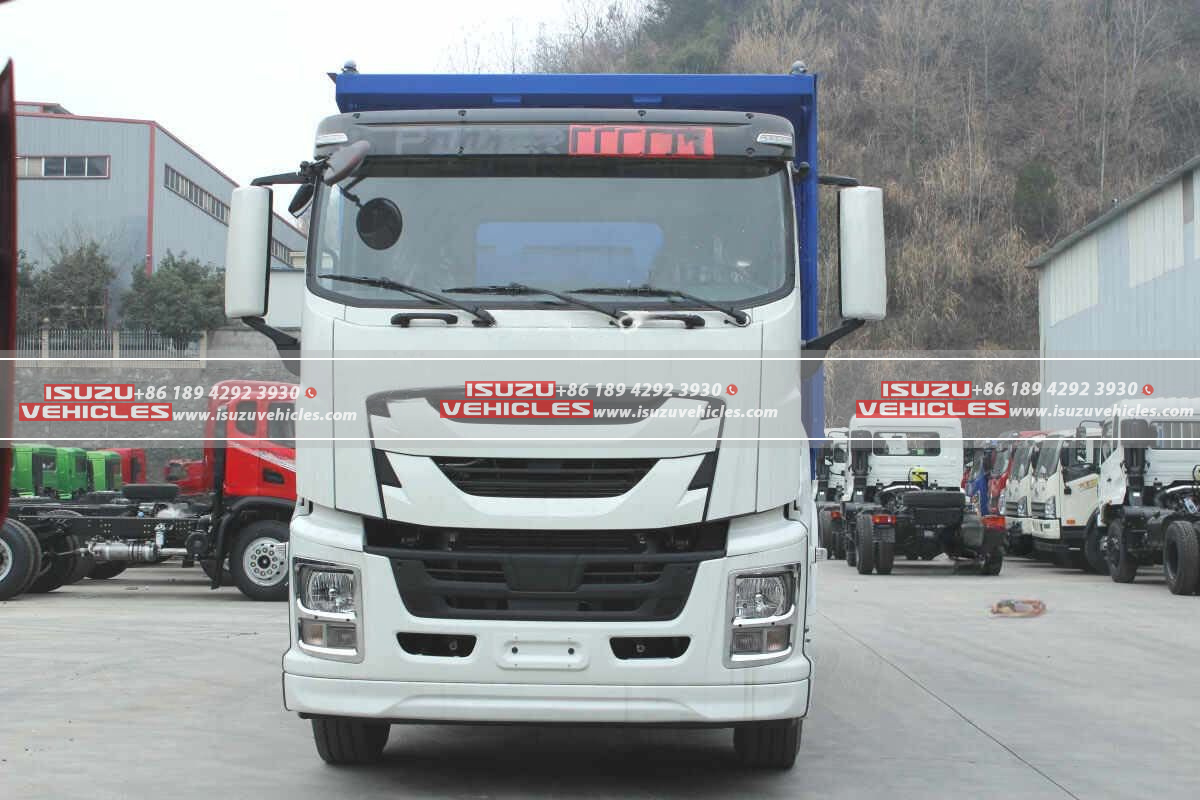

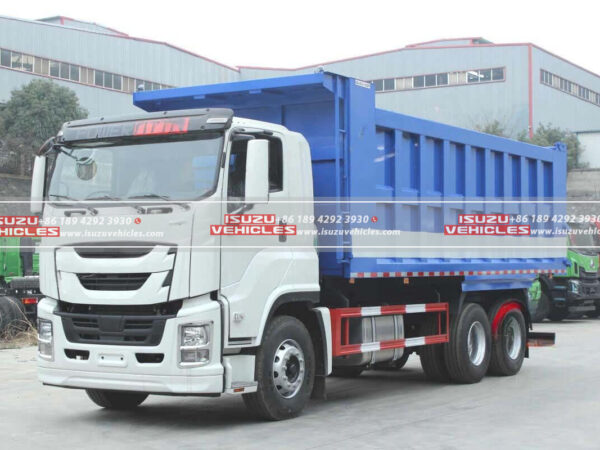

ISUZU 30 Ton Construction Dump Truck
The ISUZU 30 Ton Construction Dump Truck is a high-performance vehicle designed for heavy-duty applications in construction, mining, and large-scale material transportation. Built on the QINGLING GIGA heavy-duty chassis, this truck combines durability, power, and efficiency to handle demanding workloads with ease. With a gross weight of 34,000 kg and a robust 6×4 driving configuration, it ensures maximum stability and reliability even on rough terrain.
Truck Chassis
The ISUZU 30 Ton Dump Truck is engineered for strength and endurance, featuring a high-performance chassis that supports heavy loads while maintaining smooth and efficient operation. The overall dimensions of 9650×2600×3700 mm offer a spacious structure that enhances balance and durability on challenging job sites.
Engine Power and Efficiency
Equipped with the 6WG1-TCG52 diesel engine, the truck delivers an impressive 420 HP, ensuring outstanding performance in demanding conditions. The 12-shift gearbox enhances driving efficiency, allowing for precise control and adaptability to different terrains.

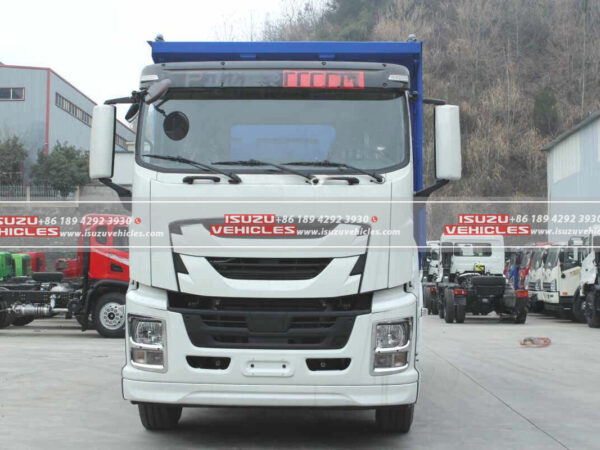

Cab Comfort and Capacity
The cab is designed for maximum comfort and safety, accommodating three passengers with ergonomic seating and an intuitive control layout. The high-visibility dashboard and advanced driving features improve maneuverability, ensuring a safer and more productive working environment.
Heavy-Duty Tires and Stability
Fitted with 315/80R22.5 tires, the truck provides superior grip and stability, allowing for enhanced traction and durability even in extreme conditions. The wheelbase of 4565+1370 mm further improves balance, ensuring secure operation during heavy-duty tasks.

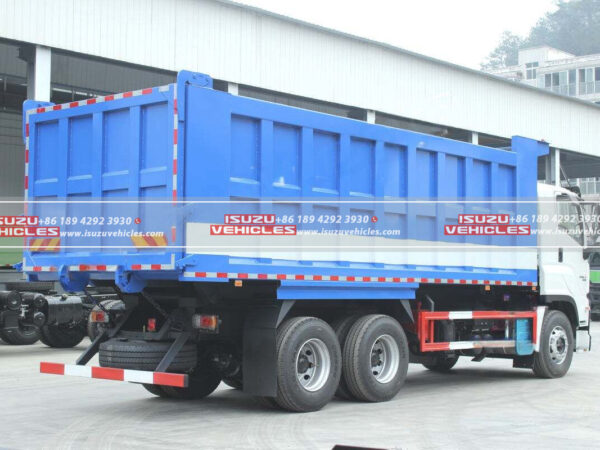

Superior Dump Box and Lifting Mechanism
The dump box of the ISUZU 30 Ton Construction Dump Truck is crafted from high-performance carbon steel, ensuring exceptional strength and longevity. The U-shape subframe enhances material flow, reducing residue buildup and improving unloading efficiency.

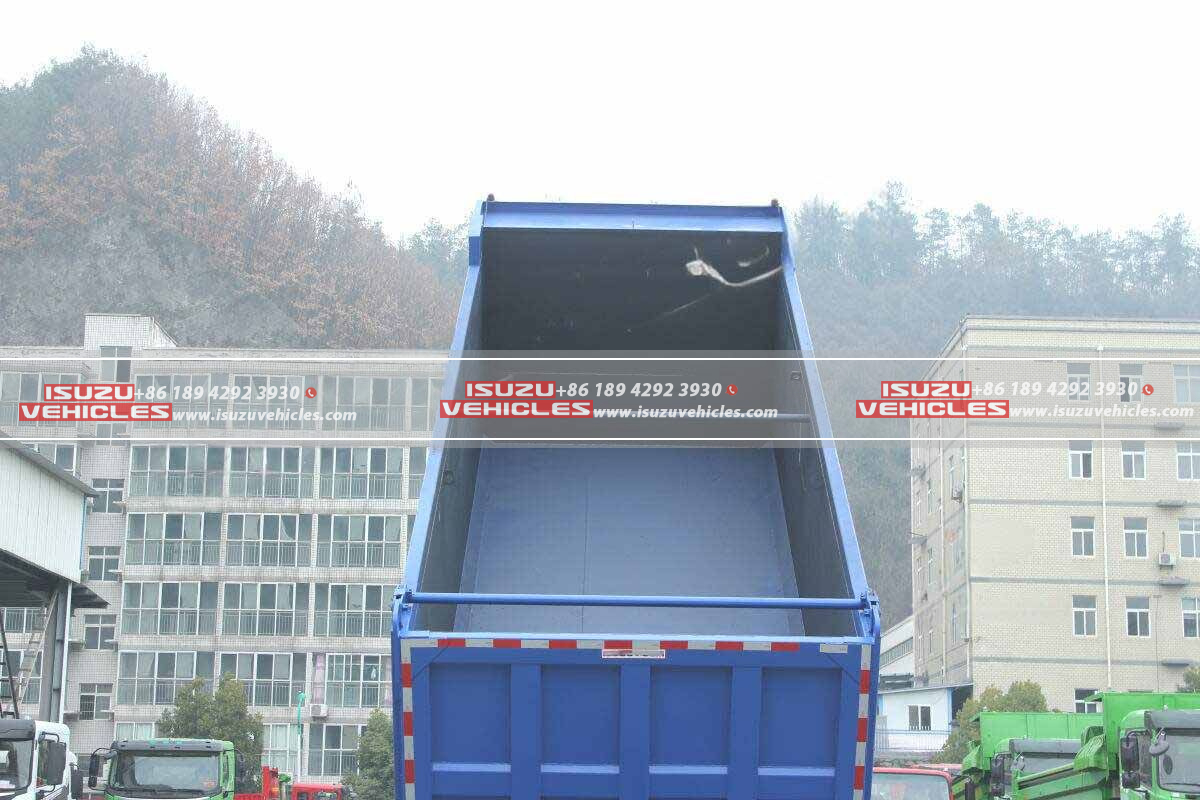

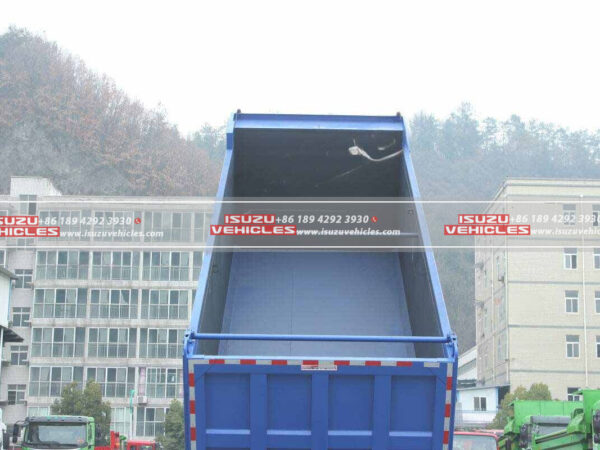

High-Capacity Dump Box
With a size of 6000×2400×1500 mm, the dump box offers an impressive 25–30 ton loading capacity, making it ideal for transporting large quantities of materials. The plate thickness of 6mm (side) and 8mm (bottom) reinforces structural integrity, ensuring long-term durability under heavy loads.

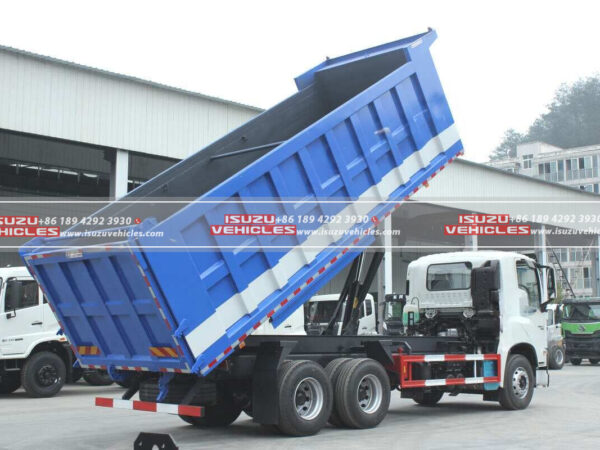

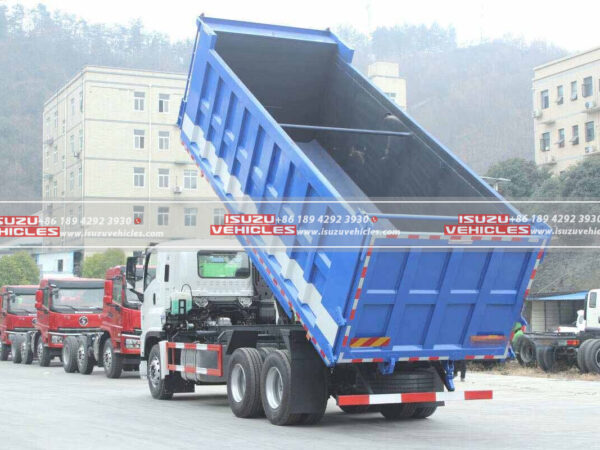

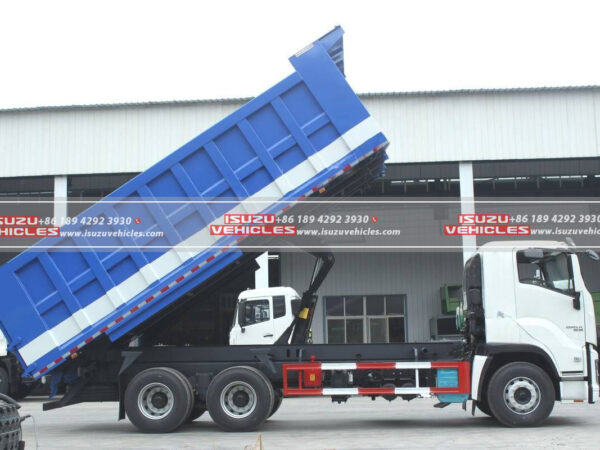

Hydraulic Lifting System

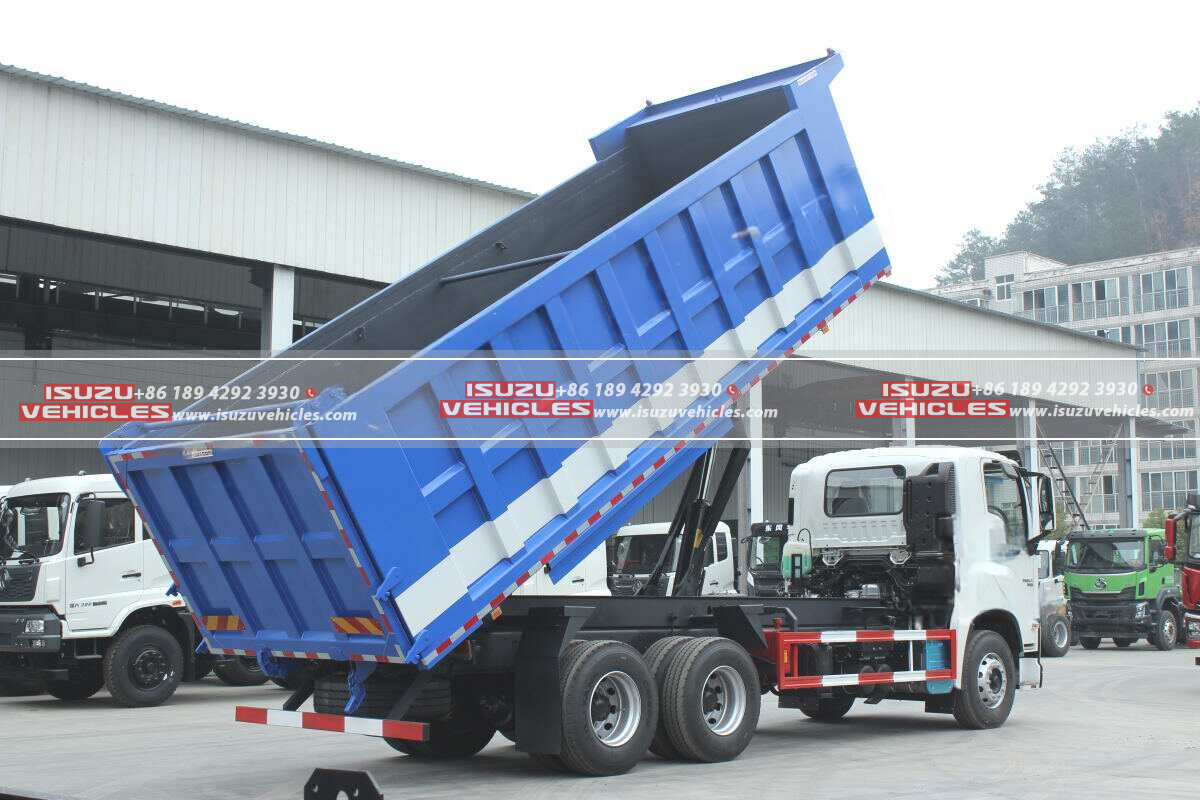

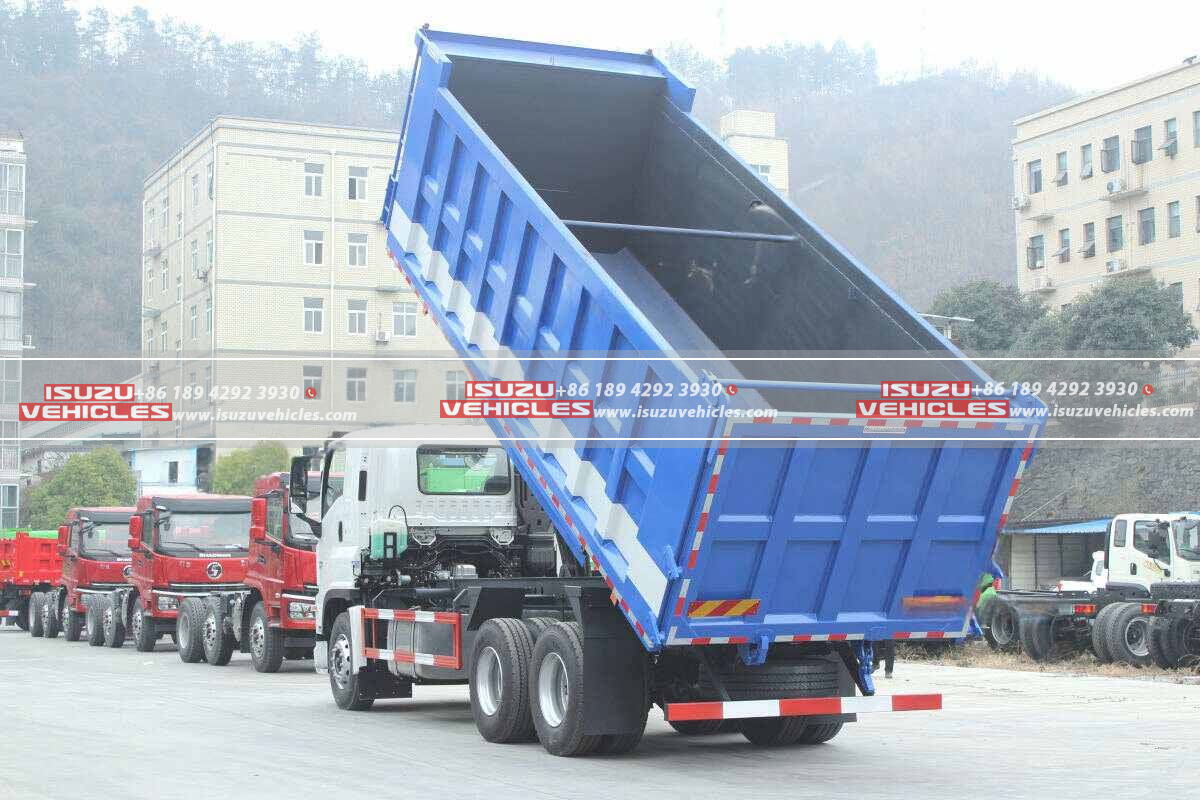

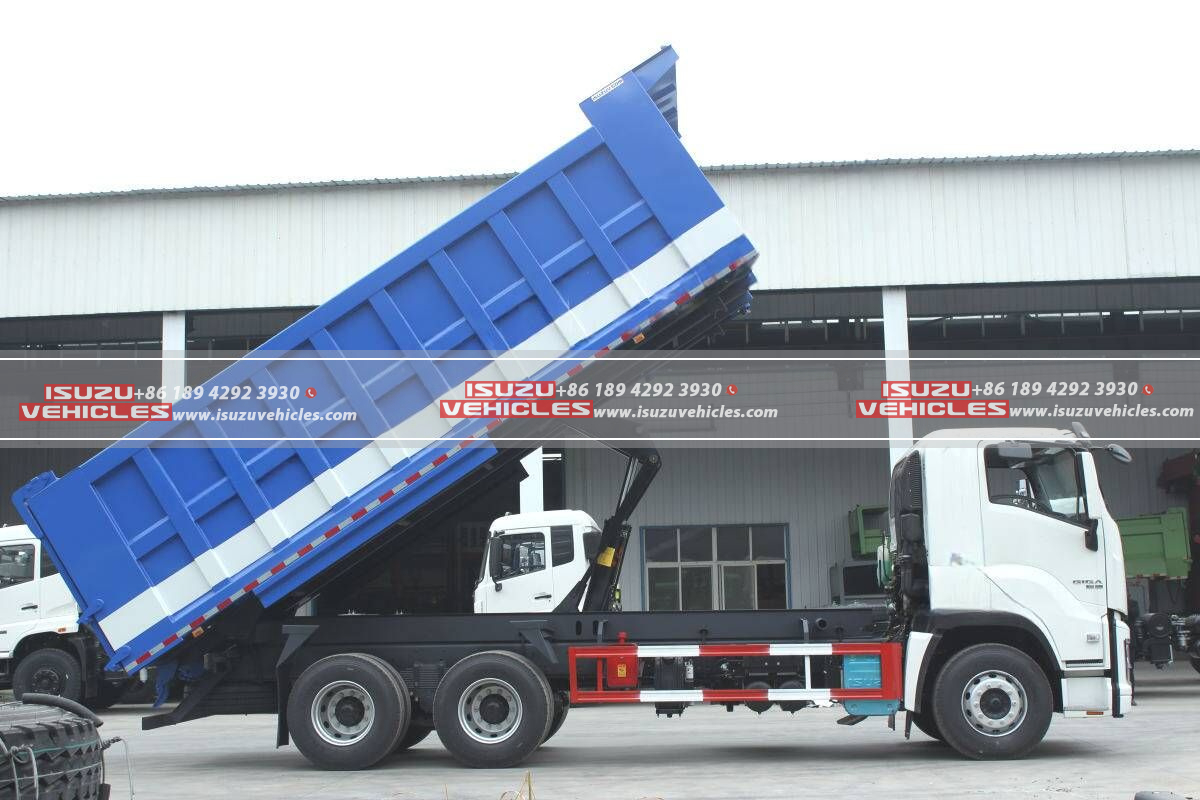

The truck features a middle lifting device with a 45-degree tipping angle, ensuring smooth and efficient unloading of materials. The hydraulic control system provides reliable and effortless lifting, minimizing operational downtime and maximizing productivity.
Durable and Customizable Exterior
The truck undergoes a high-quality painting process, including two primers and a final coat, to ensure resistance against corrosion and harsh environmental conditions. The color and logo can be customized according to customer preferences, offering branding opportunities for businesses.
Factory Standards and Optional Equipment
The ISUZU 30 Ton Dump Truck comes with comprehensive factory standards to enhance safety, efficiency, and operational ease. These include a rotating lamp, working lamp, safety protection features, handholds, mudguards, and rubber flaps for optimal functionality.
Comprehensive Documentation
Every unit is delivered with an English operation manual, spare parts list, and necessary export documents, ensuring seamless integration into business operations.
Optional Upgrades
For additional functionality, the truck can be equipped with:
- A front lifting system for enhanced unloading versatility.
- A U-shape dump box for improved material flow.
- A working camera system for enhanced driver visibility and operational safety.
Built for endurance and efficiency, the ISUZU Dump Truck is the ideal choice for businesses seeking a reliable and high-performance solution for heavy-duty material transportation.
SPECIFICATIONS:
| Category | Specification |
|---|---|
| Chassis | ISUZU |
| Overall Dimensions | 9650 × 2600 × 3700 mm |
| Gross Weight | 34,000 kg |
| Kerb Weight | 15,500 kg |
| Wheelbase | 4565 + 1370 mm |
| Driving Type | 6×4 |
| Chassis Model | QINGLING GIGA Heavy-Duty |
| Tire Size | 315/80R22.5 |
| Passengers in Cab | 3 |
| Engine | |
| Engine Model | 6WG1-TCG52 |
| Fuel Type | Diesel |
| Power | 420 HP |
| Gearbox | 12-speed gearbox |
| Upper Structure | |
| Dump Box Size | 6000 × 2400 × 1500 mm |
| Loading Capacity | 25–30 tons |
| Body Material | High-performance carbon steel |
| Plate Thickness | Side: 6 mm, Bottom: 8 mm |
| Control | Hydraulic |
| Lifting Type | Middle lifting device |
| Tipping Angle | 45 degrees |
| Painting | Two primers, one final paint coating |
| Color & Logo | Customizable |
| Factory Standard | “U” shape subframe, hydraulic system, safety protection, rotating lamp, working lamp, handholds, mudguards, rubber flaps |
| Documents | English operation manual, spare parts list, and all necessary export documents |
| Optional Equipment | |
| 1. Front Lifting System | Available |
| 2. U-Shape Dump Box | Available |
| 3. Working Camera | Can be equipped |
