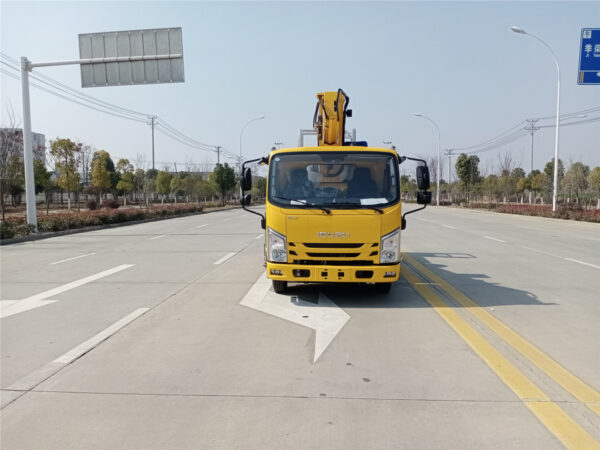

ISUZU 30M 700P Telescopic Bucket Truck
Designed for demanding aerial work where height, reach, and safety are critical, the ISUZU 30M 700P Telescopic Bucket Truck delivers a well-balanced combination of lifting performance, advanced safety systems, and reliable chassis engineering. Built on the trusted ISUZU 700P platform, this aerial work vehicle is suited for professional users who require stable and efficient access solutions for high-altitude operations across municipal, utility, and industrial environments.
Truck Brief
Application and Working Capability
This aerial work platform truck is engineered to support a wide range of elevated tasks, offering a maximum working height of 30 meters and a maximum left-and-right working outreach of 15 meters, which provides excellent horizontal and vertical coverage even in complex or restricted job sites. With a rated platform capacity of 200 kg, the working bucket comfortably accommodates up to three operators along with their tools, ensuring productivity without compromising safety.
The wide operating envelope makes this model ideal for building façade maintenance, electrical and telecommunications installation, street lighting service, billboard installation, tree trimming, and other municipal or industrial aerial operations where flexibility and reach are essential.
ISUZU 700P Chassis and Driving Performance
The aerial device is mounted on a robust ISUZU 700P chassis, known for its durability, stability, and excellent road performance. With an overall vehicle size of 8860 × 2300 × 3350 mm and a wheelbase of 5150 mm, the truck maintains solid driving stability while remaining suitable for urban and intercity operations.
Power is provided by the ISUZU 4HK1-TCG60 diesel engine, delivering 205 HP (151 kW) and a strong 647 N·m of torque, ensuring sufficient power for both driving and aerial work functions, even under demanding load conditions. The engine meets EURO 6 emission standards, supporting efficient and environmentally responsible operation.
Cab Design and Operator Comfort
The 700P day cab features an all-steel structure with 4-point hydraulic suspension, effectively reducing vibration during travel and on-site positioning. The cab interior is equipped with air conditioning, power windows, central locking, and a multifunctional LCD instrument panel, creating a comfortable and user-friendly driving environment. An adjustable driver’s seat and front-tilting cab design further enhance ergonomics and ease of maintenance during daily operations.
Aerial Device and Safety Features
Telescopic Boom and Working Platform

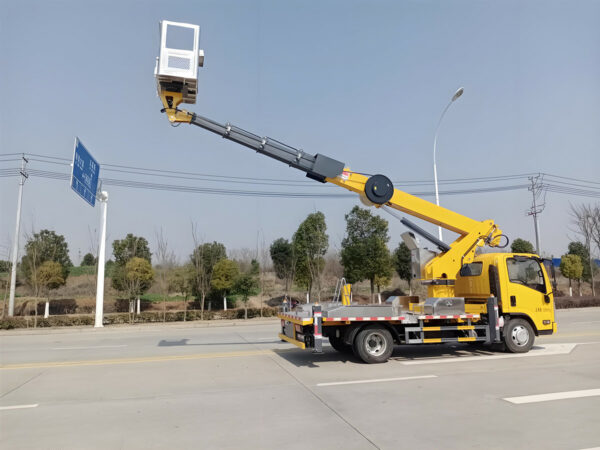

The aerial system utilizes a 6-section pentagonal synchronized telescopic boom, designed to deliver high structural strength, smooth extension, and precise positioning throughout the entire working range. This boom design improves torsional rigidity and stability, particularly at extended heights.

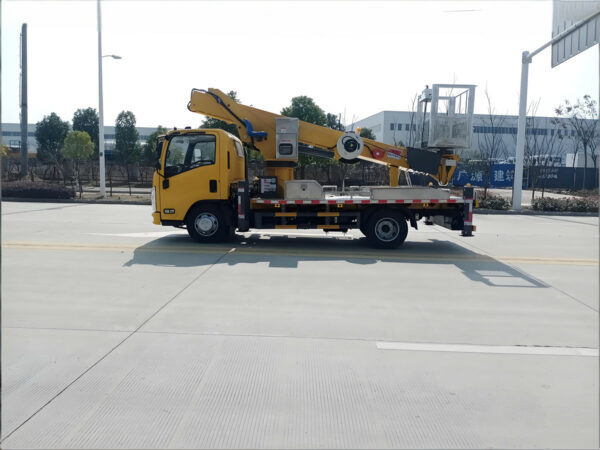

The stainless-steel working bucket, measuring 1600 × 710 × 1100 mm and customizable to specific requirements, provides a secure and corrosion-resistant workspace. 360-degree continuous slewing allows operators to position themselves efficiently without repositioning the truck, significantly improving on-site productivity.
Outriggers and Stability Control
To ensure safe operation at height, the truck is equipped with a wide outrigger system, featuring a lateral span of 5.1 meters and a longitudinal span of 5 meters, providing a stable working base. The system incorporates automatic working outreach limitation and operation restriction when outriggers are not properly grounded, preventing unsafe movements and enhancing operator confidence during elevated tasks.
Advanced Safety and Emergency Systems
Safety is a core design focus of this model. The platform includes automatic interlocking for boarding and alighting, an emergency stop device located directly on the working platform, and a manual emergency hydraulic pump that allows safe lowering in the event of power failure.
Additional protective measures include an anti-electric leakage protection device (RCD), engine ignition and shutdown control, and a night-time safety warning system, all designed to reduce operational risk and improve visibility during low-light conditions.
Intelligent Control and Operation
The aerial system is managed through a modern CAN-bus control system, supporting smooth, stepless speed regulation for lifting, slewing, and telescoping movements. The inclusion of wireless remote control allows operators to manage positioning with greater flexibility and precision, particularly during setup and fine adjustments.
A static hydraulic automatic leveling system ensures the working platform remains level throughout operation, contributing to both safety and operator comfort at height.
The ISUZU 30M 700P Telescopic Bucket Truck stands out as a professional-grade aerial work solution, combining strong lifting performance, intelligent control technology, and comprehensive safety systems. Supported by the dependable ISUZU 700P chassis and a powerful 205 HP engine, this truck delivers reliable, efficient, and secure access for high-altitude operations in demanding working environments.
SPECIFICATIONS
| ▸ MEASUREMENT | |
| Overall Size | 8860×2300×3350mm |
| Front/Rear Track | 1680/1650,1720 mm |
| Front/Rear Overhang | 1160/2550 mm |
| Wheelbase | 5150 mm |
| Ground Clearance | 265 mm |
| ▸ WEIGHTS | |
| Gross Vehicle Weight | 11995kg |
| Tare / Curb Weight | 7460kg |
| Loading Weight | 4330kg |
| Front/Rear Axle Rating | 4000/7995kg |
| ▸ CHASSIS TRUCK | |
| Chassis Truck Line | ISUZU/700P 3X /4HK205 E6 |
| ▸ CAB | |
| Cab Model | 700P 3X |
| Cab Type | Day Cab |
| Cab Width | 2170mm |
| No. of Seats | 3 |
| Construction | All steel, 4-point Hydraulic Suspension Cab |
| Instrument & Controls | Center Lock/Multifunctional Steering/Power Window |
| Driver Seats | Adjustable Driver’s Seat |
| Tiltable | Front Tiltable |
| Equipment & Device | A/C/Radio/Cassette Record |
| ▸ ENGINE | |
| Make/Model | ISUZU/4HK1-TCG60 |
| Output Power/Speed | 151kW(205HP)/2600rpm |
| Max. Output Torque/Speed | 647N.m/1600rpm |
| Displacement | 5.193L |
| Engine Type | 4 Cylinders in-line, Turbocharged intercooled, Diesel engine |
| Emission Regulation | EURO 6 |
| ▸ TRANSMISSION | |
| Make/Model | ISUZU/MLD-6Q |
| Type | Manual |
| Gear Numbers | 6F+1R |
| Synchronizer | Non Equipped |
| ▸ STEERING | |
| Type | Recirculating ball, powered adjustable column |
| Position | Left Hand Side |
| ▸ CHASSIS | |
| Type | U-profile parallel ladder cold riveted cross |
| Frame Layer | 2 layers standard body unit mounting |
| Suspension | Mechanical, Semi-elliptic Leaf Springs 9/10+6 |
| ▸ AXLE | |
| Front Axle Type | Steering Axle |
| Front Axle Rating | 4000kg |
| Rear Axle Type | Driving Axle |
| Rear Axle Rating | 7995kg |
| Rear Axle Ratio | 4.11 |
| ▸ ELECTRIC | |
| Working Voltage | 24V |
| ▸ BRAKE | |
| Service Brake | Dual circuit compressed air brake |
| Parking Brake | Spring Brake |
| Auxiliary Brake | Engine exhaust brake |
| Others | ABS |
| ▸ BODY UNIT / SUPERSTRUCTURE | |
| Bucket Rated Capacity | 200kg |
| Max Working Height | 30m |
| Max. Working Radius (Left & Right) | 15m |
| Platform Slewing Angle | 360° |
| Bucket Size | 1600×710×1100mm (Customizable) |
| Boom Type | 6-Section Pentagonal Synchronized Telescoping Boom |
| Outrigger Span (Lateral) | 5.1m |
| Outrigger Span (Longitudinal) | 5m |
