Brief:

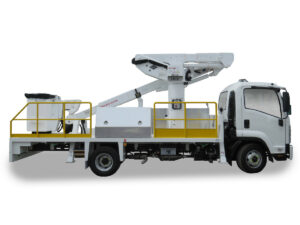

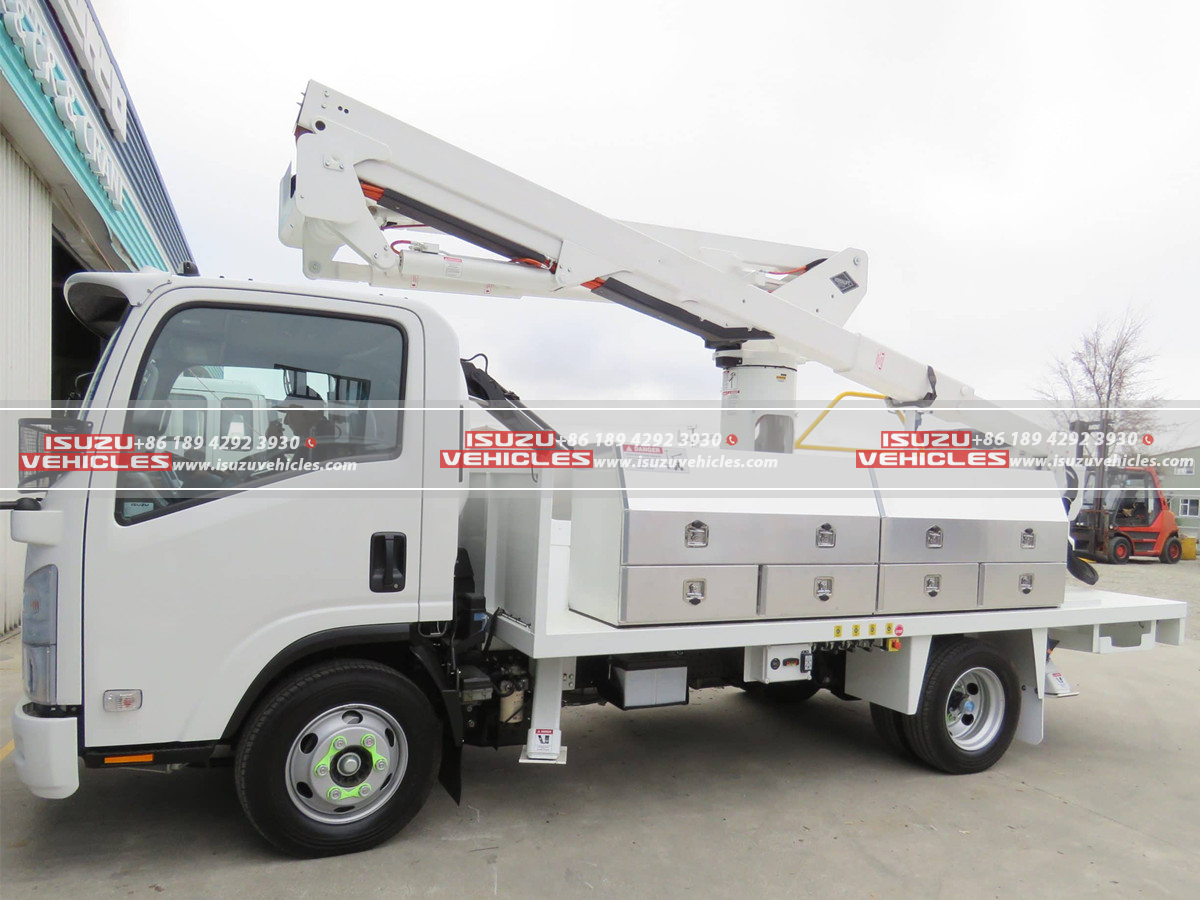

Introducing the ISUZU 17m Insulated Bucket Truck, a powerful and versatile vehicle designed for efficient aerial work and utility maintenance tasks. Built on the reliable ISUZU QL1100A8HAY chassis with 4×2 drive configuration and a single cab, this truck offers exceptional maneuverability and functionality. With its articulated and telescopic boom, this insulated bucket truck provides a maximum lifting height of 17 meters and a max outreach of 11.2 meters, making it suitable for a wide range of applications. Equipped with advanced safety features, hydraulic systems, and high-strength construction materials, this truck ensures reliable performance and operator safety in any working environment.
Features:
- Powerful Performance: Power take-off from truck transmission ensures efficient operation.
- Durable Construction: High-strength steel and glass fiber reinforced plastic insulation material used in the boom construction for durability and reliability.
- Advanced Systems: Operating, hydraulic, and leveling systems equipped with safety devices for enhanced operational safety.
- Dual Control System: Bucket control features a hydraulic 3D handle for simultaneous control of rotation, telescopic, and other functions.
- Hydraulic Speed Regulation: Hydraulic step-less speed regulation for precise control; balance valves and hydraulic locks ensure system safety.
- Automatic Leveling System: Equal-volume oil cylinder automatic leveling system with manual leveling and bucket water dumping function for added safety and convenience.
- Safety Features: Vehicle anti-tipping system, emergency working pump, safety valves, interlock for getting on and off the vehicle, and more.
- Grounding Device: Equipped with a grounding device for added safety during operations.
- Insulated Crane: Insulated small crane with hydraulic tool connecting port for versatile utility maintenance tasks.
- Hydraulic Tool Interface: Open hydraulic tool quick connectors are provided at the working bucket for powering hydraulic tools.
- Excellent Insulation: High withstand voltage level and excellent insulation performance with double-layer insulation protection for ground personnel.
- Telescopic Boom: Equipped with 2-section telescopic boom + 1-section folding boom for wider working range and flexibility.
- Swinging Bucket: The working bucket swings at ±90° with automatic speed adjustment and vertical lifting function for precise operations.
- Outrigger Protection: Outriggers are protected from the ground to prevent tipping during operations.
- Interlocking Device: The interlocking device ensures safety during operation by preventing outrigger operation when the bucket and arm are not retracted.
- Hydraulic Safety: Equipped with various hydraulic safety devices to ensure operation safety even in the event of oil pipe rupture.
- Emergency Safety Features: Engine start and flameout, emergency stop, and electric emergency power source for dealing with sudden failures.
- Fuel Efficiency: Remote throttle acceleration function for automatic switching between high and low throttle to reduce fuel consumption.
- Stable Operation: Lower control hydraulic handle and upper control 3D handle ensure stable and reliable operation.
- Insulated Boom Device: A small insulated boom device facilitates the hoisting of operating tools and equipment for improved efficiency.
- Hydraulic Tool Access: Fast hydraulic tool access interface for convenient switching of hydraulic tools and flexible operation.
SPECIFICATIONS:
Cab Chassis Make/Model | ISUZU/QL1100A8HAY |
Wheel Drive | 4×2 LHD |
Boom Type | Articulated & Telescopic |
Measurement | |
Overall Size (L × W × H) | 6570×2260×3470mm |
Front/Rear Overhang | 1110/2055 mm |
Front/Rear Track | 1504/1425mm |
Wheelbase | 3360 mm |
Ground Clearance | 220 mm |
Insulated Bucket Size | 1.19×0.6×1.06 m |
Bucket Max. Lifting Height | 17 m |
Max. Outreach | 11.2 m |
2nd Insulated Boom Length | 4.51 m |
1st Insulated Boom Length | 0.61 m |
Radius@Max Lifting | 3.2 m |
Height @ Max. Outreach | 8.2 m |
Weights | |
Gross Vehicle Weight(G.V.W) | 11700kg |
Tare / Curb Weight | 6580kg |
Bucket Max Loading | 272 Kg |
Front/Rear Axle Rating | 4000/7000kg |
Material Handler | 454kg |
Cab | |
Cab Style | Single Cab |
Cab Model | ISUZU/700P |
Cab Roof | Standard (low roof) |
Cab Width | 2200mm |
Construction | Full steel suspended |
No. of Seats | 2-3 |
Instrument & Controls | Standard |
Driver Seats | Automatic adjustment |
Equipment & Device | AC, power steering |
Engine | |
Make/Model | ISUZU/4HK1-TC51 |
Output Power/Speed | 141kW/2600rpm |
Max. Torque / Speed | 510N.m/1600rpm |
Displacement | 5.193L |
Engine Type | Water-cooled, 4 cylinders, 4-stroke, turbocharged, diesel engine |
Emission Regulation | EURO 5 |
Transmission | |
Make/Model | ISUZU/MLD-6S |
Type | Manual |
Gear Numbers | 6 forward +1 reverse |
Synchronizer | YES |
Wheels | |
Wheel Numbers | 6 + 1 spare tire |
Tires | 235/75R17.5 16PR |
Brake | |
Service | Front & Rear Drum, Air |
Auxiliary | Exhaust Brake |
Parking | Spring Brake |
ABS | YES |
Equipment | |
Air Condition | YES |
Centre Lock | YES |
Power Steering | YES |
Automatic Window | YES |
Leveling System | Equal volume cylinder hydrostatic leveling system |
Hydraulic System | Electro-hydraulic proportional control step-less speed regulation |
Bucket Unit | |
Rated Line Voltage | 46kV meet to ANSI A92.2 |
Rotation of Bucket | ±90º |
Boom Rotator | 360º Continuous |
Rotation Speed | 0-2r/m |
Outrigger Type | Front A-style, Rear A-style |
Earthing Cable | 25 mm² |
