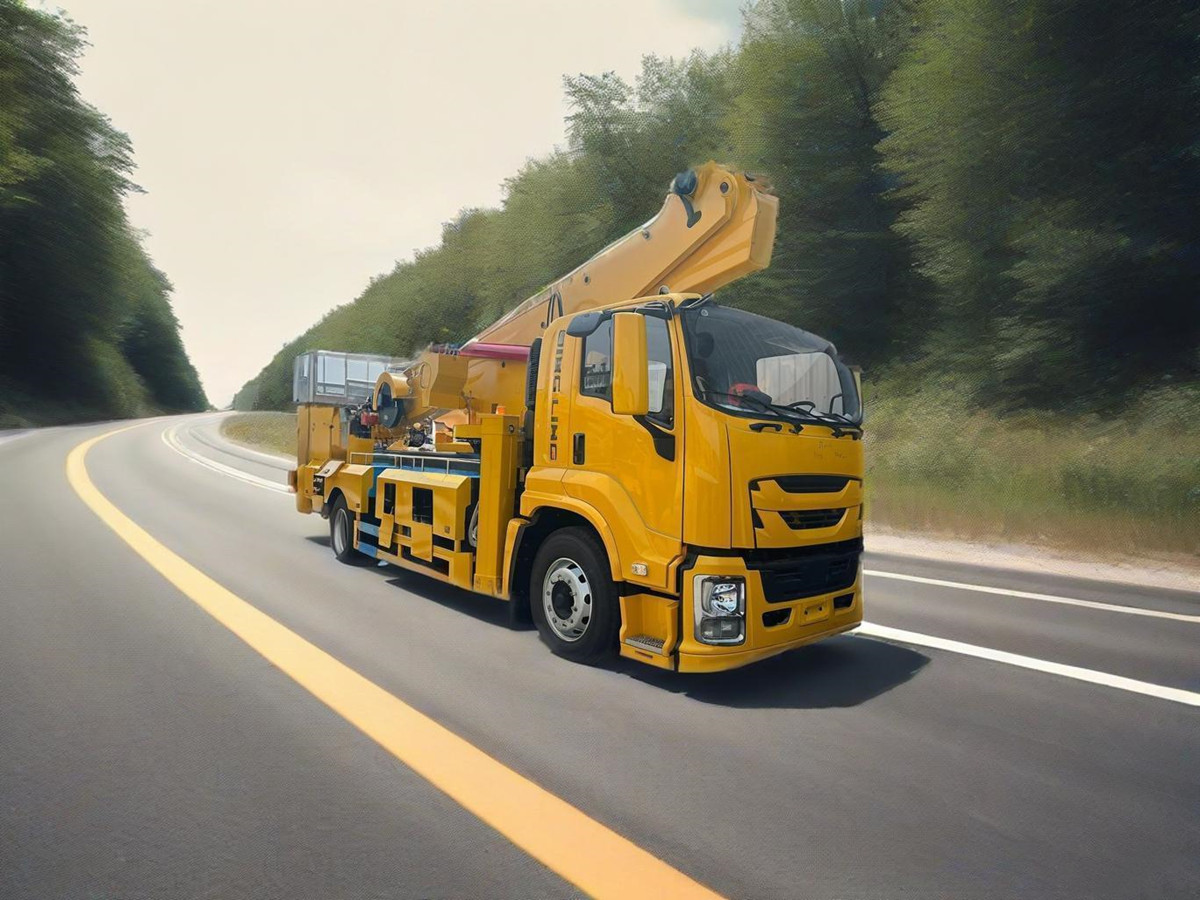

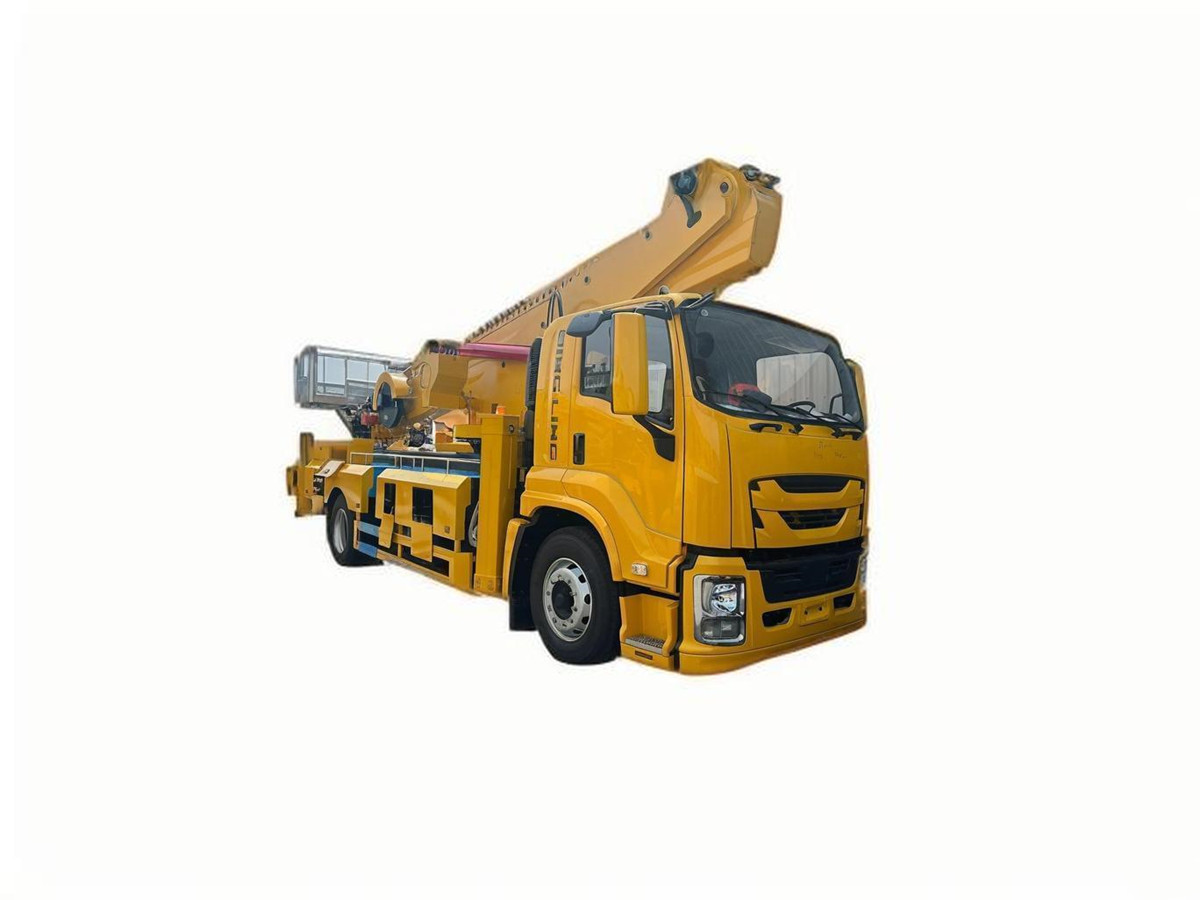

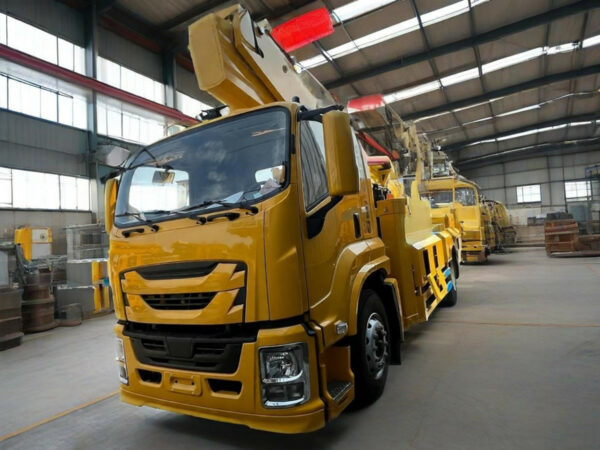

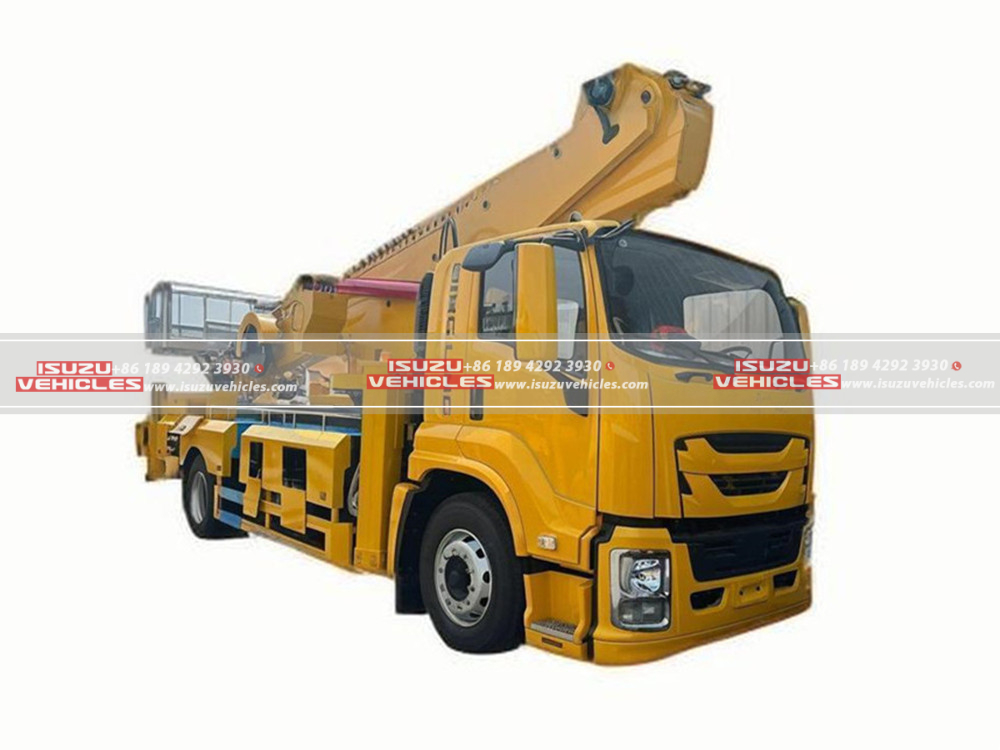

ISUZU 45M Telescopic Bucket Truck
Designed for ultra-high aerial operations where reach, stability, and safety are critical, the ISUZU 45M Telescopic Bucket Truck represents a professional-grade solution for power utilities, telecommunications, municipal services, and large-scale industrial maintenance. By combining a heavy-duty ISUZU chassis with an advanced telescopic boom system and intelligent control technology, this vehicle delivers reliable access performance for complex and demanding work environments.
Truck Brief
High-Altitude Working Capability
The ISUZU 45M Telescopic Bucket Truck is engineered to achieve a maximum working height of 45 meters, making it suitable for tasks that require exceptional vertical and horizontal reach. The aerial platform offers a maximum working radius of 25 meters, while maintaining a 7-meter outreach at maximum working height, allowing operators to cover wide and challenging work zones without frequent repositioning.
The 200 kg rated working platform capacity supports up to three operators with tools, enabling efficient teamwork at height. With a 360-degree rotating platform, operators can precisely position themselves for optimal access, improving productivity and reducing setup time on site.
ISUZU FVR Chassis and Power Performance
Mounted on the robust ISUZU FVR 5X chassis, this bucket truck is built for stability, durability, and long-term reliability. The chassis supports a gross vehicle weight of 19,300 kg, providing a solid foundation for the large telescopic boom and wide outrigger system.
Power is delivered by the ISUZU 6HK1-TCG61 diesel engine, producing 240 HP (177 kW) and a strong 850 N·m of torque, ensuring confident driving performance and stable hydraulic operation even under full load. This 7.79-liter, six-cylinder engine meets EURO 6 emission standards, combining power, fuel efficiency, and environmental compliance.
Cab Comfort and Control Environment

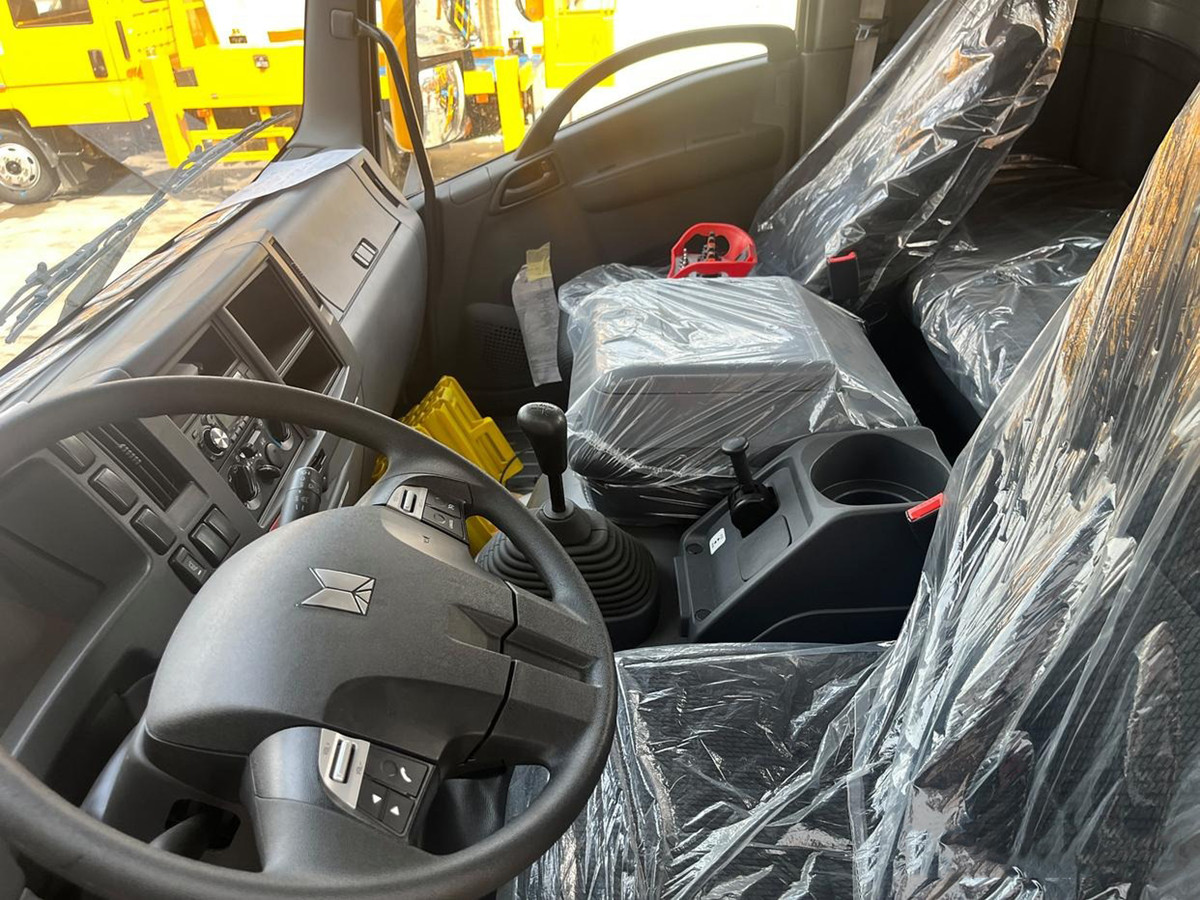

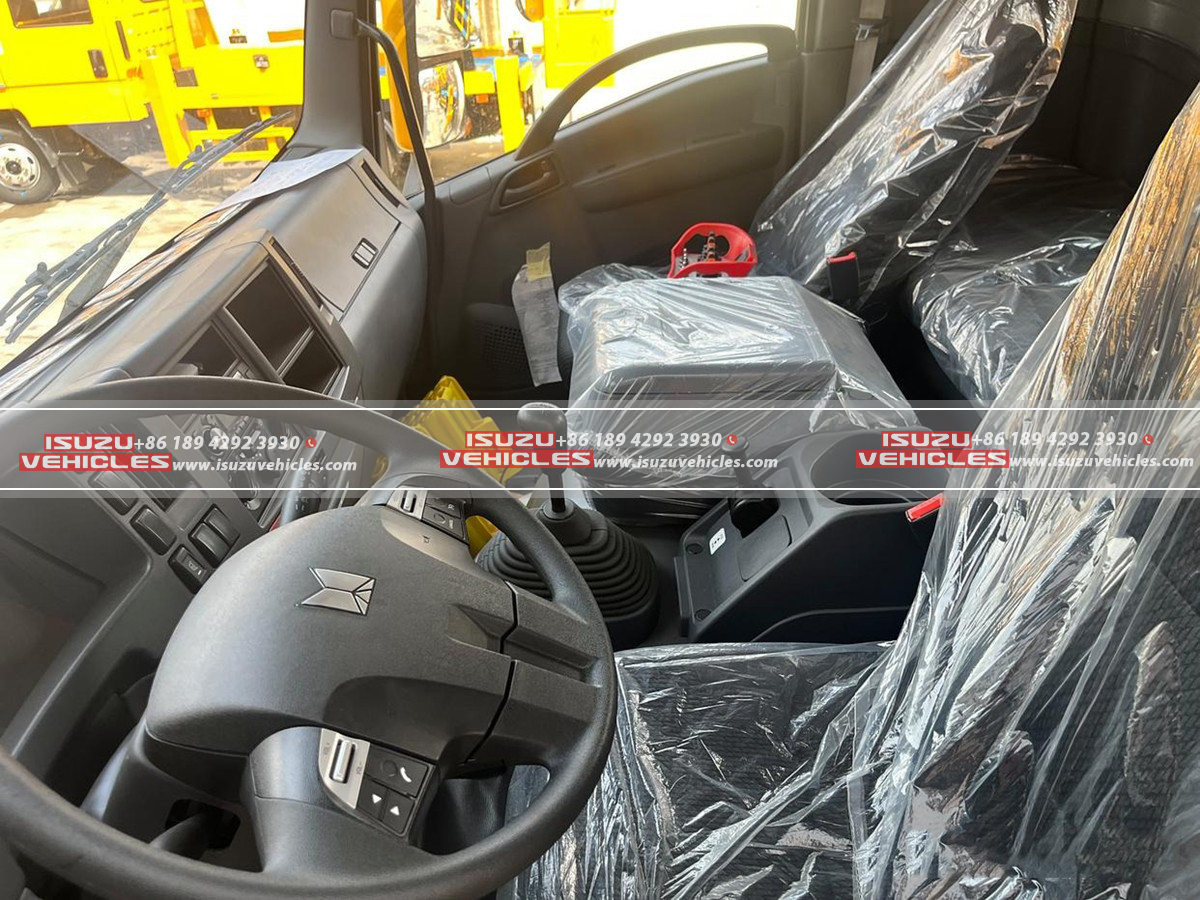

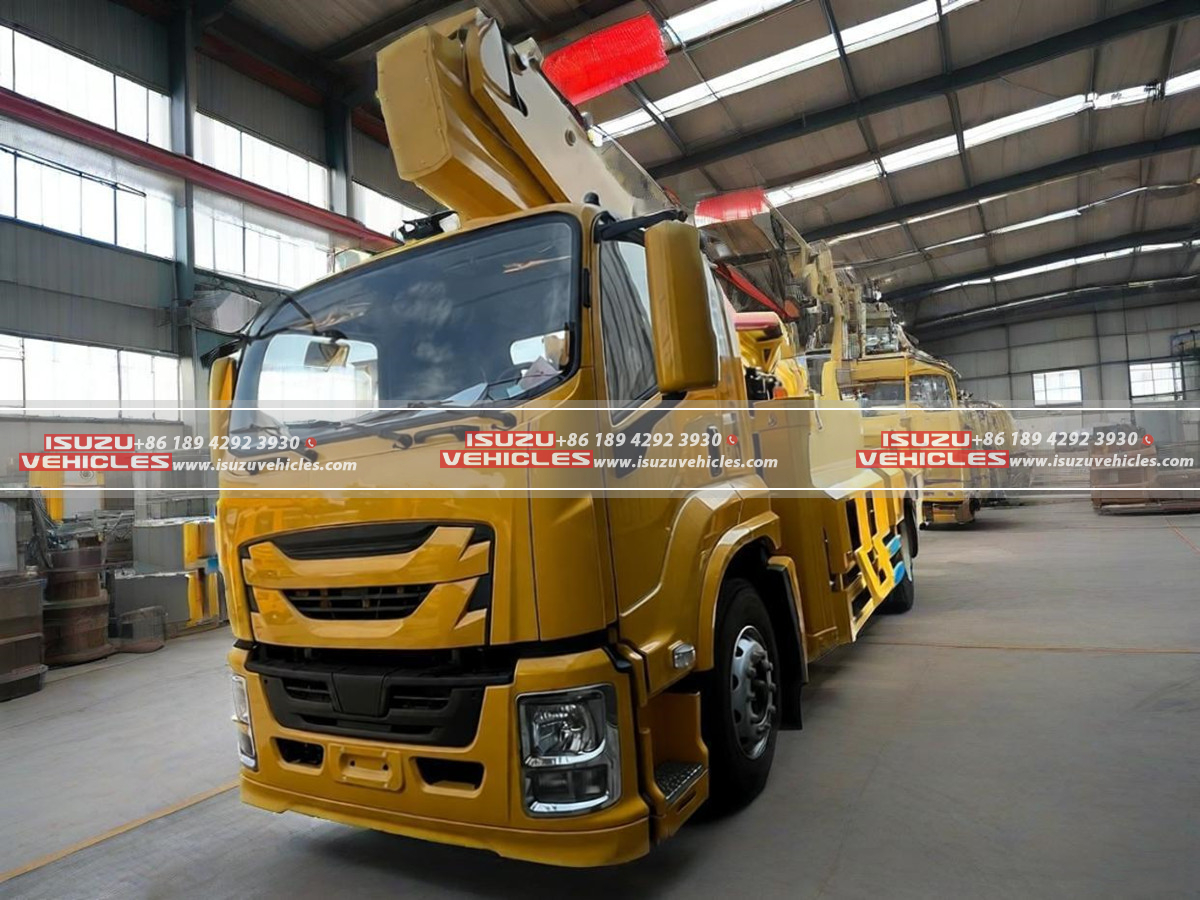

The vehicle is equipped with the VC61 sleeper cab, featuring an all-steel structure and 4-point hydraulic suspension, designed to reduce vibration and enhance driving comfort during long-distance or extended-duty operations. Inside the cab, operators benefit from air conditioning, electric doors and windows, central locking, and a multi-information display, creating a comfortable and intuitive driving environment. The front-tilting cab design allows easy access for inspection and routine maintenance.
Aerial System and Key Features
Advanced Telescopic Boom Structure

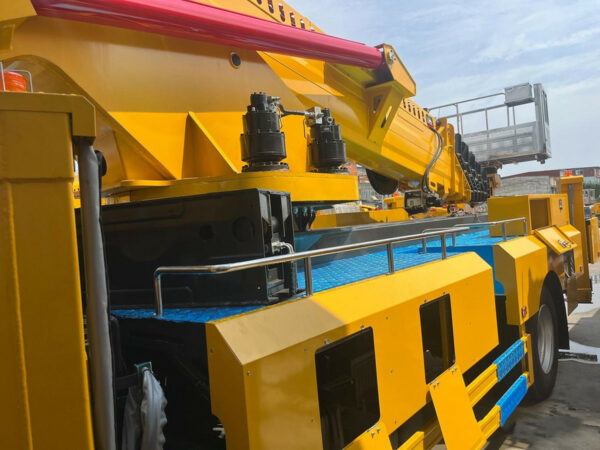

The aerial device adopts an 8-section hexagonal synchronized telescopic boom, offering a compact structure, high rigidity, and a wide operating range. Manufactured from high-strength steel, the boom combines light weight with excellent strength and toughness, improving overall vehicle stability and working efficiency.

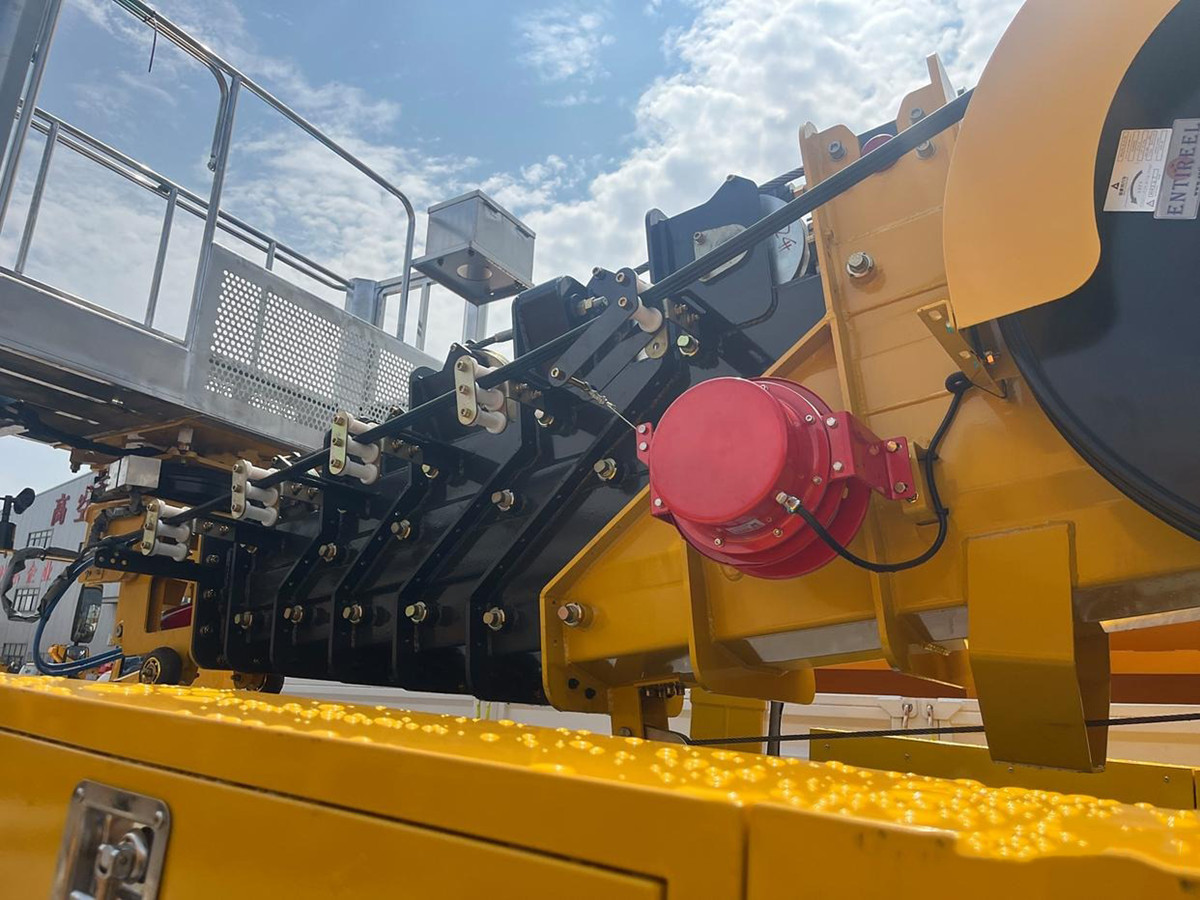

A full-chain telescopic mechanism with built-in chain protection enhances safety and reliability during extension and retraction, while the internal telescopic cylinder and double-chain design simplify fault detection and routine maintenance.
Working Platform and Operator Safety

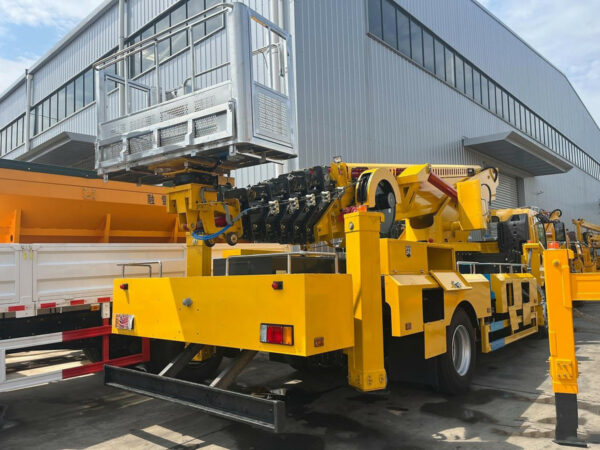

The working bucket is constructed from high-strength stainless steel, providing corrosion resistance, long service life, and improved load-bearing performance. Its lightweight structural design increases usable capacity while maintaining structural integrity. The bucket size of 1600 × 730 × 1000 mm can be customized to suit specific operational requirements.
Comprehensive safety systems are integrated, including automatic interlocking protection, insufficient ground bearing protection, and real-time operating condition monitoring, ensuring safe operation even in complex environments.
Outrigger System and Stability Control
The vehicle features front V-type and rear H-type outriggers, offering excellent stability across a wide range of ground conditions. With an 8-meter lateral span and 8.1-meter longitudinal span, the outriggers create a large and stable working base. Operators can deploy the outriggers simultaneously or independently, allowing flexible adaptation to different job sites and space constraints.
Intelligent Control and Monitoring
The aerial system is equipped with an advanced CAN bus control system, integrated with electro-hydraulic proportional valves from internationally recognized manufacturers. This setup enables smooth, precise, and stepless control of all boom movements.
A 7-inch LCD display provides real-time information such as boom length, elevation angle, platform height, and working height, helping operators maintain full awareness during operation. The inclusion of a wireless remote control further enhances convenience and safety, especially during setup and fine positioning.
The ISUZU 45M Telescopic Bucket Truck is a high-performance aerial access solution designed for professionals who require maximum reach, intelligent control, and uncompromising safety. With its powerful Isuzu drivetrain, advanced telescopic boom system, and comprehensive stability and monitoring features, this vehicle delivers reliable and efficient performance for the most demanding high-altitude operations.
SPECIFICATIONS
| MEASUREMENT | |
| Overall Size | 9200×2540×3900mm |
| Front/Rear Track | 2060/1855mm |
| Front/Rear Overhang | 1370/1585mm |
| Wheelbase | 4500mm |
| Ground Clearance | 265mm |
| WEIGHTS | |
| Gross Vehicle Weight | 19300kg |
| Tare / Curb Weight | 15450kg |
| Front/Rear Axle Rating | 6300kg/13000kg |
| CHASSIS TRUCK | |
| Chassis Truck Line | ISUZU/FVR 5X/6HK240 E6 |
| CAB | |
| Cab Model | VC61 5X |
| Cab Type | Sleeper Cab |
| Cab Roof | Standard |
| Cab Width | 2480 mm |
| No. of Seats | 2 |
| Construction | All steel, 4-point hydraulic suspension cab |
| Instrument & Controls | Multi information display, Indicator lamps, Central locking, Electric doors and windows |
| Driver Seats | Adjustable, Air seat optional |
| Tiltable | Front tiltable |
| Equipment & Device | AC/Radio/Fire extinguisher/Cassette record |
| ENGINE | |
| Make/Model | ISUZU/6HK1-TCG61 |
| Output Power/Speed | 177kw(240HP)/2400 rpm |
| Max. Output Torque/Speed | 850N.m/1400 rpm |
| Displacement | 7.79L |
| Engine Type | 6-cylinder in-line, water-cooled, direct-injection, high-pressure common-rail, turbocharged and intercooled diesel engine (DOC + DPF + SCR + ASC system) |
| Emission Regulation | EURO 6 |
| CLUTCH | |
| Type | Pull-type clutch with pneumatic-assisted hydraulic control system |
| Diameter | Φ380mm |
| TRANSMISSION | |
| Make/Model | FAST/8JS95TE-C |
| Type | Manual |
| Gear Numbers | 8F+2R |
| Synchronizer | Equipped |
| STEERING | |
| Make/Model | YBSTEER |
| Type | Multifunction steering wheel with adjustable height and angle |
| Position | Left Hand Side |
| CHASSIS | |
| Type | U-profile parallel ladder cold riveted cross |
| Module | Front frame width 950 mm/rear 850 mm (or 850 mm front & rear); frame height 280 mm |
| Frame Layer | 2 layers standard body unit mounting |
| Suspension | Leaf spring suspension 7/6+8 |
| AXLE | |
| Front Axle Make/Model | PF075 |
| Front Axle Type | Steering Axle |
| Front Axle Rating | 6300kg |
| Rear Axle Make/Model | ISUZU/R130 |
| Rear Axle Type | Driving Axle |
| Rear Axle Rating | 13000kg |
| Rear Axle Ratio | 4.555 |
| ELECTRIC | |
| Working Voltage | 24V，Negative Grounded |
| Starter | 24V |
| Alternator | 24V – 50A |
| Battery type | 2×12V-120Ah |
| BRAKE | |
| Service Brake | Dual circuit compressed air brake |
| Parking Brake | Spring energy, compressed air operating on rear wheels |
| Auxiliary Brake | Engine exhaust brake |
| Others | ABS |
| BODY UNIT / SUPERSTRUCTURE | |
| Bucket Rated Capacity | 200kg |
| Max Working Height | 45m |
| Max. Working Radius at Max. Working Height | 7m |
| Max. Working Radius | 25m |
| Max. Working Height at Max. Working Radius | 6m |
| Outrigger Span (Lateral) | 8m |
| Outrigger Span (Longitudinal) | 8.1m |
| Platform Slewing Angle | 360° |
| Bucket Size | 1600×730×1000mm（Customizable） |
| Boom Type | 8-Section Hexagonal Synchronized Telescoping Boom |
