Brief:

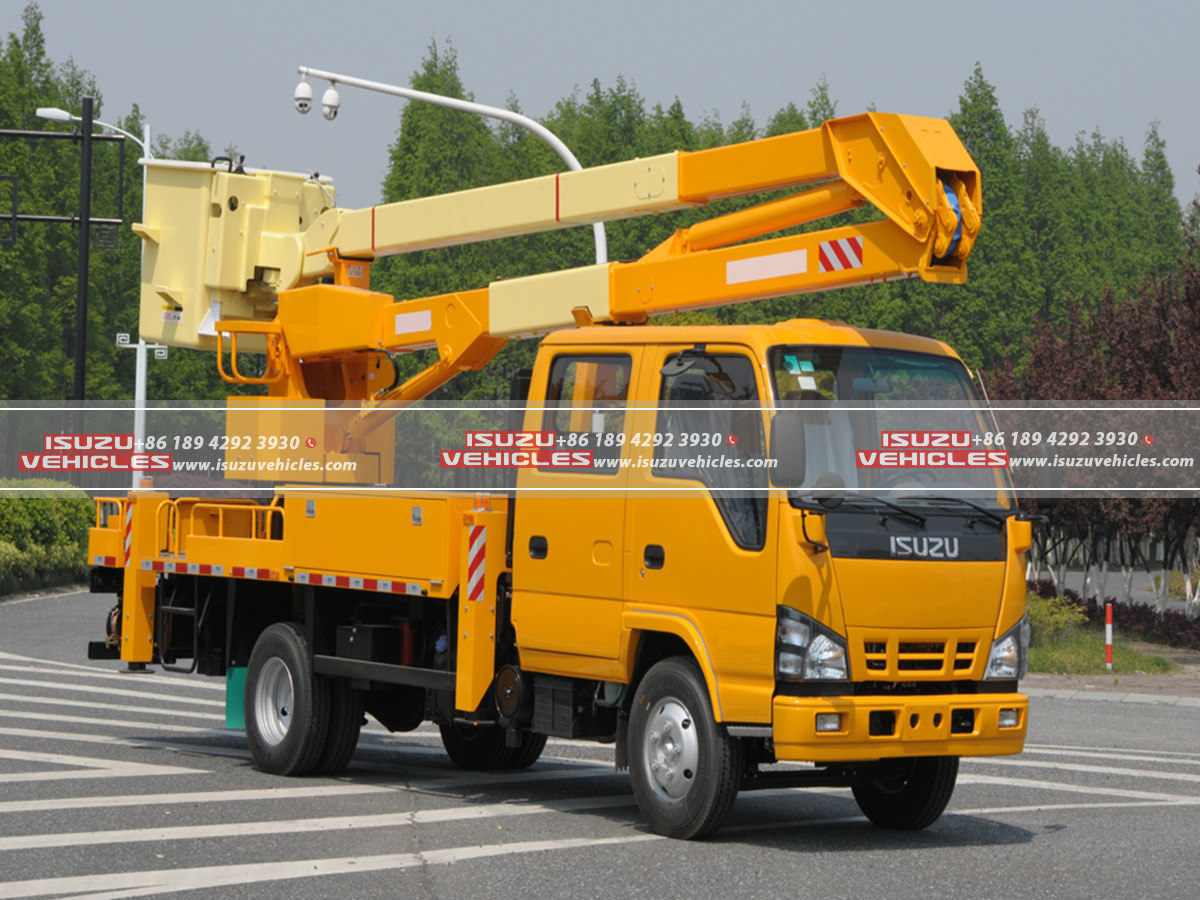

It is introducing the ISUZU 15m Insulated Bucket Truck, a versatile and reliable vehicle designed to meet the demanding needs of utility maintenance and aerial work. Built on the robust ISUZU QL2072A5HAY chassis with a 4×4 drive configuration and a crew cab, this truck offers exceptional maneuverability and comfort for the operator and crew. Equipped with an articulated and telescopic boom, it provides a maximum lifting height of 15 meters and an outreach of 9.2 meters, ensuring access to elevated work areas with ease. With a fully insulated bucket measuring 1.07 x 0.61 x 1.1 meters and a rated line voltage of 10kV, this truck is optimized for safe and efficient operations in electrical maintenance tasks. Powered by an efficient ISUZU 4KH1CN5HD engine and equipped with a manual transmission, it delivers reliable performance and smooth operation, even in challenging terrain. Packed with air conditioning, power steering, and automatic windows, the ISUZU 15m Insulated Bucket Truck offers unmatched functionality and convenience for your utility maintenance needs.
Features:
- Chassis: Built on the sturdy ISUZU QL2072A5HAY chassis with a 4×4 drive configuration and a crew cab for enhanced maneuverability and comfort.
- Boom Type: Articulated and telescopic boom design for flexible reach and precise positioning in aerial work applications.
- Bucket Size: Fully insulated bucket measuring 1.07 x 0.61 x 1.1 meters, optimized for safe operations in electrical maintenance tasks.
- Lifting Capacity: Maximum lifting height of 15 meters and an outreach of 9.2 meters to easily access elevated work areas.
- Engine: Powered by an efficient ISUZU 4KH1CN5HD engine delivering 96kW output power and 290N.m torque for reliable performance.
- Transmission: Equipped with an ISUZU MSB-5SM manual transmission with 5 forward gears and 1 reverse gear for smooth operation.
- Comfort and Convenience: Features air conditioning, power steering, automatic windows, and a crew cab with seating for six for enhanced operator comfort and convenience.
- Safety Features: Includes ABS, auxiliary exhaust brake, front and rear drum brakes, and spring parking brake for enhanced safety during operation.
- Hydraulic System: Utilizes an electro-hydraulic proportional control step-less speed regulation system for precise control and efficiency.
- Bucket Unit: Rated line voltage of 10kV, bucket rotation of ±90º, and a boom rotator with 360º continuous rotation for versatile utility maintenance tasks.
SPECIFICATIONS:
Category | Information |
---|---|
Cab Chassis Make/Model | ISUZU/QL2072A5HAY |
Wheel Drive | 4×4 LHD |
Boom Type | Articulated & Telescopic |
Measurement | |
Overall Size (L × W × H) | 6570×2260×3070mm |
Front/Rear Overhang | 1015/2100 mm |
Front/Rear Track | 1504/1425mm |
Wheelbase | 3815 mm |
Ground Clearance | 220 mm |
Insulated Bucket Size | 1.07×0.61×1.1 m |
Bucket Max. Lifting Height | 15 m |
Max. Outreach | 9.2 m |
Outrigger Extend (Horizontal) | 3500 mm |
Outrigger Extend (Vertical) | 4000 mm |
2nd Insulated Boom Length | 2500 mm |
1st Insulated Boom Length | 400 mm |
Weights | |
Gross Vehicle Weight(G.V.W) | 7300 kg |
Tare /Curb Weight | 6020 kg |
Bucket Max Loading | 200 kg |
Front/Rear Axle Rating | 2500/4800 kg |
Cab | |
Cab Style | Crew Cab |
Cab Model | ISUZU/600P ELF |
Cab Roof | Standard (low roof) |
Cab Width | 2200 mm |
Construction | Full steel suspended |
No. of Seats | 6 |
Instrument & Controls | Standard |
Driver Seats | Airbag |
Tiltable | Front tiltble |
Equipment & Device | AC, power steering |
Engine | |
Make/Model | ISUZU/4KH1CN5HD |
Output Power/Speed | 96 kW/3400 rpm |
Max. Torque / Speed | 290 N.m/1500 rpm |
Displacement | 2.999 L |
Engine Type | Water-cooled, 4 cylinders, 4-stroke, turbocharged, diesel engine |
Emission Regulation | EURO 5 |
Transmission | |
Make/Model | ISUZU/MSB-5SM |
Type | Manual |
Gear Numbers | 5 forward +1 reverse |
Synchronizer | YES |
Wheels | |
Wheel Numbers | 6 + 1 spare tire |
Tires | 7.00R16 |
Brake | |
Service | Front & Rear Drum, Air |
Auxiliary | Exhaust Brake |
Parking | Spring Brake |
ABS | YES |
Equipments | |
Air Condition | YES |
Centre Lock | YES |
Power Steering | YES |
Automatic Window | YES |
Leveling System | Equal volume cylinder hydrostatic leveling system |
Hydraulic System | Electro-hydraulic proportional control step-less speed regulation |
Bucket Unit | |
Rated Line Voltage | 10 kV |
Rotation of Bucket | ±90º |
Boom Rotator | 360º Continuous |
Rotation Speed | 0-2 r/m |
