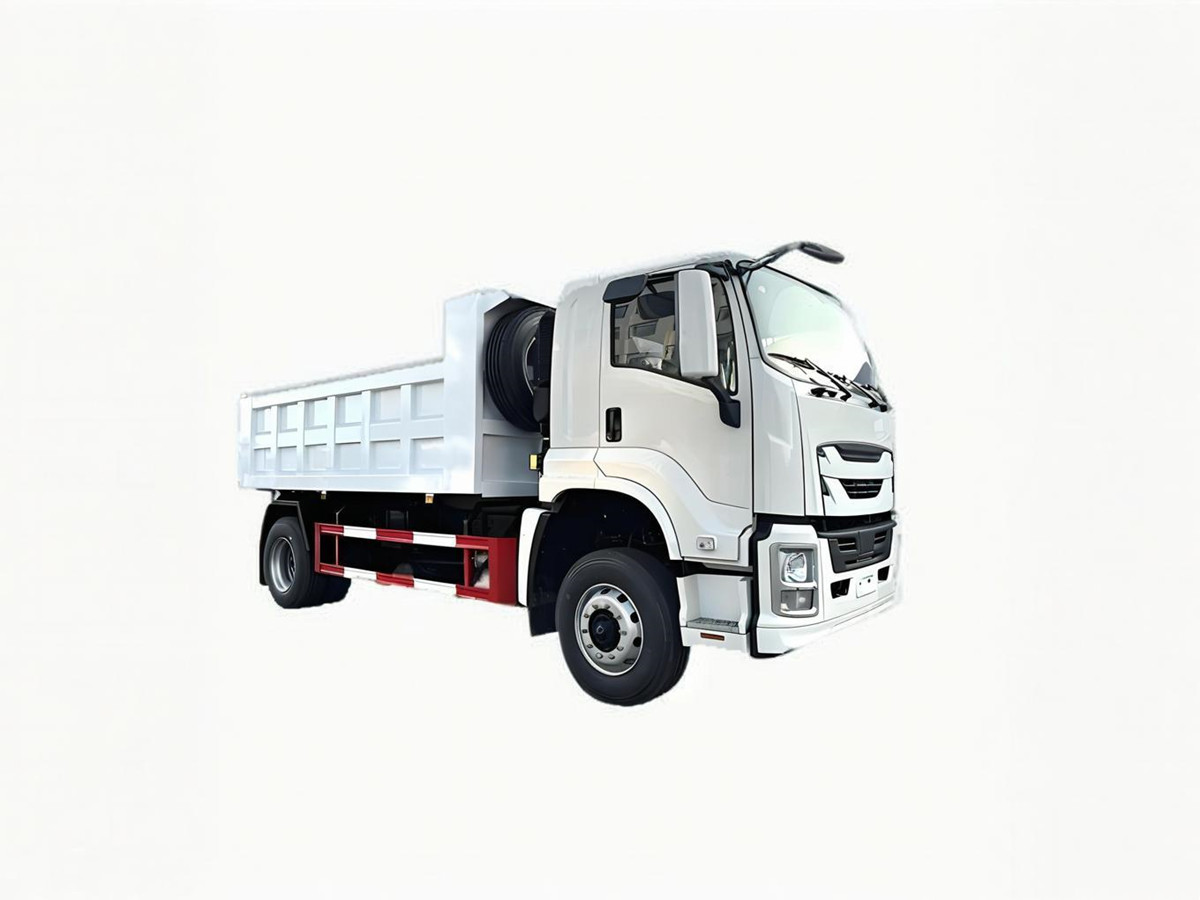

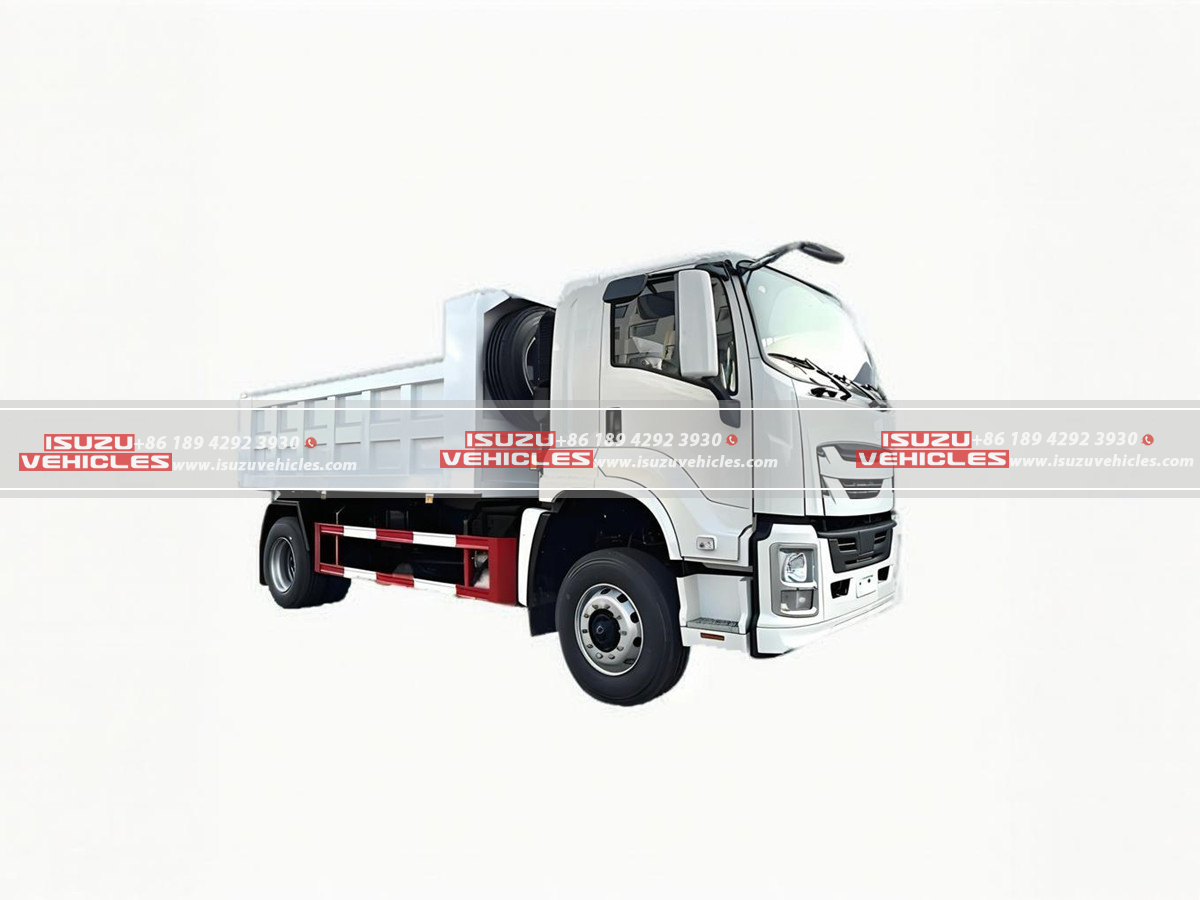

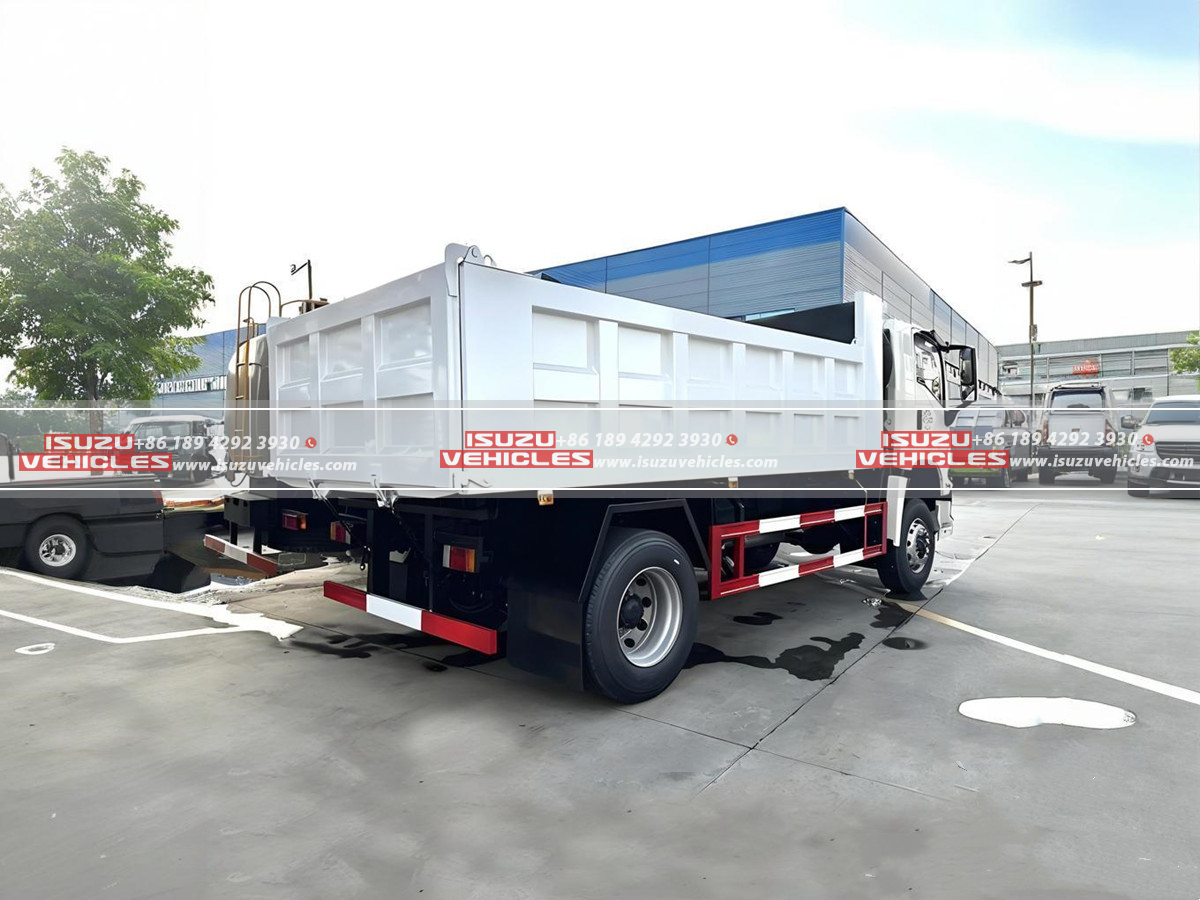

ISUZU FTR 8 CBM Heavy Duty Dump Truck

Engineered for demanding construction and material transport operations, the ISUZU FTR 8 CBM Heavy Duty Dump Truck delivers a strong balance of power, durability, and operational efficiency. Built on the proven ISUZU FTR platform and matched with a reinforced dump body, this model is designed to handle heavy loads reliably across construction sites, urban infrastructure projects, and challenging road conditions.

---

Truck Brief

Overall Design and Application

The ISUZU FTR Dump Truck is purpose-built for high-intensity hauling tasks such as sand, gravel, soil, and demolition debris. With an overall size of 6970 × 2500 × 3050 mm and a 3900 mm wheelbase, the truck offers excellent stability while maintaining manageable dimensions for job sites with limited space. A gross vehicle weight of 19,300 kg and a rated payload of 11,500 kg underline its suitability for continuous heavy-duty operation.

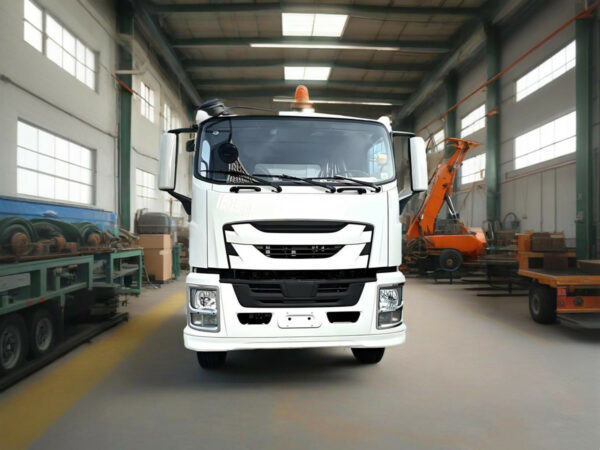

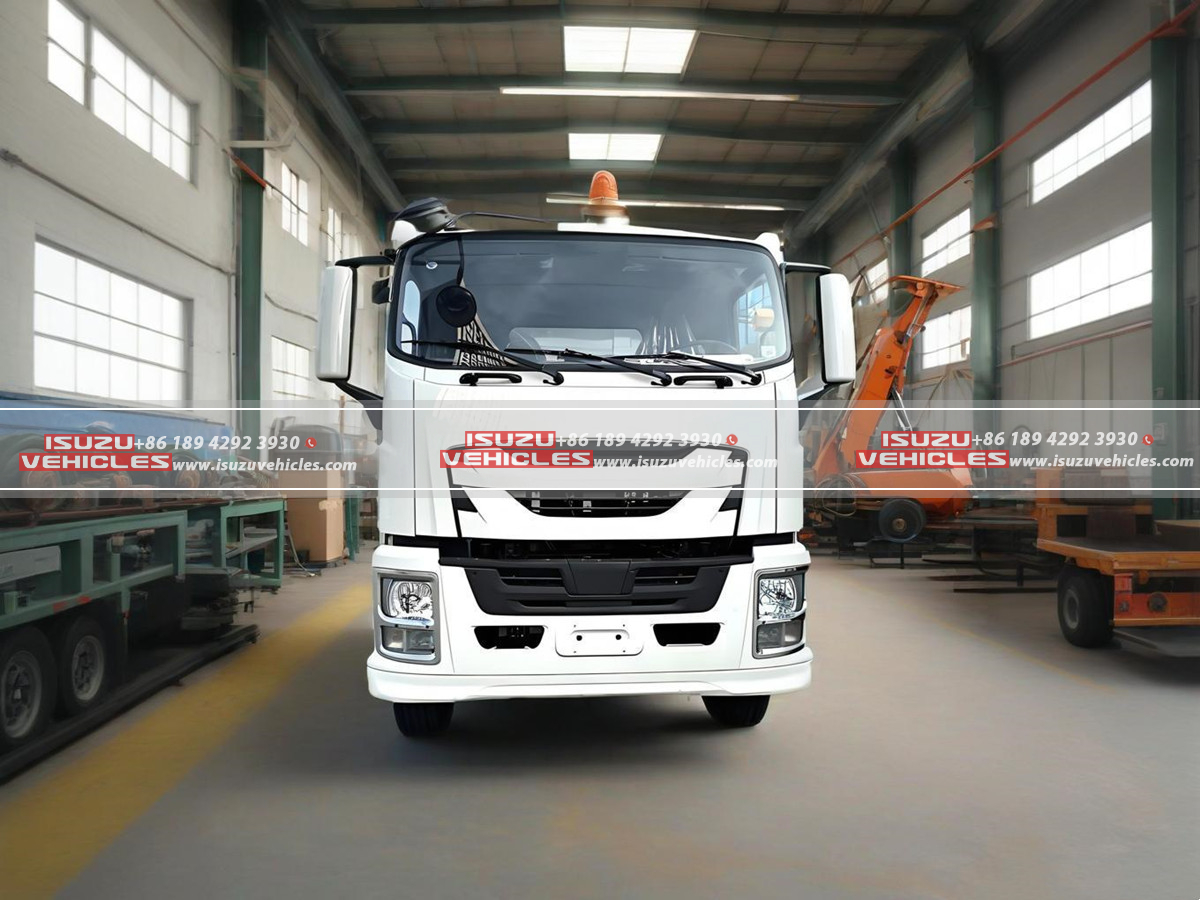

Cab Comfort and Driving Environment

The vehicle is equipped with the VC61 4X sleeper cab, designed to support both long working hours and short-distance site operations. The cab uses a 4-point hydraulic suspension system, which helps absorb road vibrations and improves driving comfort under load.

Inside, the driver benefits from air conditioning, electric doors and windows, center locking, and a multi-functional steering wheel, all supported by a multi-functional LCD instrument panel that provides clear, real-time vehicle information. The front-tilting cab design ensures convenient access for routine inspections and maintenance, reducing downtime.

Engine and Powertrain Performance

At the core of the truck is the ISUZU 4HK1-TCG60 diesel engine, delivering 151 kW (205 HP) at 2600 rpm and a strong 647 N·m of torque at 1600 rpm. This 5.193-liter, four-cylinder engine is turbocharged and intercooled, offering consistent power output, strong low-speed torque, and dependable fuel efficiency, even under full load.

The engine is paired with the ISUZU MLD-6Q manual transmission, featuring 6 forward gears and 1 reverse, with synchronized shifting for smooth gear changes. This drivetrain combination ensures confident starts, stable hill climbing, and controlled performance in stop-and-go construction environments.

Chassis Strength and Safety Systems

The truck is built on a U-profile parallel ladder frame, cold-riveted with reinforced cross members and a double-layer body mounting structure, providing the rigidity needed for heavy tipping operations. Mechanical semi-elliptic leaf spring suspension (7/7+7) supports consistent load distribution, while the axle configuration — 6,300 kg front axle and 13,000 kg rear axle — ensures strong load-bearing capacity.

Safety is enhanced through a dual-circuit compressed air braking system, engine exhaust brake, and ABS, delivering reliable stopping power under varying load and road conditions.

---

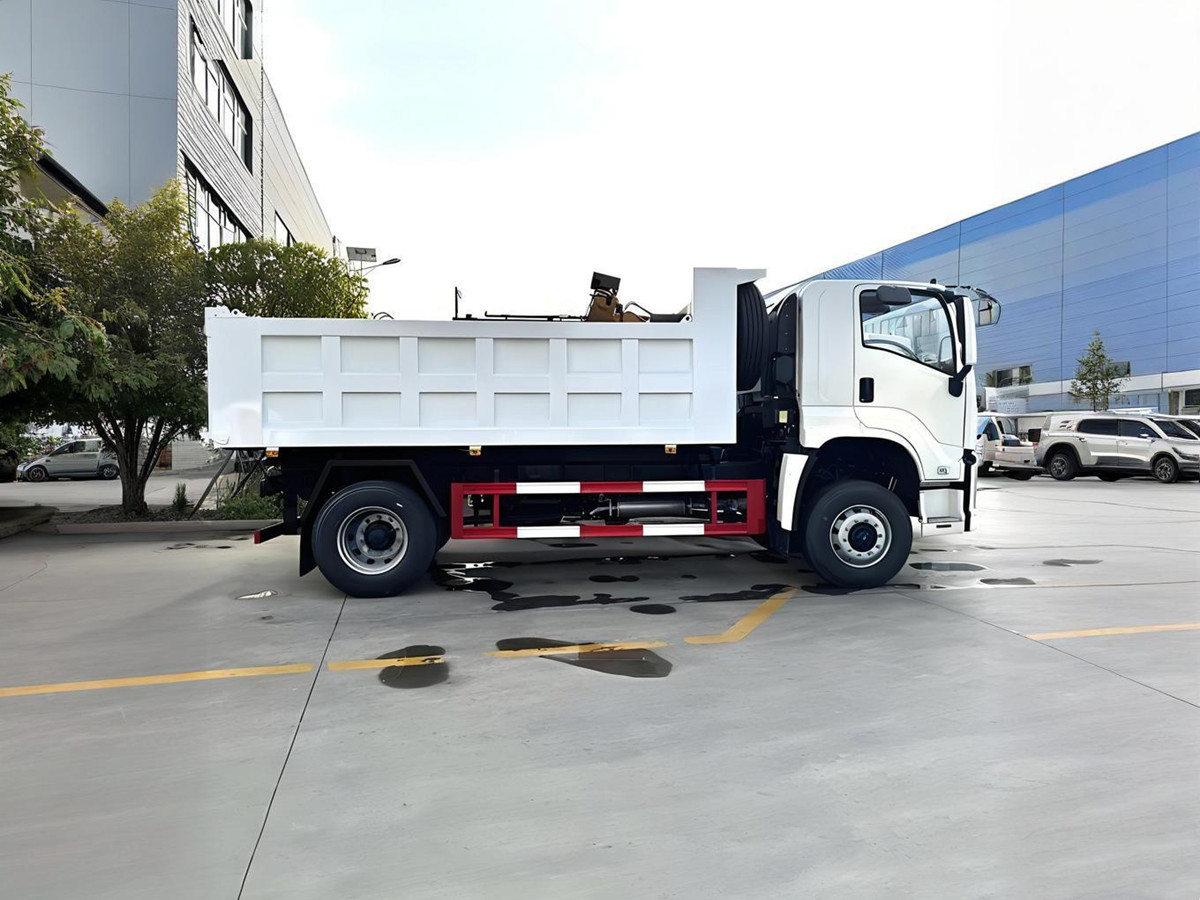

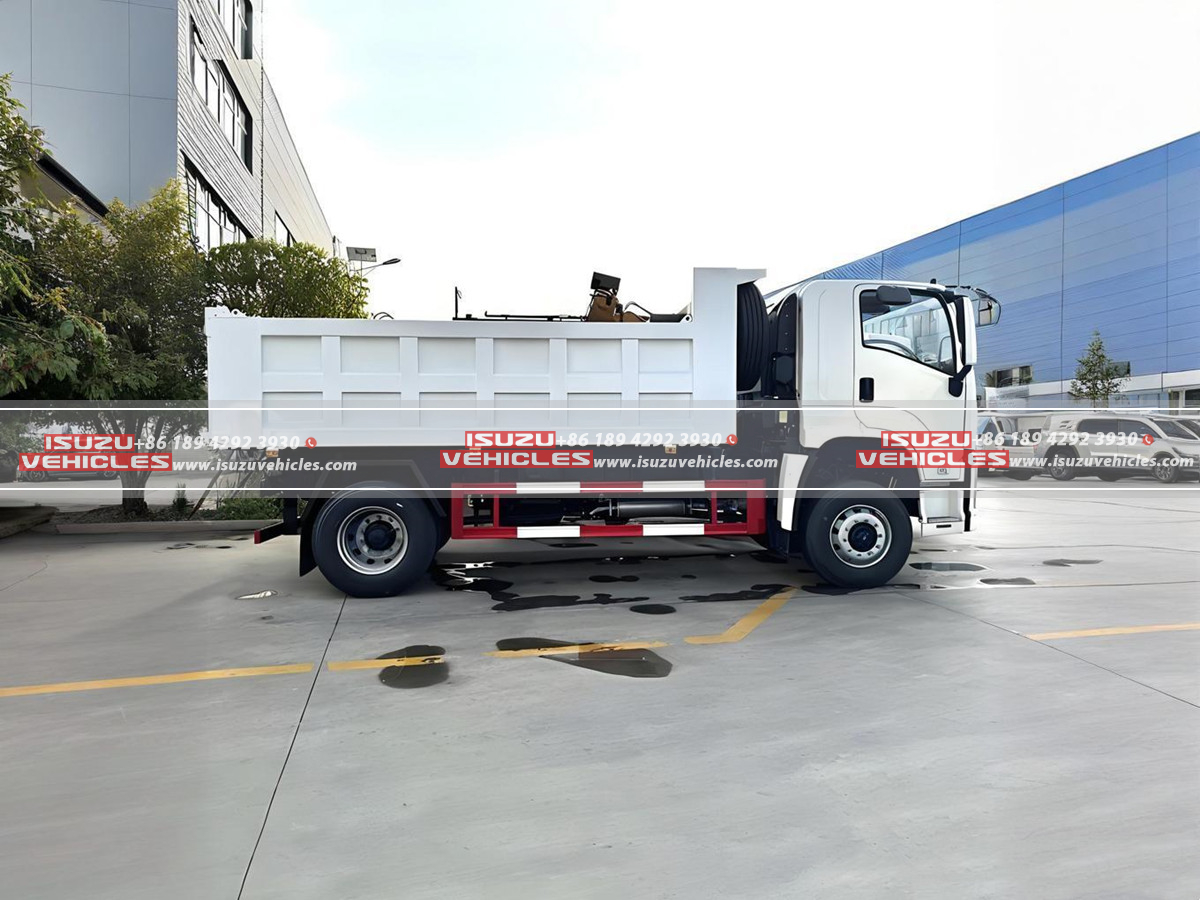

Dump Body and Key Features

High-Strength Dump Body Structure

The dump truck body has a capacity of 8 CBM, with internal dimensions of 4500 × 2300 × 800 mm, making it ideal for transporting bulk materials efficiently. Constructed from Q235 carbon steel, the body features a rectangular cross-grid reinforced structure combined with additional reinforcement ribs, ensuring excellent resistance to deformation and long-term durability under repeated heavy loads.

The 5 mm thick floor plate and 4 mm side walls further enhance structural strength, extending service life in abrasive working environments.

Hydraulic Tipping System

The tipping mechanism uses a front-end hydraulic lifting cylinder, delivering smooth and stable lifting performance. With a maximum tipping angle of 45°, the truck allows fast and complete unloading of materials. Tipping operations are conveniently controlled via a lever inside the cab, enabling precise and safe operation without leaving the driver’s seat.

Tailgate and Operational Safety

The dump body is fitted with a single swing rear tailgate, designed for reliable discharge of materials. Tailgate locking mechanisms improve safety during transport, while side guards and a rear bumper enhance overall road safety and compliance during daily operation.

Durability and Exterior Protection

To withstand harsh working conditions, the dump body is treated with an electrophoretic primer coating, providing excellent corrosion resistance and long-term surface protection. Bright, long-lasting LED lights improve visibility during night operations or low-light environments, contributing to safer job site performance.

---

The ISUZU FTR 8 CBM Heavy Duty Dump Truck is a dependable and well-engineered solution for contractors and fleet operators who require strength, efficiency, and long-term reliability. With its powerful Isuzu drivetrain, reinforced dump body, and operator-focused design, this truck is built to perform consistently in demanding construction and material hauling applications.

SPECIFICATIONS

MEASUREMENT
Overall Size	6970×2500×3050mm
Front/Rear Track	1960mm/1855mm
Front/Rear Overhang	1335mm/1735mm
Wheelbase	3900mm
WEIGHTS
Gross Vehicle Weight	19300kg
Tare / Curb Weight	7800kg
Loading Weight	11500kg
Front/Rear Axle Rating	6300kg/13000kg
CHASSIS TRUCK
Chassis Truck Line	ISUZU/FTR 4X /4HK205 E6
CAB
Cab Model	VC61 4X
Cab Type	Sleeper Cab
Cab Roof	Standard
Cab Width	2480mm
No. of Seats	2
Construction	4-Point hydraulic suspension cab
Instrument & Controls	Center lock/Electric doors and windows/Multi-functional steering/Multi-functional LCD instrument
Driver Seats	Adjustable
Tiltable	Front Tiltable
Equipment & Device	AC/Radio/Cassette record
ENGINE
Make/Model	ISUZU/4HK1-TCG60
Output Power/Speed	151kW (205 HP)/2600rpm
Max. Output Torque/Speed	647N.m/1600rpm
Displacement	5.193 L
Engine Type	4-Cylinder in-line, Water-cooled, Turbocharged and Intercooled
Emission Regulation	EURO 6
CLUTCH
Type	Push-type clutch, hydraulically operated and air-assisted
Diameter	Φ350mm
TRANSMISSION
Make/Model	ISUZU/MLD-6Q
Type	Manual
Gear Numbers	6F+1R
Synchronizer	Equipped
STEERING
Make/Model	YBSTEER
Type	Multifunction steering wheel with tilt and telescopic adjustment
Position	Left Hand Side
CHASSIS
Type	U-profile parallel ladder cold riveted cross
Module	Frame assembly width: 850 mm; frame height: 258 mm
Frame Layer	2 layers standard body unit mounting
Suspension	Mechanical, Semi-elliptic Leaf Springs 7/7+7
AXLE
Front Axle Make/Model	ISUZU/PF065
Front Axle Type	Steering Axle
Front Axle Rating	6300kg
Rear Axle Make/Model	ISUZU/R130
Rear Axle Type	Driving Axle
Rear Axle Rating	13000kg
Rear Axle Ratio	5.571
ELECTRIC
Working Voltage	24V，Negative Grounded
Starter	24V
Battery type	2×12V-70Ah
BRAKE
Service Brake	Dual circuit compressed air brake
Parking Brake	Spring energy,compressed air operating on rear wheels
Auxiliary Brake	Engine exhaust brake
Others	ABS
BODY UNIT / SUPERSTRUCTURE
Tipping Box Size	4500×2300×800mm
Capacity	8 CBM
Box Structure	Rectangular box with cross-grid structure
Material	Q235 Carbon Steel
Floor Thickness	5 mm
Side Wall Thickness	4 mm
Tailgate	Single swing rear door
Hydraulic System Brand	China brand
Lifting Cylinder Type	Front-end cylinder
Maximum Tipping Angle	45°
Tipping Control	By the lever in the cab
Painting	Electrophoretic primer
