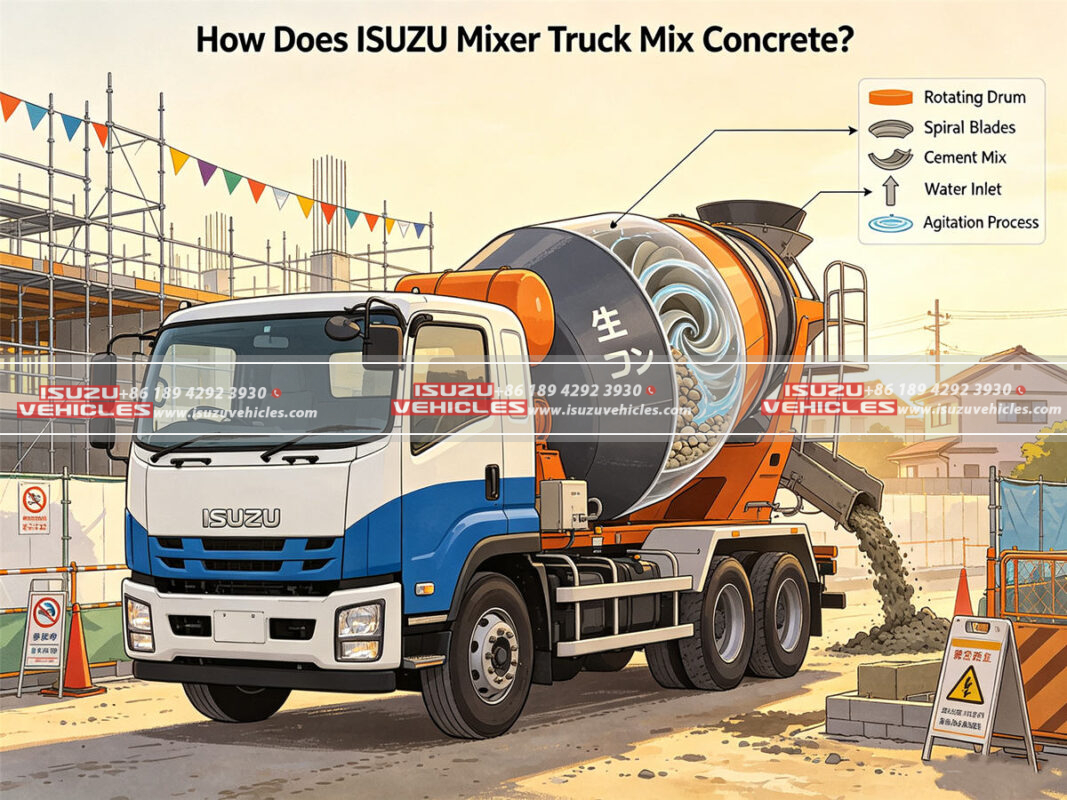

1. How Does an ISUZU Mixer Truck Mix Concrete?
An ISUZU mixer truck mixes concrete through a continuously rotating drum that uses specially shaped internal mixing blades to lift, tumble, fold, and redistribute the concrete mixture while the vehicle is traveling between the batching plant and construction site. Unlike an ordinary cargo vehicle, a concrete mixer is designed around the fact that fresh concrete is still an active material after it has been produced, because cement, water, sand, and aggregate must remain properly distributed and workable until the concrete is discharged, and the rotating drum provides the controlled mechanical agitation needed to reduce segregation and premature setting during transportation. Current ISUZU mixer configurations range from compact 4 CBM models to heavy-duty GIGA configurations with 12 CBM-class drums, allowing contractors to select a truck according to project scale, road conditions, payload requirements, and delivery distance.
The mixing process begins when the concrete ingredients have been proportioned and mixed at a batching plant or loaded into the mixer according to the required concrete specification. Once inside the drum, the material does not simply sit in one position while the truck drives to the construction site. Instead, the drum rotates around its inclined axis, causing the internal blades to repeatedly move portions of the mixture upward and then allow them to fall back toward the lower part of the drum. This continuous movement helps maintain a more uniform distribution of cement paste, water, sand, and aggregate, while also keeping the fresh concrete in a condition suitable for subsequent placement.
A current ISUZU concrete mixer truck, for example, uses a 7.6 m³ mixing drum with a diameter of approximately 2,100 mm, a total drum length of about 5,800 mm, and a 13-degree installation angle, demonstrating how the drum geometry is carefully designed around the movement and discharge of concrete rather than simply functioning as a large storage container.
The Drum Does More Than Transport Concrete
It is useful to think of the mixer drum as both a transportation container and a mechanical mixing chamber, because its rotation performs different functions depending on the operating direction and speed. During transportation, controlled rotation helps keep the concrete homogeneous and workable; during loading, the drum and blades help receive and distribute the material; and during discharge, the rotation direction can be changed so that the internal blades convey the concrete toward the rear outlet and chute.
2. What Happens Inside the Rotating Mixer Drum?
The heart of the concrete mixing process is the spiral-shaped arrangement of mixing blades welded or otherwise integrated into the inside surface of the drum. When the drum rotates, these blades catch portions of the concrete and carry them upward along the drum wall. As the material reaches a certain height, gravity causes it to fall or roll back toward the lower section, where it is picked up again by another part of the blade system. This repeated lifting and falling creates a tumbling action that helps distribute the different components throughout the mixture.
Lifting, Folding, and Tumbling
Fresh concrete contains materials with very different physical characteristics: cement paste is relatively fluid, water moves easily, sand consists of relatively small particles, while coarse aggregate can contain much larger and heavier stones. Without continued agitation, these components can gradually separate or settle depending on the mixture and transportation conditions. The drum’s internal geometry counteracts this tendency by repeatedly moving the material through the mixing zone.
The blades are not simply flat plates placed randomly inside the drum. Their angle, shape, spacing, and spiral arrangement influence how efficiently the concrete moves. As the drum rotates, the blades create a controlled combination of lifting and axial movement, meaning that the material is not only circulated around the drum but also gradually transported toward one end. This internal movement is what allows the same drum to support both mixing and eventual discharge.
The current ISUZU product range describes its mixer trucks as using rotating drums to keep cement mixtures moving during transportation, while the current 7.6 m³ model uses a wear-resistant drum designed for continuous operation under abrasive construction conditions.
Why Continuous Movement Matters
The purpose of keeping the drum rotating during transportation is not necessarily to make the concrete dramatically “more mixed” with every rotation, but to maintain a controlled and consistent condition after the initial batching and mixing process has taken place. This distinction is important because ready-mix concrete is normally produced according to a carefully controlled mix design before it enters the transportation stage, while the mixer truck’s primary responsibility is to preserve that condition and prevent excessive separation or premature setting during delivery.
3. How Does the Drum Rotation Direction Affect Concrete?
The direction of drum rotation is one of the most important operating features of a mixer truck because the internal blades are designed to move concrete differently depending on the direction in which the drum turns. During normal transportation and agitation, the drum rotates in the direction that causes the blades to lift and recirculate the concrete within the drum. When the operator needs to discharge the concrete, the direction is reversed so that the blade geometry moves the material toward the rear opening and down through the discharge chute.
Mixing Rotation
During transportation, the drum rotates at a controlled speed that keeps the concrete moving without unnecessarily increasing mechanical wear or causing undesirable changes to the mixture. The rotation speed needs to be appropriate for the drum design and concrete characteristics, because simply rotating the drum as quickly as possible is not the objective. Excessive speed can increase energy consumption and mechanical stress, while insufficient agitation may allow the mixture to become less uniform during a long journey.
The hydraulic drive system normally provides the mechanical force required to rotate the heavy drum. Because a fully loaded mixer drum contains a substantial mass of concrete, the drive system must provide adequate torque not only to keep the drum turning but also to start and control its rotation under demanding conditions. This is one reason why mixer trucks require a suitable heavy-duty chassis and powertrain rather than a conventional light-duty vehicle body.
Discharge Rotation
When the truck reaches the construction site, the operator changes the drum’s operating direction. The internal blades then act more like a conveyor, gradually moving the concrete toward the rear outlet. The concrete falls onto the discharge chute and is guided toward the location where it will be placed, which may be formwork, a foundation, pavement, column, beam, or another construction structure.
The ability to switch between agitation and discharge modes is therefore fundamental to the mixer truck’s operation. The same internal blade arrangement that helps maintain the concrete during transportation also allows the drum to empty itself efficiently when the direction of rotation changes.
4. How Do the Hydraulic and Power Systems Rotate the Drum?
The rotating drum is too heavy to be operated manually or directly by a simple mechanical connection, so an ISUZU mixer truck uses a dedicated hydraulic drive system to transfer power from the vehicle’s engine and drivetrain to the mixer body. In a typical arrangement, the engine provides the primary mechanical energy, a power take-off or related drive system supplies energy to the hydraulic circuit, and the hydraulic motor converts that hydraulic energy into controlled rotational movement at the mixer drum.
Engine Power to Hydraulic Power
When the operator activates the mixer system, engine power is transmitted through the auxiliary drive arrangement to a hydraulic pump. The hydraulic pump generates oil flow and pressure, which are then directed toward a hydraulic motor connected to the drum’s reduction and drive mechanism. The motor turns, the reduction system manages the required torque and rotational speed, and the drum begins to rotate.
This arrangement offers an important practical advantage because the drum can be controlled independently of the truck’s road wheels. The vehicle can therefore remain stationary at the construction site while the drum continues rotating, or the operator can adjust the drum operation according to the concrete delivery requirements without changing the basic operation of the truck’s road drivetrain.
Why Torque Matters More Than Simple Rotation Speed
A mixer drum may rotate relatively slowly compared with a normal vehicle wheel, but it requires considerable torque because the system is moving a very heavy mixture inside a large steel drum. The hydraulic drive therefore needs to provide controlled torque under changing loads, including when the drum is started from rest with a substantial quantity of concrete already inside it.
This is one reason heavy-duty ISUZU mixer configurations use powerful chassis platforms. The current ISUZU concrete mixer truck, for example, is built on a four-axle chassis with a 31,000 kg total vehicle mass and a 16,600 kg payload capacity, while its 6UZ1-TCG61 engine is rated at 279 kW, or approximately 374 hp.
5. How Does an ISUZU Mixer Truck Keep Concrete From Separating?
Concrete segregation occurs when the different components of a fresh concrete mixture begin to separate, with heavier coarse aggregate tending to move differently from cement paste, water, and finer particles. Excessive vibration, unsuitable handling, long transportation periods, incorrect mix design, or poor operating practices can contribute to segregation, so the mixer truck is designed to maintain controlled agitation throughout transportation rather than allowing the material to remain completely static.
The rotating drum helps by continually redistributing the concrete, while the internal blades create a repetitive lifting and tumbling action. As a result, coarse aggregate is repeatedly brought into the moving mixture rather than simply settling in one location, while the cement paste and finer components continue to circulate around the drum. This does not eliminate every possible cause of segregation, because concrete quality begins with proper batching and mix design, but it provides an important mechanical means of maintaining uniformity during delivery.
Drum Capacity Must Match the Working Load
The drum also should not simply be filled beyond its appropriate working capacity. Although a mixer drum has a certain total geometric volume, the practical amount of concrete it carries is determined by the truck’s payload rating, axle loading, drum design, concrete density, applicable regulations, and the need to maintain effective mixing space. Concrete is heavy, commonly weighing around 2.3 to 2.5 tonnes per cubic meter depending on its composition, so a seemingly modest increase in volume can add several tonnes to the vehicle.
Current ISUZU mixer configurations include smaller 4 CBM models as well as larger 12 CBM-class vehicles, allowing the drum size and chassis to be matched to the intended application rather than forcing every project to use the same capacity.
This matching process is important because a smaller mixer can be easier to maneuver in dense urban construction areas, while a larger heavy-duty mixer can reduce the number of delivery trips on major infrastructure projects. The correct choice therefore depends on the concrete volume required, road access, batching plant location, site conditions, and the expected delivery schedule.
6. How Does an ISUZU Mixer Truck Discharge Concrete?
After arriving at the construction site, the mixer truck changes the drum’s rotation direction, causing the internal blades to push the concrete toward the rear discharge opening. The concrete then flows onto the discharge chute, which provides a controlled path from the elevated drum outlet toward the receiving location. Depending on the site arrangement, the chute may deliver the concrete directly into formwork, onto a slab, into a hopper, or into the receiving system of a separate concrete placement machine.
Chute Position and Site Coordination
The discharge process requires more coordination than simply reversing the drum rotation. The driver or operator needs to position the truck so that the rear discharge point can reach the receiving area, while site workers may adjust the chute angle or use additional chute sections to direct the concrete accurately. The truck’s maneuverability and overall dimensions therefore become important, especially on congested construction sites where the available space for positioning heavy vehicles can be limited.
When concrete must be delivered to a location that cannot be reached effectively by the mixer truck’s standard discharge chute, a concrete pump truck can be used as part of the same construction workflow. The mixer truck maintains and transports the fresh concrete, while the pump truck receives the material and transfers it through a pipeline or delivery boom to a more distant, elevated, or otherwise difficult-to-access placement point. Current ISUZU pump truck offerings include a 17-meter concrete pump truck designed for controlled concrete placement on building, bridge, road, and infrastructure projects.
Continuous Supply Is Important
On larger projects, concrete placement often needs to proceed continuously or according to a carefully planned sequence, meaning that the mixer truck’s delivery schedule can be just as important as the individual vehicle’s mixing performance. Several mixer trucks may operate in rotation between the batching plant and construction site so that the pump or placement crew receives a steady supply of fresh concrete instead of experiencing long interruptions between loads.
This coordinated approach demonstrates why the mixer truck is not an isolated machine but part of a larger construction logistics system involving batching plants, pumps, aggregate transportation, site crews, and sometimes multiple specialized trucks.
7. What Makes the ISUZU Mixer Truck Suitable for Construction Sites?
An effective mixer truck must do much more than rotate a drum, because it needs to transport a heavy load safely while maintaining the concrete in a suitable condition and then discharge it accurately at the construction site. The chassis must therefore provide adequate payload capacity, axle strength, braking performance, steering control, and stability, while the mixer body needs a durable drum, reliable hydraulic drive, effective mixing blades, and a practical discharge system.
The current ISUZU 7.6 m³ concrete mixer truck illustrates this integrated approach. Its four-axle chassis is designed for substantial load distribution, while the 31,000 kg total vehicle mass and 16,600 kg payload capacity provide the foundation for high-volume concrete transportation. The drum uses wear-resistant steel and has a 500 mm ground clearance, while ABS and GPS-enabled telematics are included for additional vehicle control and monitoring.
Durability Matters in Concrete Transportation
Concrete is abrasive, heavy, and demanding on equipment, so components exposed to the material need to withstand repeated contact and cleaning operations. The drum, blades, discharge chute, hydraulic system, water system, and supporting frame all experience regular wear, especially in fleets that operate multiple cycles every day. Regular washing and cleaning are therefore essential because hardened concrete left inside the drum can reduce effective capacity, interfere with blade movement, increase vehicle weight, and eventually cause serious equipment problems.
Operators should also pay attention to hydraulic oil levels, hoses, fittings, drum bearings, rollers, reduction gears, chute components, and the condition of the drum and blades. Preventive maintenance is much easier and less expensive than dealing with a mixer drum that has become partially obstructed by hardened concrete or a hydraulic system that fails during a scheduled concrete pour.
8. How Does an ISUZU Mixer Truck Fit Into a Complete Construction Fleet?
An ISUZU mixer truck plays a central role in ready-mix concrete delivery because it connects the batching plant with the actual point of concrete placement, using continuous drum rotation to preserve the condition of the fresh mixture throughout transportation and a reversible hydraulic drive to discharge it when the truck reaches the site. The current ISUZU range includes compact 4 CBM mixer trucks, larger heavy-duty mixer configurations, GIGA 12 CBM-class models, and even combined mixer-and-pump solutions, giving contractors flexibility when planning equipment around different project sizes and site conditions.
The most important principle is that the mixer drum is not simply a container: its internal blades, rotation direction, drum angle, hydraulic drive, and operating speed work together to keep concrete moving, reduce separation, and deliver the material in a controlled manner when construction crews are ready to place it. In a complete construction fleet, a concrete pump truck can extend the reach of fresh concrete to high or distant placement points, a dump truck can transport aggregates, excavated materials, and construction debris, while ISUZU Vehicles provide the mixer, pumping, hauling, and other specialized truck platforms needed to keep modern construction projects moving efficiently from material preparation to final placement.
