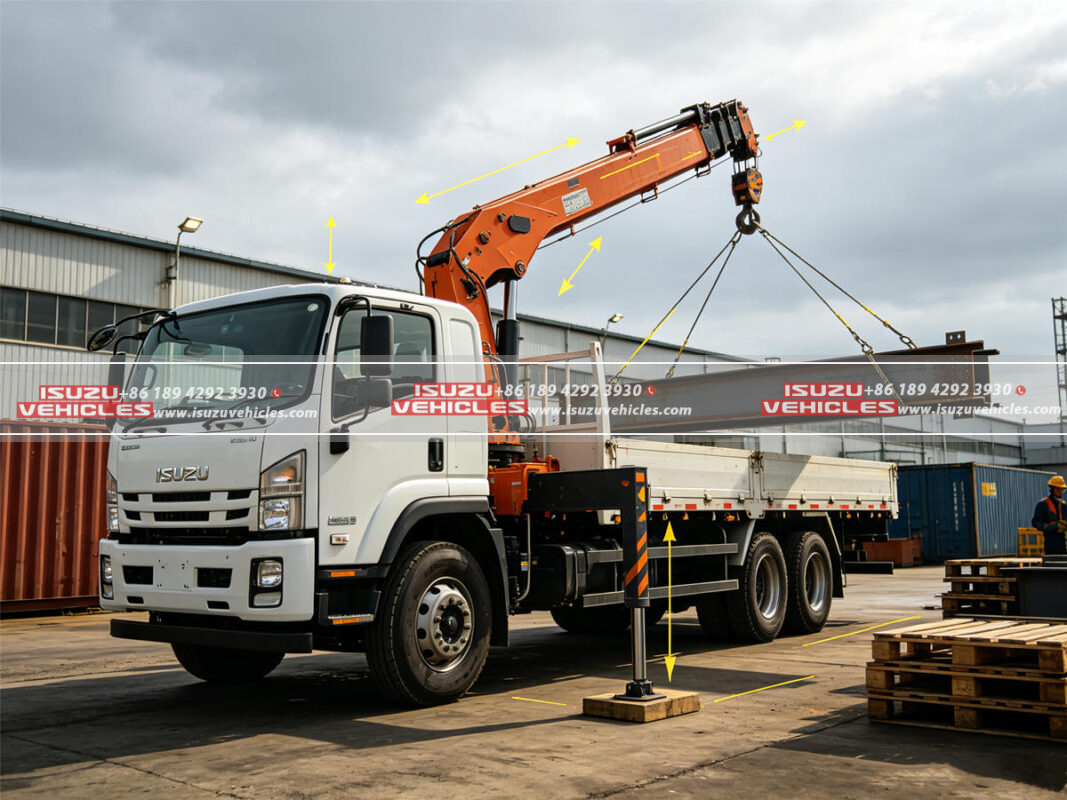

When businesses need to transport heavy materials and lift them directly at the job site, a truck-mounted crane can be much more practical than using a conventional cargo vehicle together with a separate mobile crane. An ISUZU truck with crane combines transportation and lifting functions in one vehicle, allowing operators to carry construction materials, steel structures, machinery, pipes, generators, timber, and other heavy loads and then unload or position them without depending entirely on additional lifting equipment. However, one of the most common questions buyers ask is simple: how much can an ISUZU truck with crane actually lift?
There is no single answer because the lifting capacity depends on the crane model, boom configuration, working radius, hydraulic system, truck chassis, load position, and ground conditions. An ISUZU crane truck may be configured for relatively light lifting tasks of around one or several tons, while heavier-duty configurations can reach approximately 10 tons or more under suitable operating conditions. The important point is that the maximum crane rating is only one part of the picture, because a crane rated for a particular load at a short working radius cannot necessarily lift the same load when the boom is fully extended.
Understanding this difference is essential when purchasing or operating a crane truck. Instead of asking only for the largest number printed in a specification sheet, fleet managers should consider what materials they actually need to lift, how far those materials must be moved from the truck, how frequently the crane will be used, and whether the selected chassis can safely support the complete working load. A properly matched ISUZU crane truck can then become a highly productive vehicle for construction, logistics, municipal work, utility maintenance, and industrial material handling.
1. What Is the Typical Lifting Capacity of an ISUZU Truck with Crane?
The lifting capacity of an ISUZU truck-mounted crane varies considerably because ISUZU offers different chassis classes and crane configurations for different applications. Light-duty vehicles can be equipped with smaller cranes for handling relatively compact loads, while medium- and heavy-duty chassis can accommodate larger hydraulic crane systems designed for more demanding construction and industrial work.
In practical terms, smaller crane trucks may be configured for lifting capacities around 1 to 3 tons, while medium-duty configurations commonly move into the several-ton range. Heavier truck-mounted cranes can provide lifting capacities of approximately 5 to 10 tons or more depending on the selected equipment and operating radius. ISUZU’s current crane information specifically notes that medium-duty configurations can commonly range from about 5 to 10 tons, while heavy-duty crane systems are intended for more demanding lifting applications.
Maximum capacity is not the same as working capacity
This distinction is extremely important. If a crane is described as a 10-ton crane, it does not mean the operator can place a 10-ton load at any position around the truck and lift it safely. Crane capacity is normally expressed according to specific operating conditions, with the maximum rating generally achieved when the load is relatively close to the crane column and the boom is positioned favorably.
As the boom extends outward, the lifting capacity decreases because the load creates greater leverage against the crane structure and the truck. This means that a 10-ton crane may be capable of lifting a very heavy load close to the vehicle but may have a substantially lower allowable load at a long working radius. The manufacturer’s load chart should always be used to determine the actual safe lifting capacity at a particular boom length and radius.
2. Why Boom Length and Working Radius Matter So Much
The relationship between lifting capacity and working radius is one of the most important concepts for anyone buying or operating a crane truck. Working radius refers broadly to the horizontal distance between the crane’s lifting point and the centerline of the crane or truck, depending on the manufacturer’s load-chart definition. As this distance increases, the force acting on the crane and vehicle becomes greater, which reduces the amount of weight that can safely be lifted.
For example, imagine a crane capable of lifting 5 tons when the load is positioned close to the truck. If the operator needs to extend the boom several meters outward to place the same load beside a building, over a wall, or into a difficult-to-reach position, the permitted lifting capacity may be significantly lower. The operator therefore cannot simply rely on the headline “5-ton crane” specification without checking the corresponding load chart.
Short-reach lifting
Short-reach operations generally provide the strongest lifting performance because the load remains close to the truck and crane base. This type of operation is common when unloading heavy equipment from the truck body, placing construction materials beside the vehicle, or moving cargo over a relatively short distance.
Extended-boom lifting
Extended-boom operations require considerably more attention because the crane must handle the additional leverage generated by the longer reach. A load that appears manageable when positioned near the truck may become unsafe when moved farther away, particularly if the vehicle is not properly stabilized or the ground cannot support the reaction forces generated during lifting.
This is why professional operators do not judge crane capacity by appearance or by the weight of the load alone. They consider boom extension, lifting angle, working radius, vehicle level, outrigger position, load stability, and the manufacturer’s specified load chart before beginning the lifting operation.
3. How the ISUZU Chassis Supports Crane Lifting Operations
A crane truck is fundamentally different from a standard transport truck because the chassis has to handle two different types of work. During transportation, it carries the crane equipment and cargo over public roads, while during lifting operations, the crane generates concentrated forces that are transferred into the chassis and supporting structure. This makes chassis strength, weight distribution, suspension characteristics, and overall vehicle stability particularly important.
ISUZU provides different commercial chassis platforms that can be configured for specialized applications. The GIGA series, for example, is positioned in the heavy-duty segment, and the current GIGA product range includes an ISUZU truck-mounted 12-ton XCMG crane configuration. This demonstrates how the larger ISUZU platform can be matched with a substantial crane system for demanding lifting and transportation work.
Chassis capacity must match crane capacity
Installing a large crane on a truck does not automatically turn the vehicle into a high-capacity lifting machine. The chassis, axles, frame, suspension, tires, braking system, and overall gross vehicle weight must all be compatible with the crane and the cargo that the truck is expected to carry.
There is also an important relationship between crane equipment and payload. The heavier the crane, the more vehicle weight is consumed by the lifting equipment itself, which can reduce the remaining payload available for transported materials. Therefore, a buyer should consider both crane lifting capacity and useful cargo capacity when selecting the complete vehicle.
This is particularly important for companies that expect the crane truck to deliver materials and unload them at the same destination. The vehicle must be able to carry the required cargo legally and safely while retaining enough stability for crane operation.
4. Hydraulic System and Outriggers Determine Real-World Performance
The hydraulic system is another major factor in crane performance because hydraulic pressure and flow are responsible for moving the boom, extending or retracting hydraulic sections, raising and lowering loads, and operating other crane functions. A properly matched hydraulic system allows the crane to move smoothly and maintain controlled lifting performance rather than simply generating high force without sufficient precision.
However, hydraulic power alone does not determine whether a load can be lifted safely. The supporting structure beneath the crane is equally important. Outriggers are commonly used to increase the truck’s stability during lifting by widening the support footprint and transferring forces toward the ground. Without proper stabilization, even a powerful crane can become dangerous when handling a heavy load at a large working radius.
Ground conditions cannot be ignored
A crane truck may have sufficient theoretical lifting capacity but still be unsuitable for a particular site if the ground is soft, uneven, sloped, or unstable. Outriggers can generate substantial pressure on the ground, and the surface must be capable of supporting those loads without excessive settlement.
For this reason, operators should inspect the lifting area before deployment and use appropriate support methods when required. The truck should be positioned as level as practical, the outriggers should be deployed according to the manufacturer’s instructions, and the lifting area should be kept clear of unnecessary personnel and obstacles.
These considerations explain why a professional crane operator looks beyond the crane’s nominal tonnage. Safe lifting is the result of the crane, chassis, hydraulic system, outriggers, load chart, operator, and working environment functioning together.
5. What Can an ISUZU Crane Truck Actually Lift?
One of the biggest advantages of an ISUZU crane truck is the wide variety of materials it can handle when the vehicle is correctly configured. Construction contractors can use crane trucks to deliver steel beams, pipes, concrete products, timber, bricks, generators, machinery, structural components, and other materials directly to job sites. Logistics companies can use them to load and unload heavy equipment, while municipal and utility organizations can use specialized configurations for infrastructure maintenance.
Compared with a conventional cargo truck, the crane truck can perform an additional operation immediately after arriving at the destination. Instead of waiting for a forklift, mobile crane, or other lifting equipment, the vehicle can use its own crane to unload the cargo and position it near the work area.
Crane truck versus dump truck
A dump truck is better suited to bulk materials such as soil, sand, gravel, aggregates, and construction waste because its hydraulic tipping body allows the load to be discharged quickly. The current ISUZU dump truck range includes light-duty models, 12-ton and 15-ton configurations, FTR heavy-duty models, and larger construction dump trucks.
A crane truck, by contrast, is more useful when the cargo consists of individual items that must be lifted and positioned carefully. A steel structure, generator, pipe bundle, machine component, or precast concrete element may need controlled placement rather than simple dumping.
Crane truck versus asphalt distribution truck
An asphalt distribution truck performs a highly specialized road-construction function, distributing asphalt, bitumen, or emulsions across prepared surfaces through a dedicated spraying system. The current ISUZU asphalt distributor category describes equipment designed for accurate asphalt application, with spraying, pumping, and heating systems intended for road construction and maintenance.
These vehicles illustrate why choosing the right special-purpose truck is more important than simply selecting the vehicle with the largest payload or strongest engine. Each truck is designed around a particular working process, and the crane truck’s major advantage is its ability to combine transportation with controlled lifting.
6. How to Choose the Right ISUZU Truck with Crane
When purchasing an ISUZU truck with crane, the first question should not be “How many tons can it lift?” but rather “What is the heaviest load I need to lift, and how far from the truck must I place it?” This immediately provides a much more useful basis for selecting the crane because the required lifting radius can be as important as the load itself.
Buyers should identify the maximum load weight, typical load weight, required horizontal reach, required lifting height, frequency of crane operation, road conditions, expected annual mileage, and available working space at job sites. If most loads are lifted close to the truck, a compact crane with strong near-body lifting performance may be sufficient. If loads must frequently be positioned several meters away or lifted over obstacles, a longer-reach configuration may be necessary, although its capacity at maximum extension must be carefully checked.
Think about the complete truck, not only the crane
The final vehicle specification should consider the crane, chassis, cargo body, hydraulic system, outriggers, payload, axle loading, and overall dimensions as one integrated package. A crane that is unnecessarily large can consume valuable payload capacity, while a crane that is too small may force the business to hire additional lifting equipment for important jobs.
Maintenance and after-sales support should also be included in the purchasing decision. Hydraulic hoses, cylinders, pumps, control valves, outriggers, crane joints, and structural components require regular inspection, while the truck chassis and powertrain require their own scheduled maintenance. A well-supported crane truck is much more likely to provide consistent productivity over a long service life.
Ultimately, an ISUZU truck with crane can lift anywhere from relatively light loads to more than 10 tons in appropriately configured heavy-duty applications, but the exact safe lifting capacity must always be determined from the specific crane’s load chart and operating conditions rather than from the vehicle name alone. Businesses that need a vehicle capable of transporting and positioning heavy materials can benefit from this integrated design, while companies with different operational requirements may choose an ISUZU tow truck for vehicle recovery, a bucket truck for elevated utility work, or other specialized solutions within the wider range of ISUZU Vehicles. The right choice is ultimately the one that matches the actual load, working radius, site conditions, payload requirements, and daily operating cycle.
