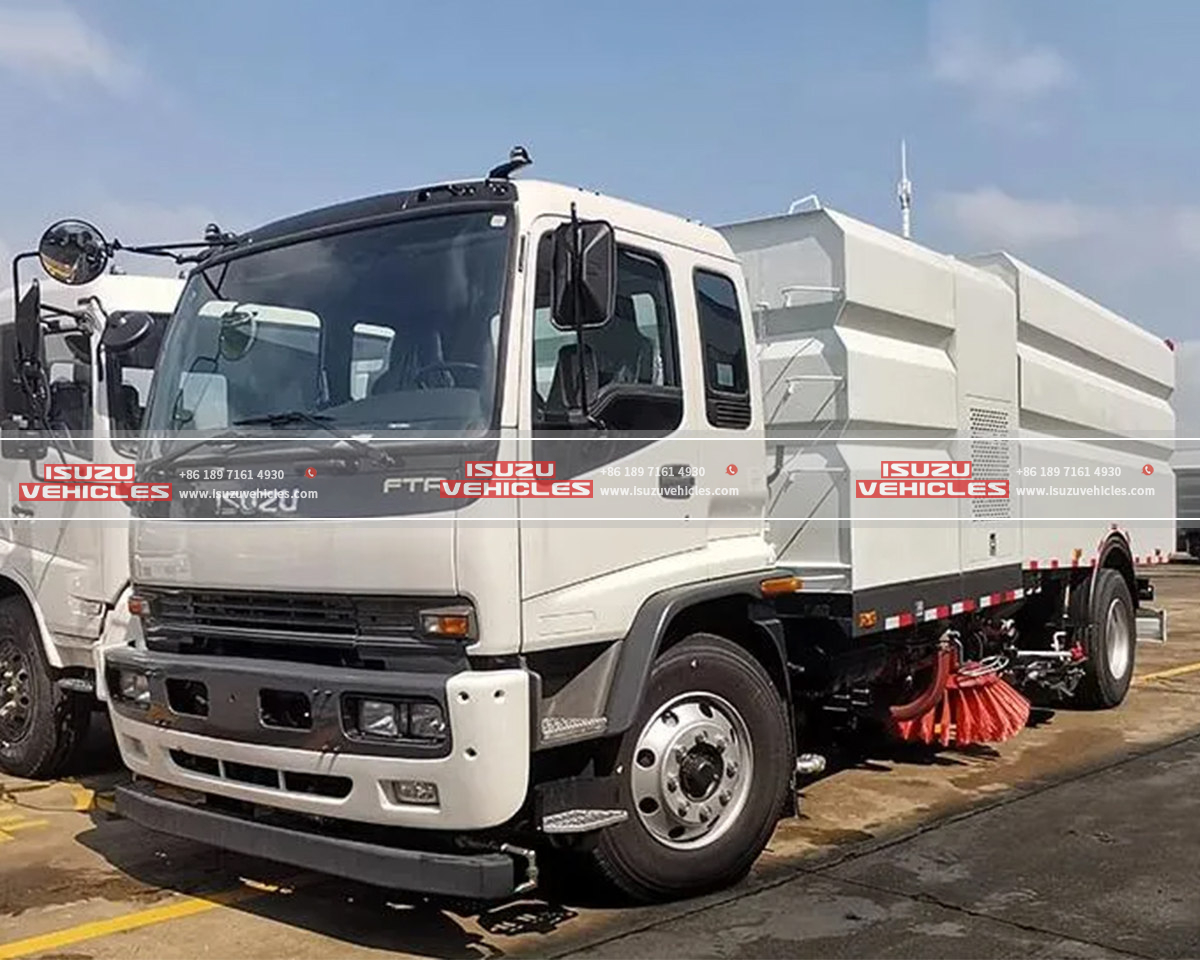

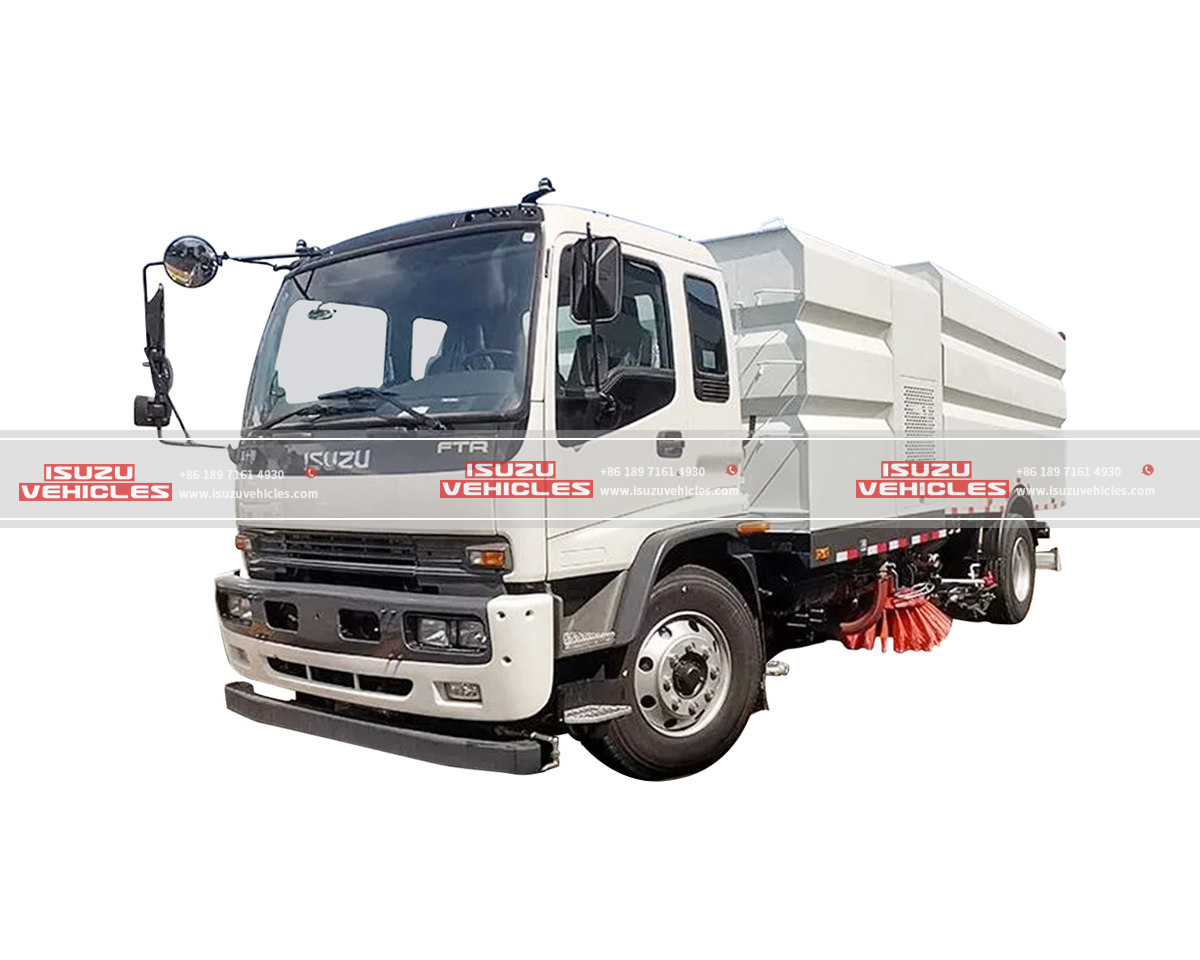

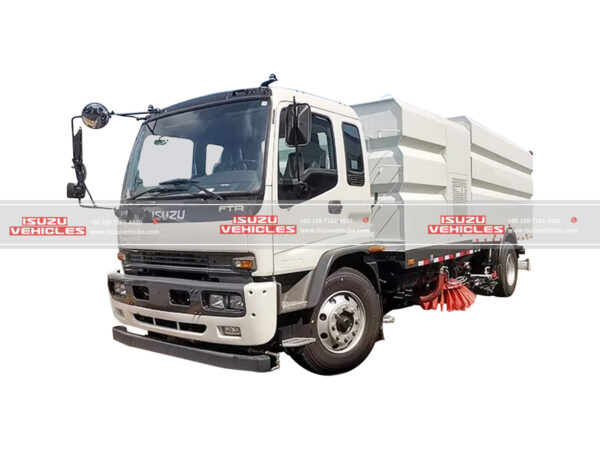

ISUZU High Pressure Road Sweeping truck
FTR Chassis Heavy-Duty Foundation
Built on the rugged ISUZU FTR chassis, this ISUZU High Pressure Road Sweeping truck is engineered for large-scale road maintenance with an overall dimension of 8,935×2,530×3,088mm and a 5,000mm wheelbase. Its gross vehicle weight of 16,000kg and curb weight of 11,500kg ensure stability for heavy-duty operations, supported by a 4+2 drive wheel configuration with 10.00R20 tires for superior traction on uneven terrain.
High-Performance Euro 5 Powertrain
Powered by the ISUZU 4HK1-TC50 engine, the ISUZU sweeper truck delivers 205HP (151kW) @ 2,600rpm and a peak torque of 650N·m @ 1,600rpm, optimized for sustained power in demanding environments. The intercooled turbocharged design and ISUZU/MLD manual transmission (6F+1R) ensure seamless gear transitions and fuel efficiency during extended cleaning cycles.
Ergonomic Operator Cabin
The hydraulic power-steered cabin accommodates 1 driver + 2 passengers, featuring intuitive controls and 360° visibility for precision maneuvering in urban and industrial zones.
Features
14CBM Dual-Function Tank System

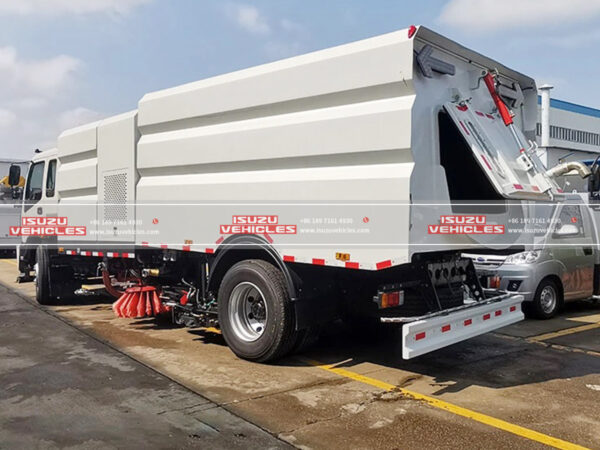

Equipped with a 14CBM stainless steel 304 tank, the system integrates a 6m³ garbage compartment and an 8,000L water reservoir for simultaneous debris collection and high-pressure dust suppression. The ISUZU 140HP auxiliary engine powers ancillary systems, enabling uninterrupted operation during large-area cleaning.
Multi-Mode Sweeping & Suction

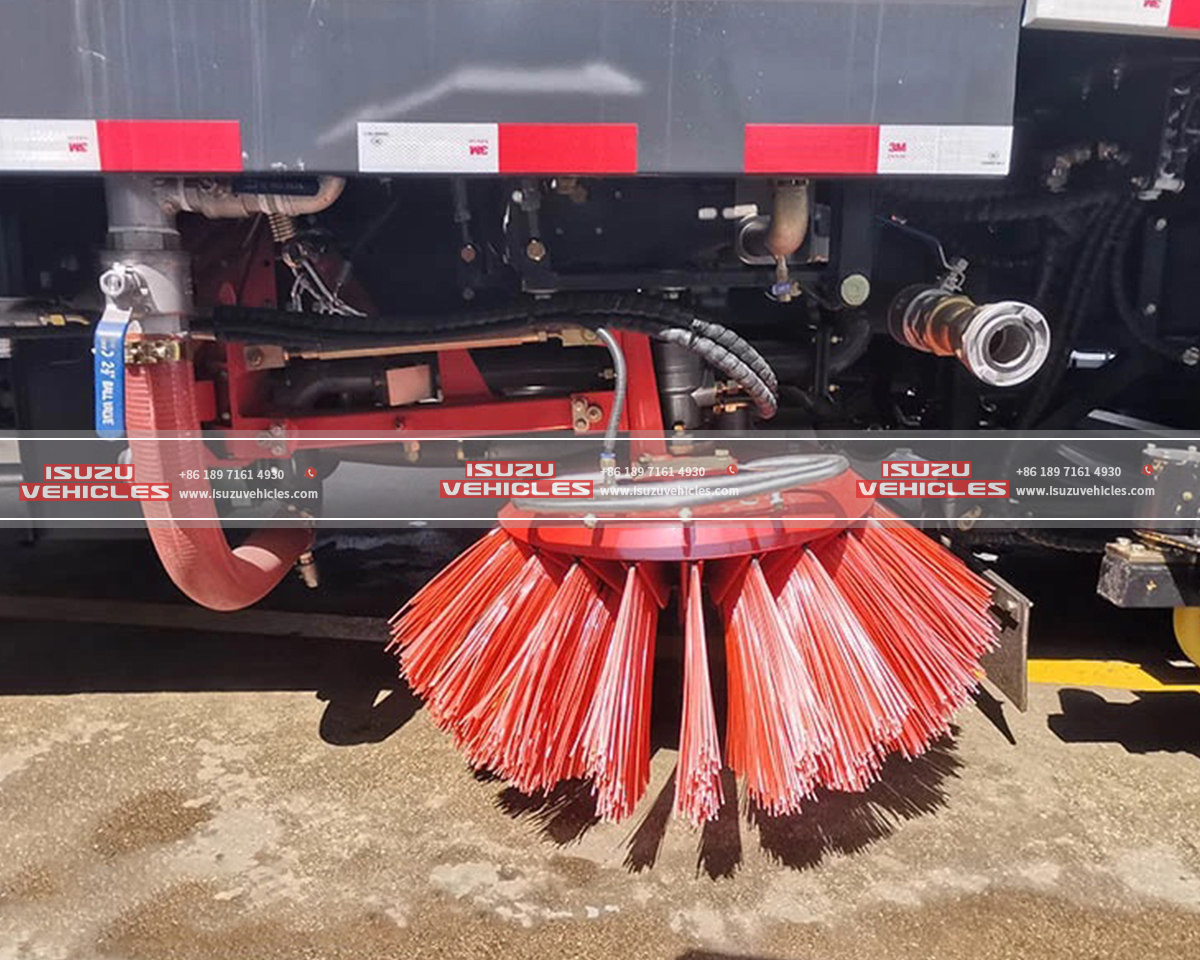

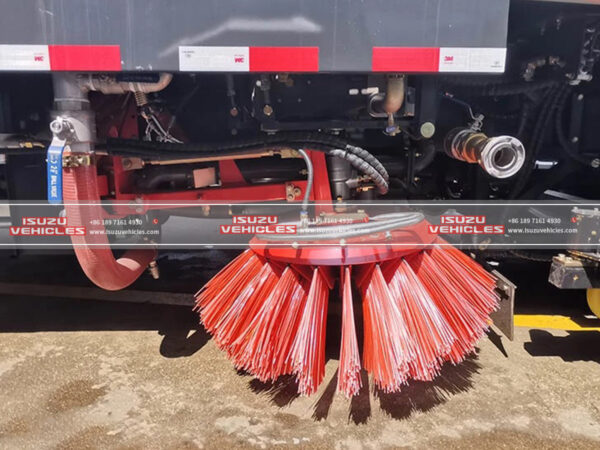

Four motor-driven disc brooms (900mm diameter) achieve a sweeping width of 2.6–3.2m and a maximum cleaning capacity of 60,000 m²/h. The full-floating suction nozzle with a 200mm hydraulic port captures debris ≥100mm in size, while the centrifugal blower (2,600–2,900r/min) ensures efficient airflow for residue-free surfaces.
High/Low-Pressure Washing Integration

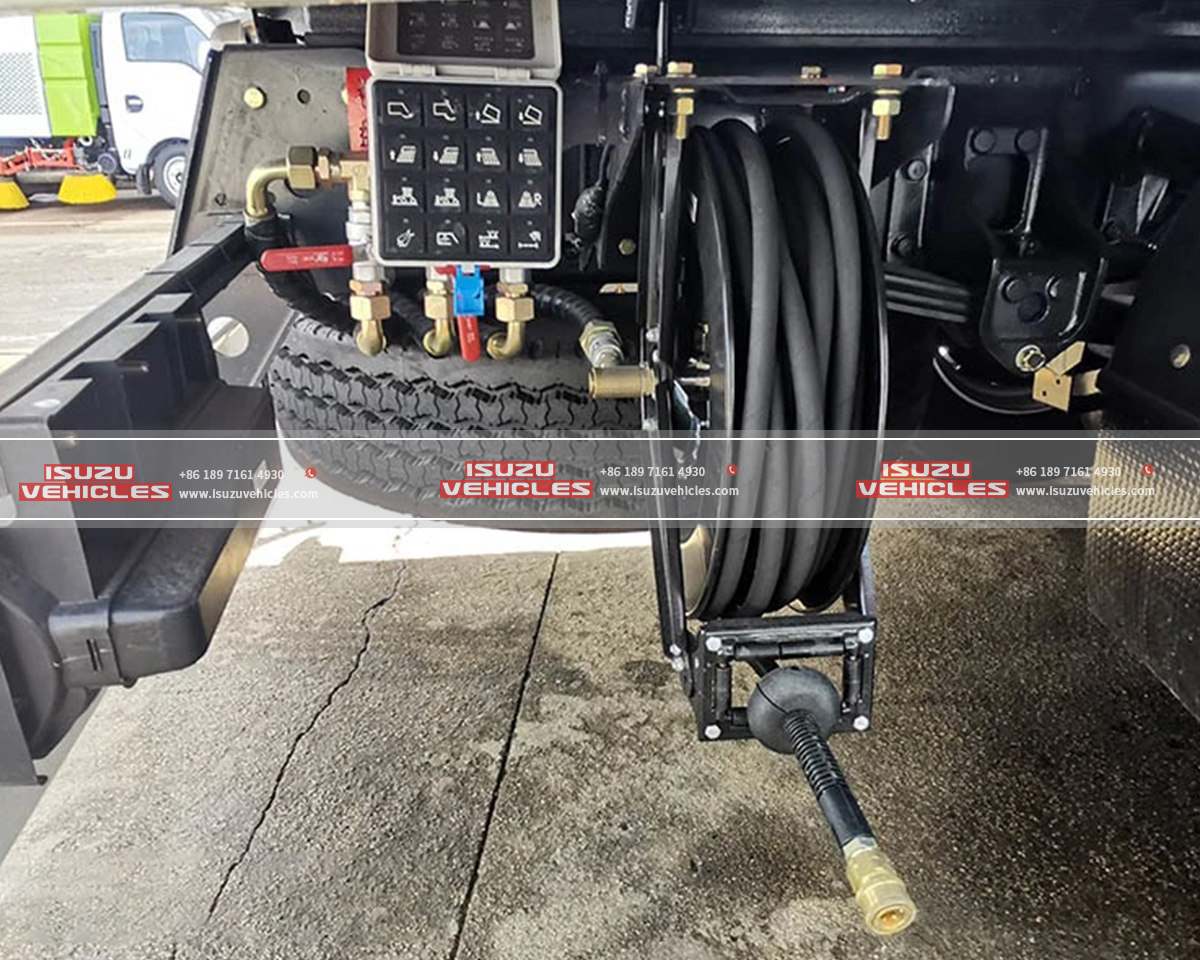

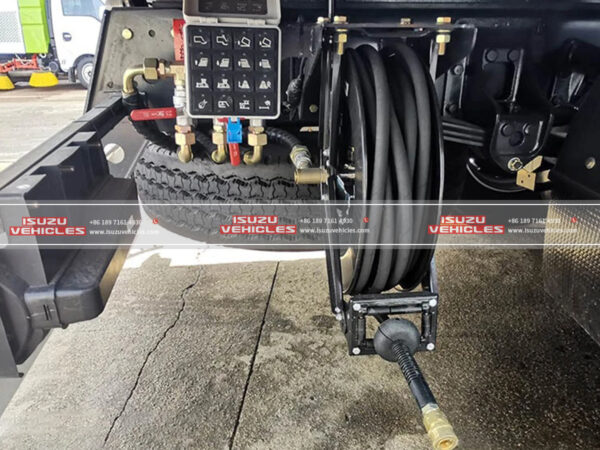

A 20m high-pressure reel delivers 115L/min water flow at 3–20km/h speeds, ideal for stubborn stains. The low-pressure system supplements with 40m³/h flow capacity and 50m projection range, enabling rapid large-area rinsing.
Durability & Adaptability

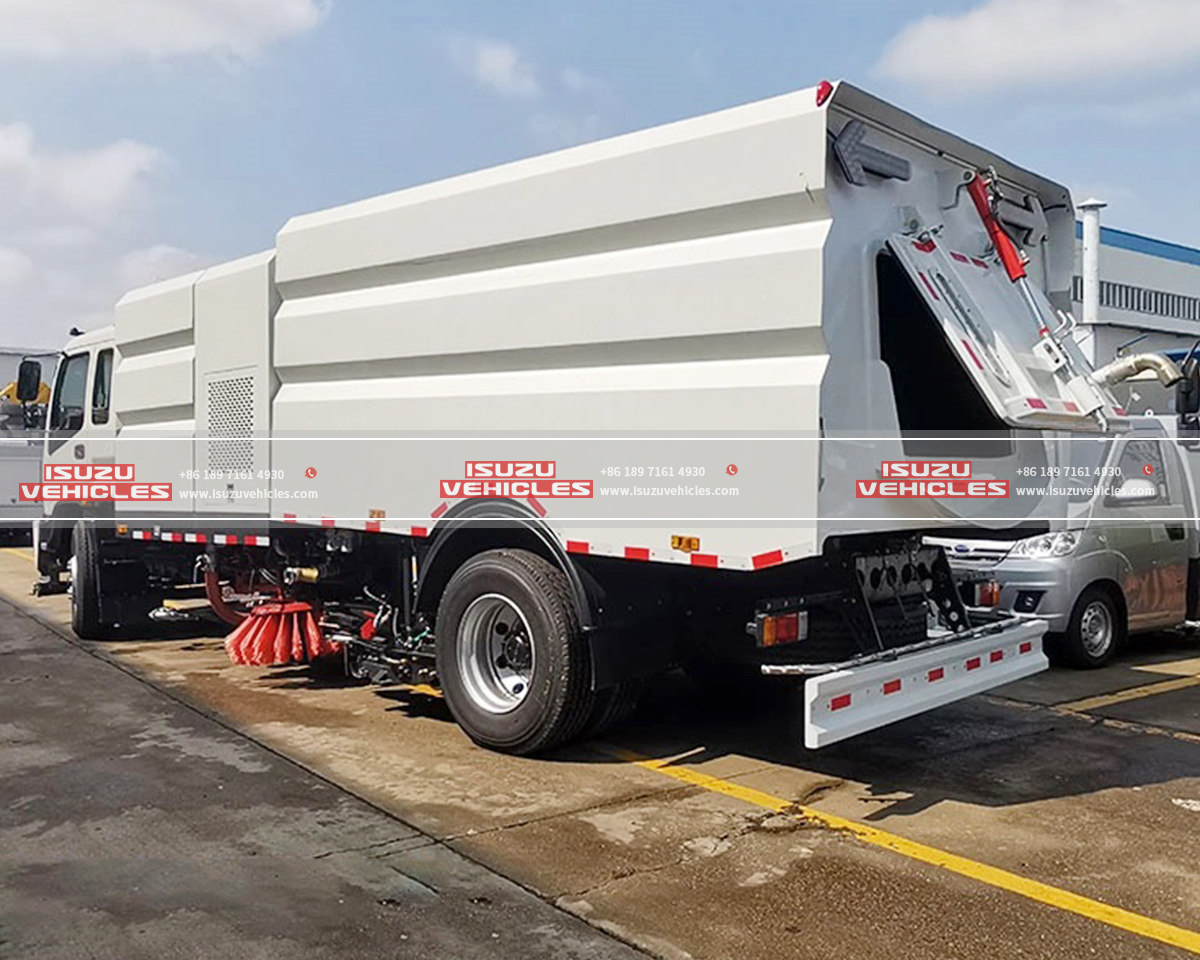

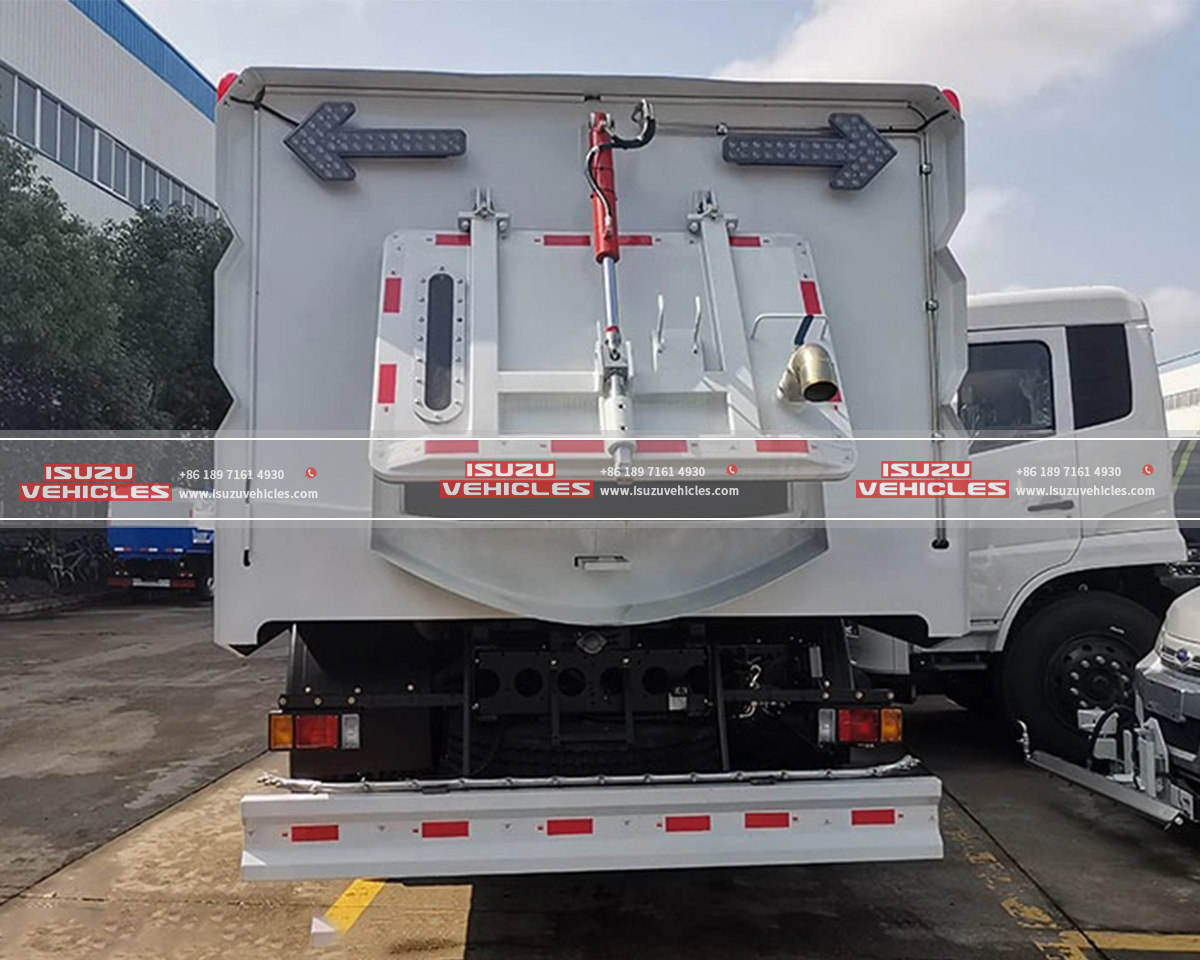

Stainless steel construction and closed-loop hydraulic systems minimize wear, while Euro 5 compliance reduces emissions. The modular body design (rear hopper, compaction plate) ensures easy maintenance and waste discharge.
Operational Safety
Anti-slip hydraulic controls and reinforced tire configurations enhance stability during high-speed sweeping and debris compaction.
SPECIFICATIONS
| GENERAL | |
| Make/Model | ISUZU / SJ12QL205L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
8,935×2,530×3,088 (mm) |
| Gross Vehicle Weight | 16,000kg |
| Curb Weight | 11,500kg |
| Wheelbase | 5,000mm |
| Chassis Designed | ISUZU FTR |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive wheel(Tires ) | 4+2 and one spare (total 7 wheels) |
| Tire Size | 10.00R20 |
| ENGINE | |
| Make / Model | ISUZU / 4HK1-TC50 |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 5.193L |
| Nominal Power | 205HP (151kw) @ 2,600rpm |
| Peak Torque | 650N.m@1,600rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MLD |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 6F+1R |
| BODY SYSTEM | |
| Tanker Capacity | 14CBM(6m³ garbage tank+8,000L water tank) |
| Material | Stainless steel 304 |
| Auxiliary Engine | |
| Brand | ISUZU |
| Power | 140HP |
| AIR BLOWER | |
| Type | High-pressure, centrifugal, sweeping truck-specific used blower |
| Working Speed | 2600～2900r/min |
| Driving Mode | Drive by an ancillary engine, automatic clutch, V belt powered |
| SWEEPING EQUIPMENT | |
| Type | Four-disc typed brooms equipped between the front and rear axle, symmetric on the right and left side of the truck driven by motors. |
| Sweep Width | 2.6~3.2m. |
| Sweep Diameter | 900mm |
| Sweep Speed | 3~20km/h |
| Max. Cleaning Capacity | 60000 m2/h |
| SUCTION EQUIPMENT | |
| Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter suction port |
| Maximum Inhalation Particle Size | ≥100mm |
| HIGH-PRESSURE WASHING SYSTEM | |
| Hose Reel | 20m high-pressure flushing reel |
| Washing speed | 3~20 km/h |
| Washing width | 3.5m |
| Water Pump Flow Capacity | 115 L/min |
| LOW-PRESSURE WASHING SYSTEM | |
| Flow Capacity | 40 m³/h |
| Raising capacity | 50 m |
