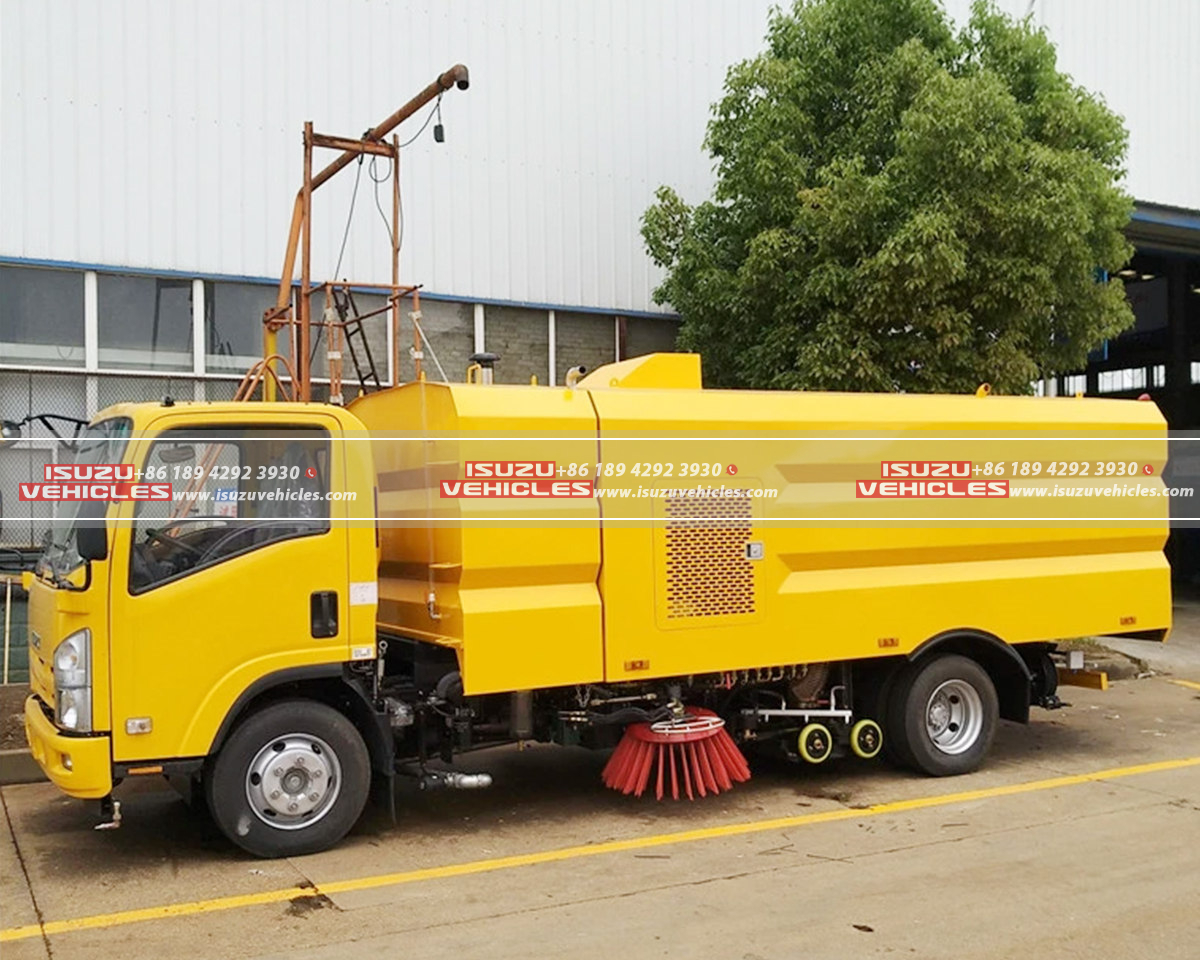

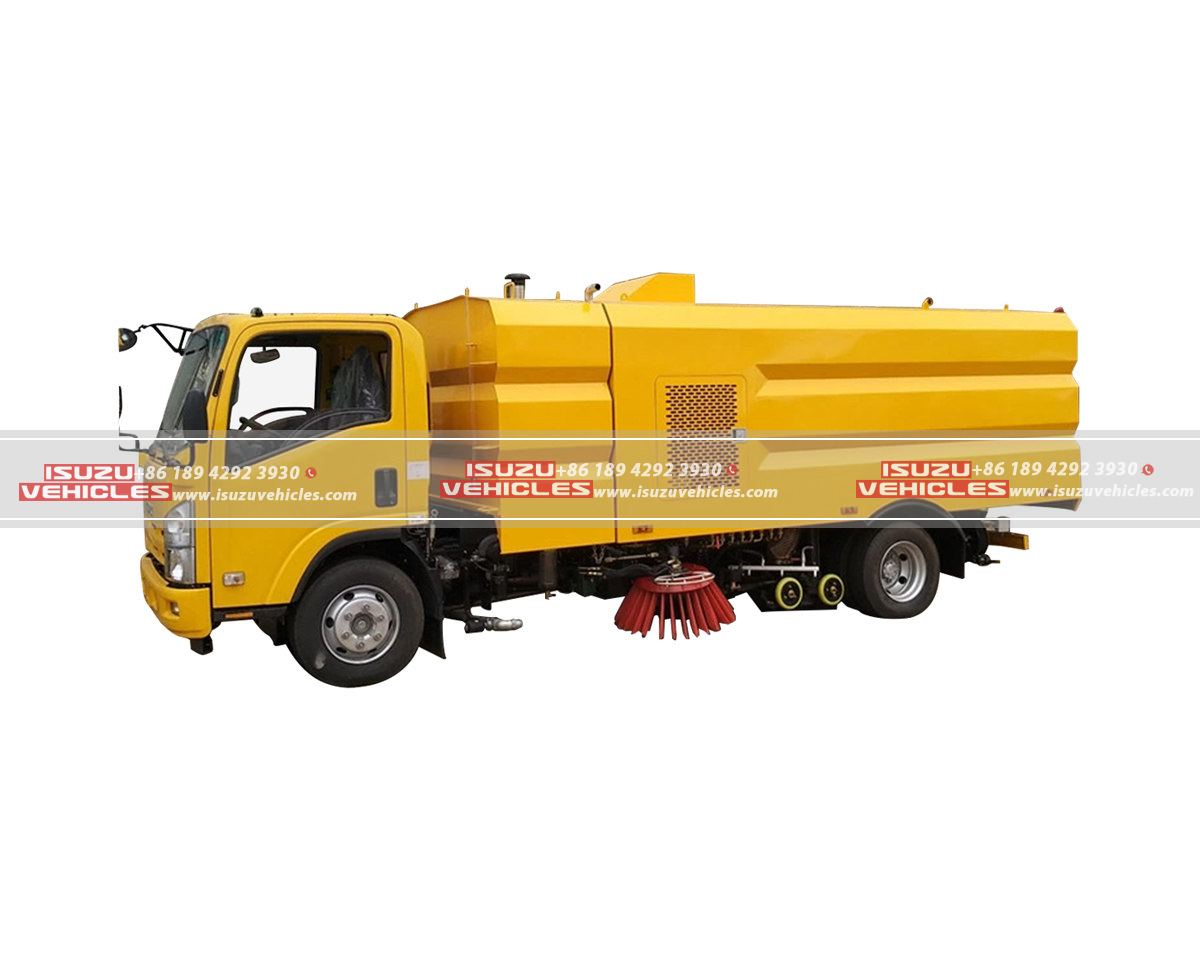

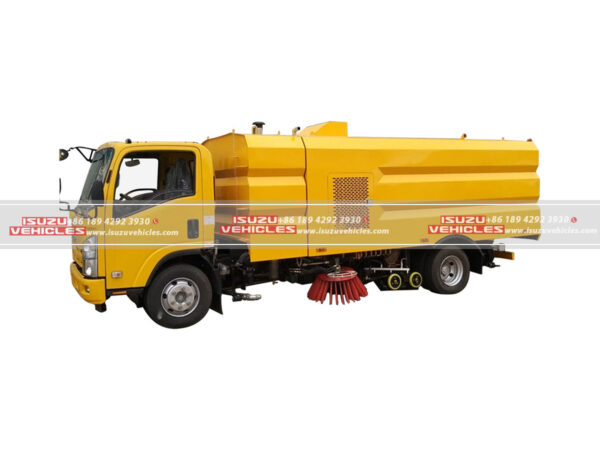

ISUZU 8CBM Sweeper Washing Truck

ISUZU 8CBM Sweeper Washing Truck

700P Chassis Urban Efficiency
Built on the versatile ISUZU 700P chassis, this ISUZU 8CBM Sweeper Washing Truck balances urban agility with heavy-duty performance. Its compact dimensions of 7,160×2,200×2,750mm and a 3,815mm wheelbase support a gross vehicle weight of 9,995kg while retaining a curb weight of 6,970kg for optimized payload capacity. The 4+2 drive wheel configuration with 8.25R20 tires ensures stability on both paved roads and uneven surfaces.

Euro 5-Compliant Power Core
Driven by the ISUZU 4HK1-TC51 engine, this ISUZU sweeper truck delivers 190HP (141kW) @ 2,600rpm and a peak torque of 510N·m @ 1,600rpm, engineered for sustained cleaning operations. The intercooled turbocharged technology paired with an ISUZU/MLD manual transmission (6F+1R) guarantees smooth power delivery and fuel efficiency in repetitive tasks.

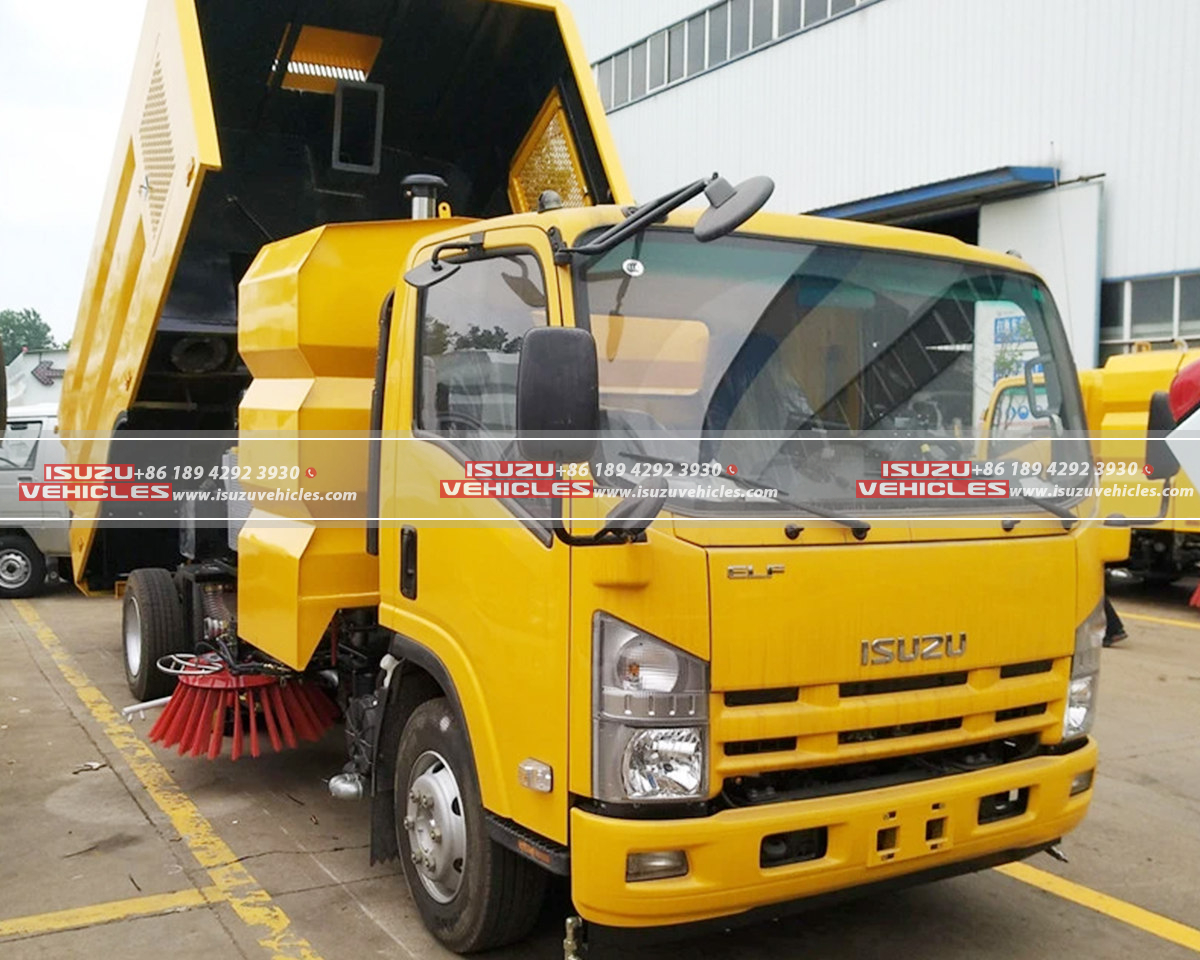

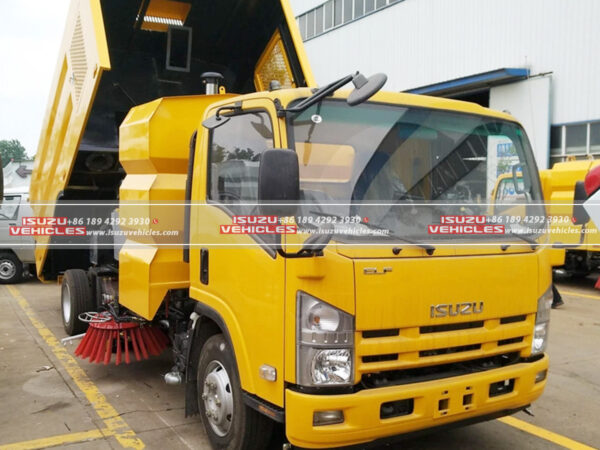

Operator-Centric Cabin Design
The hydraulic power-steered cabin accommodates 1 driver + 2 passengers, featuring ergonomic controls and panoramic visibility for precise maneuvering in dense urban environments.

Part 2: Features

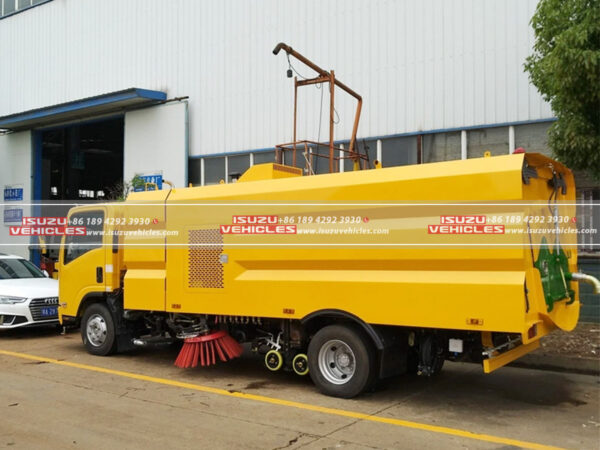

8CBM Dual-Purpose Tank System

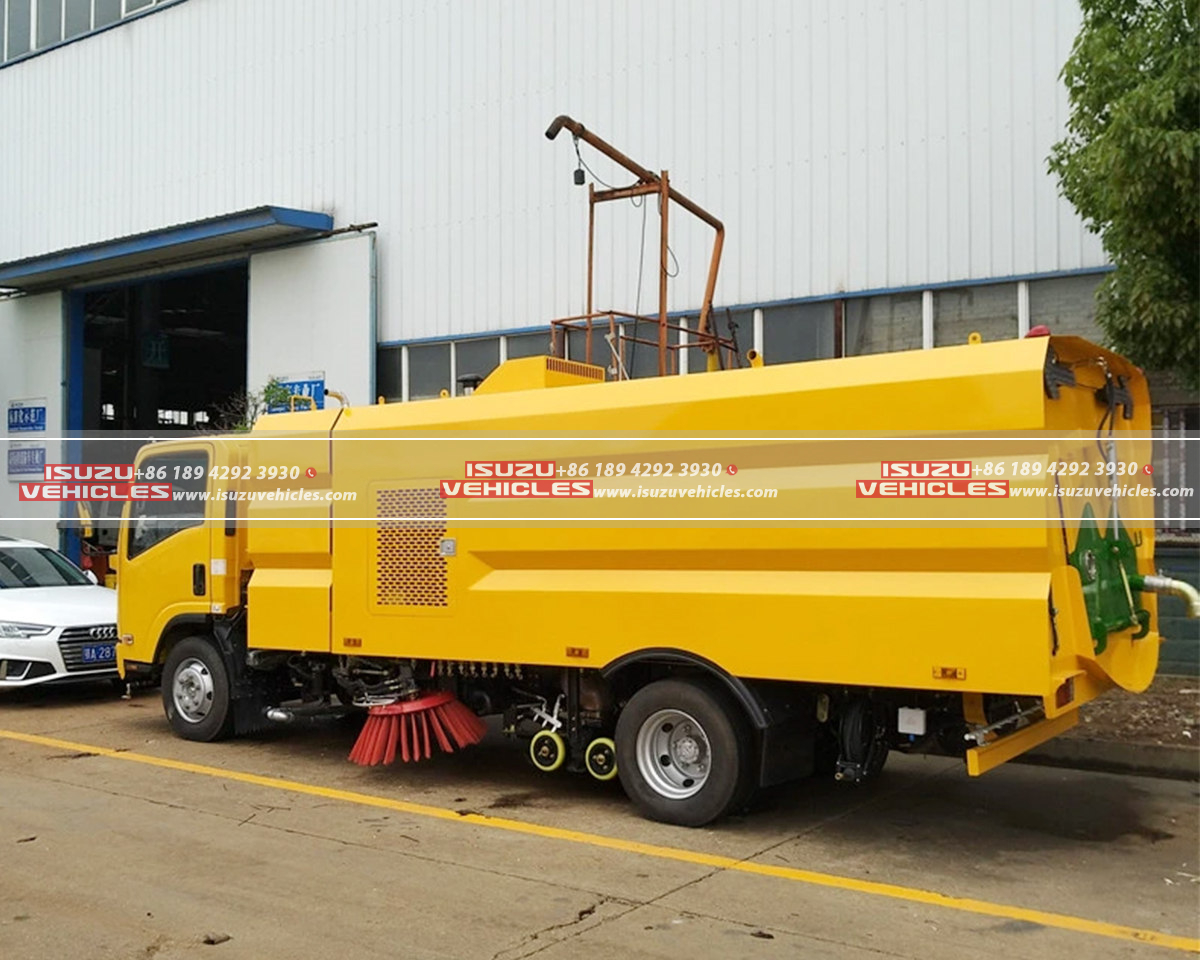

Integrated with an 8CBM stainless steel 304 tank, the system combines a 3m³ garbage compartment and a 5,000L water reservoir for simultaneous debris collection and dust control. The corrosion-resistant design ensures longevity in harsh weather and chemical exposure.

High-Efficiency Sweeping & Suction
Four motor-driven disc brooms (900mm diameter) achieve a sweeping width of 2.6–3.2m and a max cleaning capacity of 60,000 m²/h. The full-floating suction nozzle with a 200mm hydraulic port captures debris ≥100mm, while the centrifugal blower (2,600–2,900r/min) ensures debris-free surfaces.

Multi-Functional Washing Systems
A 20m high-pressure flushing reel delivers 115L/min water flow at 3–20km/h speeds for targeted stain removal. The low-pressure system supplements with 40m³/h flow capacity and 50m projection range, enabling rapid large-area rinsing and dust suppression.

Durability & Environmental Compliance
Stainless steel 304 construction and ISUZU 95HP auxiliary engine ensure reliable performance in extended operations. Euro 5 emission standards align with global environmental regulations, reducing carbon footprint without compromising power.

Operational Safety & Adaptability

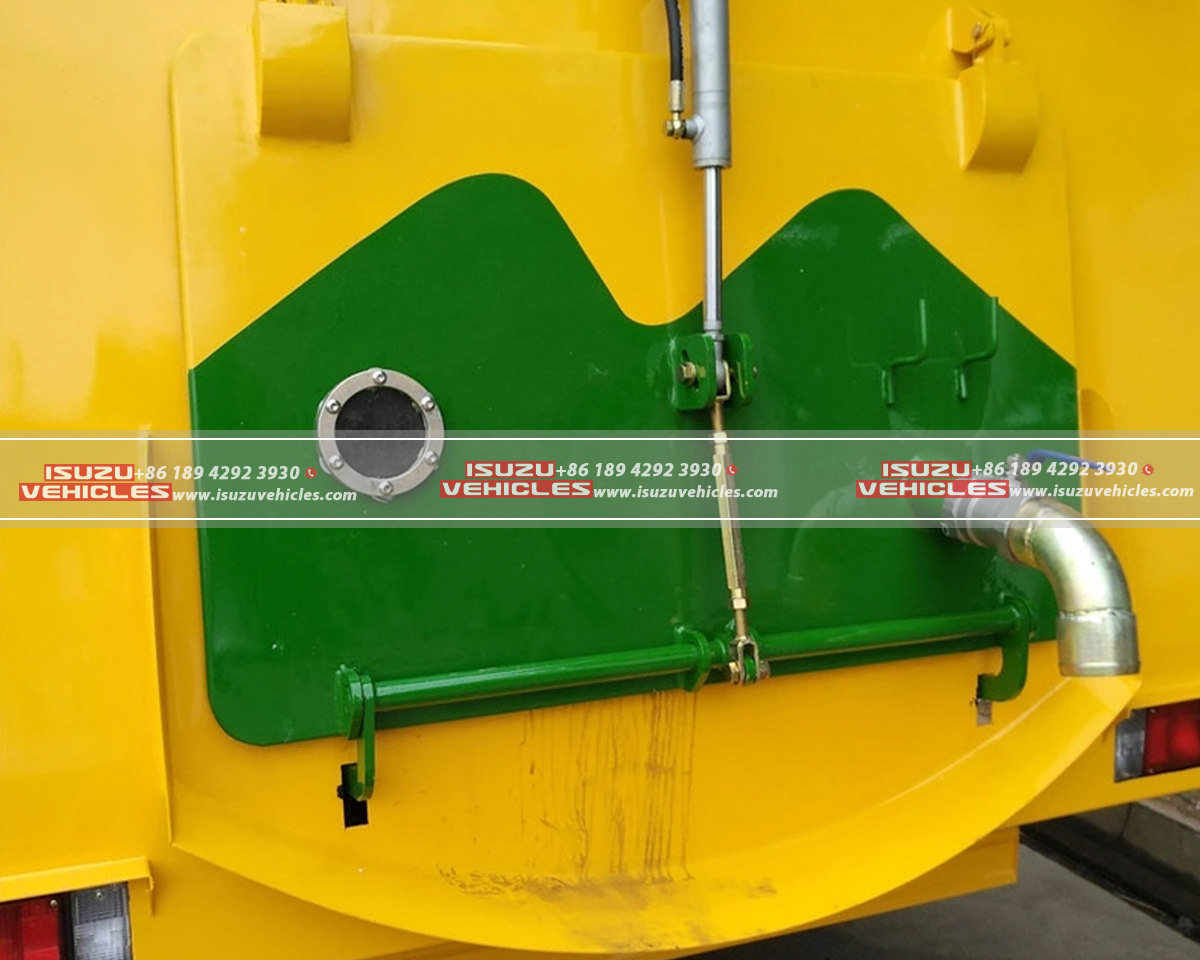

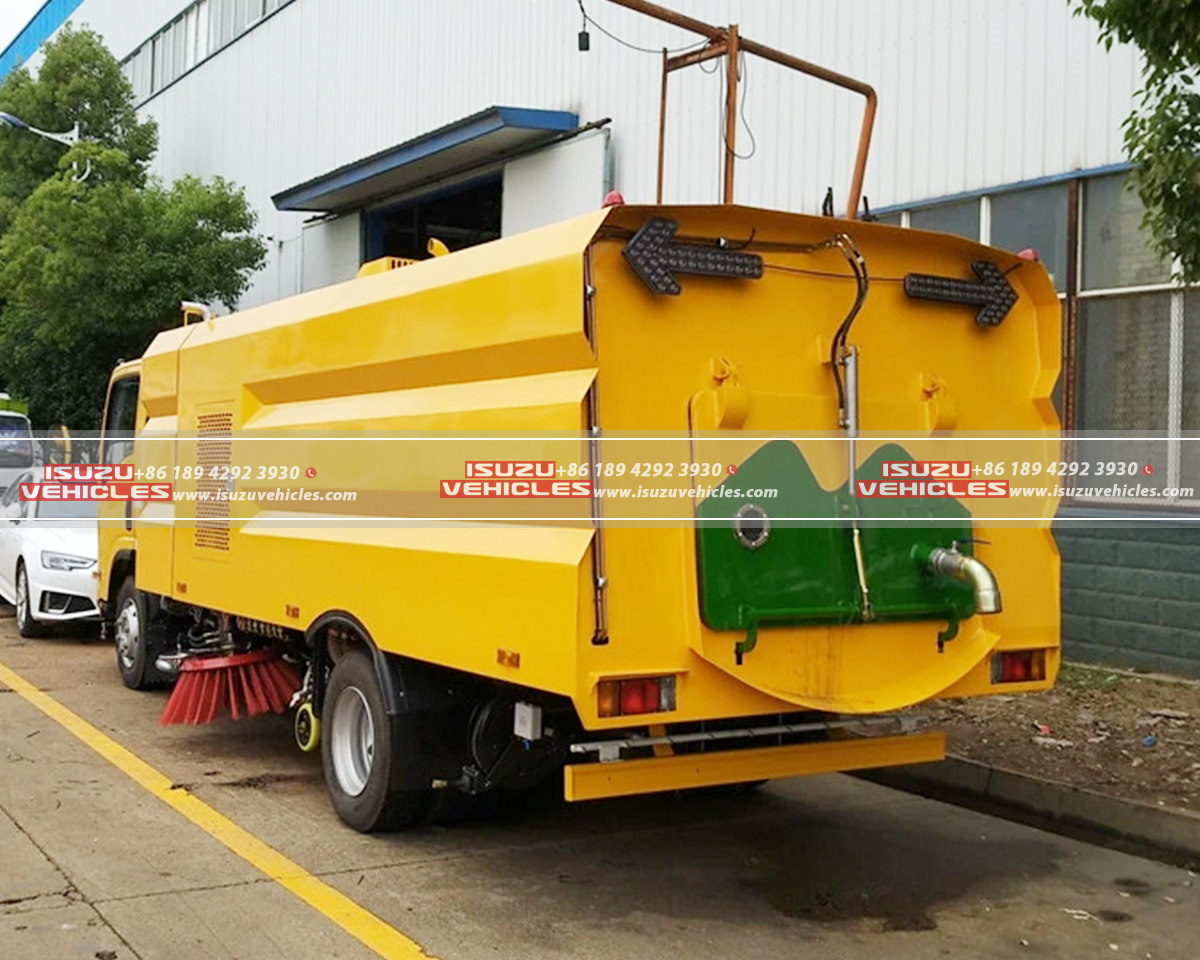

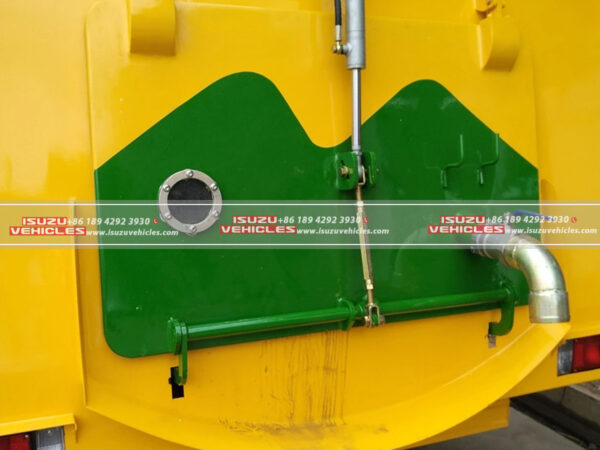

Anti-slip hydraulic controls and reinforced tire configurations enhance stability during high-speed sweeping (3–20km/h). The modular body design (ejection plate, compaction system) simplifies maintenance and waste discharge.

SPECIFICATIONS
