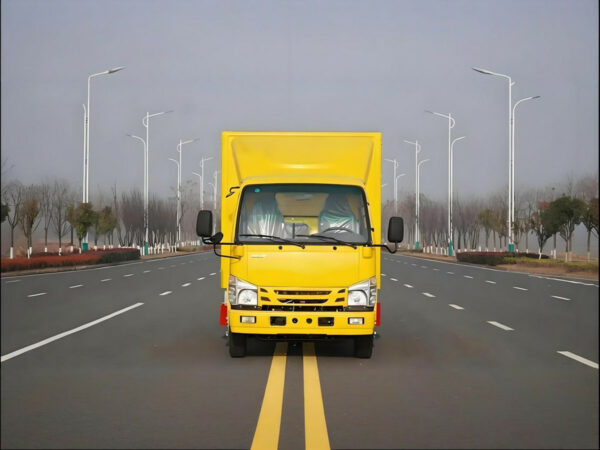

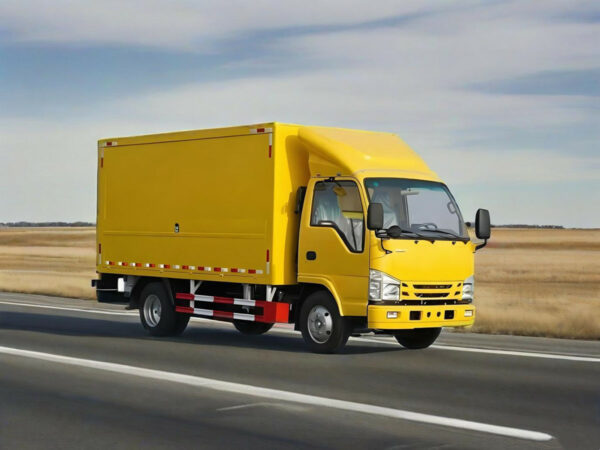

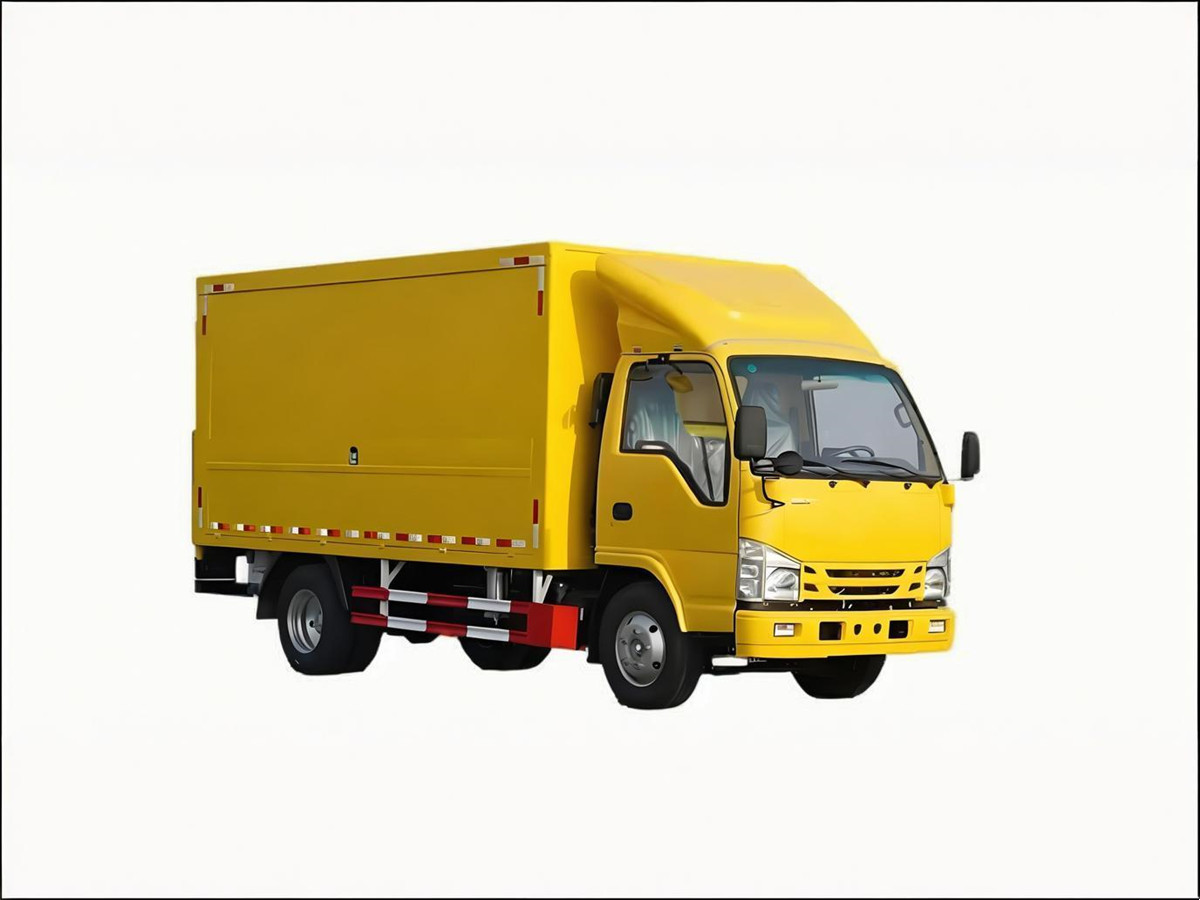

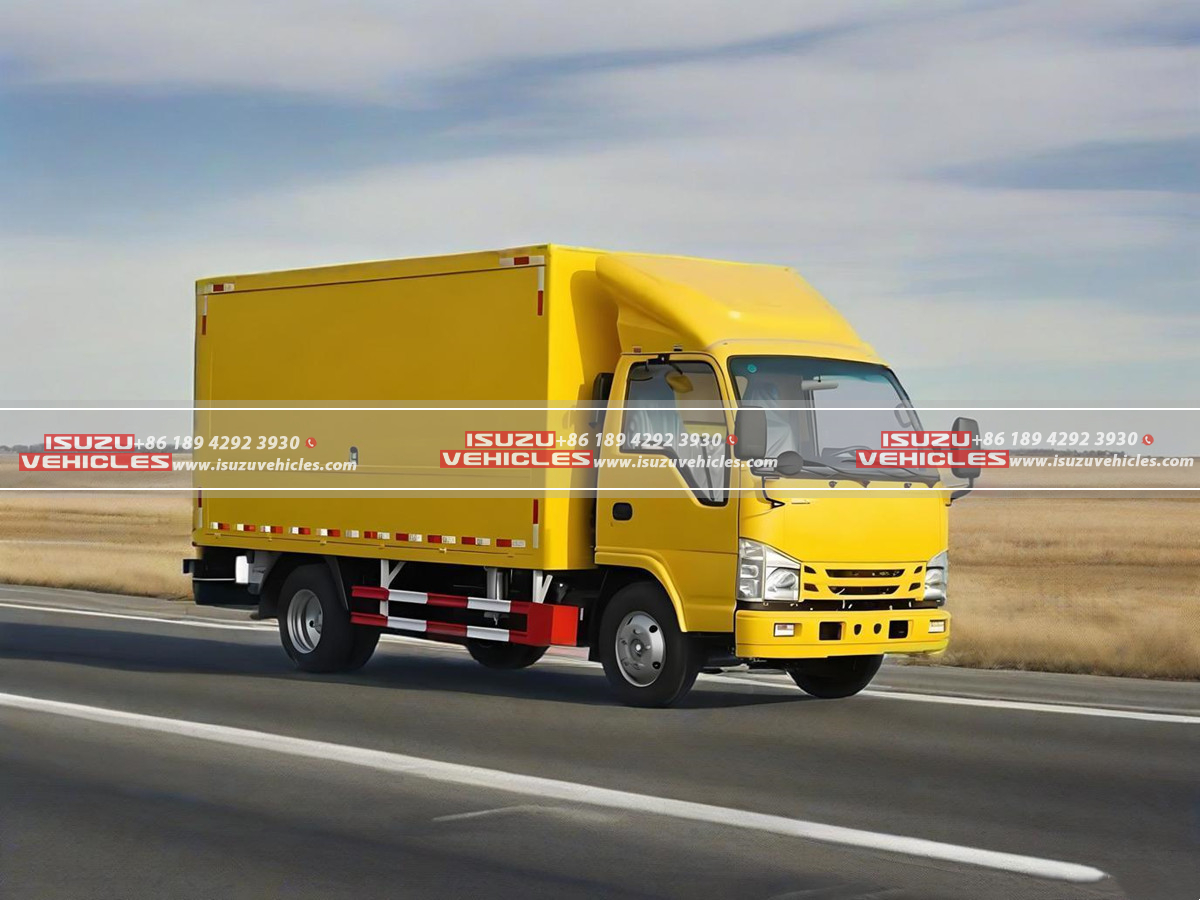

ISUZU 100P Mobile Maintenance Workshop Truck
Designed to bring professional maintenance capabilities directly to the job site, the ISUZU 100P Mobile Maintenance Workshop Truck is a fully integrated field service solution that combines a reliable light-duty chassis with a highly functional workshop body. This vehicle is engineered to support on-site inspection, repair, servicing, and emergency maintenance across a wide range of industries, helping operators reduce downtime, improve response speed, and lower overall operating costs.
Truck Brief
Purpose-Built Mobile Service Solution
The ISUZU Mobile Maintenance Workshop is specifically developed for mobile repair and service operations where access to a fixed workshop is limited or impractical. It is widely used for mining equipment, construction machinery, factory and industrial equipment, wind power facilities, commercial vehicles, passenger cars, and agricultural machinery, supporting tasks such as oil changes, mechanical repairs, inspections, and preventive maintenance directly at the work location.
With an overall size of 5945 × 2300 × 2800 mm and a wheelbase of 3360 mm, the vehicle offers excellent maneuverability in confined areas while providing sufficient internal space for professional-grade tools, power systems, and fluid management equipment.
ISUZU 100P Chassis and Powertrain
Built on the proven ISUZU 100P chassis, this maintenance truck benefits from Isuzu’s reputation for reliability, fuel efficiency, and long service life. Power is supplied by the ISUZU 4KH1CN6LB diesel engine, producing 120 HP (88 kW) with a maximum torque of 290 N·m, delivering stable performance for both driving and auxiliary equipment operation. The engine complies with EURO 6 emission standards, ensuring efficient and environmentally responsible operation.
The engine is paired with an ISUZU MSB-5MT manual transmission with synchronized gears, offering smooth shifting and dependable control during urban driving and frequent stop-and-go service operations.
Cab Comfort and Daily Usability
The all-steel 100P day cab, supported by a 4-point hydraulic suspension system, is designed to reduce vibration and driver fatigue. Inside the cab, features such as air conditioning, power steering, power windows, central locking, and a multi-function LCD instrument panel provide a comfortable and intuitive driving environment. The front-tilting cab design allows quick access for maintenance, helping minimize service interruptions.
Workshop Body and Key Features
Wing-Opening Workshop Body Design

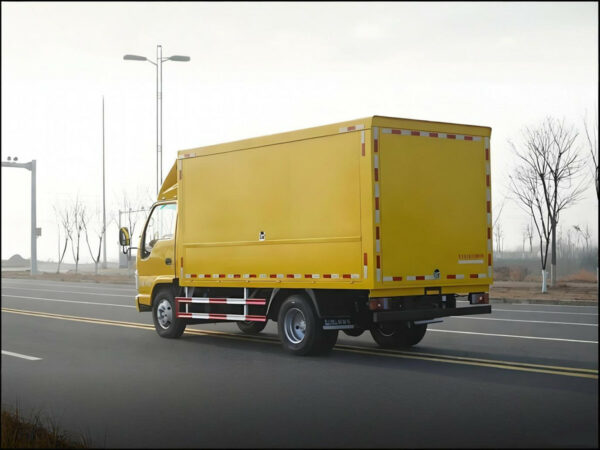

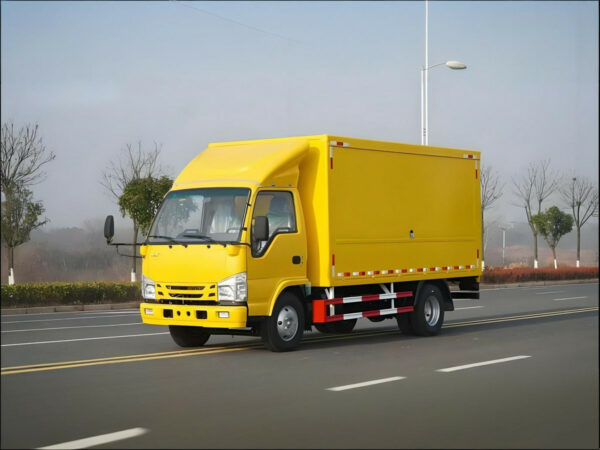

The truck is equipped with a wing-opening box body, measuring 4200 × 2200 × 1800 mm, which opens on both sides like wings to maximize accessibility. This design allows technicians to reach tools, equipment, and storage compartments from multiple angles, significantly improving efficiency during on-site operations.
The box structure uses a steel frame, cold-rolled steel exterior panels, and a fiberglass inner lining, offering strength, corrosion resistance, and easy cleaning in demanding working environments.
Independent Power and Air Supply System
To support fully independent operation, the vehicle is fitted with a Changchai diesel generator rated at 12 kW, providing dual-voltage output of 220V and 380V. This ensures reliable power for electric tools, lighting systems, and auxiliary equipment without reliance on external power sources.
Complementing the generator is an American HEGEMONY air compressor with a 260-liter tank, delivering 1.05 m³/min airflow at 1.25 MPa, supplying consistent compressed air for pneumatic tools and maintenance systems.
Professional Tooling and Maintenance Equipment
The workshop is equipped with a comprehensive set of professional-grade tools, including a hydraulic hose crimping machine capable of handling a wide range of hose sizes, high-torque air impact wrenches for heavy-duty fastening, and automatic retractable hose reels for organized and safe operation.
Additional equipment such as a pneumatic grease injector, oil suction and discharge machine, high-precision tire pressure gauge, and grease filling pump system supports accurate fluid handling, lubrication, and servicing tasks across various machinery types.
Fluid Management and Environmental Protection
A complete fluid management system is integrated into the truck, featuring closed-top chemical drums, stainless steel storage tanks, metered oil guns, and waste oil recovery equipment. This setup ensures precise filling, controlled dispensing, and safe collection of used fluids, supporting clean, efficient, and environmentally responsible maintenance operations in the field.
Storage, Lifting, and Workstation Layout
For organized and ergonomic operation, the interior includes a heavy-duty mobile tool cabinet, hand-pushed tool cart, and a large anti-static workbench, allowing technicians to perform repairs efficiently on site. An electric hoist system with up to 400 kg lifting capacity supports safe handling of heavy components, while additional accessories such as lighting lamps, creepers, and safety cones further enhance on-site functionality.
The ISUZU 100P Mobile Maintenance Workshop Van Truck transforms traditional workshop services into a fully mobile, self-sufficient solution. By combining a dependable Isuzu chassis with a thoughtfully designed workshop body, independent power systems, and professional maintenance equipment, this vehicle provides reliable, flexible, and efficient support for field service operations across multiple industries.
SPECIFICATIONS
| MEASUREMENT | |
| Overall Size | 5945×2300×2800mm |
| Front/Rear Track | 1504mm/1525mm |
| Front/Rear Overhang | 1015mm/1570mm |
| Wheelbase | 3360mm |
| Ground Clearance | 420mm |
| WEIGHTS | |
| Gross Vehicle Weight | 7300kg |
| Tare / Curb Weight | 4500kg |
| Loading Weight | 2800kg |
| Front/Rear Axle Rating | 2500kg/4800kg |
| CHASSIS TRUCK | |
| Chassis Truck Line | ISUZU/100P 1X /4KH120 E6 |
| CAB | |
| Cab Model | 100P 1X |
| Cab Type | Day Cab |
| Cab Roof | Standard |
| Cab Width | 1690mm |
| No. of Seats | 2 |
| Construction | All-steel, 4-point hydraulic suspension cab |
| Instrument & Controls | Center lock/Power window/Multi-function LCD instrument panel/Power steering |
| Driver Seats | Adjustable |
| Tiltable | Front Tiltable |
| Equipment & Device | A/C, radio, cassette record |
| ENGINE | |
| Make/Model | ISUZU/4KH1CN6LB |
| Output Power/Speed | 88kw(120hp) |
| Max. Output Torque/Speed | 290N·m |
| Displacement | 2.999L |
| Engine Type | 4-Cylinder in-line, diesel engine |
| Emission Regulation | EURO 6 |
| CLUTCH | |
| Type | Air-actuated clutch |
| Diameter | 300mm |
| TRANSMISSION | |
| Make/Model | ISUZU/MSB-5MT |
| Type | Manual |
| Gear Numbers | 5F+1R |
| Synchronizer | Equipped |
| STEERING | |
| Type | Recirculating ball, powered adjustable column |
| Position | Left Hand Side |
| CHASSIS | |
| Type | U-profile parallel ladder cold riveted cross |
| Frame Layer | 2 layers standard body unit mounting |
| Suspension | Mechanical, Semi-elliptic Leaf Springs 8/6+5 |
| AXLE | |
| Front Axle Type | Steering Axle |
| Front Axle Rating | 2500kg |
| Rear Axle Type | Driving Axle |
| Rear Axle Rating | 4800kg |
| Rear Axle Ratio | 5.571 |
| BRAKE | |
| Service Brake | Hydraulic brake |
| Parking Brake | Spring energy, compressed air operating on rear wheels |
| Others | ABS |
| BODY UNIT / SUPERSTRUCTURE | |
| Box dimension | 4200×2200×1800mm |
| Box material | Steel frame, cold-rolled plate exterior, fiberglass inner lining |
| Box Type | Wing-Opening Box |
| Power System | Changchai diesel generator, 12 kW, dual voltage 220V/380V |
| Air compressor | American HEGEMONY brand, 260L tank capacity, 1.05 m³/min airflow, 1.25 Mpa pressure |
| Hydraulic Hose Crimping Machine | Crimping range: inner diameter 6–65 mm, outer diameter 15–72 mm |
| Pneumatic Grease Injector | Capacity 40L, oil pipe length 6+4m |
| Tire Inflation Hose Reel | 51m Air Hose Reel with nozzle + high-precision tire pressure gauge |
| High-Torque Air Impact Wrench | Fujiwara 1″ 1060H, Applicable Bolts:40-120mm, Torque Range:6800-15000 N.m |
| High-Pressure Air Hose Reel | Automatic Retractable Hose Reel with 25m High-pressure Hose + pipe fittings |
| Wrench Stand Trolley | PARIL Spring-type bracket, Lifting Height:25-90 cm, Lifting Capacity:25 kg |
| Small Air Impact Wrench | Fujiwara 1/2″ 320 + Socket Wrench Set |
| Grease Filing Pump | Pump Head +10m Oil Suction Pipe + Measuring Oil Gun, Air Pressure:0.5-0.8Mpa, Flow:6–10 L/min, Pressure ratio:5:1 |
| Grease Filing Pipe | 15m, 1/2″ Oil Hose Reel |
| Oil Suction and Discharge Machine | Lubeworks 80L pneumatic oil suction & dispensing machine |
| Tool Cart | Hand-pushed, dimension 630 × 400 × 810 mm |
| Tool Cabinet | Heavy-duty mobile, dimension 1000 × 500 × 1310 mm |
| Repair Tool | Creeper, Lighting Lamp, Cable Ties, Traffic Cones |
| Crane System | PA400-12M Electric hoist, Single Hook:200kg, Double Hook:400kg |
| Closed-top Chemical Drum | 208L Closed-top chemical drum |
| Workbench | Anti-static workbench, dimension 200×100×75cm |
| Storage Tank | 60L Stainless steel tank |
