BRIEF:

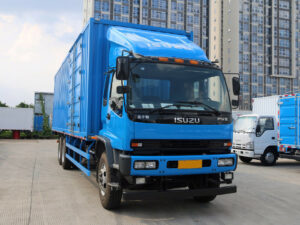

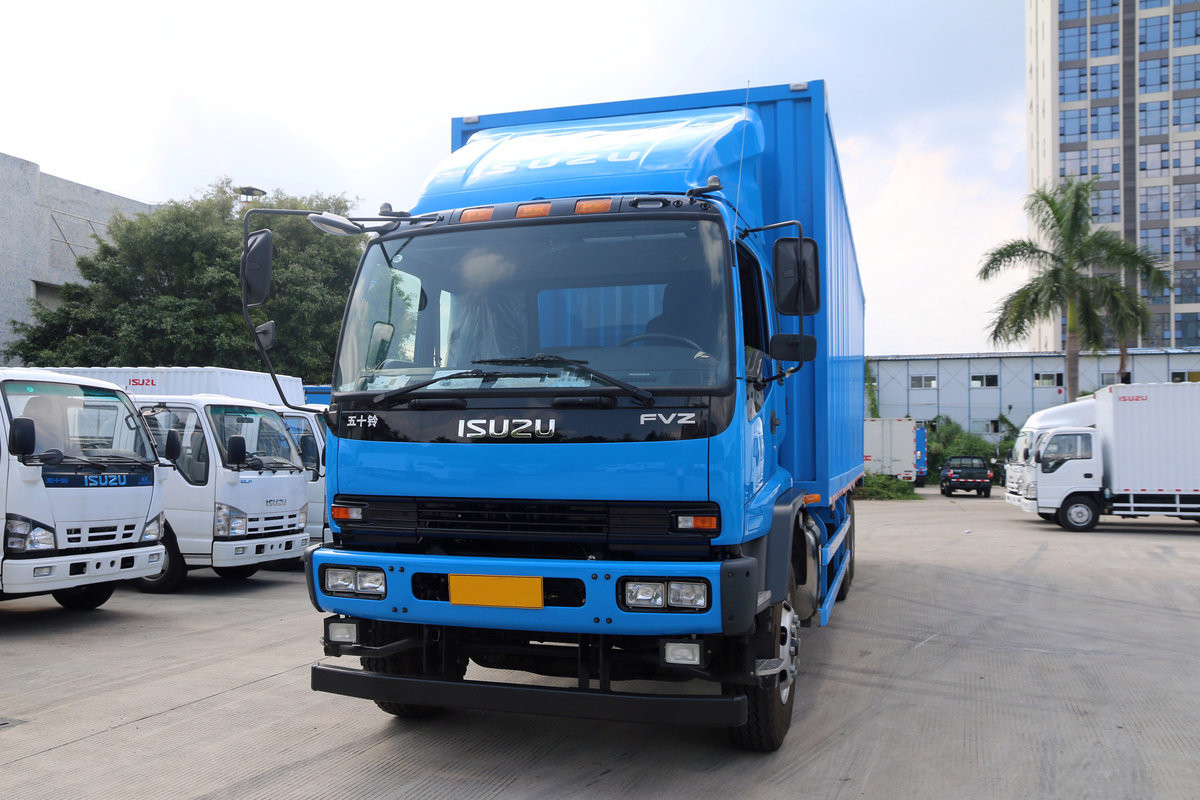

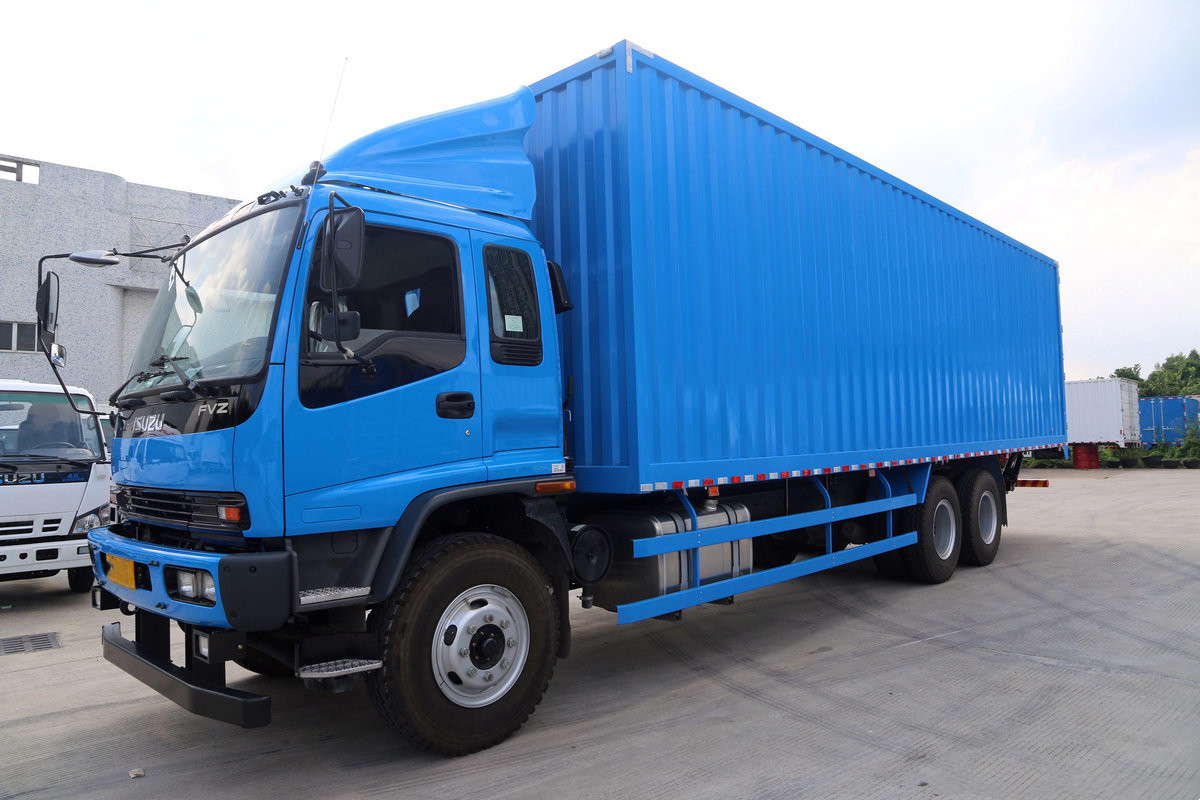

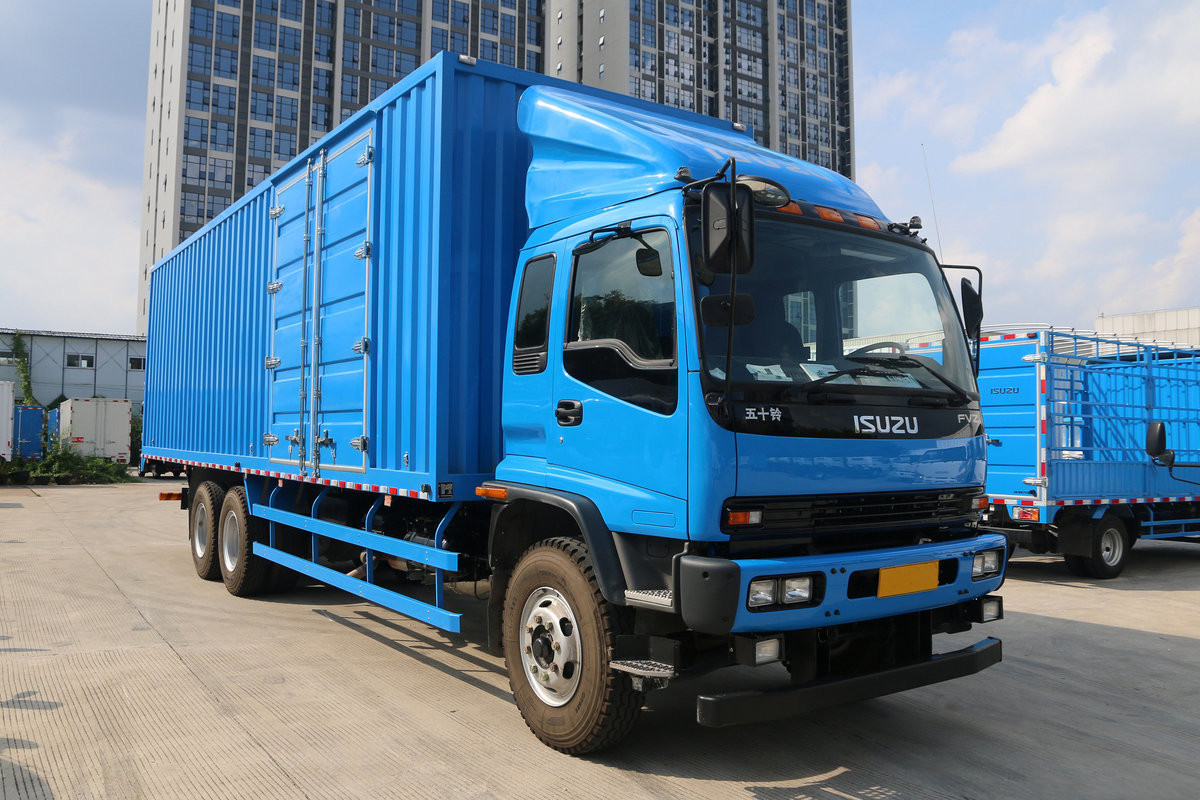

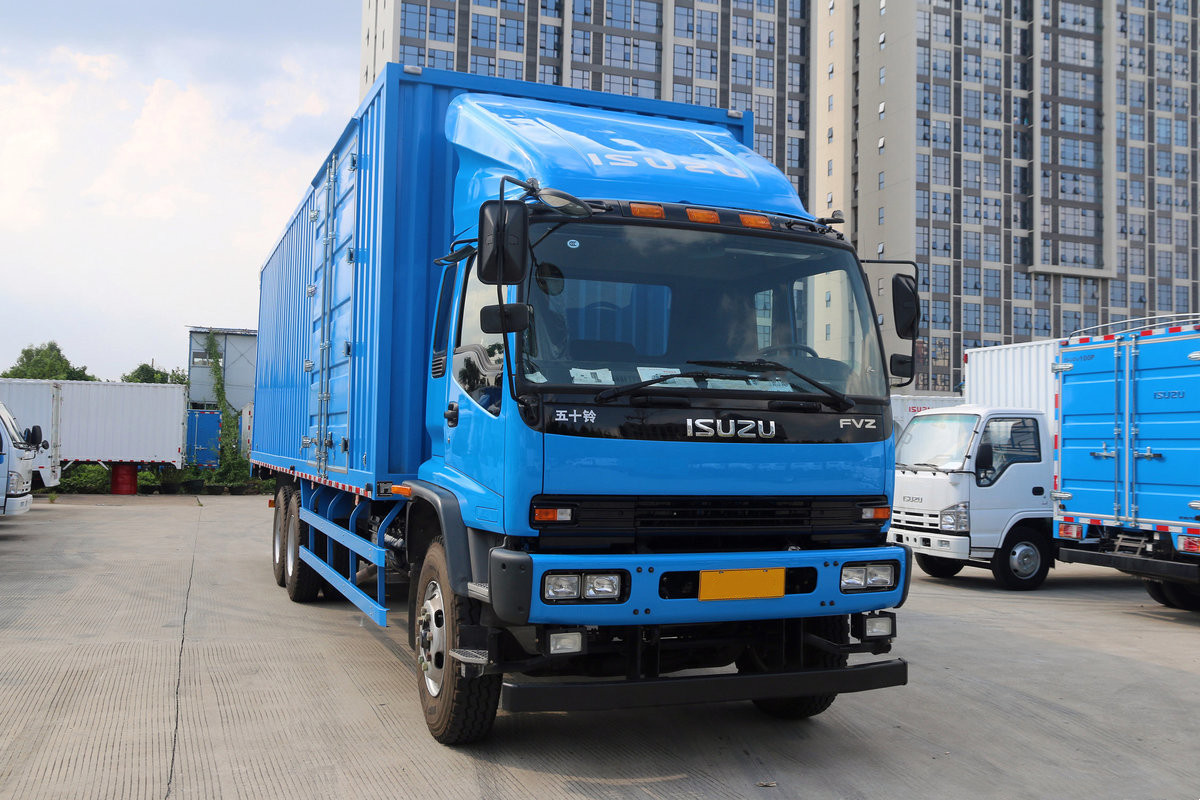

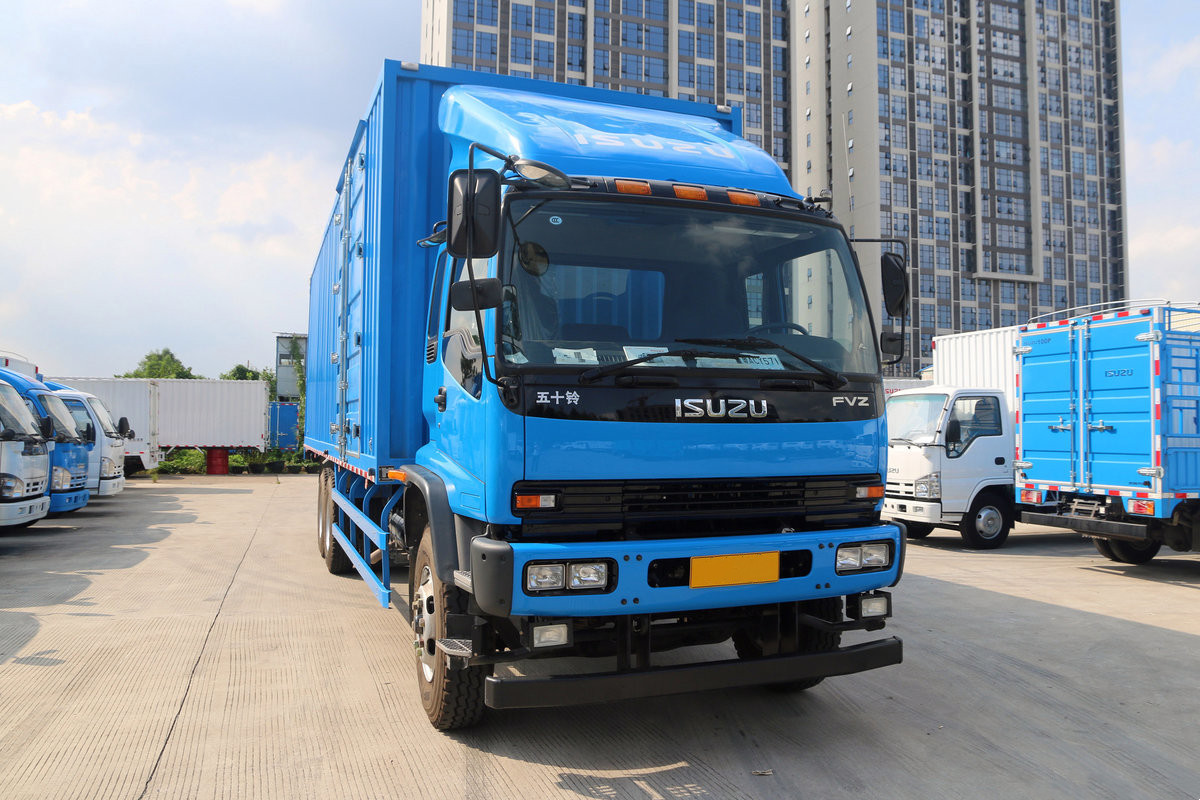

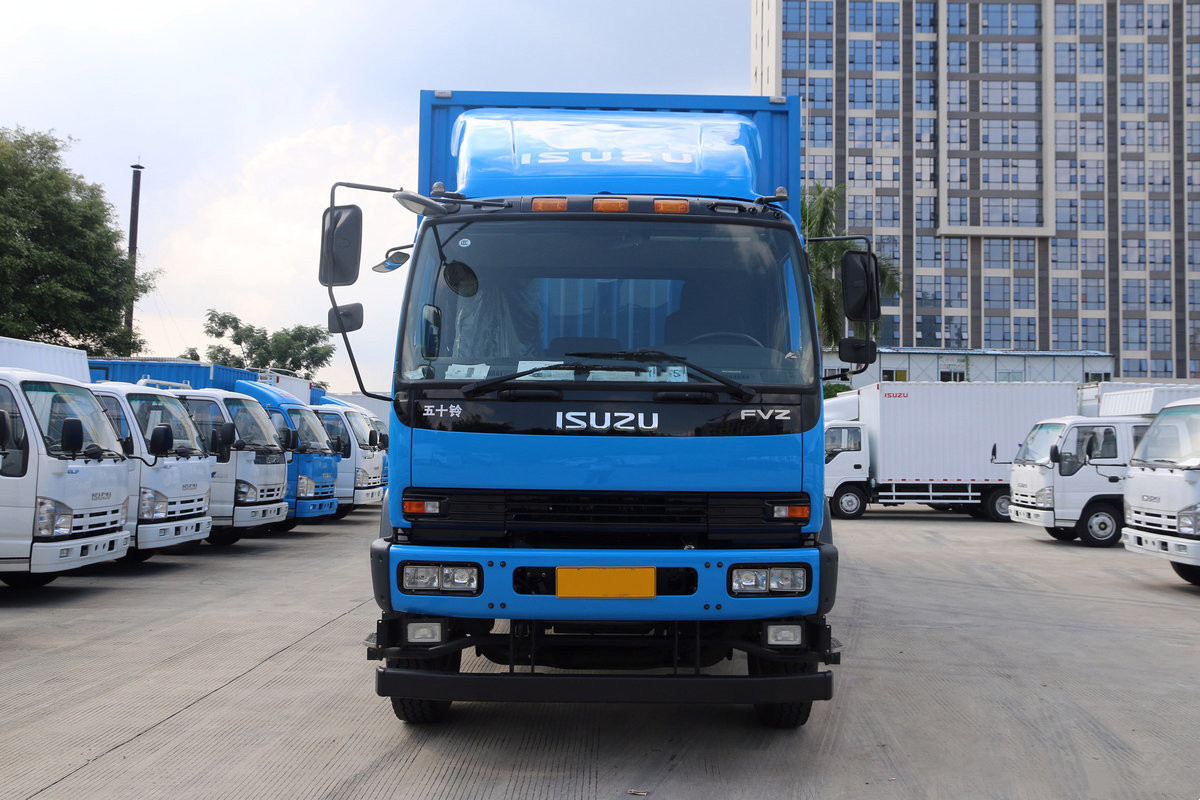

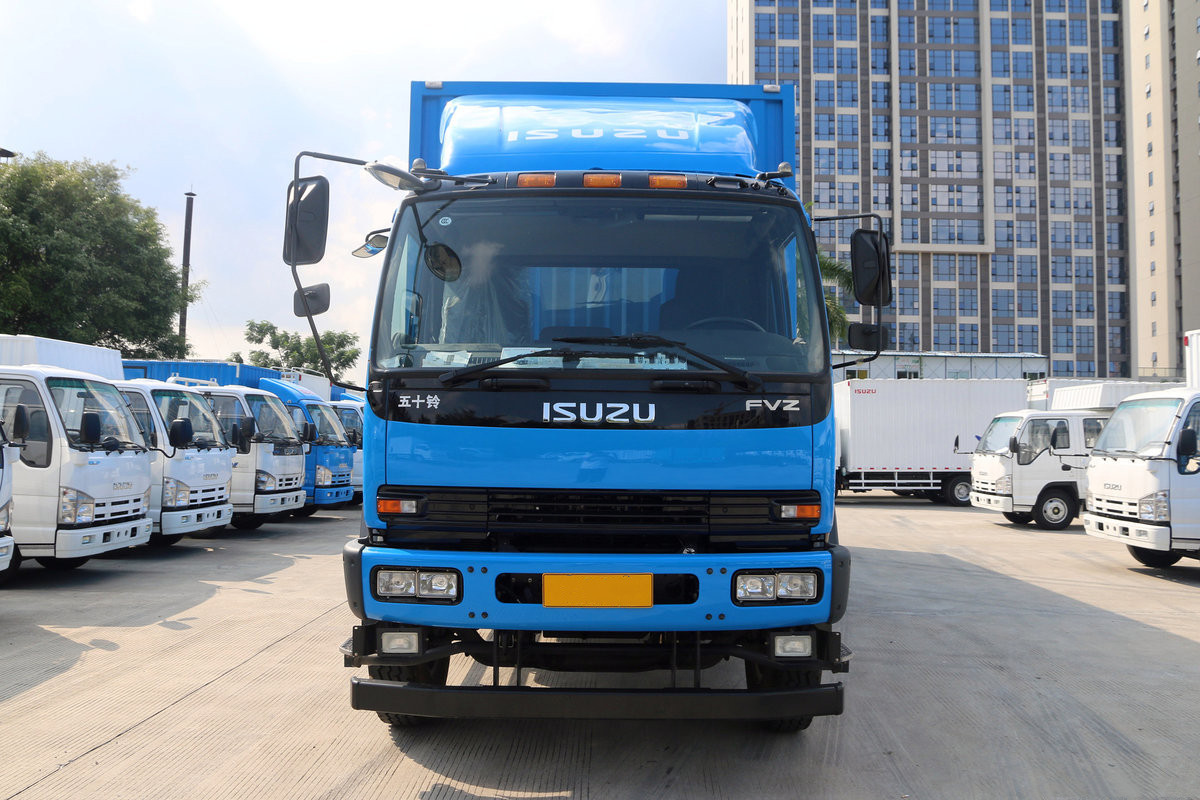

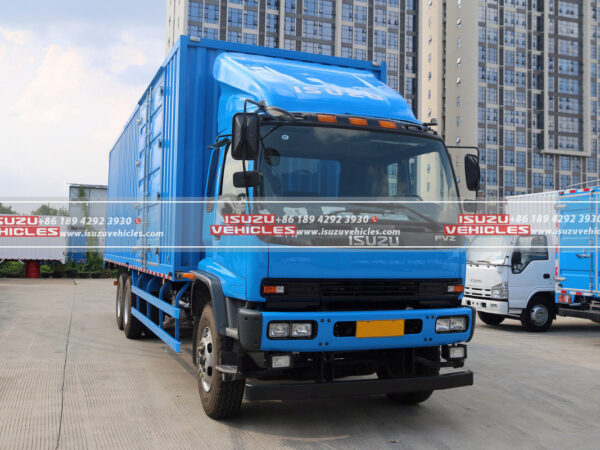

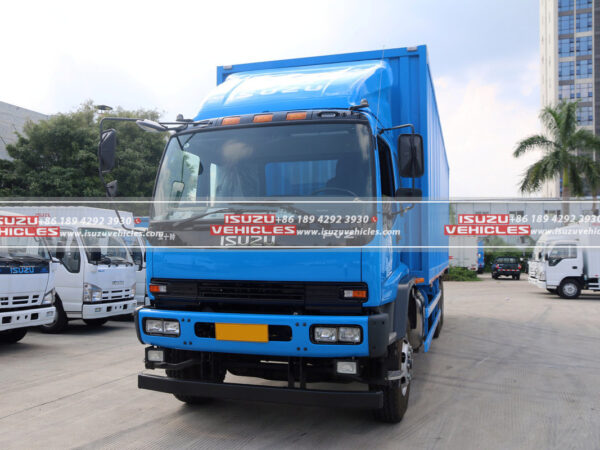

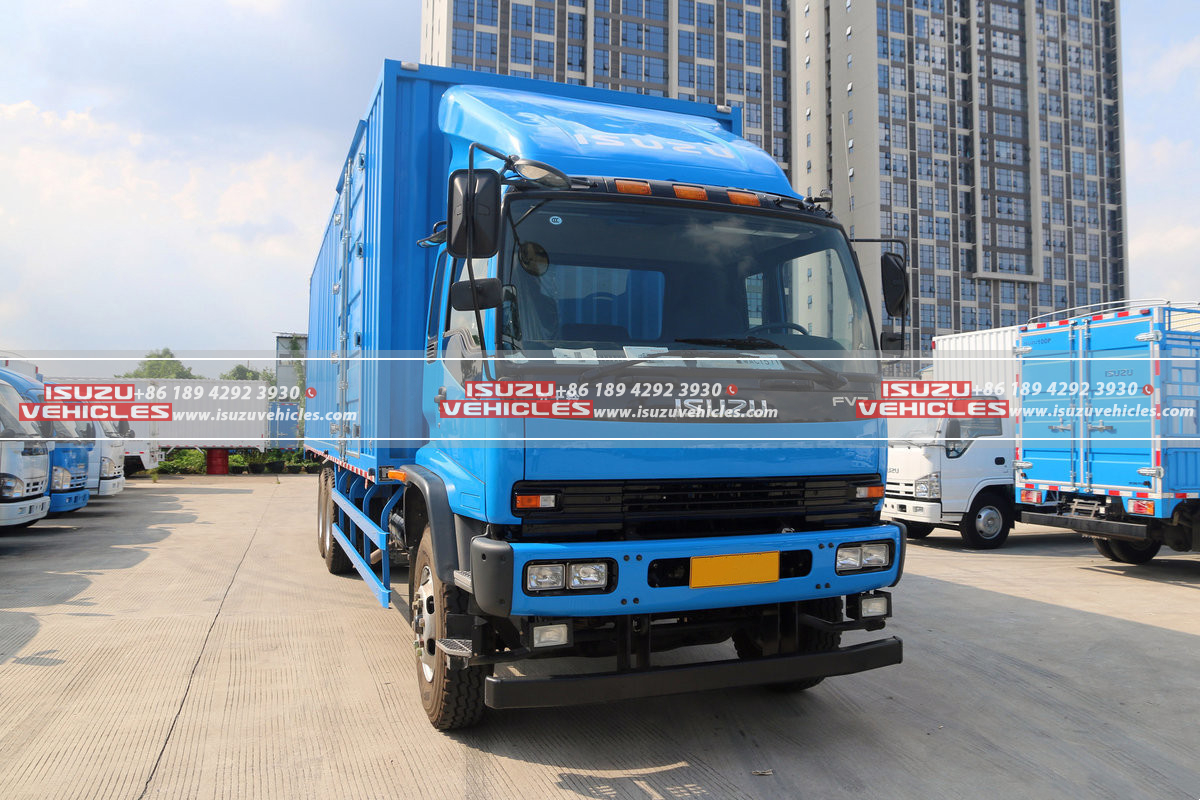

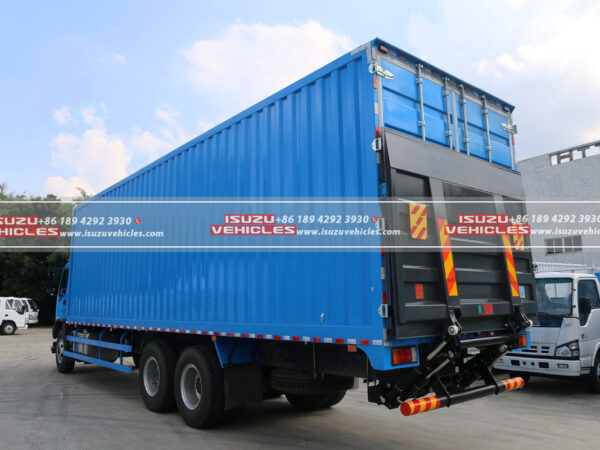

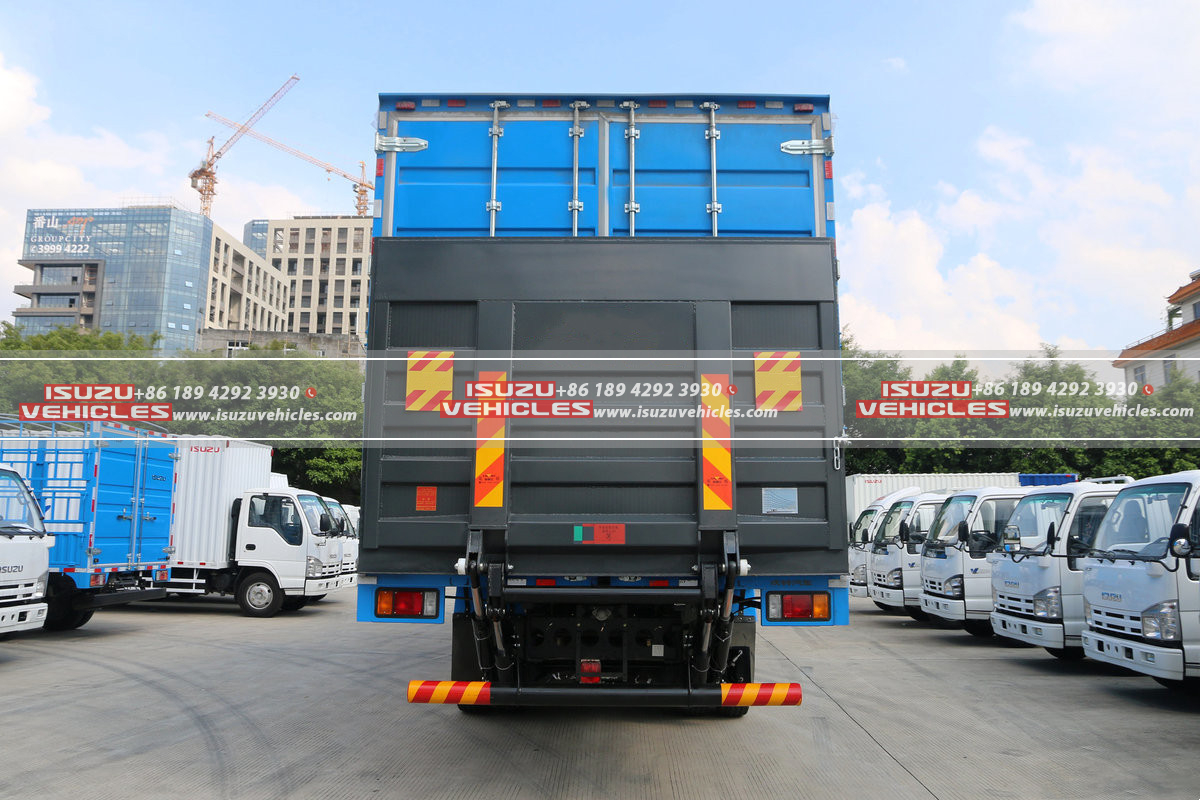

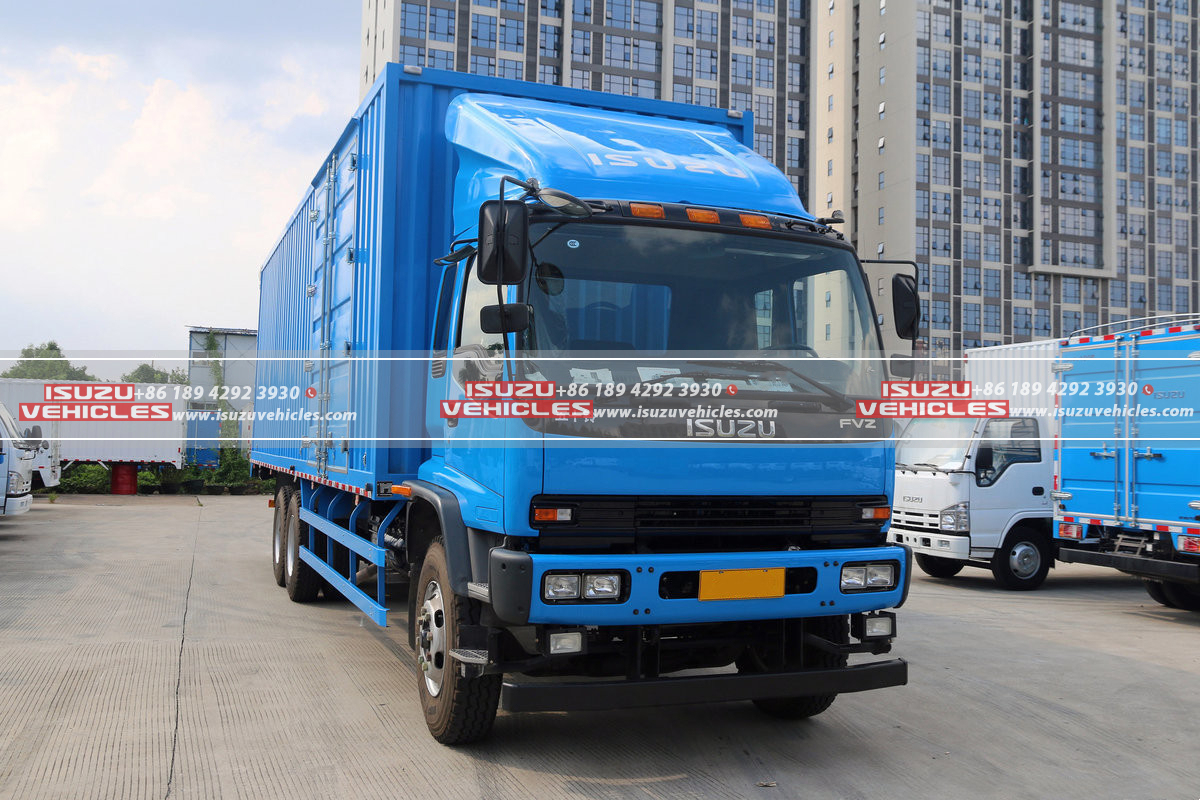

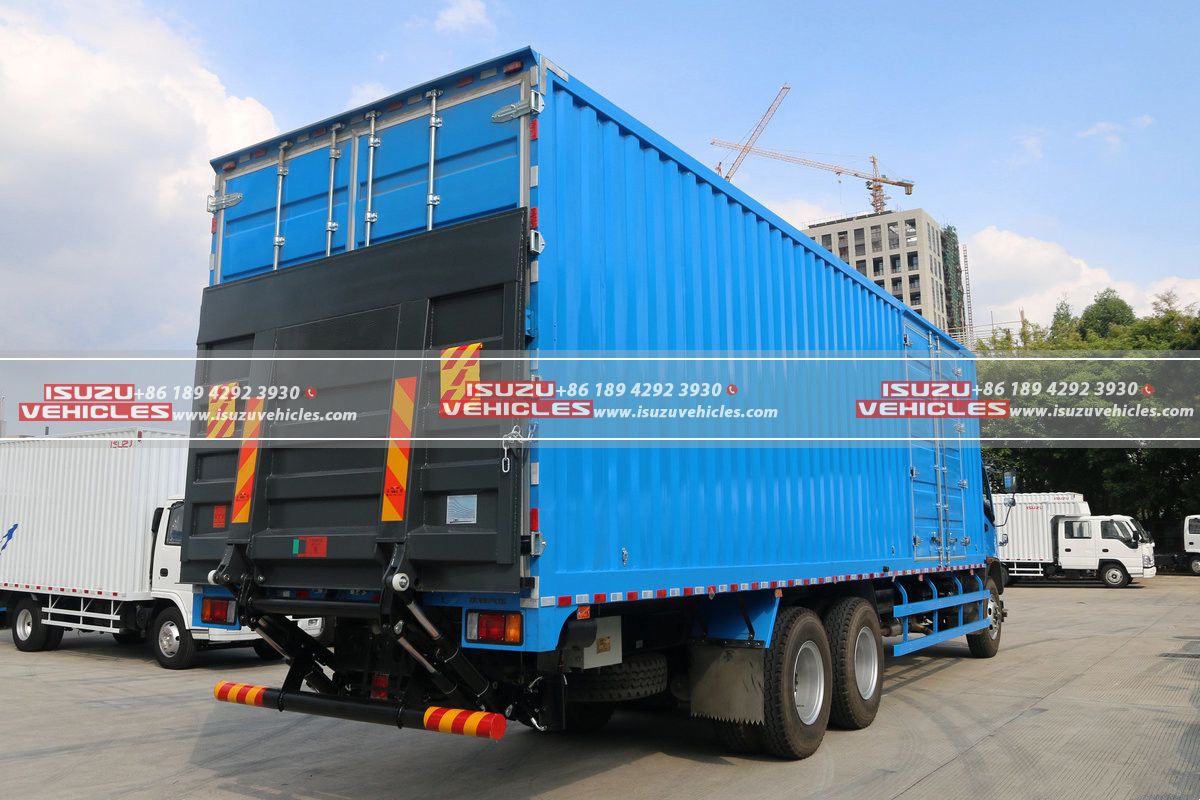

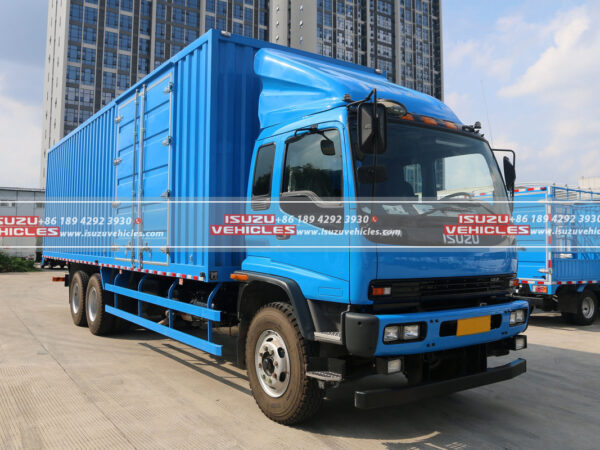

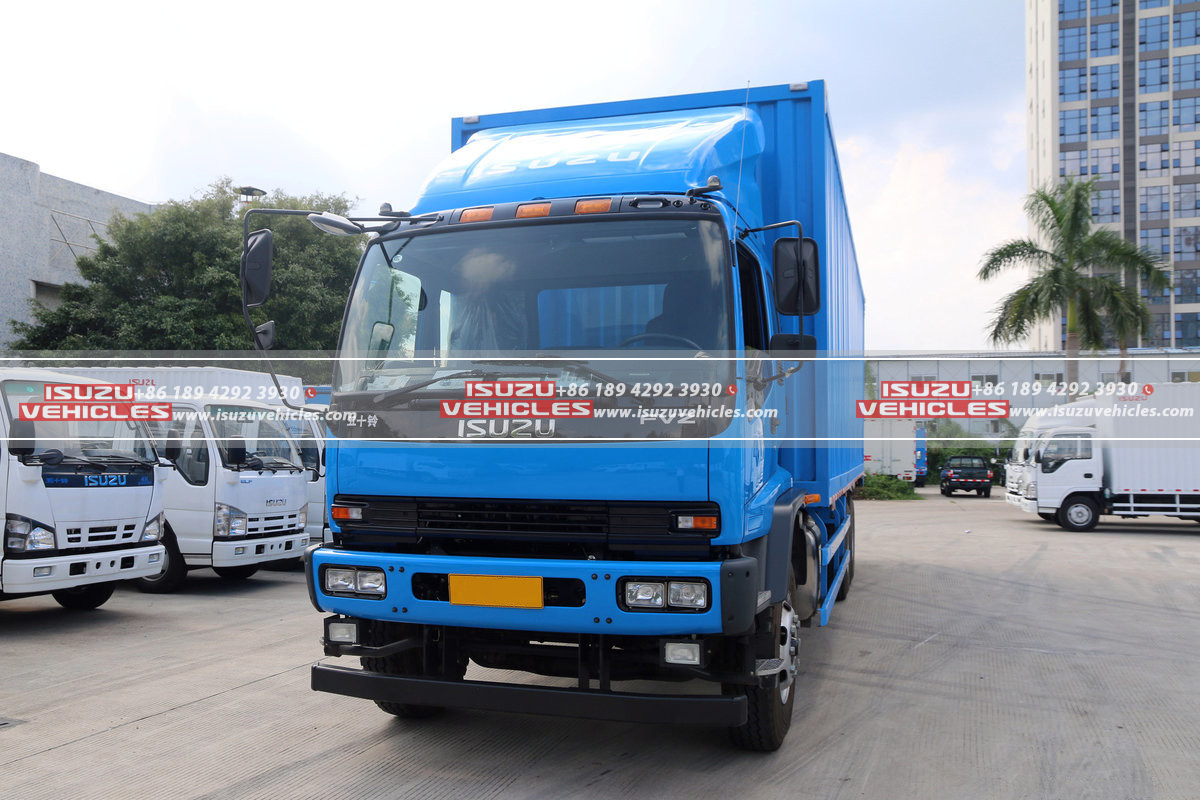

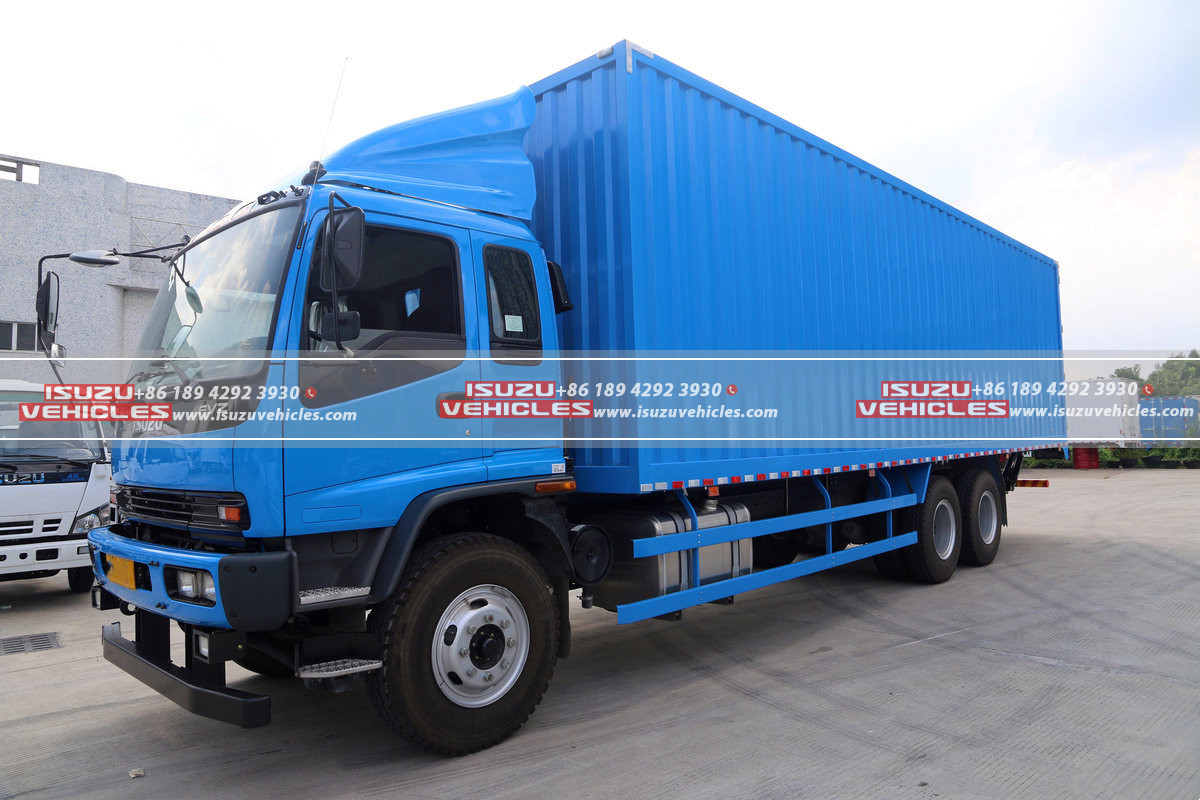

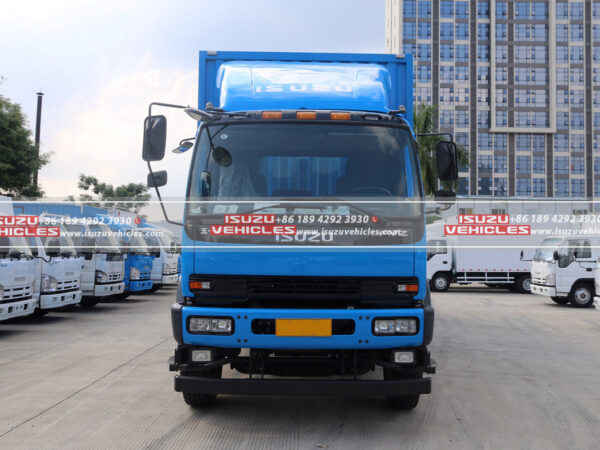

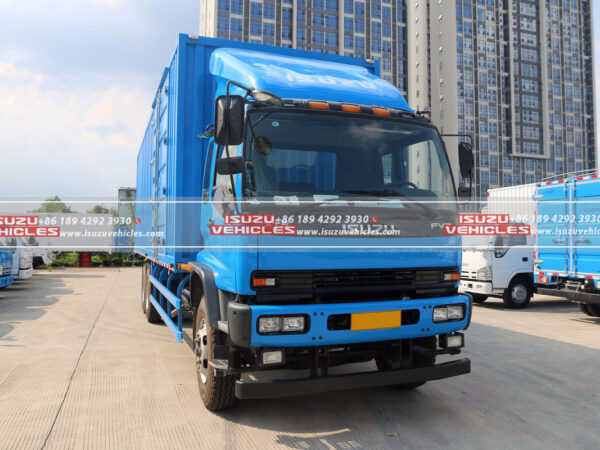

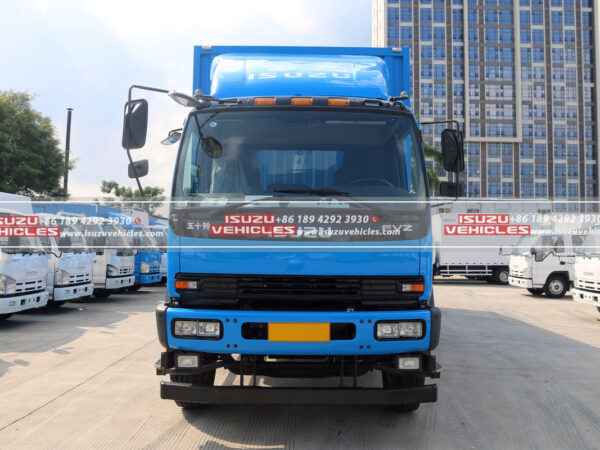

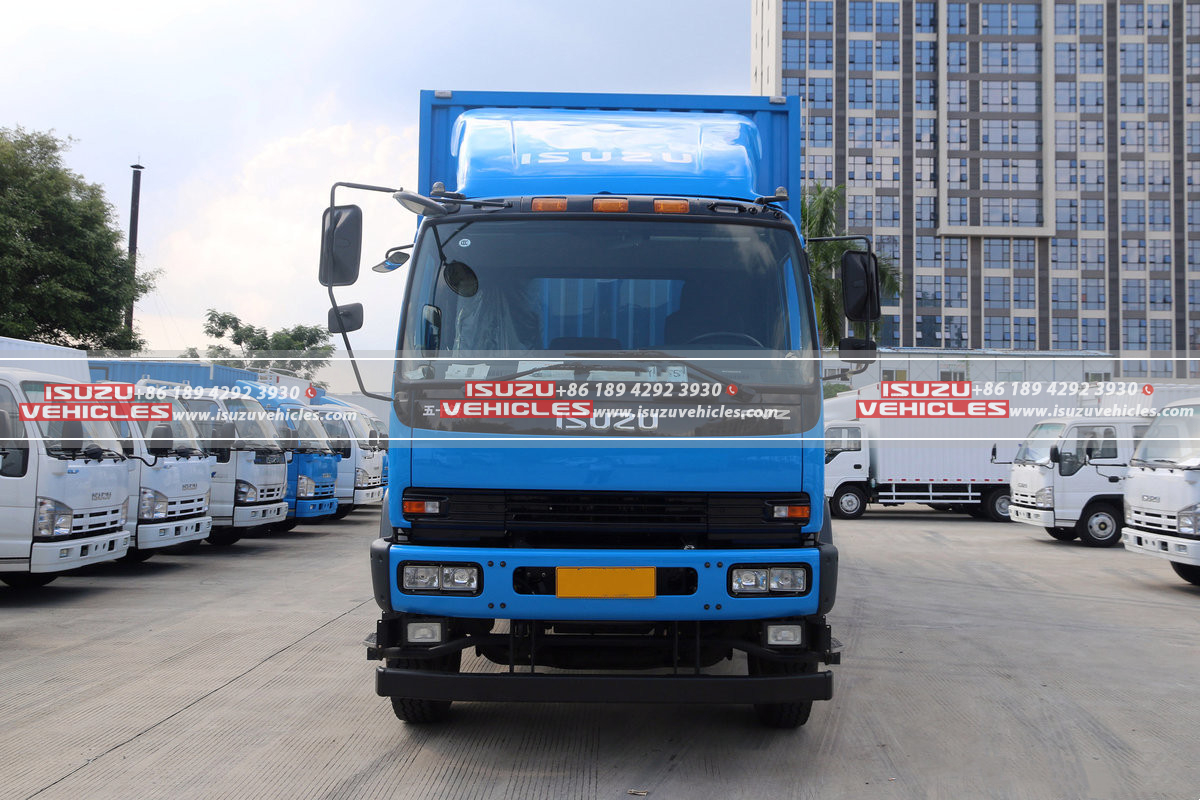

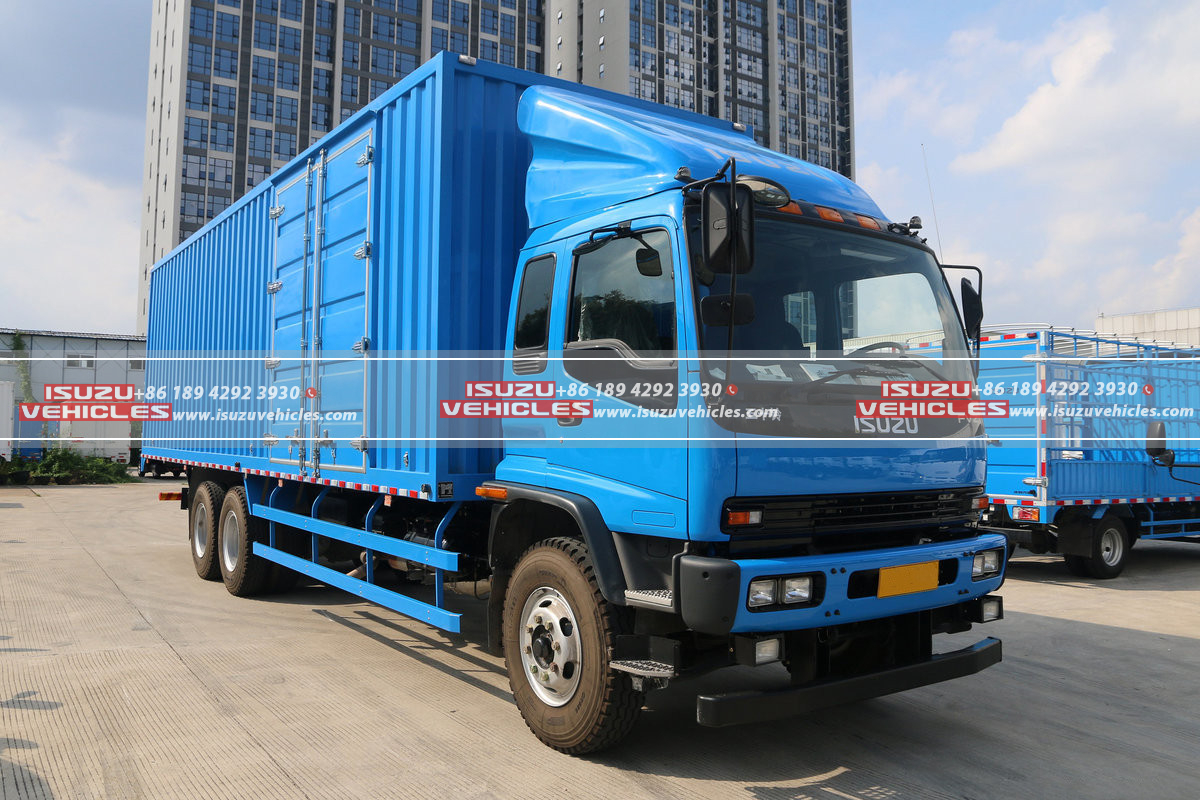

The ISUZU 10 Meter Van Box Cargo Truck is a robust and versatile 10-meter cargo truck designed for heavy-duty logistics. Boasting a spacious cargo box, it’s equipped with a potent engine and a reliable transmission system, ensuring efficient and powerful performance for commercial transportation needs.
This ISUZU cargo truck stands as an ideal choice for commercial transport due to its robust build, spacious cargo area, and reliable performance, making it well-suited for diverse heavy-duty logistical operations.
FEATURES:
- Performance and Power:
- Engine: Qingling Isuzu 6HK1-TCH, delivering a robust 300 horsepower and a torque of 980N·m, offering ample power for heavy cargo.
- Transmission: Fast 8-speed manual transmission, facilitating seamless gear shifts, with 8 forward and 2 reverse gears for adaptable maneuvering.
- Cargo Capacity:

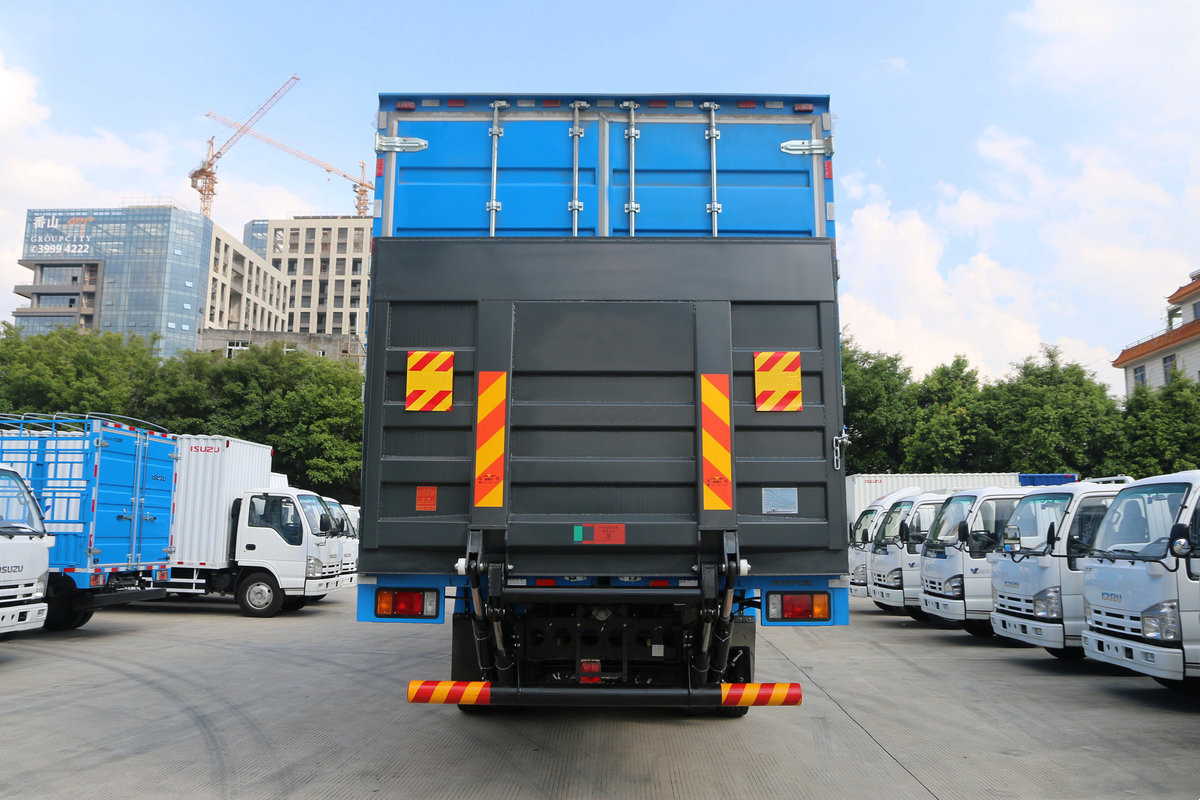

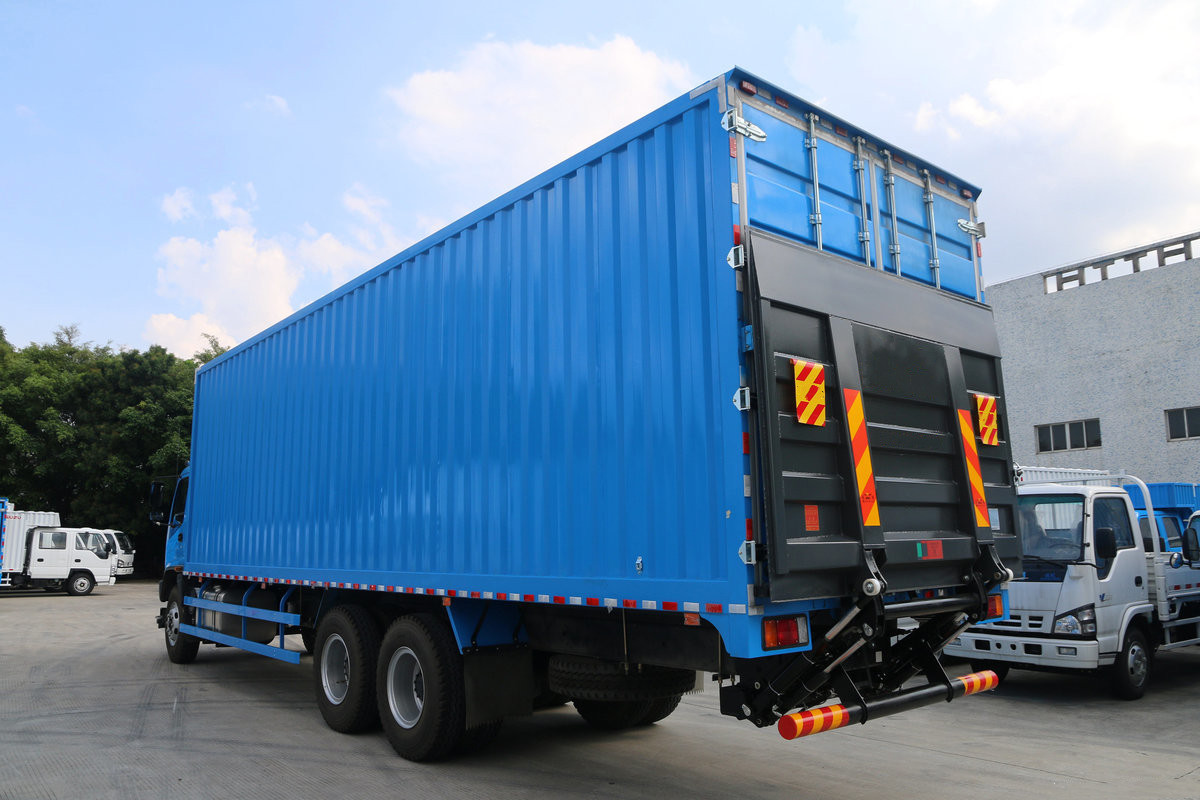

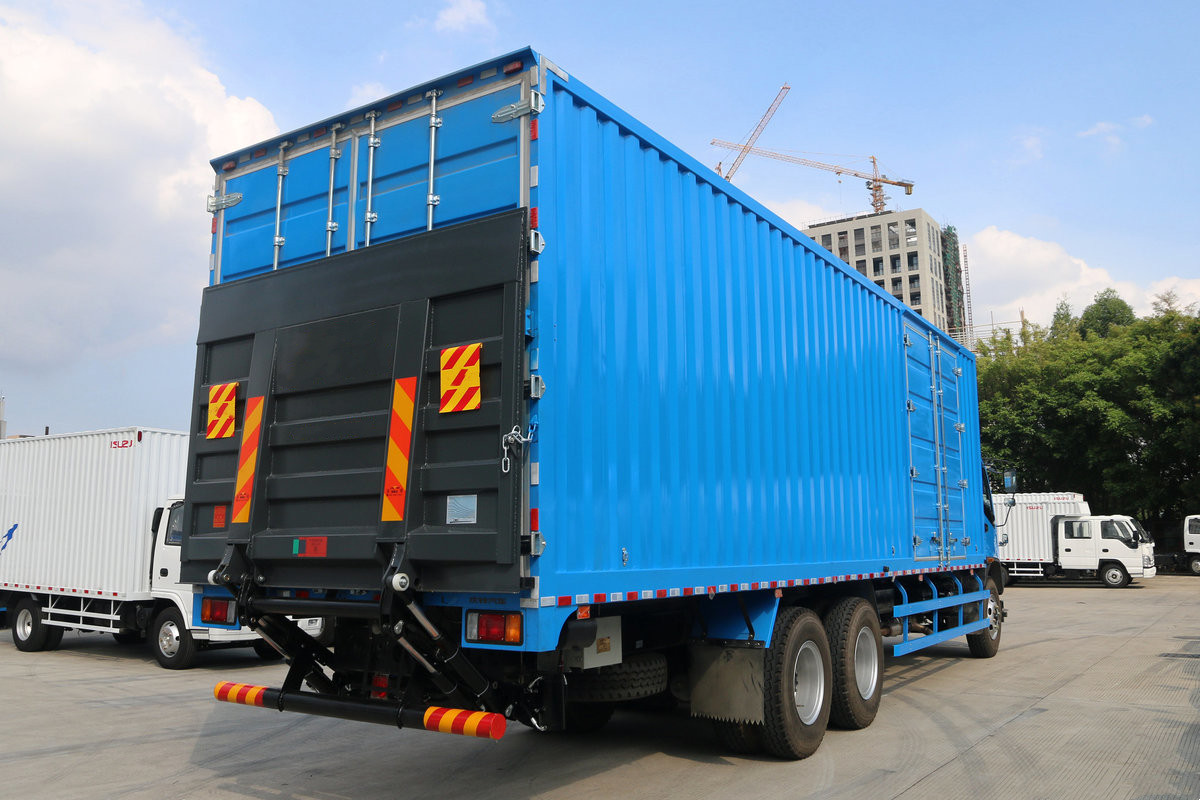

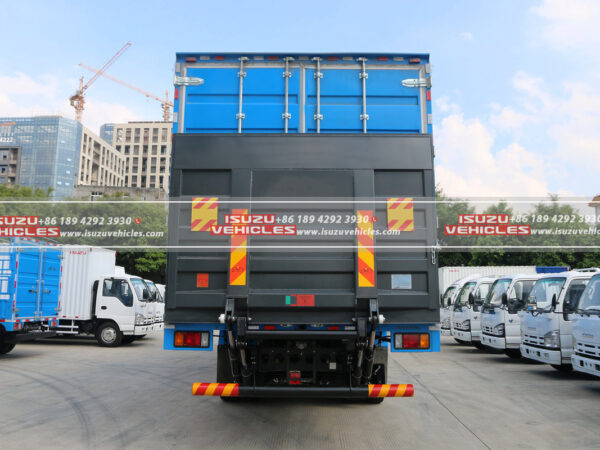

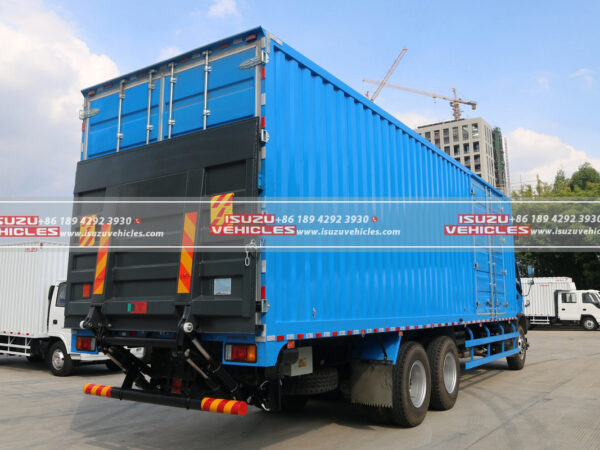

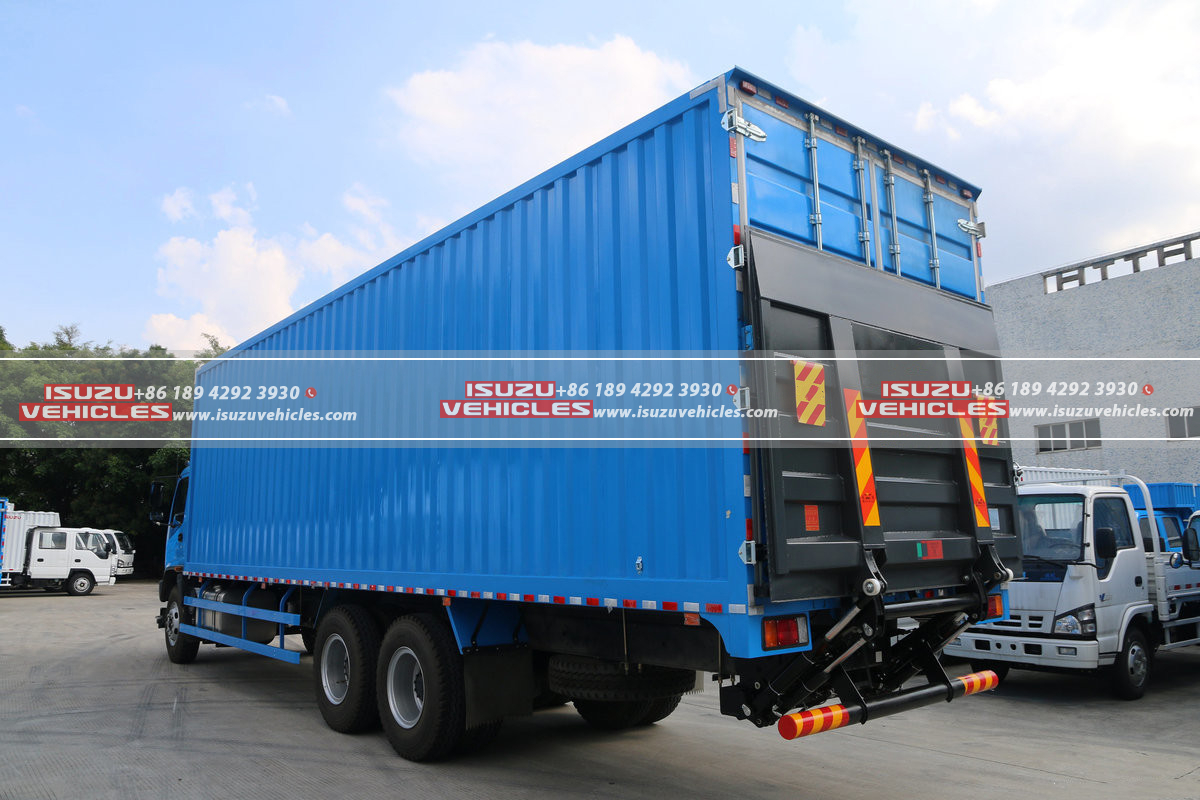

- Cargo Box: Van-type design with dimensions of 9.35m (L) x 2.45m (W) x 2.55m (H), providing a capacious space for varied cargo loads.
- Box Length: Spacious 9.4-meter cargo hold ideal for diverse freight.
- Design and Dimensions:
- Sturdy Build: Wheelbase of 5700+1300mm, ensuring stability even with substantial loads, with a GVW (Gross Vehicle Weight) of 25 tons.
- Vehicle Size: Measures 11.75m (L) x 2.55m (W) x 3.96m (H), offering a sizable frame to accommodate significant cargo volumes.
- Advanced Technology and Compliance:
- Emission Standards: Compliance with EURO 2, EURO 3, EURO 4, and EURO 5 standards, ensuring environmental responsibility.
- Fuel Tank: Equipped with a durable iron-made fuel tank with a capacity of 200L, ensuring extended travel range without frequent refueling.
- Reliable Chassis and Suspension:
- Chassis Strength: The front axle allows for a load of 7000KG, while the tandem rear axle holds a capacity of 18000KG, providing structural robustness.
- Leaf Springs: Features a configuration of 9/10 leaf springs for enhanced stability and load-bearing capacity.
- Tire Specifications:
- Tires: Equipped with 10 durable 11.00R20 18PR tires, ensuring traction and endurance across various terrains.
SPECIFICATIONS:
Basic Information | |
---|---|
Announcement Model | QL5250XXYWTFZJ |
Type | Van Cargo Truck |
Drive Form | 6X4 |
Wheelbase | 5700+1300mm |
Box Length | 9.4 meters |
Engine | Qingling Isuzu 6HK1-TCH |
Transmission | Fast 8-speed |
Rear Axle Speed Ratio | 5.571 |
Vehicle Length | 11.75 meters |
Vehicle Width | 2.55 meters |
Vehicle Height | 3.96 meters |
Front Wheel Track | 1960mm |
Rear Wheel Track | 1855/1855mm |
Curb Weight | 10.83 tons |
Rated Load | 13.975 tons |
Gross Vehicle Weight | 25 tons |
Maximum Speed | 105KM/h |
Place of Origin | Chongqing |
Tonnage Level | Heavy Cargo Truck |
Approach Angle | 15 degrees |
Departure Angle | 9 degrees |
Remarks | Standard configuration includes DPF (Diesel Particulate Filter). Front/Rear Overhang: 1.335/3.415 meters |
Fuel Type | Diesel |
Engine Parameters | |
---|---|
Engine Model | Qingling Isuzu 6HK1-TCH |
Engine Brand | Qingling Isuzu |
Common Name for Engine | Isuzu 6HK1 |
Number of Cylinders | 6 |
Fuel Type | Diesel |
Cylinder Arrangement | In-line |
Displacement | 7.79L |
Emission Standard | EURO 2, EURO 3, EURO 4, EURO 5 |
Maximum Output Power | 221kw |
Maximum Horsepower | 300 horsepower |
Maximum Torque | 980N·m |
Cargo Box Parameters | |
---|---|
Cargo Box Type | Van |
Cargo Box Length | 9.35 meters |
Cargo Box Width | 2.45 meters |
Cargo Box Height | 2.55 meters |
Cab Parameters | |
---|---|
Number of Passengers | 3 |
Seat Rows | Semi-row |
Transmission Parameters | |
---|---|
Transmission Model | Fast 8-speed |
Transmission Brand | Fast |
Transmission Type | Manual |
Forward Gears | 8 gears |
Reverse Gears | 2 gears |
Fuel Tank | |
---|---|
Fuel Tank Material | Iron |
Fuel Tank Capacity | 200L |
Chassis Parameters | |
---|---|
Front Axle Allowable Load | 7000KG |
Rear Axle Allowable Load | 18000KG (tandem axle) |
Speed Ratio | 5.571 |
Number of Leaf Springs | 9/10 |
Tires | |
---|---|
Tire Specifications | 11.00R20 18PR |
Number of Tires | 10 pieces |
