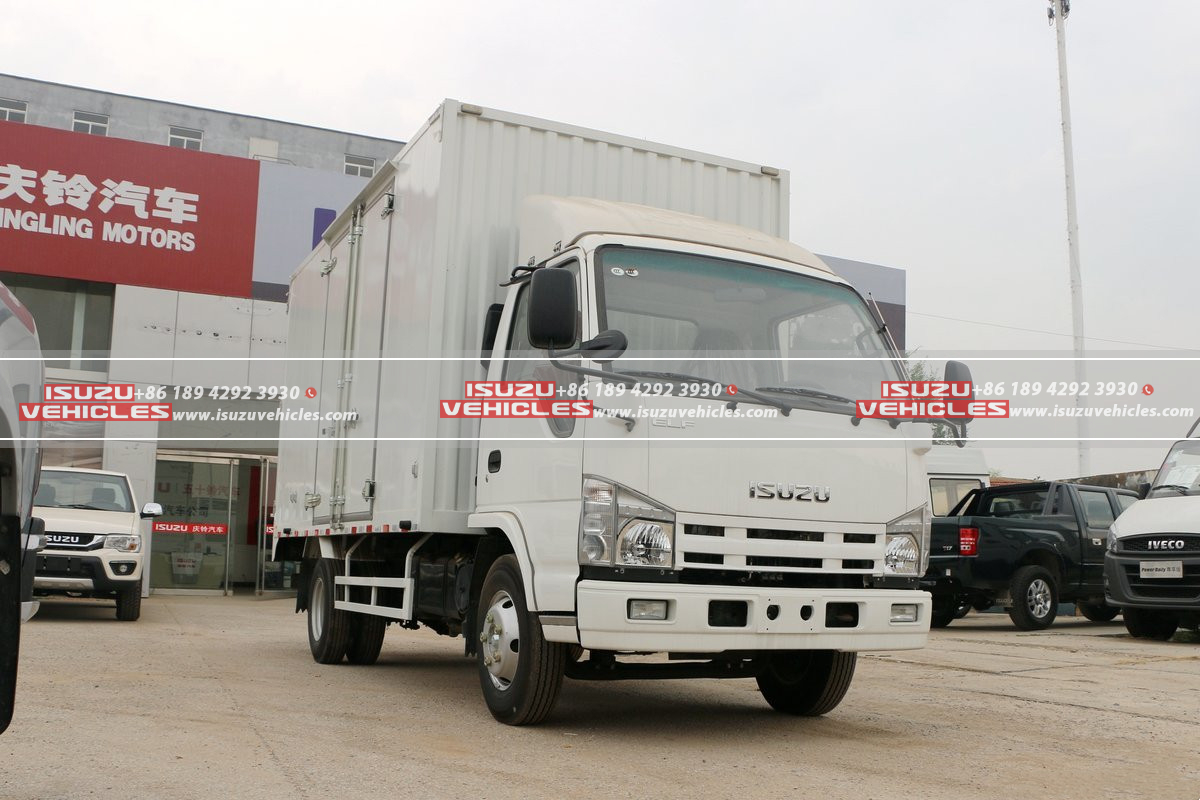

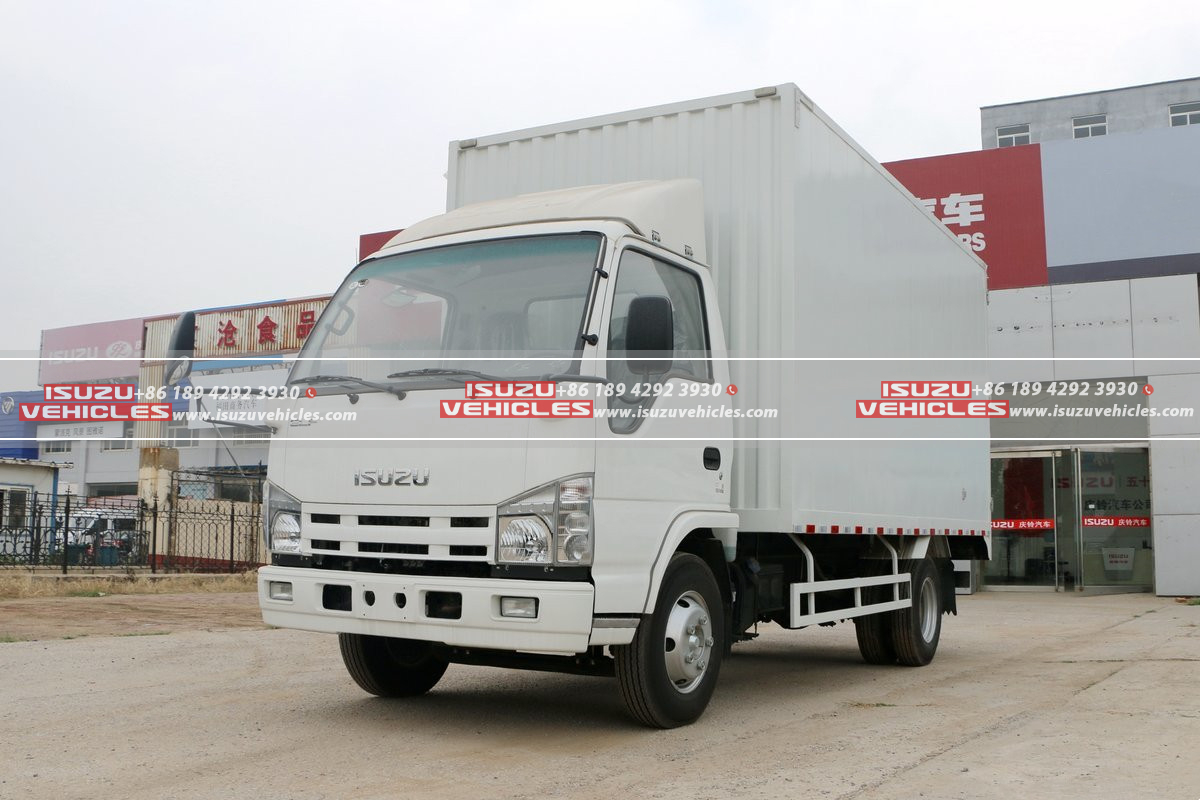

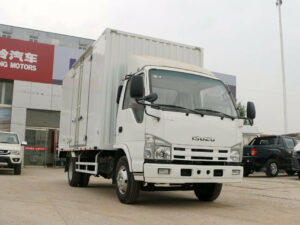

ISUZU 4.3 Meter Single Row Box Cargo Light Truck

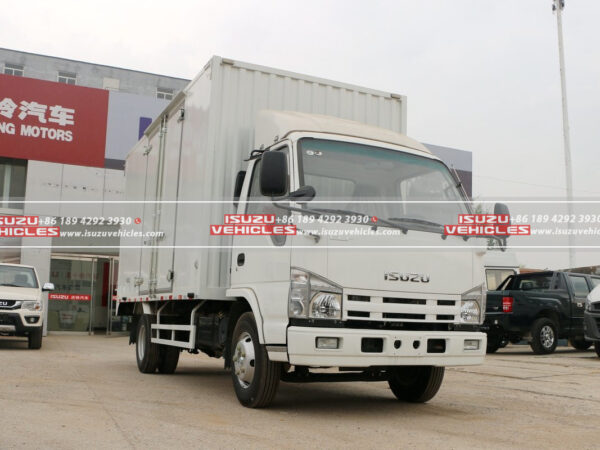

ISUZU 4.3 Meter Single-Row Box Cargo Light Truck

Designed as a versatile urban delivery solution, the ISUZU 4.3-Meter Single-Row Box Cargo Light Truck combines compact maneuverability with robust payload capabilities. Built on a 4×2 drivetrain and a 2,765mm wheelbase, this 4.26-ton GVW (Gross Vehicle Weight) vehicle delivers a 1.495-ton payload capacity, ideal for last-mile logistics in congested city environments. Its 5.3-meter overall length and 1.95-meter width ensure effortless navigation through narrow streets, while the 3.6-meter cargo box (constructed from composite panels, steel corrugated sheets, or aluminum) provides adaptable storage for parcels, perishables, or light industrial goods. Powered by a Euro VI-compliant Isuzu 4KH1CN6LB diesel engine (120 HP) paired with a 5-speed manual transmission, it achieves a top speed of 105 km/h while maintaining fuel efficiency. Compliant with yellow-plate registration (suitable for A1/A2/B1/B2/C1 licenses), this Chongqing-manufactured workhorse balances durability with urban practicality.

Key Features

1. Powertrain & Efficiency

• Emission-Conscious Performance: The 2.999L inline 4-cylinder Isuzu 4KH1CN6LB engine generates 88kW (120 HP) and 290N·m torque, optimized for frequent stop-start cycles in urban traffic. Its Euro VI compliance reduces particulate emissions by 85% compared to older models.
• Precision Drivetrain: The Isuzu MSB-5MT manual gearbox with a 5.571 rear axle ratio ensures smooth acceleration and fuel economy (projected 14.2 km/L under mixed driving conditions).
• Thermal Management: A manually controlled AC system maintains cabin comfort during prolonged delivery routes, even in extreme temperatures.

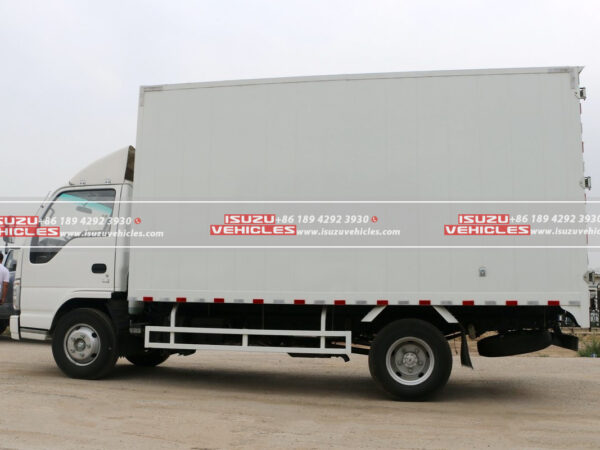

2. Cargo System & Structural Adaptability

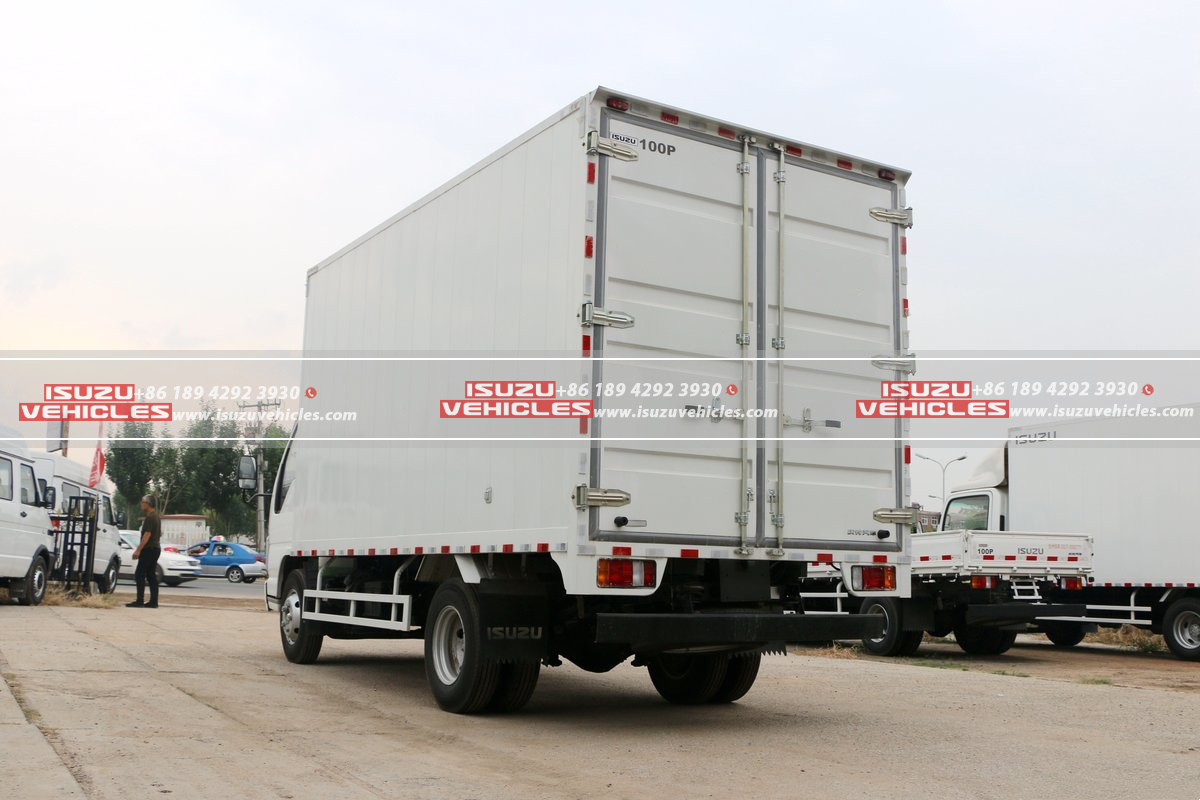

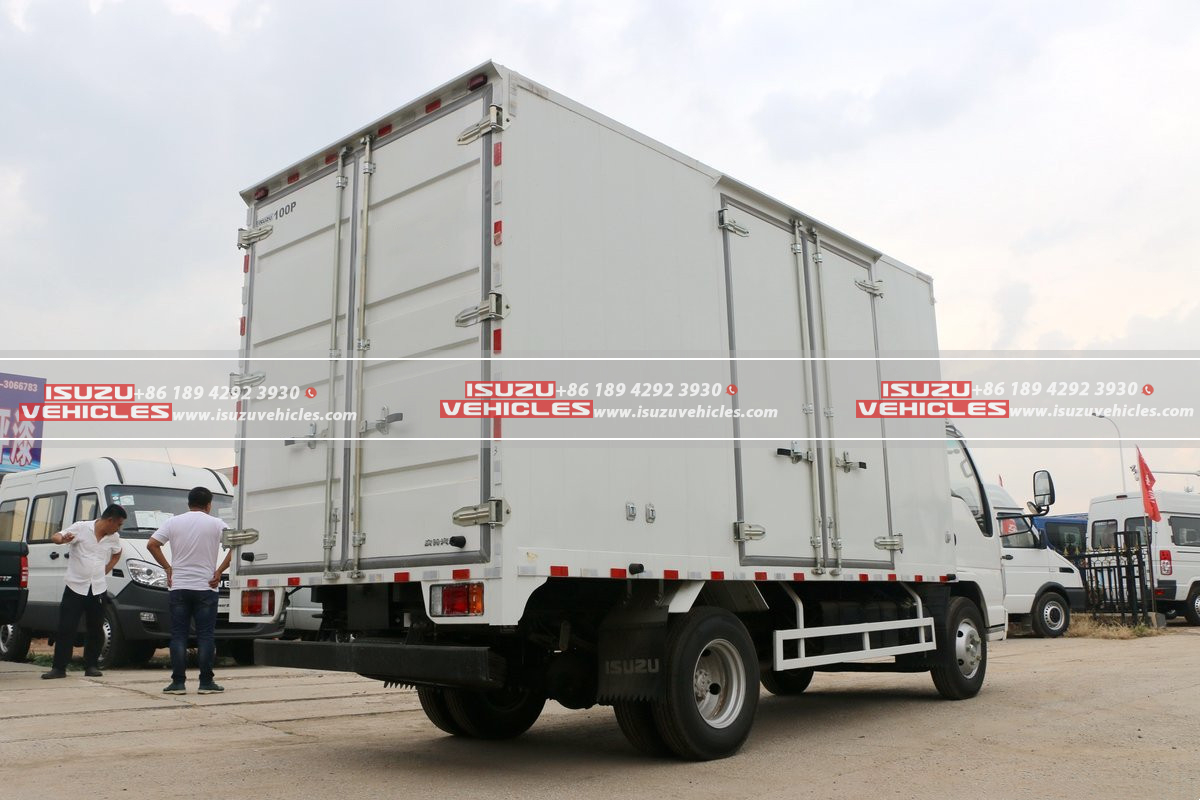

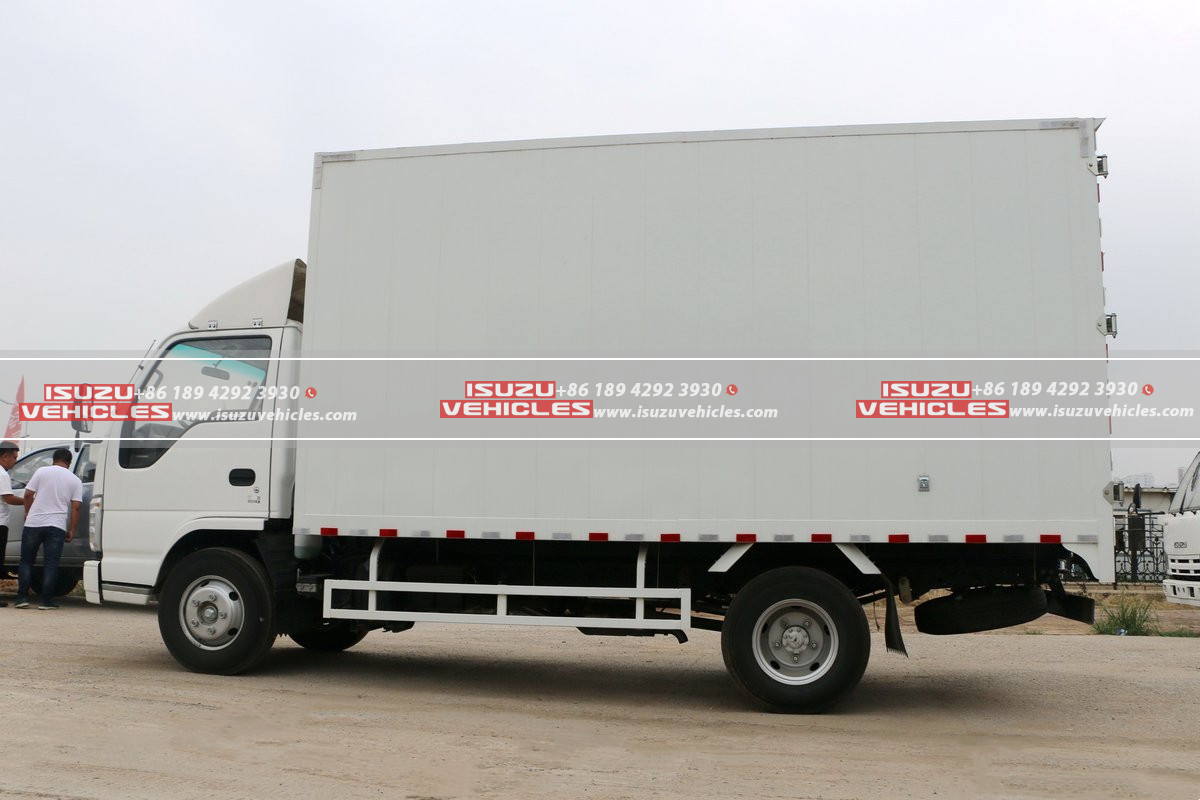

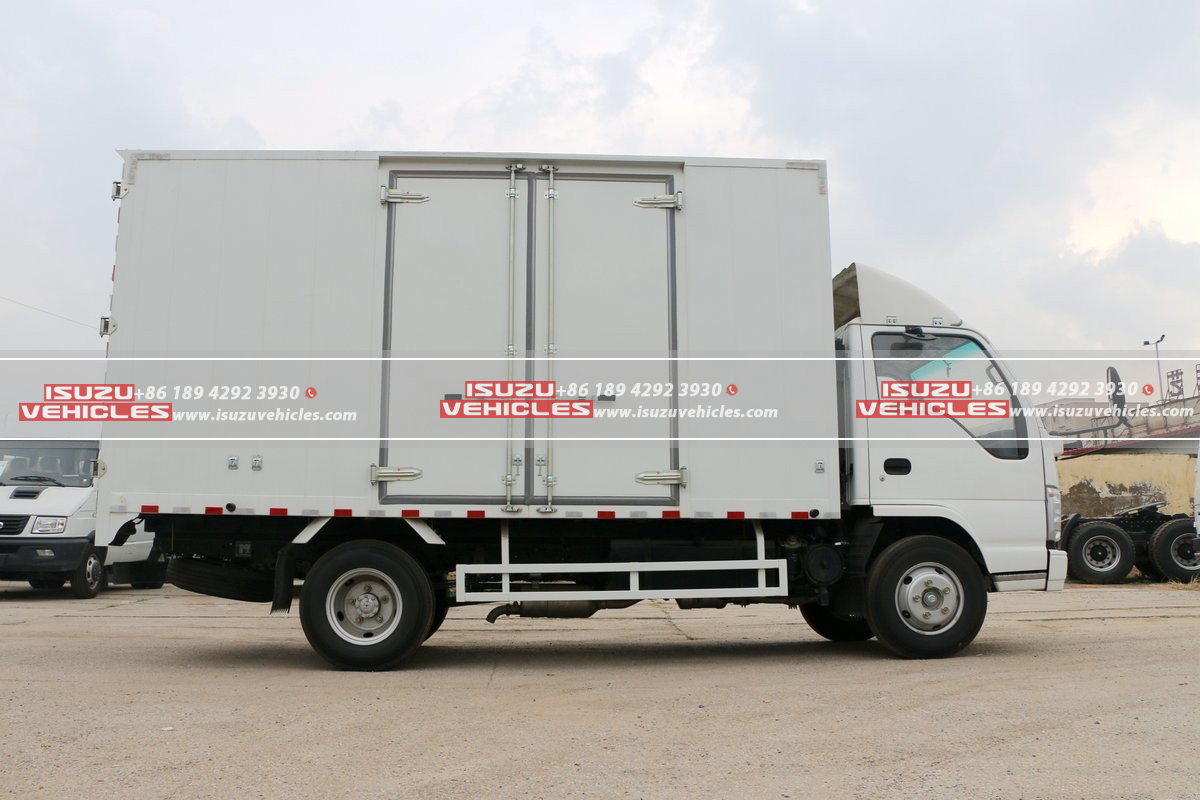

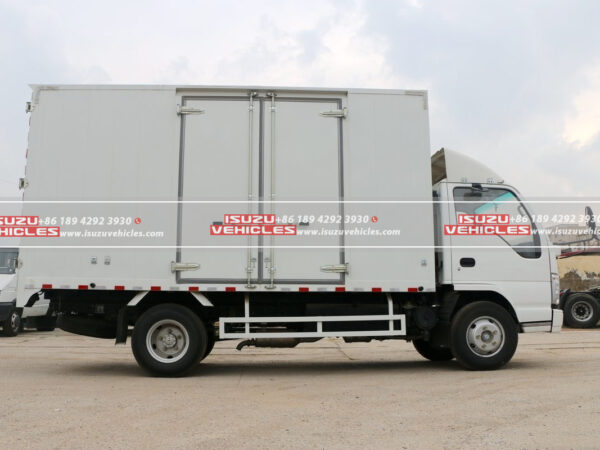

• Urban-Optimized Dimensions: The 3.6L × 1.85W × 1.81H-meter cargo box (12.1m³ capacity) features a 1.85-meter internal width, accommodating standardized Euro-pallets in a single-row configuration.
• Material Versatility: Choose between composite panels (ideal for lightweight insulation), steel corrugated walls (enhanced puncture resistance), or aluminum alloy (corrosion-proof for coastal operations).
• Ground Clearance: A 24° approach angle and 16° departure angle enable easy access to uneven loading docks or curbside drop-offs.

3. Chassis & Durability

• Payload Distribution: The 3/3+2 parabolic leaf spring suspension supports 1,700kg front/2,560kg rear axle loads, while the 1504mm front/1525mm rear track stabilizes cornering on uneven surfaces.
• Tire Reliability: Six 7.00R16LT 8PR (tubeless radial tires) provide a balance of low rolling resistance and puncture protection, critical for urban debris.

4. Driver-Centric Design

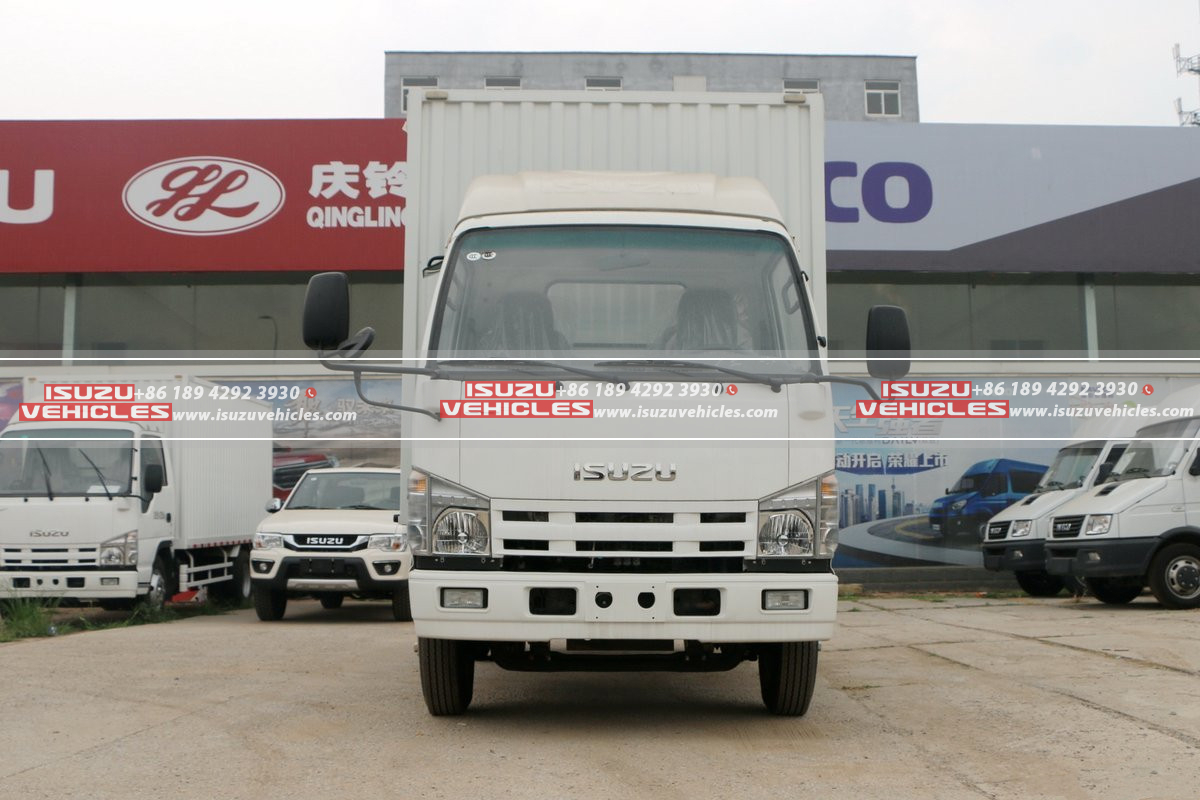

• Compact Ergonomics: The 1,690mm-wide single-row cab seats two operators comfortably, with intuitive controls positioned within arm’s reach.
• Safety Enhancements: ABS anti-lock brakes and hydraulic power steering reduce driver fatigue during tight parallel parking or emergency maneuvers.
• Visibility Optimization: A short 1.015m front overhang and 1.52m rear overhang maximize visibility for lane changes and reversing.

5. Cost-Effective Maintenance

• Service Accessibility: The modular engine design allows the van box truck rapid replacement of components like fuel injectors or turbochargers, minimizing downtime.
• Extended Service Intervals: Synthetic lubricants and CN6-rated diesel particulate filters extend oil change cycles to 20,000 km under normal operation.

SPECIFICATIONS
