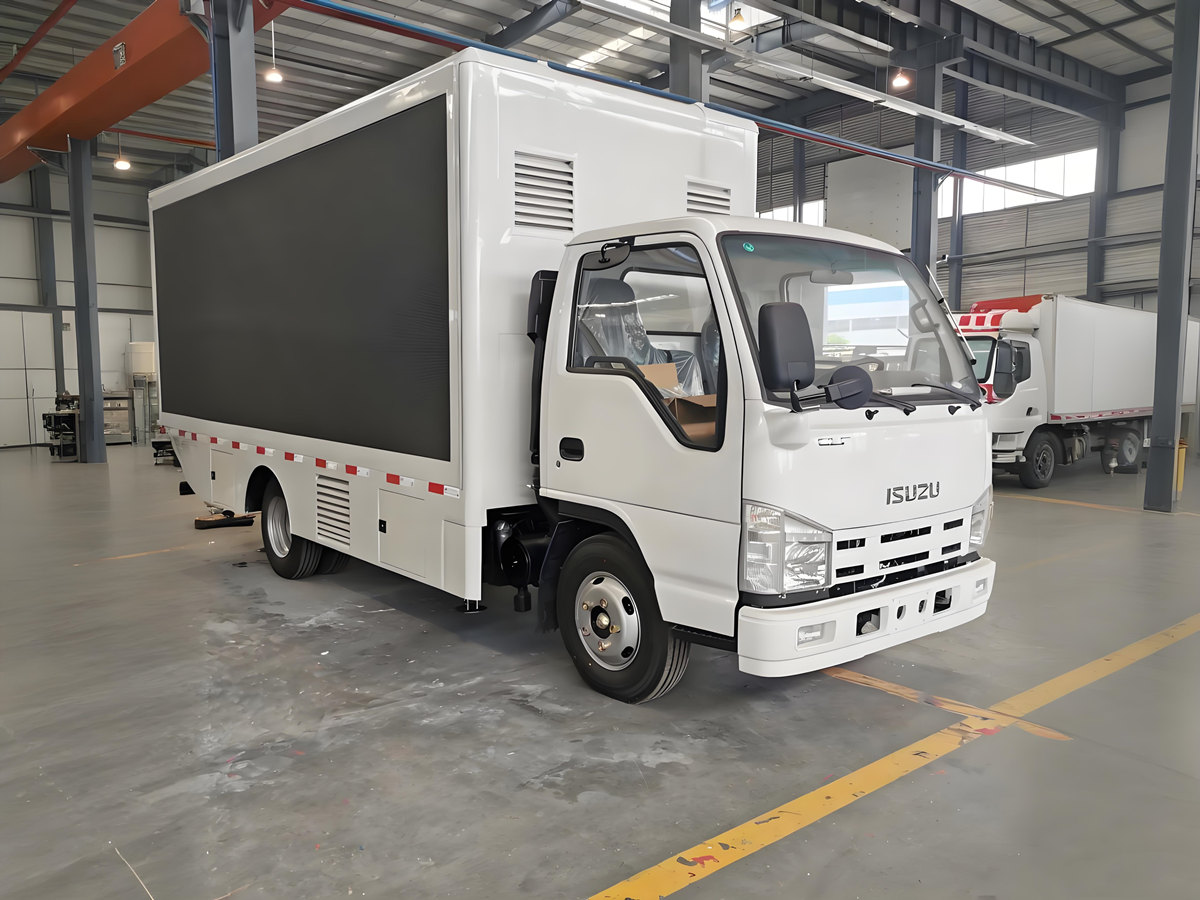

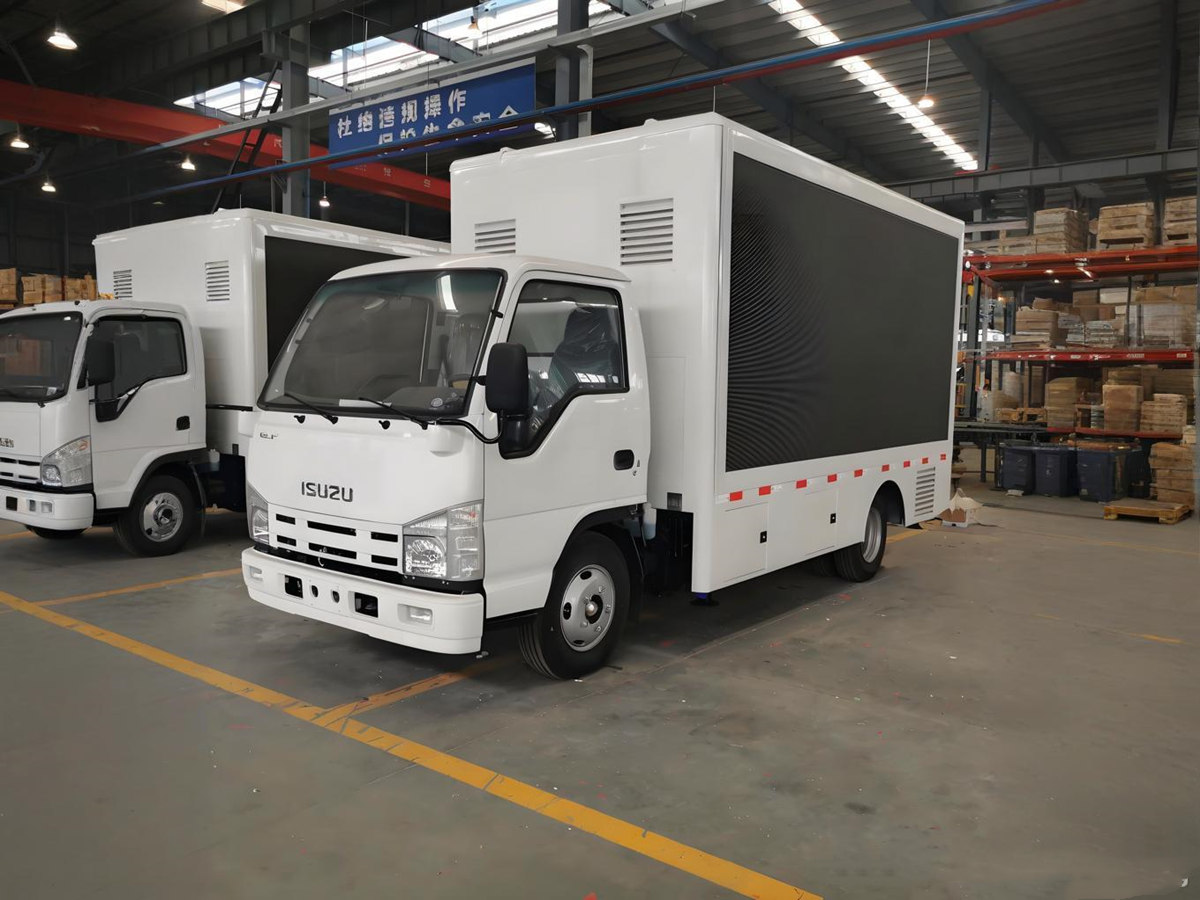

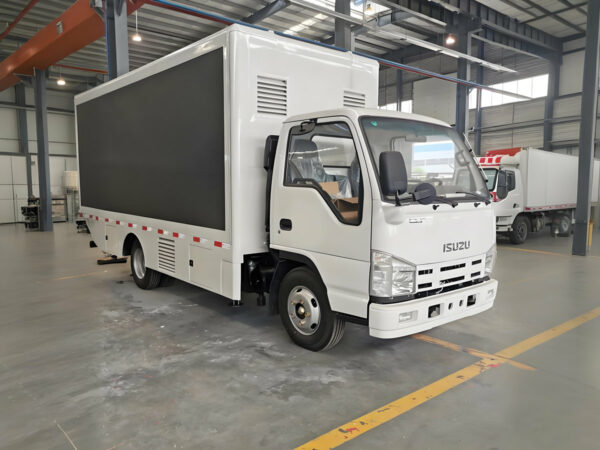

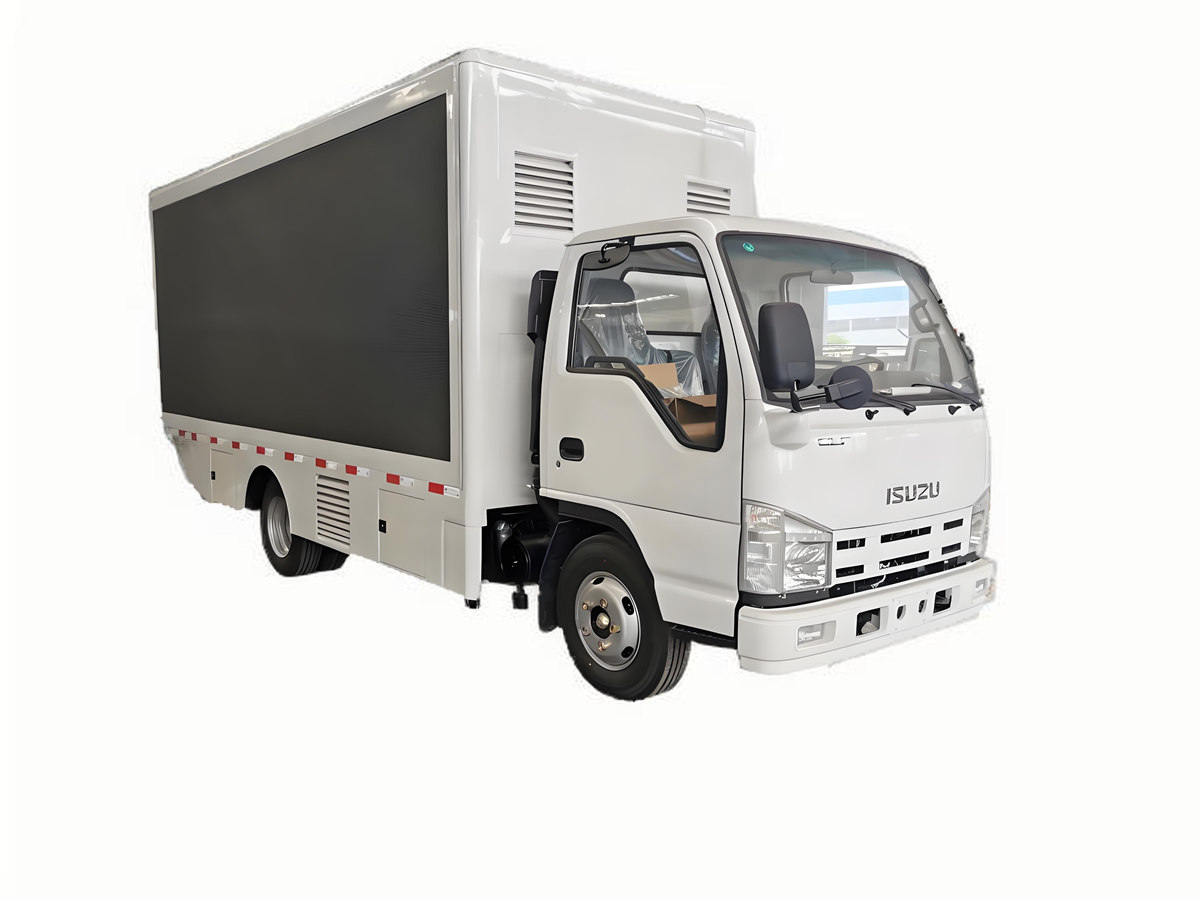

ISUZU 100P P4 Full Color Waterproof LED Truck

Built for high-impact outdoor advertising and mobile events, the ISUZU 100P P4 Full Color Waterproof LED Truck integrates a reliable light-duty chassis with advanced LED display technology and stage functionality, offering a flexible and professional solution for brand promotion, live performances, and public campaigns. Designed to perform consistently in demanding outdoor environments, this vehicle combines mobility, visual clarity, and operational efficiency in one well-engineered platform.

---

Truck Brief

Vehicle Overview and Application

The ISUZU 100P Mobile LED Box Truck is based on the proven ISUZU 100P light truck chassis, widely recognized for durability, fuel efficiency, and ease of maintenance. With compact overall dimensions of 7050 × 2460 × 3225 mm, the truck is easy to maneuver through urban streets while still providing ample space for large-format LED displays and auxiliary equipment. This balance makes it especially suitable for city promotions, touring roadshows, outdoor exhibitions, and government or commercial publicity campaigns.

Engine and Driving Performance

Powering the vehicle is the ISUZU 4KH1CN6LB diesel engine, delivering 120 horsepower (88 kW) and a maximum torque of 290 N·m, which ensures smooth acceleration and stable operation even when fully loaded with display systems and power equipment. The 2.999-liter, four-cylinder inline engine meets EURO 6 emission standards, aligning performance with modern environmental requirements.

Paired with the ISUZU MSB-5MT manual transmission featuring synchronized gears, the drivetrain provides reliable power delivery and precise control, supporting both short-distance urban driving and extended promotional tours.

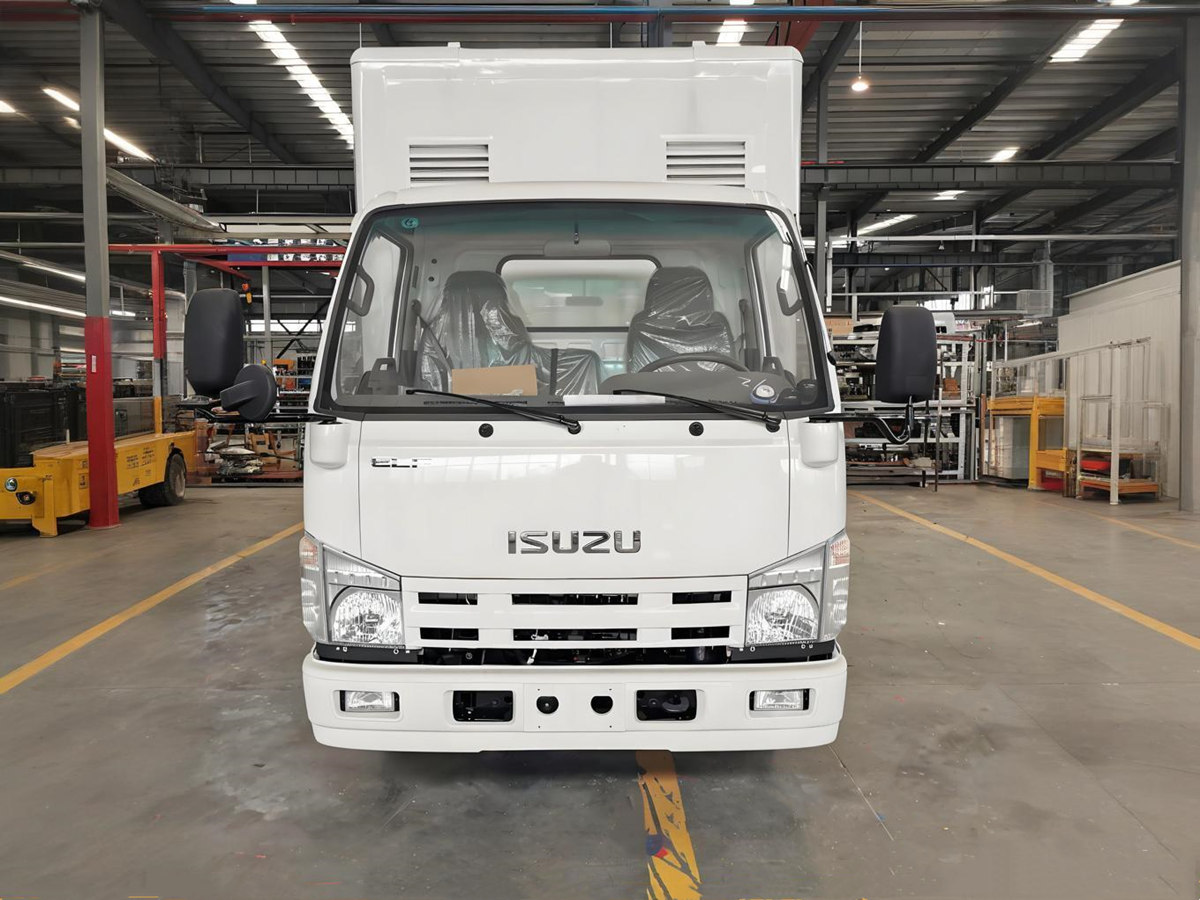

Cab Comfort and Control

The all-steel 100P day cab, mounted on a 4-point hydraulic suspension system, is designed to reduce vibration and enhance ride comfort during long working hours. Inside the cab, operators benefit from practical features such as air conditioning, power steering, power windows, and a multi-function LCD instrument panel, allowing for clear vehicle monitoring and comfortable daily operation. The front-tilting cab design also simplifies routine inspections and maintenance.

Chassis, Suspension, and Safety

The truck adopts a U-profile parallel ladder chassis with double-layer body mounting, providing strong structural support for the LED box and lifting systems. Mechanical semi-elliptic leaf spring suspension ensures stable load-bearing performance, while hydraulic service brakes with ABS enhance driving safety under varying road conditions. With a gross vehicle weight of 7,300 kg and a rated payload of 2,800 kg, the vehicle maintains an ideal balance between strength and efficiency.

---

Features and LED Superstructure

High-Resolution LED Display System

At the core of this model is its P4 full color outdoor waterproof LED screen system, installed on both sides of the truck. Each screen measures 4480 × 1920 mm, delivering a total display area of approximately 17.2 square meters, ensuring sharp images, vivid colors, and excellent visibility even in bright daylight. The P4 pixel pitch provides fine image detail, making it suitable for close-range urban audiences.

Advanced Control and Audio System

The LED display is supported by a professional control architecture, including a high-end industrial computer and the NovaStar VX400 LED video processor, enabling stable signal transmission, synchronized playback, and smooth video transitions. This setup supports multiple media formats and allows operators to manage content efficiently during live events.

For audio delivery, the truck is equipped with a high-power amplifier and waterproof speakers, ensuring clear and powerful sound output for speeches, music, and promotional videos in outdoor environments.

Independent Power Supply

To ensure uninterrupted operation, the vehicle features a 20 kW low-noise generator, providing stable power for the LED screens, audio equipment, lighting, and control systems. The generator is designed for extended runtime and reduced noise output, making it suitable for residential areas, public squares, and long-duration promotional activities.

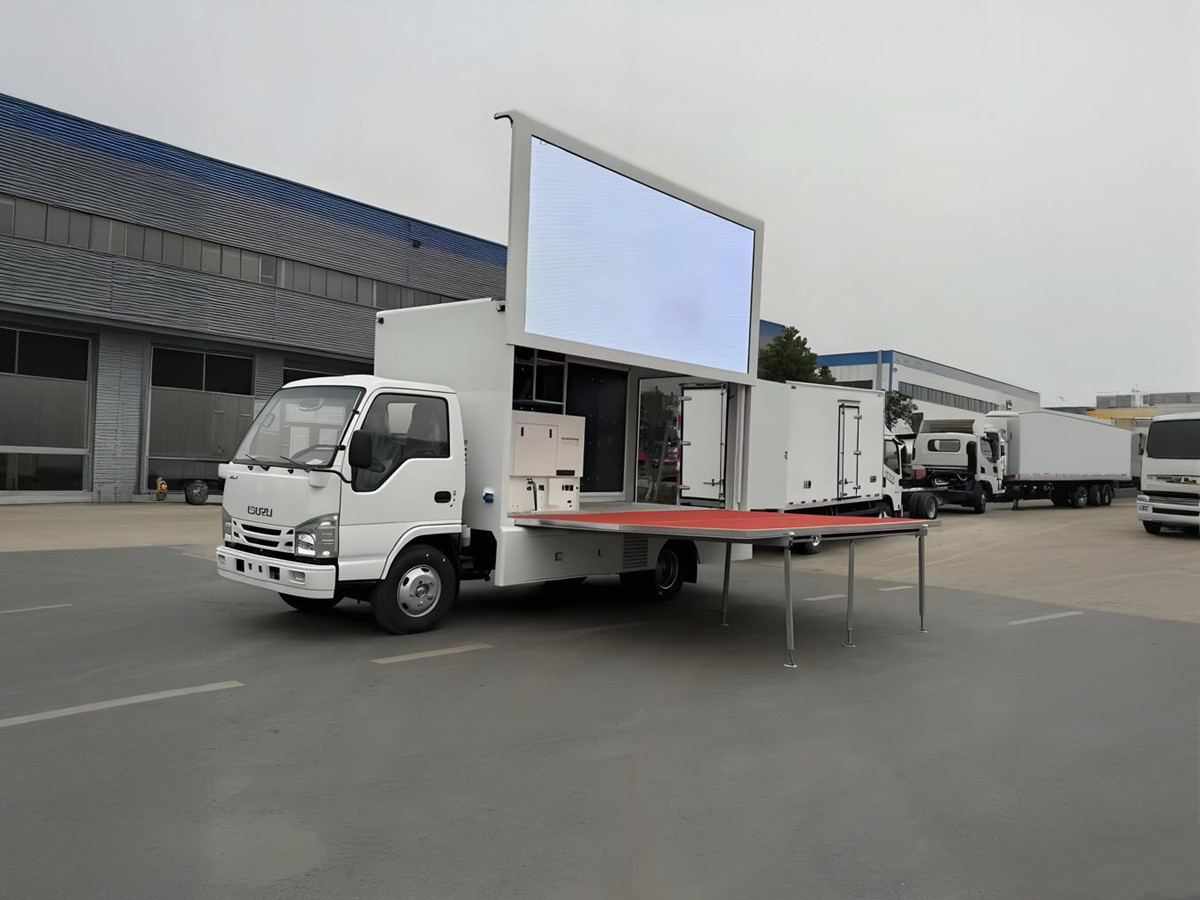

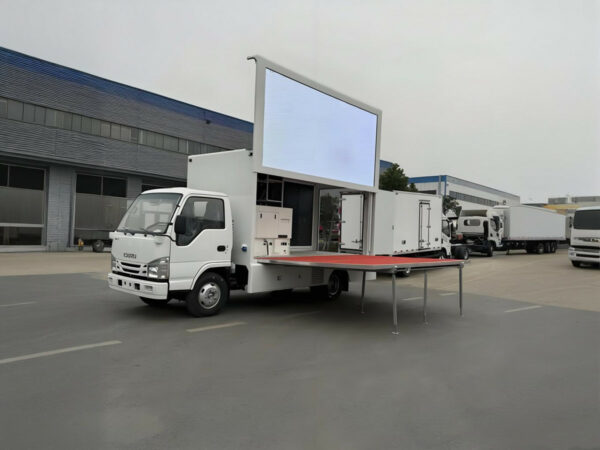

Hydraulic Lifting Screen and Stage System

The LED screens are mounted on a hydraulic lifting mechanism with a lifting height of up to 1.5 meters, allowing improved viewing angles and greater visual impact during events. Complementing this system is a foldable stage, transforming the truck into a mobile performance platform for live shows, product launches, ceremonies, and interactive marketing activities.

Box Structure and Practical Details

The LED box body, measuring approximately 5200 × 2400 × 2150 mm, is constructed from a composite steel frame, offering strength, weather resistance, and long-term durability. A pattern plate floor enhances slip resistance and structural integrity, while the loop ventilation cooling system helps maintain stable operating temperatures for electronic equipment.

Additional practical features such as interior lighting and a side skirt toolbox improve usability, organization, and on-site efficiency for operators and technicians.

---

The ISUZU 100P P4 Full Color Waterproof LED Truck is a well-rounded mobile advertising and event solution, combining dependable Isuzu engineering with advanced LED display technology and versatile stage functionality. Its thoughtful design supports high-quality visual communication, reliable performance, and flexible deployment, making it an effective tool for modern outdoor marketing and promotional operations.

SPECIFICATIONS

▸ MEASUREMENT
Overall Size	7050×2460×3225mm
Front/Rear Track	1504mm/1525mm
Front/Rear Overhang	1015mm/2220mm
Wheelbase	3815mm
Ground Clearance	420mm
▸ WEIGHTS
Gross Vehicle Weight	7300kg
Tare / Curb Weight	4500kg
Loading Weight	2800kg
Front/Rear Axle Rating	2500kg/4800kg
▸ CHASSIS TRUCK
Chassis Truck Line	ISUZU/100P 1X /4KH120 E6
▸ CAB
Cab Model	100P 1X
Cab Type	Day Cab
Cab Roof	Standard
Cab Width	1690mm
No. of Seats	2
Construction	All-steel, 4-point hydraulic suspension cab
Instrument & Controls	Center lock/Power window/Multi-function LCD instrument panel/Power steering
Driver Seats	Adjustable
Tiltable	Front Tiltable
Equipment & Device	A/C, radio, cassette record
▸ ENGINE
Make/Model	ISUZU/4KH1CN6LB
Output Power/Speed	88kw(120hp)
Max. Output Torque/Speed	290N·m
Displacement	2.999L
Engine Type	4-Cylinder in-line, diesel engine
Emission Regulation	EURO 6
▸ CLUTCH
Type	Air-actuated clutch
Diameter	300mm
▸ TRANSMISSION
Make/Model	ISUZU/MSB-5MT
Type	Manual
Gear Numbers	5F+1R
Synchronizer	Equipped
▸ STEERING
Type	Recirculating ball, powered adjustable column
Position	Left Hand Side
▸ CHASSIS
Type	U-profile parallel ladder cold riveted cross
Frame Layer	2 layers standard body unit mounting
Suspension	Mechanical, Semi-elliptic Leaf Springs 8/6+5
▸ AXLE
Front Axle Type	Steering Axle
Front Axle Rating	2500kg
Rear Axle Type	Driving Axle
Rear Axle Rating	4800kg
Rear Axle Ratio	5.571
▸ BRAKE
Service Brake	Hydraulic brake
Parking Brake	Spring energy, compressed air operating on rear wheels
Others	ABS
▸ BODY UNIT / SUPERSTRUCTURE
Box Dimension (approx)	5200×2400×2150mm
Box material	Composite steel box
Floor	Pattern plate floor
Power Supply System	20kW low-noise generator
LED Screen Size	2 sides, 4480×1920mm (total 17.2㎡)
Screen Type	Full color, outdoor waterproof LED screen
Pixel Pitch	P4 high-resolution
LED control system	Industrial computer with control system
Speaker System	Waterproof speakers, high power amplifier
Video processor	NovaStar VX400 LED Video Processor
Screen Installation Type	Hydraulic lifting screen
Lifting Height	1.5m
Stage	Foldable stage
Cooling System	Loop ventilation cooling system
