BRIEFS:
The ISUZU 36 CBM Refrigerated Box Truck epitomizes superior functionality, delivering optimal performance in temperature-controlled logistics. With robust engineering and advanced features, this vehicle is tailored to meet the demands of efficient refrigerated transportation across various industries.
This ISUZU refrigerated truck presents a comprehensive solution for transporting perishable goods, guaranteeing precision, reliability, and compliance with diverse regulatory standards across long hauls and various environmental conditions.
FEATURES:
Vehicle Structure and Specifications:
The ISUZU 36 CBM Refrigerated Box Truck, with dimensions measuring 5.995 meters in length, 2.27 meters in width, and 2.97 meters in height, offers a well-proportioned structure for accommodating large cargo volumes. With a front overhang of 1.12 meters and a rear overhang of 1.51 meters, it’s optimized for maneuverability and load distribution. This truck has a substantial rated load capacity of 4.285 tons against a curb weight of 3.8 tons, ensuring it can efficiently transport significant cargo while maintaining stability.
Engine Power and Emission Standards:
Under the hood, the Isuzu 4KH1CN6HB engine, equipped with a four-cylinder configuration and delivering an impressive output power of 97 kW or 132 horsepower, boasts a displacement of 2.999L. Adhering to EURO 2, EURO 3, EURO 4, EURO 5, and EURO 6 emission standards, it operates efficiently while maintaining compliance with the latest environmental regulations. This diesel-powered engine generates a maximum torque of 220N·m, ensuring sufficient power for transportation needs.

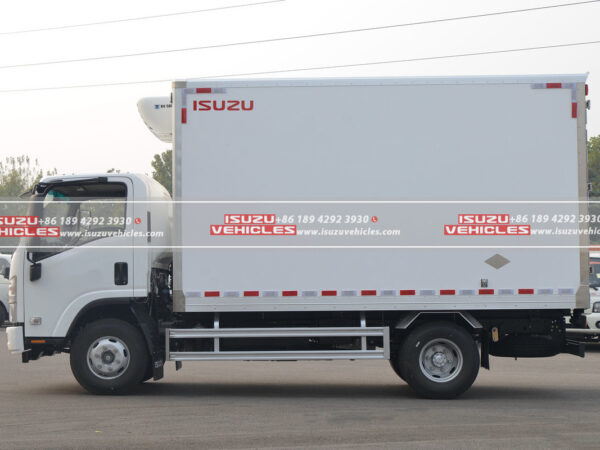

Cargo Compartment and Refrigeration:
The refrigerated compartment spans 4.015 meters in length, 2.1 meters in width, and 1.8 meters in height, providing ample space and dimensions for transporting temperature-sensitive cargo. This refrigeration truck’s upper body, bearing the model QL5080XLCBUHAJ and originating from Chongqing, offers a reliable refrigeration solution ensuring precise temperature control and preservation during transit.
Transmission and Chassis:
A 6-speed transmission system provides flexibility and control over different terrains and load conditions. Its Isuzu KV600 chassis series with the model QL1080BUHAY, equipped with 6/6+6 leaf springs, offers stability and durability for enhanced performance and cargo safety.
Tires and Control Configuration:
This truck rolls on 6 tires, each complying with the specifications of 7.50R16LT 14PR, ensuring sufficient grip and load-bearing capacity. Additionally, it features ABS Anti-lock Brake System as standard, providing superior control and safety in various road conditions.
Internal and Multimedia Configuration:
Internally, the truck comes with standard electronic central locking, manual air conditioning adjustment, power windows, power mirrors, and a radio. The truck is also equipped with daytime running lights as part of its standard lighting configuration.
SPECIFICATIONS:
Basic Information | |
---|---|
Drive Type | 4X2 |
Wheelbase | 3365mm |
Vehicle Dimensions | 5.995×2.27×2.97 meters |
Front/Rear Overhang | 1.12/1.51 meters |
Rated Load | 4.285 tons |
Curb Weight | 3.8 tons |
Gross Vehicle Weight | 8.28 tons |
Front Wheel Track | 1640mm |
Rear Wheel Track | 1655mm |
Maximum Speed | 105 km/h |
Engine Parameters | |
---|---|
Engine Brand | Isuzu |
Engine Model | Isuzu 4KH1CN6HB |
Number of Cylinders | 4 |
Maximum Output Power | 97 kW |
Maximum Horsepower | 132 horsepower |
Displacement | 2.999L |
Emission Standard | |
EURO 2, EURO 3, EURO 4, EURO 5, EURO 6 |
Upper Structure Compartment Parameters | |
---|---|
Compartment Dimensions | 4.015×2.1×1.8 meters |
Compartment Length | 4.015 meters |
Compartment Width | 2.1 meters |
Compartment Height | 1.8 meters |
Upper Body Parameters | |
---|---|
Vehicle Model | QL5080XLCBUHAJ |
Vehicle Type | Refrigerated Truck |
Upper Body Brand | Isuzu |
Vehicle Origin | Chongqing |
Transmission Parameters | |
---|---|
Transmission Model | 6-Speed Transmission |
Number of Gears | 6 gears |
Chassis Parameters | |
---|---|
Chassis Brand | Isuzu |
Chassis Series | Isuzu KV600 |
Chassis Model | QL1080BUHAY |
Number of Leaf Springs | 6/6+6 |
Tire | |
---|---|
Number of Tires | 6 |
Tire Specifications | 7.50R16LT 14PR |
Control Configuration | |
---|---|
ABS Anti-lock Brake System | Standard |
Internal Configuration | |
---|---|
Electronic Central Locking | Standard |
Air Conditioning Adjustment | Manual |
Power Windows | Standard |
Power Mirrors | Standard |
Multimedia Configuration | |
---|---|
Radio | Standard |
Lighting Configuration | |
---|---|
Daytime Running Lights | Standard |
