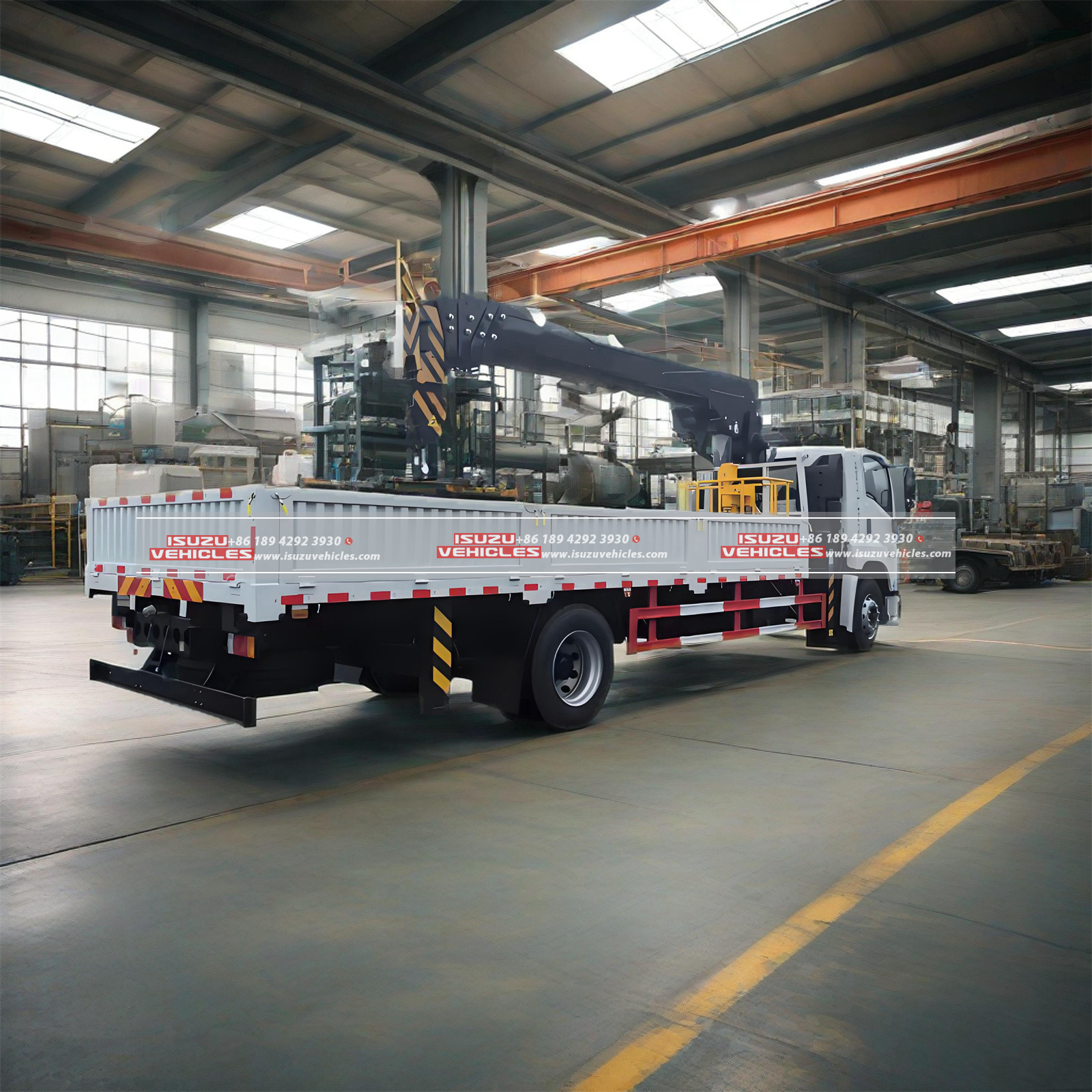

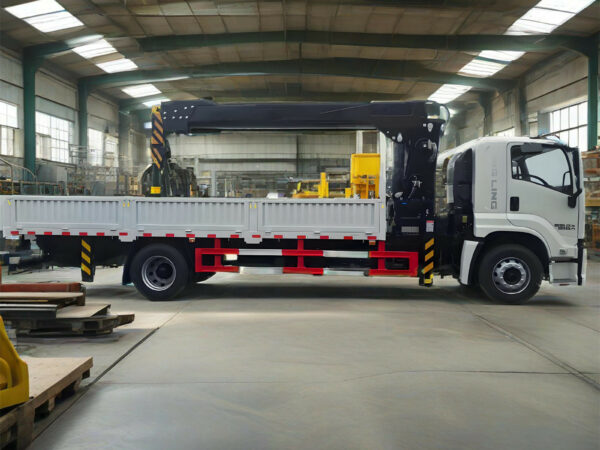

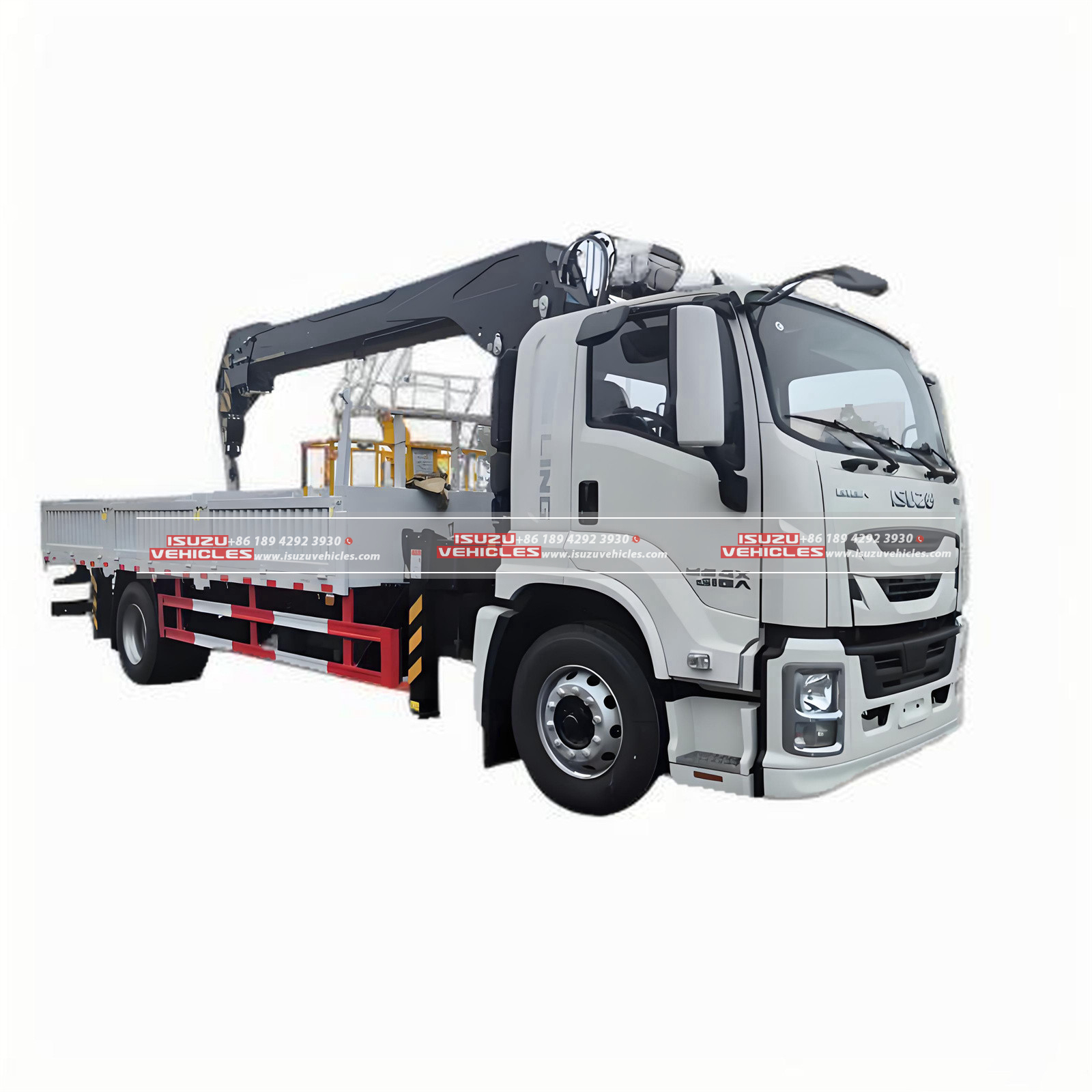

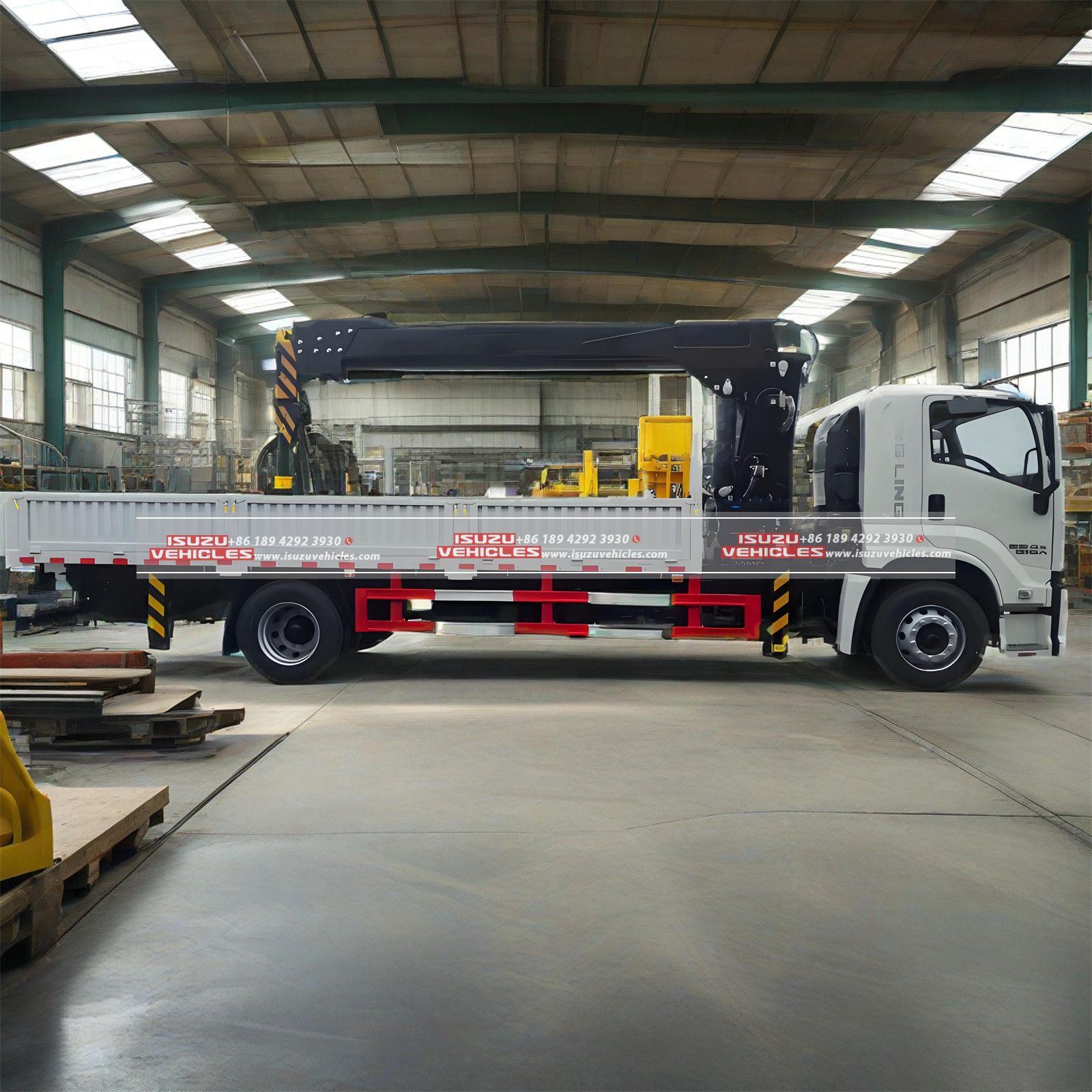

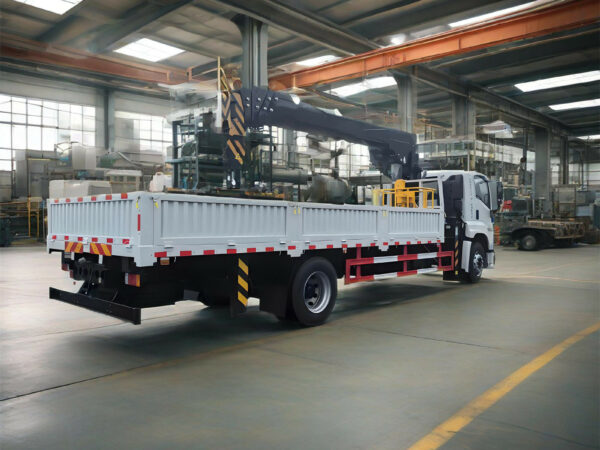

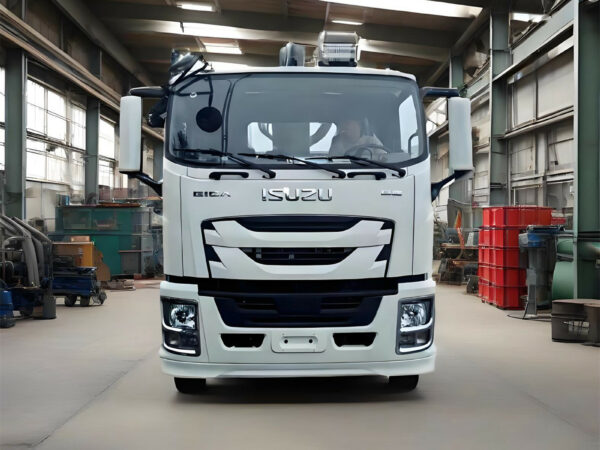

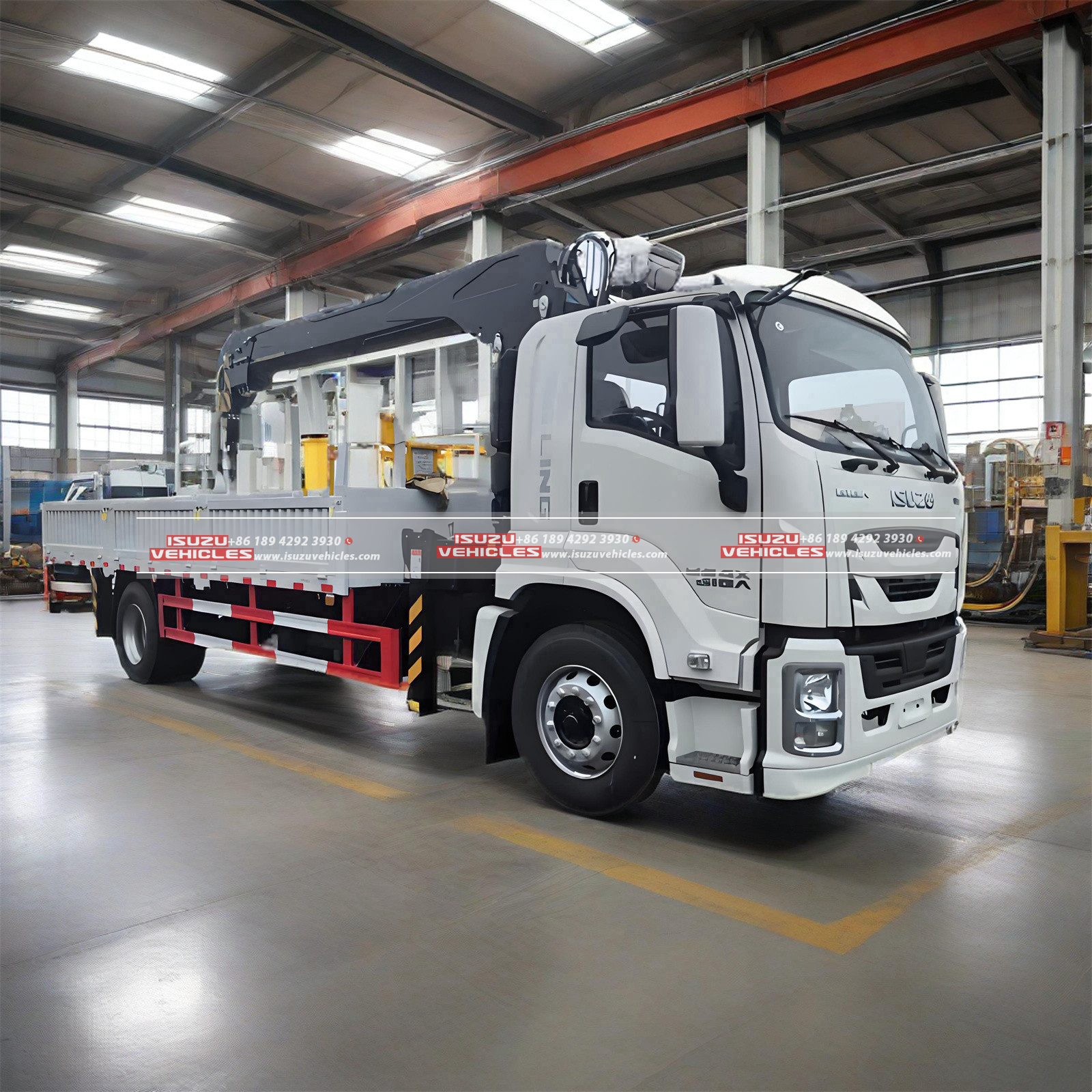

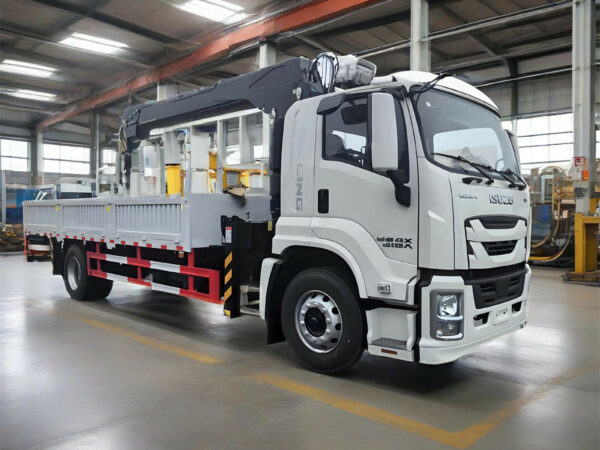

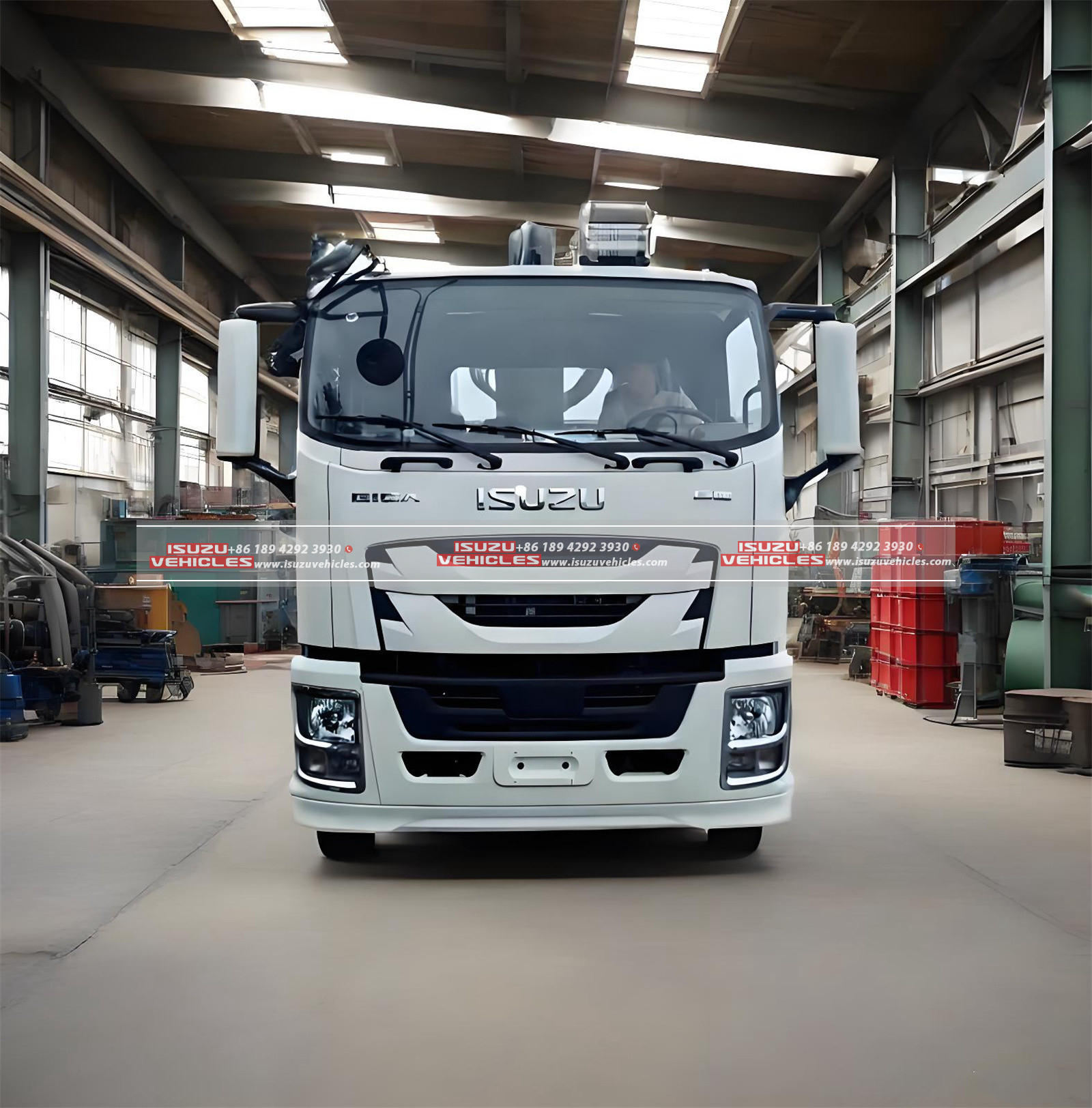

ISUZU 7 Ton FTR PALFINGER Telescopic Boom Crane

The ISUZU FTR 4×4 heavy-duty chassis integrates seamlessly with the PALFINGER SPS16000B telescopic boom crane, creating a robust solution for complex lifting operations. Built on a double-layer frame engineered for extreme durability, this configuration features a 205HP ISUZU 4HK1-TCG60 engine (compliant with EURO 6 emissions), delivering 647N·m torque at 1,600 rpm. The chassis employs a 6-speed manual transmission (MLD-6Q) with synchronized gears for optimized power transfer, while its 5800mm wheelbase and 255mm ground clearance ensure stability on rugged terrain.

The crane’s core specifications include a 7,000kg lifting capacity at 2.5m and a 16 ton-meter rated moment, extending to a 14.6m maximum height and 12.3m outreach. Designed to European safety standards, it combines hydraulic precision with structural resilience—supported by a 19300kg gross vehicle weight and 13000kg rear axle capacity for heavy-load endurance. The VC61 sleeper cab (2480mm width) prioritizes operator comfort, featuring air conditioning, adjustable seats, and hydraulic suspension for fatigue-free operation.

FEATURES

I. Standard Equipment

• Chassis & Cab:
  • Euro 6-compliant 5.2L turbocharged diesel engine (151kW/205HP) with exhaust braking.
  • Sleeper cab with dual seats, electric windows, central locking, and multifunctional steering.
  • ABS braking, dual-circuit air brakes, and semi-elliptic leaf spring suspension (7/7+7).
• Crane System:
  • High-tensile octagonal boom (4 sections; 4.7–12.5m telescopic range).
  • Proportional hydraulics (26MPa operating pressure) with automatic hook retraction.
  • Digitally optimized mechanics for torque resilience (262.1 kNm dynamic capacity).

II. Operational Enhancements

• Safety & Control:
  • Multifunctional LCD instrument cluster for real-time diagnostics.
  • High-pressure filtration ensuring hydraulic fluid integrity.
• Ergonomics:
  • Tilt/telescopic steering and cab access steps for ease of operation.
  • Continuous 360° slewing and 75° boom elevation flexibility.

III. Optional Upgrades

• Crane-Specific Modules:
  • SYMC load moment limiter and OWS anti-overwind system for overload protection.
  • Radio remote control enabling off-board operation.
  • Rear hydraulic outriggers (5.3m span) for unstable ground stabilization.
• Convenience Add-Ons:
  • Sun-protected top seat and service timer for maintenance tracking.
  • Load indicator synced with crane dynamics.

Notes: Vehicle dimensions 9850×2530×3500mm (L×W×H); 10020kg payload capacity. Designed for logistics, construction, and industrial lifting with compliance-driven safety.
