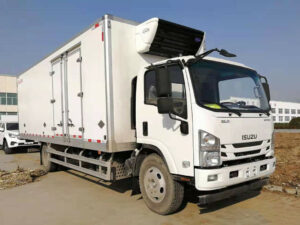

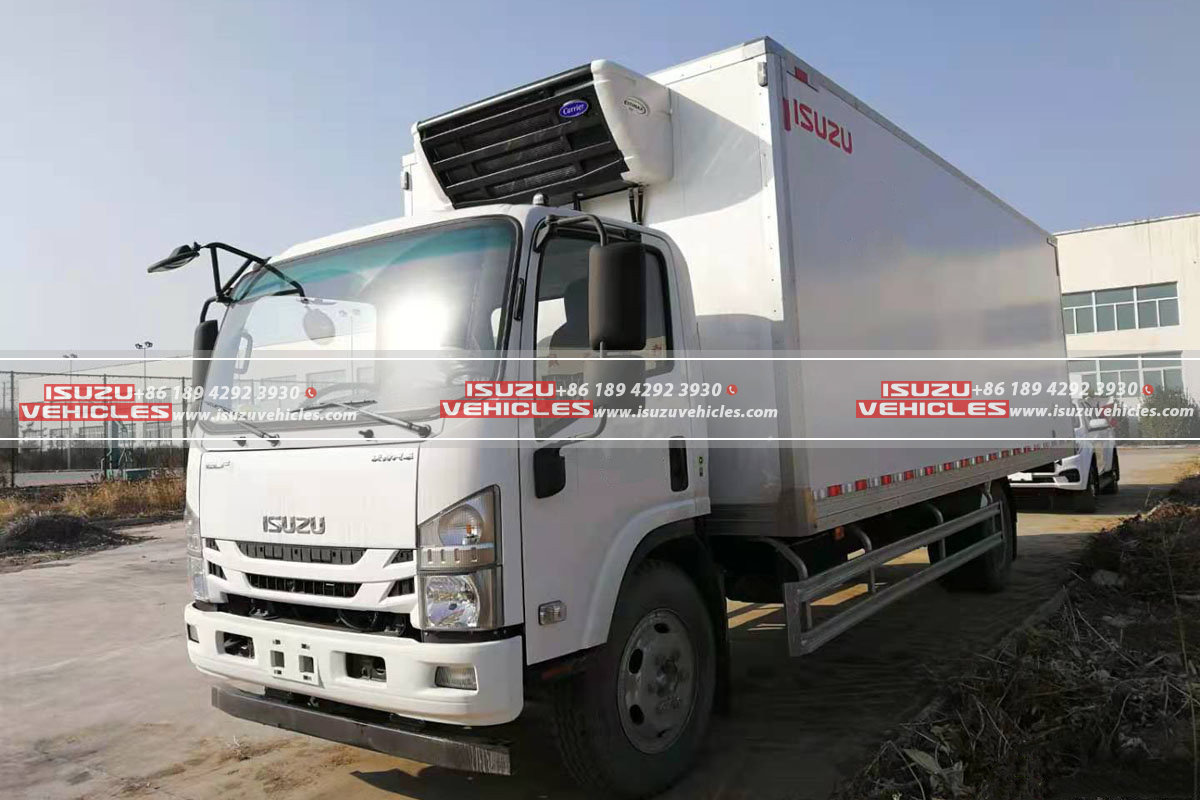

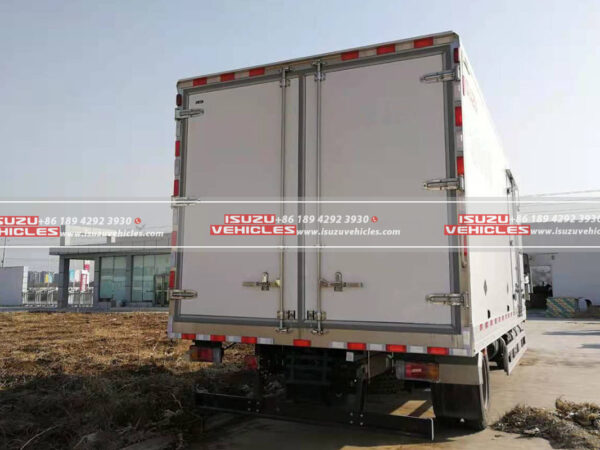

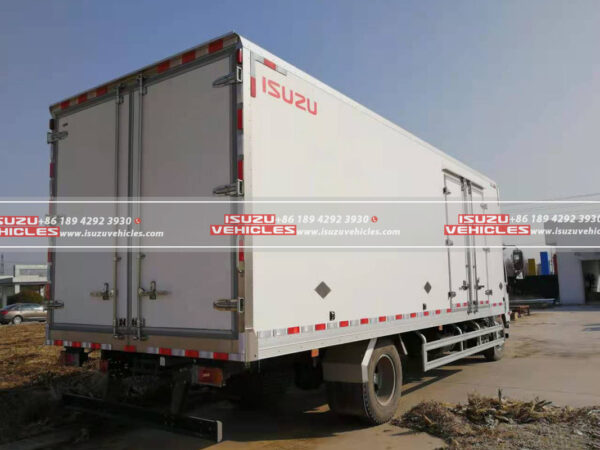

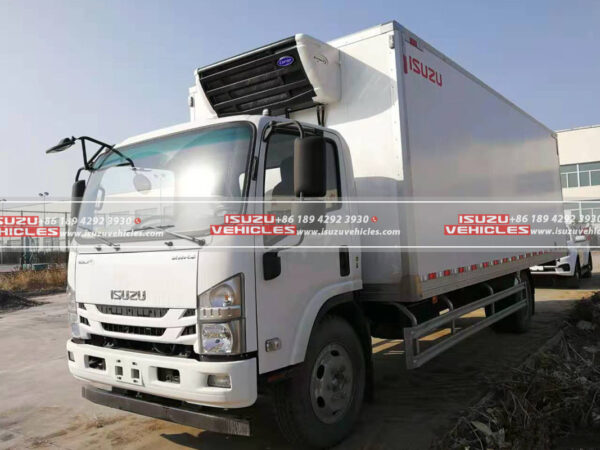

ISUZU 28 CBM Refrigerator Box Truck
The ISUZU 28 CBM Refrigerator Box Truck (Model: QL5110XLCANPAJ) is engineered for large-scale cold-chain logistics, combining high-capacity storage with robust performance. Built on the ISUZU 700P chassis (QL1110ANPAY), this truck excels in long-haul transport of perishable goods, meeting EURO V emission standards for sustainable operations.
Core Specifications
Powered by the ISUZU 4HK1-TCG61 engine, this model delivers 189 HP (139 kW) and 507 N·m torque from a 5.2L diesel engine, paired with a 6-speed MLD-6Q transmission for seamless power delivery. With a 5.55-ton curb weight and 4.8-ton payload capacity, it balances efficiency and hauling power.
Dimensional Highlights
The truck’s 8.955m overall length and 6.96m cargo box (2.1m width × 2.1m height) provide 28 cubic meters of refrigerated space. A 5,200mm wheelbase and 110 km/h top speed ensure stability and timely deliveries across intercity routes.
Features
1. High-Capacity Cooling System
The dual-evaporator refrigeration unit maintains temperatures from -25°C to +12°C, ideal for frozen foods, pharmaceuticals, or fresh produce. 8cm-thick polyurethane-insulated walls and hermetic door seals minimize thermal leakage, while the aluminum composite floor resists corrosion and ensures easy cleaning.
2. Rugged Chassis and Drivetrain
The reinforced 700P chassis features an 8/10+6 leaf spring suspension and 4.1 axle ratio, optimized for heavy loads on uneven terrain. Dual tire options—235/75R17.5 16PR or 8.25R20 14PR—provide flexibility for urban agility or highway durability.
3. Advanced Safety Systems
Equipped with ABS and dual-circuit air brakes, the truck ensures reliable stopping power. The 2066 rear axle and wide-track design (1,680mm front/1,650mm rear) enhance stability, while LED lighting improves visibility in low-light conditions.
4. Driver-Centric Cabin Design
A spacious 3-seat cab includes air conditioning, ergonomic seating, and a digital dashboard with real-time diagnostics. The tiltable steering column and adjustable mirrors reduce fatigue during extended hauls.
5. Compliance and Versatility
Meeting EURO V emissions, this truck is certified for nationwide and cross-border logistics. Its modular design allows integration with telematics for real-time temperature tracking, ensuring compliance with global cold-chain standards.
From bulk agricultural produce to temperature-sensitive medical supplies, the ISUZU Refrigerator Truck delivers unmatched efficiency, blending ISUZU’s engineering legacy with the demands of modern logistics.
SPECIFICATIONS:
| Specification | Details |
|---|---|
| Basic Information | |
| Drive Type | 4X2 |
| Wheelbase | 5200 mm |
| Vehicle Dimensions (L×W×H) | 8.955 × 2.59 × 3.4 meters |
| Front/Rear Overhang | 1.11 / 2.645 meters |
| Rated Load Capacity | 4.805 tons |
| Gross Vehicle Weight | 5.55 tons |
| Total Mass | Not Provided |
| Front Track | 1680 mm |
| Rear Track | 1650 mm |
| Maximum Speed | 110 km/h |
| Fuel Type | Diesel |
| Engine Parameters | |
| Engine Model | Qingling Isuzu 4HK1-TCG61 |
| Cylinders | 4 |
| Max Output Power | 139 kW |
| Max Horsepower | 189 hp |
| Displacement | 5.193 L |
| Emission Standard | EURO V |
| Max Torque | 507 N·m |
| Rated RPM | 2600 rpm |
| Transmission Parameters | |
| Transmission Model | Isuzu MLD-6Q |
| Number of Gears | 6 |
| Cargo Box Parameters | |
| Cargo Box Dimensions (L×W×H) | 6.96 × 2.1 × 2.1 meters |
| Volume | ~30.7 m³ |
| Superstructure Parameters | |
| Vehicle Type | Refrigerated Truck |
| Superstructure Brand | Qingling |
| Vehicle Origin | Chongqing |
| Chassis Parameters | |
| Chassis Brand | Qingling |
| Chassis Series | 700P |
| Chassis Model | QL1110ANPAY |
| Rear Axle | 2066 |
| Axle Ratio | 4.1 |
| Leaf Springs | 8/10+6 |
| Tires | |
| Number of Tires | 6 |
| Tire Specifications | 235/75R17.5 16PR, 8.25R20 14PR |
