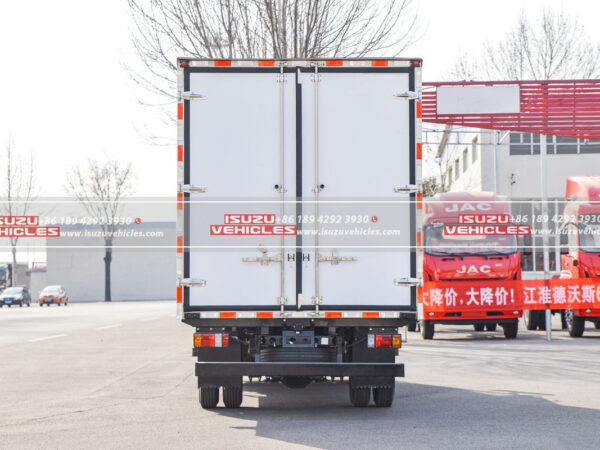

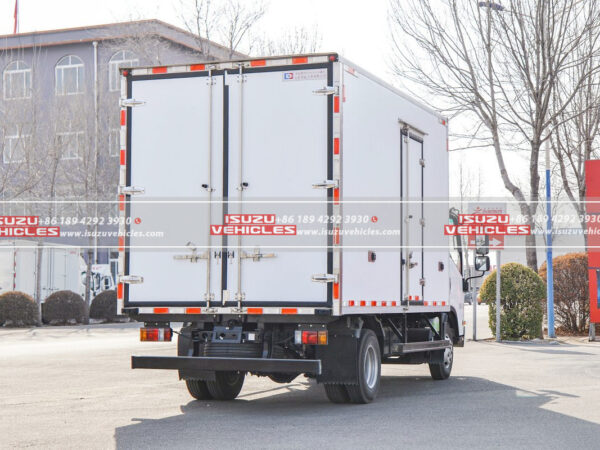

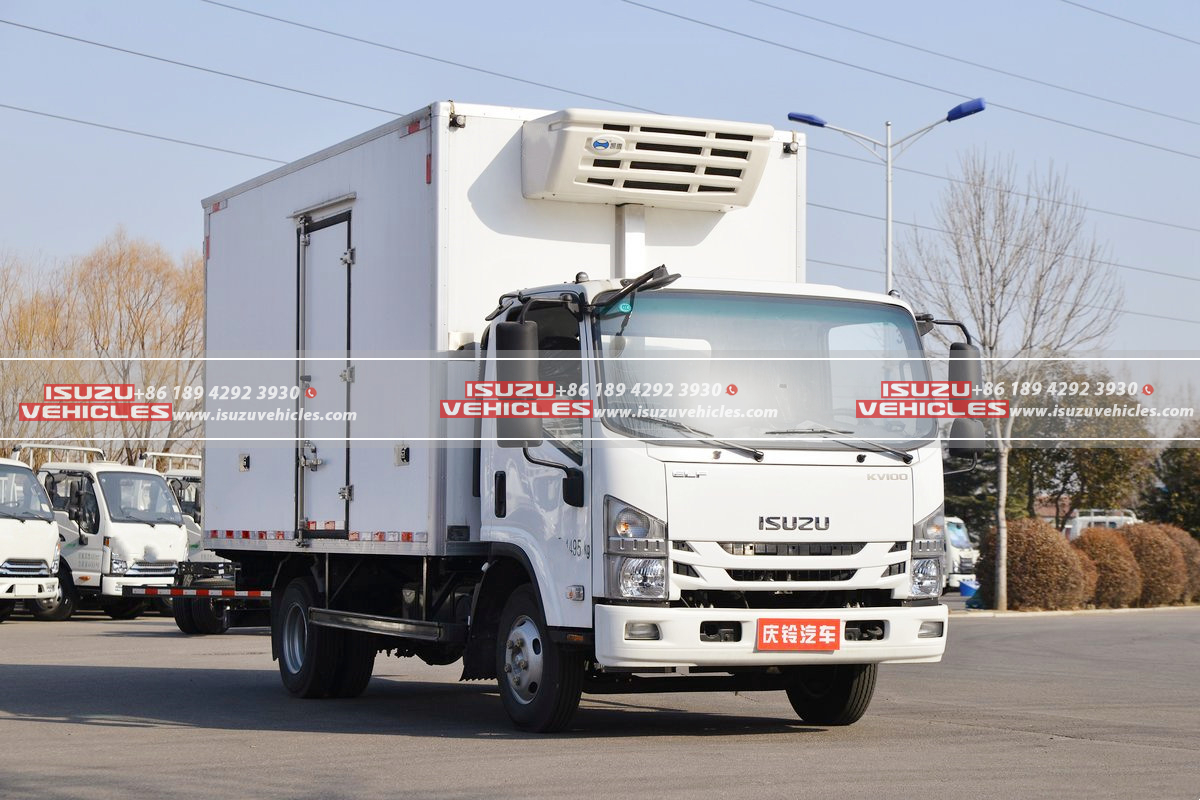

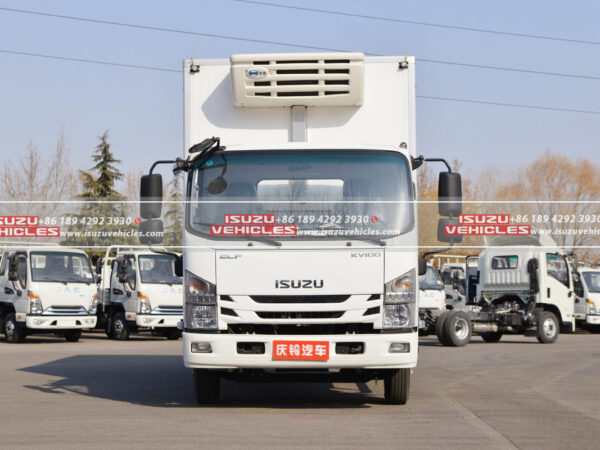

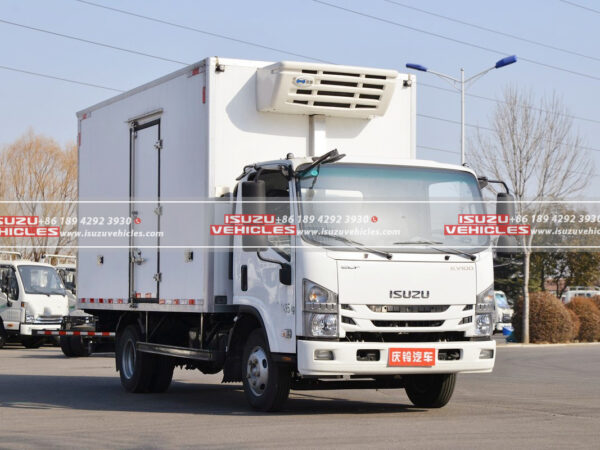

BRIEFS:

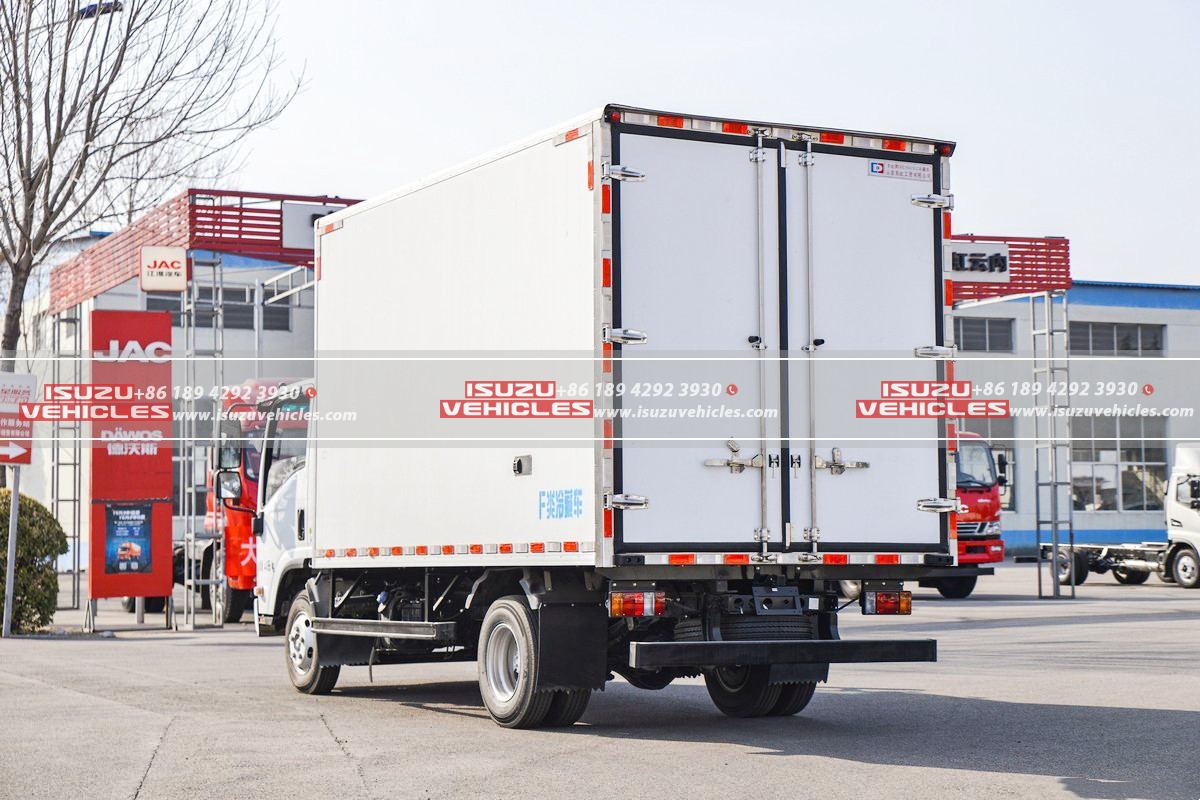

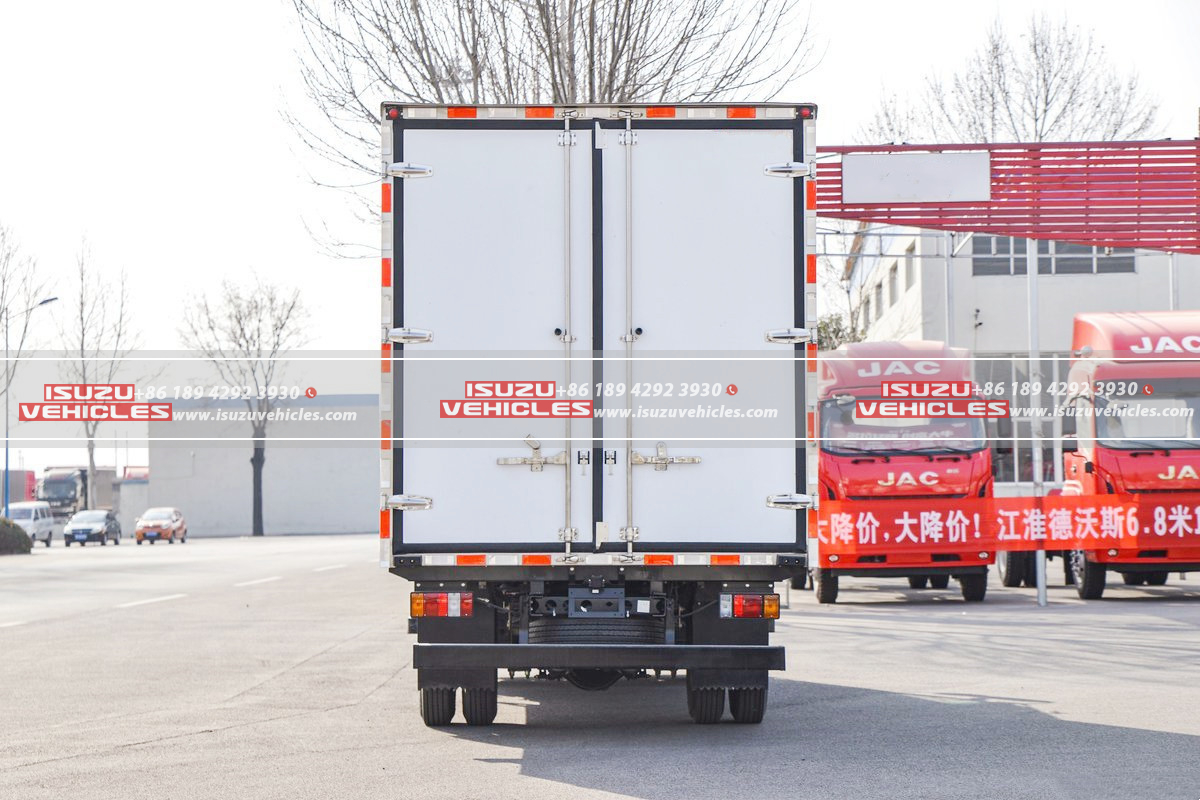

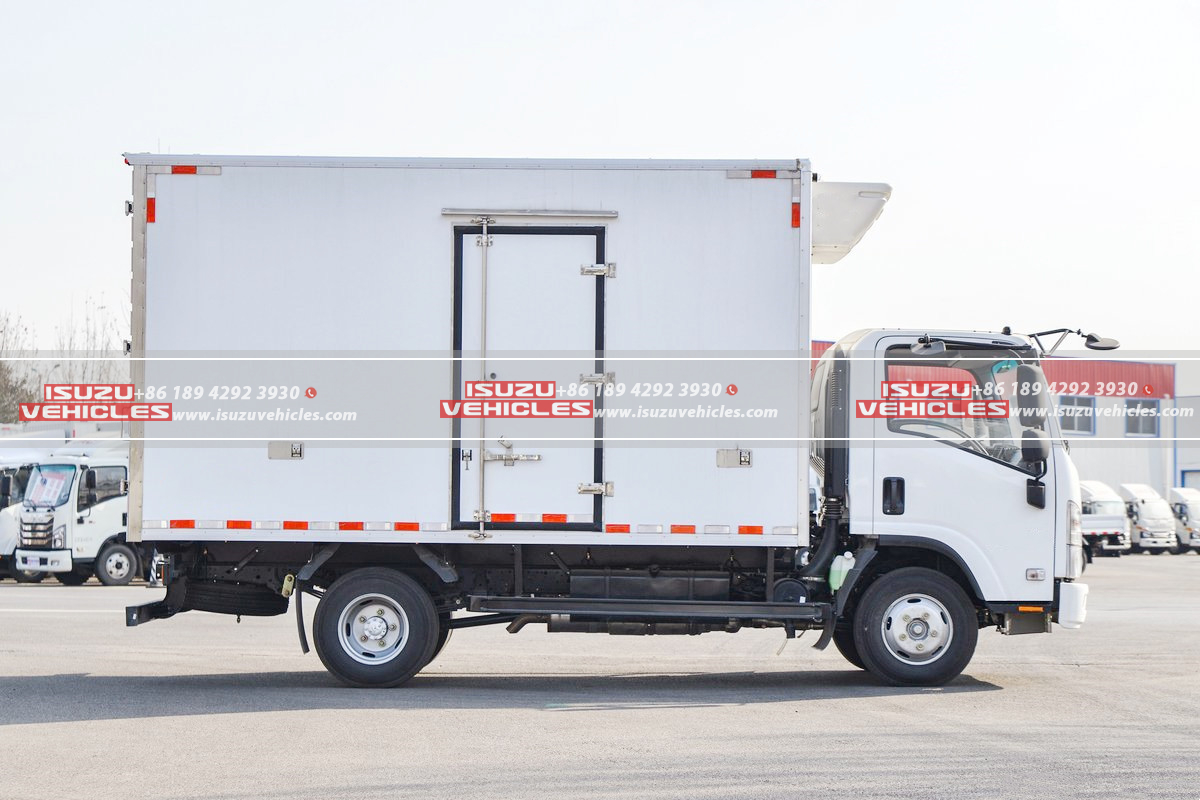

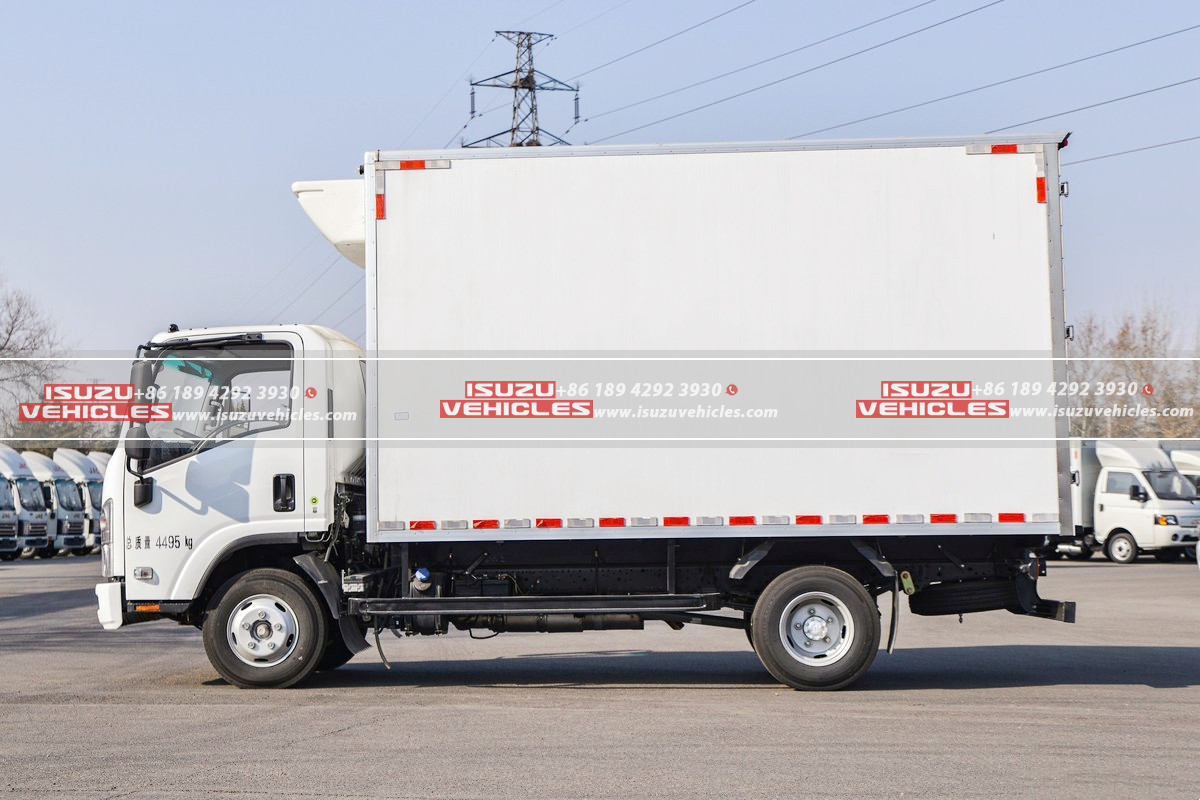

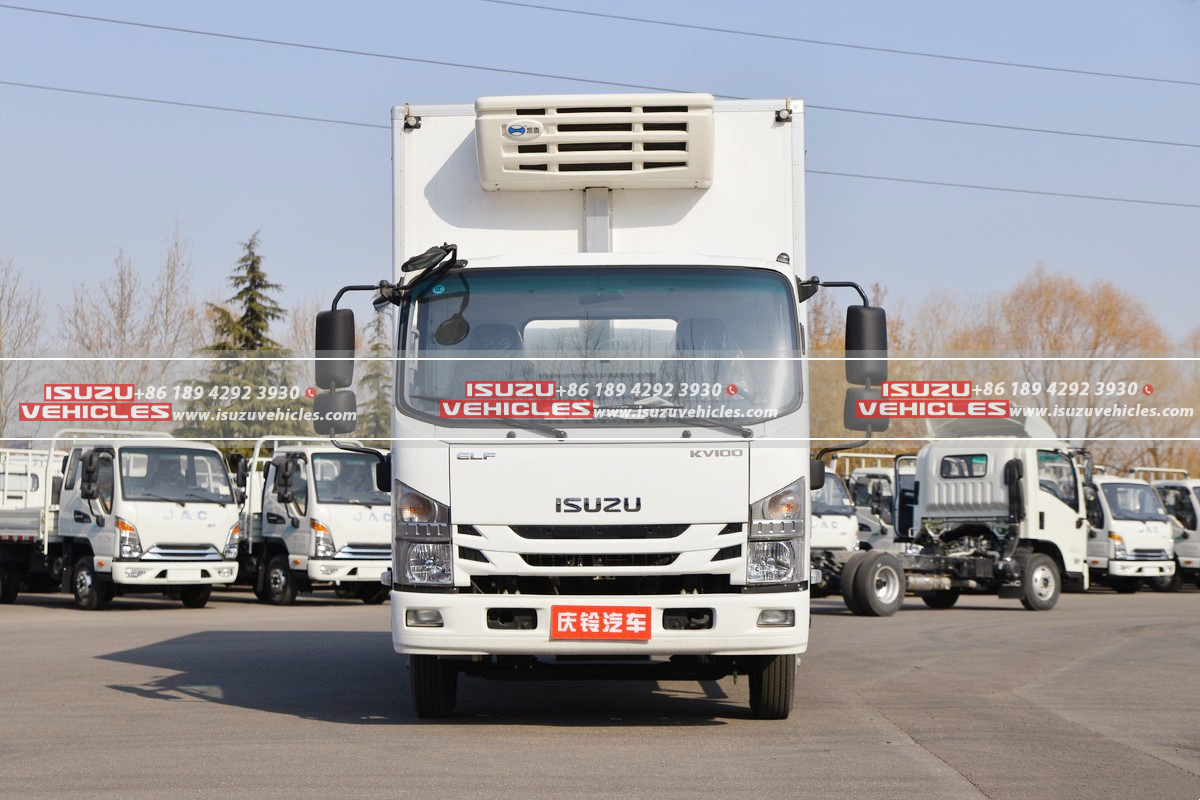

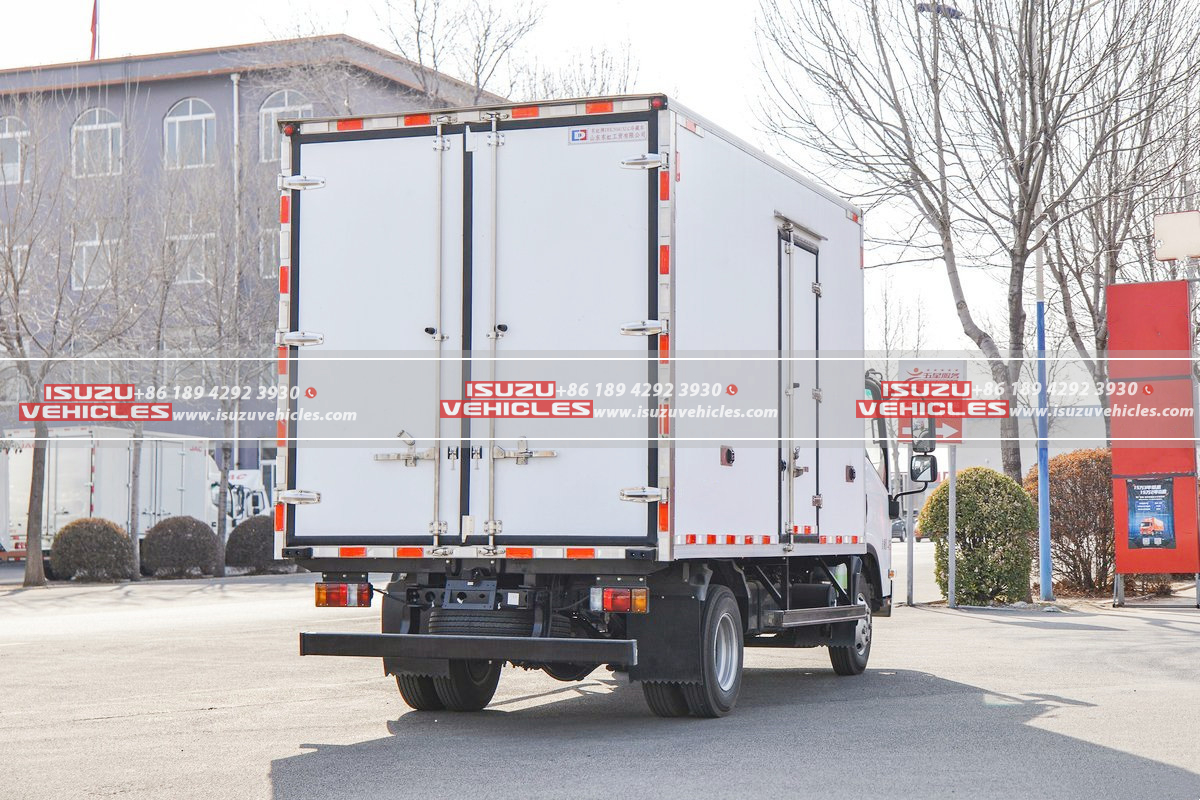

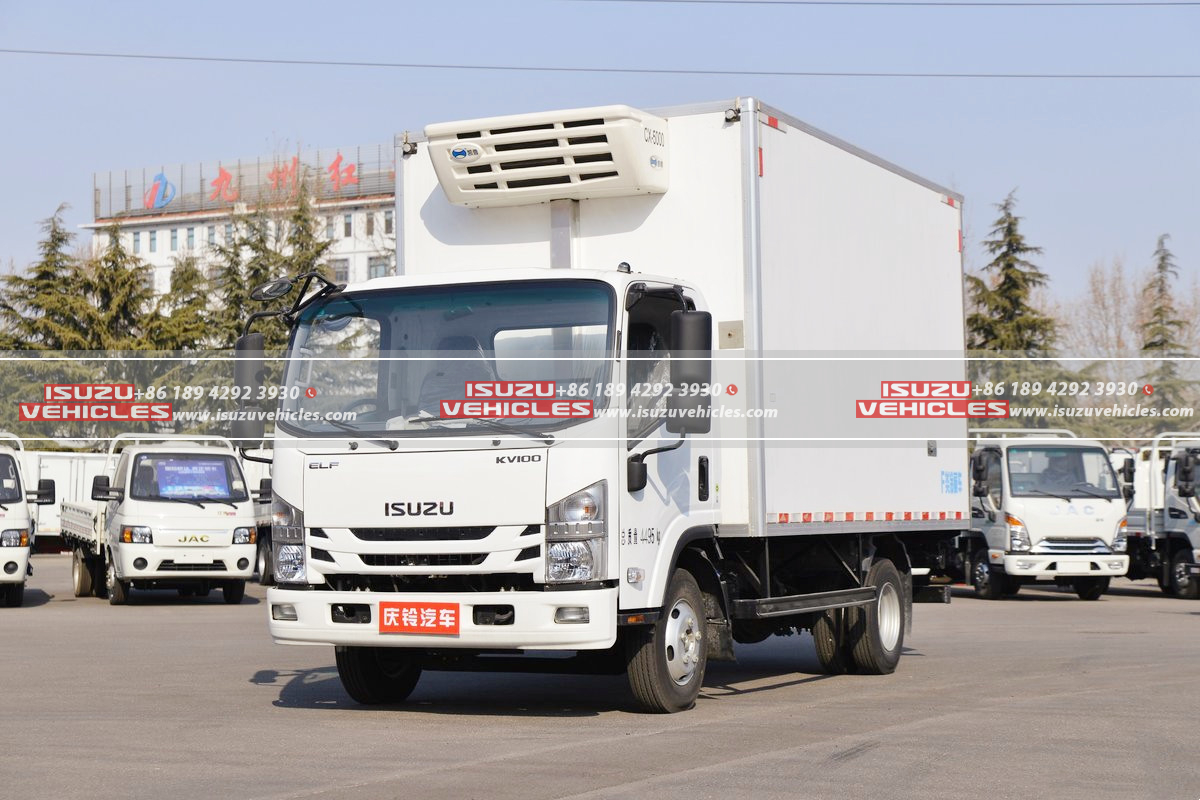

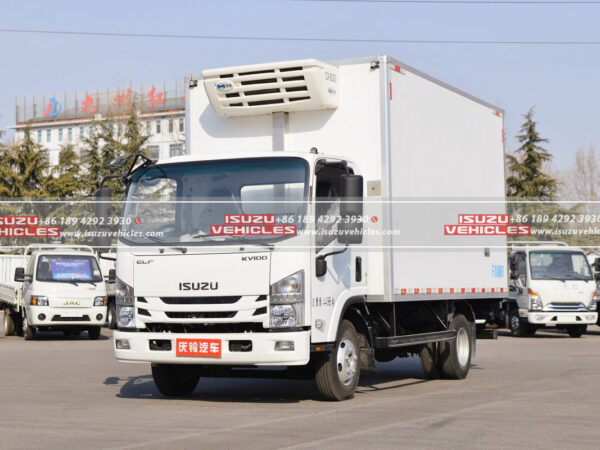

The ISUZU 4 Meter Refrigerated Cargo Delivery Truck, built on the robust foundation of Qingling Isuzu KV100 chassis, is meticulously designed for efficient and reliable transportation of temperature-sensitive cargo.
FEATURES:
- Chassis Brand: Qingling Isuzu KV100
- Box Length: 4080mm
- Engine: Isuzu 4KH1CN6LB engine, 120 horsepower, 3.0L displacement
- Transmission: Isuzu 5-speed gearbox
- Wheelbase: 3360mm
- Tires: 7.00R16LT 8PR
- Emission Standard: EURO 2, EURO 3, EURO 4, EURO 5, EURO 6
- Chassis Standard:
- Chongqing Qingling Isuzu engine (4KH1CN6LB), 120 horsepower, 3.0L displacement
- KV100P wide cab
- Isuzu 5-speed gearbox
- Air conditioning, power steering
- Central locking, power windows
- LCD dashboard, ABS, pneumatic brake
- Flip-up driver’s cabin for convenience
- Exterior Dimensions: 5995×2310×3120
- Box Dimensions: 4075×2100×2000
- Gross Vehicle Weight: 4495Kg
- Curb Weight: 3200Kg
- Allowed Load: 1100Kg
- Refrigeration Range: Lowest -18 degrees Celsius
- Refrigeration Unit: Kelly 500 for reliable cooling performance
- Optional Units: Choose from a range of options including Kelly, Huatai, Hansnow, Hanya, Kaisnow, American Carrier, American Cold King, Korean Hanya, and others

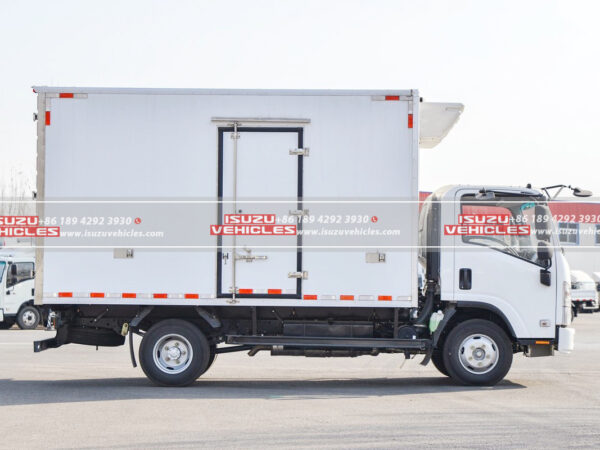

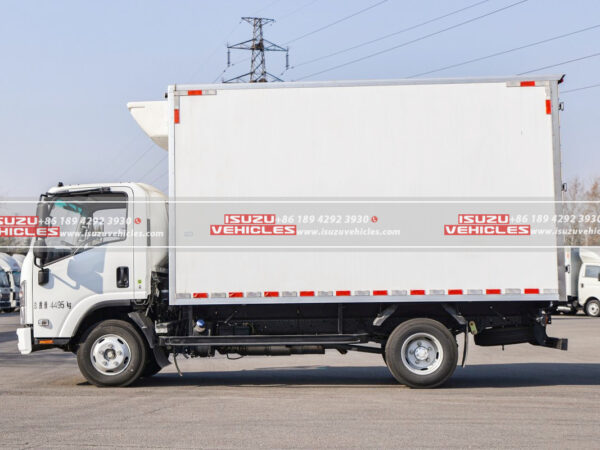

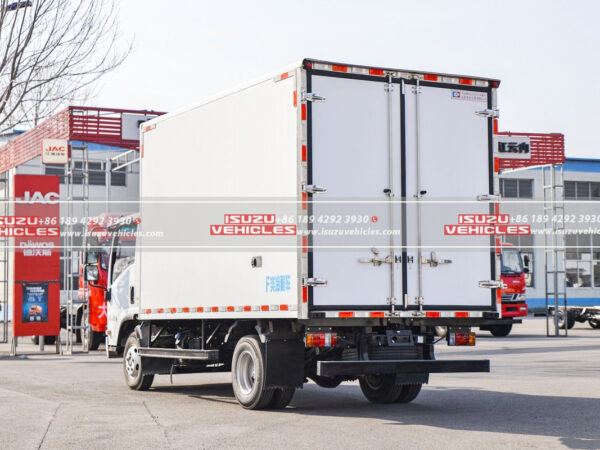

- Box Configuration:
- The inner and outer walls are made of high-quality domestic fiberglass
- XPS extruded polystyrene insulation in the middle
- LED interior lighting
- Aluminum alloy profiles for durability
- Stainless steel corners and lock rod hinges for robust construction
- Single-sided doors for easy access
- Ventilation System: Optional bottom plate ventilation slots and ventilation partitions around the interior of the box
- Optional Configurations:
- Interior floor ventilation slots for enhanced air circulation
- Reinforced frame for meat hooks
- Top aluminum alloy guide rails and stainless steel meat hooks for secure cargo handling
- Cargo fixation and hanging devices for organized transport
- Interior shelves for efficient storage
- Insulated door curtains to maintain temperature
- Temperature and humidity recorders with onboard printing
- High and low-temperature alarms for cargo protection
- Heaters for versatile use in various conditions
SPECIFICATIONS:
Attribute | Description |
---|---|
Chassis Brand | Qingling Isuzu KV100 |
Box Length | 4080mm |
Engine | Isuzu 4KH1CN6LB engine, 120 horsepower, 3.0L displacement |
Transmission | Isuzu 5-speed gearbox |
Wheelbase | 3360mm |
Tires | 7.00R16LT 8PR |
Emission Standard | EURO 2, EURO 3, EURO 4, EURO 5, EURO 6 |
Chassis Standard | Chongqing Qingling Isuzu engine (4KH1CN6LB), 120 horsepower, 3.0L displacement, KV100P wide cab, Isuzu 5-speed gearbox, air conditioning, power steering, central locking, power windows, LCD dashboard, ABS, pneumatic brake, flip-up driver’s cabin |
Exterior Dimensions | 5995×2310×3120 |
Box Dimensions | 4075×2100×2000 |
Gross Vehicle Weight | 4495Kg |
Curb Weight | 3200Kg |
Allowed Load | 1100Kg |
Refrigeration Range | Lowest -18 degrees Celsius |
Refrigeration Unit | Kelly 500 |
Optional Units | Kelly, Huatai, Hansnow, Hanya, Kaisnow, American Carrier, American Cold King, Korean Hanya, and others |
Box Configuration | Inner and outer walls are made of high-quality domestic fiberglass, XPS extruded polystyrene insulation in the middle, LED interior lighting, aluminum alloy profiles, stainless steel corners, stainless steel lock rod hinges, single-sided doors, and more |
Ventilation System | Optional bottom plate ventilation slots, ventilation partitions around the interior of the box |
Optional Configurations | Interior floor ventilation slots, reinforced frame for meat hooks, top aluminum alloy guide rails, stainless steel meat hooks, cargo fixation and hanging devices, interior shelves, insulated door curtains, temperature and humidity recorders with onboard printing, high and low-temperature alarms, heaters, and more |
