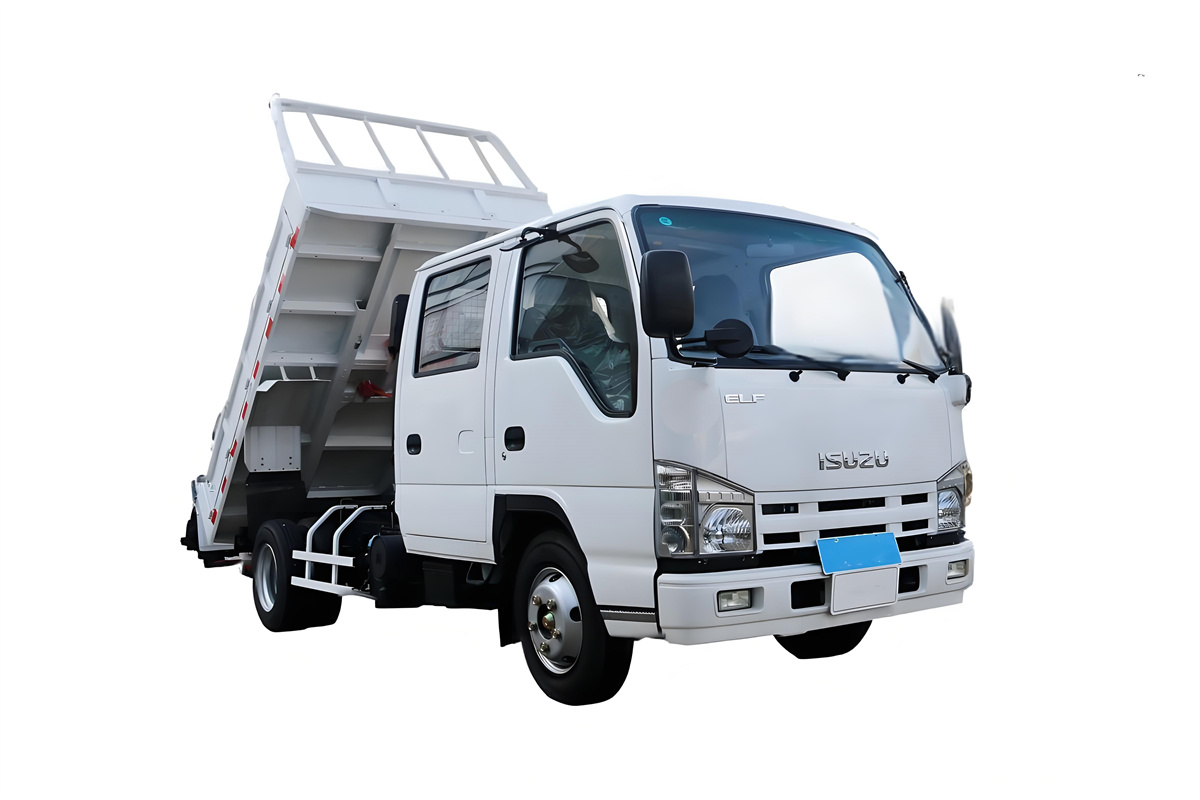

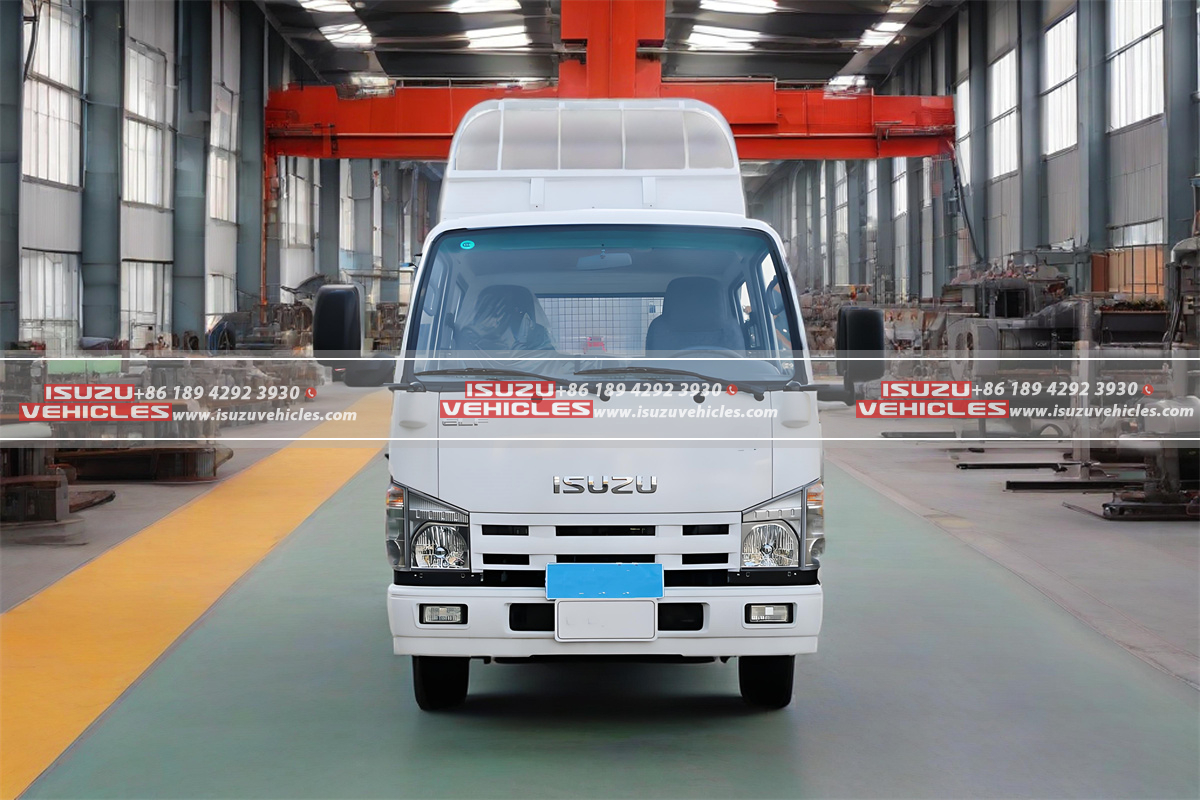

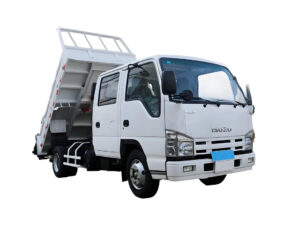

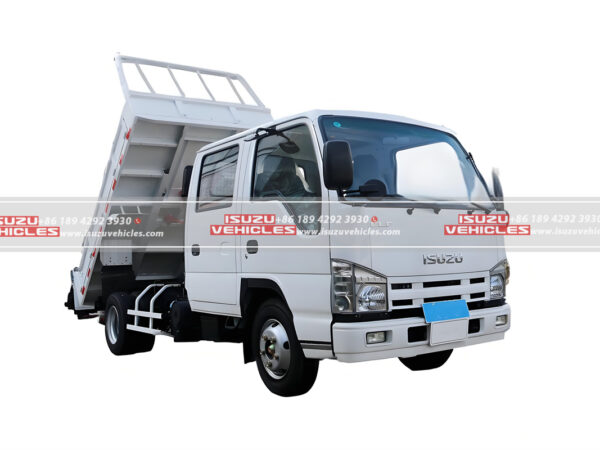

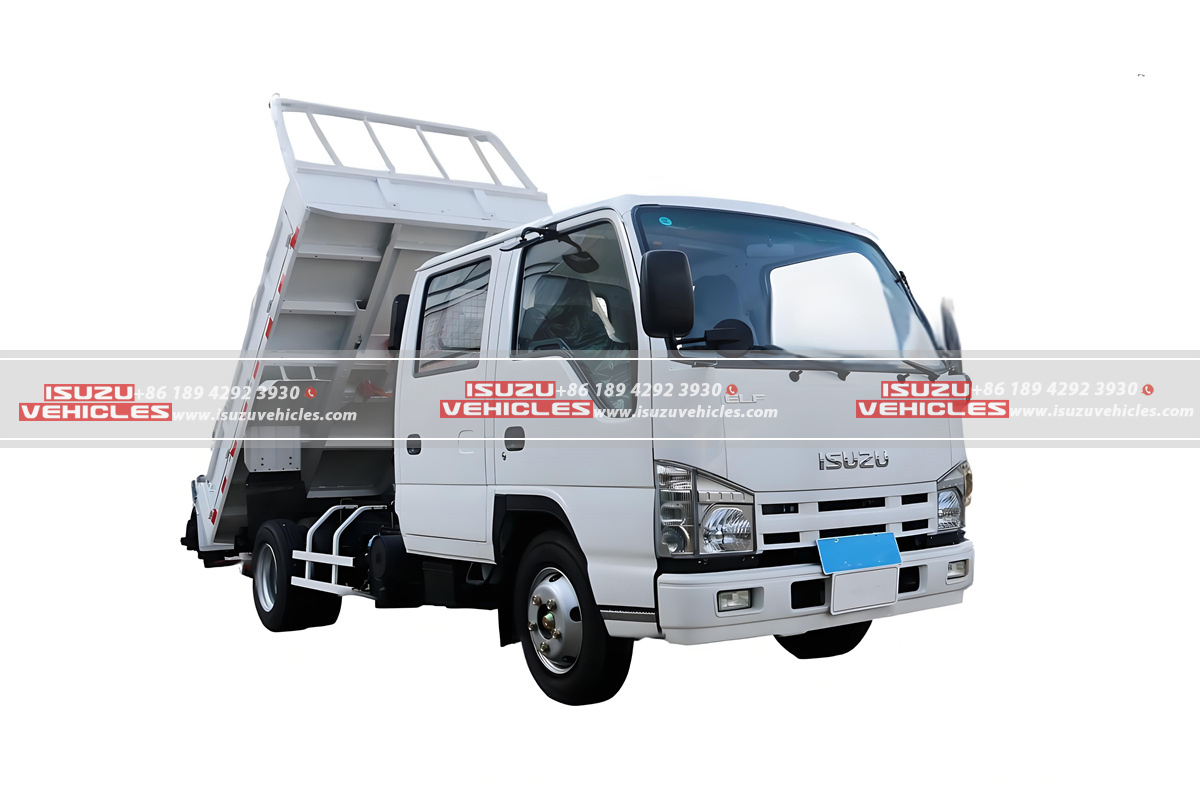

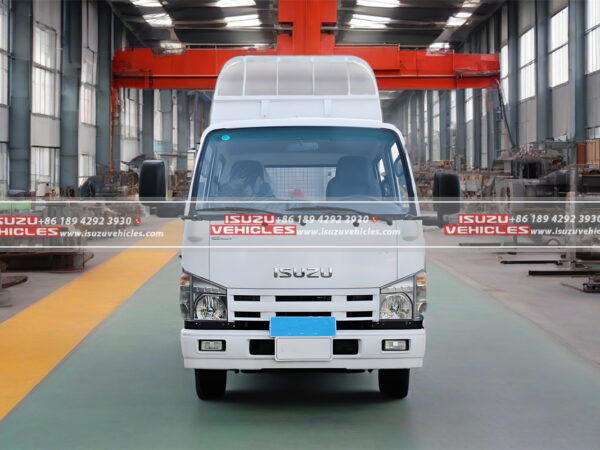

ISUZU 3 Meter Double Row Dump Truck
Core Specifications
- Drivetrain: ISUZU 3 Meter Double Row Dump Truck 4X2 configuration for balanced traction and maneuverability.
- Wheelbase: 3,360mm optimized for stability on urban and construction terrains.
- Cabin: Double-row seating with 5-person capacity, designed for crew transportation and utility.
- Dimensions: 5.9m (L) × 1.945m (W) × 2.32m (H) – compact yet robust for tight workspaces.
- Payload: 1.45-ton rated load with 4.495-ton gross weight, ideal for light-duty logistics.
Key Applications
- Urban construction material transport
- Small-scale mining and agricultural operations
- Municipal maintenance and waste management
FEATURES
Power & Performance
- Engine: 4KH1CN5LS diesel engine with 2.999L displacement, delivering 98 HP and 220N·m torque at 1,700 RPM.
- Emission Compliance: EURO Ⅴ standard for reduced environmental impact.
- Transmission: 5-speed manual gearbox (MSB-5MT) ensures smooth power delivery and fuel efficiency.

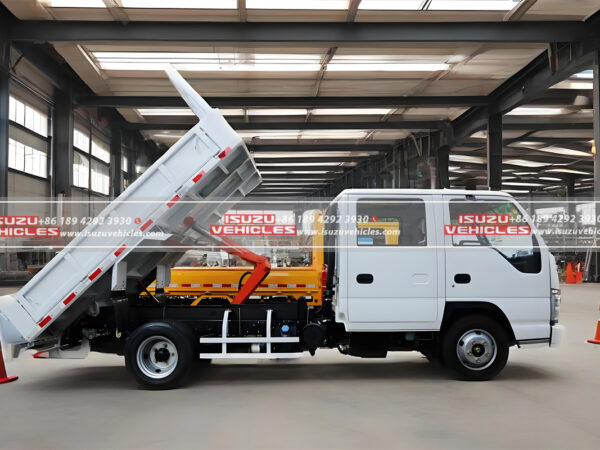

Dumping Efficiency

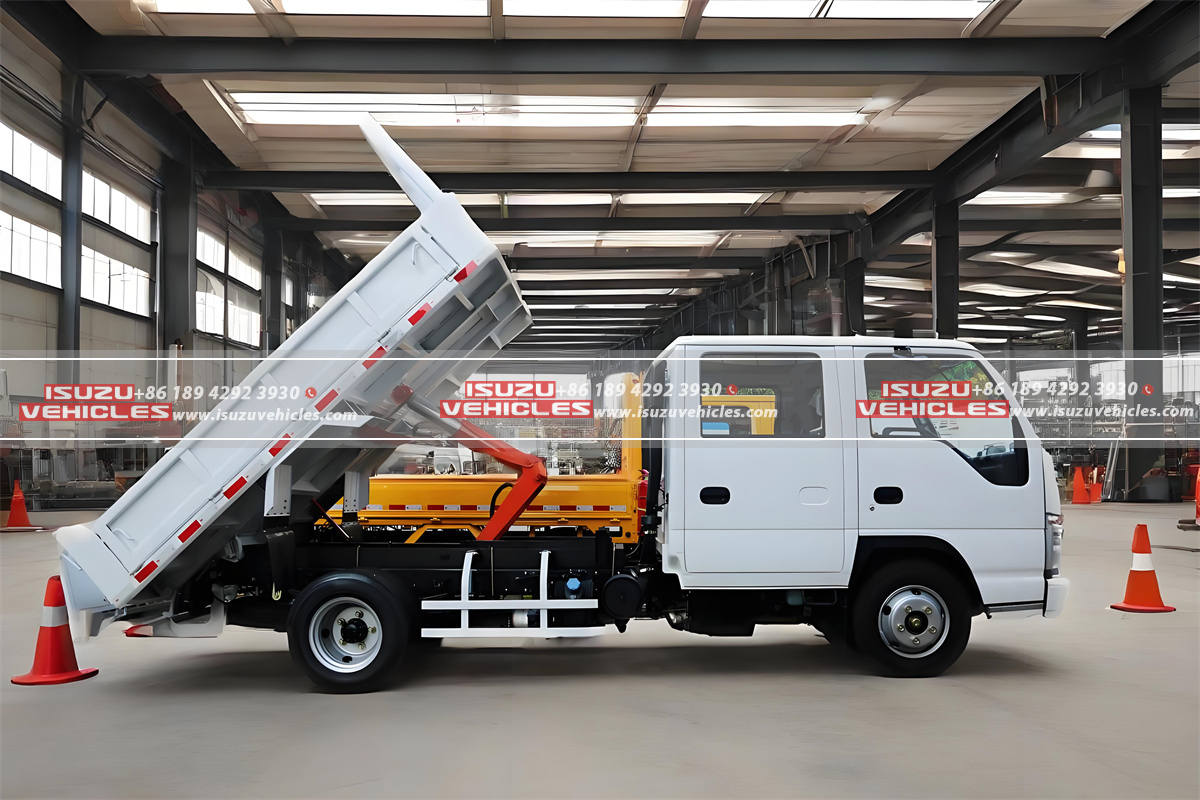

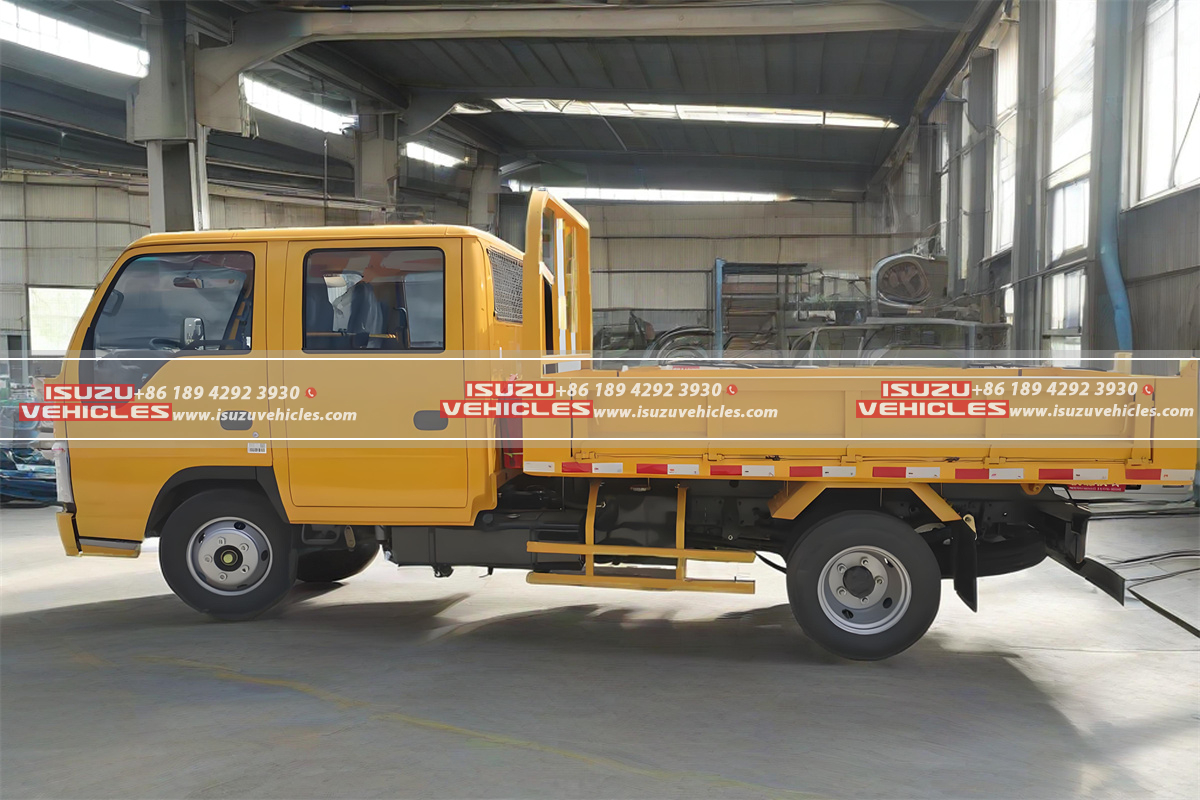

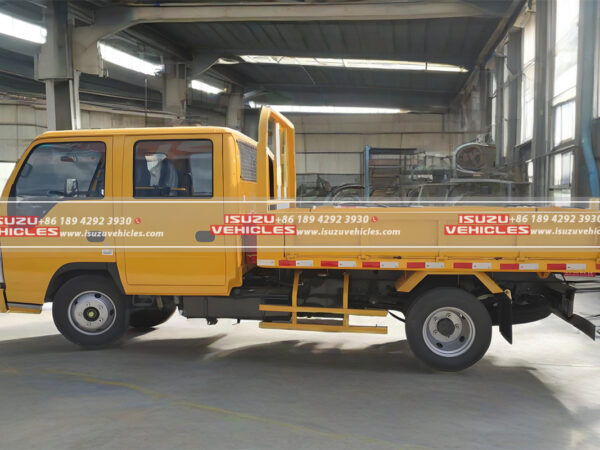

- Cargo Box: 3.13m × 1.78m × 0.38m self-dumping design for rapid unloading.
- Tilt Mechanism: Hydraulic system with 24° approach angle and 12° departure angle for versatile terrain adaptability.
Durable Chassis & Suspension
- Axle Load Capacity: 1,580kg (front) / 2,915kg (rear) reinforced for heavy loads.
- Suspension: 3/3+2 leaf spring setup balances load distribution and ride comfort.
- Tires: 6 × 6.50R16 10PR tires enhance durability on rough surfaces.
Safety & Control
- ABS: Integrated anti-lock braking system for improved stability during sudden stops.
- Steering Precision: 1,377mm front track and 1,425mm rear track ensure predictable handling.
Ergonomic Design
- Cabin Layout: ISUZU dump truck 1,690mm-wide cockpit with intuitive controls and enhanced visibility.
- Fuel Tank: Iron-built 100L capacity for extended operational range.
Manufactured in Chongqing, China, this light-duty truck combines ISUZU engineering excellence with cost-effective utility for demanding workflows.
SPECIFICATIONS
| Parameter | Value |
|---|---|
| Basic Specs | |
| Drivetrain | 4X2 |
| Wheelbase | 3,360 mm |
| Curb Weight | 2.72 tons |
| Payload Capacity | 1.45 tons |
| Gross Weight | 4.495 tons |
| Tonnage Class | Light Truck |
| Dimensions | |
| Body Length | 5.9 m (5,900 mm) |
| Body Width | 1.945 m (1,945 mm) |
| Body Height | 2.32 m (2,320 mm) |
| Approach Angle | 24° |
| Departure Angle | 12° |
| Engine | |
| Model | 4KH1CN5LS (Qingling ISUZU) |
| Fuel Type | Diesel |
| Displacement | 2.999 L |
| Max Power | 98 HP / 72 kW |
| Max Torque | 220 N·m @ 1,700 RPM |
| Emission Standard | EURO Ⅴ |
| Transmission | |
| Model | MSB-5MT (ISUZU) |
| Forward Gears | 5 |
| Reverse Gears | 1 |
| Cargo Box | |
| Dimensions (L×W×H) | 3.13 m × 1.78 m × 0.38 m |
| Type | Self-dumping |
| Chassis & Axles | |
| Front Axle Load Capacity | 1,580 kg |
| Rear Axle Load Capacity | 2,915 kg |
| Rear Axle Ratio | 6.142 |
| Spring Leaf Configuration | 3/3+2 |
| Tires | |
| Specification | 6.50R16 10PR |
| Quantity | 6 |
| Cabin | |
| Type | Double Row |
| Width | 1,690 mm |
| Seating Capacity | 5 |
| Safety & Origin | |
| ABS | Standard |
| Manufacturing Origin | Chongqing, China |
| Fuel Tank Material | Iron |
