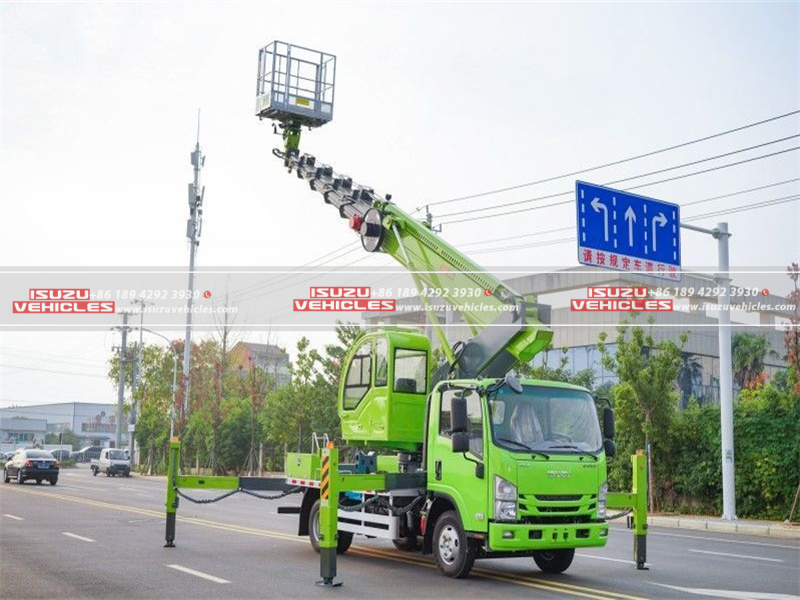

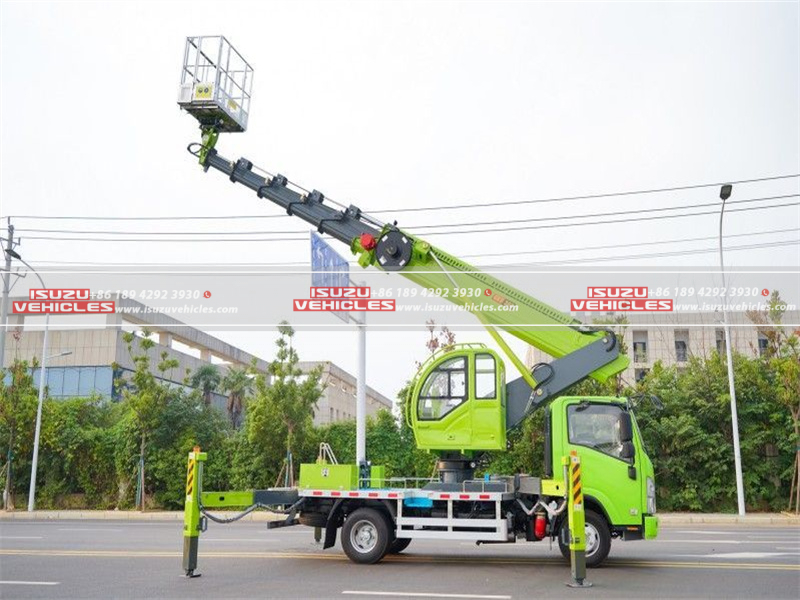

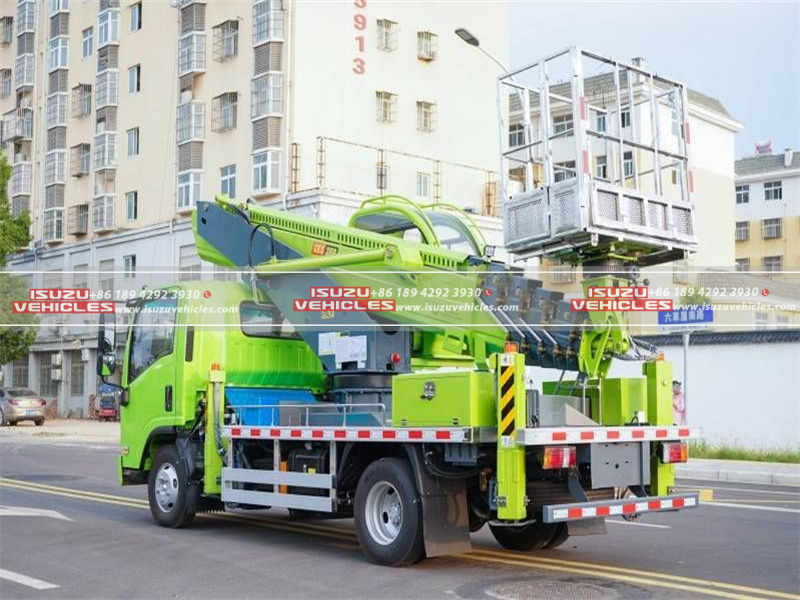

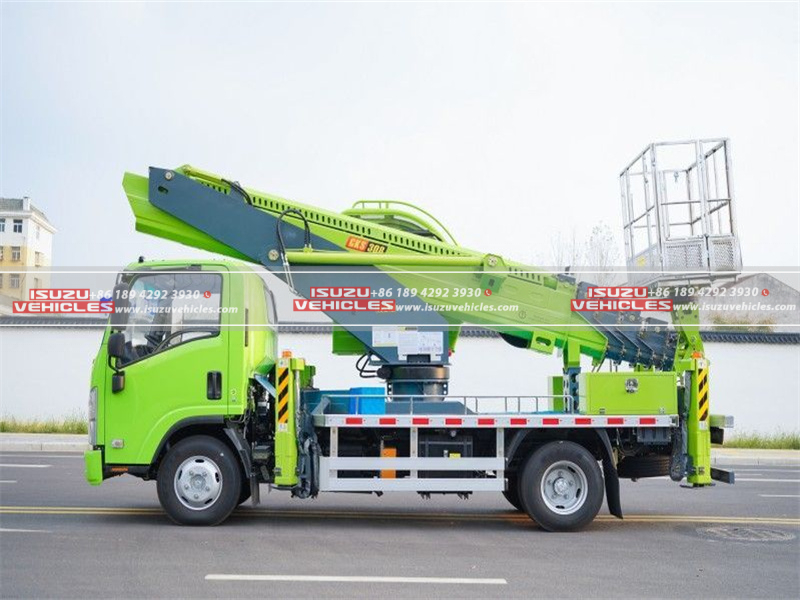

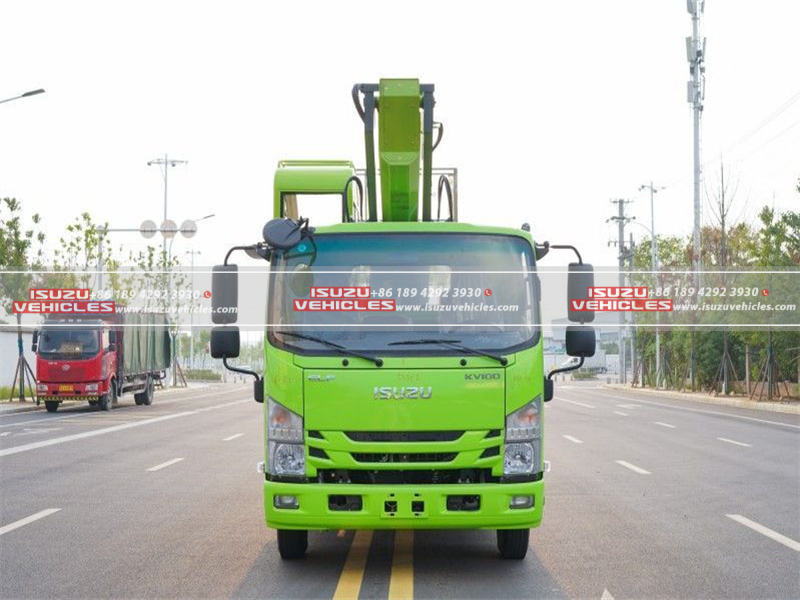

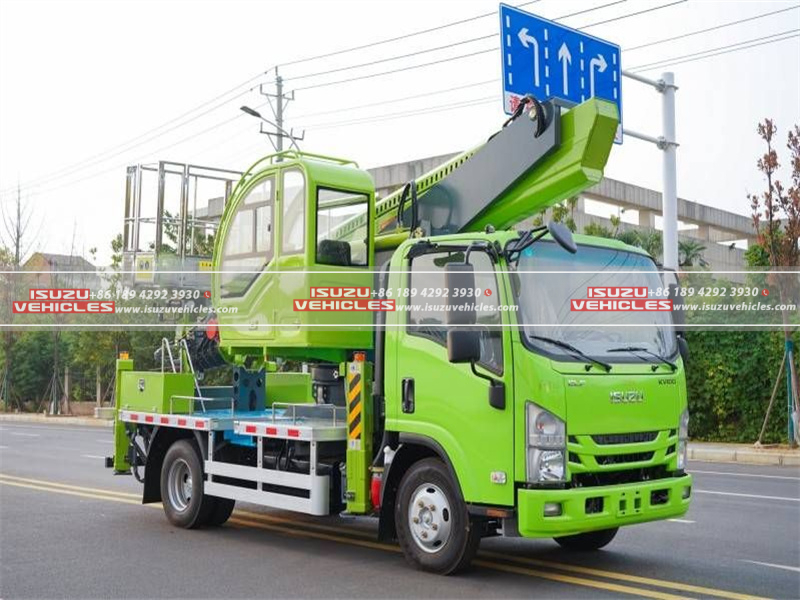

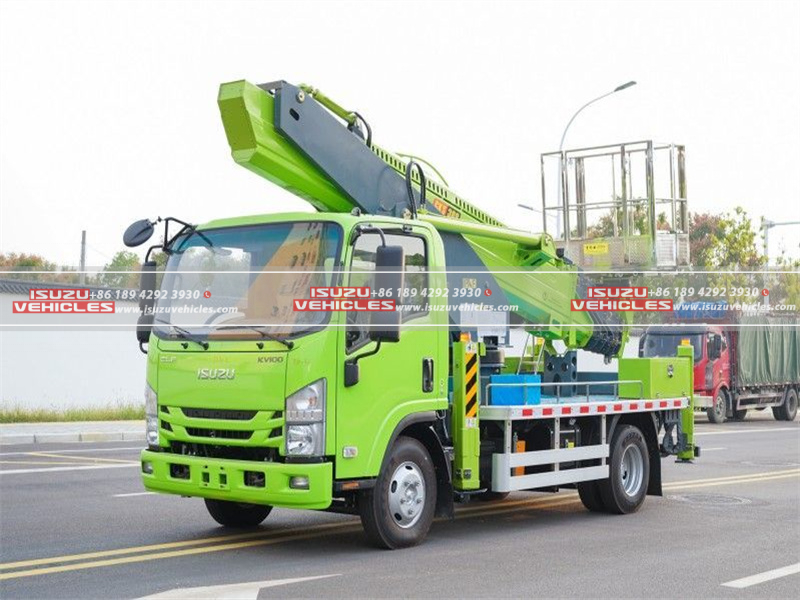

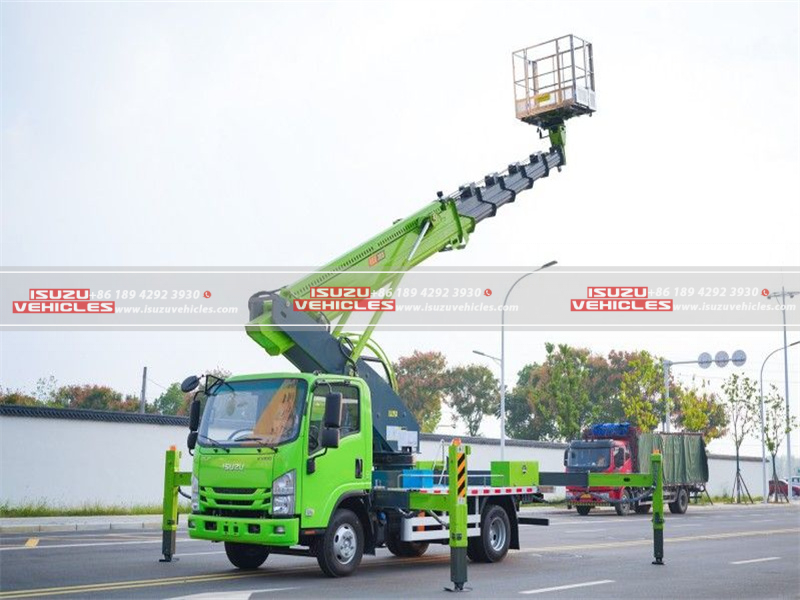

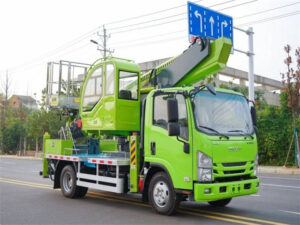

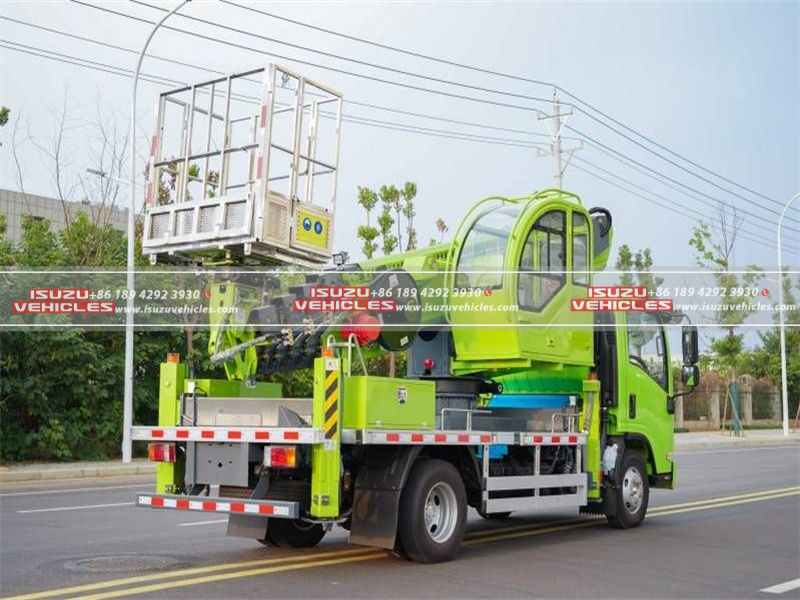

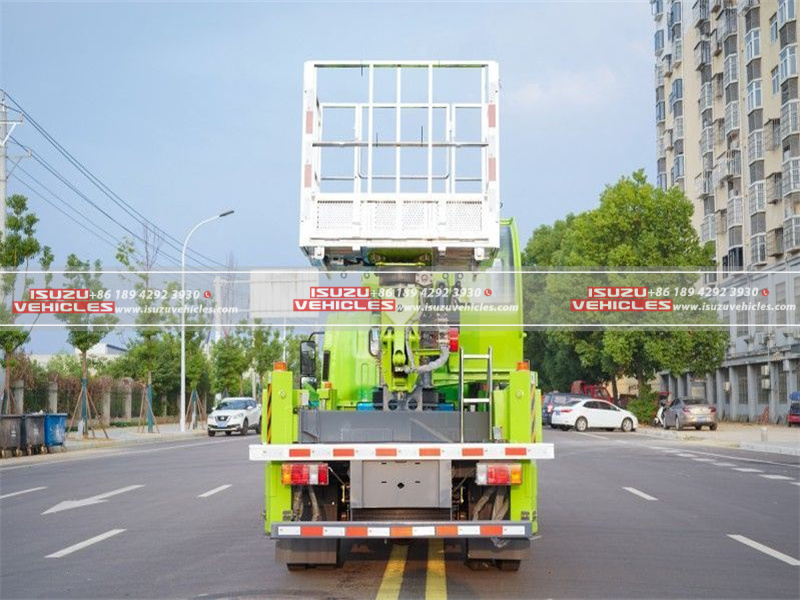

ISUZU 32 Meter Aerial Platform Bucket Truck
The ISUZU 32 Meter Aerial Platform Bucket Truck is a high-performance vehicle designed for demanding elevated work tasks. Built on the robust ISUZU chassis, it features a double-row cabin for enhanced operator and crew comfort. With a maximum working height of 32 meters and a lateral outrigger span of 3930 mm, this truck offers exceptional stability and reach, making it ideal for utility maintenance, construction, and industrial applications. Its Euro 5 and Euro 6 compliance ensures environmentally friendly operation, while the Q355B material construction guarantees durability and safety.
Features
1. Powerful Engine and Transmission
Equipped with the ISUZU 4HK1-TCG60 engine, this truck delivers 154 kW (190 HP) of power, ensuring robust performance for heavy-duty tasks. The engine runs on diesel fuel and complies with Euro V emission standards, combining power with environmental responsibility. The MLD-speed gearbox and maximum speed of 95 km/h provide smooth and efficient operation on the road.
2. Durable Chassis and Tires
The truck is built on a 4-ton front axle and a 7-ton rear axle, offering exceptional load-bearing capacity. It features 235/75R17.5 tires (6 + 1 spare), ensuring durability and stability across various terrains. The 100L fuel tank supports long-duration operations without frequent refueling.
3. Advanced Aerial Platform
The Q355B material construction of the aerial platform ensures strength and durability. The bucket has a rated load capacity of 200 kg and reaches a maximum height of 32 meters, with a maximum working span of 14 meters. This makes it ideal for high-reach tasks in utility and construction industries.
4. Versatile Outrigger System
The truck features a lateral outrigger span of 3930 mm and a longitudinal span of 4350 mm, providing maximum stability on uneven surfaces. The front and rear suspension (1085 mm / 1580 mm) further enhances operational stability and safety.
5. Operator-Friendly Design
The double-row cabin accommodates multiple passengers and is designed for comfort during long working hours. The truck’s dimensions of 6350 × 2360 × 2760 mm ensure maneuverability in urban and industrial environments.
Why Choose the ISUZU 32 Meter Aerial Platform Bucket Truck?
This ISUZU bucket truck is a comprehensive solution for industries requiring elevated work capabilities. Its advanced features, robust design, and operator-friendly systems make it a standout choice for professionals seeking efficiency, safety, and performance. Whether for utility maintenance, construction, or industrial tasks, this truck delivers exceptional value and operational excellence.
SPECIFICATIONS:
| Category | Specification |
|---|---|
| Chassis | |
| Manufacturer | ISUZU |
| Wheelbase | 3800 mm |
| Wheel Formula | 4×2 |
| Cab | Double rows of cabins |
| Emission Standard | Euro 5, Euro 6 |
| Dimensions | 6350 × 2360 × 2760 mm |
| Capacity | 32 m high |
| Engine | |
| Engine Model | 4HK1-TCG60 |
| Emission Standard | Euro V |
| Rated Power | 154 kW / 190 HP |
| Fuel Type | Diesel Oil |
| Gearbox | MLD-speed |
| Max Speed | 95 km/h |
| Tires | |
| Tire Model | 235/75R17.5 |
| Number of Tires | 6 + 1 (spare tire) |
| Axle Capacity | |
| Front Axle | 4 tons |
| Rear Axle | 7 tons |
| Fuel Tank | 100 L |
| Body | |
| Material | Q355B |
| Bucket Rated Weight | 200 kg |
| Bucket Max Height | 32 m |
| Maximum Working Span | 14 m |
| Outrigger | |
| Lateral Span | 3930 mm |
| Longitudinal Span | 4350 mm |
| Suspension | |
| Front/Rear Suspension | 1085 mm / 1580 mm |
