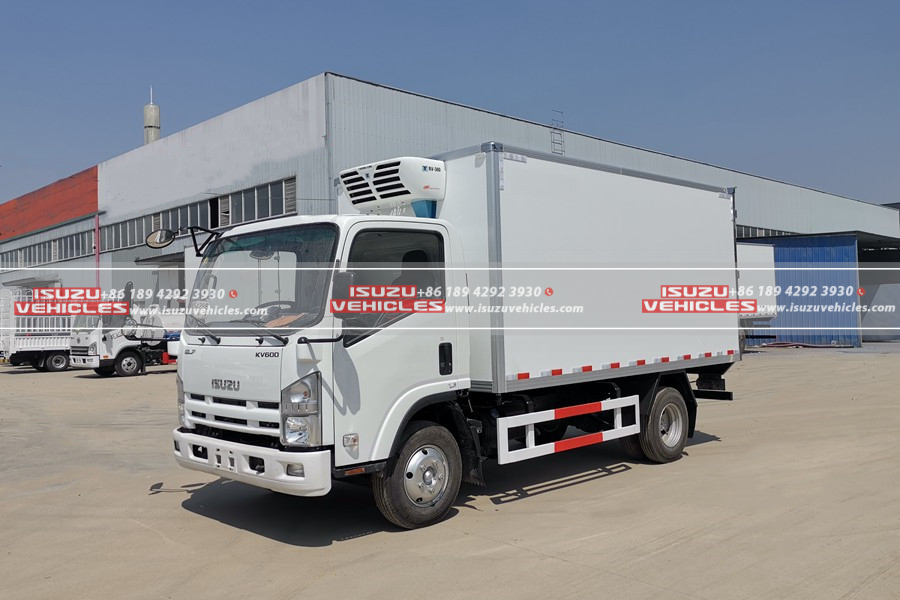

ISUZU 4.2 Meter Freezer Box Truck

ISUZU 4.2 Meter Freezer Box Truck

The ISUZU 4.2 Meter Freezer Box Truck is a practical temperature-controlled transport solution designed for the safe and efficient delivery of frozen and perishable products. Built on a reliable Isuzu chassis and powered by the 4KH1CN5HS engine, this refrigerated truck combines dependable road performance with an insulated cargo body and dedicated refrigeration system, making it suitable for food distribution, cold-chain logistics, pharmaceutical transportation, and other applications where stable cargo temperatures are essential.

Key Features

Vehicle Model: QL5070XLCA5KAJ

Engine: The QL5070XLCA5KAJ configuration is powered by the Qingling Isuzu 4KH1CN5HS engine, which delivers 96 kW, or 130 horsepower, from a 3.0-liter displacement. The engine provides a practical balance of power, fuel efficiency, and dependable performance, allowing the truck to handle regular refrigerated distribution routes as well as longer-distance transportation.

Tires: The truck is equipped with durable 7.00R16 14PR tires, providing reliable load-bearing capability, road grip, and stability across different road conditions while supporting safe operation with a fully loaded freezer body.

Transmission: The MSB-5SM five-speed manual gearbox provides smooth power delivery and practical gear selection for urban distribution, highway transportation, and varying road conditions, helping the driver maintain efficient engine operation.

Main Reducer Ratio: With a drive axle ratio of 6.142, the vehicle is configured to provide suitable torque multiplication and power distribution, which is particularly useful when carrying heavy refrigerated cargo or operating on roads with gradients.

Overall Dimensions: The vehicle measures 6940 mm in length, 2130 mm in width, and 3000 mm in height, offering a spacious body configuration while maintaining dimensions that remain practical for commercial road transportation.

Cargo Box Dimensions: The freezer body measures 4960 mm in length, 1900 mm in width, and 1800 mm in height, providing a substantial enclosed loading area for frozen food, meat, seafood, dairy products, and other temperature-sensitive goods.

Cargo Box Construction: The cargo box uses outer and inner fiberglass panels with an 8 cm thick polyurethane insulation layer between them, creating an effective thermal barrier that helps reduce heat transfer between the cargo compartment and the outside environment. An anti-slip patterned aluminum floor improves durability and loading safety, while aluminum alloy ventilation slots support practical cargo-body design. Stainless steel door locks provide secure closure, and the standard single side door offers convenient access when loading or unloading selected goods.

Weight Specifications: This configuration has a total vehicle weight of 6975 kg, a curb weight of 3470 kg, and a rated load capacity of 3310 kg, giving the truck sufficient carrying capability for a wide range of cold-chain distribution tasks.

Vehicle Model: QL5043XLCA5HA

Chassis Brand: The QL5043XLCA5HA is built on an Isuzu KV600 chassis, providing a durable and dependable foundation for refrigerated transportation. The chassis is designed to support commercial operation while maintaining good maneuverability and stability.

Cargo Box Length: The cargo box has an internal length of 4015 mm, providing useful loading space for frozen products and other temperature-sensitive cargo while keeping the overall vehicle compact enough for urban and regional distribution.

Engine: This configuration also uses the Isuzu 4KH1CN5HS engine, producing 96 kW and 130 horsepower, delivering dependable performance for daily logistics operations and refrigerated cargo transportation.

Transmission: A five-speed manual transmission provides straightforward gear changes and efficient power transfer, allowing the driver to adapt the vehicle to city streets, highways, inclines, and loaded operating conditions.

Wheelbase: The 3360 mm wheelbase provides a good balance between stability and maneuverability, making the truck easier to control in urban environments while maintaining sufficient support for the insulated cargo body.

Tires: The vehicle uses 7.00R16 8PR steel radial tires, which offer durability, reliable road contact, and stable handling for regular commercial transportation.

Emission Standard: The engine and chassis configuration comply with the Euro V emission standard, providing a suitable solution for markets where Euro V commercial vehicle requirements are applicable.

Chassis Standard Configuration: Standard equipment includes power steering, cab air conditioning, and hydraulic brakes, helping improve driver comfort, steering response, braking control, and overall usability during extended working hours.

Overall Dimensions: The compact configuration measures 5995 mm in length, 2070 mm in width, and 2970 mm in height, making it well suited to distribution routes where maneuverability, road accessibility, and cargo capacity must be balanced.

Cargo Box Dimensions: The insulated cargo box measures 4015 mm in length, 1900 mm in width, and 1800 mm in height, providing a practical enclosed space for frozen and chilled products.

Weight Specifications: The total vehicle weight is 4495 kg, with a curb weight of 3210 kg and an allowed load capacity of 1090 kg, allowing the truck to maintain a practical balance between body equipment, refrigeration components, and payload.

Cooling Range: The refrigeration system is designed to maintain a temperature range from -5°C to -15°C, providing an appropriate operating environment for a variety of frozen and temperature-sensitive products when the cargo and operating conditions are matched to the required temperature.

Refrigeration Unit: The truck can be equipped with a Carrier CITIMAX 500 series refrigeration unit, providing dependable temperature-control performance for cold-chain transportation and helping maintain the required cargo environment throughout the journey.

Optional Refrigeration Units: Depending on operating requirements and market preferences, alternative refrigeration systems from Carrier, Huatai, Kaixue, and Thermo King can also be selected, allowing buyers to configure the freezer truck according to their specific transportation conditions and refrigeration requirements.

The ISUZU 4.2 Meter Freezer Box Truck combines a dependable Isuzu chassis, efficient 130-horsepower engine, insulated freezer body, and dedicated refrigeration equipment into a practical solution for temperature-controlled logistics. With its compact dimensions, durable construction, flexible refrigeration options, and well-designed cargo compartment, this truck is particularly suitable for businesses that require reliable frozen-food distribution and efficient cold-chain transportation.

Specifications:

ISUZU 4.2 Meter Freezer Box Truck Model: QL5070XLCA5KAJ
Engine	Qingling Isuzu 4KH1CN5HS engine, 96 kW, 130 horsepower, 3.0 L displacement
Tires	7.00R16 14PR tires
Transmission	MSB-5SM gearbox, 5 gears
Main Reducer Ratio (Drive Axle Ratio)	6.142
Vehicle Dimensions	6940 × 2130 × 3000 mm
Cargo Box Dimensions	4960 × 1900 × 1800 mm
Cargo Box Construction	Outer and inner fiberglass, 8 cm thick polyurethane insulation in the middle, anti-slip patterned aluminum floor, aluminum alloy ventilation slot, stainless steel door locks, single side door as standard configuration
Total Weight	6975 kg
Curb Weight	3470 kg
Rated Load Capacity	3310 kg
Vehicle Model: QL5043XLCA5HA
Chassis Brand	Isuzu KV600
Cargo Box Length	4015 mm
Engine	Isuzu 4KH1CN5HS engine, 96 kW, 130 horsepower
Transmission	5 gears
Wheelbase	3360 mm
Tires	7.00R16 8PR steel radial tires
Emission Standard	Euro V emission standard
Chassis Standard Configuration	Power steering, cab air conditioning, hydraulic brakes
Overall Dimensions	5995 × 2070 × 2970 mm
Cargo Box Dimensions	4015 × 1900 × 1800 mm
Total Weight	4495 kg
Curb Weight	3210 kg
Allowed Load Capacity	1090 kg
Cooling Range	-5°C to -15°C
Refrigeration Unit	Carrier CITIMAX 500 series refrigeration unit
Optional Units	Carrier, Huatai, Kaixue, Thermo King
