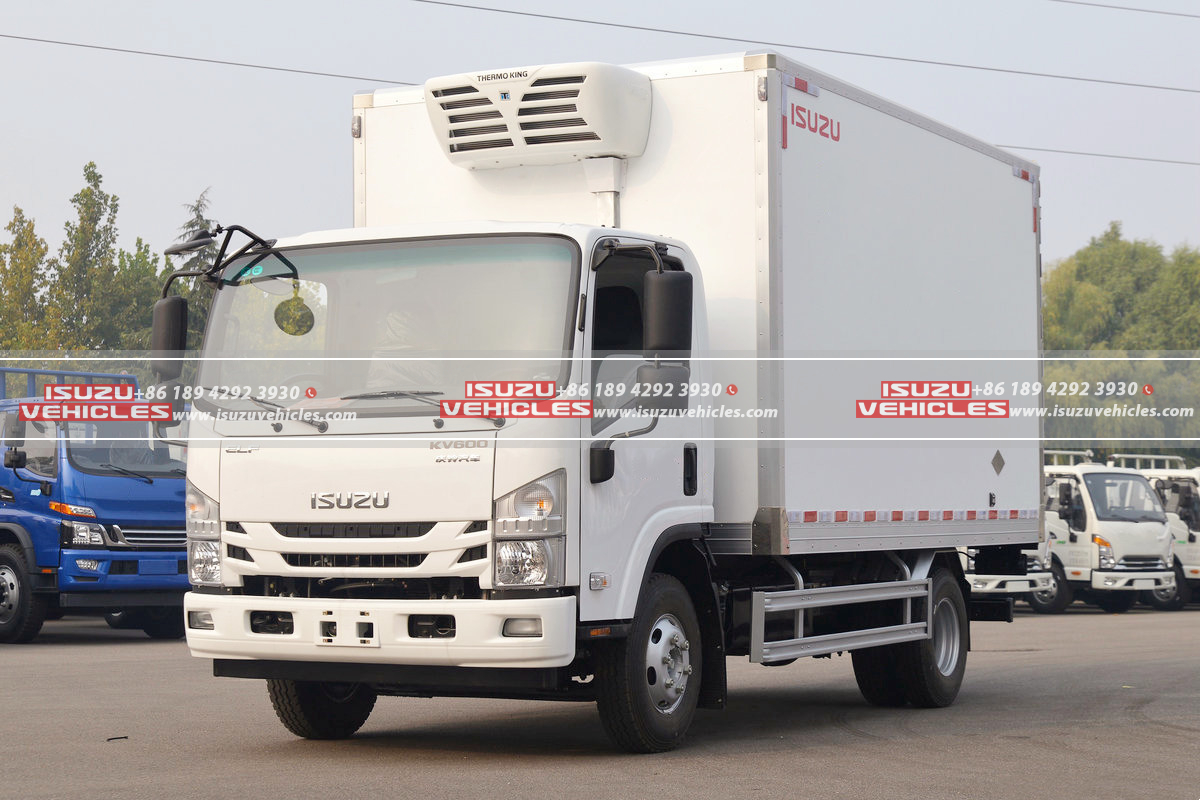

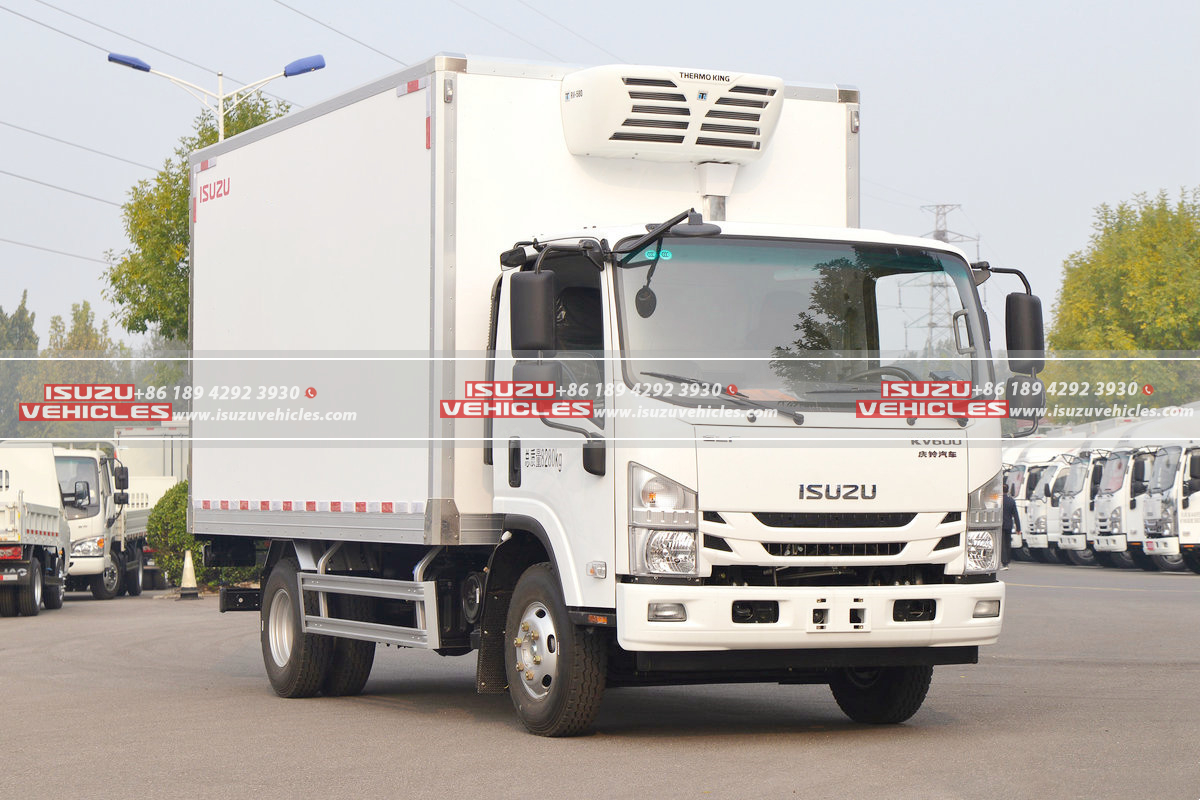

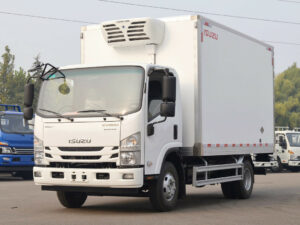

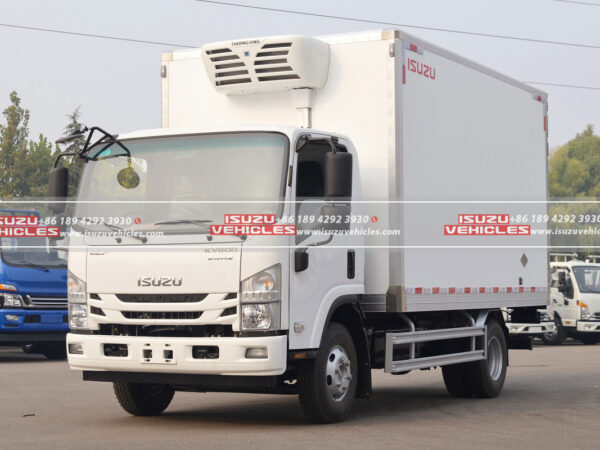

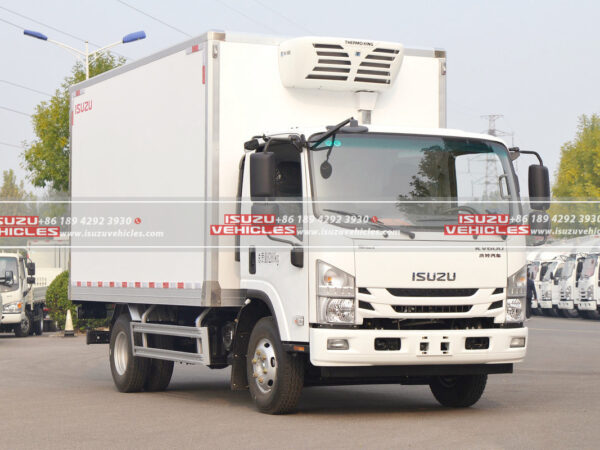

ISUZU 4 Meter Refrigerator Delivery Van Truck

The ISUZU 4 Meter Refrigerator Delivery Van Truck is a highly efficient and reliable vehicle designed specifically for transporting temperature-sensitive goods. Built on the robust ISUZU KV600 chassis, this refrigerated truck combines durability with advanced technology to provide seamless temperature control and transportation of perishable goods such as food, medicine, and other temperature-sensitive products. The truck’s design and engineering focus on maintaining a stable internal environment, ensuring goods are kept fresh and undamaged during transit.

The 4080 mm length refrigerated van is equipped with a 3.0L ISUZU 4KH1CN6HB diesel engine, delivering 131 horsepower. This engine ensures optimal performance and fuel efficiency, meeting EURO II, III, IV, and V emission standards, making the vehicle environmentally friendly. The six-speed manual transmission ensures smooth gear shifting and better control during different road conditions, further enhancing its operational efficiency.

With a well-insulated cargo space designed to maintain temperatures as low as -18°C, the ISUZU 4 Meter Refrigerator Delivery Van Truck is perfectly suited for various industries including food distribution, pharmaceutical transport, and meat delivery. The truck’s body is designed with high-quality materials that provide excellent insulation, durability, and resistance to oxidation, ensuring long-lasting performance in demanding conditions.

---

Key Features of the ISUZU 4 Meter Refrigerator Delivery Van Truck

1. Chassis and Cab Design

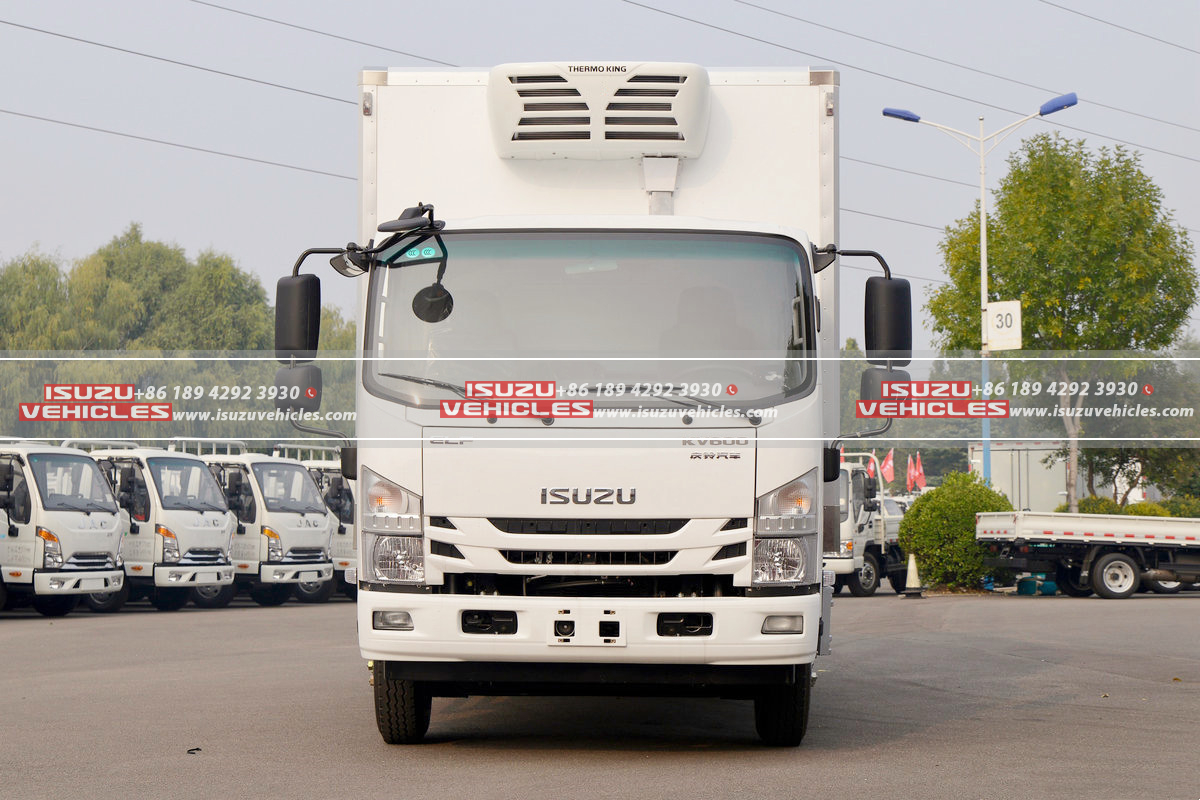

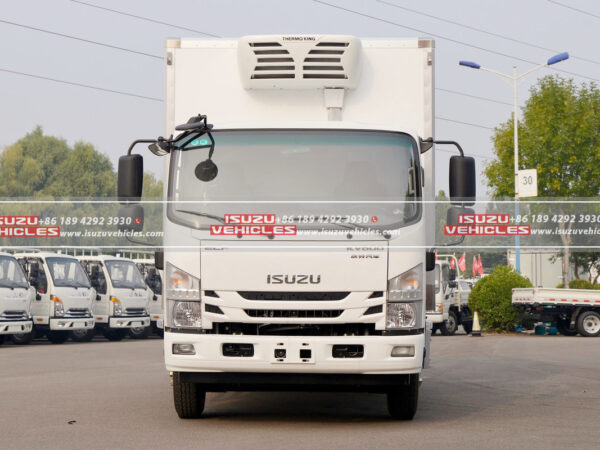

• ISUZU KV600 Chassis: The truck is built on the ISUZU KV600 chassis, known for its reliability and durability. The wide-body cab design provides ample space for the driver and passengers, ensuring comfort during long hauls. The cabin is equipped with a range of modern features such as air conditioning, power steering, and an LCD multifunctional instrument panel for a more intuitive driving experience.
• Vehicle Dimensions: The overall dimensions of the truck are 5995 mm in length, 2260 mm in width, and 3150 mm in height. This compact yet spacious design allows for easy maneuverability in urban areas while providing sufficient space for a 4080 mm x 2100 mm x 2100 mm cargo box.
• Payload Capacity: With a gross vehicle weight of 4495 kg and a curb weight of 3200 kg, the truck can carry up to 1100 kg of goods, making it ideal for light to medium-duty delivery operations.

2. Engine and Performance

• Powerful Engine: The ISUZU 4KH1CN6HB engine delivers 131 horsepower and features a 3.0-liter displacement. This engine is designed for durability and fuel efficiency, ensuring the vehicle operates optimally even under heavy loads.
• Transmission System: The truck comes with a six-speed manual transmission that provides smooth and precise gear shifts. This ensures better fuel efficiency and more control over various road conditions, which is essential for maintaining the integrity of the goods being transported.
• Emission Standards: Meeting EURO II, III, IV, and V emission standards, this truck is designed to be environmentally responsible, making it an excellent choice for companies looking to reduce their carbon footprint.

3. Refrigeration Unit and Temperature Control

• Advanced Refrigeration System: The ISUZU 4 Meter Refrigerator Delivery Van Truck is equipped with the Cold King RV580 refrigeration unit, capable of maintaining temperatures as low as -18°C. This advanced system ensures that perishable goods are kept at the required temperature throughout the transportation process.
• Optional Refrigeration Units: For added flexibility, the truck can be fitted with a variety of refrigeration units, including brands like Kaily, Huatai, Hanxue, and Hanya, in addition to Cold King and Carrier. This allows companies to select the refrigeration system that best meets their specific requirements.

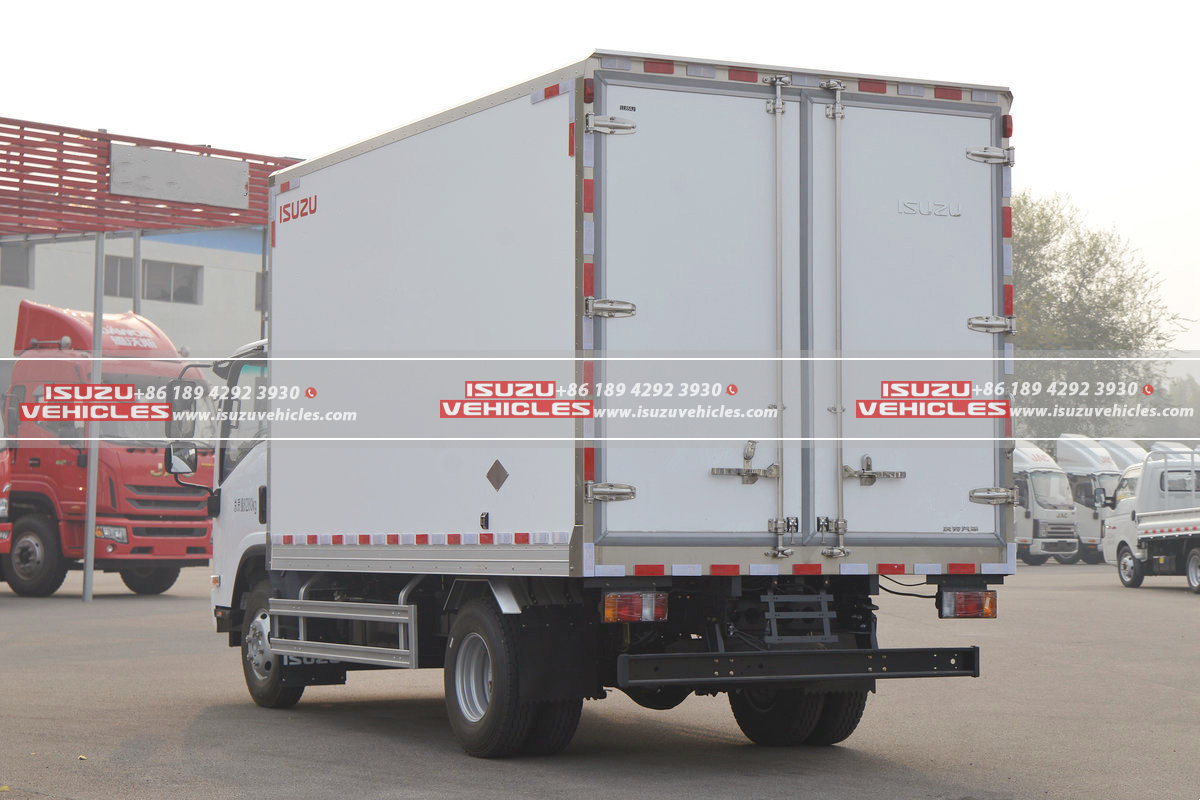

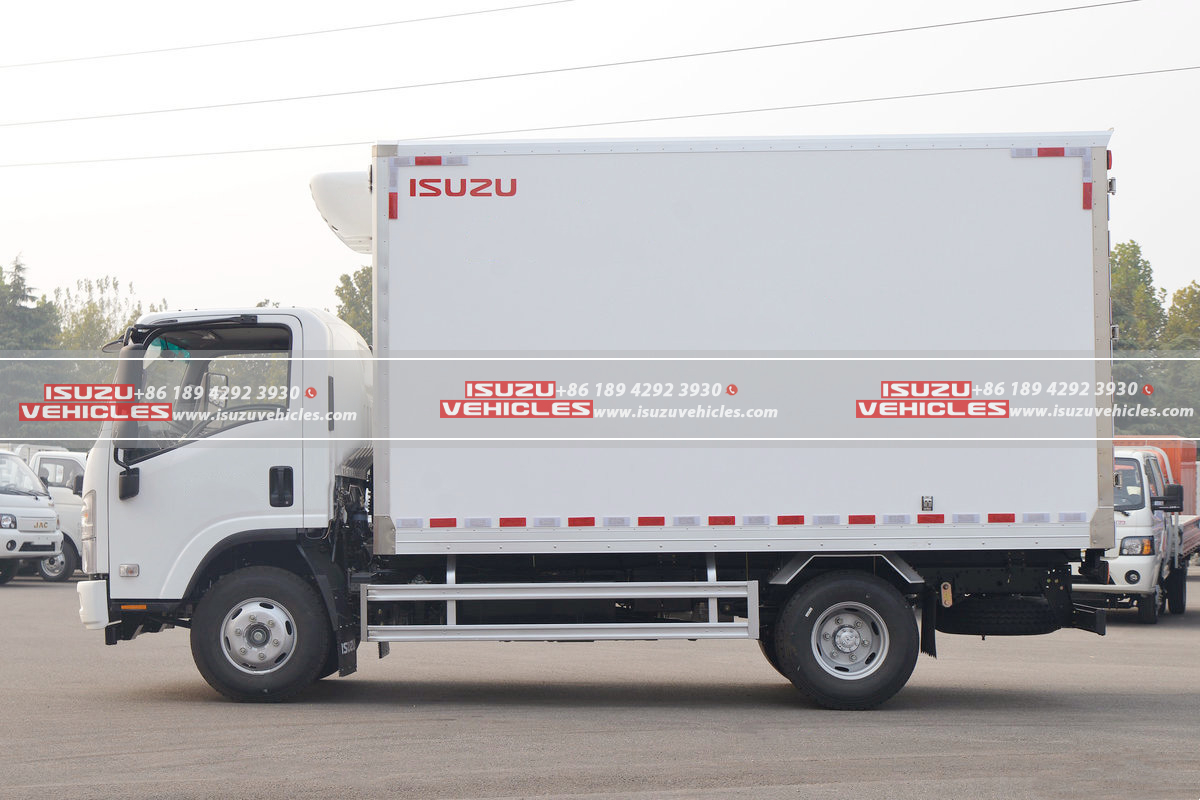

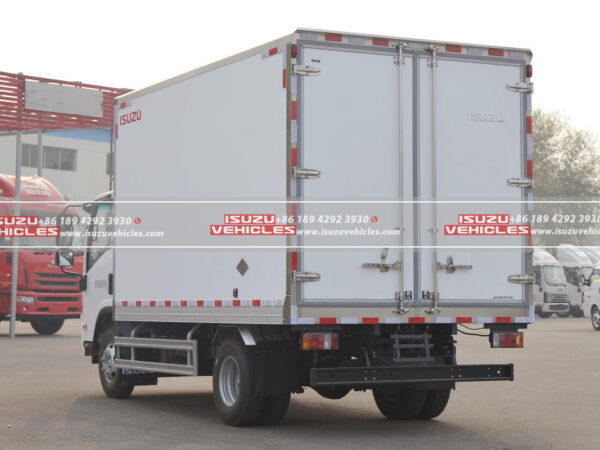

• Insulated Cargo Box: The cargo box is designed with 8 cm thick walls made of nano glass fiber reinforced plastic (GRP) for superior insulation. This material offers excellent heat resistance, is lightweight, and highly durable, ensuring that the internal temperature is maintained consistently. Additionally, the interior of the cargo box is lined with rust-resistant light steel from Wugang, filled with seamless polyurethane foam for enhanced insulation.

4. Cargo Body Construction and Features

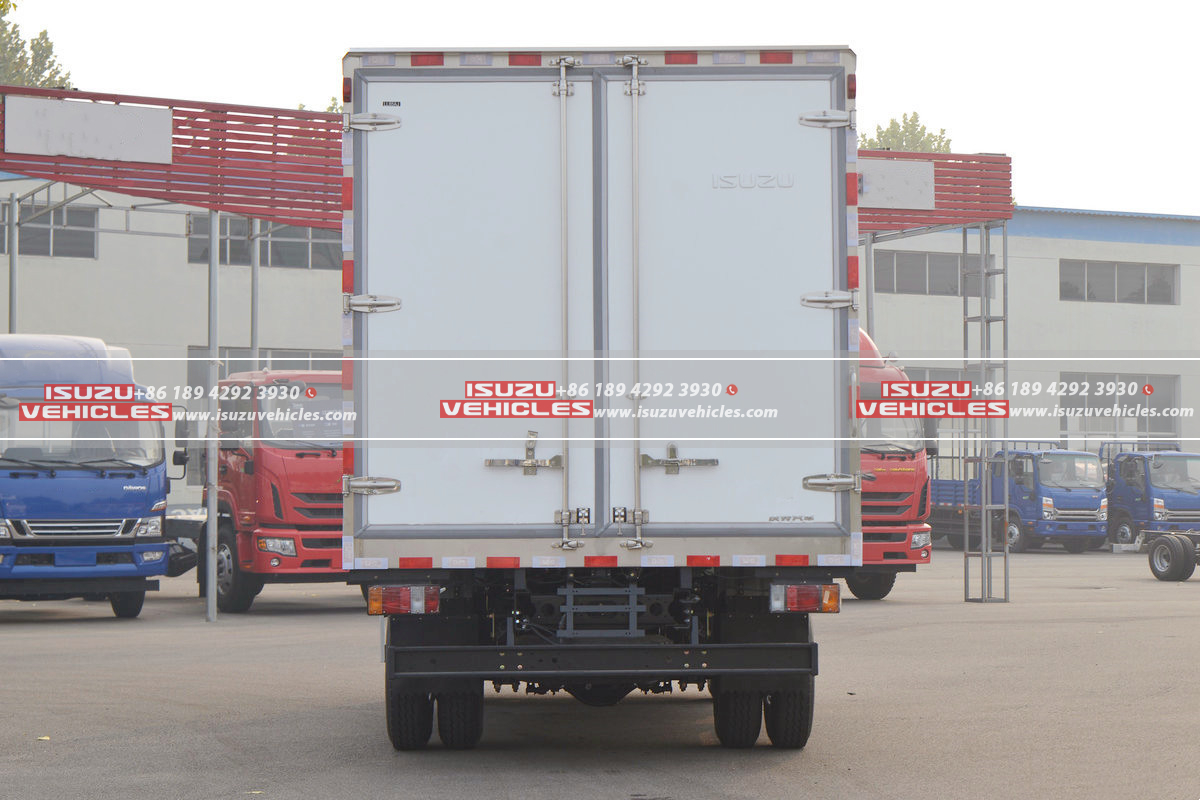

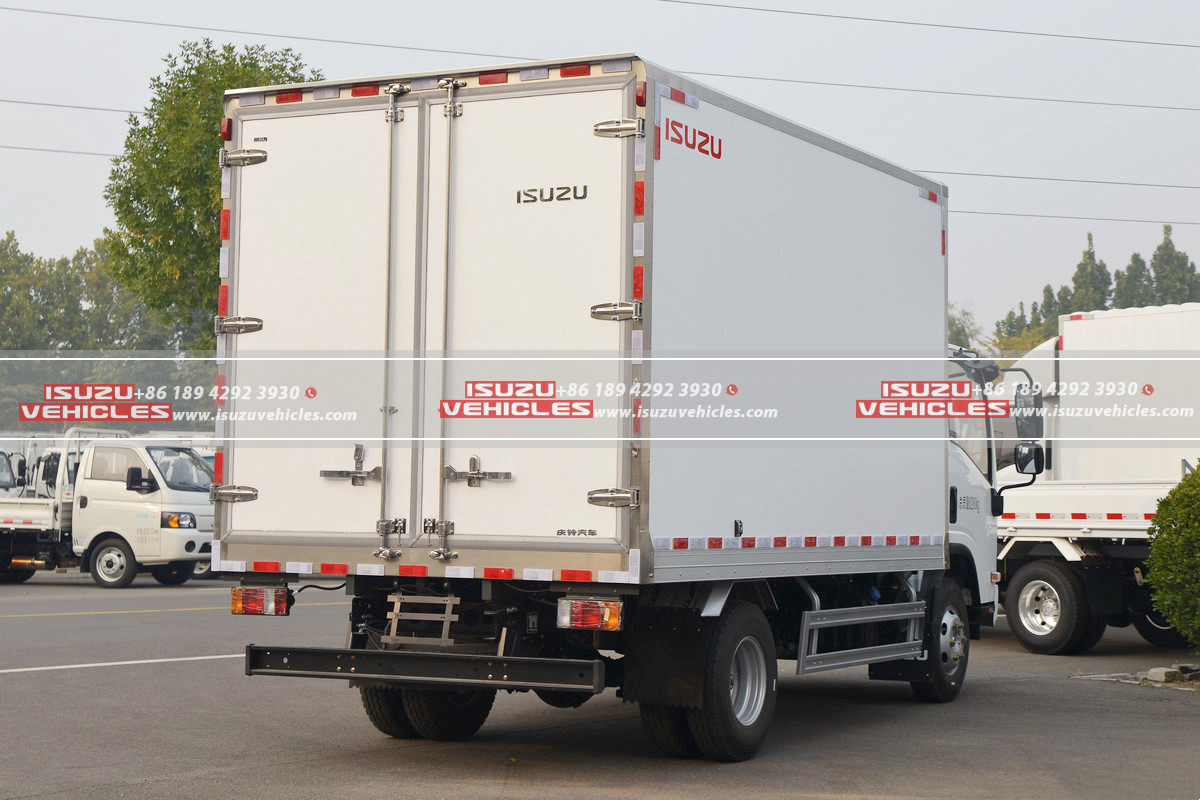

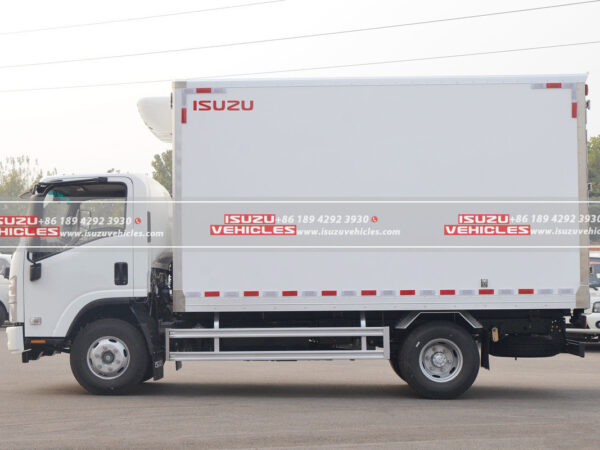

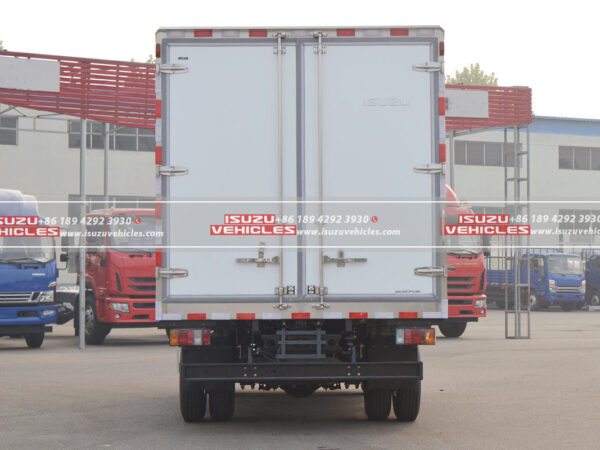

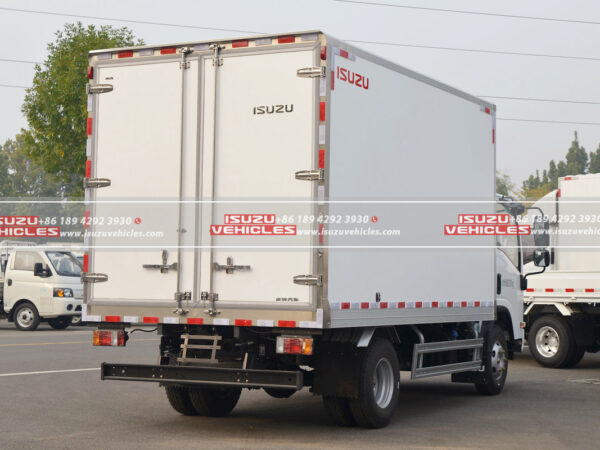

• Durable Body Construction: The cargo box is constructed using a hydraulic suction molding production line, ensuring precision and strength in every panel. The exterior and interior are reinforced with thickened aluminum alloy, while the corners are protected by galvanized stainless steel. The rear door frame and hinges are made of thickened stainless steel, providing durability and security for the transported goods.
• Aluminum Alloy Flooring: The cargo box floor can be equipped with an aluminum diamond-patterned plate or a flat nano-GRP surface, depending on the needs of the cargo. This ensures that the floor is resistant to wear and easy to clean, which is important for maintaining hygiene standards, especially in food and pharmaceutical transportation.

5. Optional Features and Customizations

• Ventilation System: The truck’s cargo box can be optionally equipped with ventilation channels at the floor and around the walls to enhance airflow and ensure even cooling. These aluminum alloy ventilation slots are handy when transporting items like meat or pharmaceuticals that require consistent air circulation to avoid spoilage.
• Meat Hook Option: For companies that transport meat, the interior of the cargo box can be reinforced with an aluminum alloy roof rail and equipped with stainless steel meat hooks. This allows the goods to be transported securely and hygienically, reducing the risk of contamination or spoilage.
• Temperature and Humidity Monitoring: The vehicle can be outfitted with a temperature and humidity recorder with printout capability, as well as high and low-temperature alarms to ensure constant monitoring of the cargo’s condition. This is especially beneficial for pharmaceutical and food transport, where maintaining specific temperature ranges is crucial.
• Additional Features: The truck’s interior can be further customized with various fixtures such as cargo tie-down systems, suspension devices, interior shelving, and insulation curtains. These optional features help secure the cargo and maintain temperature consistency, ensuring that goods are transported safely and efficiently.

6. Safety and Driving Comfort

• Modern Safety Features: The truck is equipped with a range of safety features, including ABS and an air brake system, providing enhanced control and stopping power. These features ensure the vehicle can handle sudden stops or changes in traffic conditions, minimizing the risk of accidents.
• Driver Comfort: The spacious ISUZU cab comes with air conditioning, power windows, central locking, and an LCD multifunctional display, creating a comfortable and ergonomic environment for the driver. These features are crucial during long hauls, allowing the driver to remain focused and alert.

7. Tire and Suspension System

• Tire Specifications: The refrigerated truck comes fitted with 7.00R16 tires, offering excellent traction and durability. These tires are designed to handle the weight of the truck and its cargo, ensuring stability and safety during transit.
• Heavy-Duty Suspension: The front axle has a load-bearing capacity of 3 tons, while the rear axle supports up to 6 tons. This, combined with the sturdy suspension system, ensures that the vehicle remains stable even when fully loaded, providing a smooth and controlled ride.

SPECIFICATIONS:
