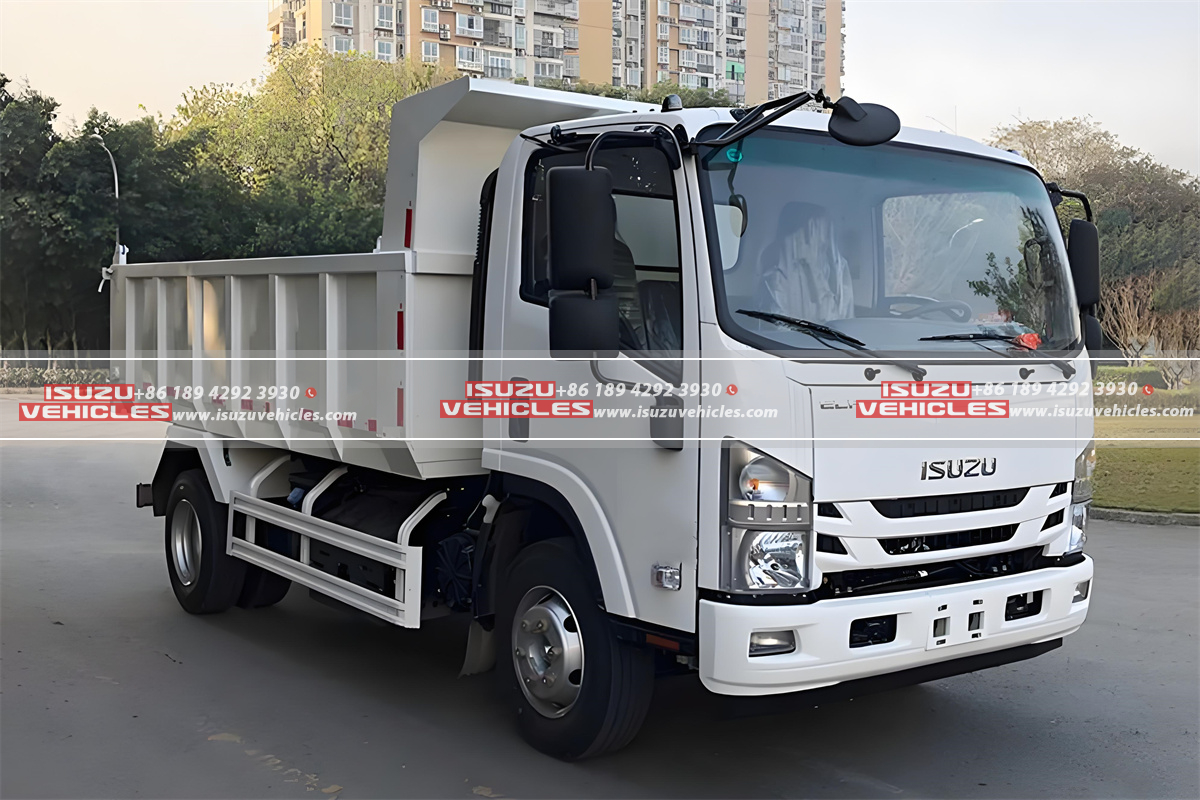

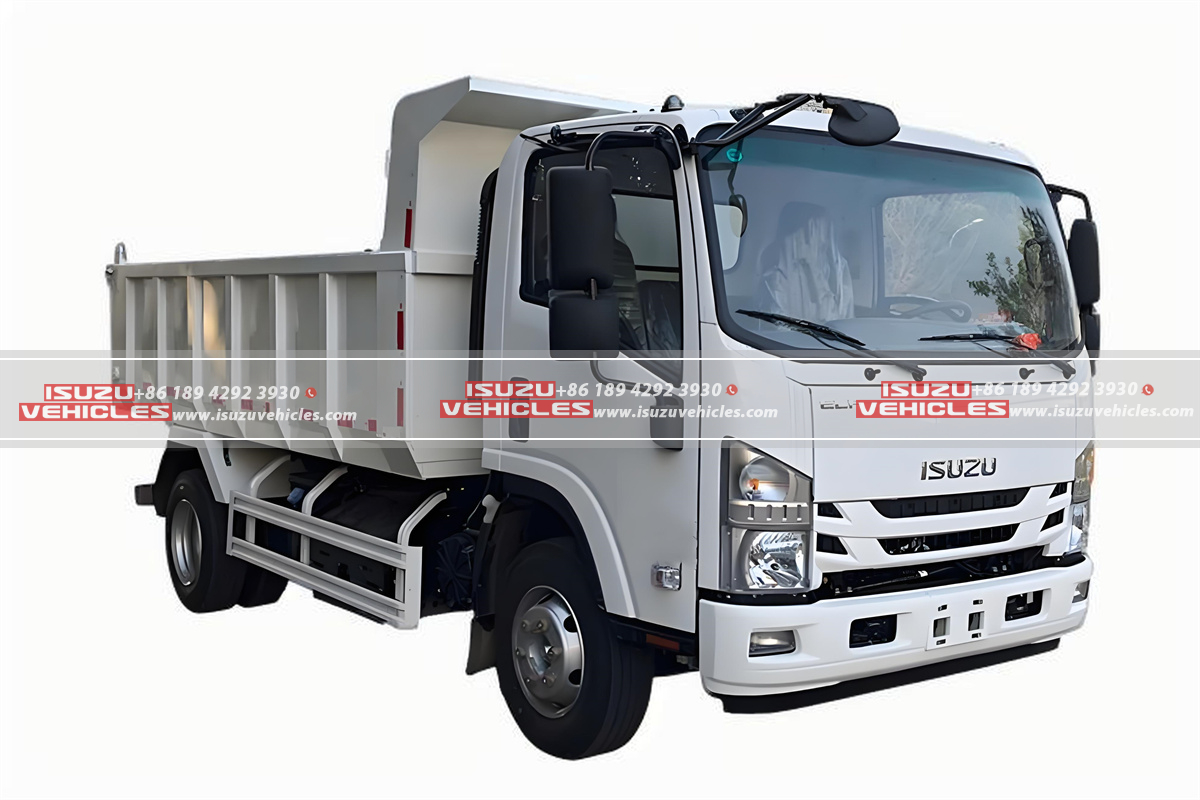

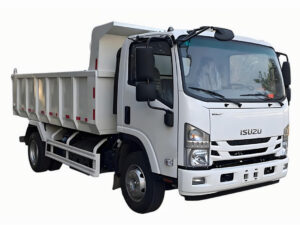

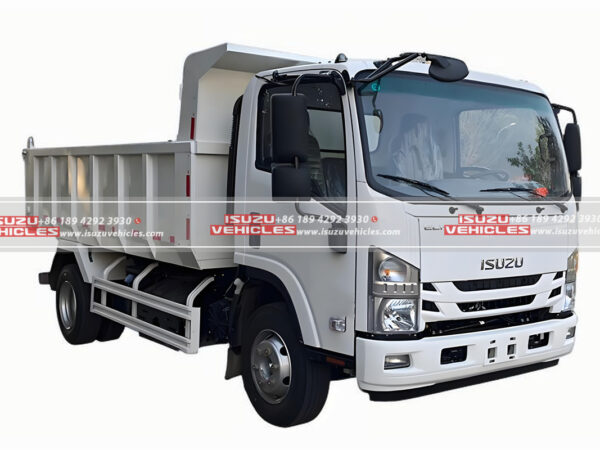

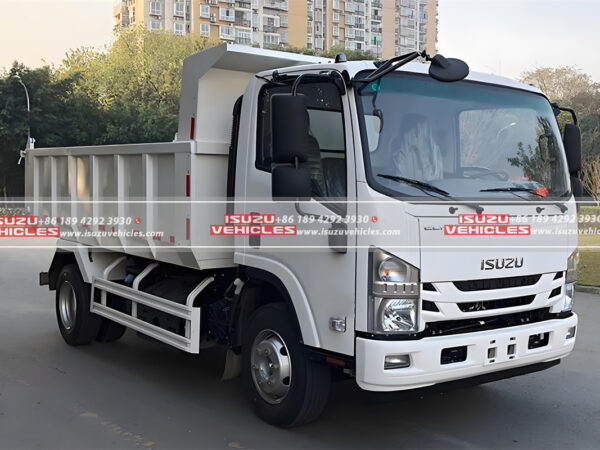

ISUZU 4 Meter Dump Truck
Core Specifications
- Drivetrain: Rugged 4X2 configuration for versatile worksite mobility.
- Payload: Commanding 5.855-ton capacity (10.55-ton GVW), redefining light-duty efficiency.
- Dimensions: Compact 5.8m (L) × 2.335m (W) × 2.48m (H) footprint with optimized terrain angles (15° approach/20° departure).
- Chassis: Engineered for ISUZU light truck operations with 4.5-ton curb weight and reinforced axles.
- Work Efficiency: 3.82-meter cargo box paired with 100L fuel capacity for extended site operations.
Target Applications
- Aggregates and construction material transport
- Road maintenance and urban infrastructure projects
- Quarry and mining support logistics
FEATURES
Powertrain Excellence
- Engine: 4HK1-TCG61 diesel (5.193L) delivering 189 HP, 507N·m torque (1600-2600 RPM), compliant with China VI emissions.
- Transmission: 6-speed manual (MLD-6Q) ensures optimized power delivery and grade-climbing capability.
Cargo & Dumping
- Utility: Self-dumping steel box (3.82m × 2.105m × 0.8m) for rapid material discharge.
- Durability: 8/10+6 spring leaf suspension and 235/75R17.5 16PR tires (x6) for heavy-load resilience.
Structural Integrity
- Axle Capacity: 3,500kg (front)/7,050kg (rear) load tolerance with 4.1 rear axle ratio (optional 4.11).
- Stability: 1,680mm front / 1,650mm rear track width enhances balance on uneven terrain.
Operator Focus
- Cabin: Single-row design (1,995mm width) with manual AC, electric windows, and touchscreen display.
- Security: Remote central locking and ABS standard for operational safety.
Functional Upgrades
- Visibility: Integrated front fog lights for low-visibility worksites.
- Connectivity: Multimedia system with FM radio supports worksite communication needs.
Manufactured in Chongqing Jiulongpo, this truck merges ISUZU’s heavy-duty engineering with agile performance for demanding urban and industrial environments.
SPECIFICATIONS
| Parameter | Value |
|---|---|
| Basic Specifications | ISUZU Dump Truck |
| Drivetrain | 4X2 |
| Wheelbase | 3,360 mm |
| Curb Weight | 4.5 tons |
| Payload Capacity | 5.855 tons |
| Gross Vehicle Weight (GVW) | 10.55 tons |
| Tonnage Class | ISUZU Light Truck |
| Manufacturing Origin | Chongqing Jiulongpo |
| Dimensions & Angles | |
| Body Length | 5.8 m |
| Body Width | 2.335 m |
| Body Height | 2.48 m |
| Approach Angle | 15° |
| Departure Angle | 20° |
| Engine | |
| Model | 4HK1-TCG61 (Qingling ISUZU) |
| Fuel Type | Diesel |
| Displacement | 5.193 L |
| Max Power | 189 HP / 139 kW |
| Max Torque | 507 N·m @ 1,600-2,600 RPM |
| Emission Standard | EURO Ⅳ, EURO Ⅴ, EURO Ⅵ |
| ISUZU | |
| Forward Gears | 6 |
| Reverse Gears | 1 |
| Cargo Box | |
| Dimensions (L×W×H) | 3.82 m × 2.105 m × 0.8 m |
| Type | Self-dumping |
| Chassis & Axles | |
| Front Axle Load Capacity | 3,500 kg |
| Rear Axle Load Capacity | 7,050 kg |
| Rear Axle Ratio | 4.1 (Optional: 4.11) |
| Spring Leaf Configuration | 8/10+6 |
| Tires | |
| Specification | 235/75R17.5 16PR |
| Quantity | 6 |
| Cabin | |
| Type | Single Row |
| Width | 1,995 mm |
| Fuel Tank | |
| Capacity | 100 L |
| Features | |
| ABS | ● (Standard) |
| Air Conditioning | Manual Control |
| Power Windows | ● |
| Remote Central Locking | ● |
| Touchscreen Display | ● |
| Radio | ● |
| Front Fog Lights | ● |
