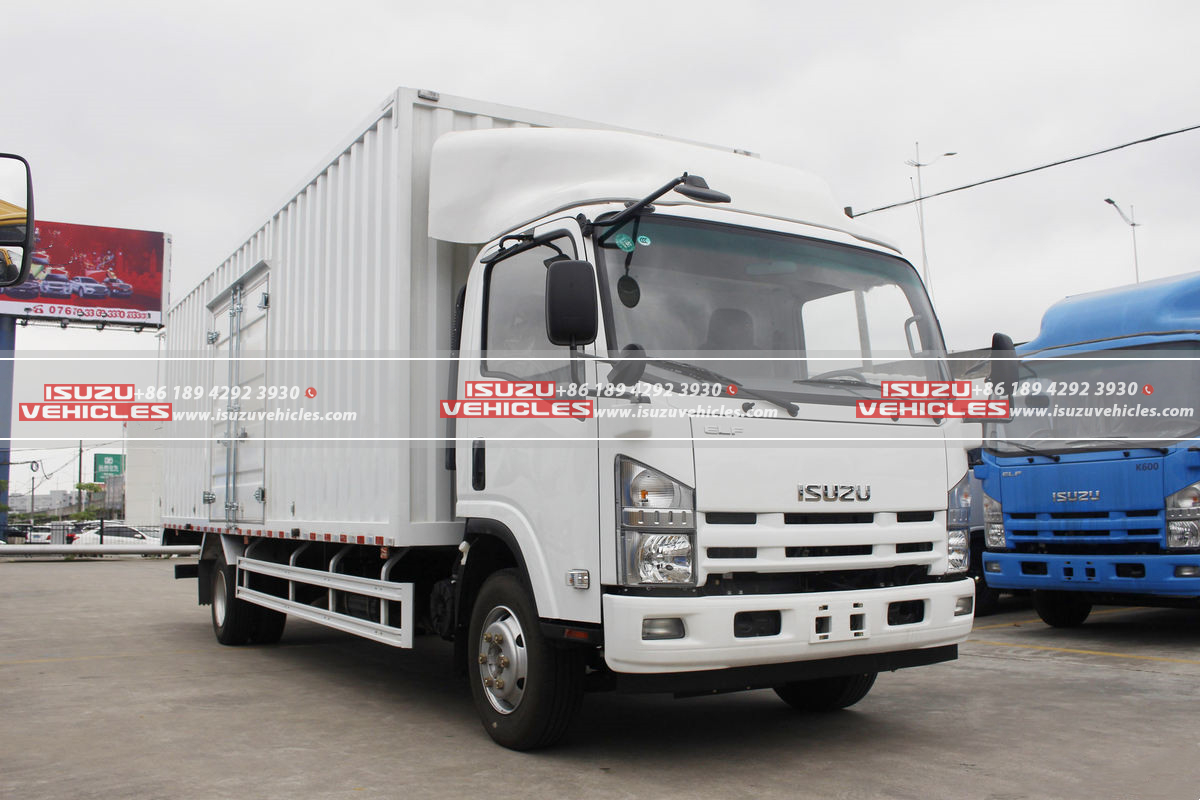

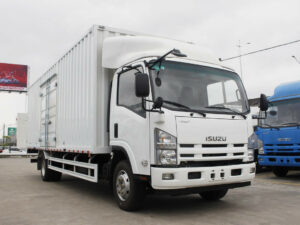

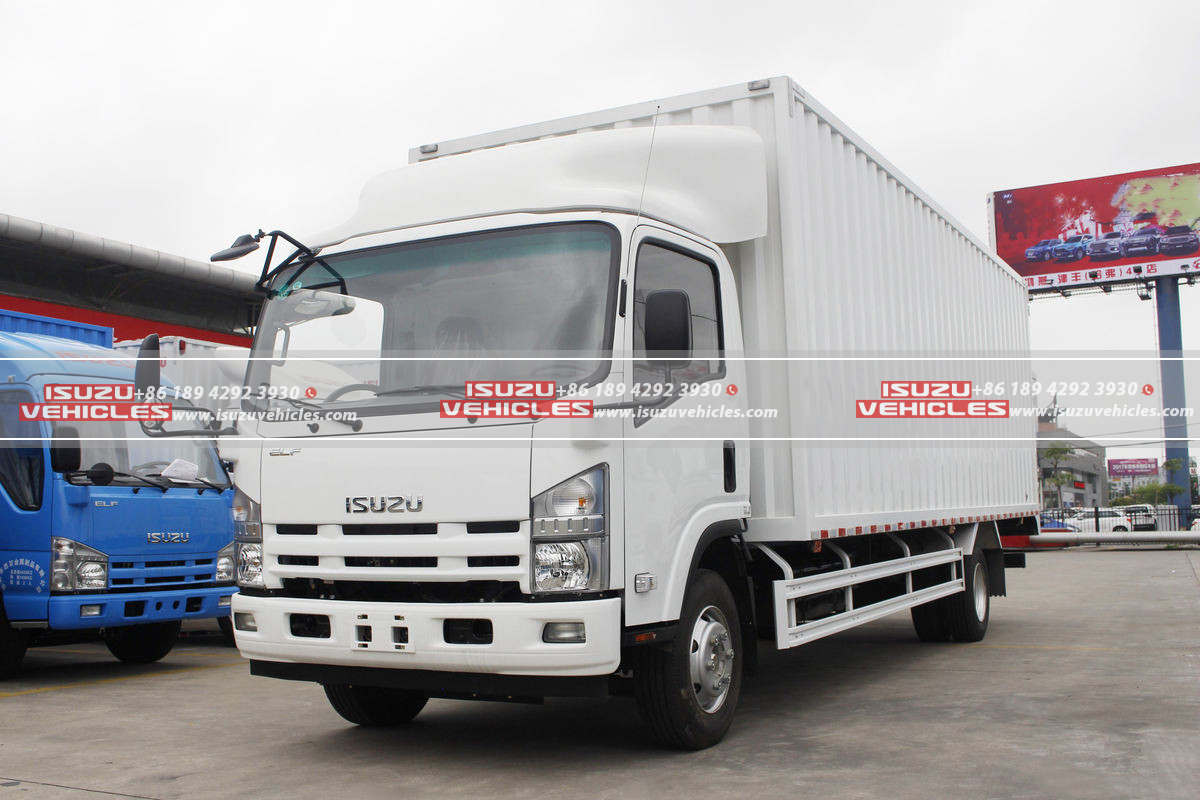

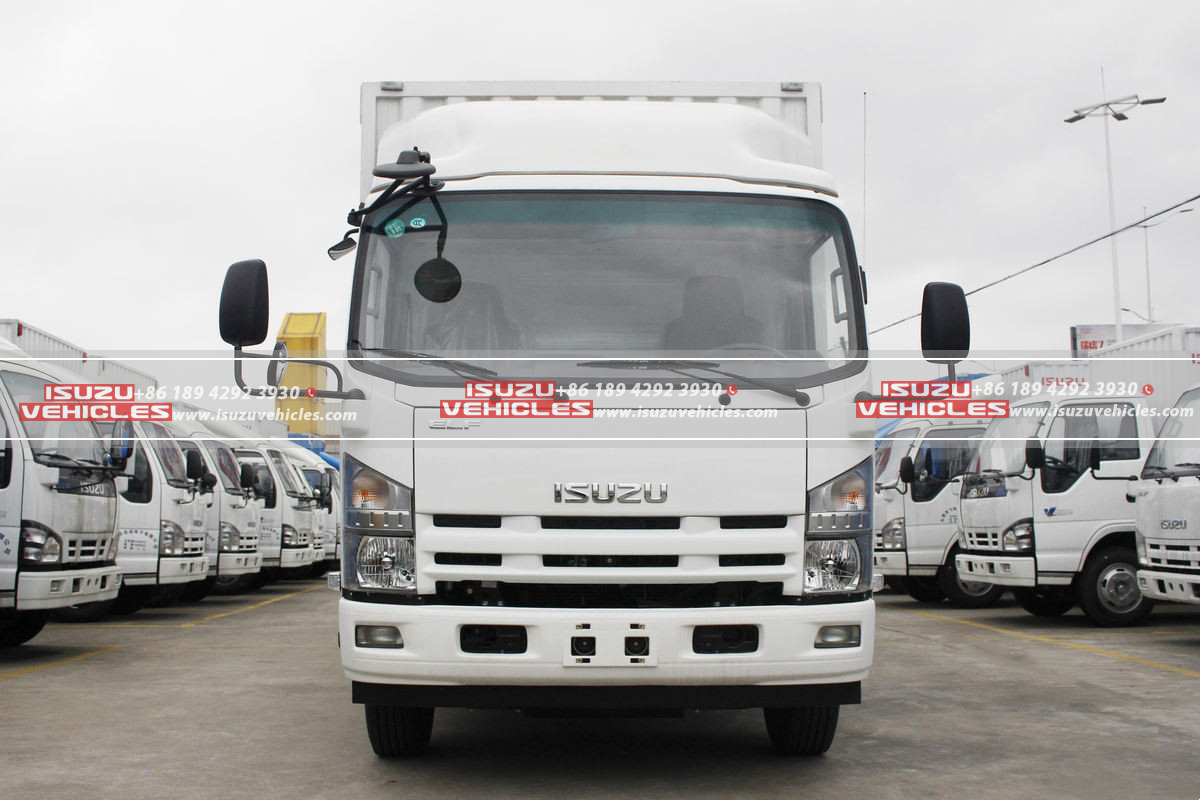

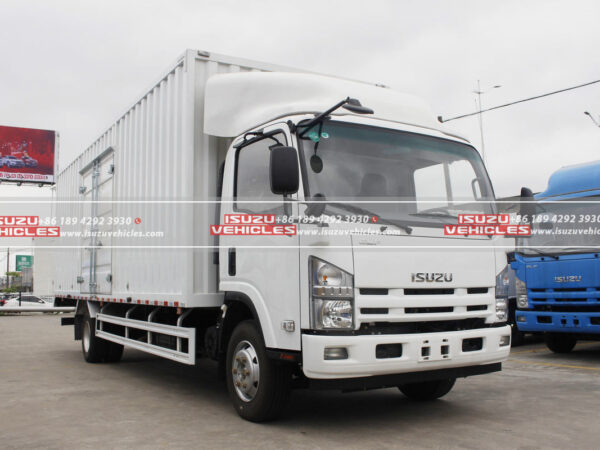

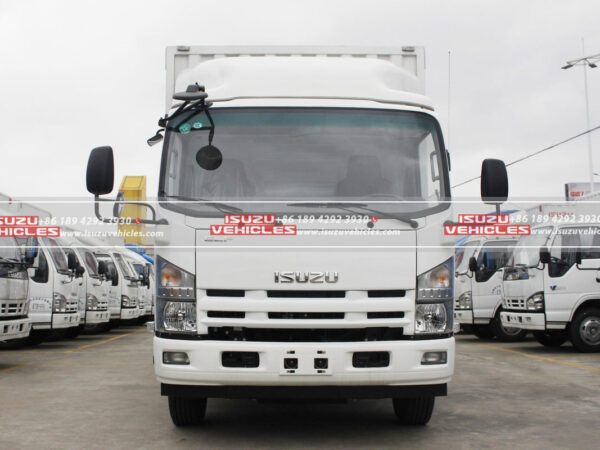

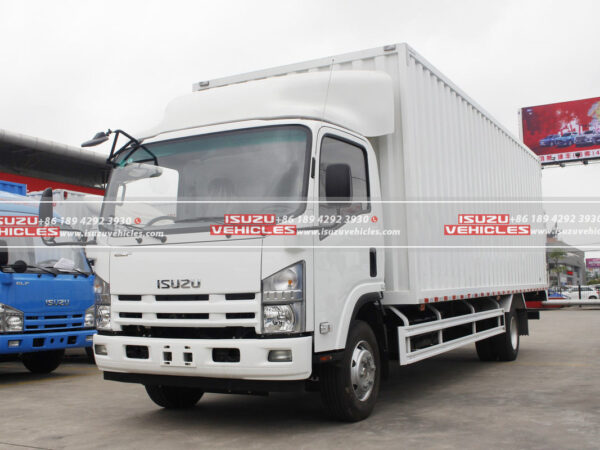

ISUZU 700P 7 Meter Van Box Truck
The ISUZU 700P 7-Meter Van Box Truck is a medium-duty commercial vehicle designed to meet the demands of modern logistics, agricultural transport, and freight distribution. Built with a 4×2 drive system and a 5200 mm wheelbase, this truck offers exceptional stability and maneuverability, making it ideal for urban and regional operations. With a 7-meter cargo box length, it provides ample storage space for transporting goods securely, while its 9.645-ton gross vehicle weight and 4.69-ton payload capacity ensure it can handle heavy loads with ease.
Manufactured in Chongqing, China, the ISUZU 700P is powered by a Qingling Isuzu 4HK1-TC51 diesel engine, delivering 190 horsepower and 510 N·m of torque. Its 6-speed manual transmission ensures smooth gear shifts, while the 4.1 rear axle ratio enhances fuel efficiency and performance. Whether for agricultural produce transport, logistics, or less-than-truckload (LTL) shipping, this truck is built to deliver reliability and efficiency.
Features
Performance and Engine
The ISUZU 700P is equipped with a 4HK1-TC51 diesel engine, featuring a 5.193L displacement and compliance with China V emission standards. This 4-cylinder, inline engine delivers a maximum output power of 141 kW and a top speed of 110 km/h, ensuring powerful performance for long-distance hauls. The high-pressure common rail fuel system enhances fuel efficiency, while the 1600 rpm maximum torque ensures strong pulling power even under heavy loads.
Design and Dimensions

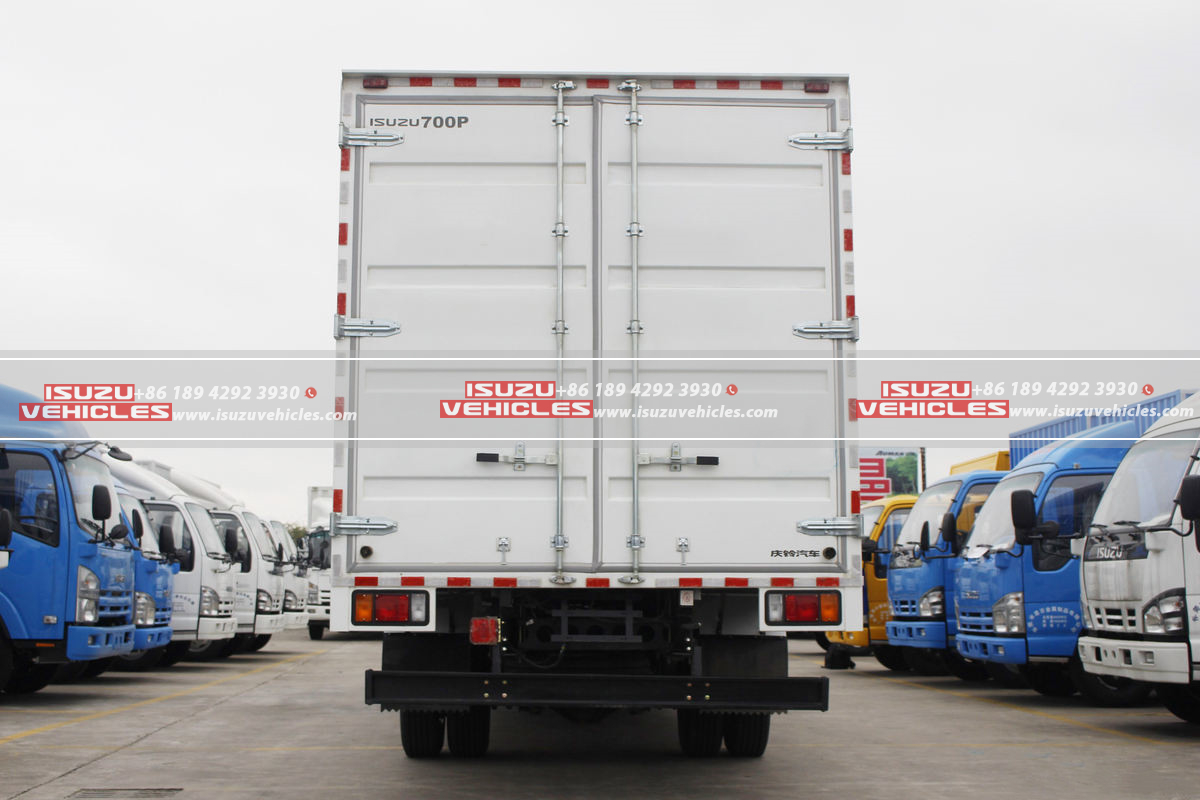

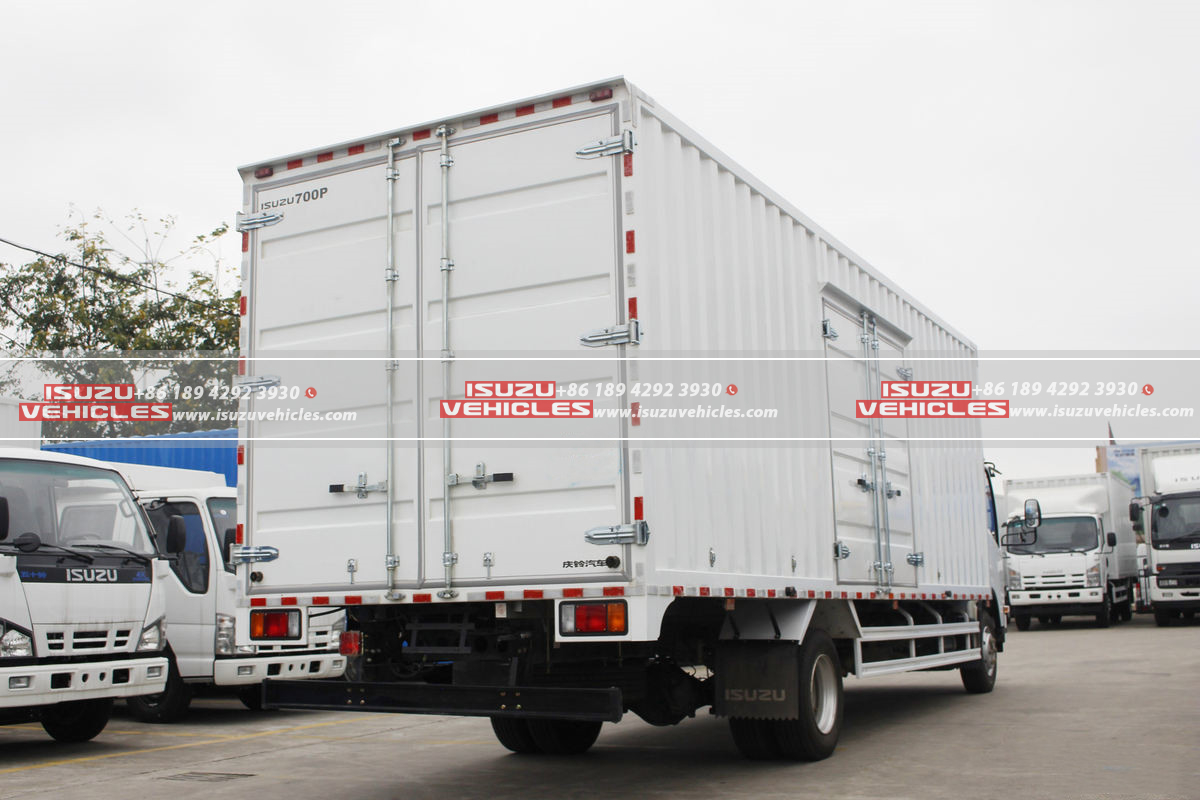

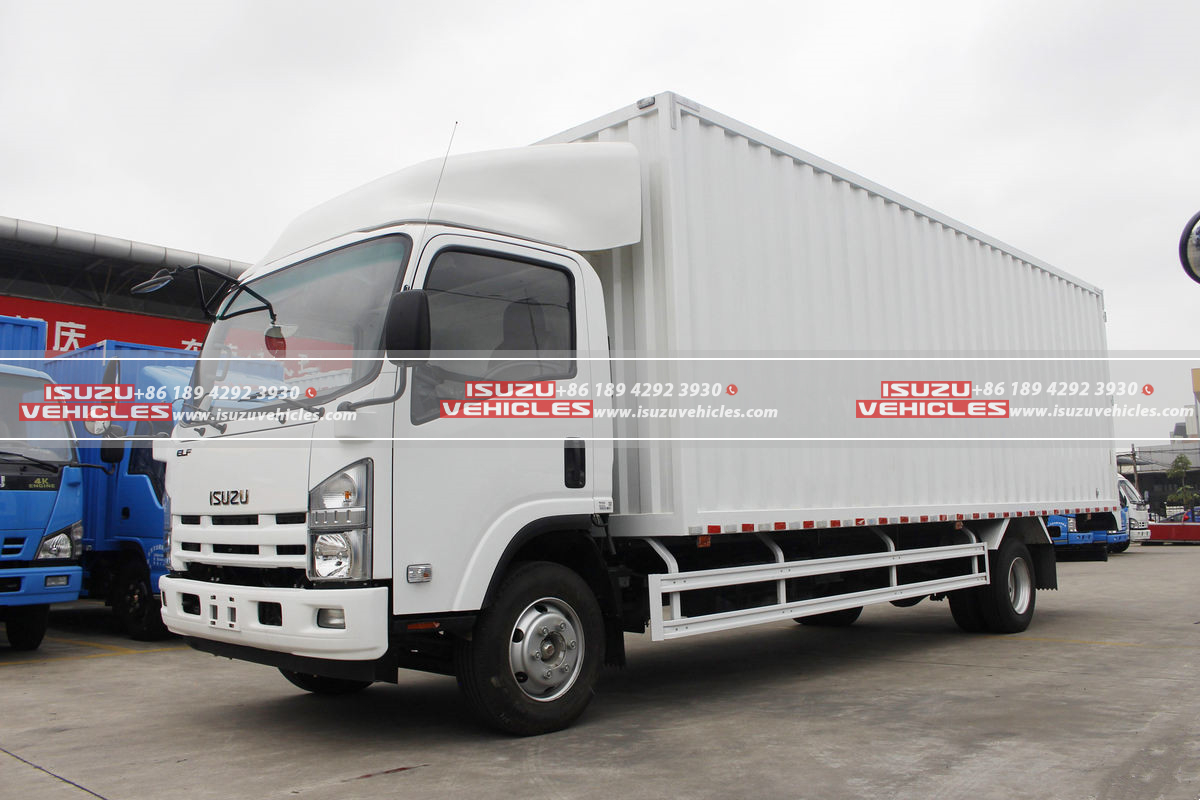

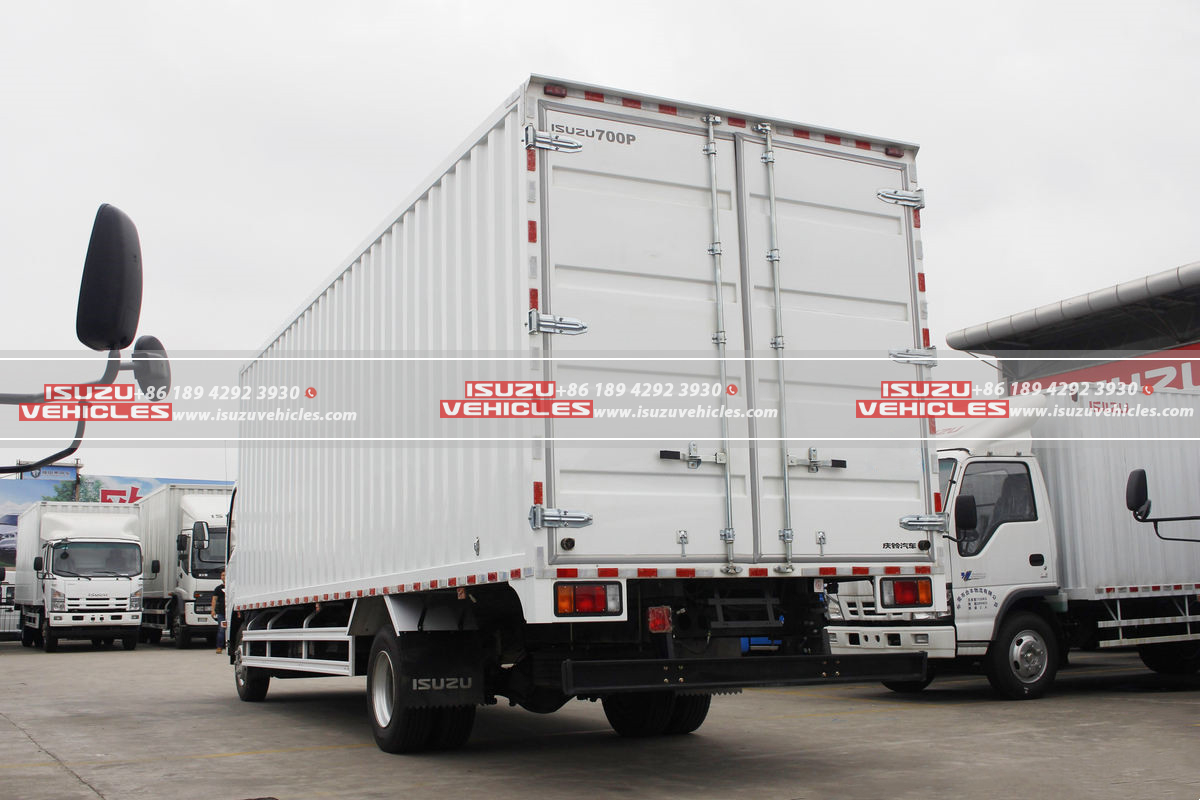

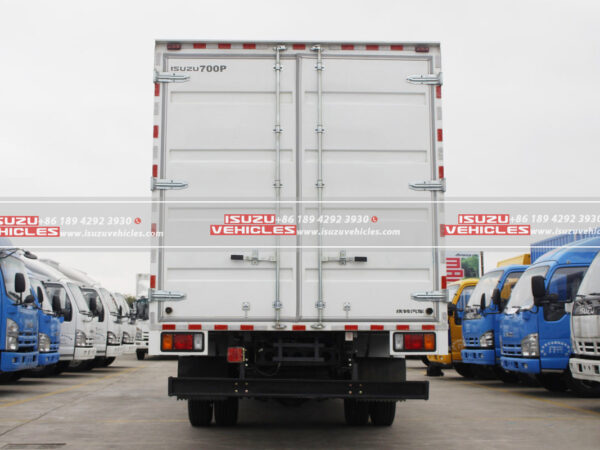

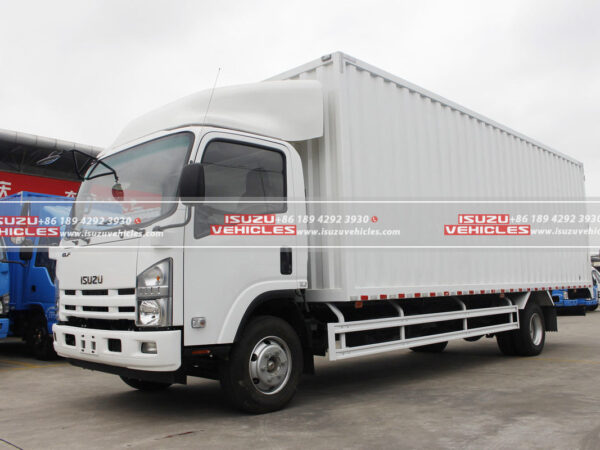

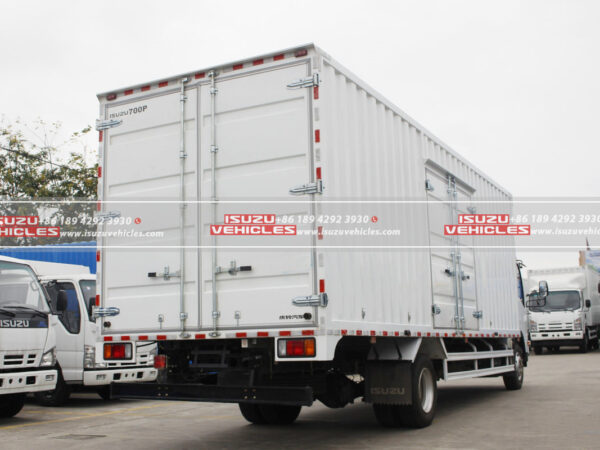

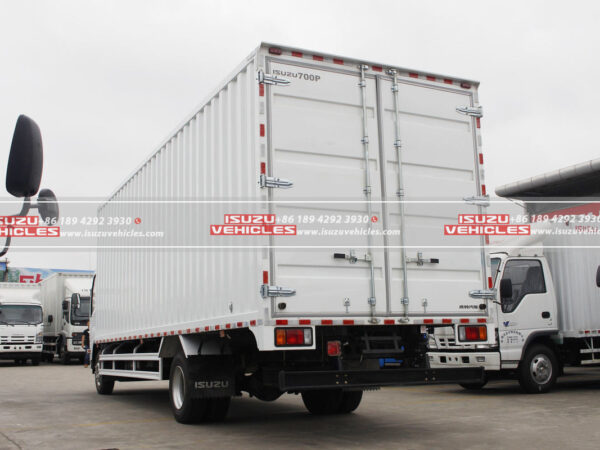

The truck boasts an 8.955-meter body length, 2.396-meter width, and 3.3-meter height, providing a commanding presence on the road. The 7.012-meter cargo box offers a 2.25-meter width and 2.203-meter height, making it suitable for transporting large or bulky items. The steel cargo box ensures durability and protection for your goods, while the integrated spoiler improves aerodynamics and fuel efficiency.
Safety and Comfort
Safety is a priority in the ISUZU 700P, with ABS anti-lock braking and power steering as standard features, ensuring reliable stopping power and ease of handling in all conditions. The single-row cabin comfortably seats up to three passengers, with ergonomic seating and a spacious interior designed for driver comfort during long journeys. The manual air conditioning system ensures a comfortable cabin environment, even in extreme weather conditions.
Tire and Suspension
The truck is fitted with 6 tires of size 235/75R17.5 14PR, providing excellent traction and durability. The 8/10+6 spring leaf suspension ensures a smooth ride, even on uneven roads, while the 3300 kg front axle load capacity and 6345 kg rear axle load capacity guarantee stability under heavy loads.
Fuel Tank and Additional Features
The ISUZU 700P comes with a 100L iron fuel tank, ensuring sufficient range for long-distance operations. Additional features include electric windows, remote-controlled central locking, and a manual transmission for precise control.
The ISUZU Van Box Truck is a versatile and dependable solution for businesses requiring efficient cargo transportation. With its powerful engine, spacious cargo box, and advanced safety features, this truck is designed to meet the demands of modern logistics and beyond.
SPECIFICATIONS:
| Attribute | Value |
|---|---|
| Type | Van Truck |
| Drive Form | 4X2 |
| Wheelbase | 5200mm |
| Box Length Grade | 7m |
| Engine | Qingling Isuzu 4HK1-TC51 |
| Transmission | Isuzu MLD-6Q |
| Rear Axle Ratio | 4.1 |
| Body Length | 8.955m |
| Body Width | 2.396m |
| Body Height | 3.3m |
| Front Track | 1680mm |
| Rear Track | 1650mm |
| Gross Vehicle Weight | 9.645 tons |
| Curb Weight | 4.76 tons |
| Payload | 4.69 tons |
| Max Speed | 110 km/h |
| Manufacturing Location | Chongqing |
| Tonnage Grade | Medium Truck |
| Approach Angle | 16° |
| Departure Angle | 10° |
| Market Segment | Agricultural and By-products Transportation, Logistics, LTL Transportation |
| Front/Rear Overhang | 1.11/2.645m |
| License Plate (Yellow/Blue) | Yellow |
| Fuel Type | Diesel |
| Engine Parameters | |
| – Engine Brand | Qingling Isuzu |
| – Engine Model | Qingling Isuzu 4HK1-TC51 |
| – Cylinder Count | 4 |
| – Cylinder Arrangement | Inline |
| – Displacement | 5.193L |
| – Emission Standard | Euro 5 |
| – Max Output Power | 141 kW (190 HP) |
| – Max Torque | 510 N·m |
| – Max Torque RPM | 1600 rpm |
| – Rated RPM | 2600 rpm |
| – Engine Type | High-pressure Common Rail |
| Transmission Parameters | |
| – Transmission Model | Isuzu MLD-6Q |
| – Brand | Isuzu |
| – Shift Type | Manual |
| – Forward Gears | 6 |
| – Reverse Gears | 1 |
| Cargo Box Parameters | |
| – Cargo Box Type | Van |
| – Cargo Box Length | 7.012m |
| – Cargo Box Width | 2.25m |
| – Cargo Box Height | 2.203m |
| – Cargo Box Material | Steel Tile |
| Cab Parameters | |
| – Cab Width | Not Specified |
| – Passenger Capacity | 3 |
| – Seat Rows | Single |
| Fuel Tank | |
| – Fuel Tank Material | Iron |
| – Fuel Tank Capacity | 100L |
| Chassis Parameters | |
| – Front Axle Load Capacity | 3300 kg |
| – Rear Axle Description | 7-ton Axle |
| – Rear Axle Load Capacity | 6345 kg |
| – Spring Leaf Count | 8/10+6 |
| Tires | |
| – Tire Specification | 235/75R17.5 14PR |
| – Number of Tires | 6 |
| Control Configuration | |
| – ABS | ● |
| – Clutch Assistance | ● (Assumed, as it’s common) |
| – Steering Assistance | ● |
| Interior Configuration | |
| – Air Conditioning Type | Manual |
| – Power Windows | ● (Assumed, not explicitly stated) |
| – Remote Key | ● (Assumed, not explicitly stated) |
| – Central Locking | ● (Assumed, not explicitly stated) |
| Exterior Configuration | |
| – Air Deflector | ● |
