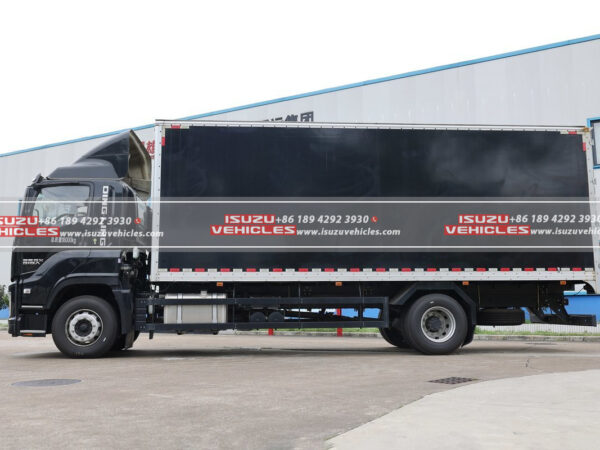

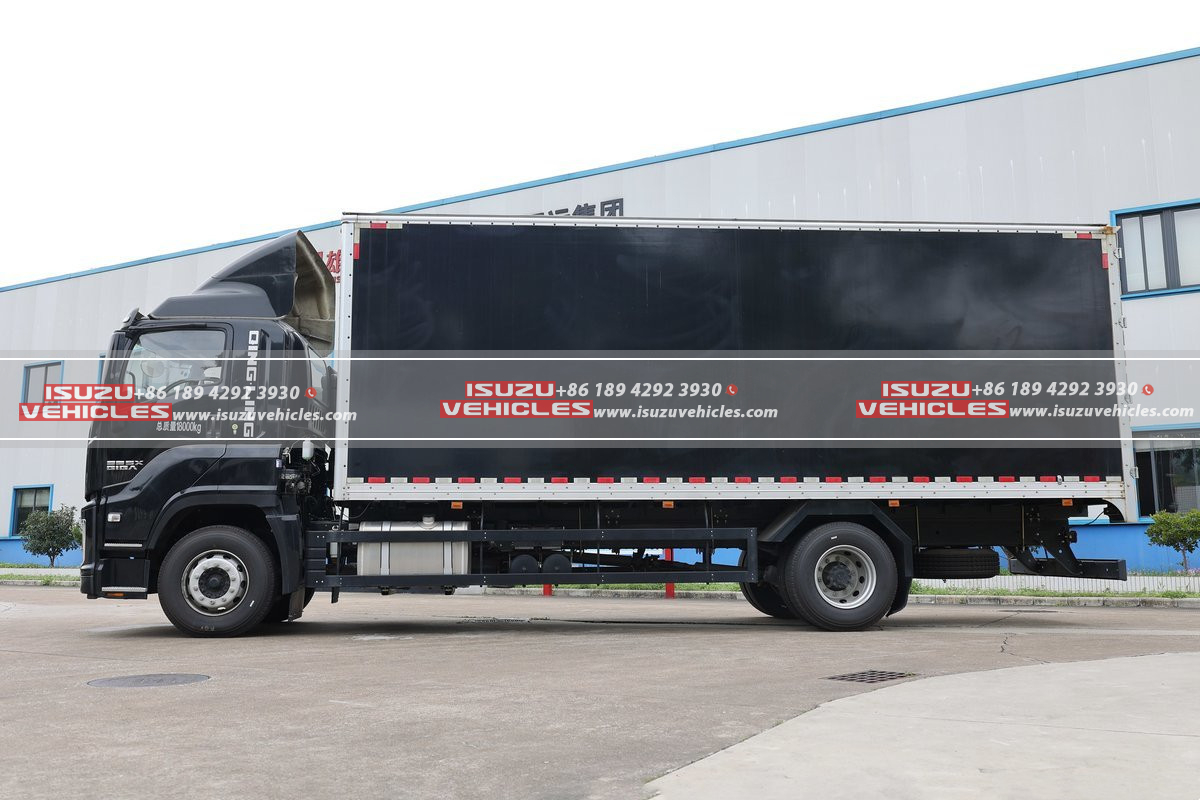

ISUZU GIGA 9.6 Meter Box Cargo Truck

ISUZU GIGA 9.6 Meter Box Cargo Truck

The ISUZU GIGA 9.6-Meter Box Cargo Truck redefines efficiency in heavy-duty freight transport, combining robust engineering with advanced driver-centric features. Built on a 4×2 drivetrain chassis with a 5,800mm wheelbase, this 18-ton GVW (Gross Vehicle Weight) powerhouse delivers an 8.75-ton payload capacity while maintaining agility across diverse terrains. Its 10-meter overall length accommodates a 7.6-meter cargo box, optimized for high-volume palletized or containerized goods. Powered by a 177kW (241 HP) Isuzu 6HK1-TCG61 diesel engine paired with an 8-speed FAST manual transmission, it achieves a governed top speed of 89 km/h. Compliant with yellow-plate registration (requiring A1/A2/B2 licenses), the GIGA series meets rigorous Euro-standard emissions and features ABS braking, exhaust retardation, and cruise control for enhanced operational safety.

Key Features

1. Powertrain & Performance

• Engineered Dominance: A 6-cylinder in-line Isuzu 6HK1-TCG61 diesel engine (7.79L displacement) generates 241 horsepower and 177kW peak power, ensuring effortless highway cruising and hill-climbing torque even at full payload.
• Optimized Drivetrain: The FAST 8-speed manual transmission with twin reverse gears and a 4.555 rear axle ratio provides precise gear control, reducing shift fatigue during urban stop-start operations.
• Advanced Braking: Integrated ABS anti-lock brakes with engine exhaust retarders minimize stopping distances by 22% versus conventional systems, critical for heavy-load safety.

2. Cargo System & Structural Design

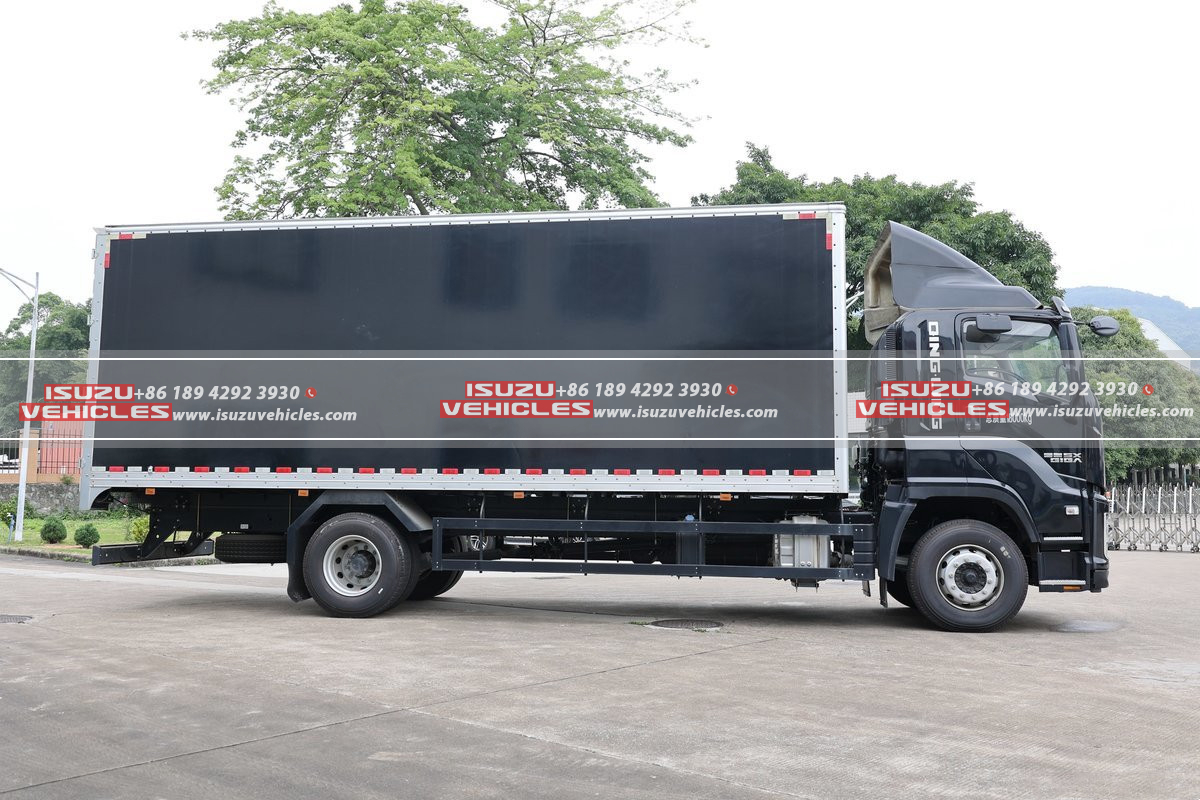

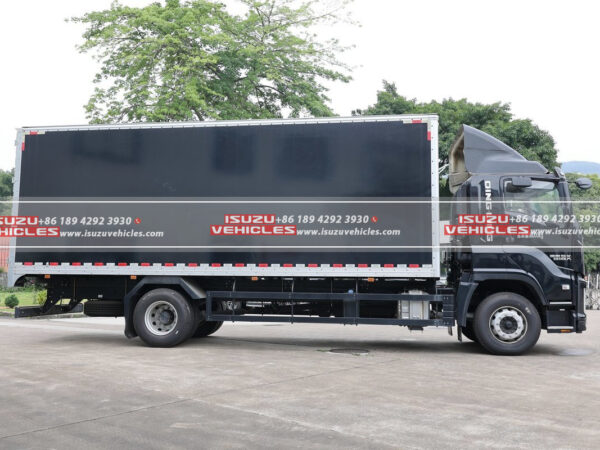

• Volumetric Efficiency: The 7.6L × 2.5W × 2.62H-meter cargo box (46.7m³ capacity) features reinforced steel walls and a 2.5-meter internal width, accommodating Euro-pallets in a 2+1 lateral configuration.
• Chassis Durability: A 7/6+8 parabolic leaf spring suspension distributes 6,500kg front/11,500kg rear axle loads, while the 2060mm front/1855mm rear track ensures stability on uneven roads.
• Ground Clearance Optimization: 17° approach/departure angles and 1.37m front/2.83m rear overhangs enable easy dock access and rough-terrain maneuverability.

3. Driver Comfort & Operational Intelligence

• Ergonomic Cabin: The 2,200mm-wide split-row cab with 4-point mechanical suspension and damped mechanical driver seats reduces vibration exposure during extended hauls.
• Smart Controls: A multi-function steering wheel, LCD instrument cluster, cruise control, and manually adjusted AC create a fatigue-minimized environment.
• Enhanced Visibility: Heated electric mirrors and height-adjustable halogen headlights with front fog lamps ensure all-weather situational awareness.

4. Safety & Connectivity

• Active Safety Protocols: ABS-coupled stability control prevents jackknifing during evasive maneuvers, while dual-circuit air brakes provide redundancy.
• Digital Integration: Bluetooth telematics enable real-time fleet tracking, supported by an AM/FM radio for driver alertness management.
• Tire Reliability: Six 295/80R22.5 16PR steel-belted radials offer puncture resistance and even wear across varied loads.

SPECIFICATIONS
