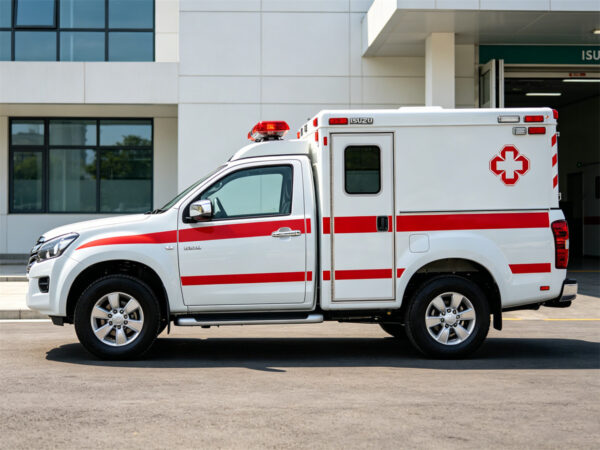

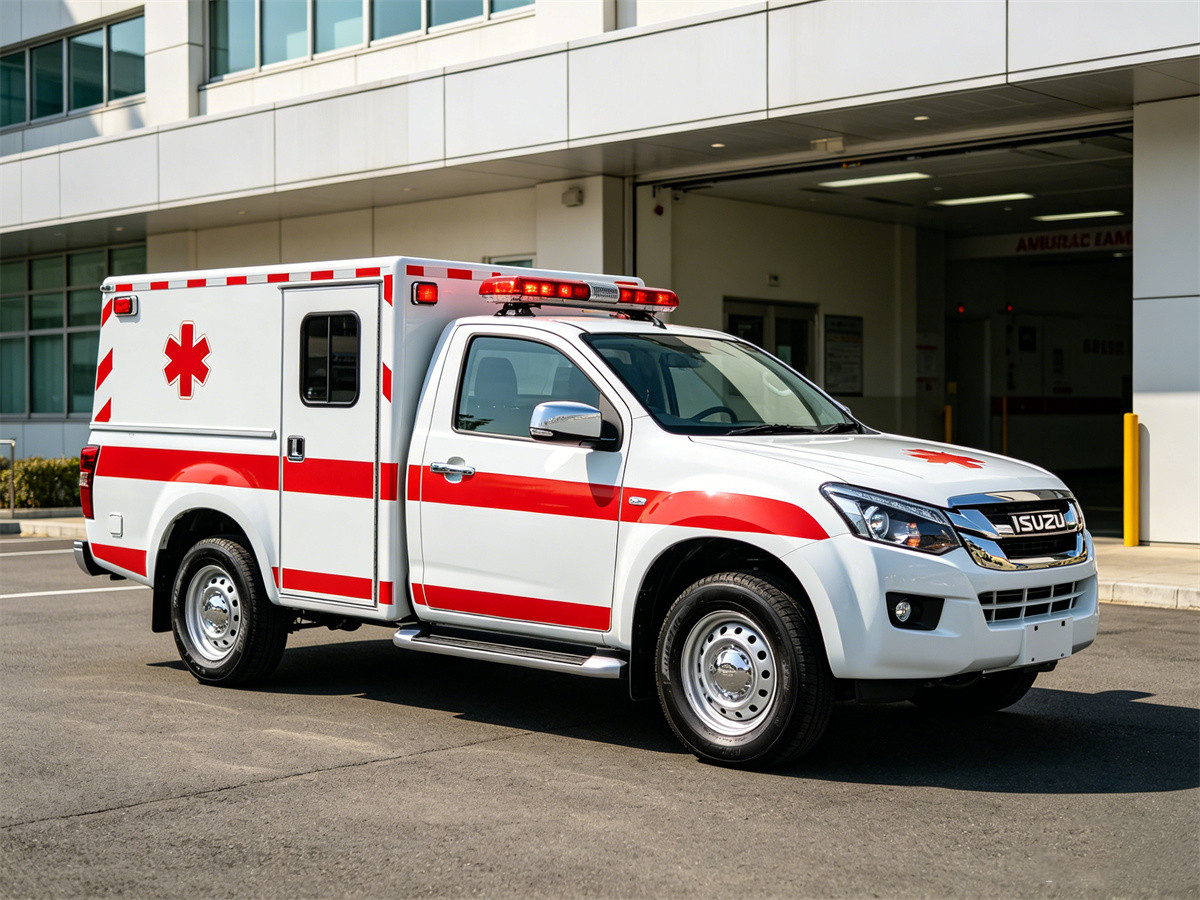

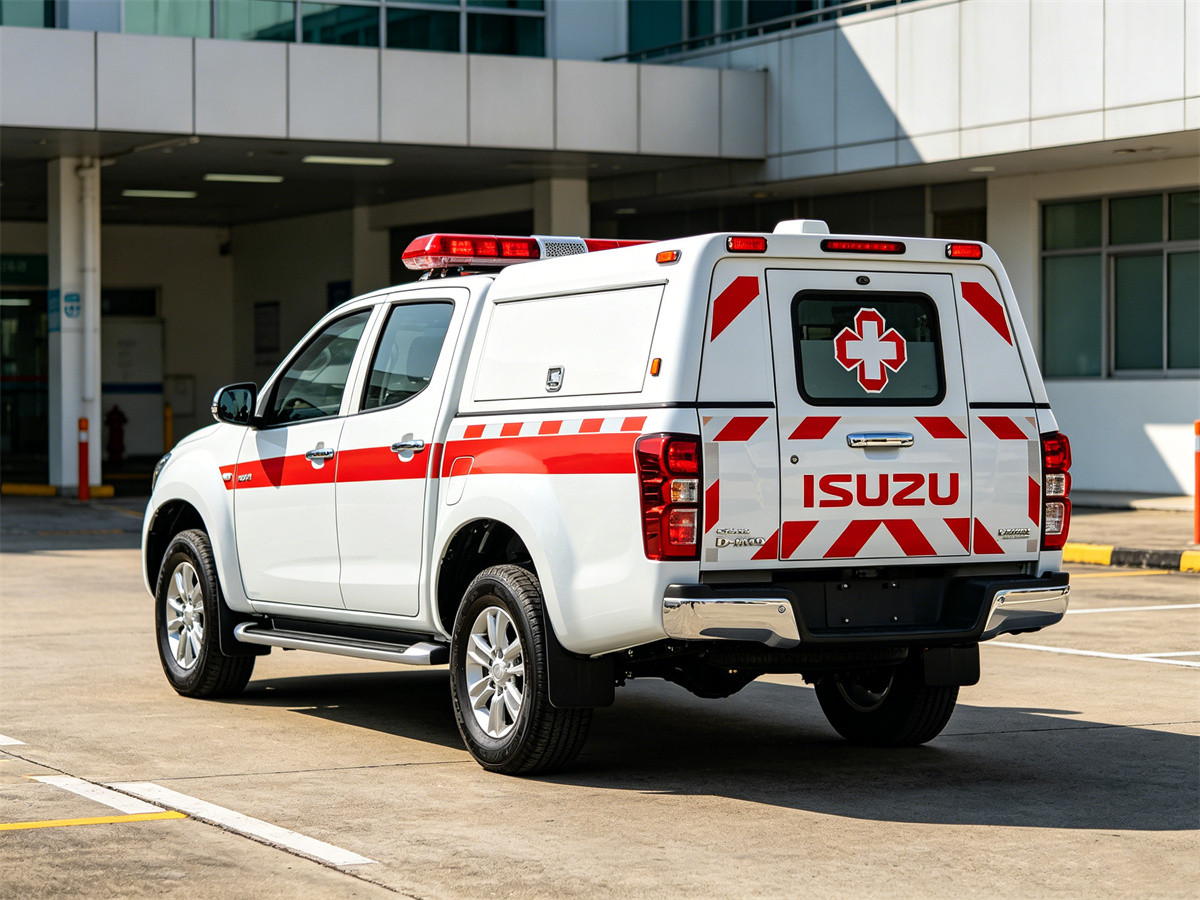

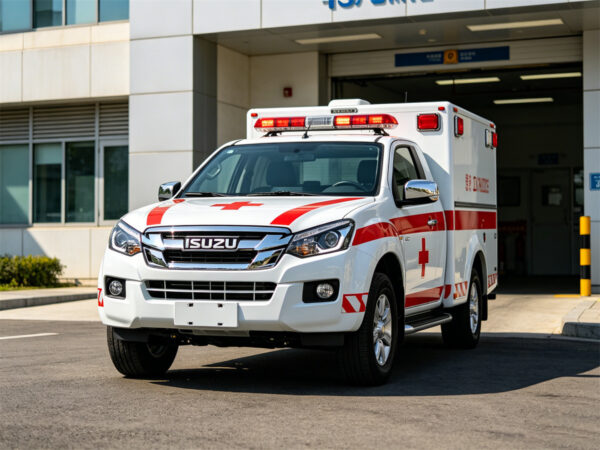

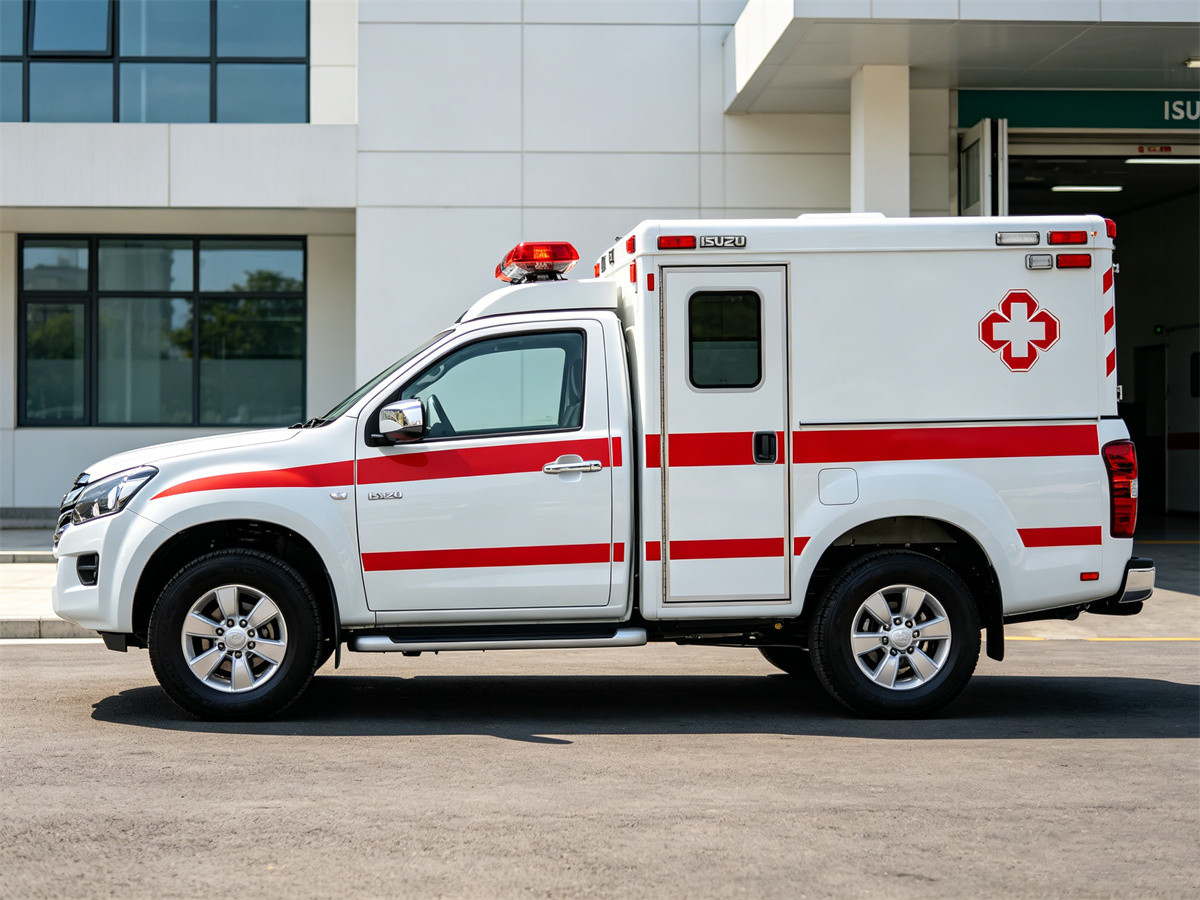

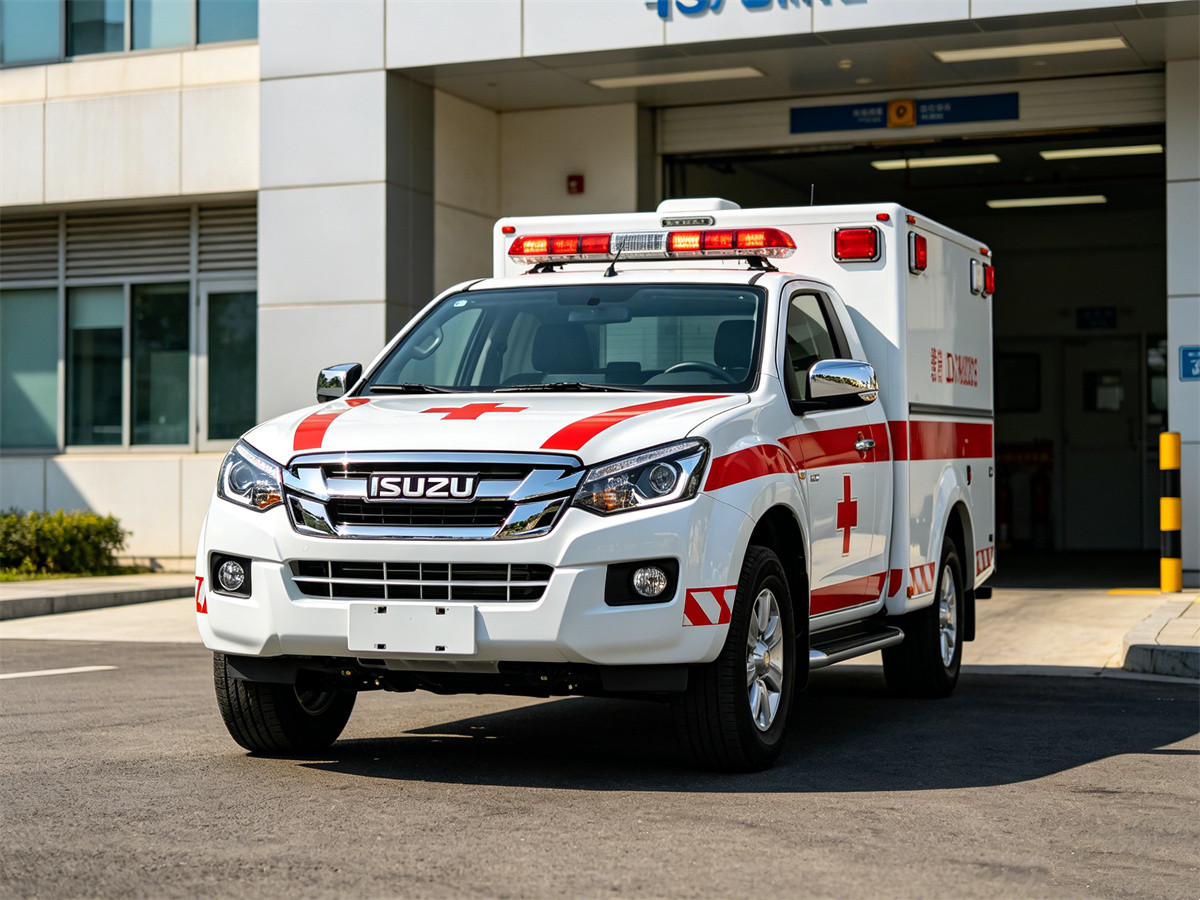

ISUZU D-MAX Emergency Ambulance Truck

ISUZU D-MAX Emergency Ambulance Truck

The ISUZU D-MAX Emergency Ambulance Truck is a professional emergency response vehicle engineered to provide rapid medical transportation and life-saving support in both urban and remote environments. Built on the rugged ISUZU D-MAX 4×4 pickup chassis, this ambulance combines excellent off-road capability, reliable diesel power, and a fully equipped medical compartment, making it an ideal solution for emergency medical services, disaster relief operations, military medical support, mining rescue, oilfield response, and rural healthcare missions.

Designed to operate in challenging terrains where conventional ambulances may struggle, the vehicle features a robust four-wheel-drive system, high ground clearance, and exceptional approach and departure angles. These advantages allow emergency teams to reach patients quickly, even in mountainous regions, flood-affected areas, construction sites, forests, and other difficult-access locations.

Powered by the efficient ISUZU RZ4E-TC turbocharged diesel engine, the ambulance delivers strong performance with excellent fuel economy while meeting modern Euro 6 emission standards. The spacious medical compartment accommodates one patient stretcher and two medical attendants, providing a safe and comfortable environment for patient treatment and transport during emergencies.

---

Features

Reliable ISUZU 4×4 Emergency Response Platform

Built on the dependable ISUZU D-MAX pickup chassis, this ambulance offers outstanding mobility and durability. The advanced electronic shift-on-the-fly four-wheel-drive system allows operators to confidently navigate rough terrain, muddy roads, gravel tracks, and adverse weather conditions.

Key chassis advantages include:

• 4×4 left-hand-drive configuration
• 3,125 mm wheelbase
• 235 mm ground clearance
• 30° approach angle
• 24° departure angle
• Maximum speed of 160 km/h

These features ensure rapid response capability across a wide range of emergency situations.

Powerful and Efficient Diesel Engine

The vehicle is equipped with the renowned ISUZU RZ4E-TC diesel engine, a modern turbocharged and intercooled powerplant designed for reliability and efficiency.

Engine specifications include:

• 1.9-liter displacement
• 150 HP (110 kW) maximum power
• 350 N·m maximum torque
• Euro 6 emission compliance

The engine is paired with either a 6-speed manual or 6-speed automatic transmission, providing smooth power delivery and excellent driving performance both on and off the road.

Professional Medical Treatment Compartment

The rear medical compartment is designed to provide a safe and functional workspace for emergency medical personnel. Constructed from medical-grade FRP and aluminum alloy materials, the compartment offers durability, hygiene, and ease of maintenance.

The interior includes:

• Automatic loading stretcher
• Two folding attendant seats
• Lightweight modular medical cabinets
• Anti-bacterial and anti-slip flooring
• LED medical lighting system
• Independent rear air-conditioning unit
• Roof ventilation system with exhaust fan

These features create a comfortable environment for patient care during transportation.

Advanced Medical Equipment Integration

To support emergency treatment procedures, the ambulance is equipped with a comprehensive range of essential medical systems.

Standard equipment includes:

• 10-liter oxygen cylinder with regulator
• Electric medical suction device
• 1,000W pure sine wave inverter
• AC and DC medical power outlets
• Cab-to-medical compartment intercom system
• Fire extinguisher for emergency safety

This configuration enables medical staff to provide immediate treatment while en route to healthcare facilities.

Comprehensive Emergency Warning System

The vehicle is equipped with a high-visibility emergency warning package to improve safety and enhance response efficiency during urgent missions.

The warning system features:

• Full LED emergency light bar
• Front, rear, and side LED strobe lights
• 100W electronic siren
• Integrated public address system
• Rear and side LED scene lighting

These systems ensure maximum visibility and clear communication during emergency operations.

Durable Suspension and Safety Systems

The ambulance utilizes a heavy-duty suspension package designed for stable operation on both paved and unpaved roads.

Key components include:

• Independent double wishbone front suspension
• Rear leaf spring suspension
• Front disc brakes
• Rear drum brakes
• ABS braking system
• Electronic Stability Control (ESC)
• Traction Control System (TCS)

Together, these features enhance driving safety and passenger comfort under demanding operating conditions.

Enhanced Off-Road Capability

Compared with traditional van-based ambulances, the ISUZU D-MAX Emergency Ambulance Truck offers significantly improved mobility in challenging environments.

Major advantages include:

• Superior ground clearance
• Excellent flood-road crossing capability
• Strong off-road traction
• Heavy-duty suspension design
• Enhanced maneuverability in remote areas

These characteristics make the vehicle particularly suitable for disaster relief operations, mining sites, oilfields, forests, deserts, mountainous regions, and rural healthcare services.

Efficient Electrical and Power Management System

The ambulance is equipped with a reliable electrical architecture designed to support both vehicle and medical equipment operations.

Standard electrical equipment includes:

• 12V dual battery system
• 150A heavy-duty alternator
• 220V external shore power charging interface
• Dedicated medical power outlets
• Independent power supply for emergency systems

This ensures continuous operation of critical medical equipment during emergency missions.

The ISUZU D-MAX Emergency Ambulance Truck delivers an exceptional combination of off-road performance, medical functionality, reliability, and rapid emergency response capability, making it an ideal choice for organizations requiring dependable emergency medical transportation in both urban and remote environments.

Specification



Category & Item	Specification Description
1. General Vehicle Specifications
Vehicle Model	ISUZU D-MAX Emergency Ambulance
Drive Type	4×4 LHD
Chassis Model	ISUZU D-MAX Pickup Chassis
Overall Dimensions (L×W×H)	5,650 × 1,900 × 2,650 mm
Wheelbase	3,125 mm
Gross Vehicle Weight (GVW)	3,500 kg
Curb Weight	2,450 kg
Payload Capacity	850 kg
Maximum Speed	160 km/h
Minimum Ground Clearance	235 mm
Approach / Departure Angle	30° / 24°
Fuel Tank Capacity	76 L
Cab Seating Capacity	2 Persons (Driver + Co-driver)
Medical Compartment Capacity	1 Stretcher + 2 Medical Attendants
2. Engine & Transmission
Engine Model	ISUZU RZ4E-TC
Engine Type	4-Cylinder, Turbocharged Intercooled Diesel
Displacement	1.9 L
Maximum Power	150 HP (110 kW)
Maximum Torque	350 N·m
Emission Standard	Euro 6
Transmission	6-Speed Manual / 6-Speed Automatic
Transfer Case	Electronic Shift-On-The-Fly 4WD
Steering System	Hydraulic Power Steering
3. Axles & Suspension
Front Suspension	Independent Double Wishbone with Coil Spring
Rear Suspension	Leaf Spring Suspension
Front Axle Load Capacity	1,450 kg
Rear Axle Load Capacity	2,100 kg
Brake System	Front Disc / Rear Drum
Anti-lock Braking System (ABS)	Equipped
Electronic Stability Control (ESC)	Equipped
Traction Control System	Equipped
4. Wheels & Tires
Tire Size	265/65R17
Number of Tires	4 + 1 Spare
Wheel Type	Aluminum Alloy Wheels
5. Ambulance Medical Compartment
Compartment Material	Medical Grade FRP & Aluminum Alloy
Interior Lighting	LED Medical Lighting System
Flooring	Anti-bacterial, Anti-slip Medical Floor
Medical Cabinet	Lightweight Modular Cabinets
Patient Stretcher	Automatic Loading Stretcher
Folding Attendant Seat	2 Sets
Oxygen System	10L Oxygen Cylinder with Regulator
Suction Unit	Electric Medical Suction Device
Power Inverter	1,000W Pure Sine Wave
Air Conditioning	Independent Rear Medical A/C System
Ventilation System	Roof Ventilator with Exhaust Fan
Intercom System	Cab-to-Medical Compartment
Fire Extinguisher	2 kg Dry Powder Type
6. Emergency Warning System
Light Bar	Full LED Emergency Light Bar
Warning Lights	Front, Rear & Side LED Strobes
Siren System	100W Electronic Siren
Public Address System	Integrated PA System
Scene Lights	Rear & Side LED Flood Lights
7. Electrical System
System Voltage	12V
Battery	Dual Battery System
Alternator	150A Heavy Duty
External Shore Power	220V Charging Interface
Medical Power Outlets	AC & DC Sockets
8. Performance Comparison Table
Item Ordinary Van Ambulance ISUZU D-MAX Emergency Ambulance Vehicle Type Van Chassis Ambulance Pickup-Based 4×4 Ambulance Drive Type 4×2 4×4 Engine Power 120–140 HP 150 HP Maximum Torque 300–320 N·m 350 N·m Ground Clearance 160–180 mm 235 mm Maximum Speed 120–140 km/h 160 km/h Wheelbase 3,100–3,500 mm 3,125 mm GVW 3,500–4,500 kg 3,500 kg Patient Capacity 1 Stretcher + 1 Patient 1 Stretcher + 1 Patient Medical Staff Seats 2–3 2 Adaptable Road Conditions Urban Roads & Highways Urban, Rural, Mountain & Off-Road Flooded Road Capability Limited Excellent Off-Road Capability Low High Approach Angle 18–22° 30° Departure Angle 15–20° 24° Suspension Type Standard Road Suspension Heavy-Duty Off-Road Suspension Emergency Response Areas Cities & Suburbs Remote Areas, Mining Sites, Forests, Mountains, Deserts Fuel Tank Capacity 60–70 L 76 L Medical Equipment Capacity Standard Standard + Rescue Equipment Maintenance Cost Moderate Low Mobility During Natural Disasters Moderate Excellent Suitable Applications Hospital Transfer, Urban EMS Disaster Relief, Rural EMS, Military Medical Support, Oilfield & Mining Rescue
