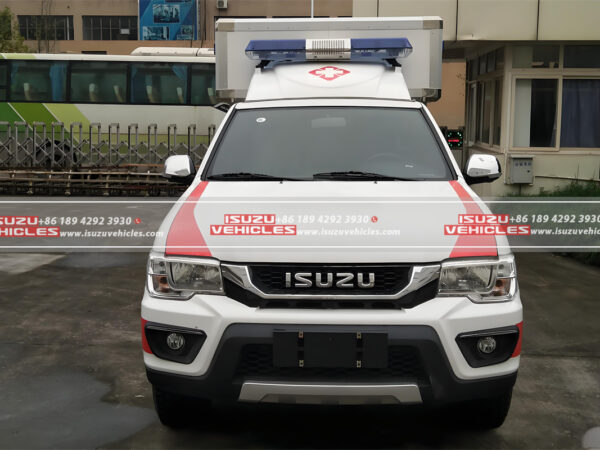

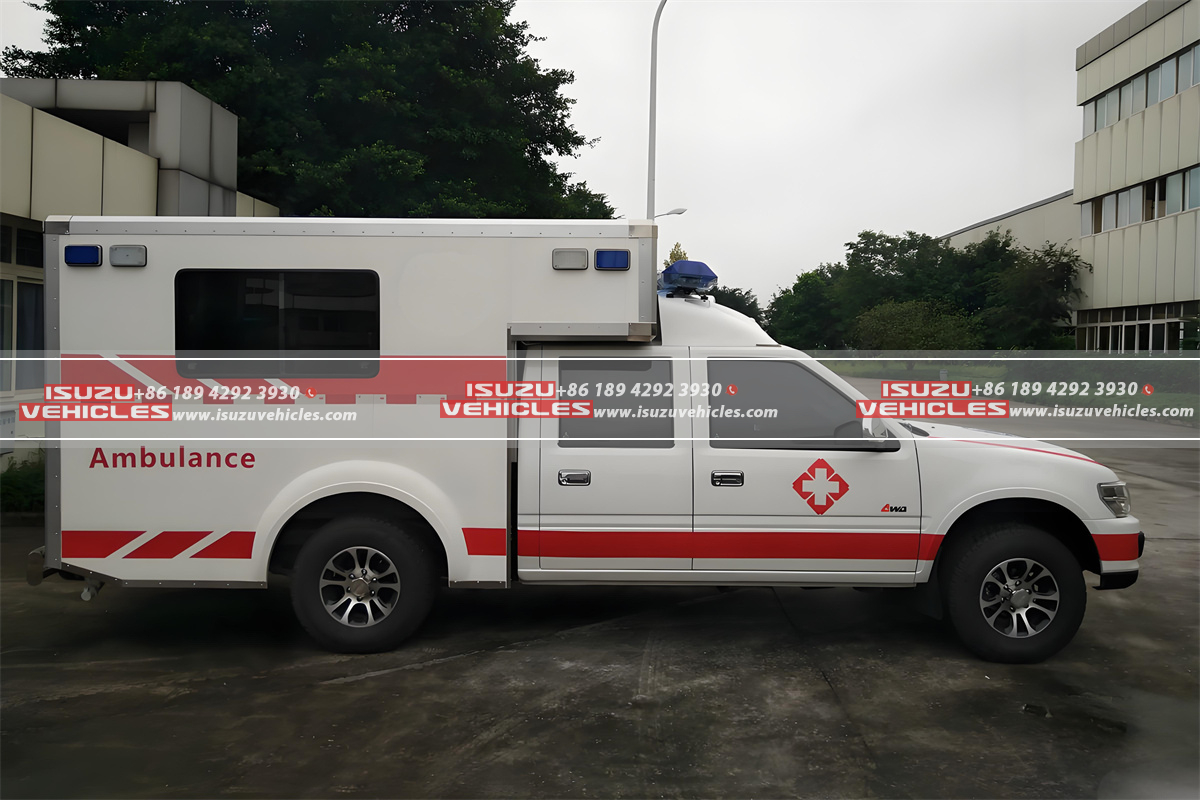

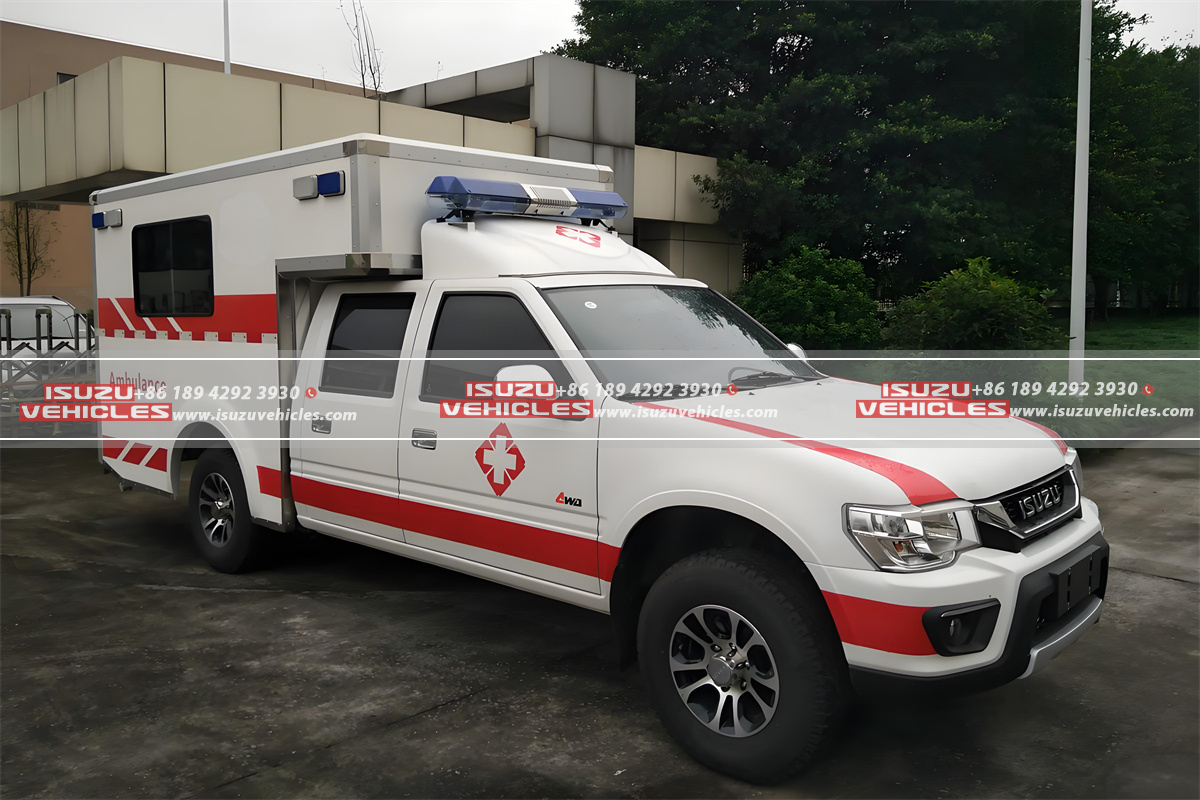

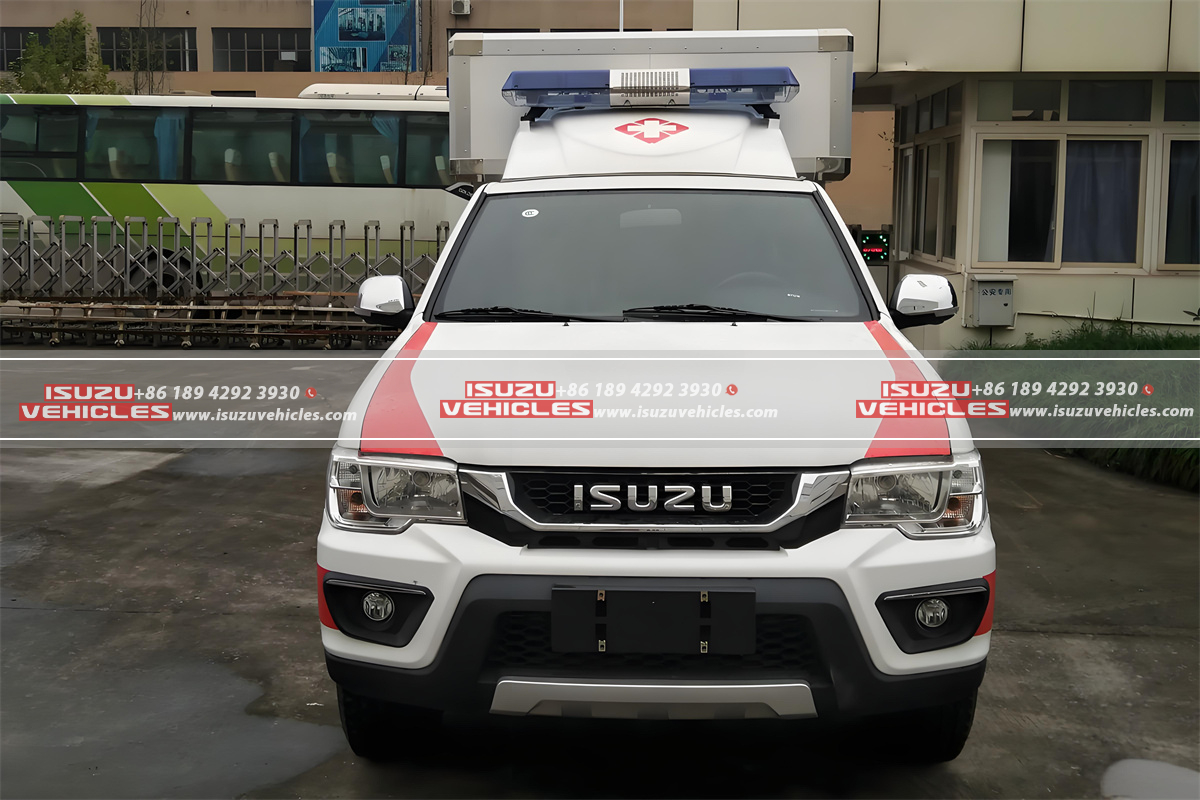

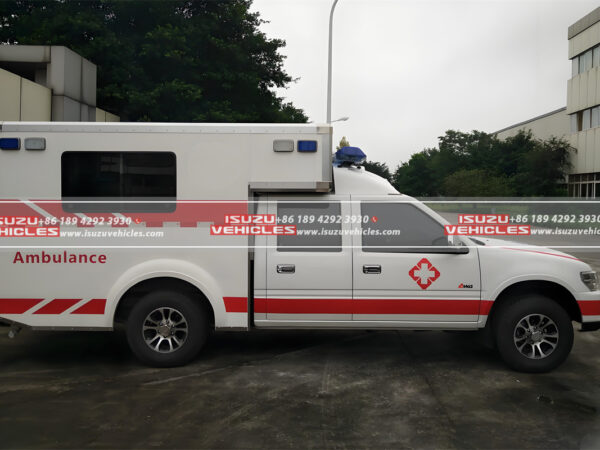

ISUZU TF 2.6L Pickup Ambulance

ISUZU TF 2.6L Pickup Ambulance

The ISUZU TF 2.6L 4×4 Pickup Ambulance redefines mobile medical response in congested urban and rugged rural environments, combining ISUZU’s legendary durability with purpose-built emergency architecture. Built on a modified 3379mm wheelbase chassis, this 5.995-meter-long compact responder navigates narrow alleys and mountain roads with equal agility while transporting five personnel – including two paramedics and a driver – at speeds up to 130km/h. Its gasoline-powered 4ZE5-MPI engine delivers uncompromised torque for high-altitude operations, while remaining exempt from commercial truck licensing requirements due to the sub-6-meter body length.

FEATURES: INTEGRATED MEDICAL OPERATIONAL CAPABILITIES

A. DIMENSIONAL EFFICIENCY & SPACE OPTIMIZATION

• Compact Footprint: ISUZU Pickup 1765mm width straddles urban alleyways (under 1.8m clearance) while 2270mm height clears low bridges
• Dual-Zone Layout:
  • 2.295m × 1.62m × 1.53m medical module with ISO 13485-certified equipment rails
  • Dual-cab configuration seating 3 frontline responders + 2 support staff
• 27.5°/16° approach/departure angles enabling ditch-crossing and steep driveway access

B. POWER SYSTEMS & DRIVETRAIN ENGINEERING

• High-Altitude Optimized Powertrain:
  • 2.6L 4-cylinder direct-injection engine generating 203N·m torque at 2600rpm
  • 5-speed manual transmission with reinforced synchronizers for rapid gear shifts
  • Part-time 4WD system with electronic transfer case engagement
• Payload Precision: 455kg medical payload capacity accommodating:
  • Portable ventilators + defibrillator systems (≤80kg)
  • Modular drug refrigeration units (≤45kg)
  • Stretcher systems with hydraulic lift assist (≤120kg)

C. SAFETY & CONTROL ARCHITECTURE

• Dual-Circuit Braking System:
  • ABS-equipped 215/75R15 front & 235/75R15 rear tires with wet-road traction algorithms
  • Reinforced ladder frame with 3mm crumple zones around the medical compartment
• Emergency Response Enhancements:
  • Dual-battery isolated power system (engine/medical compartment separation)
  • Stabilizing outriggers deployable in 22 seconds on uneven terrain
  • 360° scene lighting with IP67-rated LED bars (14,000 lumens total output)

Operational Advantages in Practice:

“During typhoon responses in Zhejiang, our ISUZU TF ambulances maintained 98% operational uptime – climbing debris-strewn inclines where larger vehicles failed. The short 0.839m front overhang proved critical for drainage ditch crossings.”
— Provincial Emergency Management Department Report

Manufacturing Pedigree:
Produced at ISUZU’s Chongqing Global Export Hub utilizing robotically welded HSLA350 high-strength steel and medical-grade anti-microbial interior coatings compliant with China YY/T 1640-2019 standards.

SPECIFICATIONS:
