ISUZU Landscape Dump Truck
Core Platform & Capabilities

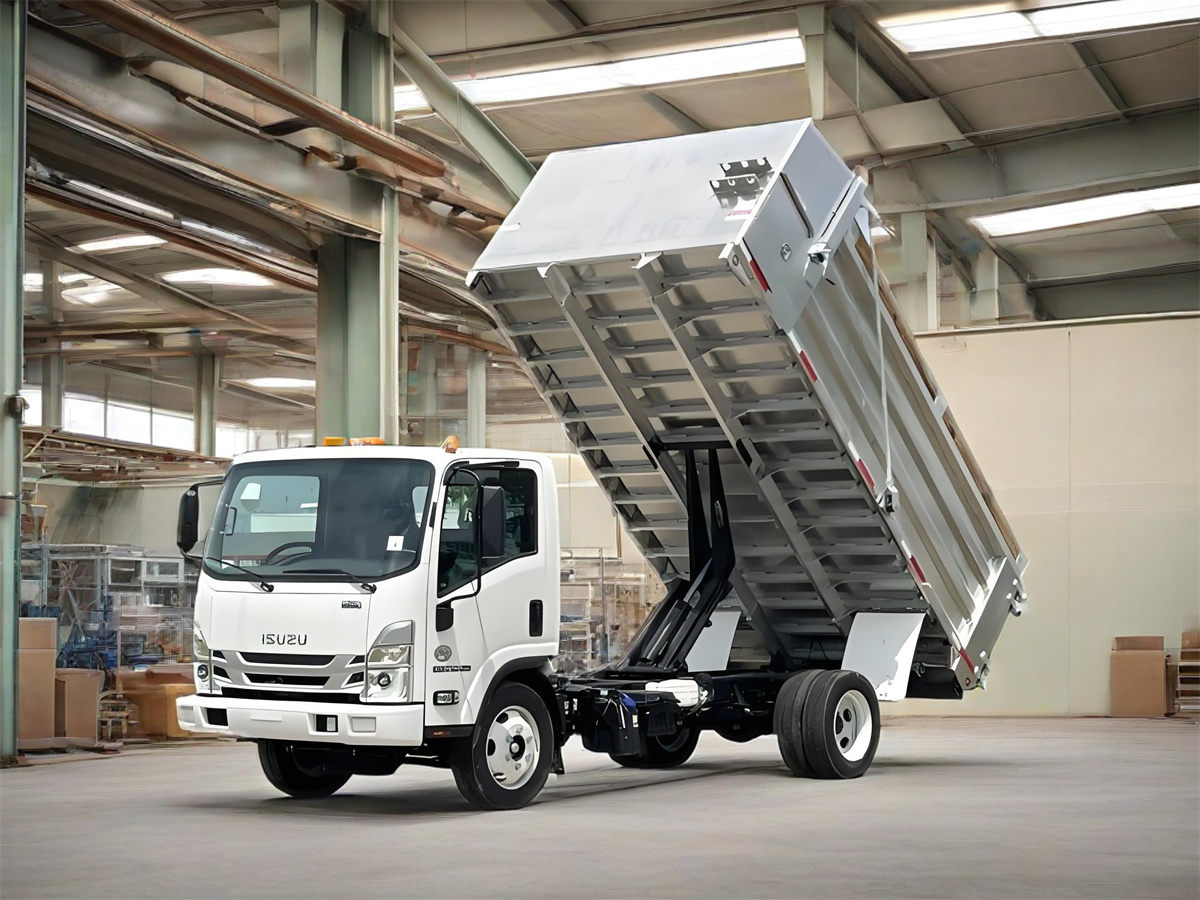

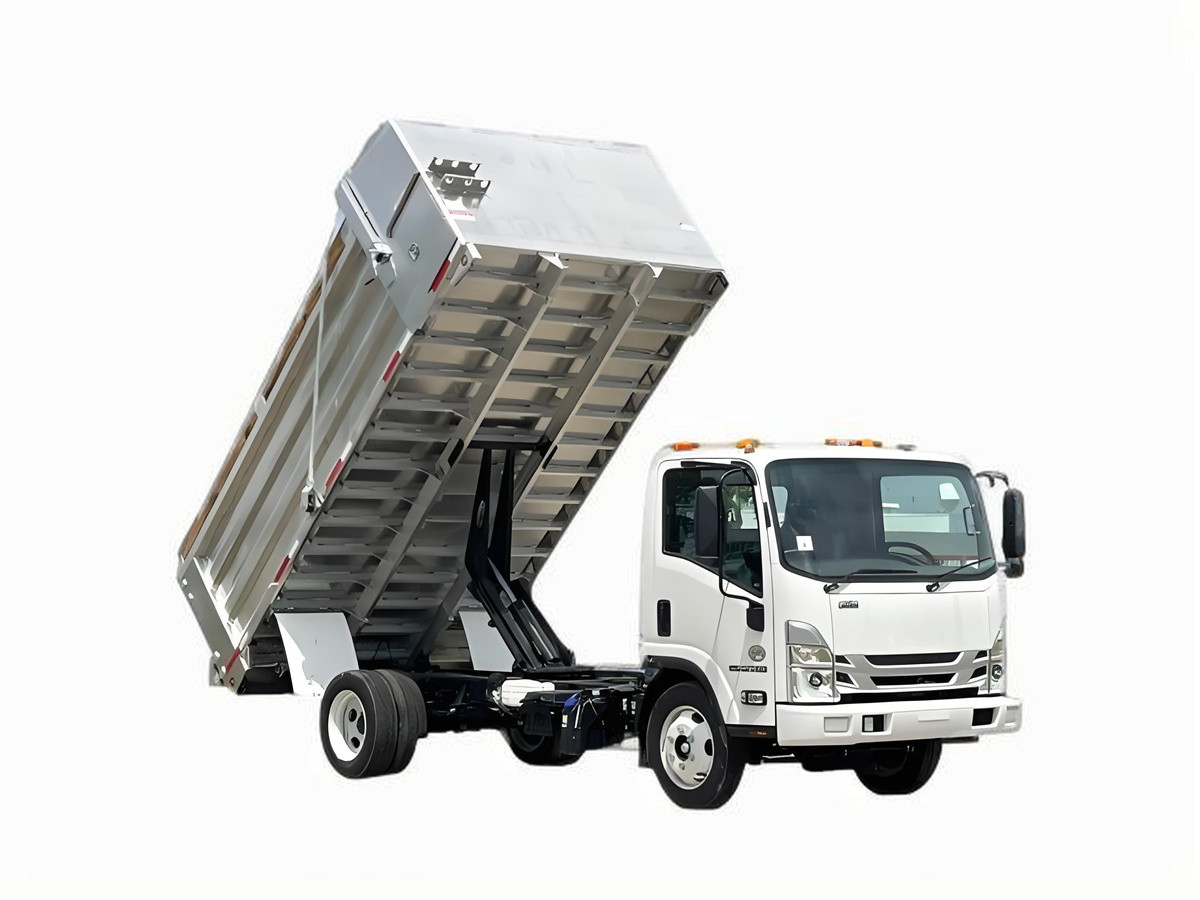

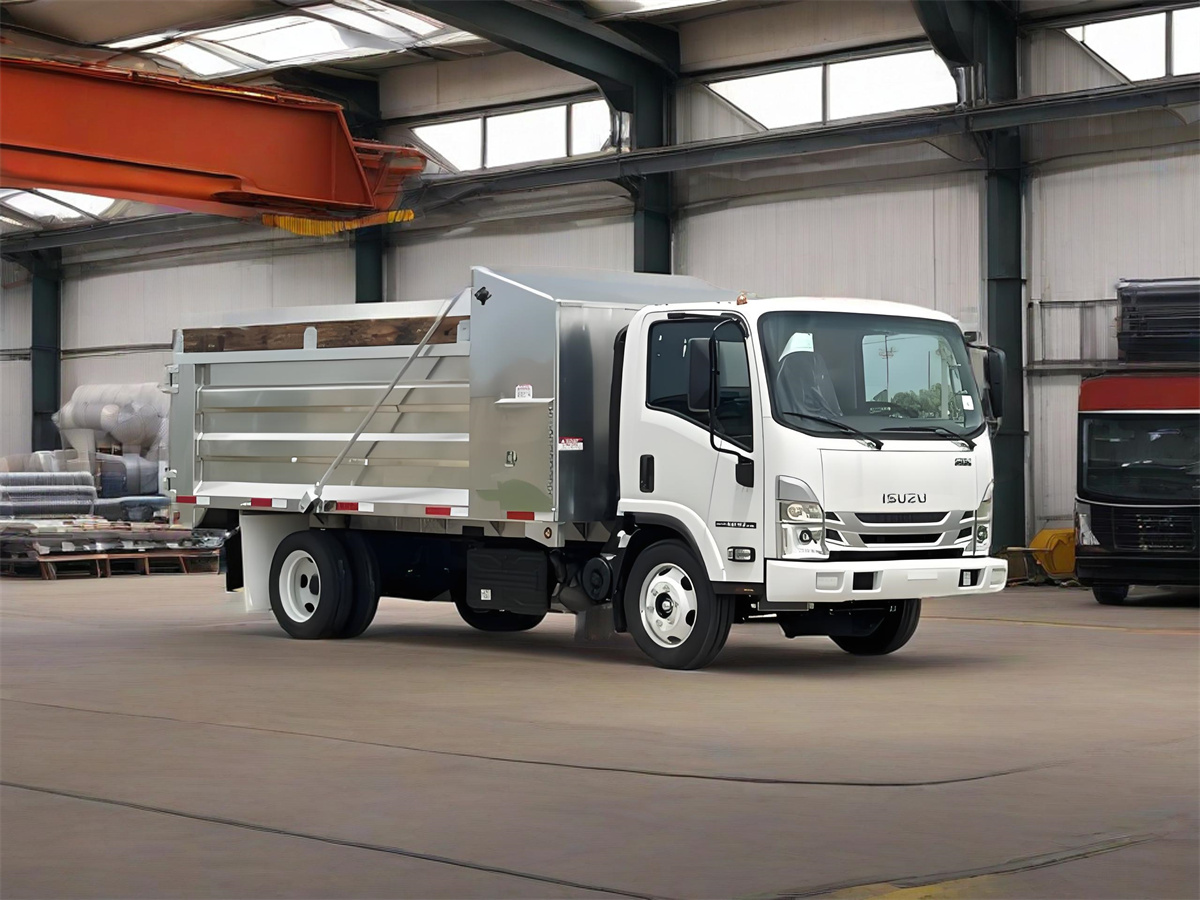

Built on the ISUZU NPR-XD Cabover chassis with a 16,000-lb GVWR (Class 4) rating, this ISUZU dump truck combines robust payload capacity with urban maneuverability. Powered by a 5.2L 4HK turbocharged diesel engine delivering 215 HP and 452 lb.-ft torque, it seamlessly integrates with a 6-speed Aisin automatic transmission for responsive power delivery in stop-start municipal operations. The L15′ x W96″ aluminum dump box (BABCO) with integrated canopy and manual tarp system provides weather-protected material transport, while the steel-reinforced chassis and four-wheel disc brakes with ABS ensure reliable performance under heavy loads.
Target Applications
- Commercial landscaping and garden waste removal
- Municipal green space maintenance
- Hardscaping material delivery (soil, gravel, mulch)
- Snow removal operations with salt/sand spreading
FEATURES
Performance Engineering
- Powertrain: The 4HK-TC diesel engine achieves peak torque (452 lb.-ft) at 1,850 RPM for effortless incline climbing, paired with a maintenance-optimized Aisin automatic transmission featuring adaptive shift logic.
- Fuel Efficiency: 30-gallon in-frame fuel tank enables extended operational range with reduced refueling downtime during multi-site projects.
Cargo Management System

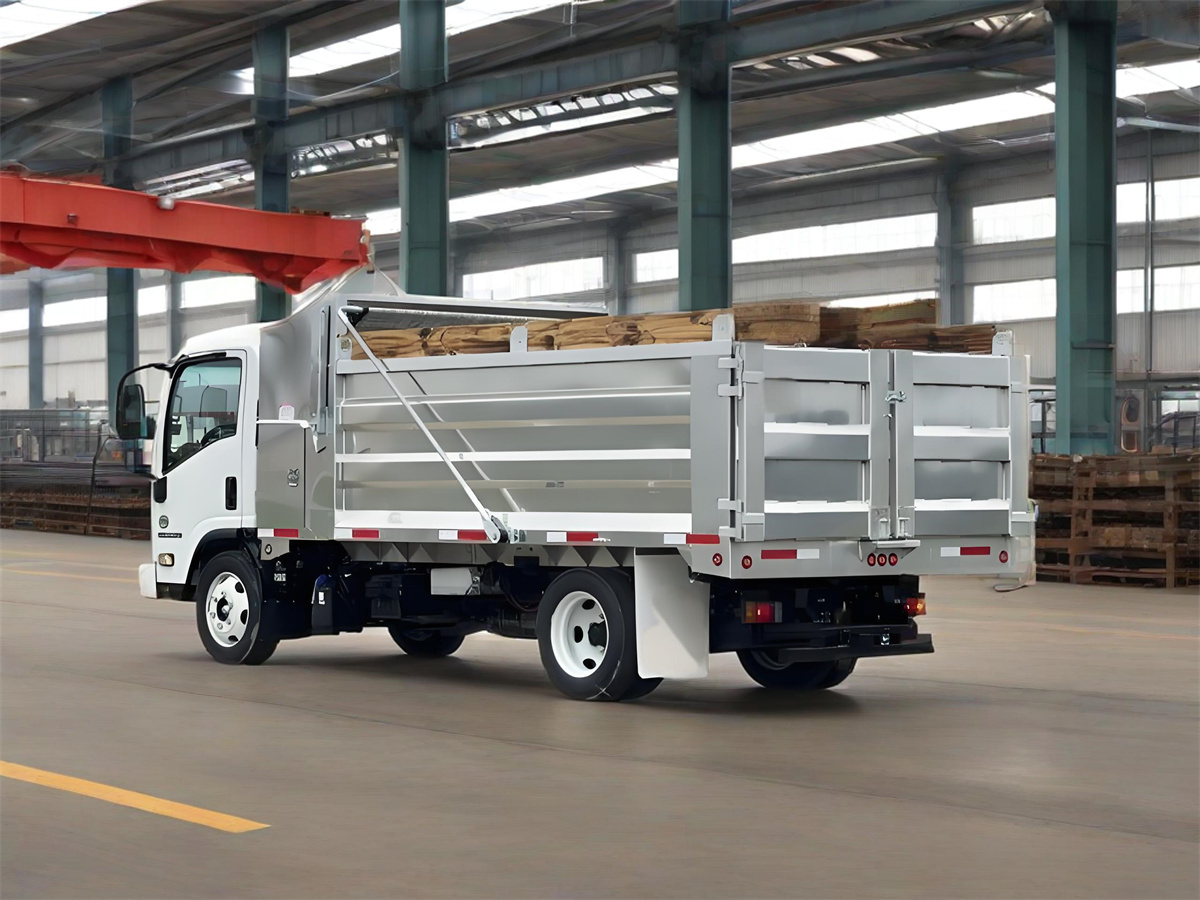

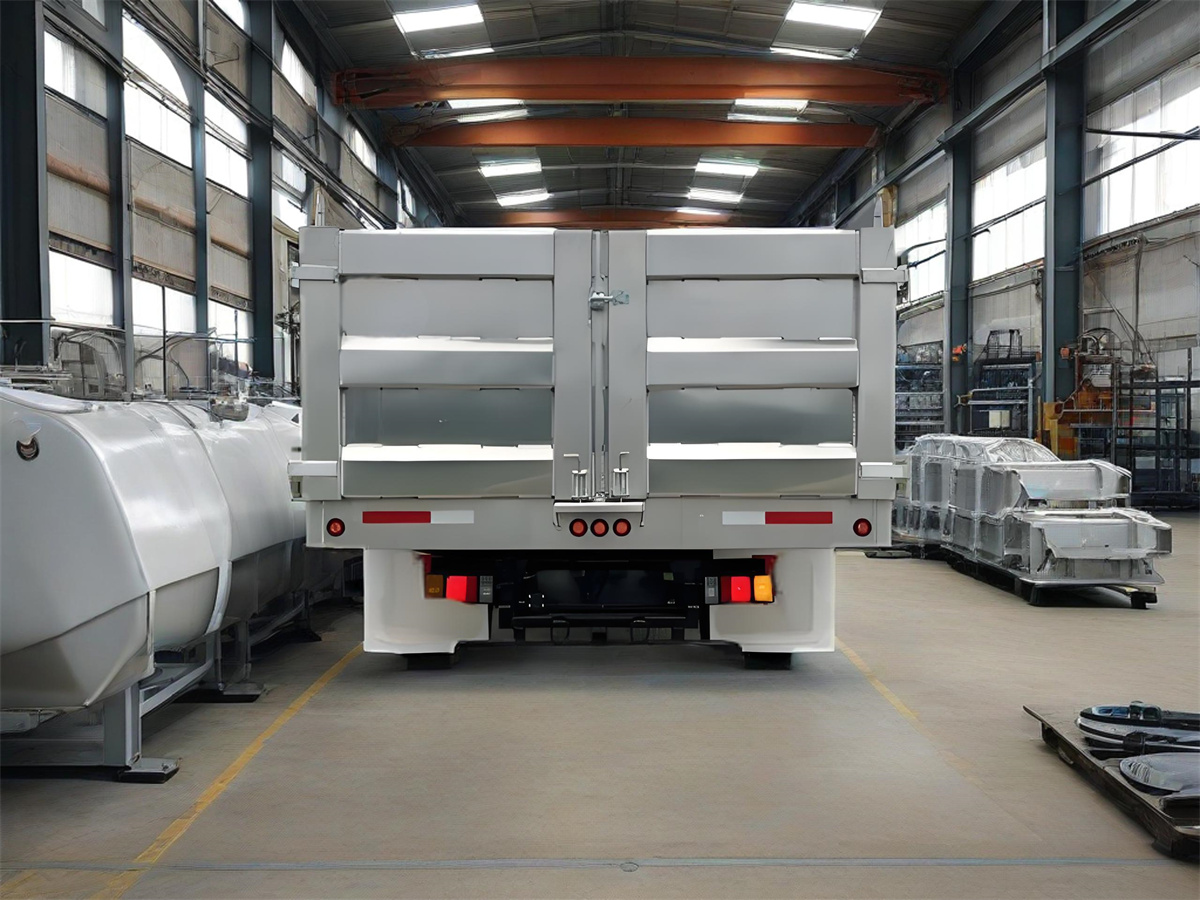

- Landscape-Specific Box: Corrosion-resistant BABCO aluminum construction (15’L × 96”W) features rear barn doors for controlled material discharge and tunnel design for structural rigidity.
- Load Security: Integrated canopy and manual rolling tarp protect materials from weather dispersion during transit.
Safety & Control
- Braking System: Power-assisted quad disc brakes with ABS modulation prevent wheel lockup during emergency stops on gravel/sloped terrain.
- Dynamic Stability: Electronic Stability Control (ESC) and Anti-Slip Regulation (ASR) automatically adjust torque distribution during low-traction scenarios.
Operator Environment
- Ergonomics: Three-passenger two-tone gray cabin with height-adjustable seating and tilt-telescopic steering reduces operator fatigue during extended shifts.
- Visibility: LED headlamps and wide-angle mirrors enhance night operation safety, complemented by heater-defroster systems for all-season clarity.
Functional Upgrades
- Connectivity: AM/FM/BT/CD audio system with dash-mounted controls enables worksite communication.
- Utility Prep: Integrated hitch receiver supports auxiliary equipment transport (e.g., compact rollers, stump grinders).
SPECIFICATIONS
| Category | Specification |
|---|---|
| Model & Class | ISUZU NPR-XD Landscape Dump Truck (Class 4) |
| GVWR | 7 metric tons |
| Engine | 4HK 5.2L Turbocharged 4-Cylinder Diesel |
| Max Power | 215 HP @ 2,500 RPM |
| Peak Torque | 452 lb.-ft @ 1,850 RPM |
| Transmission | 6-Speed Aisin Automatic |
| Braking System | Four-Wheel Disc Brakes with ABS + Vacuum Assist |
| Wheels & Tires | Steel Wheels, 225/70R19.5F (12-PR) Tires |
| Fuel Tank | 30-Gallon In-Frame Tank |
| Lighting | LED Head Lamps |
| Interior | 3-Passenger Two-Tone Gray Trim |
| Safety Systems | Electronic Stability Control + Anti-Slip Regulation |
| Climate Control | A/C Standard |
| Audio | AM/FM/BT/CD Radio |
| Cargo Box | BABCO Aluminum (4.57 m L × 2.44 m W) |
| Box Features | Tunnel Design, Canopy, Manual Tarp, Rear Barn Doors |
| Towing Prep | Integrated Hitch Receiver |
