Keeping roads clean is much more complicated than simply brushing dirt from one side of a street to the other. Modern urban roads collect dust, sand, gravel, leaves, plastic fragments, mud, and other debris throughout the day, while vehicle traffic continuously pushes this material toward curbs, drainage channels, intersections, and road edges. An ISUZU sweeper truck is designed to handle this work as an integrated process, combining rotating brushes, suction, airflow, water spraying, hydraulic controls, and a dedicated debris collection tank so that sweeping and collection can be completed in a single operation.
The basic process is easy to understand: the brushes loosen and gather debris, water helps control dust, the suction system pulls the loosened material into the collection tank, and the truck transports the collected waste to a suitable disposal point. However, the actual engineering behind this process is considerably more sophisticated. Different brush positions, suction nozzles, blower systems, hydraulic mechanisms, water tanks, and auxiliary engines must work together at precisely controlled speeds to achieve consistent cleaning performance.
Modern ISUZU Sweeper Trucks are available in different capacities and configurations, including compact road sweepers for narrow urban streets and larger machines for highways, industrial parks, airports, and municipal roads. This variety allows ISUZU Vehicles to provide road-cleaning solutions for different operating environments rather than relying on one standard vehicle configuration.

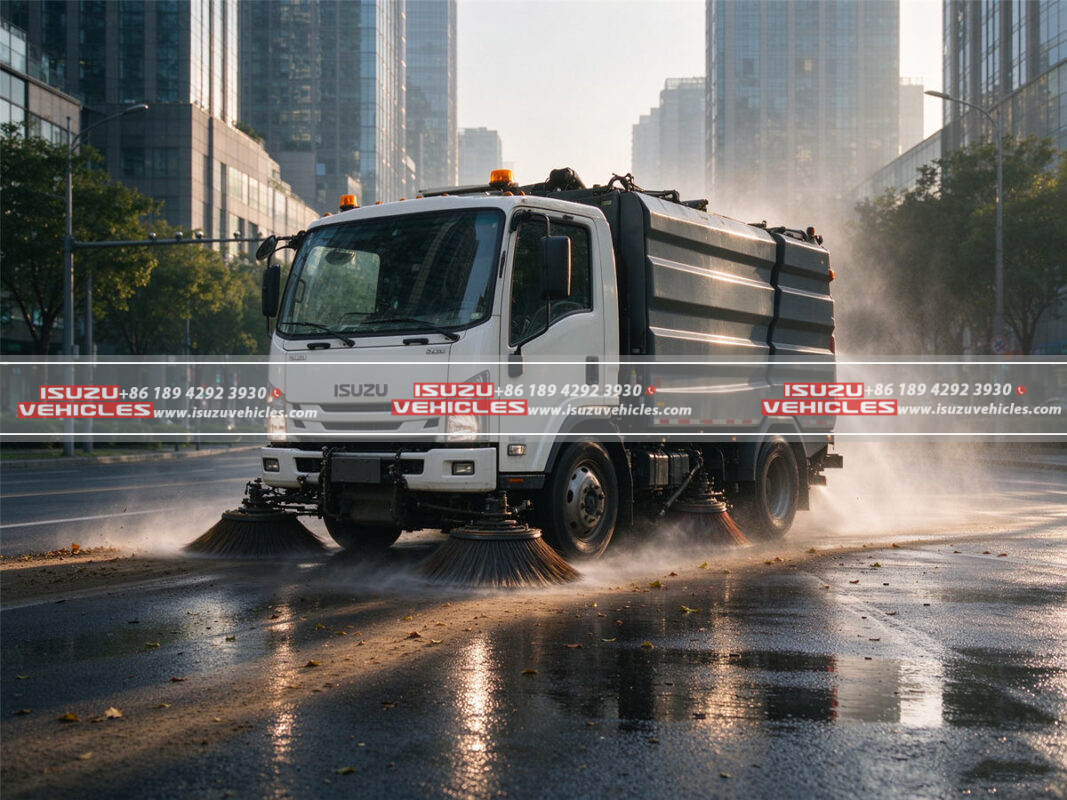

How Does an ISUZU Sweeper Truck Start the Road-Cleaning Process?
The cleaning process begins when the truck reaches the designated working area and the operator activates the sweeping system. Unlike an ordinary truck, a road sweeper carries a specialized upper structure containing the brushes, water system, suction equipment, debris tank, hydraulic system, and other components required for cleaning.
The chassis provides the basic mobility and load-bearing platform, while the sweeping equipment performs the actual sanitation work. During operation, the vehicle normally travels at a relatively low and controlled working speed because the brushes and suction system need enough time to interact with the road surface and collect debris effectively.
For example, the ISUZU 9 CBM Sweeper Truck has a specified sweeping speed range of approximately 3–20 km/h, with a maximum sweeping width of 3.0 meters and a maximum cleaning capacity of up to 60,000 m²/h. This combination allows the truck to cover a substantial road area while maintaining controlled brush and suction performance.
The ISUZU 4 CBM Road Sweeper Truck provides another example of a more compact configuration, with a 3-meter cleaning and suction width, cleaning efficiency of at least 95%, and a maximum cleaning capacity of approximately 60,000 m²/h. These specifications demonstrate that cleaning productivity depends not only on the size of the collection tank but also on sweeping width, vehicle speed, brush arrangement, suction performance, and the overall system design.
How Do the Sweeper Brushes Remove Dirt and Debris?
The brushes are among the most visible components of an ISUZU sweeper truck, and they perform the first major mechanical stage of the cleaning process. As the truck moves forward, rotating disc brushes make controlled contact with the road surface and push accumulated material toward the central collection area or suction nozzle.
Most modern road sweepers use multiple brushes rather than one large brush because several smaller brushes can cover a wider working area and provide better control around curbs, road edges, and uneven surfaces. The brush angle, rotation speed, extension position, and lifting height can be adjusted according to the road conditions and the type of debris being collected.
Four-Brush Sweeping Systems
The ISUZU 8 CBM Road Sweeper Truck, for example, uses four brushes and provides a working area of approximately 3.0–3.5 meters. Its system also incorporates a water spray bar, rear vacuum cleaner, and blower, allowing mechanical sweeping and pneumatic collection to operate together.
The four-brush arrangement is particularly useful because road debris does not remain evenly distributed across the lane. Dust and sand often accumulate near curbs, while leaves and larger particles may collect around parking areas, intersections, drainage points, or road shoulders. By positioning brushes strategically, the truck can move this material toward the suction system instead of simply pushing it farther along the road.
Brush material also matters because the components experience continuous friction against asphalt and concrete surfaces. High-strength wear-resistant steel wire brushes are commonly used on heavy-duty sweeping systems because they can withstand repeated operation while maintaining effective contact with the road surface.
The brush system is therefore not simply a rotating broom. It is a controlled mechanical collection mechanism that prepares debris for the next stage of the cleaning process.
How Does the Suction System Collect the Swept Material?
After the rotating brushes loosen and guide debris toward the collection area, the suction system takes over. This is one of the most important differences between a modern road sweeper and a conventional manual sweeping operation, because the debris does not need to remain on the road after being brushed into a pile.
A powerful blower generates airflow through the suction system, creating the negative pressure necessary to draw dust and debris from the road surface into the collection tank. The suction nozzle is positioned close to the road and can usually be raised or lowered hydraulically so that it follows different road conditions.
The full-floating suction nozzle used on many modern sweepers is particularly important because roads are rarely perfectly flat. If the nozzle were fixed at one rigid height, it could either strike the pavement or move too far away from the surface, reducing suction performance. A floating arrangement allows the nozzle to maintain a more consistent working relationship with the road.
For example, the ISUZU 5 CBM Street Sweeper Truck uses a 200 mm suction port and a full-floating suction nozzle with hydraulic raising and lowering. Its system is designed to collect particles of at least 100 mm under the specified operating conditions, allowing the vehicle to handle not only fine dust but also leaves, gravel, and other larger debris.
Why the Blower Is So Important
The blower is effectively the engine of the pneumatic cleaning system. Without sufficient airflow, brushes could move debris toward the suction opening but the material would not be transported efficiently into the collection tank.
The ISUZU 12 CBM Road Sweeper Truck, for instance, uses a high-pressure centrifugal sweeper blower designed for strong and stable suction, with a working speed of approximately 2,600–2,900 r/min, airflow capacity of 12,000–15,000 m³/h, and maximum air pressure of 8,500 Pa.
This combination of airflow and pressure allows the sweeper to capture dust, gravel, leaves, and larger road debris while the truck continues moving forward. The blower therefore works together with the brushes rather than operating as a separate cleaning device.
How Does Water Help an ISUZU Sweeper Truck Clean Roads?
Water plays a surprisingly important role in modern road sweeping because dry sweeping can cause fine dust particles to become airborne. If a truck simply brushes dry dust from the pavement at high speed, some of the smallest particles may rise into the surrounding air instead of entering the collection system.
For this reason, many sweeper trucks incorporate water spray systems that lightly moisten the road surface or the material being swept. The water reduces dust dispersion and helps the suction system collect particles more effectively.
Depending on the vehicle configuration, water may be sprayed through nozzles positioned near the brushes, around the suction area, or at other points within the sweeping system. The purpose is generally not to flood the road, but to provide controlled dust suppression while maintaining efficient sweeping performance.
The ISUZU 4 CBM Road Sweeper Truck, for example, incorporates a 4 m³ water tank, while the ISUZU 5 CBM Street Sweeper Truck uses a 1,000-liter water tank. Larger configurations can combine substantial water capacity with larger debris tanks, allowing longer cleaning cycles before returning to a filling or disposal station.
This water-assisted approach is especially useful in dry climates, construction zones, industrial parks, and heavily trafficked urban areas where airborne dust can become a significant environmental and visibility problem.
How Is the Collected Waste Stored Inside the Sweeper Truck?
Once the brushes have gathered the material and the suction system has transported it through the airflow path, the debris enters the dedicated collection tank. The tank acts as a temporary storage chamber, allowing the truck to continue cleaning instead of stopping after every small section of road.
The size of this tank directly affects route productivity. A larger collection tank allows the vehicle to operate for longer periods before unloading, although the practical capacity is also limited by the weight of the collected material and the vehicle’s rated payload.
The ISUZU 9 CBM Sweeper Truck, for example, combines a 7,000-liter garbage tank with a 2,000-liter water tank, creating a substantial working capacity for large municipal and industrial cleaning operations. The vehicle is designed for applications including city roads, highways, industrial parks, logistics areas, airports, and public squares.
The collection tank also needs to be designed for efficient unloading. After completing a cleaning route, the operator can move the vehicle to an appropriate disposal area and activate the hydraulic unloading system. Depending on the design, the rear door opens and the collected material is discharged from the tank.
This means the complete cleaning cycle can be summarized as brush, gather, suction, collect, transport, and unload, with each stage supporting the next rather than functioning independently.
How Do Hydraulic and Auxiliary Systems Control the Sweeping Equipment?
Behind the visible brushes and suction nozzle is a sophisticated hydraulic and auxiliary power system that controls many of the truck’s working movements. Hydraulic cylinders and motors can raise or lower the brushes, adjust their positions, open the rear door, operate the suction nozzle, and control other equipment according to the vehicle’s configuration.
This is particularly important because the sweeping equipment needs to respond to changing road conditions. When the truck approaches a curb, for example, the operator may need to adjust the brush position so that it can clean the edge effectively without damaging the equipment. When the vehicle leaves the working area, the brushes and suction nozzle can be raised to their transport positions.
The ISUZU 4 CBM Road Cleaning Sweeper Truck uses an electrically controlled open-circuit hydraulic system with gear pumps, hydraulic motors, cylinders, and solenoid valves, while its sweeping system uses four center discs driven hydraulically. Such a configuration gives the operator direct control over the main working components.
Why Use an Auxiliary Engine?
Many larger sweepers use a dedicated auxiliary engine to power the blower, hydraulic system, and other cleaning equipment. This arrangement allows the main chassis engine to concentrate primarily on driving the vehicle while the auxiliary engine provides the continuous power required for sweeping.
The ISUZU 8 CBM Road Sweeper Truck, for example, uses an auxiliary engine rated at approximately 100 kW for its sweeping equipment, while other configurations use dedicated auxiliary engines to drive the blower and hydraulic systems.
This design can be particularly beneficial during long cleaning shifts because the sweeping equipment may require continuous power even when the truck is traveling at a low working speed. Separating the driving and cleaning power requirements can therefore help create a more practical operating system.
How Does an ISUZU Sweeper Truck Clean Different Types of Roads?
One of the major advantages of a modern ISUZU sweeper truck is its ability to adapt to different road-cleaning conditions. The same basic principles can be applied to city streets, highways, industrial areas, logistics parks, airports, parking facilities, construction zones, and large commercial properties, although the operator may change the working speed, brush position, water flow, and suction settings according to the environment.
On ordinary urban roads, the sweeper can operate at a controlled speed while the side brushes direct dirt from the road edges toward the suction area. On industrial roads, the system may encounter heavier quantities of sand, gravel, dust, or production-related debris, making brush pressure and suction performance particularly important.
For highways and large paved areas, a wider sweeping system and larger collection capacity can improve productivity because the vehicle can clean more surface area before returning to unload. Larger models such as the 12 CBM configuration are therefore better suited to high-volume cleaning operations where long working cycles are desirable.
After construction work, the road surface may contain a mixture of fine dust, sand, stones, leaves, and larger fragments. In such conditions, the combination of mechanical brushes and powerful suction becomes particularly useful because the vehicle can gather different types of debris without relying on manual collection.
The ISUZU Vacuum Truck serves a different but complementary sanitation purpose. Rather than primarily sweeping solid debris from road surfaces, a vacuum truck is designed for applications such as sewage collection, sludge removal, wastewater handling, and high-pressure sewer cleaning. Municipal fleets may therefore use both types of vehicles, with the sweeper maintaining road surfaces and the vacuum truck handling liquid and semi-liquid waste.
Likewise, an ISUZU sprinkler truck can support road maintenance by washing surfaces or suppressing dust, while the sweeper performs mechanical collection. Combining these vehicles can provide a more comprehensive approach to municipal environmental sanitation.
Why Is the ISUZU Sweeper Truck Effective for Municipal Road Maintenance?
The real advantage of the ISUZU Vehicles sweeper platform is not any single component but the way the complete system operates as one coordinated machine. The chassis provides reliable transportation, the brushes loosen and gather debris, water controls dust, the blower creates airflow, the suction nozzle collects material, the collection tank stores it, and the hydraulic system allows the operator to adjust the working equipment while moving through different road environments.
For municipal departments, this integrated approach can significantly reduce the labor required for routine road maintenance while improving consistency. Instead of having separate workers manually sweep, gather, shovel, and transport debris, one specialized vehicle can perform most of these steps continuously.
Different body capacities also allow operators to select a truck according to the size of the service area. Compact models can work effectively in narrow streets and residential areas, while larger configurations provide greater collection capacity for highways, industrial parks, airports, and extensive municipal road networks.
Ultimately, an ISUZU sweeper truck cleans roads through a carefully coordinated sequence of mechanical sweeping, hydraulic control, water-assisted dust suppression, pneumatic suction, and debris collection. The brushes loosen material from the pavement, the suction system captures it, the blower maintains the necessary airflow, and the collection tank stores the waste until unloading. Because these systems are designed to work together, the vehicle can provide consistent cleaning performance while moving through real-world urban and industrial environments.
With different configurations available for compact streets, municipal roads, industrial zones, highways, and other paved areas, ISUZU Vehicles provides practical road-cleaning equipment for modern sanitation fleets. When properly matched to the working environment and maintained regularly, an ISUZU sweeper truck can turn a traditionally labor-intensive road-cleaning task into a more efficient, controlled, and repeatable operation.
