When a job requires technicians to work high above the ground, having a reliable way to reach the work area is just as important as having the right tools and trained personnel. An ISUZU bucket truck combines a commercial truck chassis with a hydraulic aerial platform, allowing workers to travel to a job site and then position themselves safely at elevated locations without relying on separate lifting equipment. Depending on the configuration, an ISUZU aerial work truck can provide working heights from around 14 or 15 meters to much higher configurations of 20, 30, 40, and even 45 meters, giving fleet operators a broad choice for utility maintenance, telecommunications, street lighting, tree care, construction, and infrastructure projects.
The important point, however, is that “how high can a bucket truck reach?” does not have one universal answer. The maximum working height depends on the boom structure, chassis, platform configuration, outreach, working radius, payload, and stabilizing system. ISUZU Vehicles currently offers a wide range of aerial trucks, including 15-meter, 17-meter, 21-meter, 23-meter, 24-meter, 30-meter, 32-meter, 40-meter, and 45-meter-class configurations. The highest models in the current range can reach approximately 45 meters, while smaller models are designed for jobs where maneuverability and compact dimensions are more important than extreme height.
For buyers, understanding the difference between maximum height, working height, outreach, and platform capacity is essential, because a truck advertised as a 45-meter aerial vehicle should not be interpreted as being able to place the bucket 45 meters horizontally from the truck. Each measurement describes a different aspect of the aerial equipment, and selecting the right model requires looking at the complete operating envelope rather than one number.

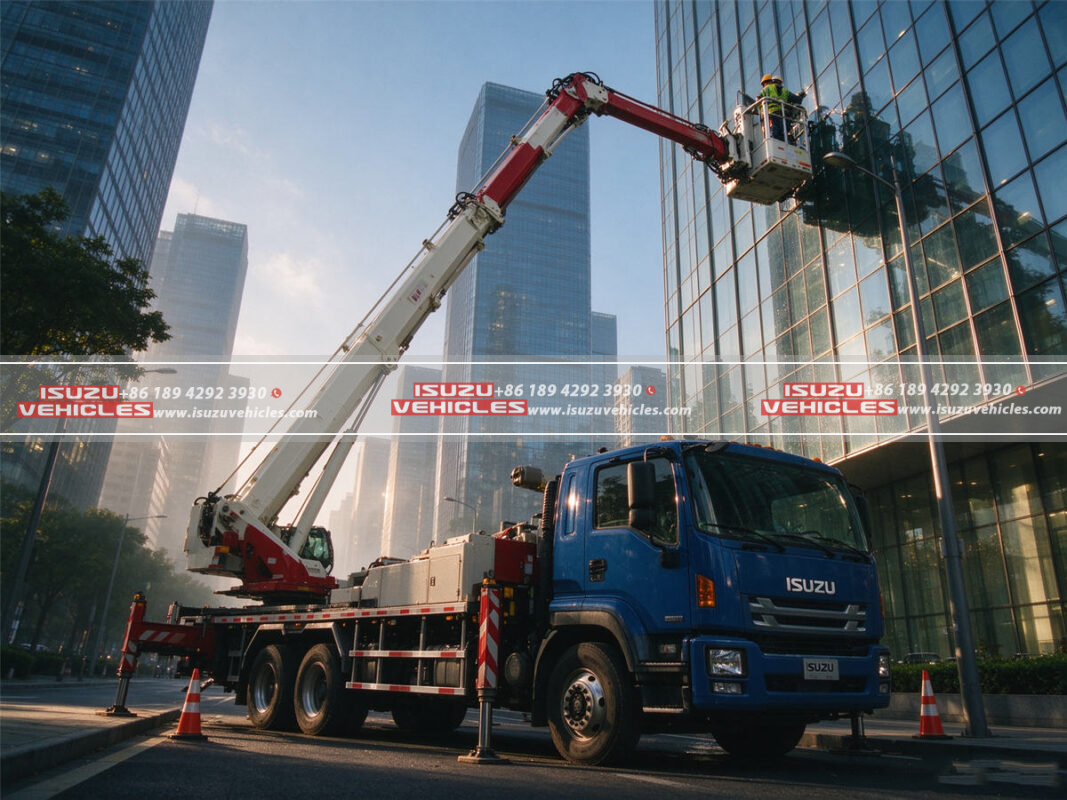

What Is the Maximum Height of an ISUZU Bucket Truck?
The current ISUZU bucket truck range demonstrates how significantly aerial working height can vary between models. Compact utility vehicles can provide approximately 14 to 17 meters of lifting height, while larger telescopic or articulated systems can extend well beyond 20 meters. At the upper end of the range, ISUZU offers a 45M telescopic bucket truck designed for demanding high-altitude applications, with a maximum working height of 45 meters. The official product information also specifies a maximum working radius of 25 meters and a 200 kg rated working platform capacity.
This broad selection is useful because not every customer needs an ultra-high aerial platform. A municipal lighting department working mainly on streetlights may find a 15-meter or 17-meter truck more practical than a 45-meter vehicle, while a power utility or major infrastructure contractor may need a much higher platform to reach transmission structures, tall buildings, bridges, or other elevated facilities.
The current aerial category from ISUZU Vehicles includes 45-meter and 40-meter telescopic models, along with 23-meter, 21-meter, 24-meter, 20-meter, 30-meter, 32-meter, and other configurations. This means customers can select the approximate working height according to the job instead of treating maximum height as the only purchasing criterion.
Typical ISUZU Aerial Working Heights
| Bucket Truck Class | Approximate Working Height | Typical Applications |
|---|---|---|
| Compact aerial truck | 14–17 m | Streetlights, telecommunications, municipal maintenance |
| Medium aerial truck | 20–24 m | Power lines, building maintenance, tree care, infrastructure |
| High-reach aerial truck | 30–32 m | Large utility projects, construction, industrial maintenance |
| Heavy high-altitude truck | 40 m | Major infrastructure and specialized elevated work |
| Ultra-high aerial truck | 45 m | Power utilities, telecommunications, large industrial projects |
These figures are useful as a general guide, but the exact working envelope must always be checked against the manufacturer’s specifications for the particular truck, because maximum height, outreach, platform load, and operating conditions are closely connected.
What Is the Difference Between Working Height and Boom Height?
One of the most important concepts when comparing bucket trucks is the difference between the physical length of the boom and the actual working height. A boom might be several meters shorter than the maximum working height stated for the vehicle because the truck itself has a certain ground-to-platform height, and the aerial device can position the bucket above and beyond the end of the boom. In other words, the maximum working height describes the practical height that an operator can reach with the working platform, rather than simply measuring the metal boom from one end to the other.
For example, the ISUZU 15M insulated bucket truck has a maximum lifting height of 15 meters and a maximum outreach of 9.2 meters, while its boom incorporates articulated and telescopic movement and a continuous 360-degree rotation system. This combination gives the operator much more flexibility than a simple vertical lifting mechanism because the bucket can be positioned around obstacles and at different working angles.
A smaller ISUZU insulated bucket-mounted utility truck provides another useful example. Its boom length is 12.3 meters, while its maximum tip height is 14 meters, demonstrating why boom length and maximum working height should not be treated as identical specifications.
For buyers comparing different models, the more useful question is therefore not simply “How long is the boom?” but rather “At what height and horizontal distance can the bucket safely carry the required working load?” This question leads directly to the importance of outreach and the aerial working envelope.
How Does Outreach Affect Bucket Truck Reach?
Vertical height is only one part of an aerial truck’s performance, because many real-world work locations cannot be accessed by parking the vehicle directly underneath the target. Power lines may run behind roadside barriers, trees may stand several meters away from the road, building facades may be inaccessible from directly below, and utility equipment may be positioned inside industrial compounds. In these situations, horizontal outreach becomes just as important as maximum height.
Outreach describes how far the working platform can extend horizontally from the truck under specified operating conditions. The maximum outreach normally changes according to boom angle, platform load, vehicle stabilization, and the position of the boom. As a result, the maximum vertical height and maximum horizontal outreach are not necessarily available simultaneously.
The ISUZU 15M insulated bucket truck, for example, provides a 15-meter maximum lifting height and 9.2-meter maximum outreach. The 45M telescopic bucket truck provides a much greater overall working envelope, with a maximum working radius of 25 meters, while its specified outreach at maximum working height is 7 meters. This distinction is particularly important when planning jobs because a truck may reach an impressive height but have a more limited horizontal reach when the boom is fully elevated.
Height and Outreach Must Be Considered Together
Imagine a technician needs to reach a point 20 meters above ground and 10 meters away from the truck. A vehicle with a very high theoretical vertical reach may not necessarily be suitable if its working chart does not permit that combination of height and radius. Professional aerial equipment therefore uses a working envelope or load chart to show what positions are available under different conditions.
This is also why stabilizers and outriggers are so important. Once the truck is parked, the outriggers create a wider and more stable support footprint, allowing the aerial device to operate safely within its specified working envelope. The ground condition, slope, outrigger deployment, wind, platform load, and vehicle configuration must all be considered before elevated work begins.
How High Can Different ISUZU Bucket Truck Designs Reach?
ISUZU aerial trucks use different boom designs according to their intended operating height and working environment. Articulated booms are particularly useful where the operator needs to move around obstacles, while telescopic booms provide long straight-line extension and are well suited to applications requiring substantial vertical reach. Some specialized vehicles combine articulated and telescopic movement to provide both height and positioning flexibility.
The 15M insulated bucket truck, for example, uses an articulated and telescopic boom with a 360-degree continuous rotator, allowing the platform to be positioned accurately around utility structures. Its 200 kg bucket capacity and 10 kV insulation rating make it particularly suitable for electrical maintenance applications where both elevated access and electrical protection are required.
At the other end of the range, the 45M telescopic bucket truck is designed for ultra-high aerial operations and provides a 45-meter maximum working height. Its 200 kg working platform capacity is specified for up to three operators with tools, while the platform can rotate through 360 degrees for positioning flexibility.
There are also multifunctional aerial vehicles that combine elevated access with additional equipment. The ISUZU 21M insulated boom truck with hydraulic auger, for example, has a maximum lifting height of 20 meters and a maximum lifting range of 18 meters, while also incorporating drilling equipment for utility pole installation and related infrastructure work. Such configurations can reduce the need for separate equipment when a project requires both elevated access and ground-based utility installation.
What Determines the Safe Working Height of a Bucket Truck?
The advertised maximum height is only the starting point when evaluating an aerial work truck. The actual safe operating height depends on several interconnected factors, including chassis stability, boom design, platform load, wind conditions, ground conditions, outrigger deployment, boom angle, outreach, and the specific working chart supplied with the aerial device.
Chassis Stability
The truck chassis provides the foundation for the entire aerial system. A high-reaching boom creates significant forces on the chassis when extended, especially when the platform is positioned far from the centerline of the vehicle. For this reason, high-reach bucket trucks generally require appropriately engineered chassis structures, stabilizers, hydraulic systems, and counterbalancing arrangements.
Platform Load
Working height cannot be separated from the load carried by the platform. An aerial truck may achieve its maximum advertised height with a specified platform load, but its permissible outreach can change when the platform carries additional workers, tools, or materials. The 15M ISUZU model, for example, specifies a 200 kg bucket capacity, while the larger 45M platform is specified at 200 kg as well. Operators must stay within the manufacturer’s rated capacity rather than assuming that maximum height automatically remains available at every load condition.
Ground and Weather Conditions
Aerial work requires much more attention to ground conditions than ordinary truck driving. Soft soil, uneven surfaces, excessive slopes, strong winds, or inadequate outrigger support can significantly affect stability. A properly specified aerial truck should therefore be operated according to the manufacturer’s procedures and applicable local safety standards, with the vehicle correctly positioned and stabilized before the boom is extended.
These considerations become increasingly important as the working height increases. A 15-meter truck and a 45-meter truck are not simply two versions of the same machine with different boom lengths; the structural, hydraulic, stabilization, and operational requirements become much more demanding as the working envelope grows.
Which ISUZU Bucket Truck Height Is Right for Your Job?
The best bucket truck is rarely the one with the greatest possible height. Instead, the right choice is the truck that can comfortably cover the normal working area while maintaining sufficient platform capacity, maneuverability, stability, and operational efficiency. For routine streetlight maintenance, telecommunications work, tree trimming, and urban service operations, a 14–17 meter truck may provide more than enough reach while remaining compact and easy to maneuver.
For power distribution, larger buildings, industrial facilities, and infrastructure maintenance, a 20–30 meter platform can provide a more useful combination of height and working radius. When projects involve very tall structures or specialized infrastructure, 40-meter and 45-meter telescopic bucket trucks provide substantially greater vertical access and are designed specifically for high-altitude operations.
Fleet managers should also consider how the truck will be used between elevated work assignments. A compact aerial truck may be easier to drive through narrow urban streets and crowded work zones, while a large high-reach truck may require more space for transportation, parking, setup, and outrigger deployment. Therefore, purchasing decisions should consider the complete work cycle rather than focusing only on the maximum height printed in the specification sheet.
It is also useful to compare a bucket truck with other specialized vehicles before finalizing a fleet configuration. A crane truck is designed primarily for lifting and placing materials, while a fire truck is engineered around firefighting water, foam, pumps, hoses, and emergency response equipment. An aerial bucket truck, by contrast, is optimized to place personnel and tools at an elevated working position. Choosing the right vehicle therefore depends on whether the primary requirement is lifting materials, fighting fires, or providing safe elevated access.
For customers evaluating the complete aerial range, the bucket truck category from ISUZU Vehicles provides multiple configurations ranging from compact utility platforms to very high telescopic aerial trucks. This variety allows contractors, municipalities, utility companies, telecommunications operators, and infrastructure service providers to select a vehicle according to the height, outreach, payload, insulation requirements, and working environment of their projects.
Ultimately, an ISUZU bucket truck can reach from roughly 14 meters on compact utility configurations to as high as 45 meters on specialized high-reach models, but maximum height should never be considered in isolation. The actual value of an aerial truck comes from the combination of working height, outreach, platform capacity, boom movement, stabilization, chassis performance, and operator safety. For everyday utility work, a medium-height truck may be the most efficient choice, while demanding infrastructure projects can justify a 30-, 40-, or 45-meter platform. By matching the aerial equipment to the real work envelope rather than simply choosing the tallest available model, buyers can build a safer, more productive fleet and make better use of the capabilities offered by ISUZU Vehicles.
