BRIEF:
The ISUZU GIGA 10 Meter Van Box Truck is a formidable medium truck designed for efficient cargo transportation. With its robust build, advanced features, and reliable performance, it stands out as a versatile solution for businesses requiring a dependable logistics partner. The ISUZU GIGA Truck combines power, efficiency, and durability to meet the demands of modern logistics, making it a preferred choice for businesses aiming for seamless cargo transportation.
FEATURES:
- Powerful Engine:
- Equipped with a high-performance Qingling Isuzu 4HK1-TCG60 engine.
- 4 cylinders and in-line cylinder arrangement for optimal power delivery.
- Offers outstanding efficiency with a displacement of 5.193L.
- Complies with multiple emission standards: EURO 2, EURO 3, EURO 4, EURO 5, EURO 6.
- Transmission Excellence:
- Fitted with the reliable Isuzu MLD-6Q manual transmission.
- Features 6 forward gears and 1 reverse gear for smooth operation.
- The manual transmission provides the driver with precise control.

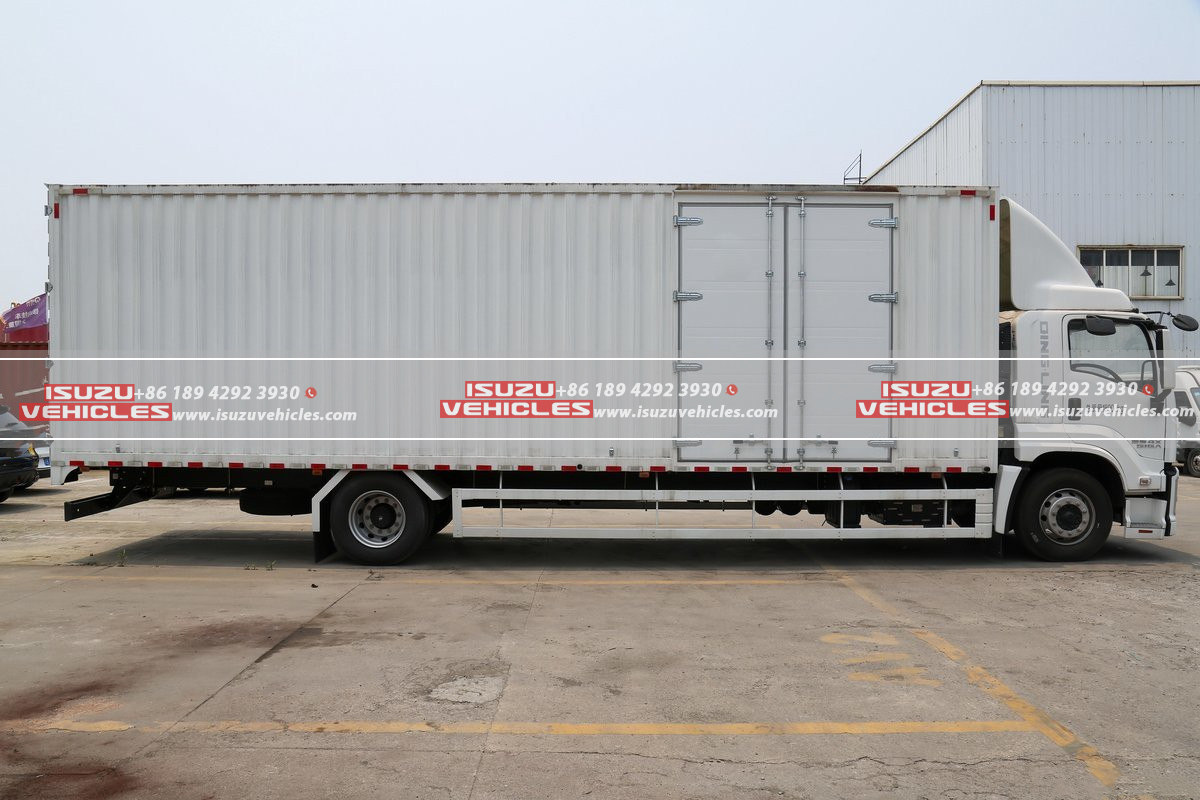

- Cargo Box Design:
- Spacious van-type cargo box designed for versatility and convenience.
- Impressive dimensions of 9.78 meters (length) x 2.49 meters (width) x 2.81 meters (height).
- Ideal for transporting a wide range of goods securely.
- Sturdy Chassis:
- Sturdy chassis construction ensures durability and stability during transportation.
- Front axle allowable load of 6500KG and rear axle allowable load of 11500KG.
- Equipped with 4/4+4 leaf springs for enhanced load-bearing capacity.

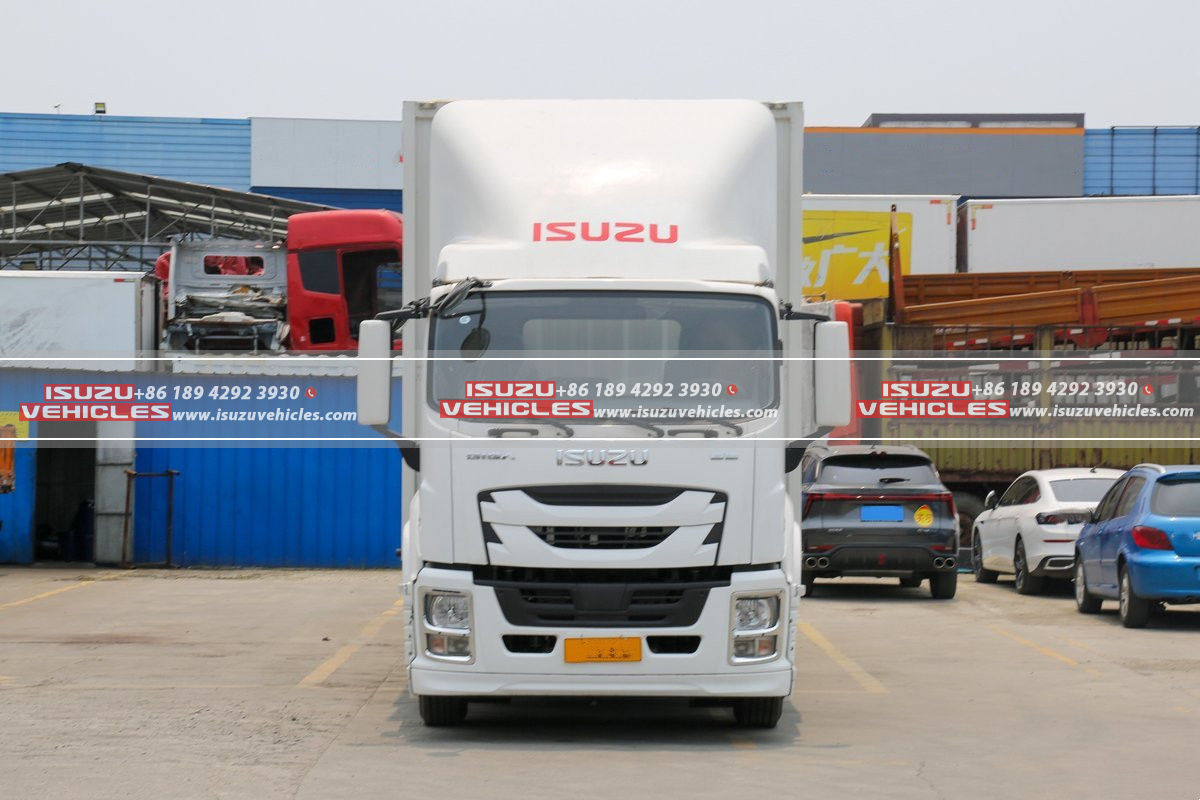

- Driver-Focused Cab:
- Comfortable and spacious cab accommodates up to 3 passengers in a semi-row arrangement.
- Designed for driver convenience and fatigue reduction during long journeys.
- Optimized Dimensions:
- Well-balanced dimensions with a wheelbase of 7200mm for enhanced maneuverability.
- Front/rear overhang of 1.335/3.465 meters contributes to improved stability.
- High Load Capacity:
- Total weight of 8.15 tons, rated load of 9.655 tons, and gross vehicle weight of 18 tons.
- Ensures ample load capacity for various cargo transportation needs.
- Reliable Tires:
- Equipped with durable and reliable 275/80R22.5 18PR tires.
- 6 tires in total for optimal traction and stability on different road surfaces.
- Origin and Speed:
- Manufactured in Chongqing, ensuring adherence to high-quality standards.
- Achieves a maximum speed of 89 km/h for timely and efficient deliveries.
SPECIFICATIONS:
Category | Details |
---|---|
Basic Information | |
Announcement Model | QL5181XXYAJWH |
Type | ISUZU Cargo Truck |
Drive Form | 4X2 |
Wheelbase | 7200mm |
Box Length | 9.8 meters |
Engine | Qingling Isuzu 4HK1-TCG60 |
Transmission | Isuzu MLD-6Q |
Vehicle Length | 12 meters |
Vehicle Width | 2.55 meters |
Vehicle Height | 4 meters |
Front Wheel Track | 1920mm |
Rear Wheel Track | 1844mm |
Total Weight | 8.15 tons |
Rated Load | 9.655 tons |
Gross Vehicle Weight | 18 tons |
Maximum Speed | 89KM/h |
Place of Origin | Chongqing |
Tonnage Level | Medium Truck |
Approach Angle | 15 degrees |
Departure Angle | 7 degrees |
Front/Rear Overhang | 1.335/3.465 meters |
Fuel Type | Diesel |
Engine Parameters | |
Engine Model | Qingling Isuzu 4HK1-TCG60 |
Engine Brand | Qingling Isuzu |
Common Name for Engine | Isuzu 4HK1 |
Number of Cylinders | 4 |
Fuel Type | Diesel |
Cylinder Arrangement | In-line |
Displacement | 5.193L |
Emission Standard | EURO 2, EURO 3, EURO 4, EURO 5, EURO 6 |
Maximum Output Power | 151kw |
Maximum Horsepower | 205 horsepower |
Maximum Torque | 647N·m |
Maximum Torque Speed | 1600RPM |
Rated Speed | 2600RPM |
Cargo Box Parameters | |
Cargo Box Type | Van |
Cargo Box Length | 9.78 meters |
Cargo Box Width | 2.49 meters |
Cargo Box Height | 2.81 meters |
Cab Parameters | |
Number of Passengers | 3 people |
Seat Rows | Semi-row |
Transmission Parameters | |
Transmission Model | Isuzu MLD-6Q |
Transmission Brand | Isuzu |
Transmission Type | Manual |
Forward Gears | 6 gears |
Reverse Gears | 1 gear |
Chassis Parameters | |
Front Axle Allowable Load | 6500KG |
Rear Axle Allowable Load | 11500KG |
Number of Leaf Springs | 4/4+4 |
Tires | |
Tire Specifications | 275/80R22.5 18PR |
Number of Tires | 6 pieces |
