BRIEF

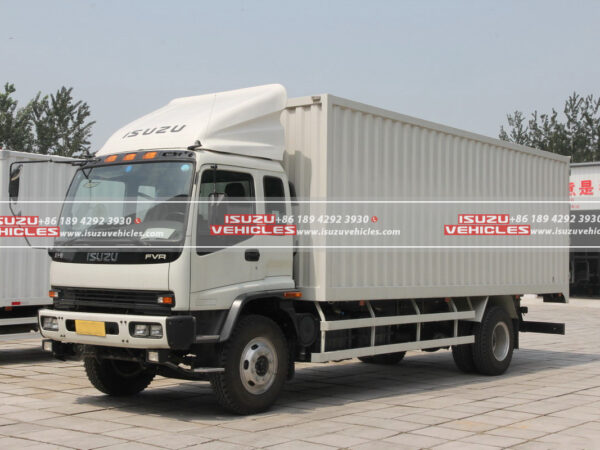

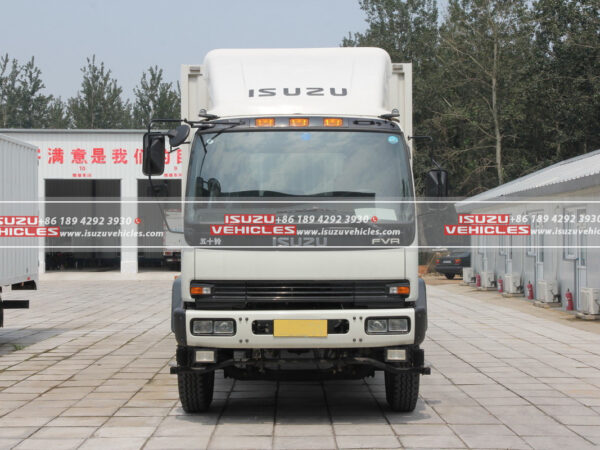

The ISUZU 26 CBM Van Box Cargo Truck, model QL5150XWQFRJ, epitomizes reliability and efficiency in heavy cargo transportation. Designed to cater to diverse commercial needs, it boasts ample loading space, powerful performance, and adaptable features, ensuring seamless delivery across various sectors.
FEATURES
This ISUZU cargo truck, model QL5150XWQFRJ, stands as a pinnacle of reliability and efficiency in the realm of heavy cargo transportation. With a wheelbase spanning 5550mm and an extensive box length of 7.1 meters, this vehicle epitomizes spaciousness and adaptability, ensuring optimum cargo accommodation for diverse logistical requirements.
Powered by the robust Qingling Isuzu 6HK1-TCN engine, this truck embodies exceptional performance, harnessing 178kw (242 horsepower) of maximum output power. Its EURO 2, EURO 3, and EURO 4 compliant engine, coupled with a waste gas turbocharged and air-to-air intercooler setup, delivers both power and environmental responsibility.

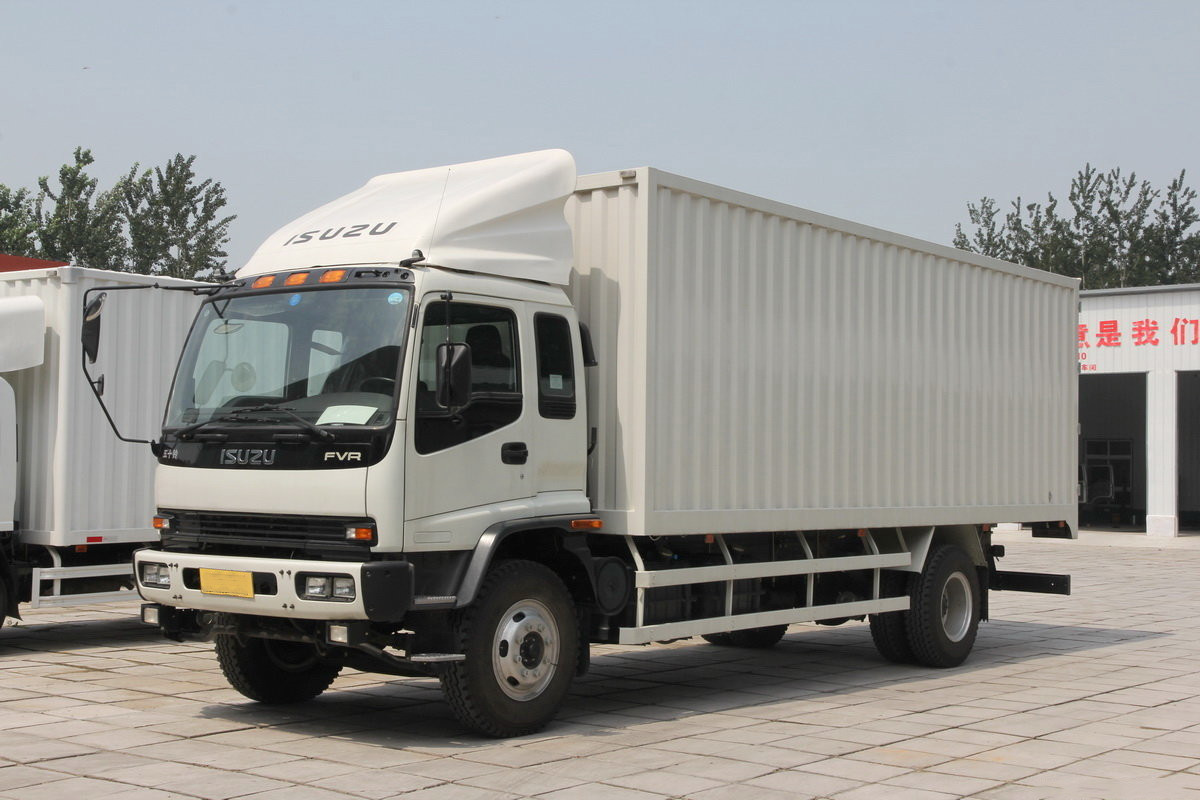

This cargo truck’s dimensions, measuring 9.6 meters in length, 2.485 meters in width, and 3.67 meters in height, offer a versatile yet sturdy build for seamless maneuverability across various terrains. With a curb weight of 7.65 tons, a rated load capacity of 7.155 tons, and a gross vehicle weight of 15 tons, it ensures a balanced blend of robustness and optimized payload.
The vehicle’s transmission, a manual Isuzu MLD-6Q with 6 forward gears and 1 reverse gear, provides superior control and adaptability to varying road conditions, ensuring smooth and efficient operation. Complementing this is a substantial 200L fuel tank capacity, enhancing operational range and reducing refueling frequency.
Facilitating enhanced stability, the truck boasts a chassis fortified by Isuzu rear axles, a front axle load allowance of 6300KG, and a rear axle load allowance of 13000KG. This structural strength, reinforced by 8/10+6 leaf springs, underlines the vehicle’s capability to handle heavy loads while maintaining stability and reliability.

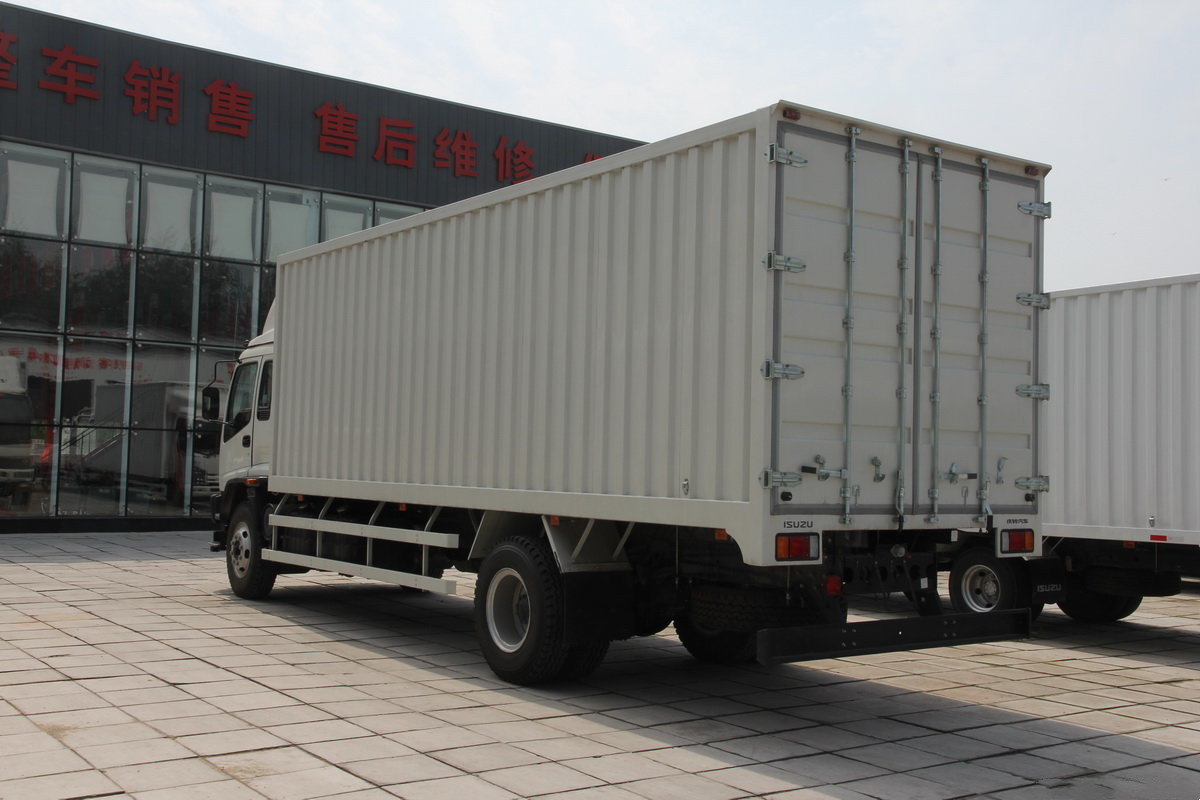

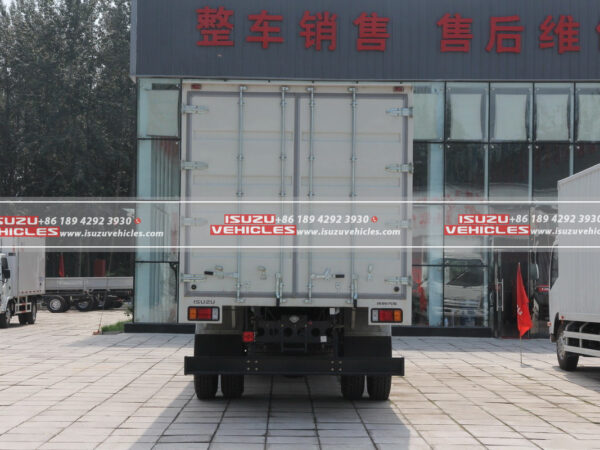

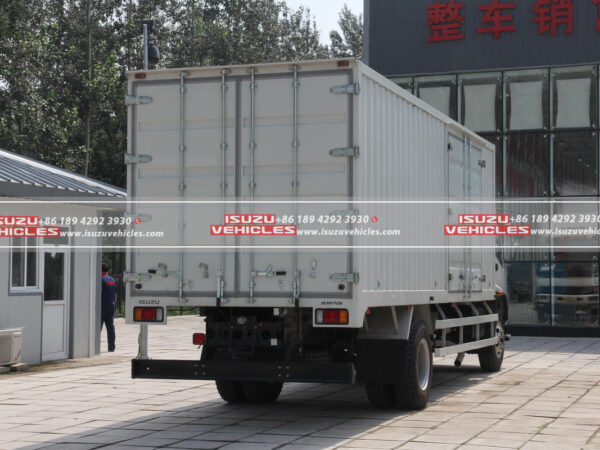

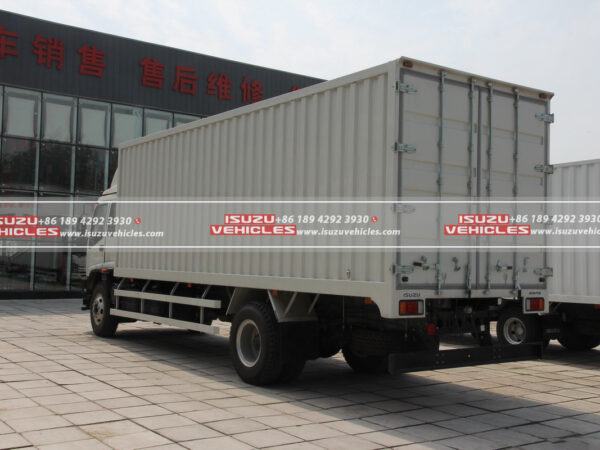

Furthermore, the cargo box, crafted to meticulous specifications measuring 7.12 meters in length, 2.385 meters in width, and 2.225 meters in height, ensures optimal utilization of space for cargo while adhering to industry standards.
Compatible with 10.00-20, 10.00R20, 11.00-20, and 11.00R20 tire specifications, equipped with 6 high-quality tires, this truck stands poised to deliver exceptional performance across a multitude of logistical domains, including express delivery, agricultural product transportation, cold chain transport, less-than-truckload shipping, and industrial goods transport.
SPECIFICATIONS:
Basic Information | |
---|---|
Announcement Model | QL5150XWQFRJ |
Type | Van Cargo Truck |
Drive Form | 4X2 |
Wheelbase | 5550mm |
Box Length | 7.1 meters |
Engine | Qingling Isuzu 6HK1-TCN |
Transmission | Isuzu MLD-6Q |
Vehicle Length | 9.6 meters |
Vehicle Width | 2.485 meters |
Vehicle Height | 3.67 meters |
Front Wheel Track | 1960mm |
Rear Wheel Track | 1855mm |
Curb Weight | 7.65 tons |
Rated Load | 7.155 tons |
Gross Vehicle Weight | 15 tons |
Maximum Speed | 95KM/h |
Place of Origin | Chongqing |
Tonnage Level | Heavy Cargo Truck |
Submarket | Express Delivery, Agricultural Product Transportation, Cold Chain Transport, Less-than-Truckload Shipping, Industrial Goods Transport |
Remarks | Enclosed top for the cargo body, not openable; Optional widened bumper; Optional air deflector |
Fuel Type | Diesel |
Engine Parameters | |
---|---|
Engine Model | Qingling Isuzu 6HK1-TCN |
Engine Brand | Qingling Isuzu |
Common Name for Engine | Isuzu 6HK1 |
Number of Cylinders | 6 |
Fuel Type | Diesel |
Cylinder Arrangement | In-line |
Displacement | 7.79L |
Emission Standard | EURO 2, EURO 3, EURO 4 |
Maximum Output Power | 178kw |
Maximum Horsepower | 242 horsepower |
Engine Type | Waste Gas Turbocharged, Air-to-Air Intercooled |
Cargo Box Parameters | |
---|---|
Cargo Box Type | Van |
Cargo Box Length | 7.12 meters |
Cargo Box Width | 2.385 meters |
Cargo Box Height | 2.225 meters |
Cab Parameters | |
---|---|
Number of Passengers | 3 |
Seat Rows | Semi-row |
Transmission Parameters | |
---|---|
Transmission Model | Isuzu MLD-6Q |
Transmission Brand | Isuzu |
Transmission Type | Manual |
Forward Gears | 6 gears |
Reverse Gears | 1 gear |
Fuel Tank | |
---|---|
Fuel Tank Capacity | 200L |
Chassis Parameters | |
---|---|
Front Axle Description | Isuzu Rear Axle |
Front Axle Allowable Load | 6300KG |
Rear Axle Allowable Load | 13000KG |
Number of Leaf Springs | 8/10+6 |
Tires | |
---|---|
Tire Specifications | 10.00-20, 10.00R20, 11.00-20, 11.00R20 |
Number of Tires | 6 pieces |
