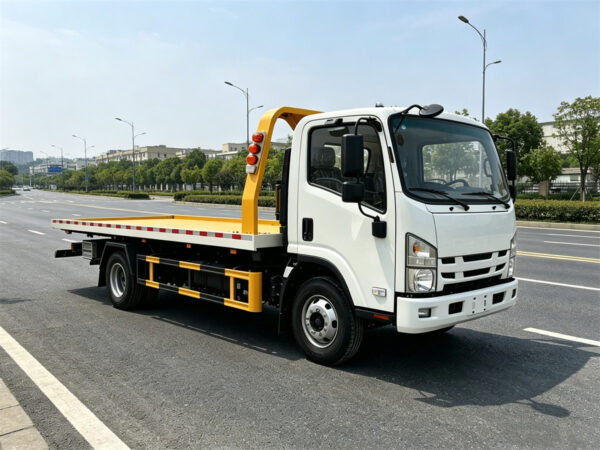

ISUZU 3 Ton Flatbed Wrecker Truck

ISUZU 3 Ton Flatbed Wrecker Truck

The ISUZU 3 Ton Flatbed Wrecker Truck is a compact and versatile vehicle recovery solution designed for professional roadside assistance, city road rescue, highway breakdown recovery, auto repair shop towing, and accident vehicle transportation. Built with a 4×2 drive configuration, a 3,815 mm wheelbase, a 7,300 kg gross vehicle weight, and a semi-drop flatbed body, this wrecker combines practical road maneuverability with dedicated vehicle recovery equipment, allowing operators to load disabled vehicles onto the flatbed and transport them safely to a repair facility or designated location. Customers looking for additional recovery configurations can also explore the current ISUZU Tow Truck range for different flatbed, rollback, underlift, and towing solutions.



Compact ISUZU 4×2 Chassis for Roadside Recovery

The truck uses a 4×2 chassis configuration with a 3,815 mm wheelbase and a single-row cab, creating a compact platform that is particularly suitable for urban recovery work where road space, turning areas, and parking conditions can be restrictive. With a gross vehicle weight of 7,300 kg, the vehicle provides a practical foundation for its semi-drop flatbed recovery body while maintaining the dimensions needed for efficient operation on city streets and highways.



130 HP ISUZU 4KH1 Engine

Power is provided by an ISUZU 4KH1 diesel engine rated at 130 HP, giving the truck the necessary power for routine vehicle recovery, flatbed loading, and transportation duties. The engine is paired with a 5-speed manual gearbox, providing a straightforward drivetrain configuration suitable for daily towing and recovery operations. The specified emission standard is Euro 2, while the 80-liter fuel tank provides practical fuel storage for regular service work.



5,600 × 2,300 mm Semi-Drop Flatbed

The main recovery platform is a semi-drop flatbed measuring 5,600 × 2,300 mm, providing sufficient space for transporting disabled passenger vehicles and other suitable light vehicles. The flatbed uses a checkered steel plate surface, creating a practical loading platform with a working surface designed for vehicle recovery operations. Its semi-drop design also provides a useful approach configuration when loading vehicles onto the recovery deck.



3 Ton Hydraulic Winch

A 3 ton hydraulic winch with steel wire rope is installed as the primary pulling equipment, allowing the operator to recover vehicles that cannot drive onto the flatbed under their own power. The hydraulic winch works together with the flatbed loading system to support controlled vehicle recovery, making the truck suitable for accident scenes, roadside breakdowns, repair-shop towing, and other situations where a disabled vehicle needs to be loaded rather than simply towed behind the truck.



Features of ISUZU 3 Ton Flatbed Wrecker Truck

1. Semi-Drop Flatbed Recovery Design

The semi-drop flatbed is the central component of the vehicle recovery system, combining a 5,600 mm long and 2,300 mm wide platform with a practical loading configuration for disabled vehicles. Instead of relying solely on conventional towing, the flatbed allows the recovered vehicle to be placed directly onto the truck, which can be especially useful when the disabled vehicle has steering, braking, transmission, or wheel-related problems that make conventional towing less convenient.



The flatbed is constructed with a checkered steel plate, providing a durable working surface for regular vehicle loading and transportation. The platform configuration is well suited to professional recovery operators who need a dedicated carrier for moving accident-damaged or mechanically disabled vehicles.



2. 3 Ton Hydraulic Winch with Steel Wire Rope

The truck is equipped with a 3 ton hydraulic winch and steel wire rope, providing the pulling capability required to bring disabled vehicles onto the flatbed. This is particularly valuable when a vehicle cannot start, has suffered an accident, or is positioned in a location where it cannot be driven directly onto the recovery platform.



The hydraulic winch provides a dedicated recovery function while keeping the overall vehicle configuration compact enough for urban roadside operations. For customers comparing different winch-equipped recovery vehicles, the current ISUZU 3T 100P Flatbed Wrecker Truck is another specialized flatbed recovery model available on the current website.



3. 7,300 kg Gross Vehicle Weight

With a specified 7,300 kg gross vehicle weight, the truck is positioned as a practical light-duty recovery vehicle capable of carrying its specialized flatbed and recovery equipment while maintaining a manageable road-going configuration. This makes it suitable for towing companies, roadside assistance providers, auto repair shops, municipal rescue services, and vehicle recovery fleets that require a dedicated wrecker without moving into a much larger heavy-duty platform.



4. 3,815 mm Wheelbase for Urban Maneuverability

The 3,815 mm wheelbase provides a useful balance between flatbed length and vehicle maneuverability, allowing the truck to accommodate a 5,600 × 2,300 mm recovery platform without becoming unnecessarily long. This configuration is especially useful for urban rescue work, where recovery vehicles frequently need to operate on narrow streets, in parking areas, near accident scenes, and around busy repair facilities.



5. 130 HP ISUZU 4KH1 Diesel Engine

The ISUZU 4KH1 engine delivers 130 HP and provides the truck with a practical power source for daily recovery and transportation duties. Its configuration is matched with a 5-speed manual transmission, giving the operator direct control over the vehicle’s drivetrain during loading, towing, and road transportation operations.



The powertrain is designed around the truck’s specialized recovery role, where controlled vehicle movement and dependable low-speed operation are often more important than high-speed performance.



6. Flatbed Loading and Rear Lifting Functions

The vehicle’s stated function combines flatbed loading and rear lifting, allowing the recovery truck to handle more than one type of vehicle rescue situation. According to the supplied configuration, the truck can support the rescue of two vehicles at one time, giving professional recovery operators greater flexibility when dealing with multiple disabled vehicles during accident response or roadside assistance operations.



This multifunctional configuration can help reduce the need for separate recovery vehicles in certain operating situations, particularly for towing companies and service providers that regularly handle several vehicle recovery tasks during the same working period.



7. Professional Recovery Accessories

The truck is supplied with a practical set of standard recovery accessories, including lifting forks, binding belts, and auxiliary rollers. These components support different stages of the recovery process, from positioning and lifting a disabled vehicle to securing it on the flatbed for transportation.



The inclusion of dedicated recovery accessories means that the truck is configured as a complete vehicle rescue solution rather than simply a standard chassis fitted with a flat platform, helping operators perform common roadside recovery tasks with the appropriate equipment already integrated into the vehicle configuration.



8. 80-Liter Fuel Tank and 7.50R16 Tires

The truck is equipped with an 80-liter fuel tank and 7.50R16 tires, providing a practical chassis configuration for regular urban and highway recovery work. The tire specification is matched to the vehicle’s light-duty recovery application, while the fuel capacity supports routine service operations between refueling stops.



9. Single-Row Cab for Professional Recovery Operations

The single-row cab provides a straightforward working environment for the driver and recovery personnel, keeping the vehicle configuration focused on its primary rescue and transportation function. Its compact chassis design works well with the semi-drop flatbed body, allowing the overall vehicle to remain practical for city streets, highways, workshops, and accident-response locations.



10. Versatile Applications for Vehicle Rescue

The ISUZU 3 Ton Flatbed Wrecker Truck is designed for a broad range of professional vehicle recovery applications, including city road rescue, highway breakdown assistance, auto repair shop towing, accident vehicle transportation, and general roadside recovery. The combination of a semi-drop flatbed, 3 ton hydraulic winch, rear lifting function, lifting forks, binding belts, and auxiliary rollers gives operators a practical set of tools for recovering and transporting disabled vehicles.



For customers comparing different ISUZU recovery configurations, the current ISUZU Tow Truck category provides a range of specialized models, while the ISUZU 700P 4 Ton Flatbed Wrecker offers a larger flatbed recovery configuration for customers who require greater carrying and recovery capability.



With its 4×2 chassis, 7,300 kg gross vehicle weight, 130 HP ISUZU 4KH1 engine, 5-speed manual gearbox, 5,600 × 2,300 mm semi-drop flatbed, and 3 ton hydraulic winch, this wrecker provides a practical combination of recovery equipment and road-going mobility for professional towing businesses, roadside assistance fleets, repair shops, and accident-response operators.

Specifications

Parameter	Details
Vehicle Type	Semi-Drop Flatbed Wrecker Truck
Wheelbase	3815mm
Driving Type	4×2
Gross Vehicle Weight	7300KG
Cab	Single row cab
Fuel tank	80L
Engine	4KH1
Flatbed Type	Semi-drop Flatbed
Horsepower	130HP
Flatbed Size	5600 × 2300 mm
Emission	Euro 2
Winch	3 Ton Hydraulic Winch with steel wire rope
Gearbox	5-speed Manual Gearbox
Function	Flatbed loading + rear lifting, rescue two vehicles at one time
Flatbed Material	Checkered Steel Plate
Standard Accessories	Lifting forks, binding belts, auxiliary rollers
Tire	7.50R16
Application	City road rescue, highway breakdown vehicle recovery, auto repair shop towing, accident vehicle transportation
