SUMMARY:

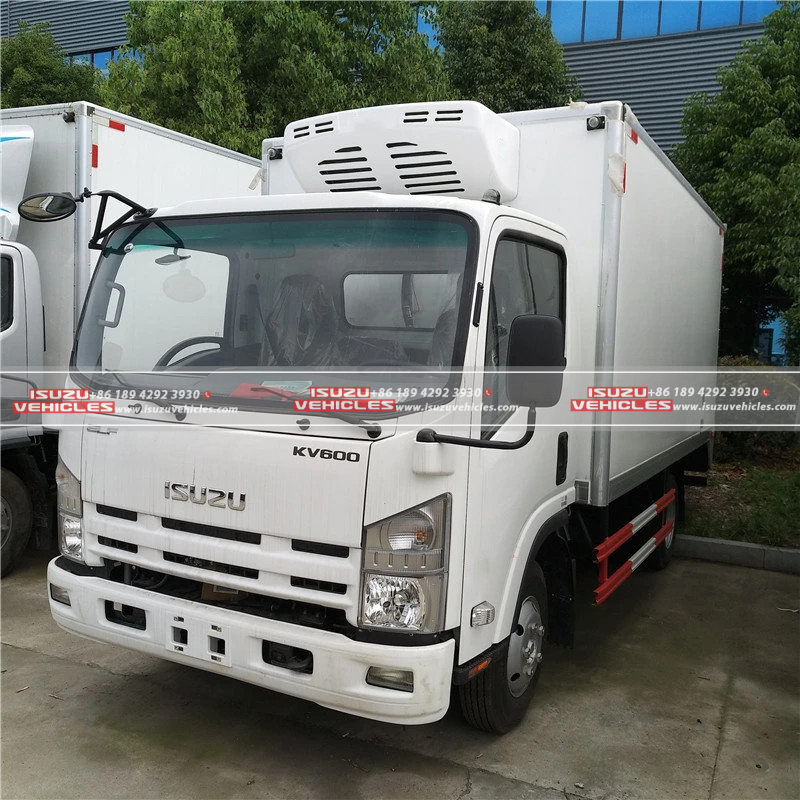

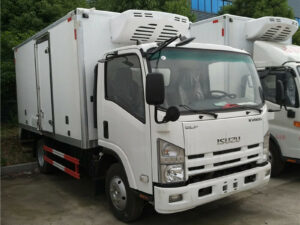

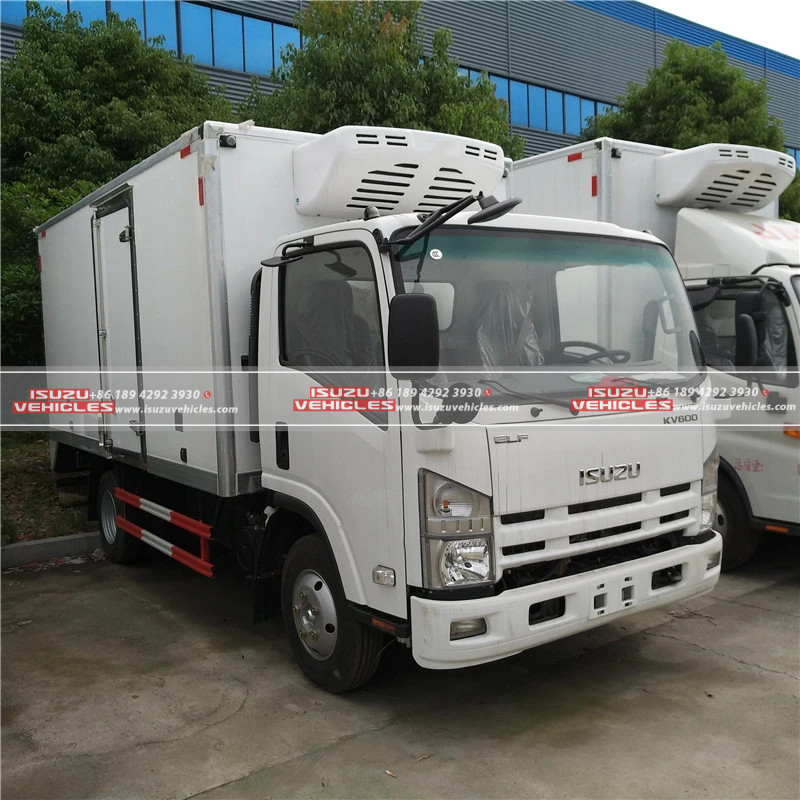

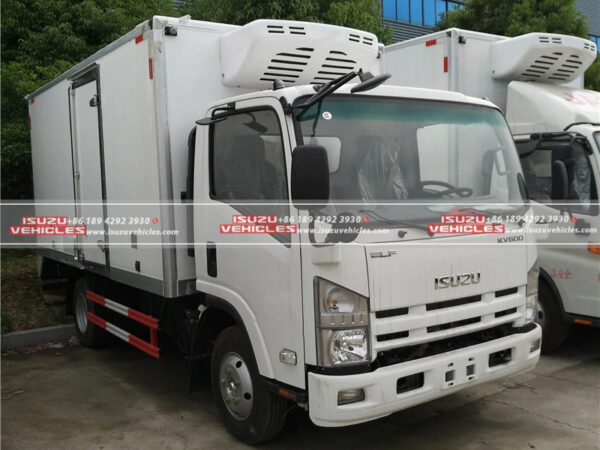

The ISUZU 6 Ton Fresh Vegetables and Meats Transport Refrigerator Truck is a versatile and efficient solution for transporting frozen and fresh goods. This refrigerated truck offers a combination of precision engineering and thoughtful design to ensure the safe and reliable transportation of temperature-sensitive cargo. Whether it’s frozen food, dairy products, fruits, vegetables, or pharmaceuticals, this refrigerated truck is equipped to meet your specific transportation needs.
This ISUZU Refrigerator Truck offers superior temperature control, versatility, and reliability, making it an indispensable asset for businesses involved in the transportation of perishable goods. Whether you’re in the food industry, pharmaceuticals, or any other sector requiring precise temperature-controlled transport, this refrigerated truck is designed to meet your demands.
FEATURES:
- Versatile Refrigeration: This refrigerated truck is equipped with a powerful refrigeration system capable of maintaining temperatures as low as -18°C, ensuring that your cargo remains fresh and frozen during transport.

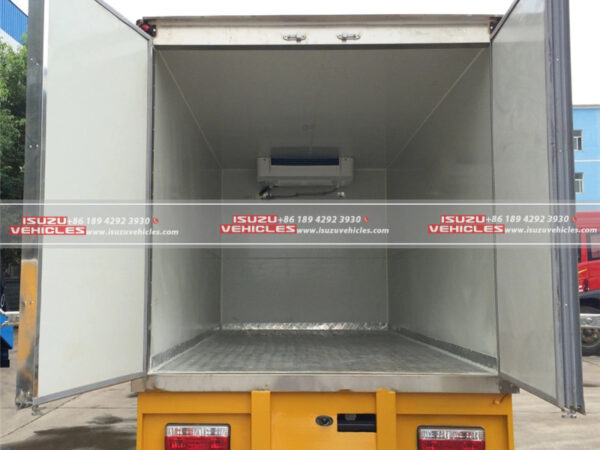

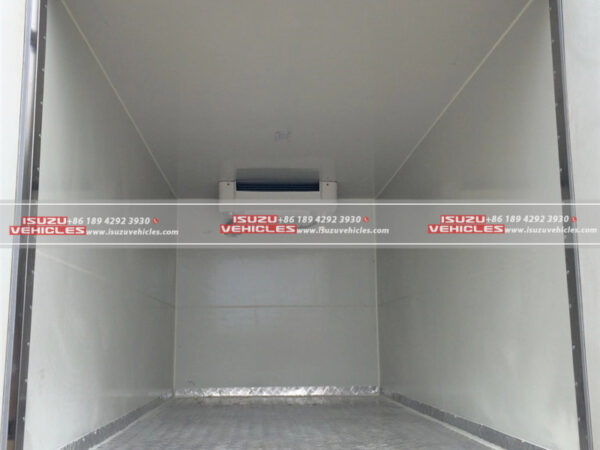

- Robust Construction: The inner and outer walls of the refrigerated box are constructed with reinforced plastic, providing excellent durability and insulation. The middle insulating layer, made of polyurethane, measures 80mm in thickness, ensuring efficient temperature control.
- Temperature Range: The refrigeration system can maintain temperatures ranging from -5°C to -18°C, making it suitable for transporting a wide range of perishable goods, from fresh produce to frozen meats.

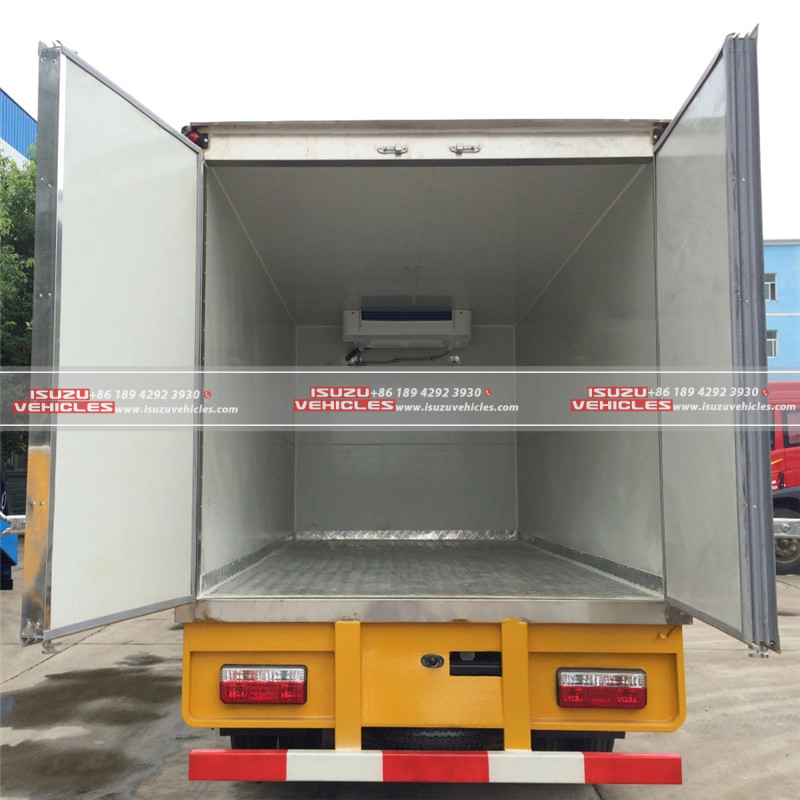

- Spacious Interior: With an overall cargo box dimension of 5080x2050x2100mm, this truck offers ample space to accommodate a variety of cargo sizes and quantities. The box and door thickness of 80mm ensures optimal space utilization.

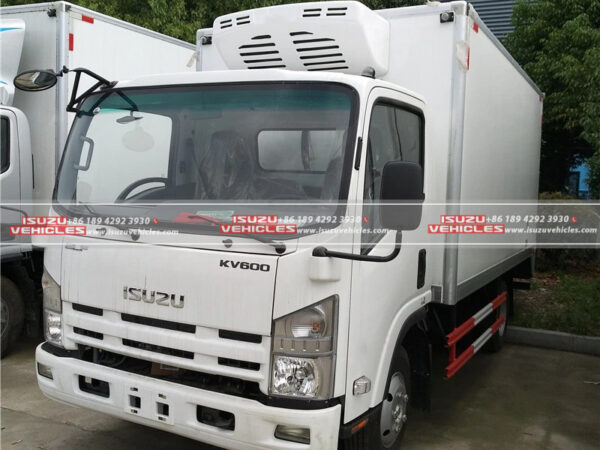

- Sturdy Chassis: Built on an ISUZU chassis, this refrigerated truck boasts a robust and reliable foundation, providing stability and ease of handling during transportation.

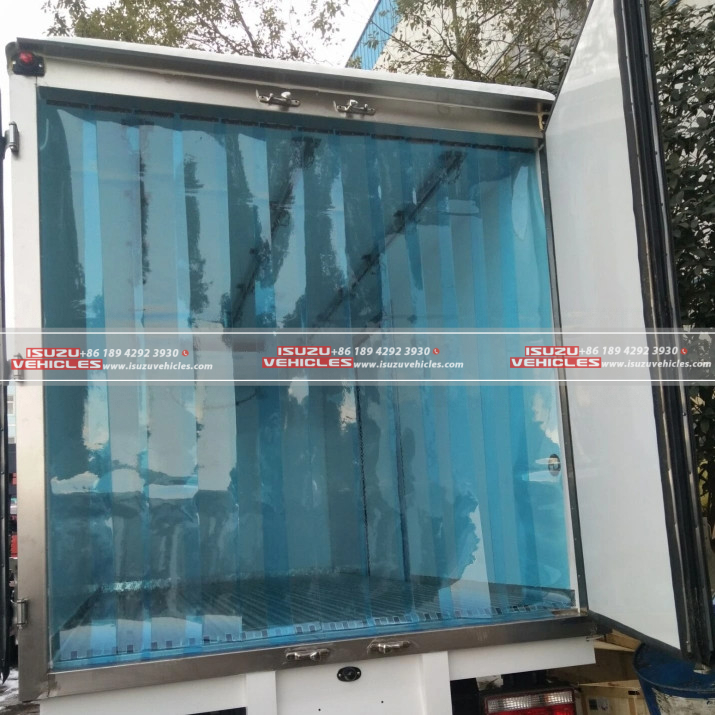

- Enhanced Safety: The truck features an envelope surrounded with 2.5mm aluminum edging, stainless steel corners, and stainless steel door locks for added security and durability. Additionally, four anti-collision rubber pads further protect the cargo.
- Energy-Efficient Lighting: The interior of the cargo box is equipped with energy-efficient lighting, allowing for easy loading and unloading in various lighting conditions.

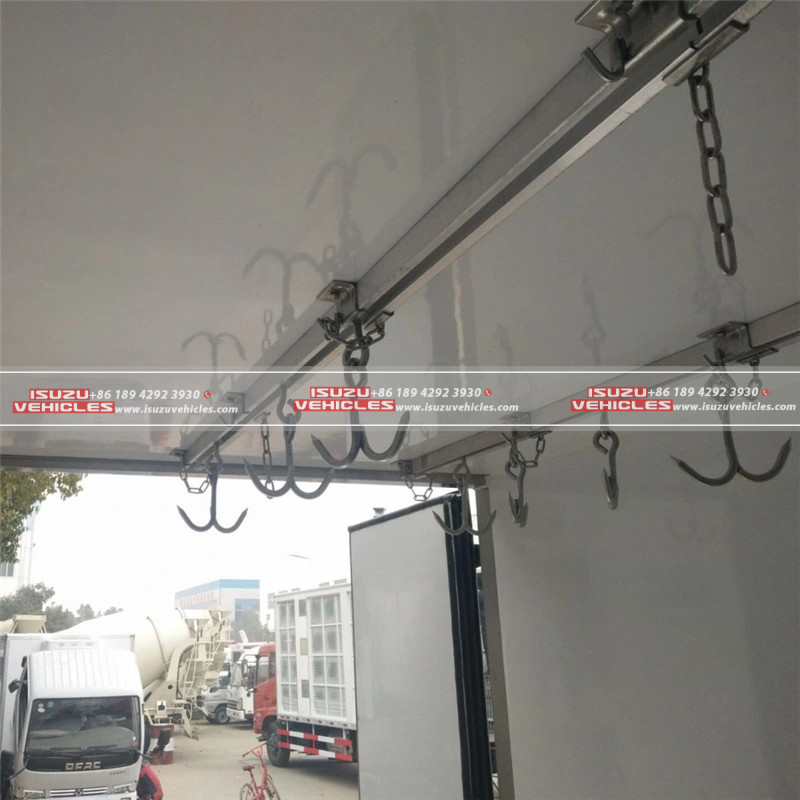

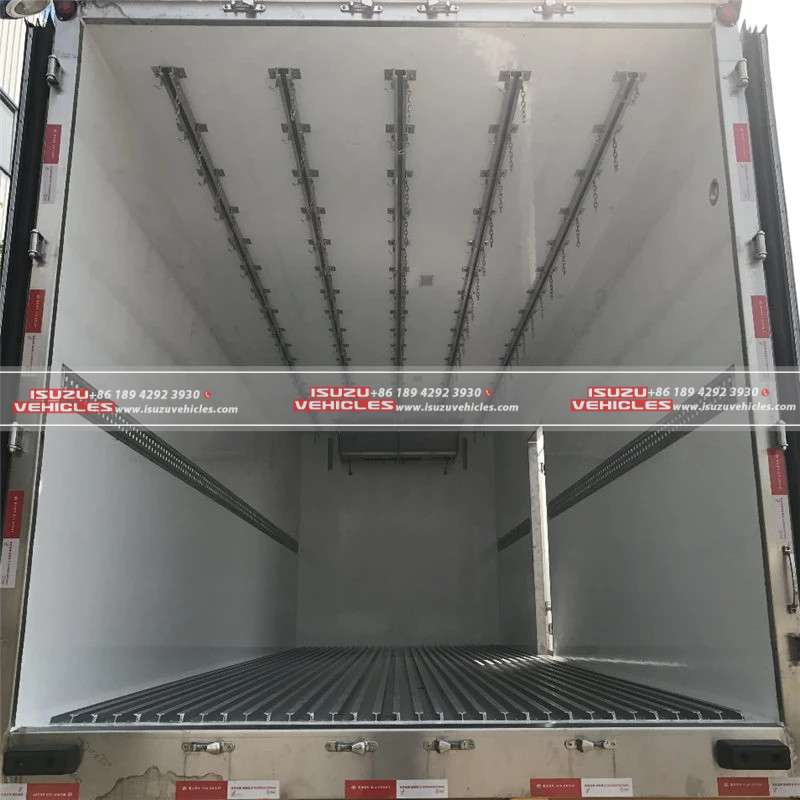

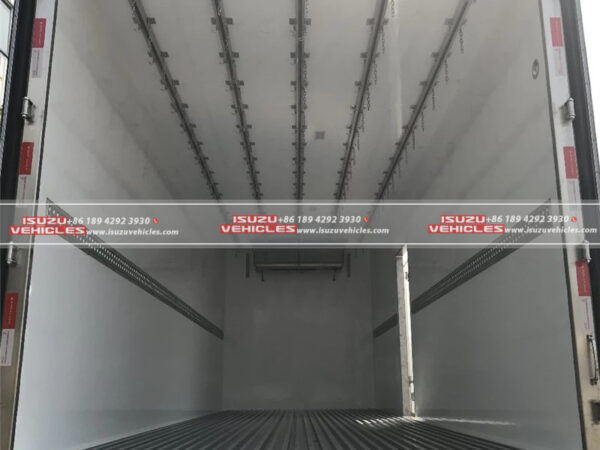

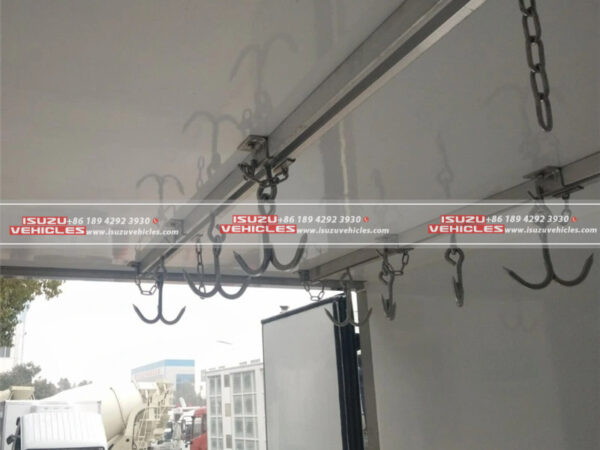

- Customization Options: Depending on your specific needs, optional features such as meat hooks, waist rails, aluminum rails, and ventilation slots can be added to tailor the truck to your cargo requirements.
- Reliable Refrigeration Units: The refrigeration units come in both non-independent and independent variants, including domestic and imported options. The choice of refrigeration unit depends on your temperature control needs.
- Multiple Use Cases: This refrigerated truck is suitable for transporting various goods, including frozen foods, dairy products, fresh produce, vaccines, and more. Its flexibility and temperature control capabilities make it an ideal choice for a wide range of applications.
SPECIFICATIONS:
ITEM | UNIT | PARAMETER |
---|---|---|
Vehicle | ISUZU Refrigerator Van Truck | |
Dimensions | ||
Overall Dimensions (mm) | mm | 6595×2385×3200 |
Box Dimensions (mm) | mm | 5080x2050x2100 |
Weights | ||
Gross Vehicle Weight (GVW) (kg) | kg | Approximately 10,250 |
Curb Weight | Approximately 4,250 kg | |
Payload | Approximately 6,000 kg | |
Chassis | ||
Wheelbase (mm) | mm | 3815 |
Front/Rear Track Base | mm | 1300/1240 |
Front/Rear Suspension | mm | 1010/1385 |
Approach/Departure Angle (°) | ° | 20/13 |
Maximum Speed (km/h) | km/h | 85 |
Axle Load | kg | 2540/3820 |
Drive Model | 4×2 | |
Fuel Type | Diesel | |
Tire Specification | 7.50-16 | |
Number of Axles | 2 | |
Engine | ||
Engine Model/Manufacturer | QINLIN ISUZU | |
Engine Type | 4KH1-TCG4O | |
Emission/kW | ml/kW | 2999 ml/88 kW, 120 hp |
Transmission | ||
Type | 5F/1R | |
Standard Configuration | ||
– Side Door | ||
– Color Plate | ||
– Hook Line with Three-Way Ventilating Slot | ||
Refrigerator System | ||
– Temperature Range | -5ºC to -18ºC | |
Box Specifications | ||
– Inner and Outer Walls | Reinforced Plastic (Thickness: 2.2 mm) | |
– Middle Insulating Layer | Polyurethane (Thickness: 80 mm) | |

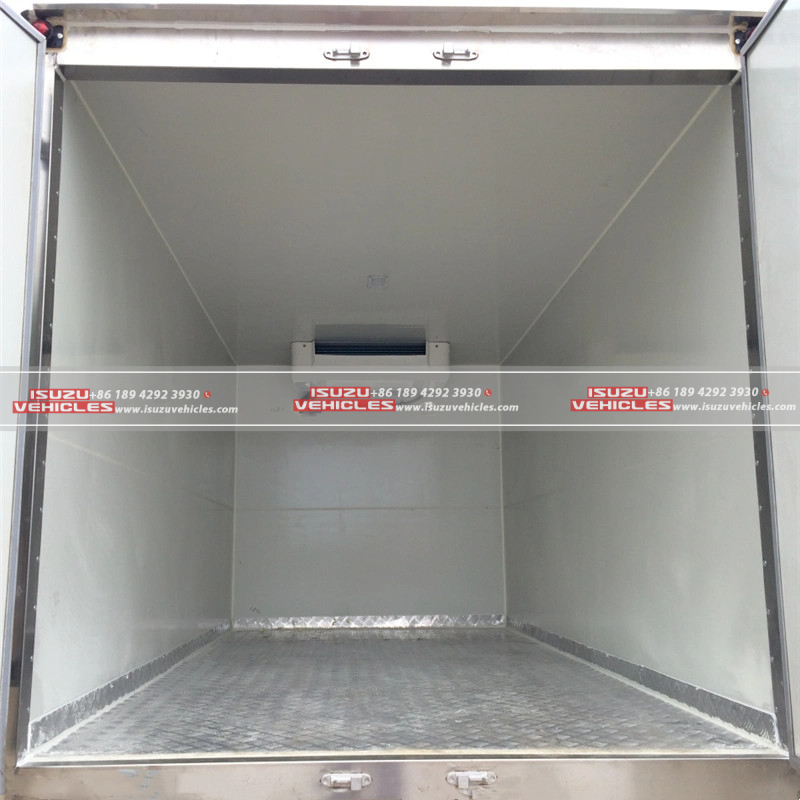

– Bottom Plate | Aluminum Checkered Plates and Color Plate | |
Additional Accessories (Included) | ||
– Envelope Surrounding | mm | 2.5 mm Aluminum Edging |
– Stainless Steel Corners | ||
– Stainless Steel Door Locks | ||
– Anti-Collision Rubber | 4 pieces | |
– Stainless Steel Door | ||
– Stainless Steel Hinges | ||
– Energy-Efficient Interior Lighting |
