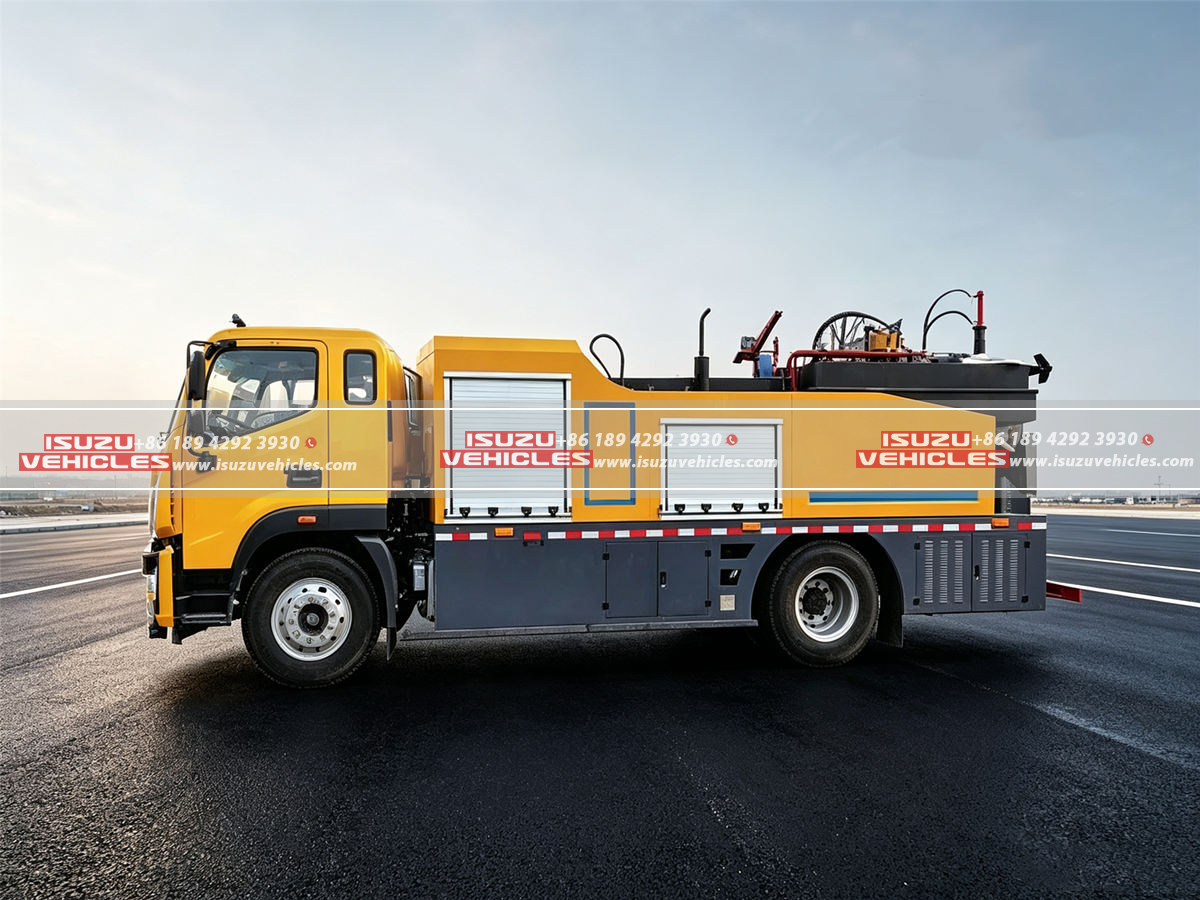

ISUZU Asphalt Pavement Hot Recycling Repair Truck

ISUZU Asphalt Pavement Hot Recycling Repair Truck

The ISUZU Asphalt Pavement Hot Recycling Repair Truck is a professional road maintenance vehicle designed for efficient asphalt pavement repair, especially for urban roads, highways, municipal roads, and other infrastructure projects requiring fast and high-quality restoration. Built on the reliable ISUZU chassis with a powerful 4HK1-TC50 diesel engine, this truck combines excellent mobility, stable operation, and advanced asphalt heating and mixing technology to provide an integrated solution for pothole repair, pavement regeneration, and small-area asphalt maintenance.

Powered by an ISUZU 4HK1-TC50 engine with 205 HP and Euro V emission standard, the vehicle delivers strong performance even under demanding working conditions while maintaining good fuel efficiency and durability. The 4×2 chassis configuration, 4,500 mm wheelbase, and 10.00R20 tires provide excellent road adaptability, allowing the truck to operate smoothly on both city streets and construction areas. With an approximate overall dimension of 8,555 × 2,550 × 3,210 mm and a gross vehicle weight of about 18,000 kg, the truck offers a balanced combination of compact structure and high working capacity.

The vehicle is equipped with two 1-ton gravel mixing containers, which allow operators to prepare two different asphalt mixture ratios simultaneously, improving repair efficiency and reducing waiting time during road maintenance operations. Through the combination of asphalt heating, material mixing, dust removal, and spraying systems, this hot recycling repair truck can complete multiple repair procedures with one vehicle, helping road maintenance teams reduce equipment requirements and improve construction productivity.

Features

Advanced Asphalt Heating and Mixing System

The ISUZU pavement repair truck adopts a professional asphalt heating and mixing structure that ensures stable material quality during operation. The gravel mixing containers use hydraulic motor-driven vertical forced mixing technology, providing uniform mixing performance and preventing material separation. The system combines indirect heating with hot air circulation heating, ensuring that asphalt materials reach the required temperature range efficiently while maintaining consistent heating results.

Equipped with Italian Black & Decker burners, two burners are installed for the mixing containers to provide reliable heating performance, while the asphalt container uses an Italian Riello burner system for stable temperature control. The asphalt temperature can be controlled between 120–180°C through automatic and manual adjustment modes, allowing operators to adapt to different repair requirements and working environments.

Efficient Repair Operation and Material Management

The truck is designed to maximize convenience and operational efficiency during road repair projects. The rear and side charging system uses a hydraulic cylinder lifting chain mechanism, enabling quick loading of materials, while the discharge system supports both side and rear discharge methods according to construction conditions.

The vehicle is equipped with a 500L asphalt container and a 1200L emulsified asphalt container, providing sufficient material storage for continuous repair operations. The emulsified asphalt system includes a 6-meter automatic self-cleaning electric heating pipe, while the road crack spraying system uses a 5-meter automatic no-cleaning electric heating pipe, helping prevent material blockage and improving daily maintenance convenience.

Integrated Dust Removal and Auxiliary Systems

To create a cleaner working environment, the ISUZU truck features a four-layer water mist filtration dust removal system powered by a 370W blower. This design effectively reduces dust generated during mixing and material handling, supporting environmentally friendly road maintenance operations.

The truck also integrates a high-pressure air self-cleaning pipeline system with a working pressure of 0.7 MPa, helping operators quickly clean pipelines and equipment after operation. A standard generator is installed on the vehicle to provide additional power for external equipment, making the truck more flexible for independent construction sites.

Reliable Components and Practical Design

The major hydraulic and control components adopt reliable international and domestic brands, including USA Parker, USA Eaton, and Taiwan Petroleum, ensuring stable system performance and long service life. The control system supports manual, automatic, and remote operation modes, allowing operators to manage the truck from different positions for improved safety and convenience.

A dedicated 1 CBM storage space is also designed on the truck body for carrying small construction tools and repair equipment, making the vehicle a complete mobile pavement maintenance solution. With its powerful ISUZU platform, efficient asphalt recycling technology, and multifunctional repair capability, this truck provides an ideal choice for professional road maintenance contractors and municipal service departments.

Specifications
