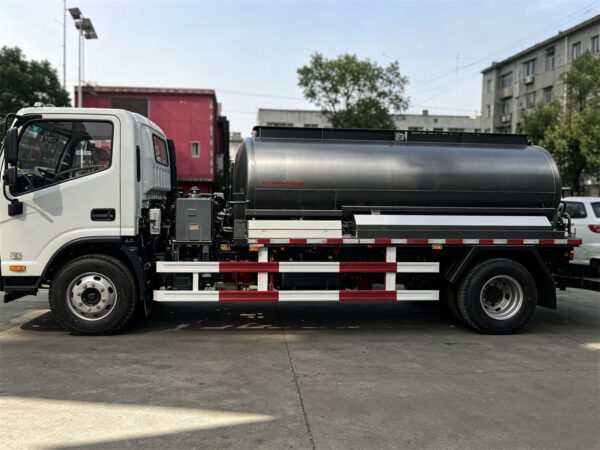

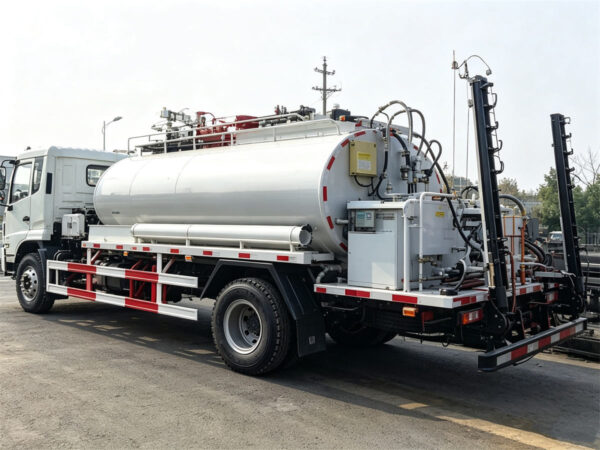

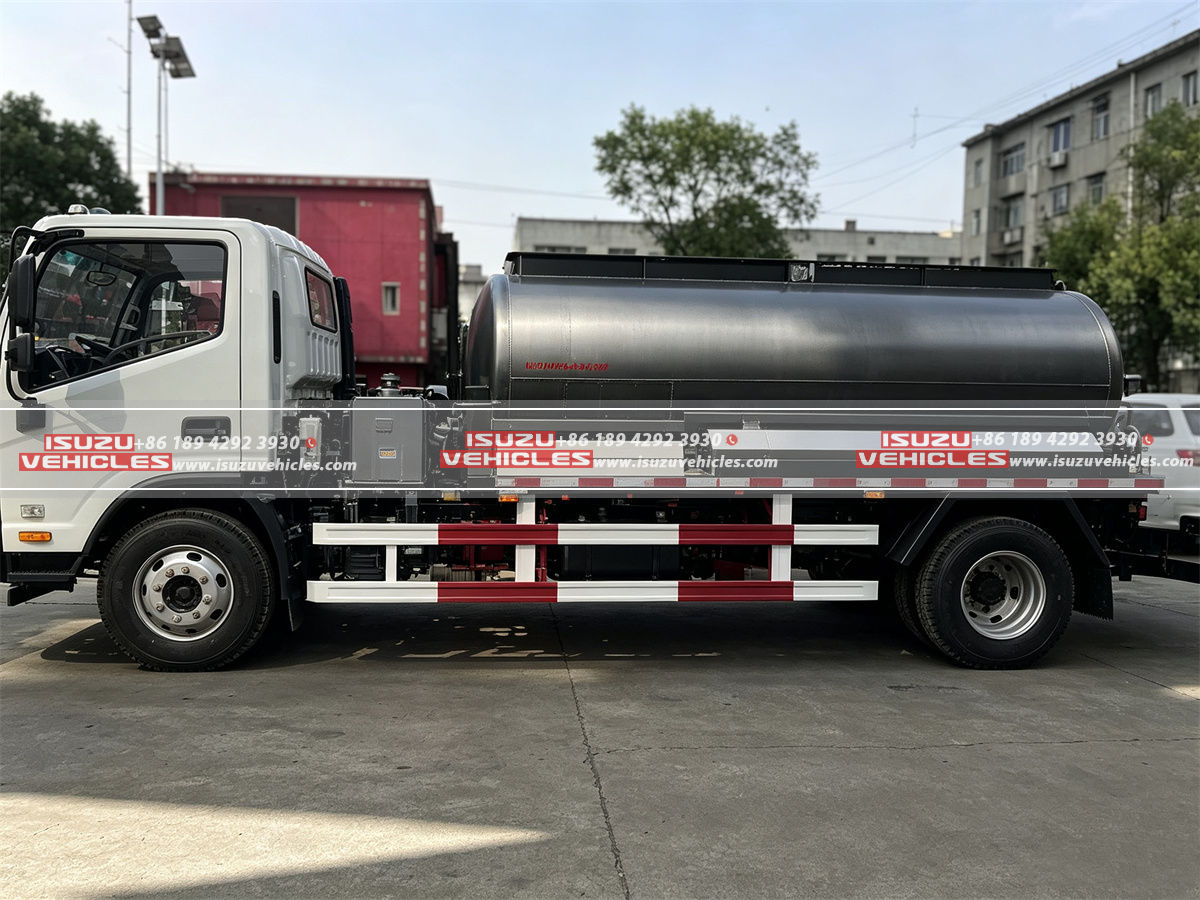

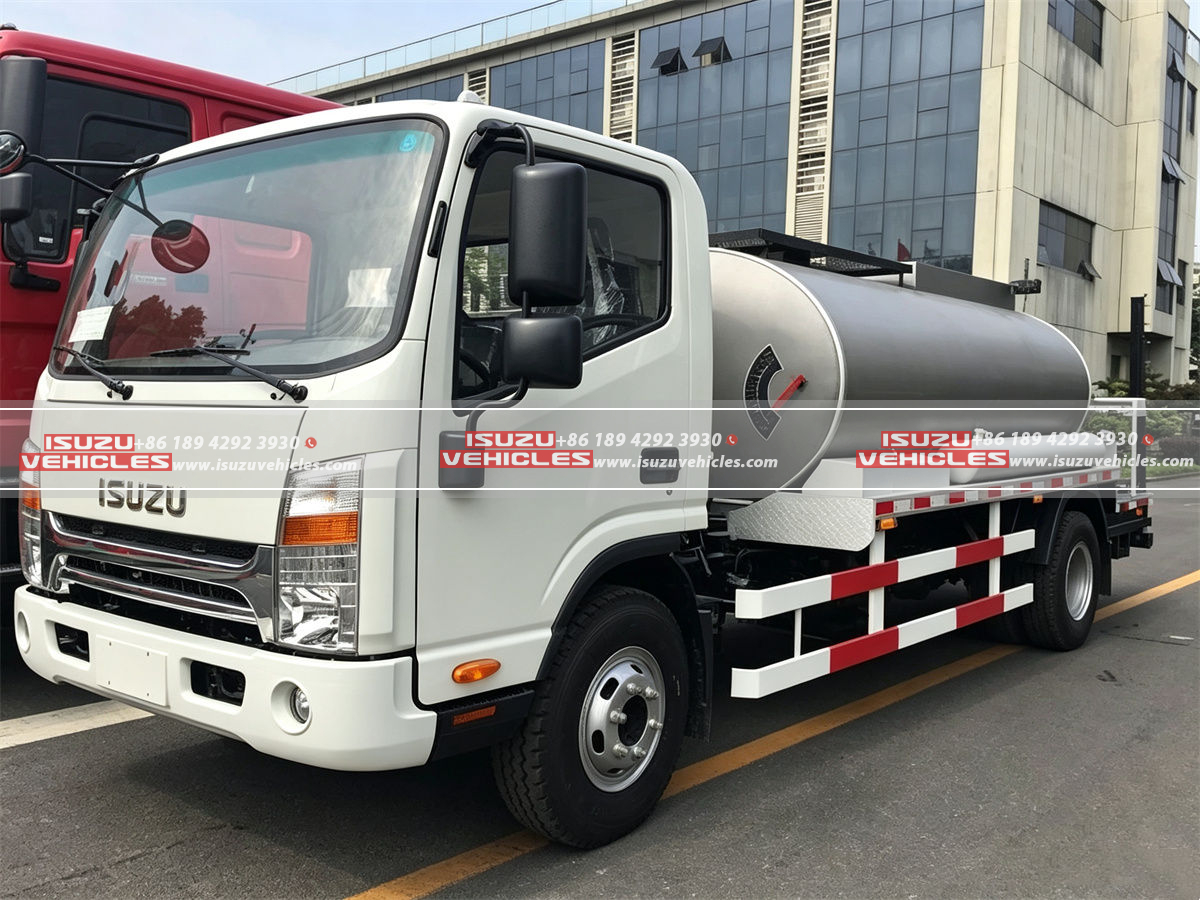

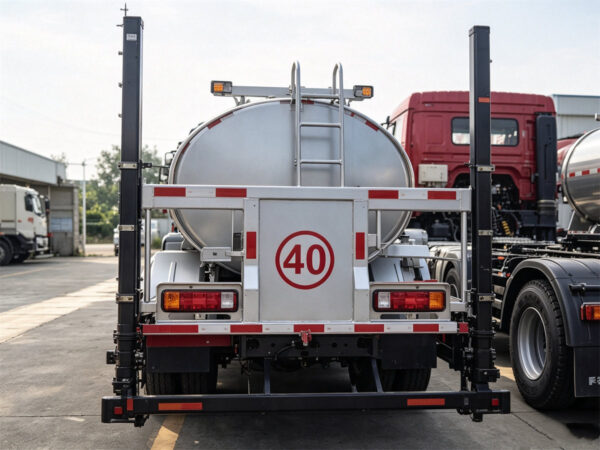

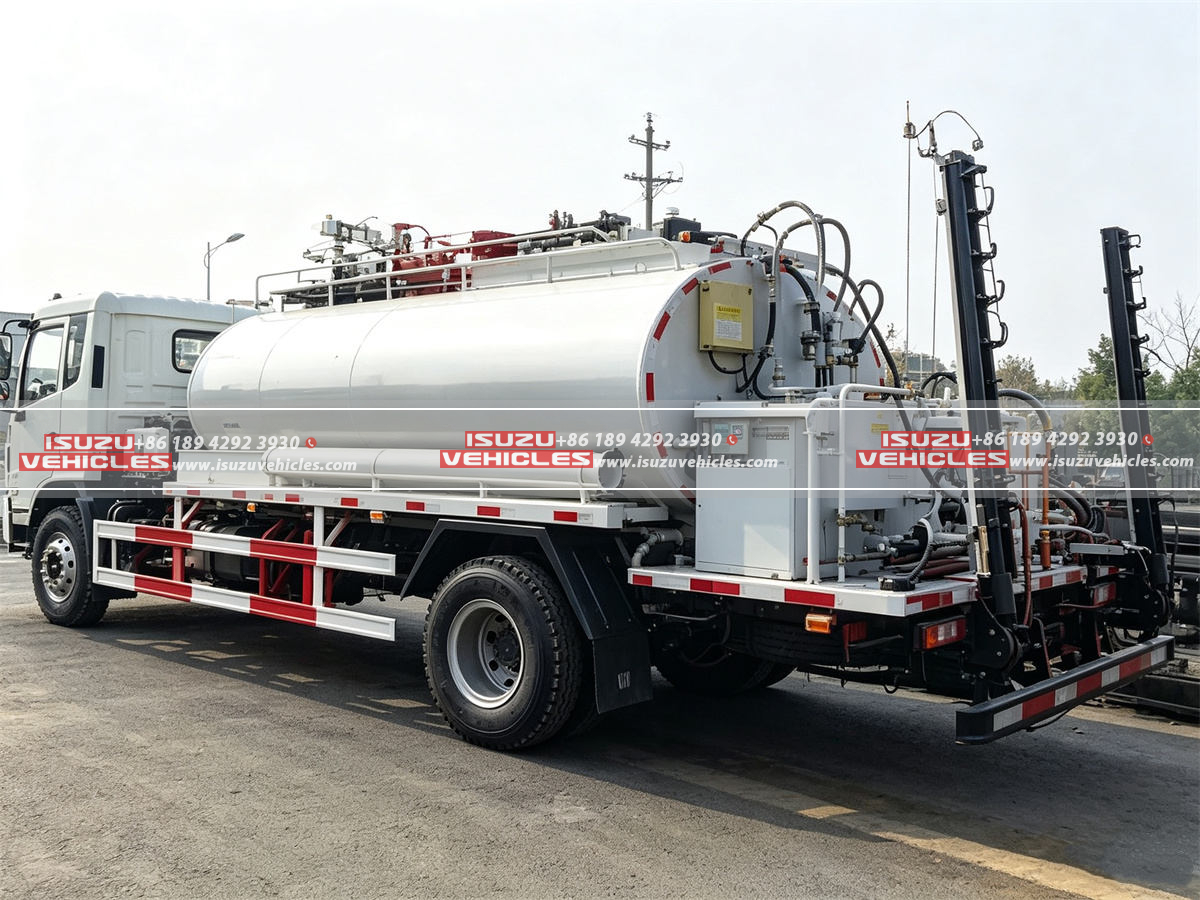

ISUZU 4 CBM Semi Automatic Asphalt Distributor Truck
The ISUZU 4 CBM Semi Automatic Asphalt Distributor Truck is a compact and efficient road construction vehicle designed for asphalt spraying, pavement maintenance, and surface treatment projects. Built on the reliable ISUZU HFC1080K3T chassis, this truck combines excellent driving performance, stable operation, and accurate asphalt distribution technology, making it suitable for highway maintenance, municipal road repair, airport pavement treatment, and other infrastructure construction applications.
With an asphalt tank capacity of 4,000 liters, the vehicle provides sufficient working volume while maintaining a compact structure that allows easy operation in urban areas and narrow construction sites. The truck features an overall dimension of approximately 6,340 × 2,100 × 2,540 mm, offering good maneuverability without compromising working efficiency. Its professional asphalt spraying system supports a spray width range from 200 mm to 4,000 mm, allowing operators to adjust the spraying area according to different pavement repair requirements.
The semi automatic asphalt distributor system is designed to improve spraying accuracy and reduce manual operation difficulty. It can handle various spraying materials, including hot asphalt, modified asphalt, diluted asphalt, and emulsified asphalt, providing a flexible solution for different road maintenance conditions. With precise spray volume control from 0.3 to 2.0 kg/m², the truck ensures uniform asphalt coverage and helps improve pavement quality and durability.
Features
Efficient Asphalt Heating and Spraying System
The ISUZU asphalt distributor truck is equipped with an advanced asphalt heating system using an imported diesel burner with a heating capacity of 10×10⁴ kcal/h, which provides stable and efficient temperature control for asphalt materials. The heating system helps maintain proper asphalt fluidity, ensuring smooth spraying performance and reducing the risk of material solidification during operation.
The spraying system is designed for high adaptability and can distribute different types of asphalt materials, including hot asphalt, modified asphalt, diluted asphalt, and emulsified asphalt. With an adjustable spray width of up to 4 meters and accurate spray volume control, the truck can meet various pavement construction requirements, from small repair sections to larger road surface treatment projects.
Reliable ISUZU Chassis Performance
Built on the ISUZU HFC1080K3T chassis, this asphalt distributor truck offers excellent stability, durability, and road adaptability. The chassis structure is designed for commercial and construction applications, providing reliable support for the asphalt tank and spraying equipment while maintaining comfortable driving performance.
The compact vehicle design allows convenient transportation between different work locations, while the strong chassis performance ensures stable operation even under demanding road maintenance conditions. The balanced body structure also improves safety during asphalt loading, transportation, and spraying operations.
Precise Operation and Practical Design
The semi automatic control system provides operators with convenient management of the spraying process, helping achieve consistent asphalt distribution and improving construction efficiency. The adjustable spraying parameters allow the truck to adapt to different pavement conditions, material requirements, and project specifications.
The 4,000L asphalt tank is designed with practical capacity and efficient utilization, reducing the frequency of refilling during daily operations. Combined with the compact dimensions and flexible spraying capability, this asphalt distributor truck is an ideal choice for contractors and municipal maintenance teams requiring reliable pavement treatment equipment.
Suitable for Multiple Road Maintenance Applications
The ISUZU 4 CBM Asphalt Distributor Truck is widely applicable for asphalt surface sealing, road repair, pavement reinforcement, and preventive maintenance projects. Its combination of accurate spraying technology, efficient heating performance, and dependable ISUZU chassis makes it a valuable solution for improving road construction quality and extending pavement service life.
Specifications
| Parameter | Specification |
|---|---|
| Chassis Model | HFC1080K3T |
| Overall Dimensions (L×W×H) | 6,340 × 2,100 × 2,540 mm |
| Asphalt Tank Volume | 4,000 L |
| Asphalt Heating Mode | Imported diesel oil burner (Calorific value: 10×10⁴ kCal/h) |
| Spray Width | 200 – 4,000 mm |
| Spray Volume | 0.3 – 2.0 kg/m² |
| Spray Media | Hot (modified) asphalt, diluted asphalt, emulsified asphalt, etc. |
