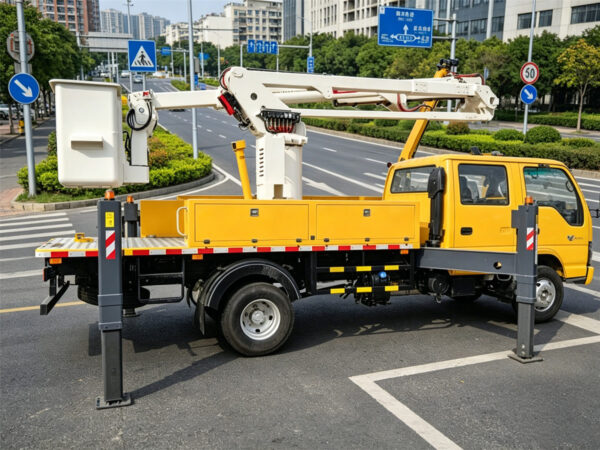

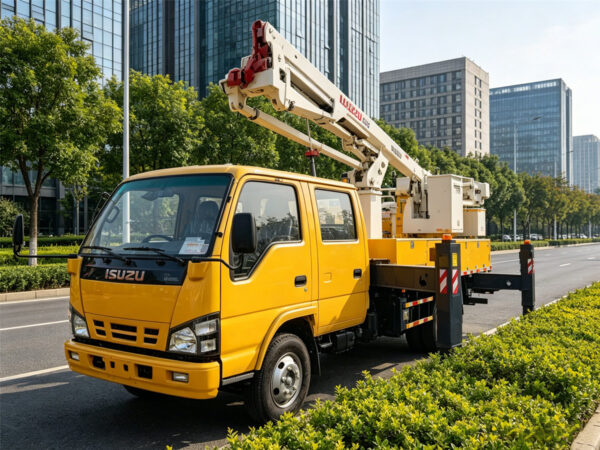

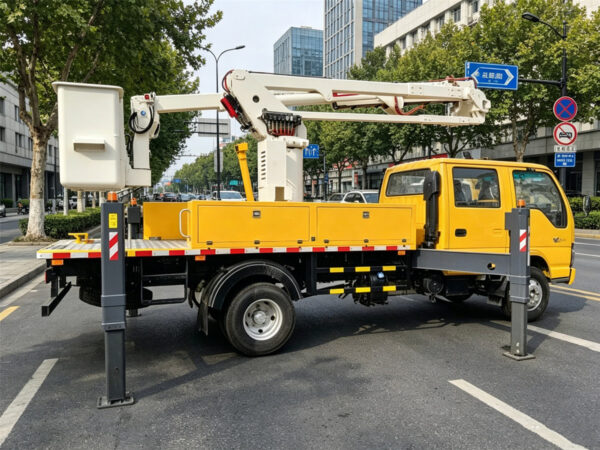

ISUZU Insulated Bucket Mounted Utility Truck
The ISUZU Insulated Bucket Mounted Utility Truck is a professionally engineered aerial working vehicle designed to provide safe, efficient, and stable elevated operation performance for electrical maintenance, utility servicing, telecommunications installation, street lighting repair, and municipal engineering applications. Combining reliable chassis technology with a highly insulated aerial working platform, this utility truck is specially developed for industries that require dependable high-altitude access together with enhanced operator safety in live-line or electrically sensitive environments.
Built with a compact yet durable structure, the vehicle features an overall dimension of 6,950 × 2,000 × 2,900mm, allowing it to operate efficiently in crowded urban roads, industrial facilities, residential neighborhoods, and narrow working areas where maneuverability and accessibility are extremely important. The truck integrates a high-performance insulated boom system with a fiberglass bucket platform, providing operators with stable aerial access while maintaining excellent insulation protection during elevated utility operations.
The aerial device is equipped with a 12.3-meter boom length and a maximum tip height of 14 meters, enabling maintenance personnel to safely reach elevated working locations with greater flexibility and efficiency. The insulated boom structure has been tested under 100kV/5min insulation standards, ensuring reliable electrical protection during operations near power distribution systems and electrical infrastructure.
Powered by the dependable ZD30D13-5N diesel engine, the truck delivers reliable power output and smooth operating performance for both road transportation and hydraulic aerial operations. The vehicle is also designed with practical utility-focused configurations including hydraulic outriggers, insulated fiberglass bucket, wire rope lifting system, and flexible boom movement functions, making it highly suitable for demanding field service applications.
With its combination of safe insulated working capability, compact chassis design, smooth hydraulic operation, and practical utility configurations, this insulated bucket mounted truck represents an ideal aerial working solution for electric utility companies, municipal contractors, telecommunications service providers, and infrastructure maintenance departments seeking reliable and efficient elevated working equipment.
Features
Reliable Chassis Structure and Driving Performance
The bucket truck is constructed on the dependable EQ1071DJ5BDF chassis platform, providing strong structural durability and stable road performance for daily utility operations. The chassis design ensures reliable load-bearing capability while maintaining smooth driving characteristics across urban roads, construction zones, and industrial maintenance sites.
Its compact vehicle dimensions allow the truck to maneuver efficiently through restricted working environments without compromising operational stability. The spacious cab configuration accommodates 3+3 passengers, making it suitable for utility crews and maintenance teams that require coordinated field operation capability.
The vehicle is powered by the efficient ZD30D13-5N diesel engine, which generates 89kW (96HP) at 3,200RPM, providing stable power delivery and dependable performance under various operating conditions. The engine offers a balanced combination of fuel economy, durability, and operational reliability, making the truck suitable for long-term municipal and utility service applications.
Advanced Insulated Boom System
The truck is equipped with a professionally designed insulated telescopic boom system that delivers safe and flexible aerial working capability for high-altitude maintenance operations. With a total boom length of 12.3 meters and a maximum tip height of 14 meters, operators can safely access elevated working areas while maintaining excellent stability and operational control.
The insulated boom has undergone 100kV insulation testing for 5 minutes, significantly improving operator protection during electrical maintenance tasks and live-line service operations. This insulation capability makes the vehicle particularly suitable for power utility departments and electrical infrastructure maintenance projects where safety requirements are extremely strict.
The boom system features smooth extending and retracting functionality, with extending boom speeds of 35 seconds and 34 seconds and retracting speeds of 32 seconds and 28 seconds, allowing operators to complete aerial positioning efficiently while maintaining precise control during elevated work.
Durable Fiberglass Insulated Bucket
The aerial platform utilizes a high-quality insulated fiberglass bucket, which combines lightweight construction, electrical insulation protection, and structural durability into a highly practical working platform for utility personnel.
The bucket supports a rated loading capacity of 136kg, providing sufficient carrying capability for operators, maintenance tools, and service equipment during aerial operations. In addition, the bucket includes 100-degree side rotation capability, improving working flexibility and reducing the need for frequent vehicle repositioning while performing maintenance tasks at different angles.
The bucket also features a 500mm sliding movement function, which further enhances operational reach and positioning convenience during difficult maintenance procedures, especially in confined urban environments or utility servicing applications requiring precise operator positioning.
Efficient Hydraulic and Lifting System
The truck integrates a high-performance hydraulic operating system designed to provide stable, smooth, and responsive aerial movement during utility operations. The hydraulic outriggers feature adjustable spacing from 1,870mm to 3,525mm, significantly improving operational stability and ground adaptability on different working surfaces.
To further enhance field operation versatility, the truck is equipped with a heavy-duty lifting mechanism capable of handling a maximum rated lifting capacity of 550kg at a boom angle of 60 degrees. This additional lifting capability allows operators to safely transport maintenance materials, electrical equipment, and utility components to elevated working positions.
The vehicle also includes a durable Ф14mm × 20m wire rope system with a lifting speed of 20m/min, supporting efficient material handling and utility servicing operations while improving overall working productivity on job sites.
Enhanced Safety and Utility Operation Capability
Safety remains one of the core advantages of this insulated utility truck. The insulated boom structure, fiberglass bucket design, stable hydraulic outriggers, and smooth boom operation work together to provide dependable operator protection during elevated maintenance activities.
The truck is especially suitable for applications involving electrical line maintenance, power distribution servicing, transformer repair, telecommunication installation, municipal lighting maintenance, and emergency infrastructure repair operations. Its compact dimensions and flexible aerial movement capability allow operators to work effectively in congested city streets, industrial facilities, residential communities, and roadside maintenance environments.
By combining electrical insulation safety, stable aerial access, efficient lifting capability, and practical utility-focused engineering, the ISUZU insulated bucket mounted utility truck delivers outstanding reliability and operational efficiency for modern utility service fleets and professional aerial maintenance operations.
Specification
| Item | Specification |
|---|---|
| Overall Dimension (L×W×H) | 6,950×2,000×2,900mm |
| Bucket Rated Loading | 136kg |
| Bucket Material | Insulated Fiberglass |
| Bucket Rotation Range | 100° Side Rotation |
| Bucket Sliding Range | 500mm |
| Max Rated Lifting Capacity | 550kg @ Boom Angle 60° |
| Wire Rope Specification | Ф14mm×20m |
| Wire Rope Speed | 20m/min |
| Max Tip Height | 14m |
| Boom Length | 12.3m |
| Jib Length | 9.5m |
| Boom Stage | 3, 100kv/5min |
| Extending Boom Speed | 35sec/34sec |
| Retracting Boom Speed | 32sec/28sec |
| Out-trigger Spacing | 1,870~3,525mm |
| Chassis Model | EQ1071DJ5BDF |
| Engine Model | ZD30D13-5N |
| Engine Power | 89kw (96hp) / 3,200RPM |
| Number of Passengers | 3+3 |
