ISUZU 45M Bucket Lift Truck

ISUZU 45M Bucket Lift Truck

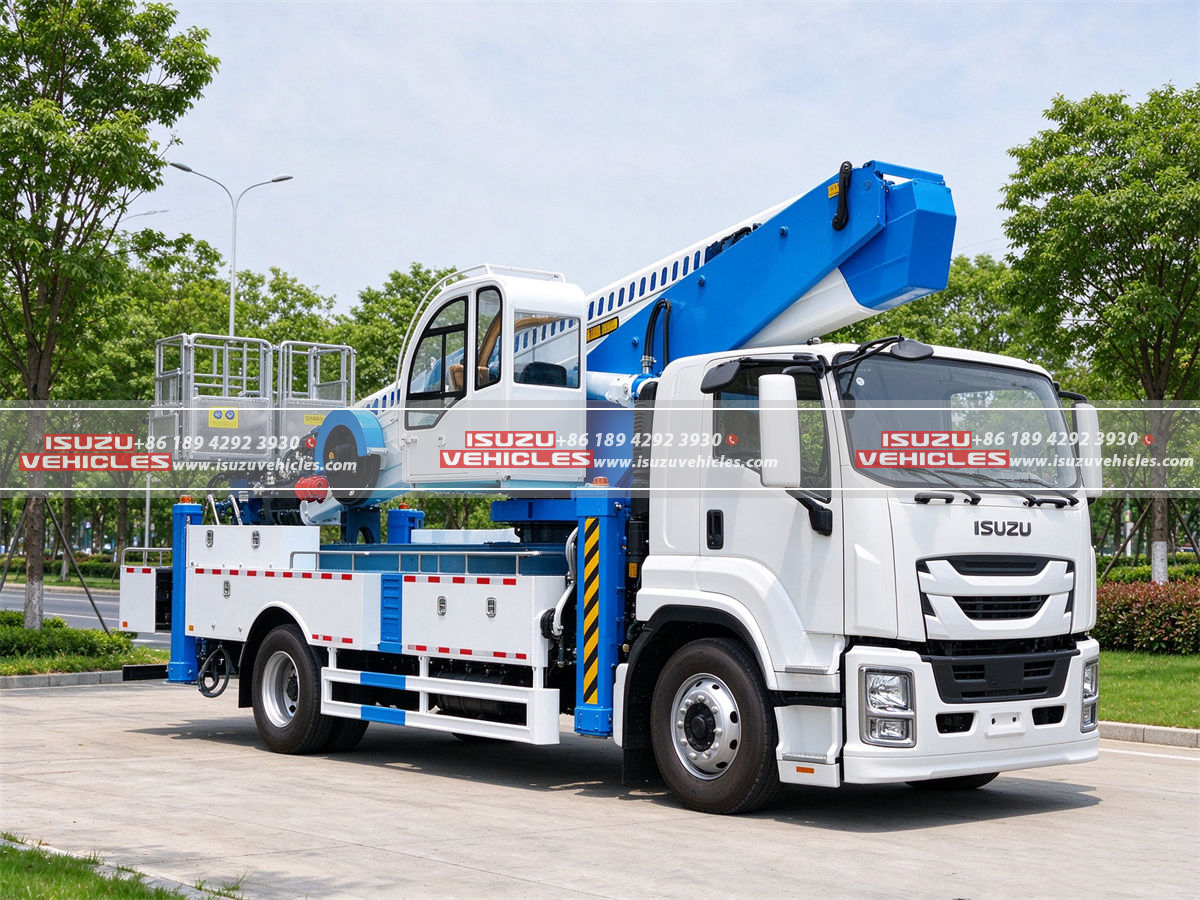

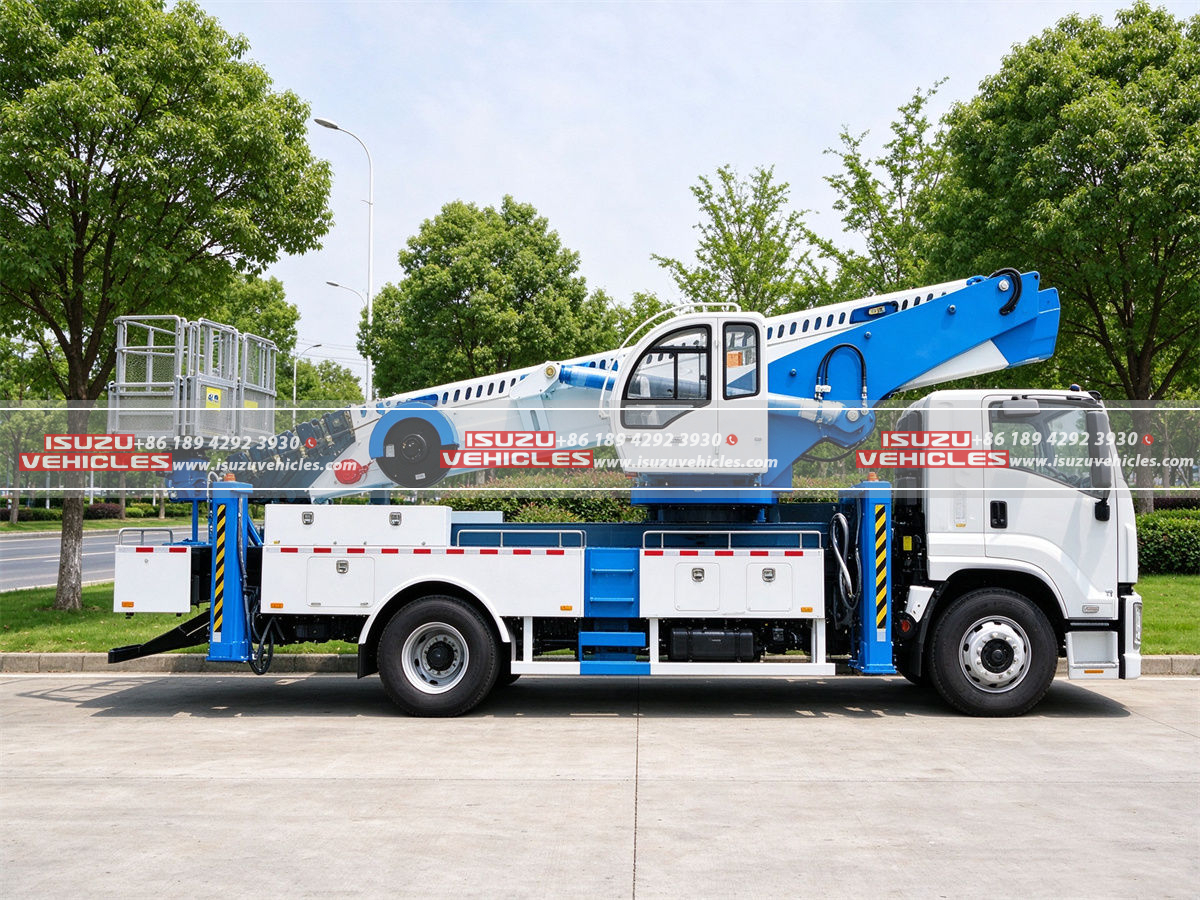

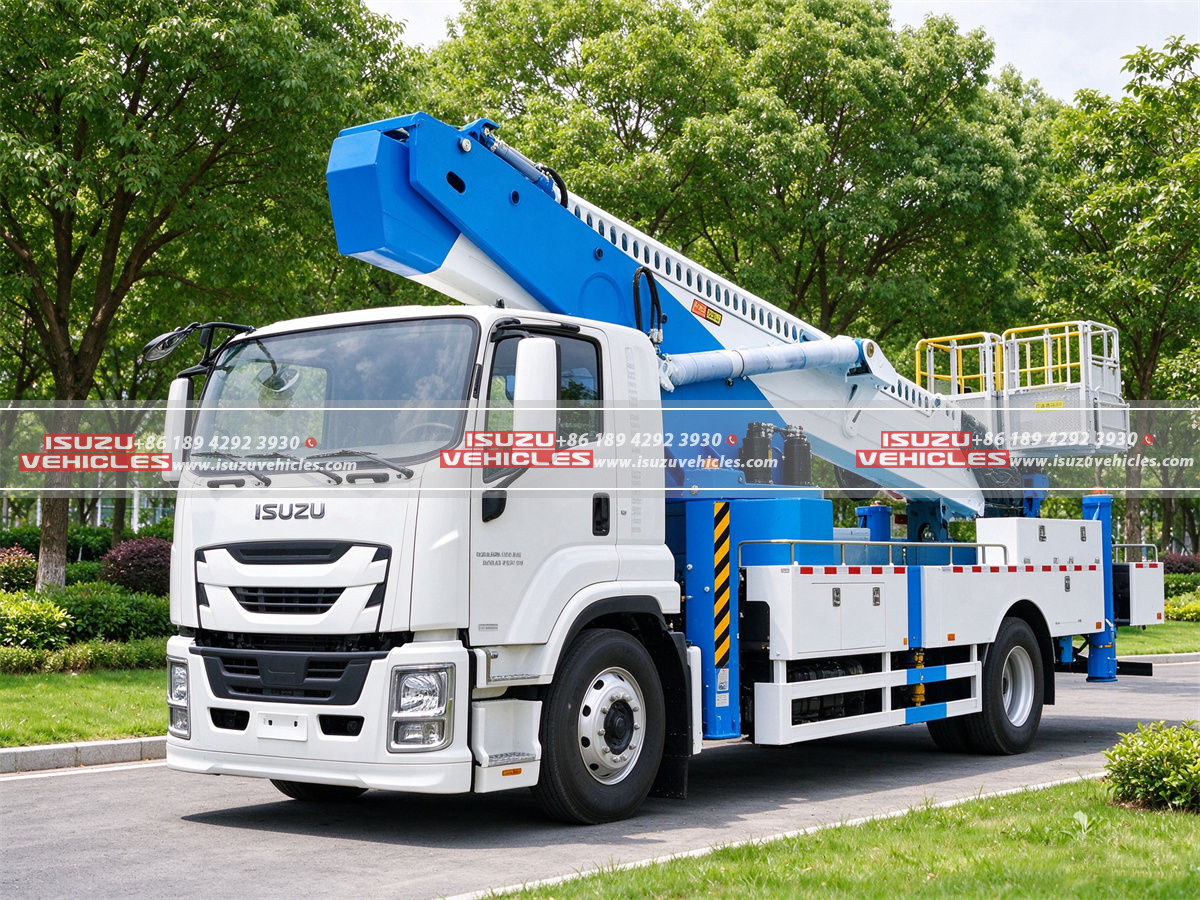

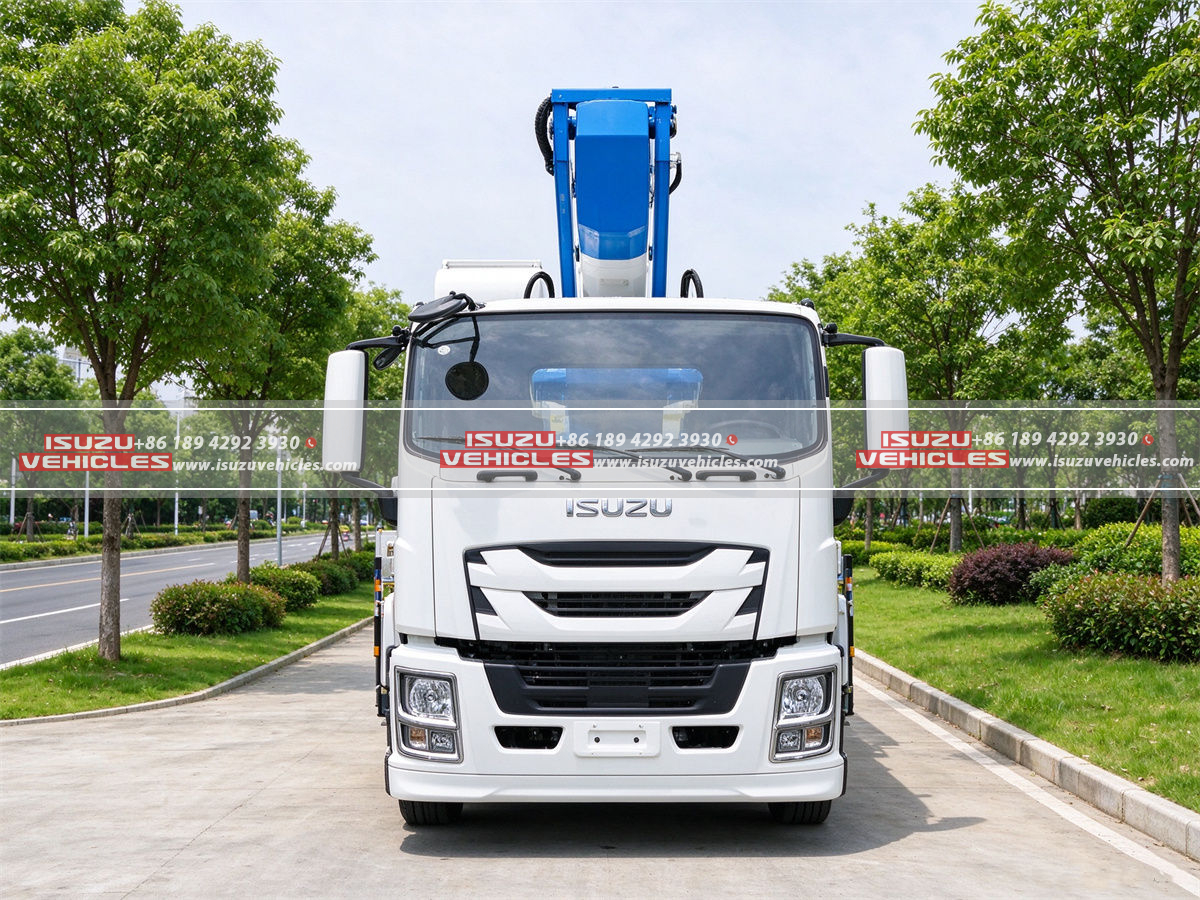

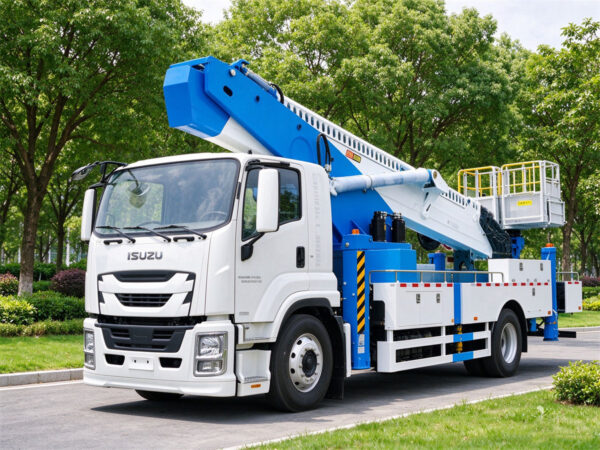

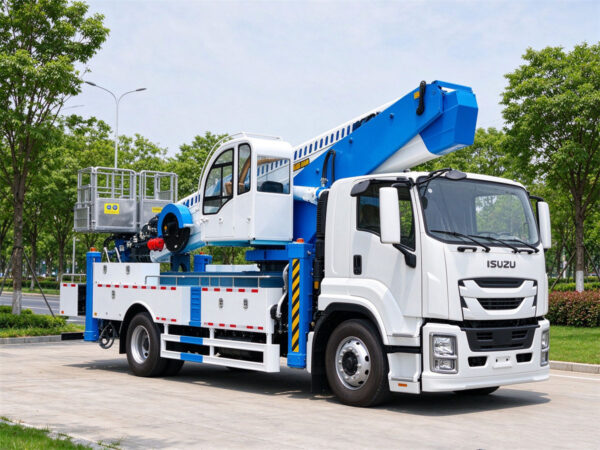

The ISUZU 45M Bucket Lift Truck is a heavy-duty aerial work vehicle designed for high-altitude maintenance, electrical infrastructure installation, telecommunications servicing, streetlight repairs, and industrial facility operations. Built on an ISUZU FTR chassis and equipped with a seven-section hexagonal telescopic boom, this vehicle delivers a maximum working height of 45 meters, providing extended vertical reach for projects that require access to elevated structures, utility equipment, and hard-to-reach working areas. Its continuous 360-degree slewing system and independently operated working controls help operators position the bucket according to the requirements of different tasks, making it a practical choice for professional maintenance contractors, utility companies, and municipal service departments.

Powered by the ISUZU 4HK1-TCG60 diesel engine, rated at 205 HP (151 kW) with a displacement of 5.193 liters, the truck combines dependable road performance with the power required for a large aerial work platform. The engine features an inline four-cylinder configuration, turbocharging, and intercooling, while its Euro VI emissions specification supports applications in markets requiring this standard. The vehicle measures 9800 × 2600 × 3800 mm, has a gross vehicle weight of 18,000 kg, and uses a 5000 mm wheelbase with a 4×2 drivetrain. The ISUZU GIGA VC61 cabin accommodates three people, providing a functional working environment for the driver and crew as they travel between project locations.

The truck’s aerial system features a 45-meter working boom with synchronous telescopic extension, supported by four hydraulic outriggers arranged in a front V-type and rear V-type configuration. With a horizontal and vertical outrigger span of 8600 mm, the support system is designed to establish a stable working base when deployed on suitable ground in accordance with operating requirements. The bucket measures 1600 × 700 × 1000 mm and has a rated load capacity of 200 kg, while 360-degree bucket rotation and multiple control options help improve positioning flexibility during elevated operations. Customers evaluating different aerial access solutions can also explore our hydraulic bucket trucks for other working-height and equipment configurations.

Features

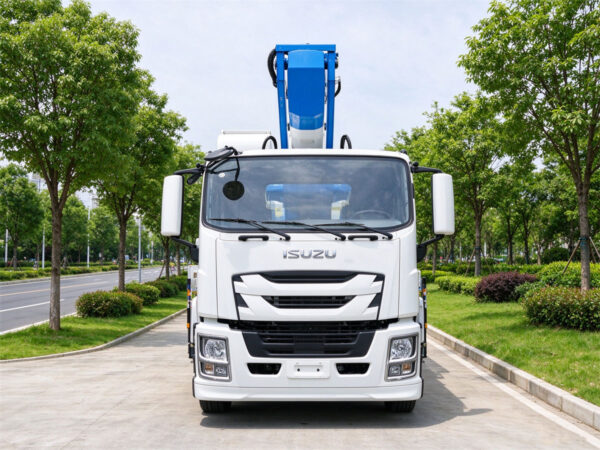

1. ISUZU FTR Chassis and 205 HP Diesel Engine

The ISUZU 45M Bucket Lift Truck is built on the ISUZU FTR chassis, combining a 4×2 drive configuration with a 5000 mm wheelbase to support road transportation and aerial equipment installation. Its 4HK1-TCG60 diesel engine delivers 205 HP (151 kW) and features turbocharging, intercooling, and an inline four-cylinder design. With a maximum driving speed of 105 km/h, the vehicle can travel between maintenance sites efficiently, while the 18,000 kg gross vehicle weight accommodates the chassis and specialized aerial equipment within the specified vehicle configuration.

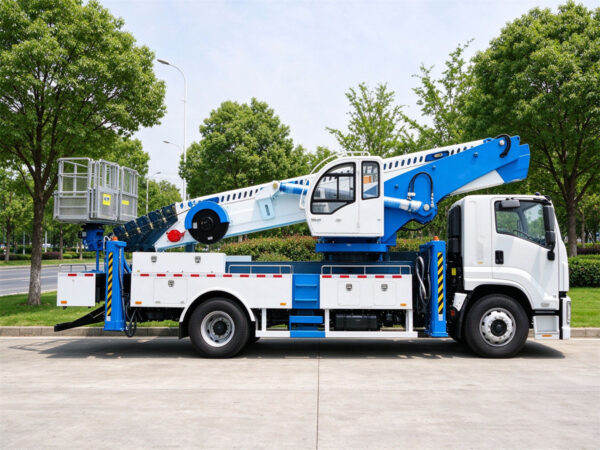

2. Seven-Section Telescopic Boom for 45-Meter Operations

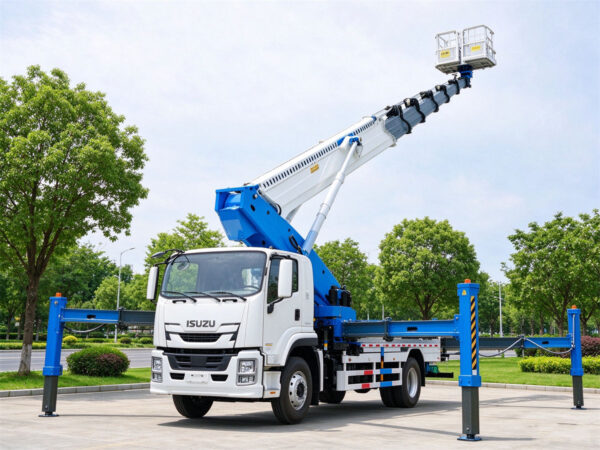

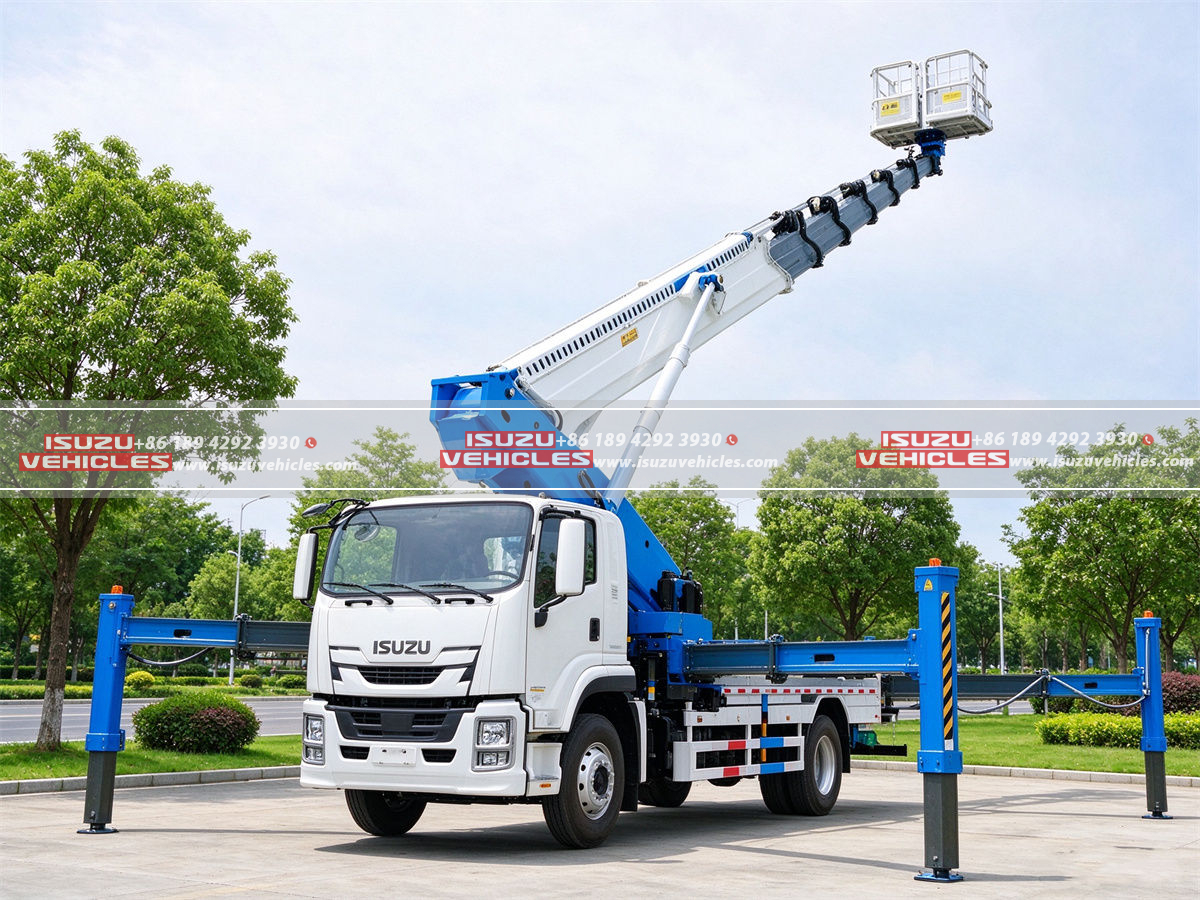

The main working equipment is a seven-section hexagonal telescopic boom designed for synchronous extension, allowing the bucket to reach elevated working positions while maintaining operational flexibility. With a maximum working height of 45 meters, the truck is suitable for demanding overhead maintenance tasks, including electrical line servicing, telecommunications equipment installation, tall streetlight repairs, and inspections of elevated industrial structures. The continuous 360-degree two-way slewing system allows the boom assembly to rotate around the vehicle, helping operators approach work areas from different directions without repeatedly repositioning the chassis.

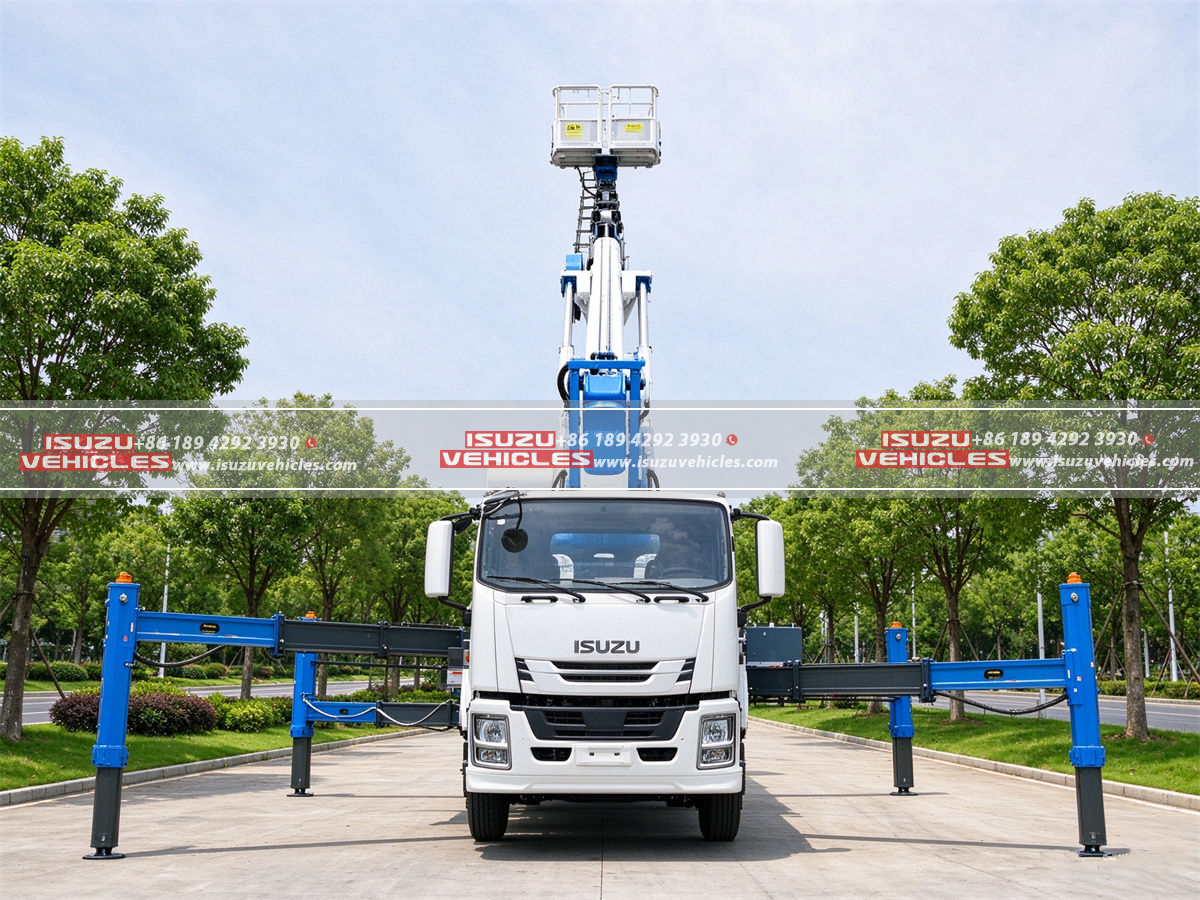

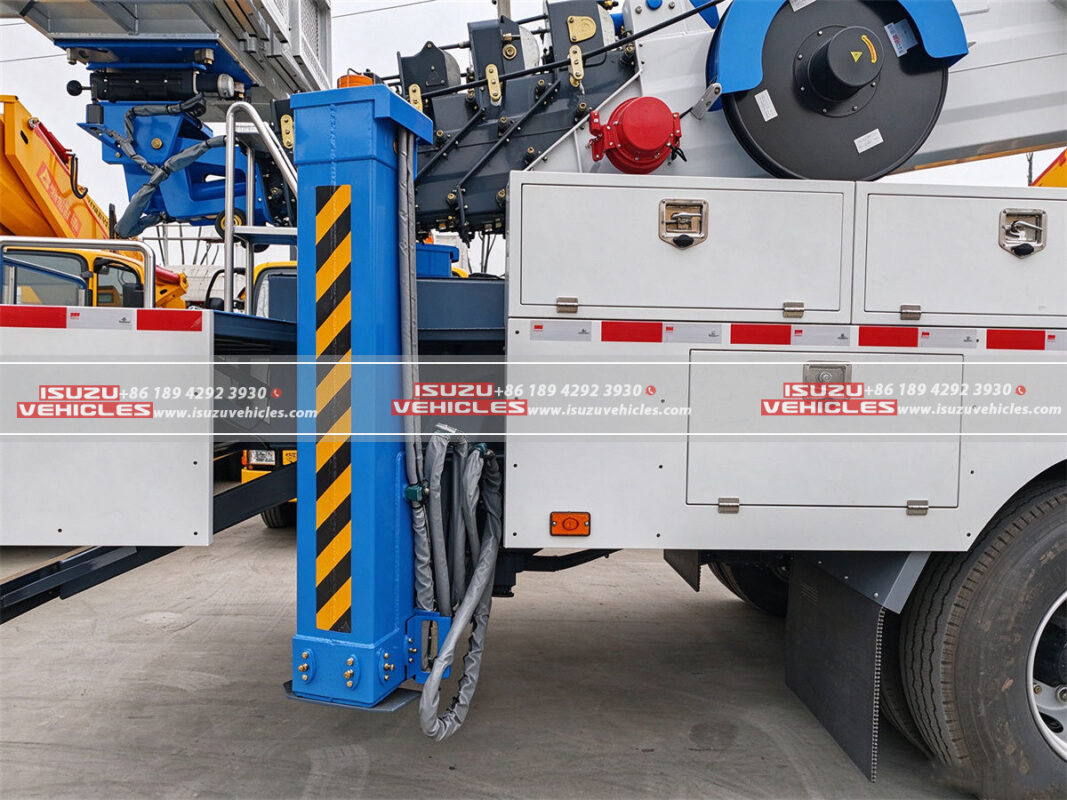

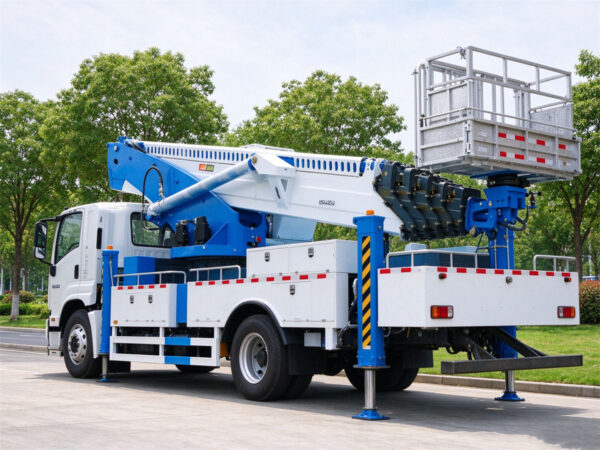

3. Four Hydraulic Outriggers for Working Stability

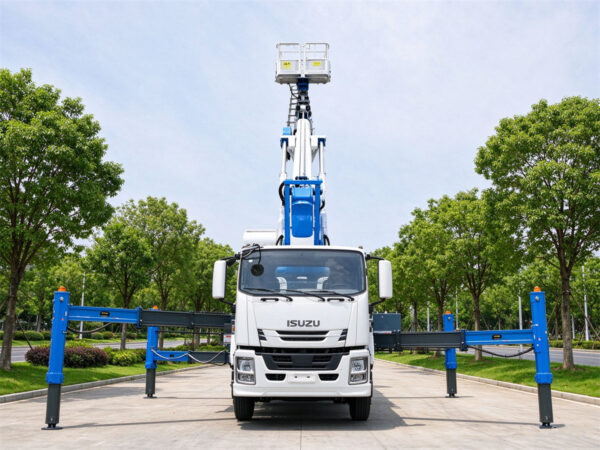

The vehicle uses four hydraulic outriggers with a front V-type and rear V-type arrangement, providing a designated support configuration for aerial work. Both the horizontal and vertical outrigger spans are specified at 8600 mm, helping establish a broad support footprint when the equipment is fully deployed. Before raising the boom, the operator must position the truck on suitable ground, extend the outriggers according to the manufacturer’s instructions, and confirm that the vehicle is properly supported. Actual operation should follow the applicable ground-bearing, leveling, and safety requirements for the job site.

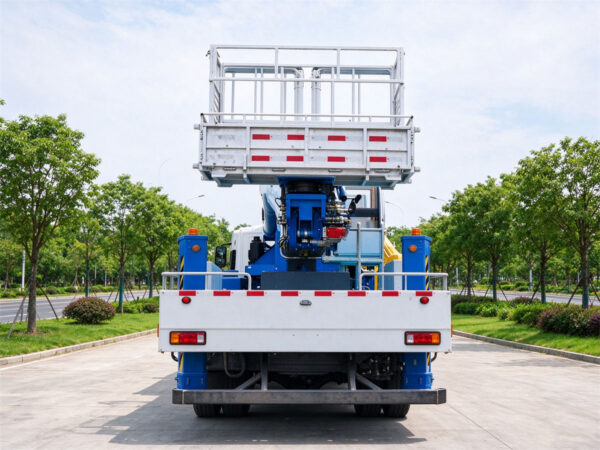

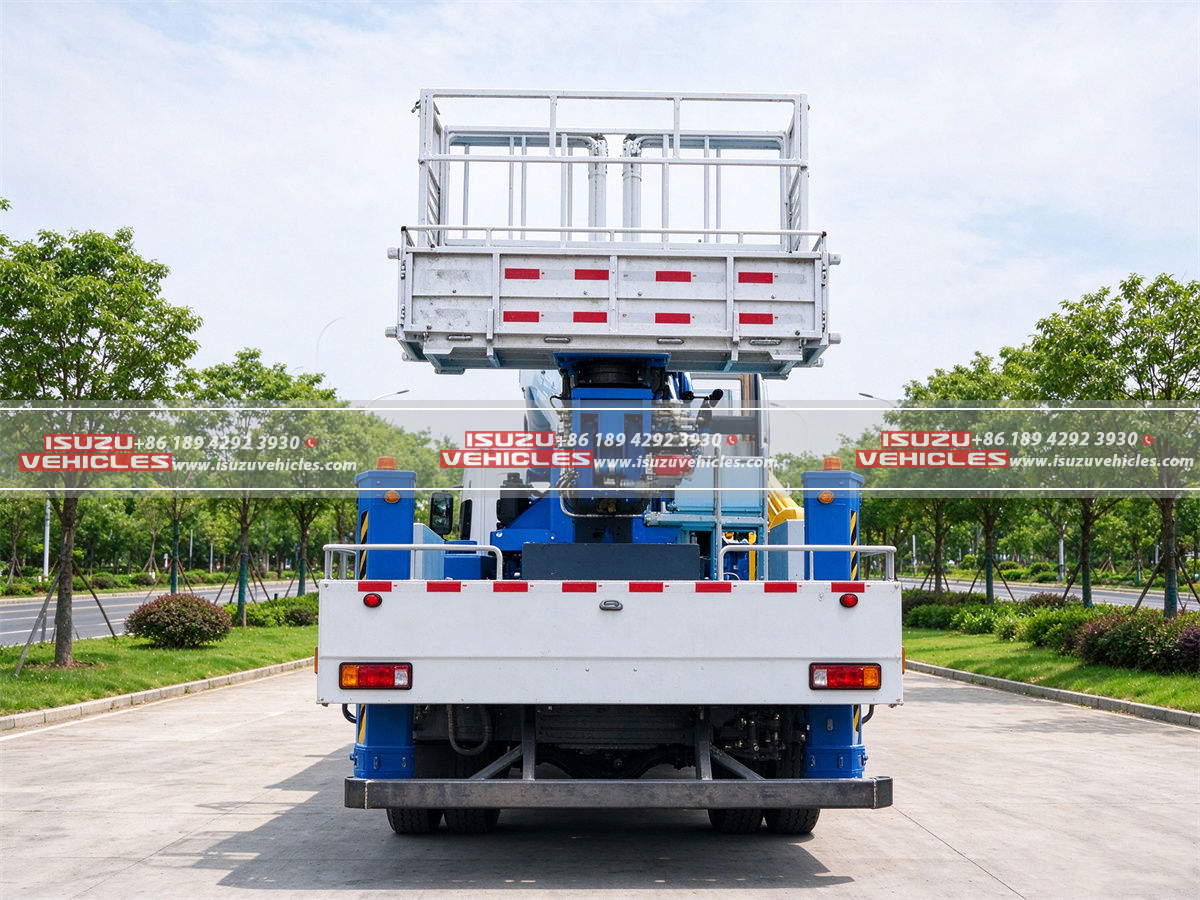

4. Spacious Working Bucket with 360-Degree Rotation

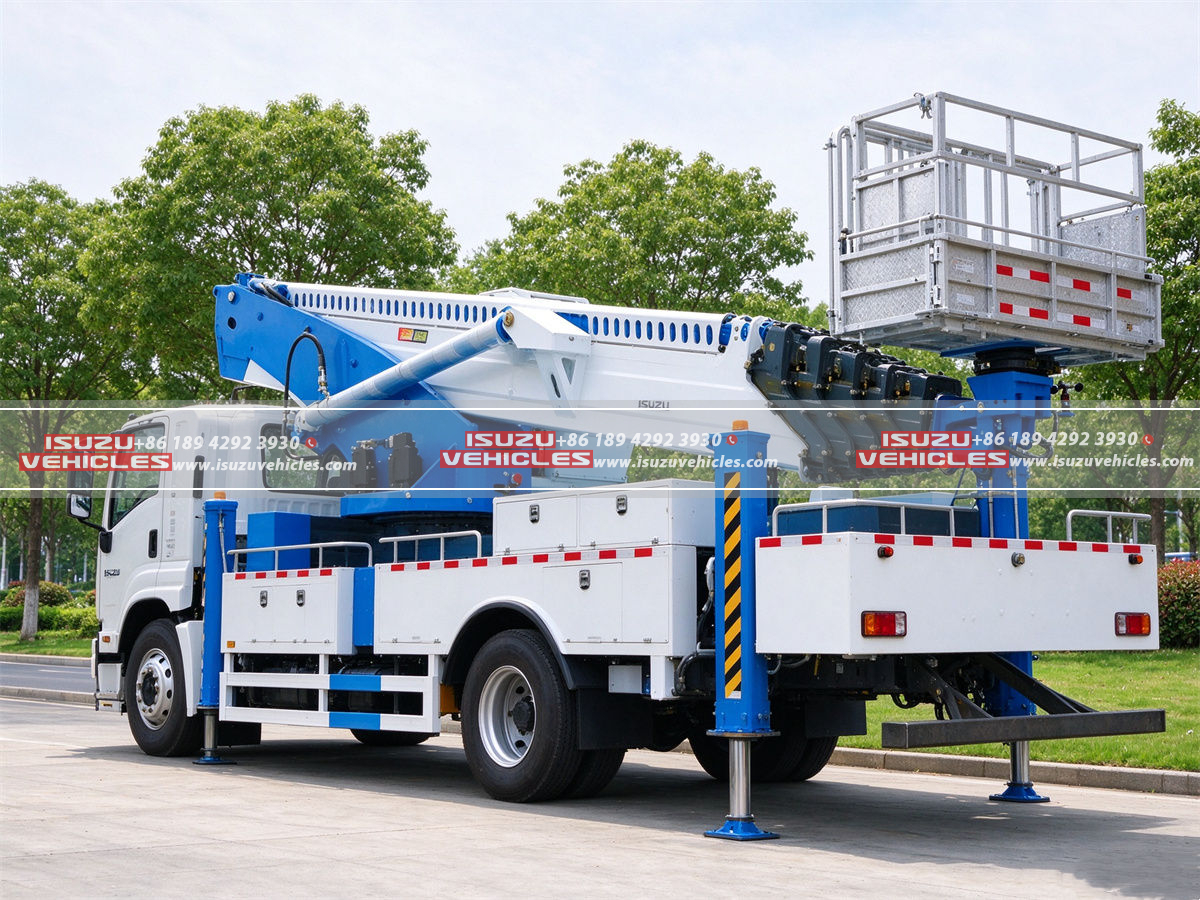

The aerial bucket measures 1600 × 700 × 1000 mm and offers a rated loading capacity of 200 kg for authorized personnel and their required tools. Its 360-degree rotation function allows the operator to adjust the working orientation to reach specific maintenance points, supporting more convenient access when working around poles, building exteriors, overhead equipment, and industrial installations. The bucket’s rated capacity must be observed at all times, with personnel, tools, and other carried equipment kept within the manufacturer’s permitted load limits.

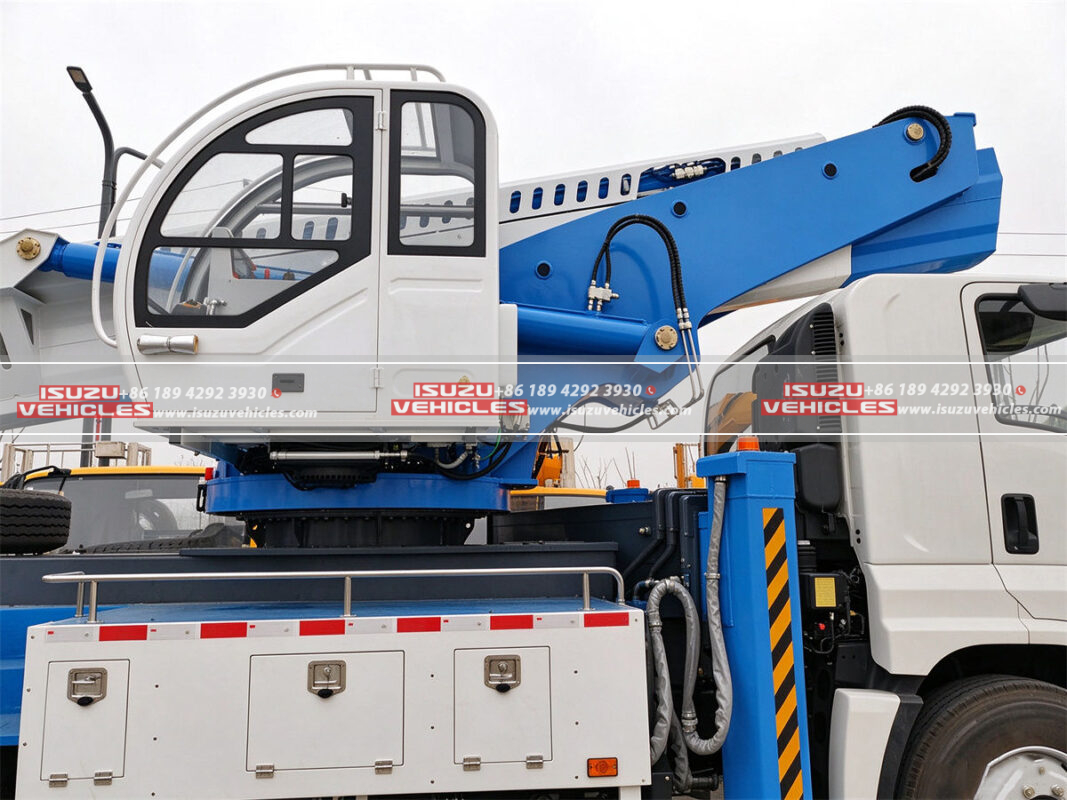

5. Multiple Operating Modes for Flexible Control

The ISUZU 45M Bucket Lift Truck provides several control options, including ground operation, bucket-mounted controls, wireless remote control, and manual emergency operation. This arrangement gives trained operators different ways to manage the aerial equipment according to the working situation and the control procedures specified for the vehicle. Ground controls can support setup and coordinated operation, while controls at the bucket allow the operator to make adjustments during elevated work. The manual emergency system provides an additional operating option for emergency situations in accordance with the manufacturer’s instructions.

6. Practical Configuration for Utility and Municipal Projects

With its 45-meter working height, long telescopic boom, rotating bucket, and hydraulic outrigger system, this aerial platform truck is suited to utility contractors, municipal departments, electrical service providers, and industrial maintenance teams. Typical applications include high-level streetlight repairs, power infrastructure servicing, telecommunications installation, and elevated facility inspections. For operations that require lifting heavy materials rather than personnel access, our truck-mounted crane vehicles offer an alternative equipment category, while our road cleaning trucks support municipal street maintenance and cleaning operations.

7. Heavy-Duty Design for Specialized Aerial Work

The ISUZU FTR platform, 295/80R22.5 tires, air braking system, and specified front and rear axle load capacities of 6 tonnes and 13 tonnes form part of the vehicle’s heavy-duty configuration. The white exterior provides a professional appearance suitable for utility and municipal fleets, while the three-person cabin accommodates the working crew during transportation. By combining a high-reach telescopic boom with flexible operating controls and hydraulic outriggers, the ISUZU 45M Bucket Lift Truck provides a specialized solution for projects that require substantial vertical access, precise bucket positioning, and mobile deployment between work sites.
