When choosing a bucket truck for utility maintenance, telecommunications, streetlight servicing, tree trimming, construction, or other elevated work, one of the most important specifications to understand is the platform capacity, because this figure determines how much total weight can safely be carried in the aerial bucket or work platform while the boom is operating at height. An ISUZU bucket truck is not simply a truck with a hydraulic arm attached to it; it is a complete aerial work system in which the chassis, boom, hydraulic cylinders, outriggers, platform, leveling mechanism, and control system must work together to provide stable access to elevated work areas. Current models in the ISUZU range include compact utility configurations as well as high-reaching telescopic bucket trucks, and their platform capacities can vary according to the specific superstructure and application. For example, the current ISUZU 15M insulated bucket truck has a 200 kg bucket capacity, while the 24M telescopic model also specifies a 200 kg work-platform load capacity, showing that lifting height and platform capacity are separate specifications that need to be considered together.
The important point is that platform capacity does not simply mean the weight of the operator. It generally represents the combined permitted weight of personnel, tools, equipment, and other materials carried inside the platform. Therefore, if a platform is rated at 200 kg, an operator should not interpret that as 200 kg of tools in addition to the people inside it. The actual usable payload has to account for everyone and everything occupying the platform, while the truck must be operated according to the manufacturer’s load limits and applicable safety requirements.

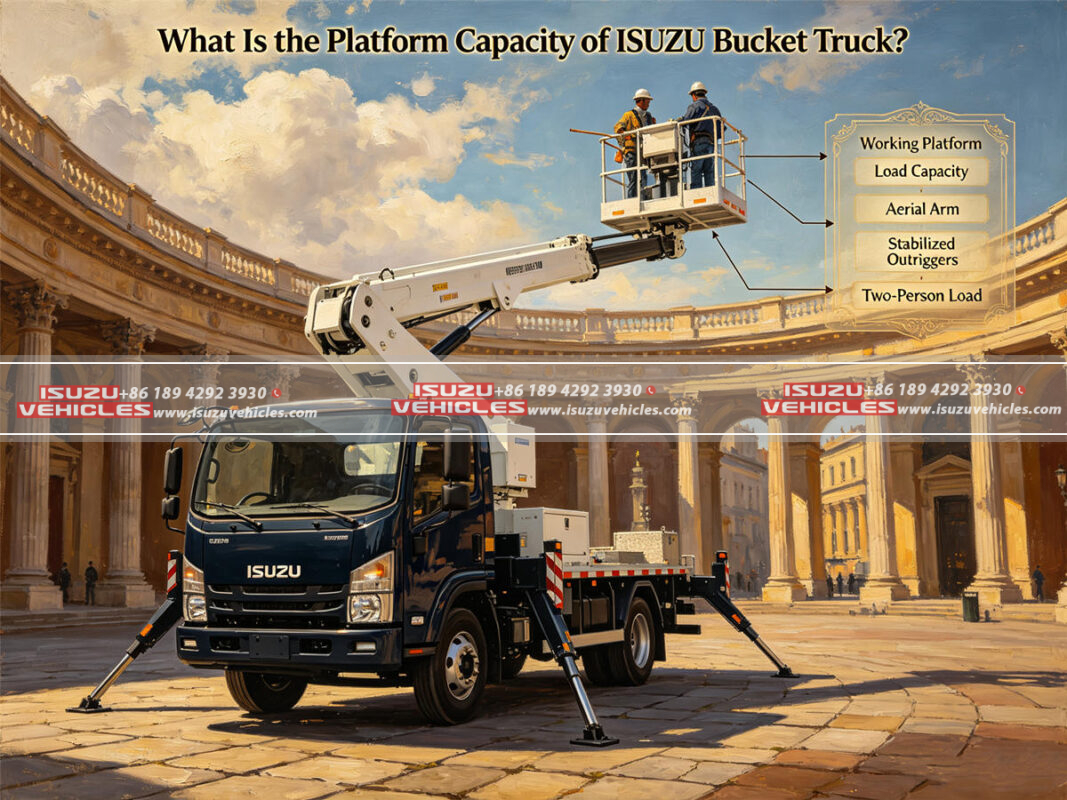

What Does Bucket Platform Capacity Actually Mean?
Platform capacity is the maximum allowable working load that the aerial platform or bucket is designed to support under the specified operating conditions, and it is one of the fundamental safety parameters of any aerial work truck. Depending on the design, the platform may be a fiberglass insulated bucket, a steel or stainless-steel work basket, or another specialized aerial platform, but the principle remains the same: the platform must support the combined load without compromising the structural integrity, stability, hydraulic control, or positioning accuracy of the lifting system.
Capacity Includes the Operator and Equipment
Suppose a bucket truck has a rated platform capacity of 200 kg and two technicians are working together. If the two workers weigh a combined 150 kg, only approximately 50 kg remains within the nominal platform load for tools and equipment, subject to the exact manufacturer’s instructions and configuration. This is why fleet managers should estimate the real working load before purchasing a vehicle rather than selecting a platform solely according to the number printed in a specification sheet.
The same consideration applies when workers carry power tools, testing equipment, cable, replacement components, personal protective equipment, communication devices, or other materials into the platform. A small amount of equipment may seem insignificant individually, but the combined weight can become substantial during a full maintenance operation.
Platform Capacity Is Different from Boom Capacity
Another important distinction is that platform capacity should not be confused with the structural lifting capacity of the boom or the payload capacity of the truck chassis. The boom is engineered to position the platform, while the platform itself has a specific rated working load. At the same time, the chassis has its own gross vehicle weight and axle ratings, which determine the total road-going load that the vehicle can carry.
For example, the current ISUZU 15M insulated bucket truck has a gross vehicle weight of 7,300 kg and a 200 kg bucket capacity, while its boom provides a maximum lifting height of 15 meters and a maximum outreach of 9.2 meters. These are separate specifications: the GVW concerns the vehicle as a road-going truck, the 200 kg figure concerns the aerial working platform, and the 15-meter figure concerns working height. Understanding these differences makes it much easier to compare different bucket truck configurations accurately.
What Is the Typical Platform Capacity of ISUZU Bucket Trucks?
There is no single platform capacity that applies to every ISUZU bucket truck because the company offers multiple aerial configurations designed for different working heights, chassis sizes, boom arrangements, and industries. Current listings include 15M, 17M, 20M, 24M, 30M, 32M, 40M, and 45M-class aerial vehicles, together with insulated and specialized utility configurations. The platform capacity therefore needs to be checked against the specifications of the particular model being considered rather than assumed from the vehicle’s name or maximum working height.
Several current ISUZU aerial platform models use a 200 kg rated capacity, which is suitable for typical one- or two-person maintenance operations when the combined weight of workers, tools, and equipment remains within the permitted limit. The ISUZU 45M telescopic bucket truck, for instance, specifies a 200 kg rated working platform capacity despite having a maximum working height of 45 meters. Its specifications also state a maximum working radius of 25 meters and an 8-meter lateral outrigger span, illustrating how platform load, reach, and stabilization form part of one integrated engineering system.
Another current model, the ISUZU 32 Meter Aerial Platform Bucket Truck, also specifies a 200 kg bucket rated weight, with a maximum bucket height of 32 meters and a maximum working span of 14 meters. This demonstrates an important point for buyers: a truck that can reach much higher does not necessarily have a proportionally higher platform capacity. Height, outreach, and platform load are separate design parameters.
There are also smaller specialized configurations with different capacity ratings. The ISUZU Insulated Bucket Mounted Utility Truck, for example, currently specifies a 136 kg rated bucket loading capacity, together with a 500 mm sliding movement and 100-degree side rotation. This type of configuration is intended for utility maintenance where precise positioning and compact working dimensions are important, rather than simply maximizing the number of people or tools carried in the platform.
How Does Working Height Affect Platform Capacity?
It is tempting to assume that a bucket with a higher maximum working height should automatically have a lower platform capacity, but the actual relationship is more complicated because platform capacity is determined by the complete engineering design of the aerial system. Boom geometry, chassis weight, counterbalance, outrigger configuration, hydraulic pressure, structural strength, platform dimensions, and operating radius all contribute to the permitted working load.
As the boom extends upward or outward, the forces acting on the vehicle change significantly. The farther the platform moves from the truck’s centerline, the greater the leverage created by the combined weight of the platform occupants and equipment. This means that the manufacturer must design the boom and stabilization system to maintain acceptable performance throughout the specified working envelope.
Height and Outreach Work Together
A bucket truck’s maximum height is therefore only one part of its performance. An operator may be able to reach a particular height when the boom is positioned relatively close to the truck, while the maximum horizontal outreach may be available at a different height. The ISUZU 45M telescopic model provides a useful example, with a 45-meter maximum working height, a 25-meter maximum working radius, and a 7-meter working radius at maximum height.
This type of specification is much more informative than simply advertising the vehicle as a “45-meter bucket truck,” because actual field work often requires technicians to reach around buildings, utility structures, trees, signs, or other obstacles rather than simply move straight upward. Buyers should therefore examine the entire working envelope and confirm the permitted platform load throughout the intended operating range.
How Outriggers Support the Rated Platform Load
Outriggers are essential to the relationship between platform capacity and actual operating stability. When a technician enters the bucket and the boom moves away from the truck, the weight of the operator and equipment creates forces that are transferred through the boom, turntable, chassis, and finally into the ground. Hydraulic outriggers extend the support footprint of the vehicle, reducing the risk of excessive chassis movement and helping the aerial system maintain a stable operating position.
Current ISUZU bucket truck configurations use different outrigger arrangements depending on vehicle size and aerial system. The 15M insulated bucket truck, for example, specifies horizontal and vertical outrigger extensions of 2,500 mm and 4,000 mm, respectively, while the 45M telescopic bucket truck has an 8-meter lateral outrigger span and an 8.1-meter longitudinal span. Larger aerial vehicles consequently require substantial stabilization systems because their operating envelope can extend far beyond the normal dimensions of the road-going truck.
Ground conditions are equally important. Even when the platform load is within its rated capacity, the vehicle still needs suitable ground support. Soft soil, unstable shoulders, slopes, drainage structures, or underground voids can affect how the outrigger loads are transferred to the ground. In practical field operations, platform capacity should therefore never be considered separately from stabilization and site preparation.
How Platform Design Influences the Working Experience
The physical design of the platform has a direct influence on how effectively workers can use the available capacity. A platform that is large enough for two technicians and their tools can make certain maintenance tasks considerably more efficient, while a smaller bucket may be more suitable for compact urban operations where minimizing overall vehicle dimensions is important.
Platform Size and Tool Arrangement
The platform needs enough usable space for workers to stand safely while keeping tools and equipment organized, because overcrowding can make movement difficult even when the total weight remains below the rated capacity. The current ISUZU 24M telescopic bucket truck, for example, uses a platform measuring approximately 1.36 × 0.76 × 1.20 meters and specifies a 200 kg rated capacity, with an automatic hydraulic leveling system designed to maintain the platform’s horizontal position as the boom moves.
Platform Leveling
Automatic or hydraulic leveling is particularly useful because the bucket should remain appropriately oriented as the boom changes position. Without effective leveling, a platform could change its angle as the boom rises or rotates, making work less comfortable and potentially making it more difficult for technicians to maintain a stable working position. A reliable leveling system therefore contributes to the practical usefulness of the rated platform capacity, although it does not increase that rated capacity.
Insulated Platforms for Utility Work
For electrical utility applications, an insulated bucket can provide an additional layer of protection against electrical hazards when the vehicle is properly designed, maintained, tested, and operated according to its rating. The ISUZU 15M insulated bucket truck, for example, uses a 10 kV-rated insulated system and a 200 kg bucket capacity, combining aerial access with specialized electrical protection features. The insulation rating, however, should never be interpreted as permission to work on energized systems without following the applicable electrical safety procedures and regulations.
How to Choose the Right Platform Capacity for a Job
Selecting the correct bucket truck requires more than identifying the highest platform capacity available, because the right vehicle should match the actual work being performed. A telecommunications contractor may normally need one technician with cable tools and testing equipment, while a utility maintenance team may need two workers carrying heavier equipment. A tree-care company may have different requirements again, particularly when tools and branches need to be managed around the working platform.
The first step is to calculate the realistic maximum working load, including every person who may enter the platform and every item that will be carried there. It is useful to consider the heaviest realistic combination rather than an average working day, because equipment requirements can vary significantly between tasks.
The next step is to consider working height and horizontal outreach. A 15-meter bucket truck may be perfectly suitable for streetlight maintenance but inadequate for high-rise infrastructure, while a 45-meter machine could provide considerably more reach but may require more road space, a larger working area, and a more substantial investment. The appropriate vehicle is therefore the one whose complete operating envelope matches the job rather than simply the vehicle with the highest number in its specifications.
Finally, buyers should consider chassis dimensions, gross vehicle weight, axle ratings, turning radius, road conditions, outrigger dimensions, platform size, insulation requirements, boom configuration, and available hydraulic controls. ISUZU’s current bucket truck range includes both compact utility vehicles and high-reaching telescopic models, providing different combinations of these characteristics for different industries and working environments.
Why Platform Capacity Matters for Productivity and Safety
Platform capacity directly affects how a work crew can organize its operation because the permitted load determines how many people and how much equipment can be positioned at height at one time. When the capacity is correctly matched to the job, technicians can carry the tools they actually need and complete maintenance without repeatedly lowering the platform simply to retrieve additional equipment. This can save time and reduce unnecessary boom movements, especially on projects where access to the ground is difficult.
At the same time, staying within the rated capacity is essential because aerial work involves significant changes in load position and mechanical forces. Operators should never attempt to increase the platform load simply because the bucket appears physically capable of holding additional weight. The manufacturer’s rated capacity is part of the complete engineering and safety design, and exceeding it can affect the behavior of the boom, hydraulic system, chassis, and stabilization system.
For fleet managers, the best approach is to evaluate the complete working requirement, including the number of operators, tools, equipment weight, maximum working height, outreach, ground conditions, and frequency of use. An aerial truck with the correct platform capacity can then provide a practical balance between access, mobility, and productivity, while a crane truck may be more appropriate when the primary requirement is lifting materials rather than positioning personnel. By matching the platform specification to the real working load and operating environment, companies can make better use of their equipment while maintaining the controlled and stable working conditions expected from professional aerial vehicles, with ISUZU Vehicles offering a broad range of bucket truck configurations for utility, telecommunications, municipal, construction, and infrastructure applications.
