An ISUZU vacuum truck cleans sewage by using a controlled vacuum system to collect wastewater, sludge, sediment, and other liquid waste into a sealed tank, while specialized sewer-cleaning configurations can combine vacuum suction with high-pressure water jetting to loosen deposits and clear blocked pipelines. This working principle allows the vehicle to do much more than simply transport sewage: it can reach septic tanks, drainage systems, sewer lines, industrial wastewater facilities, and other difficult locations, remove contaminated material, and transport it to an approved disposal or treatment facility. The current vacuum truck range includes conventional suction trucks as well as combined jetting-vacuum models, giving municipalities, sanitation contractors, and industrial operators different solutions for sewage collection and sewer maintenance.

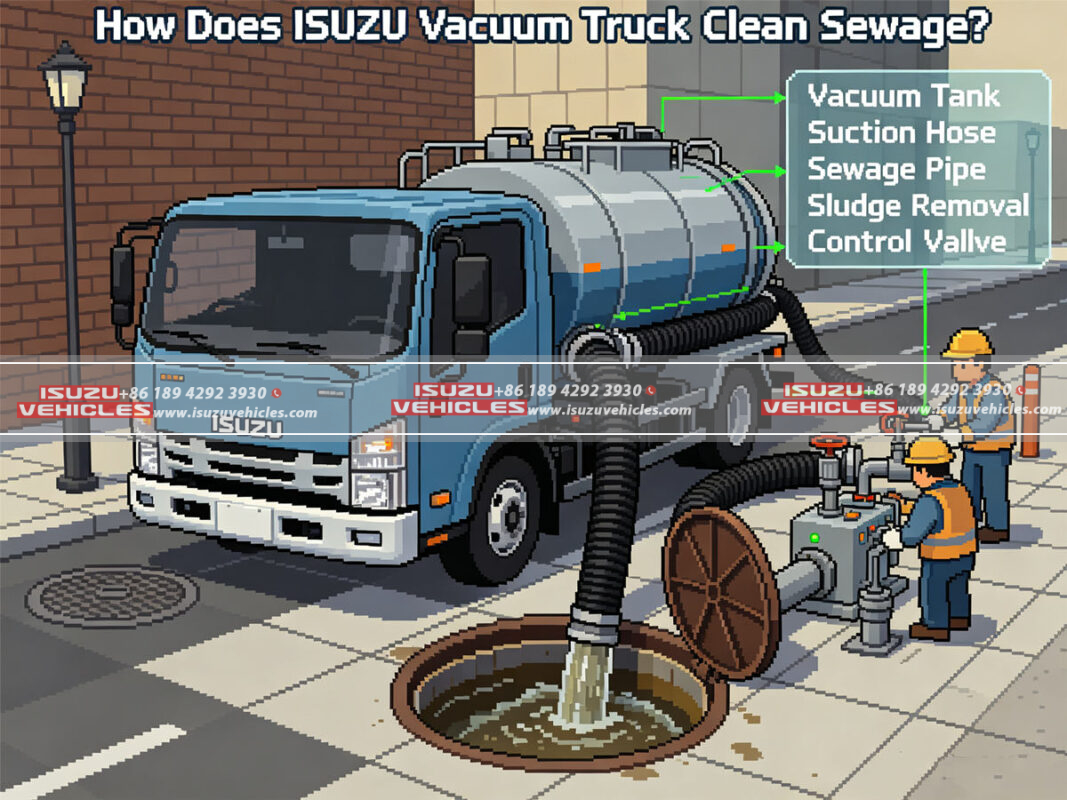

1. What Does an ISUZU Vacuum Truck Actually Do?
An ISUZU vacuum truck is essentially a mobile sewage collection and cleaning system in which the chassis provides transportation and power while the specialized superstructure performs suction, storage, and discharge operations. Instead of allowing sewage to remain in a septic tank, manhole, drainage pit, or wastewater facility, the operator connects a suction hose to the contaminated area, starts the vacuum pump, establishes negative pressure inside the tank, and then uses the resulting pressure difference to draw sewage and sludge into the vehicle.
The collected material is stored inside a purpose-built tank, which keeps the sewage contained during transportation and helps prevent unnecessary leakage or exposure to the surrounding environment. Depending on the model, the tank can include anti-wave structures, corrosion-resistant coatings, level indicators, safety valves, rear doors, and hydraulic discharge equipment, allowing the truck to operate repeatedly in demanding sanitation environments.
ISUZU’s current vacuum truck range includes compact units such as the 3,000-liter NKR sewage pump truck, medium-capacity vacuum sewer trucks, and large 10,000-liter or 18-ton-class vacuum suction vehicles. The selection also includes combined jetting-vacuum trucks designed for situations in which sewage collection and physical sewer cleaning need to be performed during the same operation. This variety is important because a truck servicing residential septic tanks does not necessarily need the same capacity or equipment as one maintaining a large municipal sewer network.
Collection and Cleaning Are Closely Connected
It is useful to distinguish between sewage collection and sewer cleaning, although the two operations frequently occur together. A conventional vacuum truck is mainly responsible for removing sewage, sludge, and liquid waste, while a sewer jetting truck adds a high-pressure water system that can break up deposits and wash material away from the inner walls of pipelines. When both systems are installed on one vehicle, the operator can loosen, wash, collect, and transport the waste as part of one coordinated process.
2. How Does the Vacuum System Remove Sewage?
The heart of the system is the vacuum pump. The pump removes air from the collection tank, reducing the internal pressure below atmospheric pressure, and when the suction valve is opened, the pressure difference causes sewage to move through the hose and into the tank. In other words, the vacuum pump does not mechanically grab the sewage; it creates the pressure conditions that allow atmospheric pressure to push the material through the suction hose.
For example, the ISUZU Vacuum Sewer Truck currently listed by ISUZU Vehicles uses a Weilong or JUROP vacuum pump with a stated flow rate of approximately 6,000–35,000 liters per minute and an ultimate vacuum level of up to -97,000 Pa. It is also equipped with an 8-meter standard suction hose, with an optional extension, allowing operators to reach underground tanks, drainage points, and other locations that are not immediately beside the vehicle.
The actual suction performance depends on much more than the maximum vacuum specification, however, because sewage can vary considerably in viscosity and solids content. Hose diameter, hose length, elevation, bends, valves, material density, temperature, and the condition of the vacuum pump all influence how quickly sewage can be transferred. For this reason, professional operators select the appropriate hose and working method according to the specific site rather than simply operating the pump at its maximum capability.
Safety Devices Protect the Vacuum System
Sewage contains water and suspended solids, so preventing liquid from entering the vacuum pump is a critical part of the system design. Modern vacuum trucks therefore use components such as shut-off valves, separators, overflow protection, and other anti-contamination devices to help protect the pump from sewage and excessive moisture. The ISUZU Vacuum Sewer Truck, for example, incorporates dual shut-off valves and oil-water separation equipment as part of its protection system.
These components are particularly important during continuous operation because a vacuum pump is designed to create and maintain airflow rather than process large quantities of liquid directly. Proper separation therefore helps preserve pump performance, reduce contamination, and extend service life.
3. How Does High-Pressure Water Help Clean Sewer Pipes?
Vacuum suction is highly effective for removing sewage and loosened material, but it cannot always remove deposits that have become firmly attached to the inside of a sewer pipe. Grease, sediment, sludge, mineral deposits, and accumulated debris can adhere to pipe walls or form blockages, creating a situation where suction alone is insufficient. This is where high-pressure water jetting becomes valuable.
A combined jetting-vacuum truck carries a separate supply of clean water and uses a high-pressure pump to force water through a specialized nozzle. The nozzle produces concentrated jets that travel through the sewer pipe, breaking up deposits and pushing or washing loosened material toward a collection point. The vacuum system then removes the wastewater, sludge, and debris generated by the cleaning process.
The combined jetting vacuum truck is a good example of this integrated approach. Its 8,000-liter tank is divided into a 5,000-liter sludge/sewage compartment and a 3,000-liter clean-water compartment, while its vacuum pump provides approximately 1,200 m³/h of airflow and its high-pressure jetting pump can deliver up to 269 liters per minute at a maximum pressure of 200 bar. Such a configuration allows the truck to loosen deposits, wash the sewer, recover the resulting waste, and transport it away without requiring separate vehicles for each stage.
Breaking the Blockage Before Removing It
The principle is similar to cleaning a heavily soiled surface: if the contamination is firmly attached, removing it directly may be inefficient, while applying controlled water pressure first can loosen the material and make subsequent removal much easier. In sewer maintenance, this means the jetting system changes the physical condition of the blockage and the vacuum system performs the recovery work, allowing both systems to contribute to the same cleaning operation.
4. How Is Sewage Collected and Stored Inside the Tank?
Once the sewage begins entering the vehicle, the collection tank becomes the temporary storage area for everything removed from the sanitation system. A professional sewage tank needs to be strong enough to withstand repeated loading and unloading, sufficiently sealed to minimize leakage, and designed to accommodate the pressure conditions generated by vacuum operation.
Tank capacity varies considerably according to the intended application. A compact truck may use a tank of only a few thousand liters, making it easier to maneuver through residential neighborhoods and narrow urban streets, while larger municipal and industrial trucks can carry 8,000, 10,000, 12,000 liters or more. Larger capacity can reduce the number of disposal trips, although the vehicle must still remain within its legal payload and axle-load limits.
For sewage and sludge, tank construction is especially important because the material can be corrosive and may contain abrasive solids. The ISUZU 18-ton vacuum suction truck, for example, uses a cylindrical tank reinforced with internal anti-wave rings and an internal epoxy anti-corrosion coating designed to protect the tank from chemical corrosion caused by sewage and sludge. These details are not simply cosmetic; they contribute to long-term durability and safer transportation.
Monitoring the Tank During Loading
Operators need to know how much material has entered the tank throughout the collection process. Level indicators, viewing arrangements, shut-off mechanisms, and overflow protection help prevent overfilling. Allowing sewage to enter the vacuum system beyond its designed separation and protection equipment can damage components, contaminate the pump, and create unnecessary maintenance problems.
A controlled loading procedure therefore involves monitoring both the vacuum pressure and the tank level rather than simply leaving the pump running until the tank is full. This is particularly important when the sewage contains substantial amounts of sludge because solids can accumulate differently from liquid and may affect the effective tank capacity.
5. How Does an ISUZU Vacuum Truck Discharge Sewage?
After the tank has been filled to its safe working level, the truck transports the collected sewage to an approved treatment, disposal, or transfer location. The discharge stage is another important part of the overall cleaning process because a vehicle that can collect sewage quickly but takes excessive time to unload will lose productivity during repeated daily operations.
Different ISUZU vacuum trucks use different discharge arrangements according to their tank design. Some configurations use hydraulic tank lifting combined with rear-door opening, while others use specialized discharge mechanisms suited to the tank and working application. The ISUZU GIGA 10,000-liter vacuum sewage truck, for example, uses hydraulic tank lifting and rear-door opening for discharge, while its cylindrical 10,000-liter tank incorporates internal anti-wave plates and a liquid-level indicator.
On larger heavy-duty vacuum trucks, hydraulic discharge can be particularly useful because the collected sewage and sludge may be heavy and difficult to remove by gravity alone. The operator can position the truck correctly, open the rear door or discharge mechanism, and use the hydraulic system to assist the unloading process, reducing manual intervention and shortening turnaround time.
After discharge, the tank and associated equipment should be cleaned according to the type of waste handled. Hoses, valves, seals, filters, separators, and tank interiors can accumulate residue during repeated sewage operations, so regular inspection and cleaning are essential for maintaining reliable suction performance.
6. What Makes Combined Vacuum and Sewer Jetting More Efficient?
For ordinary septic tank emptying, a conventional vacuum truck may be all that is required, but municipal sewer maintenance often involves a much more complicated mixture of sewage, sludge, grease, sediment, and solid debris. In such environments, the ability to perform both high-pressure jetting and vacuum recovery on the same vehicle can substantially simplify the working process.
The ISUZU Sewer Jet Cleaning Truck is designed around this principle, with a 12,000-liter tank system divided between cleaning water and sludge/sewage, a vacuum pump with a stated volume flow of 6,000–35,000 liters per minute, and a high-pressure jetting pump with a stated flow range of 75–275 liters per minute. The operator can therefore carry clean water to the job site, use it to clean the sewer, and simultaneously recover the contaminated water and loosened sludge.
This arrangement is especially practical when maintaining stormwater drains, municipal sewer pipelines, industrial drainage systems, and other underground infrastructure. Instead of bringing a separate water truck to supply cleaning water and another vehicle to recover the resulting sewage, one specialized truck can perform the principal cleaning and collection functions within a coordinated operation.
Different Jobs Require Different Configurations
Not every sewage-cleaning job requires a combined truck. A small contractor working primarily with septic tanks may prioritize maneuverability, tank capacity, suction depth, and operating cost. A municipal sewer department may place greater emphasis on high-pressure jetting, hose length, water capacity, suction performance, and debris recovery. Industrial operators may additionally require corrosion-resistant materials, specialized pumps, larger tanks, or custom safety systems.
This is why choosing a vacuum truck should begin with the actual work conditions rather than simply selecting the largest tank or most powerful pump available. The right combination of capacity, vacuum performance, water-jetting capability, chassis size, hose arrangement, tank material, and discharge method will normally provide a more practical long-term solution.
7. How Does a Vacuum Truck Fit into Municipal Sewage Management?
Modern sanitation operations rarely depend on a single type of vehicle. A vacuum truck is responsible for sewage, sludge, and liquid-waste collection, while other specialized vehicles address solid waste, road cleaning, water distribution, and related municipal services. Building a fleet around these complementary functions can make daily operations more organized because each vehicle is equipped for the material it is expected to handle.
For example, a garbage truck is designed to collect and transport solid municipal waste, including household refuse and other common garbage streams. It uses loading and compaction equipment rather than vacuum suction, making it fundamentally different from a sewage truck even though both vehicles support environmental sanitation.
A sprinkler truck has another role, providing controlled water distribution for road washing, dust suppression, landscaping support, and other public-works applications. Although water is central to its operation, it is not designed to collect contaminated sewage. Using a dedicated vacuum or sewer truck for sewage recovery and a sprinkler truck for clean-water distribution allows each vehicle to perform its intended task more safely and efficiently.
In larger fleets, these vehicles can work together around the same sanitation infrastructure. A sewer jetting-vacuum truck can clean and recover material from drainage systems, a garbage truck can collect solid refuse from surrounding areas, and a sprinkler truck can wash or suppress dust on public roads. This division of responsibilities helps municipalities and contractors create a more complete environmental maintenance system.
8. What Should Operators Consider for Effective Sewage Cleaning?
Effective sewage cleaning depends on more than the truck’s suction pressure because the vehicle, equipment, operator, and working environment all influence the final result. Before beginning a job, operators should identify the type of sewage, estimate the amount of sludge or sediment present, determine the access distance, inspect the suction hose and connections, and make sure that the tank and vacuum system are appropriate for the material.
During operation, vacuum pressure and tank level should be monitored continuously, while shut-off and anti-overflow systems should remain functional. If high-pressure water jetting is being used, the operator must also select a suitable nozzle and pressure according to the pipeline and deposit conditions rather than assuming that maximum pressure is always the best approach. Controlled operation can protect sewer infrastructure while still providing effective cleaning.
Maintenance is equally important. Vacuum pumps require appropriate lubrication and inspection, hoses should be checked for cracks and wear, valves should be cleaned, separators and filters should be maintained, and tank coatings should be inspected for damage. For vehicles handling corrosive sewage or sludge every day, preventive maintenance can significantly reduce unexpected downtime and help maintain stable suction performance over the working life of the truck.
Ultimately, an ISUZU vacuum truck cleans sewage through a carefully coordinated process of vacuum suction, controlled collection, secure storage, transportation, and controlled discharge, while combined sewer-cleaning configurations add high-pressure water jetting to loosen blockages and wash deposits from pipelines before recovering the contaminated material. With the right configuration, these trucks can support septic tank emptying, municipal sewer maintenance, drainage cleaning, industrial wastewater management, and sludge recovery as part of a complete sanitation system. When a fleet also includes a garbage truck for solid waste and a sprinkler truck for water distribution and road maintenance, different sanitation tasks can be handled by equipment designed specifically for each application. ISUZU Vehicles offers a broad range of vacuum, sewer jetting, and specialized sanitation trucks that can be configured according to the capacity, working environment, and cleaning requirements of different customers.
