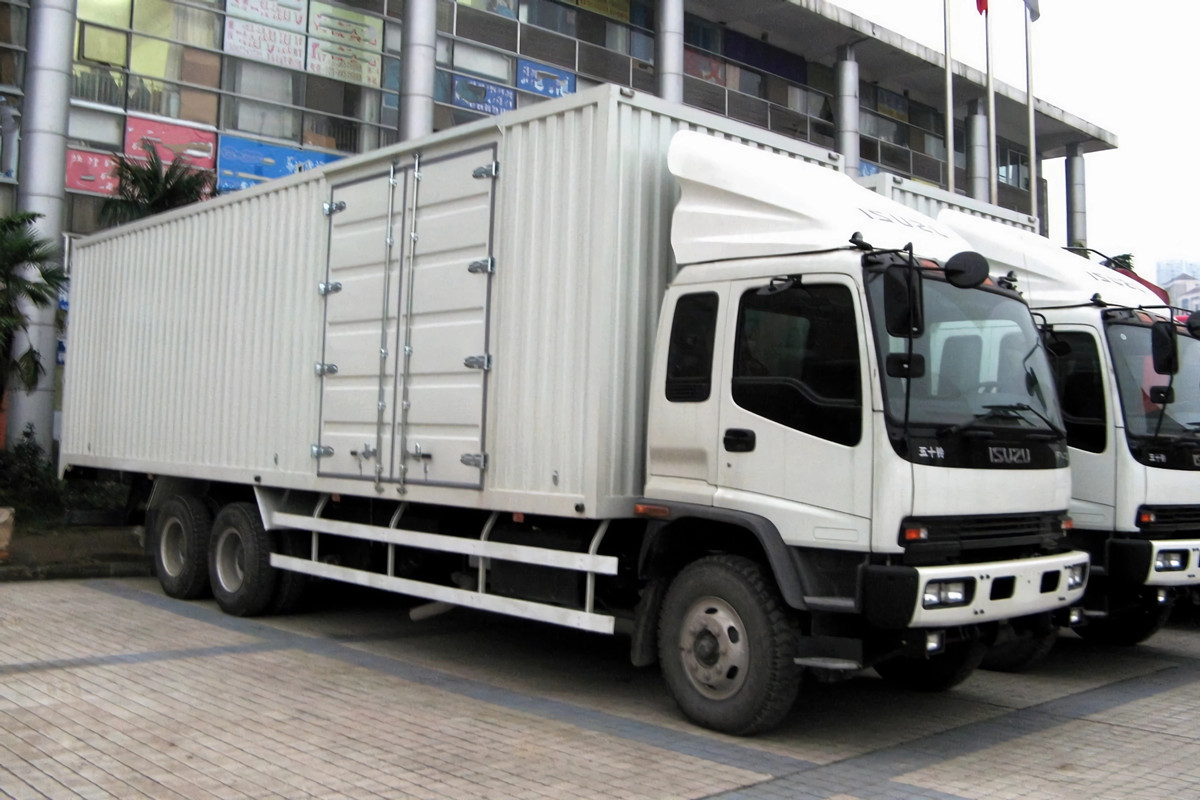

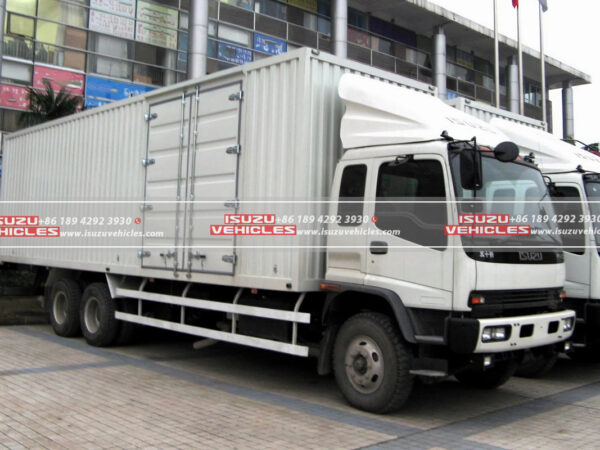

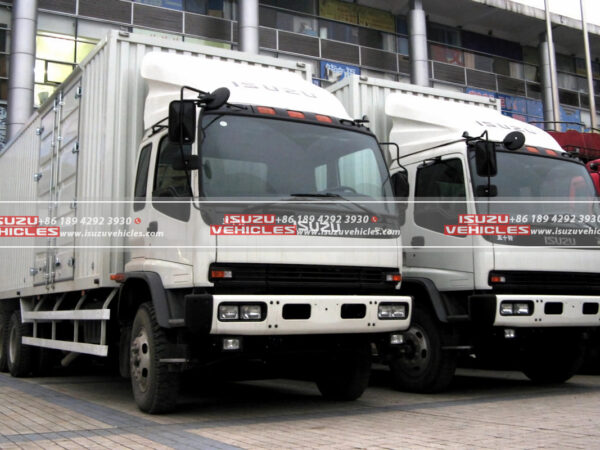

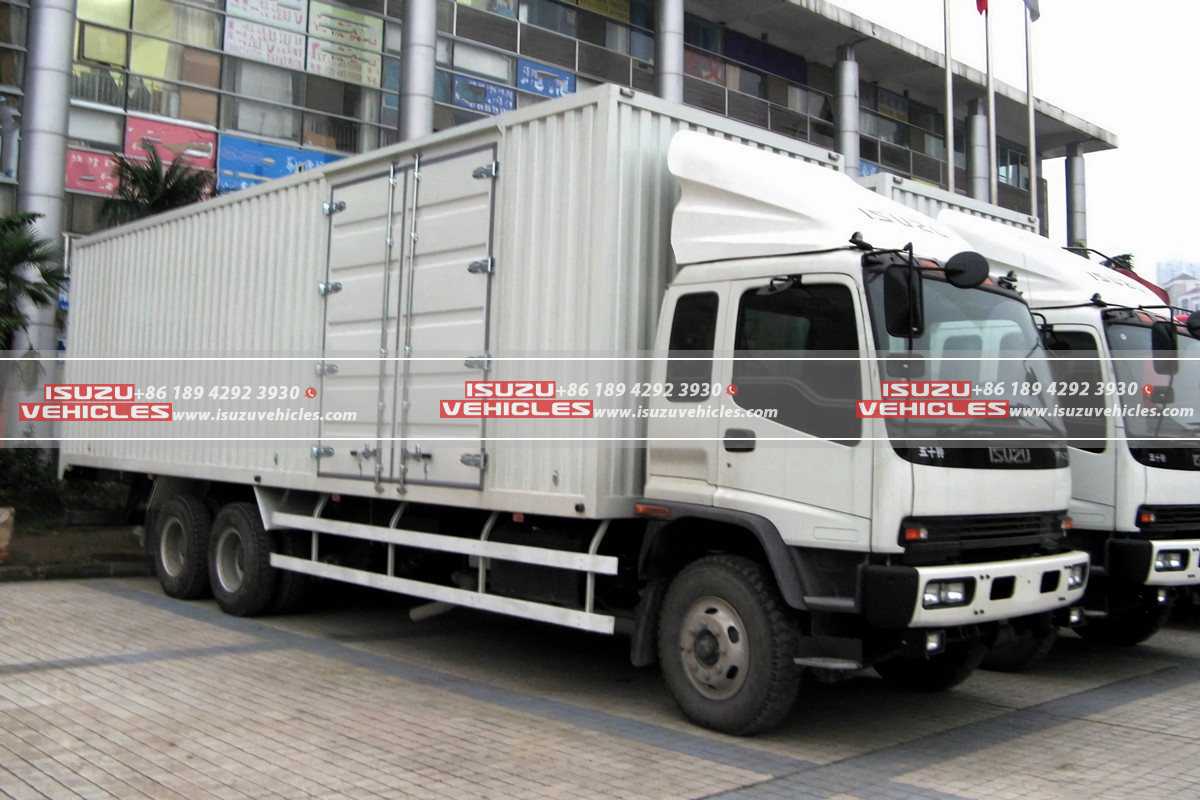

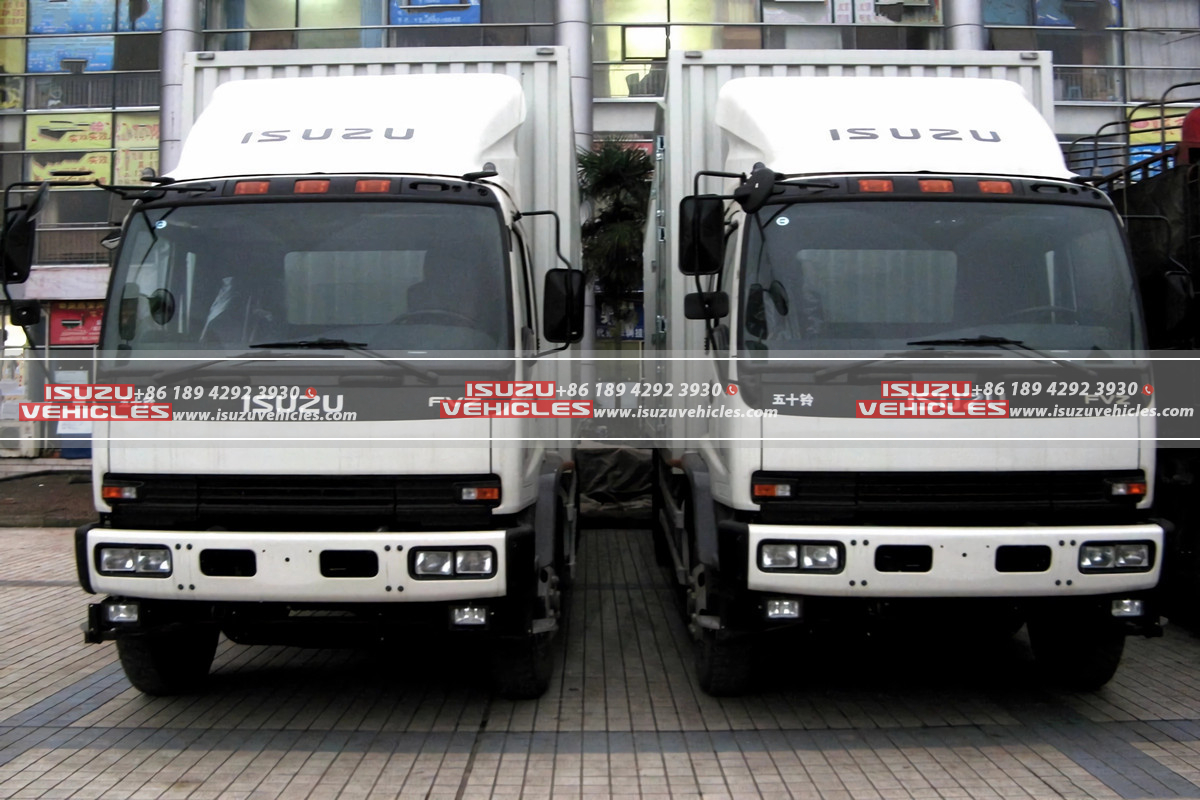

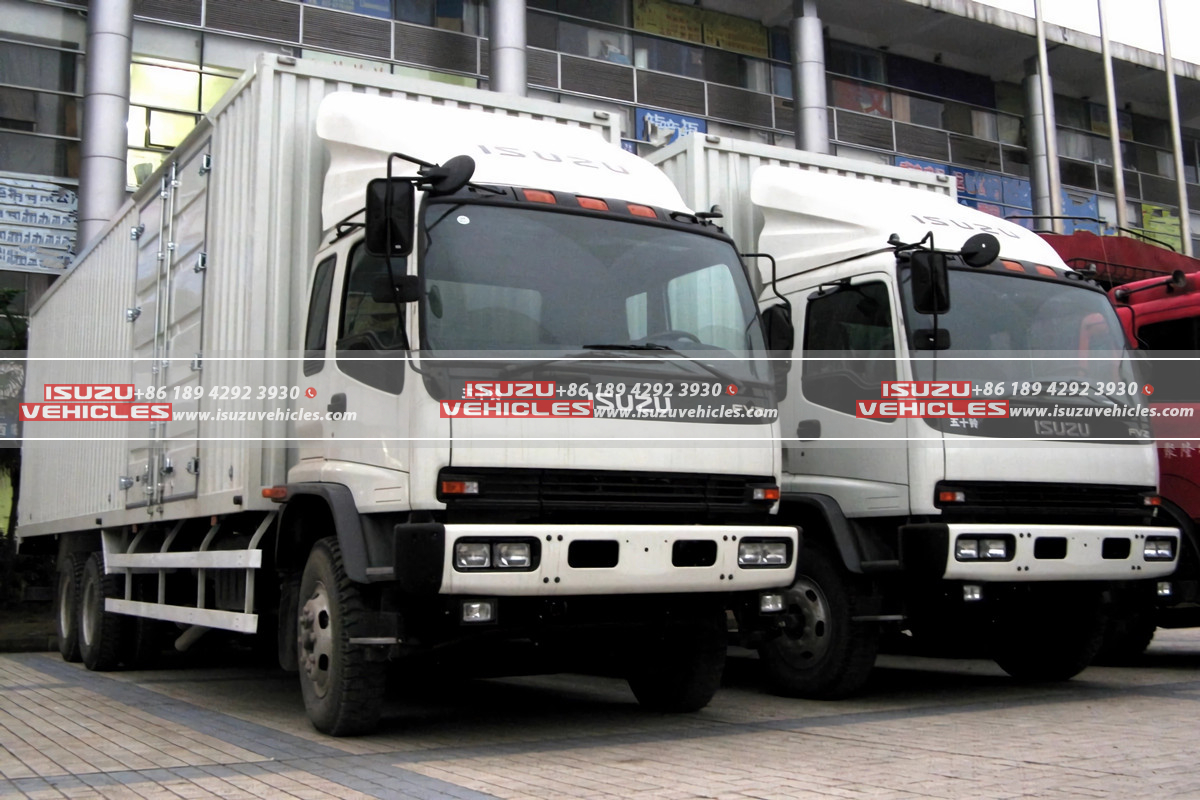

ISUZU 10 Meter Heavy Van Box Truck
Heavy-Duty Performance
Engineered for high-capacity logistics, the ISUZU 10 Meter Heavy Van Box Truck combines rugged durability with precise compliance for demanding commercial operations.
- Structural Design: Built on a 6X4 drive form with a split wheelbase (5,700 + 1,300 mm), this ISUZU cargo truck ensures stability and maneuverability under heavy loads.
- Payload Mastery: Boasts a 24.6-ton total mass with a 14.22-ton rated load capacity, ideal for long-haul freight.
- Regulatory Compliance: Certified for Yellow Plate operation in China, powered by a Diesel engine meeting China III/Euro III emissions.
- Cargo Dimensions: Features a 9.354-meter enclosed cargo box (internal width: ~2.434 m) paired with a 9.4-meter cab, maximizing cargo volume without compromising drivability.
FEATURES
1. Optimized Cargo Space
Efficiency
Designed to maximize cargo capacity while ensuring secure transport for sensitive or high-value goods.

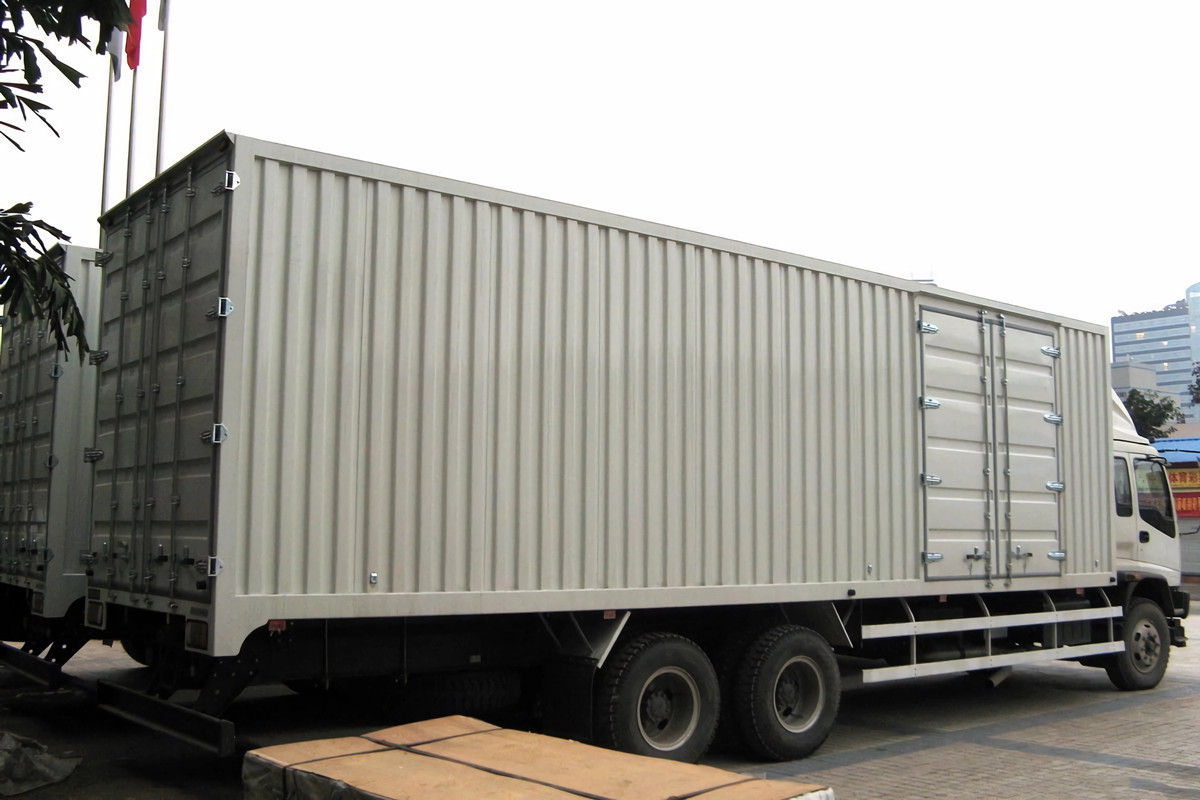

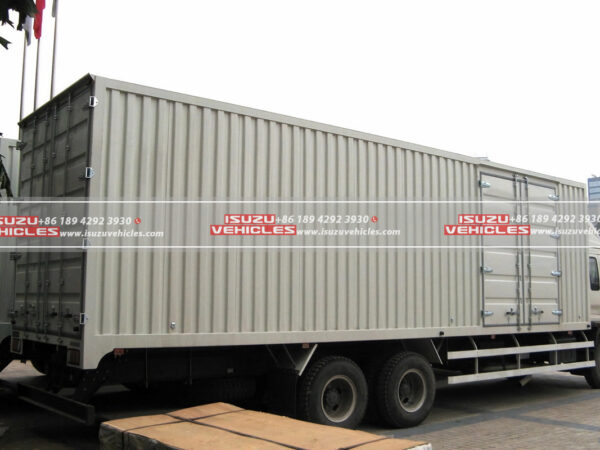

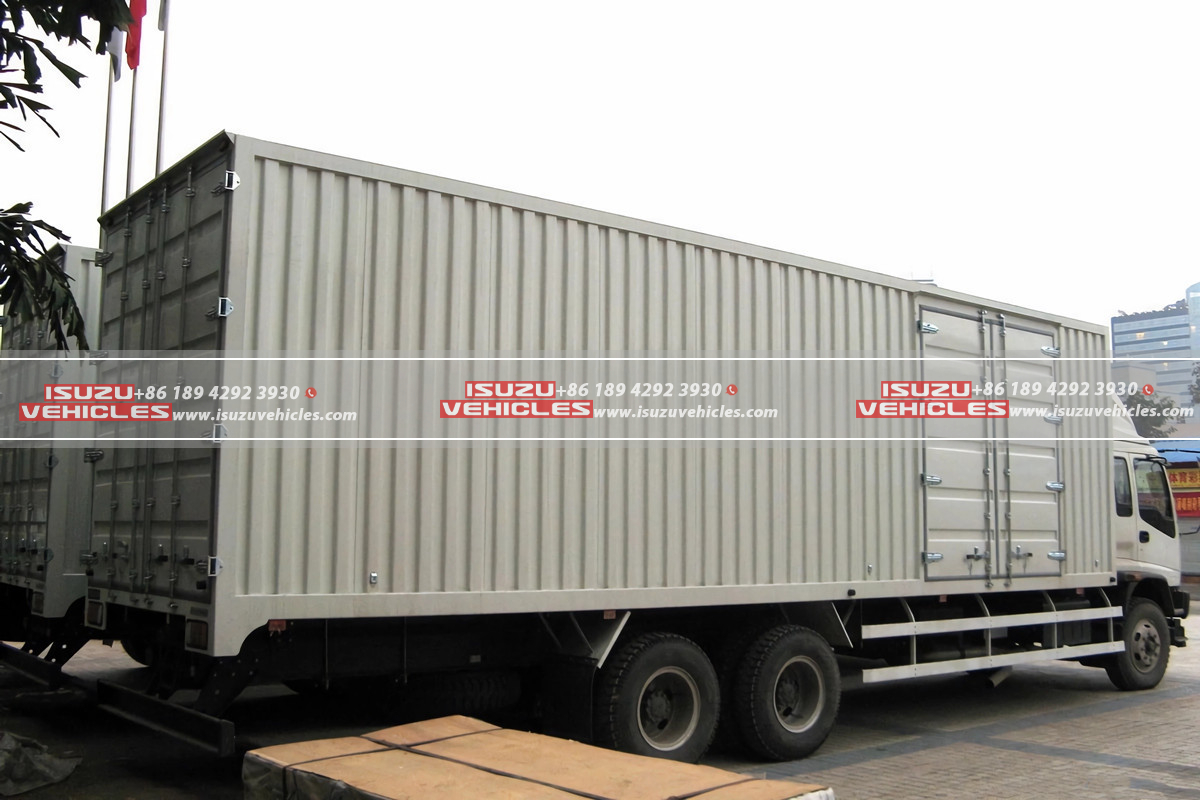

- Enclosed Box: A closed, non-openable roof and reinforced walls protect cargo from environmental hazards.
- Precise Dimensions: Internal cargo space of 9.354 m (L) × 2.434 m (W) × 2.55 m (H), optimized for standardized pallets.
- Track Stability: 1,960 mm front track and 1,855 mm dual rear tracks enhance load distribution and cornering safety.
2. Turbocharged Powertrain
Reliability
The Qingling-Isuzu 6HK1-TCS engine delivers unmatched power and fuel efficiency for heavy-duty logistics.
- Engine Specs: 6-cylinder, 7.79L displacement diesel engine generates 221 kW (300 HP) for steep gradients and prolonged operation.
- Transmission: FAST 9JS119TA manual gearbox with 9 forward gears and 1 reverse gear ensures smooth gear shifts across terrains.
- Emission Control: Compliant with China III/Euro III standards, reducing environmental impact without sacrificing performance.
3. Customization Flexibility
Adaptability
Tailor the truck to specific operational needs with optional add-ons.
- Aerodynamic Deflector: Reduces drag for improved fuel efficiency on highways.

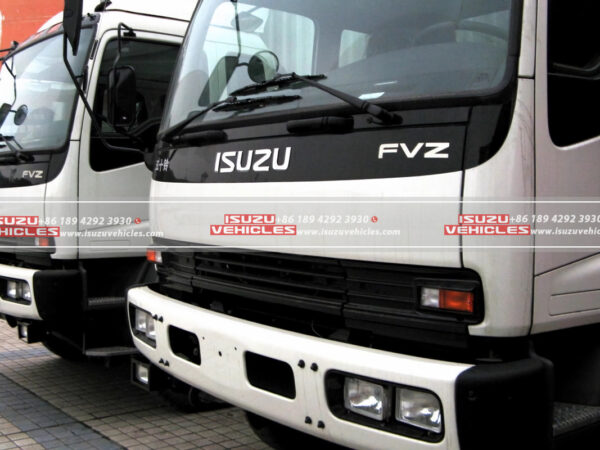

- Narrow Front Bumper: Enhances maneuverability in urban areas.
- Side Doors: Expand cargo width to 2.545 m for oversized loads, maintaining structural integrity.
Specifications subject to regional compliance standards. Consult local dealers for customization options.
SPECIFICATIONS
| Category | Specification | Details |
|---|---|---|
| Basic Parameters | Type | Box Truck |
| Drive Form | 6X4 | |
| Wheelbase | 5,700 + 1,300 mm | |
| Cab Length Class | 9.4 m | |
| Body Dimensions | Length: 11.685 m Width: 2.495 m Height: 3.99 m |
|
| Track Width | Front: 1,960 mm Rear: 1,855/1,855 mm |
|
| Weight & Load | Curb: 10.185 t Rated Load: 14.22 t Total: 24.6 t |
|
| Max Speed | 95 km/h | |
| Origin & Compliance | Chongqing Yellow Plate Energy Type: Diesel |
|
| Cargo Box | Type | Enclosed |
| Dimensions | Length: 9.354 m Width: 2.434 m Height: 2.55 m |
|
| Internal Width | ~2.434 m | |
| Engine & Transmission | Brand | Qingling-Isuzu |
| Model | 6HK1-TCS | |
| Cylinders/Displacement | 6 Cylinders 7.79 L |
|
| Power & Fuel | 221 kW (300 HP) Diesel Emission: China III/Euro III |
|
| Transmission | FAST 9JS119TA Manual 9 Forward, 1 Reverse |
|
| Additional Notes | Roof | Closed (non-openable) |
| Optional Features | Narrow front bumper Side doors (width: 2.545 m) Aerodynamic deflector |
Key Design Highlights
- Structural Robustness: 6X4 drivetrain with split wheelbase (7,000 mm total) for heavy-duty applications.
- High Payload: 14.22-ton rated load capacity within a 24.6-ton total mass limit.
- Efficient Powertrain: 300 HP turbocharged diesel engine paired with a 9-speed manual gearbox.
- Regulatory Compliance: Meets both China III and Euro III emission standards.
