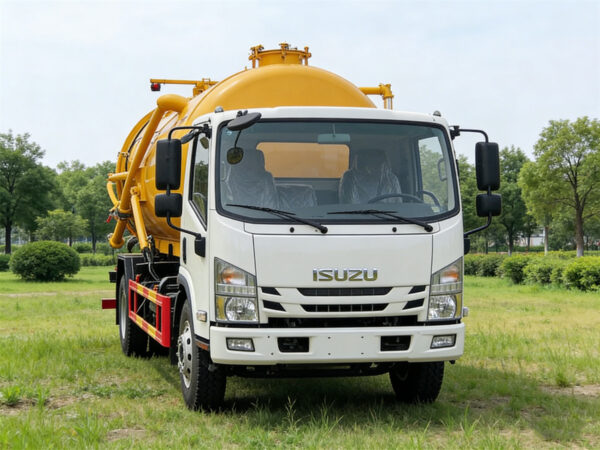

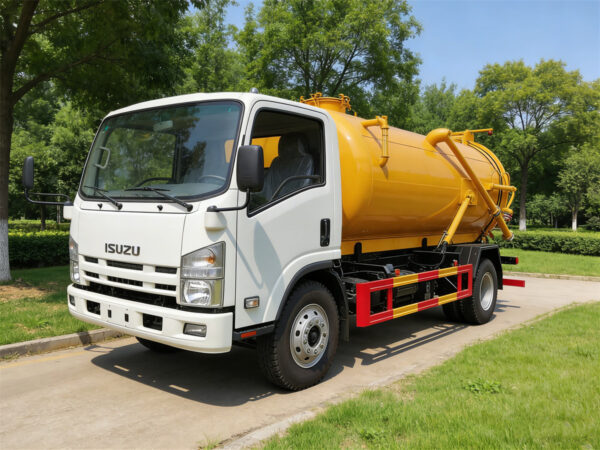

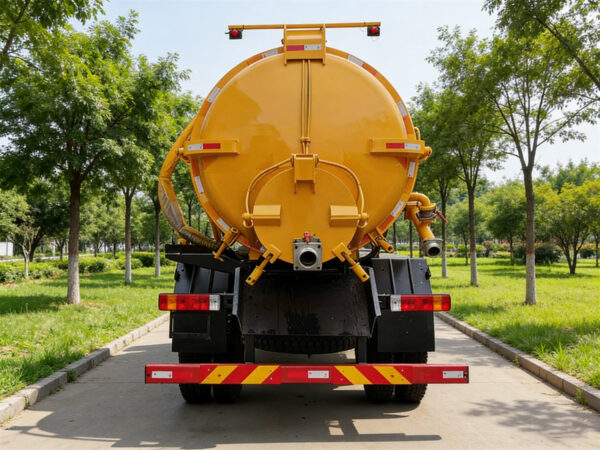

ISUZU 8,000L Vacuum Sewage Suction Truck
The ISUZU 8,000L Vacuum Sewage Suction Truck is a high-performance sanitation vehicle designed for efficient sewage removal, septic tank cleaning, sludge transport, and municipal drainage maintenance. Built on the reliable ISUZU FTR 4×2 medium-duty chassis, the truck combines durable tank construction, powerful vacuum suction capability, and dependable ISUZU powertrain technology to ensure efficient and stable operation in demanding working environments.
Powered by the ISUZU 4HK1-TCG60 turbocharged diesel engine, the truck delivers 205 horsepower and strong torque output, providing the necessary power for both road transportation and continuous vacuum pump operation. With a 5.2-liter displacement, the engine ensures reliable performance while maintaining good fuel efficiency and durability, making it ideal for municipal sanitation fleets and industrial waste management operations.
The vehicle features an overall dimension of 7,360 × 2,270 × 3,000 mm and a 4,200 mm wheelbase, providing an excellent balance between maneuverability and tank capacity. With a gross vehicle weight of 11,995 kg, the chassis offers strong load-bearing capability while maintaining stable driving performance even when the tank is fully loaded.
At the core of the truck is the 8,000-liter cylindrical vacuum tank, constructed from high-strength Q235B carbon steel with reinforced thickness to withstand high negative pressure during vacuum operations. The tank structure ensures durability and safety when handling sewage, sludge, and other liquid waste materials.
Equipped with a high-performance vacuum pump capable of 360 m³/h pumping rate, the truck provides powerful suction performance with an ultimate vacuum pressure of −90,000 Pa, allowing it to quickly remove large volumes of sewage and sludge from septic tanks, manholes, and drainage systems.
This combination of ISUZU chassis reliability, powerful vacuum suction system, and durable tank construction makes the truck a dependable solution for municipal sanitation departments, industrial facilities, construction projects, and environmental service companies.
Features
Reliable ISUZU FTR Chassis
The truck is built on the proven ISUZU FTR medium-duty chassis, known for its durability, stability, and excellent load-carrying capability. With a GVW of 11,995 kg and optimized axle distribution, the chassis provides strong support for vacuum tank operations while maintaining smooth and stable driving performance.
The 4×2 drive configuration and 4,200 mm wheelbase allow the vehicle to operate efficiently in both urban and semi-urban environments, making it suitable for municipal sanitation tasks and industrial waste collection.
Powerful ISUZU Turbocharged Engine
The vehicle is equipped with the ISUZU 4HK1-TCG60 turbocharged and intercooled diesel engine, delivering 151 kW (205 HP) of power. This engine is well known for its strong torque output, durability, and fuel efficiency, making it suitable for heavy-duty service vehicles that require consistent power during long operational hours.
The engine complies with Euro III / Euro IV emission standards, ensuring reliable performance while meeting environmental requirements in many export markets.
Efficient 6-Speed Transmission System
To ensure smooth power delivery and operational control, the truck is equipped with the ISUZU MLD-6Q manual transmission, featuring 6 forward gears and 1 reverse gear. This transmission provides excellent torque handling capability and allows the driver to maintain optimal engine performance under various road and load conditions.
The manual gearbox design also simplifies maintenance and improves long-term reliability in demanding working environments.
Heavy-Duty 8,000L Vacuum Tank
The vacuum tank is constructed using high-strength Q235B carbon steel, designed specifically for vacuum suction operations involving sewage and sludge. The tank features a cylindrical structure that evenly distributes pressure during suction and discharge operations.
The 8 mm shell cover thickness and 6 mm tank body thickness provide additional structural strength, ensuring the tank can withstand strong vacuum pressure without deformation. This durable construction guarantees long service life even under intensive daily operation.
High-Performance Vacuum Pump System
The truck is equipped with a high-efficiency vacuum pump from a reputable Chinese manufacturer, designed to deliver powerful suction performance for sewage removal operations.
With a pumping rate of 360 cubic meters per hour (6,000 liters per minute), the pump enables rapid suction of sewage and sludge, significantly improving operational efficiency. The system can achieve an ultimate vacuum pressure of −90,000 Pa, ensuring strong suction power capable of handling thick sludge and waste liquids.
The pump operates at 950 revolutions per minute and maintains a maximum operating temperature of 90°C, ensuring stable performance and extended equipment lifespan.
Flexible Sewage Suction System
The truck includes a 10-meter reinforced sewage suction hose, constructed from durable plastic with internal steel wire reinforcement. This design ensures both flexibility and strength, allowing the hose to resist collapse under strong vacuum pressure.
With a pipe diameter of φ50 mm, the suction system allows smooth and efficient flow of sewage and sludge into the tank, minimizing blockages and improving operational reliability.
The extended hose length allows operators to easily reach underground tanks, septic systems, drainage pits, and manholes without needing to reposition the truck frequently.
Operator-Friendly Cabin Design
The vehicle features the ISUZU F-Series day cab, designed with durable steel construction and comfortable seating for three occupants. The cabin layout provides a clear driving position and convenient access to vehicle controls, ensuring a safe and comfortable working environment for the driver and crew.
The truck can be configured with either left-hand drive or right-hand drive, making it suitable for different international markets and regional road regulations.
The ISUZU 8,000L Vacuum Sewage Suction Truck offers a powerful combination of ISUZU engineering reliability, high-capacity vacuum suction capability, and durable tank construction, making it an ideal solution for municipal sanitation, septic tank cleaning, industrial waste removal, and drainage system maintenance.
SPECIFICATIONS:
| Item | Details |
|---|---|
| Chassis Brand | ISUZU |
| Chassis Model | ISUZU F |
| Drive Type | 4×2 |
| Overall Dimensions (L×W×H) | 7,360 × 2,270 × 3,000 mm |
| Wheelbase | 4,200 mm |
| Gross Vehicle Weight (GVW) | 11,995 kg |
| Curb Weight | 6,300 kg |
| Rated Payload | 5,695 kg |
| Front Axle Capacity | 4,500 kg |
| Rear Axle Capacity | 7,500 kg |
| Tire Size | 10.00R20 |
| Number of Tires | 6 + 1 Spare |
| Engine Brand | ISUZU |
| Engine Model | 4HK1-TCG60 |
| Engine Type | Inline 4-cylinder Turbocharged Intercooled Diesel |
| Displacement | 5.2 L |
| Maximum Power | 151 kW |
| Maximum Horsepower | 205 HP |
| Emission Standard | Euro III / Euro IV Optional |
| Fuel Type | Diesel |
| Transmission Brand | ISUZU |
| Transmission Model | MLD-6Q |
| Transmission Type | Manual |
| Gears | 6 Forward + 1 Reverse |
| Operation | Manual |
| Cabin Model | ISUZU F-Series Day Cab |
| Driving Type | Left-hand or Right-hand Drive |
| Structure | Steel Construction |
| Seat Capacity | 3 Persons |
| Configuration | Single Row, Flat Floor |
| Tank Capacity | 8,000 Liters |
| Tank Shape | Cylindrical |
| Tank Material | Q235B Carbon Steel |
| Shell Cover Thickness | 8 mm |
| Tank Body Thickness | 6 mm |
| Vacuum Pump Brand | Chinese Famous Brand |
| Pumping Rate | 360 m³/h (6,000 L/min) |
| Ultimate Vacuum Pressure | −90,000 Pa |
| Pump Speed | 950 r/min |
| Maximum Pump Temperature | ≤ 90°C |
| Inlet / Outlet Pipe Diameter | φ50 mm |
| Sewage Suction Pipe | 10 meters reinforced plastic hose with internal steel wire |
