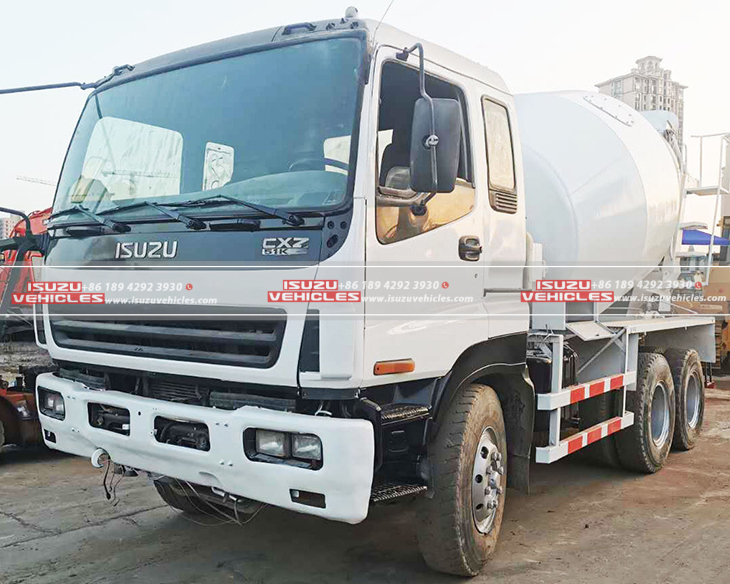

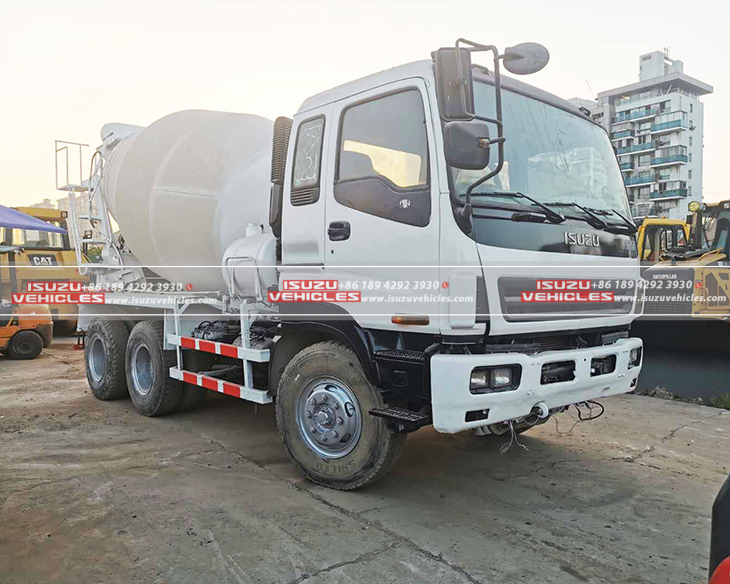

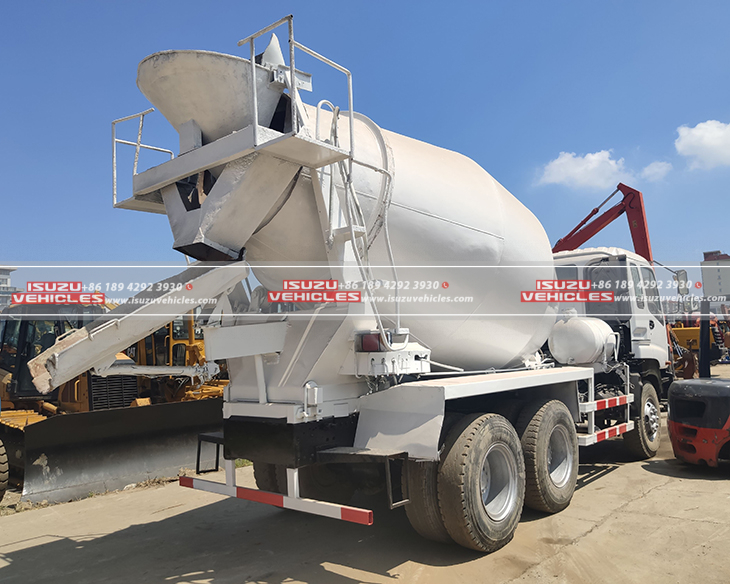

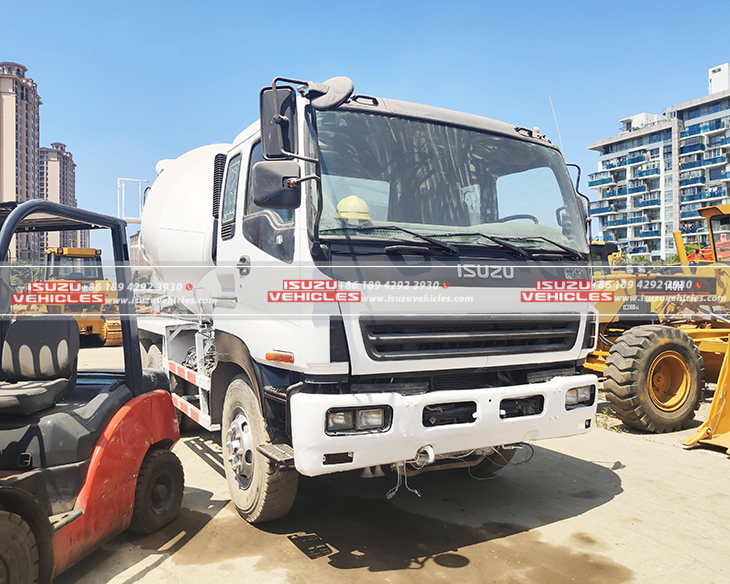

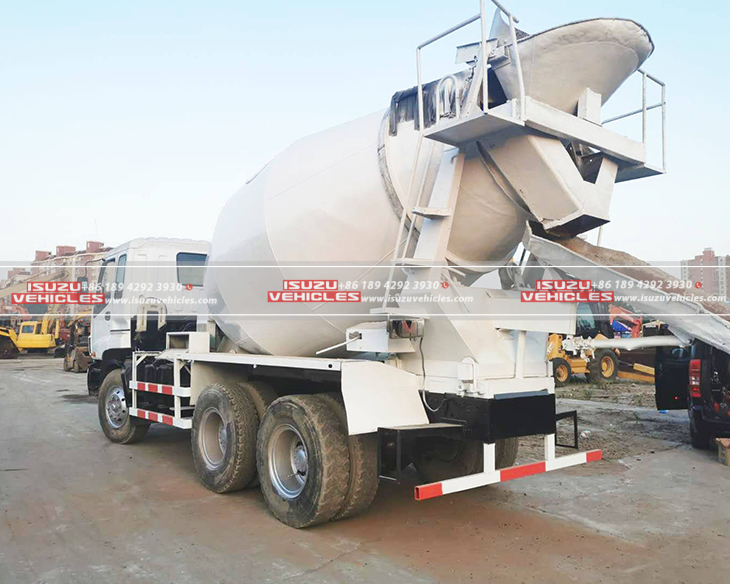

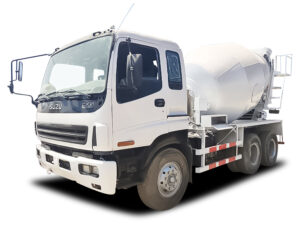

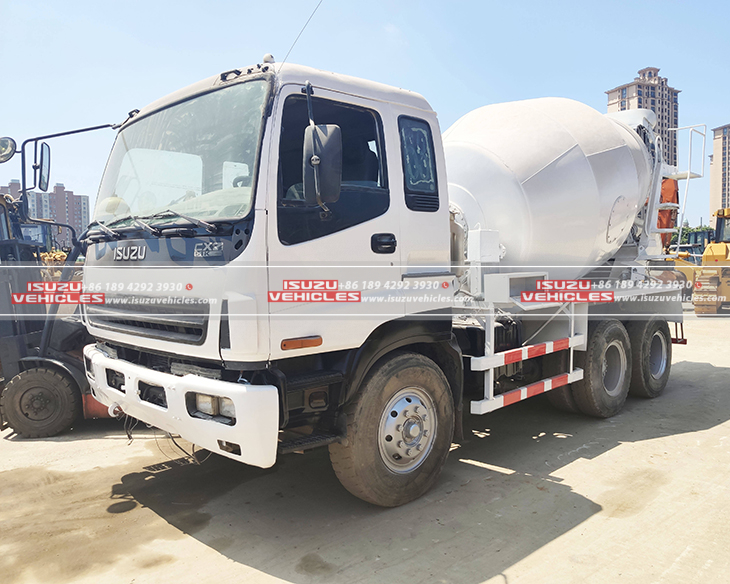

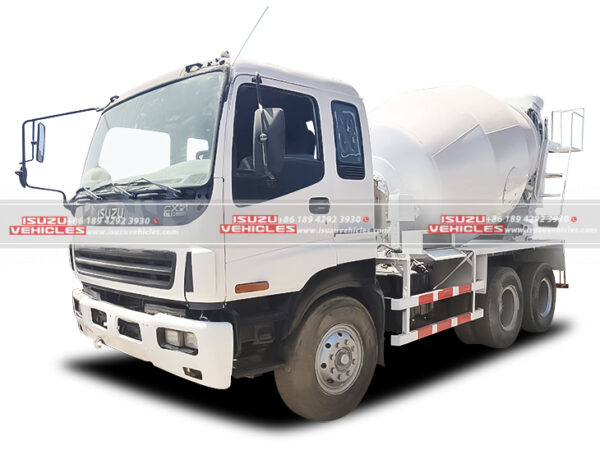

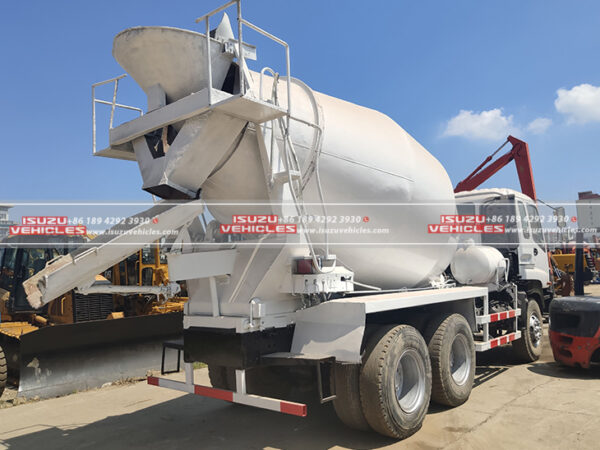

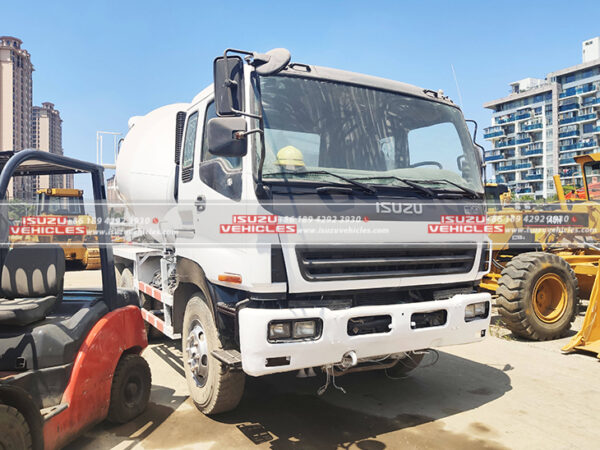

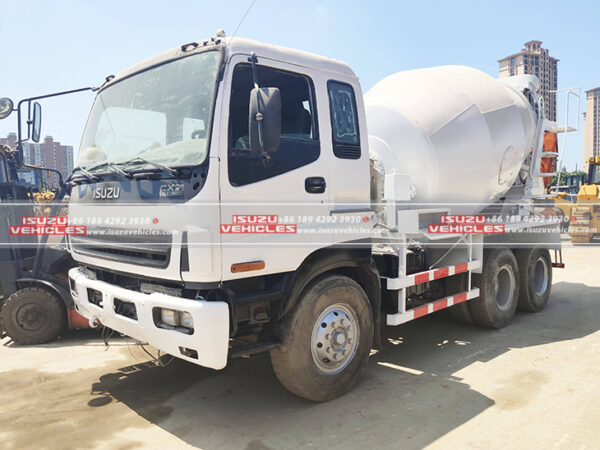

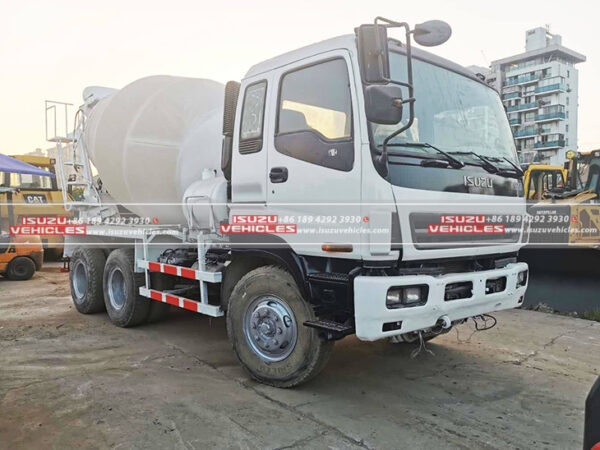

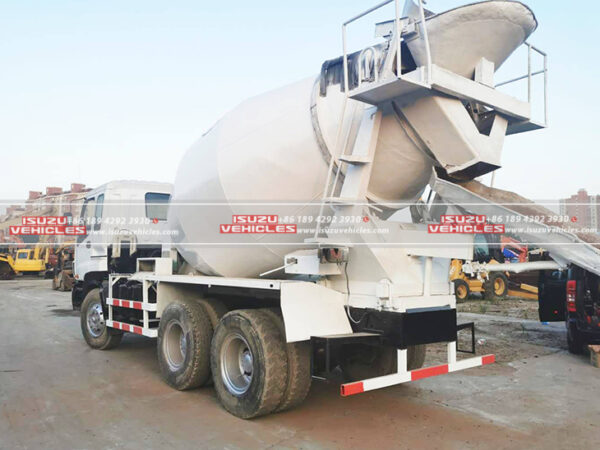

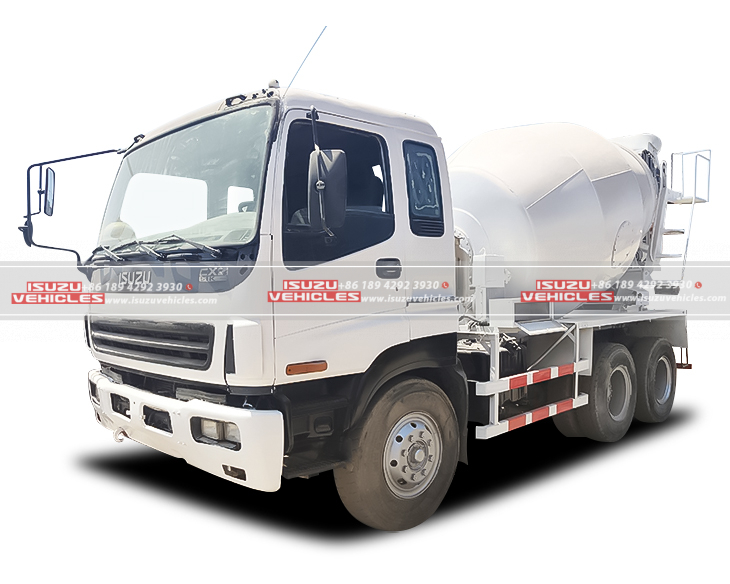

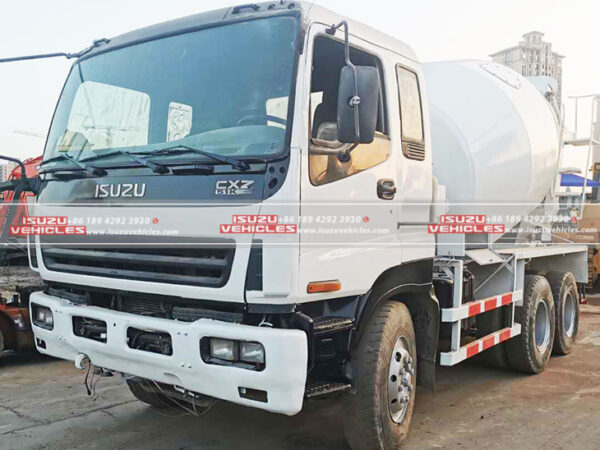

ISUZU Cement Mixer Vehicle

ISUZU Cement Mixer Vehicle

The ISUZU Cement Mixer Vehicle represents the pinnacle of heavy-duty concrete transportation, integrating a robust 6×4 chassis with a 12m³ mixing capacity to serve large-scale construction projects. Built on Isuzu’s globally trusted engineering platform, this model features a 360-horsepower EURO IV-compliant engine paired with a 6-speed manual transmission, delivering optimal torque for steep gradients and extended hauls. With a curb weight of 8,640 kg and a reinforced 13-ton rear axle, it balances payload efficiency with structural resilience, meeting both urban infrastructure and remote site demands.

FEATURES

1. Advanced Powertrain & Drivetrain

• Engine: Isuzu 6WF1A 6-cylinder turbo-diesel engine generating 360 HP, engineered for low-RPM torque (peak at 1,800 rpm) to maintain consistent drum rotation under full load.
• Transmission: MAL6U 6-speed synchromesh gearbox with helical-cut gears reduces shift effort by 40% and extends clutch lifespan.
• Axle System: 13-ton Isuzu single-reduction rear axle with 6.72:1 final drive ratio, optimized for 30% gradeability on unimproved terrain.

2. High-Productivity Mixing System

• 12m³ Drum Capacity: Fabricated from Hardox 450 wear-resistant steel with helical blades for 98% homogeneity retention during 90-minute transit cycles.
• Hydraulic Drive: Bosch Rexroth pump and motors coupled with Bonfiglioli planetary gear reducers enable variable drum speeds (0–14 rpm) with 92% energy transfer efficiency.
• Anti-Segregation Baffles: Internally mounted vortex generators minimize aggregate separation at low RPM discharge.

3. Operator-Centric Cabin Design

• ErgoCommand Cockpit: Tilt-adjustable air-suspended seat, hydraulic power steering, and 270-degree glazed visibility enhance 12-hour shift comfort.
• Digital Control Hub: Integrated drum rotation display, temperature sensors, and auto-reversing cleanout system accessible via dash-mounted touchpad.
• Living Space: 67 cm sleeper berth with climate control, USB charging ports, and sound-dampened insulation (62 dB at 80 km/h).

4. Durability & Safety Engineering

• Frame Architecture: 8mm C-channel ladder frame with crossmember reinforcements at stress points (≥780 MPa yield strength).
• Braking System: Dual-circuit air brakes with ABS and drum moisture evacuation, achieving 25m stopping distance from 80 km/h.
• Compliance: EURO IV emissions via cooled EGR and DOC+DPF aftertreatment, exceeding particulate matter limits by 22%.

5. Low-Ownership-Cost Design

• Extended Service Intervals: 50,000 km oil-change cycles for engine/transmission supported by centralized grease points.
• Corrosion Defense: Electrocoated underbody and stainless steel fluid lines resist salt/chemical exposure.
• Telematics-Ready: Pre-installed CAN bus port for real-time fuel/drum rotation monitoring.

SPECIFICATIONS
