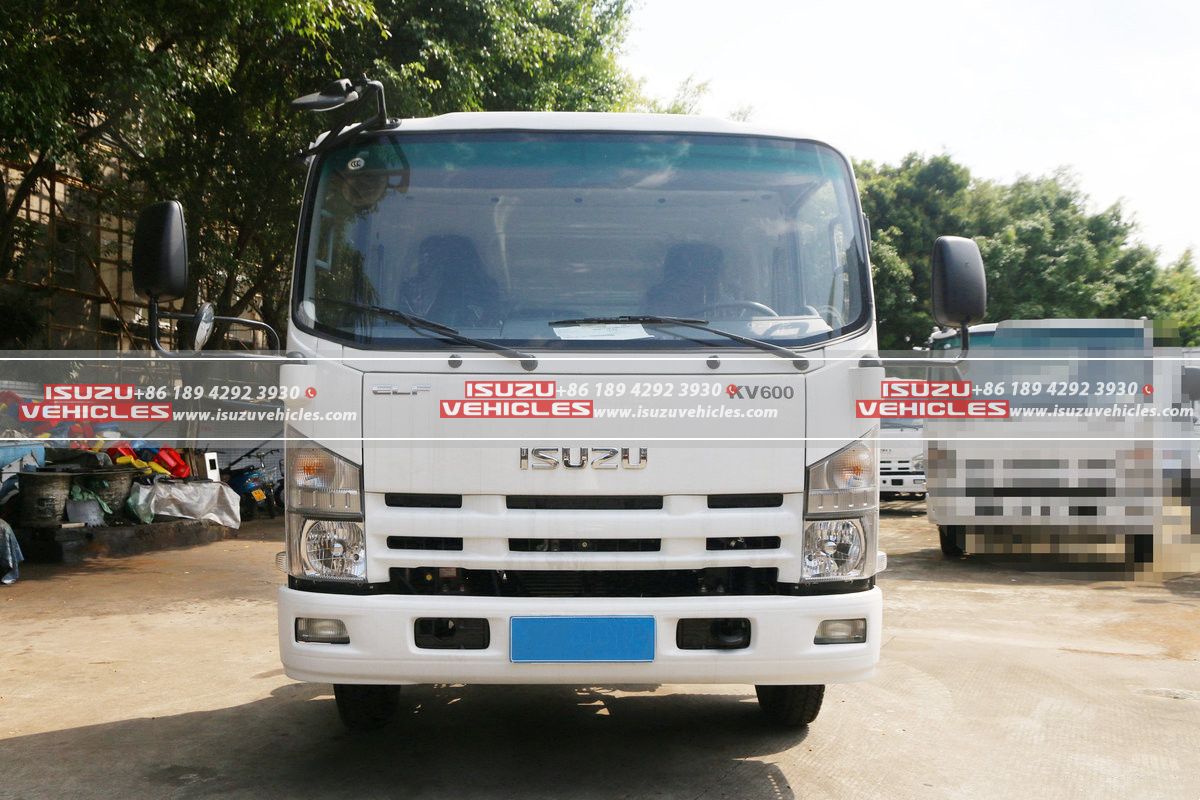

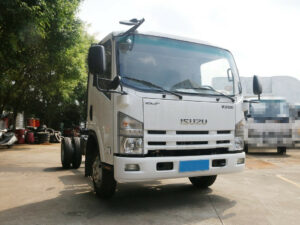

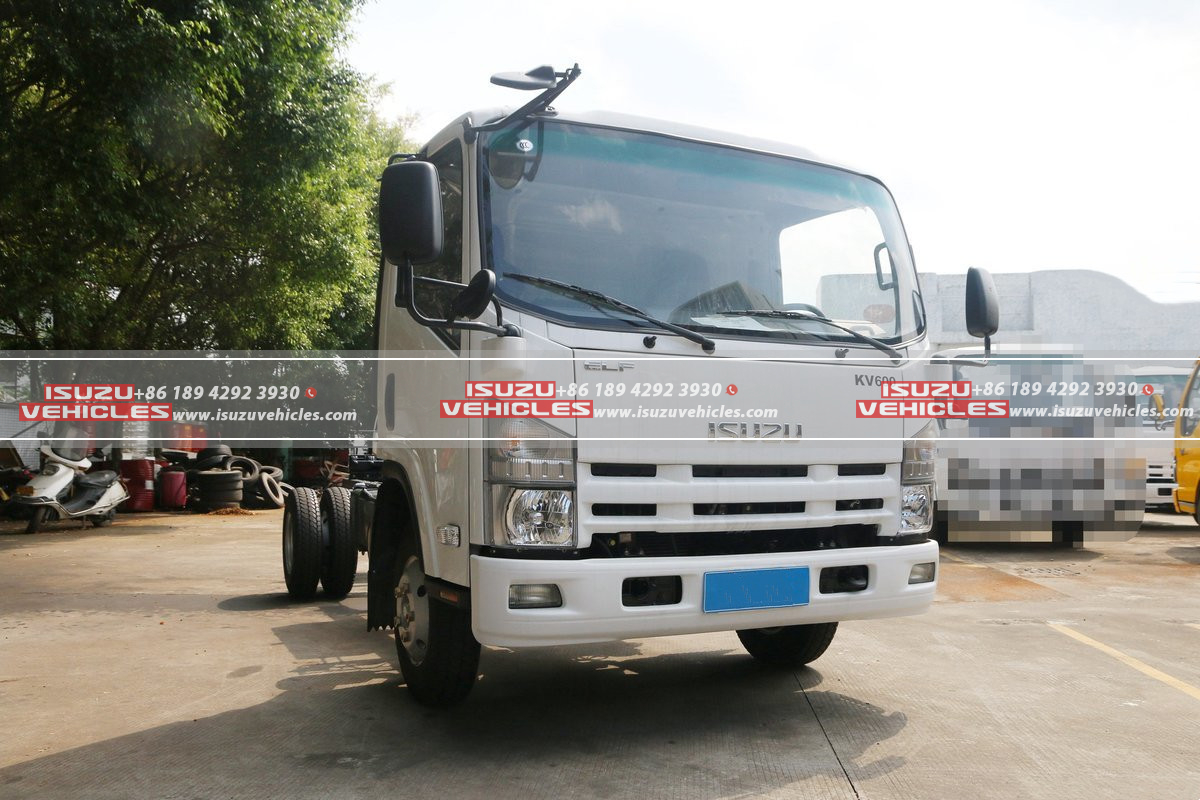

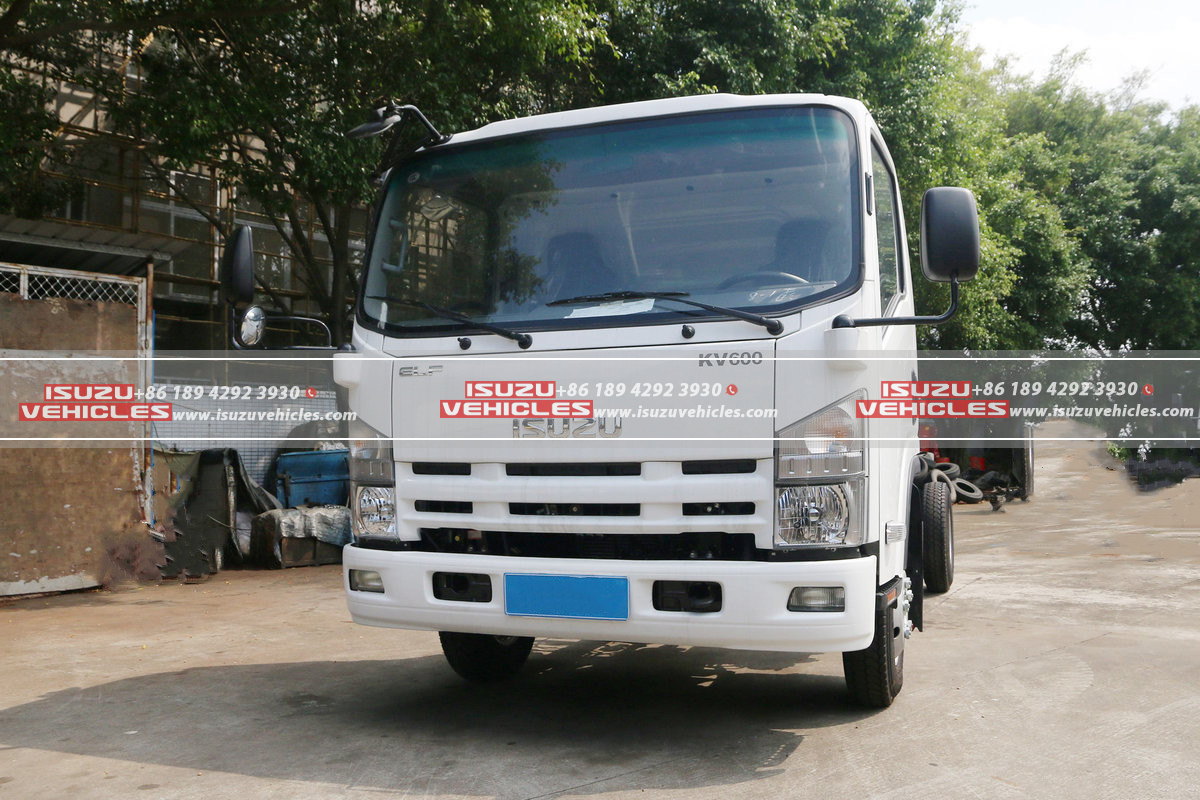

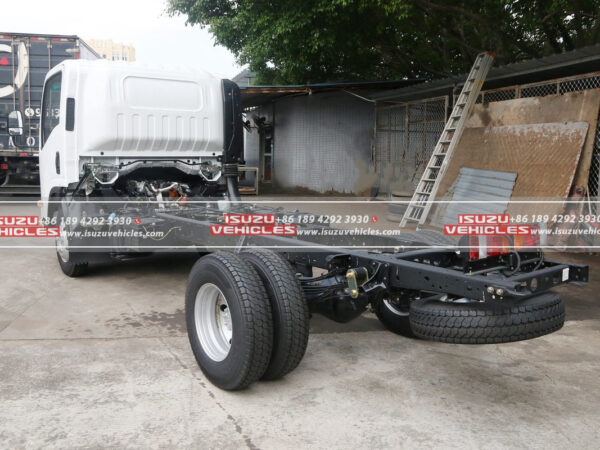

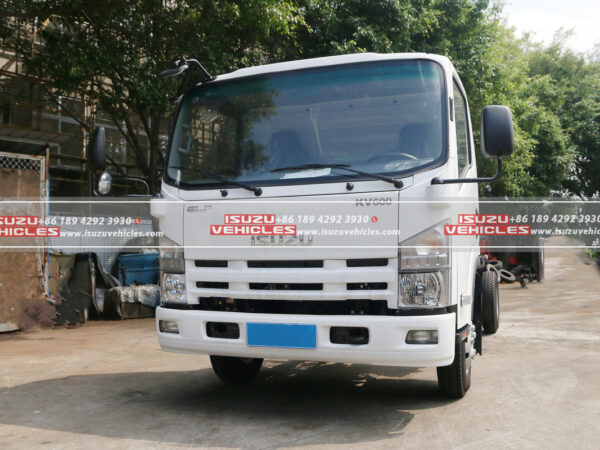

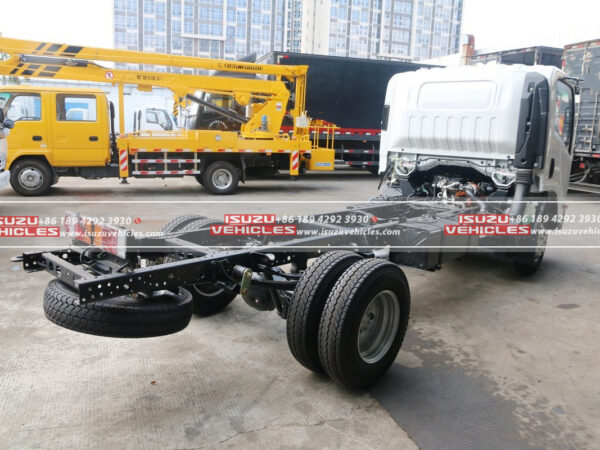

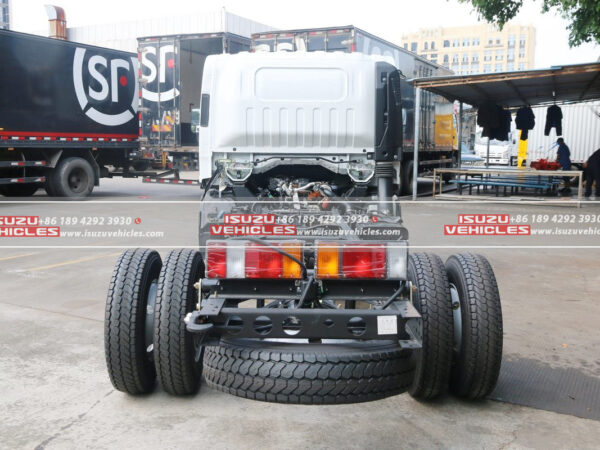

ISUZU KV600 Refrigerated Truck Chassis
The ISUZU KV600 refrigerated truck chassis is designed to meet the rigorous demands of transporting perishable goods. Featuring a robust Qingling Isuzu engine and advanced refrigeration capabilities, this truck ensures your cargo remains fresh and secure.
Basic Information:
- Drive Type: The truck has a 4X2 drive configuration, providing stability and control.
- Wheelbase: A wheelbase of 3360 mm ensures a balanced and smooth ride.
- Vehicle Dimensions: With overall dimensions of 5.995 × 2.13 × 2.97 meters, this vehicle offers ample space while maintaining maneuverability.
- Front/Rear Overhang: The front overhang measures 1.11 meters, and the rear overhang is 1.525 meters, optimizing weight distribution and handling.
- Rated Load Capacity: It can carry a rated load of 1.09 tons, making it ideal for medium-duty transport needs.
- Gross Vehicle Weight: The total weight of the vehicle is 3.21 tons, providing a sturdy and reliable structure.
- Front/Rear Track: The front track is 1685 mm, and the rear track is 1525 mm, ensuring stability and control on various road conditions.
- Maximum Speed: Capable of reaching speeds up to 110 km/h, it ensures timely deliveries.
- Fuel Type: The truck runs on diesel, known for its efficiency and longevity.
Engine Parameters:
- Engine Brand: Powered by a Qingling Isuzu engine, renowned for its durability and performance.
- Engine Model: The model 4KH1CN5HS offers reliable and consistent power.
- Number of Cylinders: It features a 4-cylinder engine, balancing power and fuel efficiency.
- Maximum Output Power: The engine delivers 96 kW of power.
- Maximum Horsepower: With a maximum of 130 hp, it ensures robust performance.
- Displacement: The engine has a displacement of 2.999 liters.
- Emission Standard: Complies with Euro V emission standards, making it environmentally friendly.
- Fuel Type: Diesel engine ensures efficiency and cost-effectiveness.
- Rated RPM: The engine operates at a rated 3400 rpm.
- Maximum Torque: It generates a maximum torque of 290 N·m, providing the necessary power for heavy loads.
Cargo Box Parameters:
- Dimensions: The cargo box measures 4.015 × 1.9 × 1.8 meters, offering substantial space for goods.
- Length: 4.015 meters ensures sufficient length for various cargo types.
- Width: The width of 1.9 meters provides ample room for storage.
- Height: With a height of 1.8 meters, it accommodates large items with ease.
Superstructure Parameters:
- Vehicle Announcement: The vehicle model is QL5043XLCA5HA.
- Vehicle Type: Classified as a refrigerated truck, it is ideal for transporting perishable items.
- Superstructure Brand: Built by Qingling, a trusted name in the industry.
- Vehicle Origin: Manufactured in Chongqing, ensuring quality craftsmanship.
Transmission Parameters:
- Transmission Model: Equipped with a Qingling 5-speed gearbox.
- Number of Gears: It features 5 gears for smooth and versatile driving.

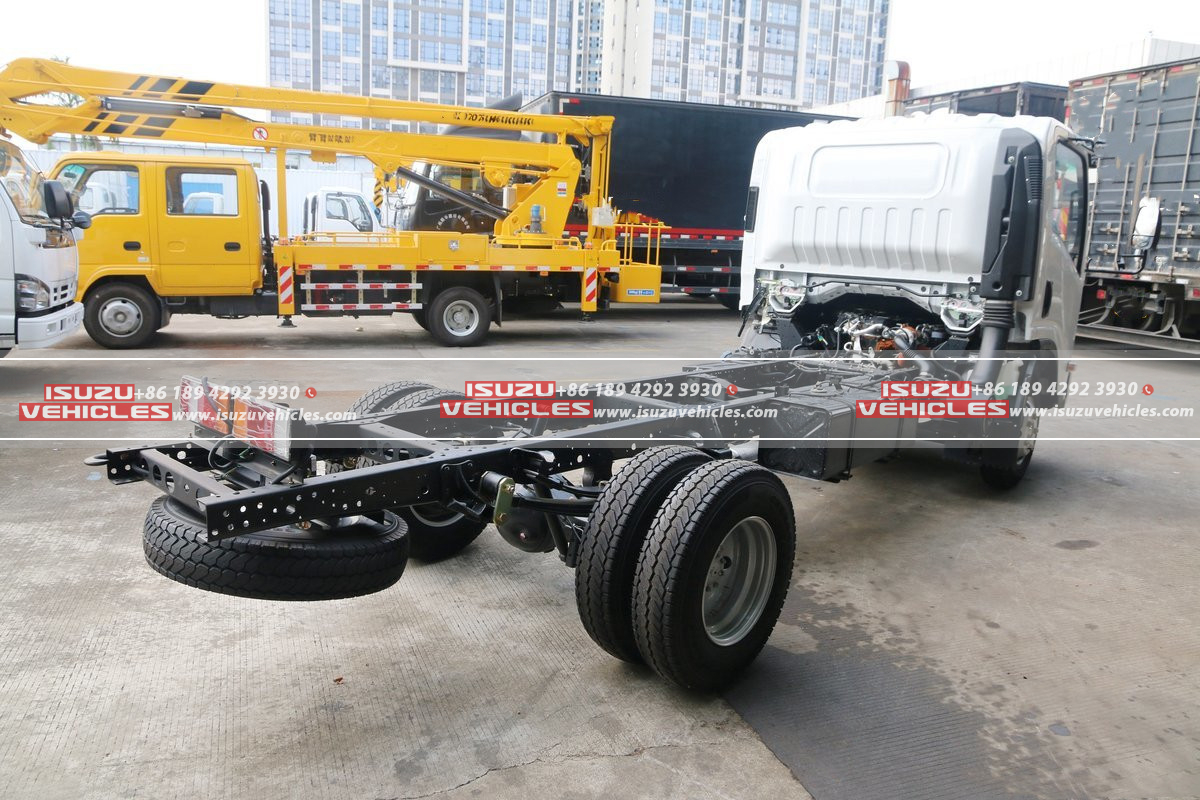

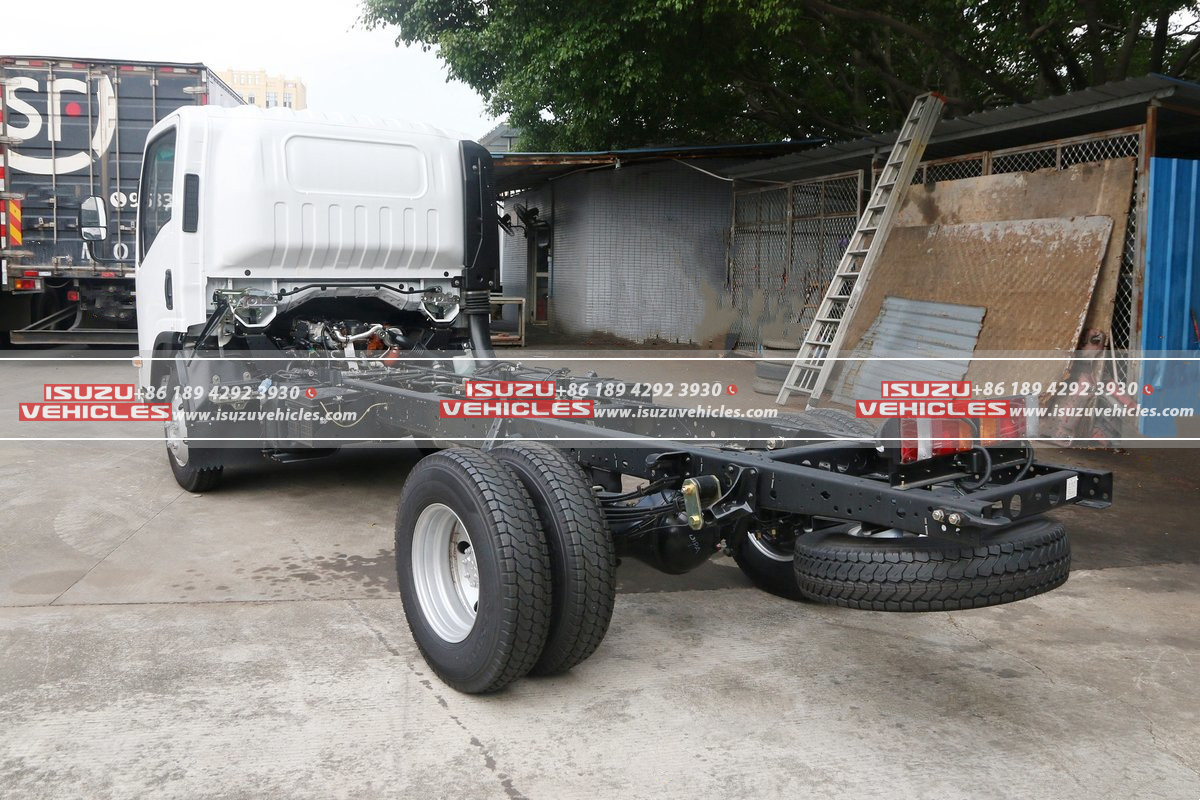

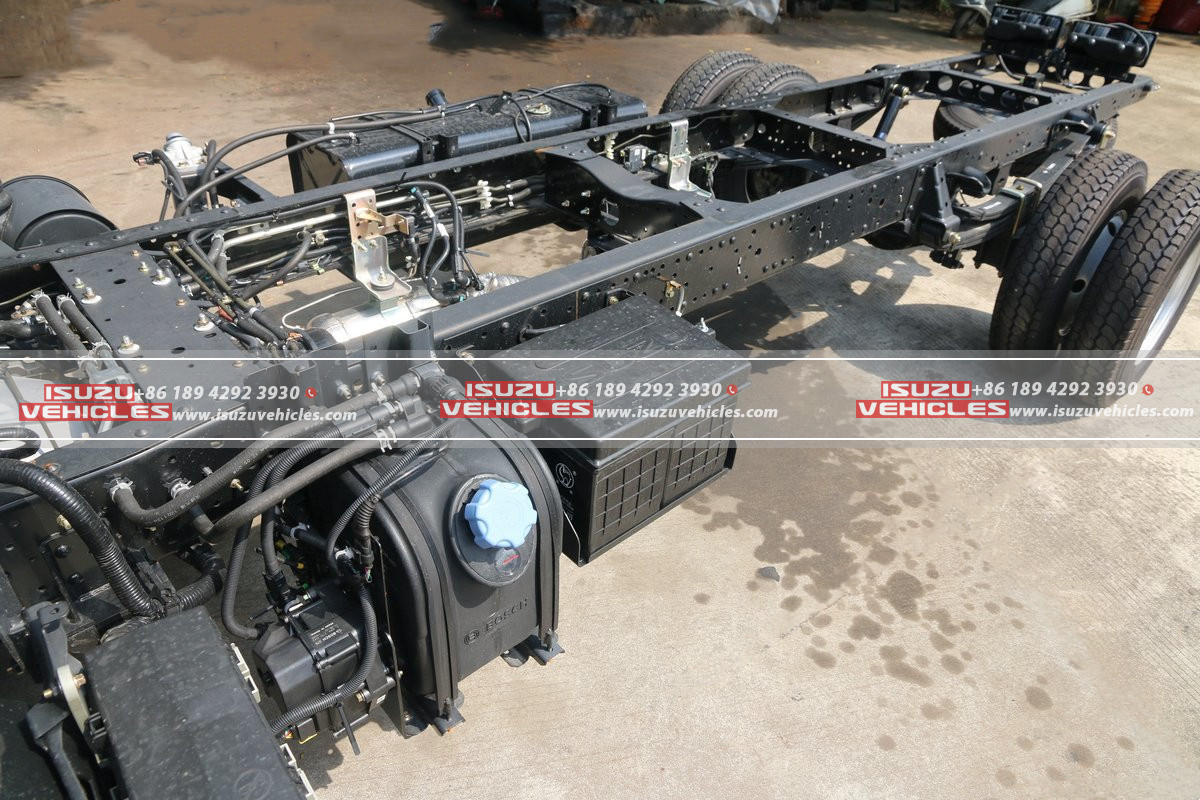

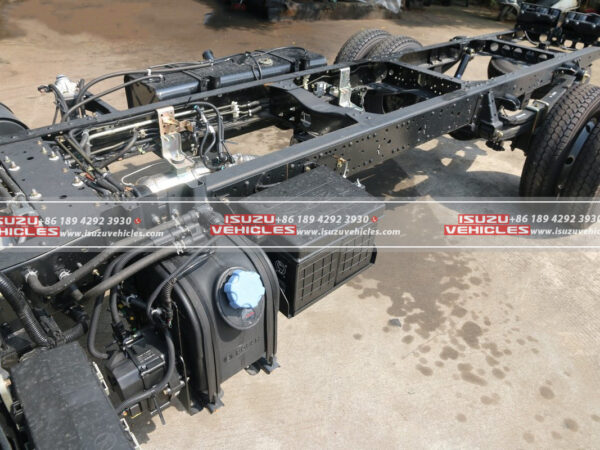

Chassis Parameters:
- Chassis Brand: Qingling
- Chassis Series: Part of the Isuzu KV600 series, known for its reliability.
- Chassis Model: The model is QL1043A5HAY.
- Number of Leaf Springs: This ISUZU chassis includes 3/3+2 leaf springs for improved load handling and ride comfort.

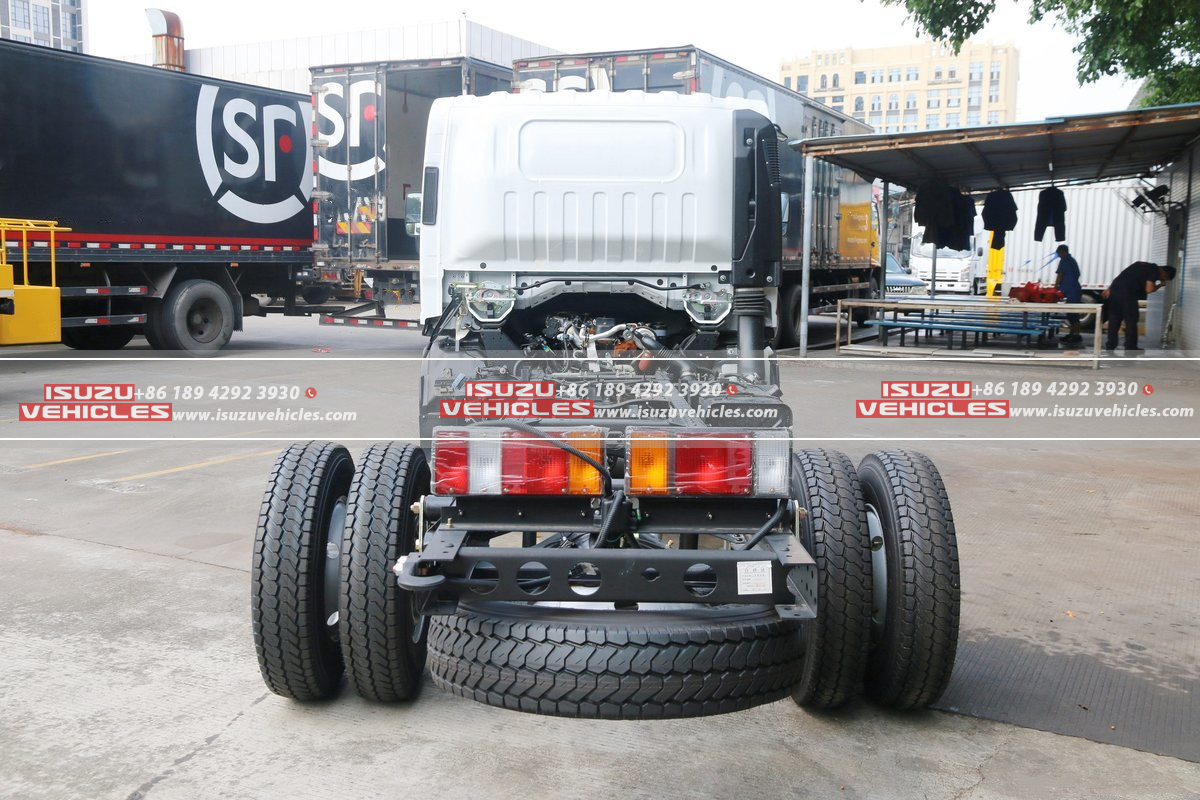

Tires:
- Number of Tires: The vehicle has 6 tires.
- Tire Specifications: The tires are 7.00R16 8PR, providing durability and traction.
This ISUZU KV600 refrigerated truck chassis is designed to deliver superior performance and reliability, making it an excellent choice for businesses that require efficient and dependable transportation of perishable goods.
Specifications
| Basic Information | |
|---|---|
| Drive Type | 4X2 |
| Wheelbase | 3360 mm |
| Vehicle Dimensions | 5.995 × 2.13 × 2.97 meters |
| Front Overhang / Rear Overhang | 1.11 / 1.525 meters |
| Rated Load Capacity | 1.09 tons |
| Gross Vehicle Weight | 3.21 tons |
| Front Track | 1685 mm |
| Rear Track | 1525 mm |
| Maximum Speed | 110 km/h |
| Fuel Type | Diesel |
| Engine Parameters | |
| Engine Brand | Qingling Isuzu |
| Engine Model | Qingling Isuzu 4KH1CN5HS |
| Number of Cylinders | 4 |
| Maximum Output Power | 96 kW |
| Maximum Horsepower | 130 hp |
| Displacement | 2.999 L |
| Emission Standard | Euro V |
| Fuel Type | Diesel |
| Rated RPM | 3400 rpm |
| Maximum Torque | 290 N·m |
| Cargo Box Parameters | |
| Dimensions | 4.015 × 1.9 × 1.8 meters |
| Length | 4.015 meters |
| Width | 1.9 meters |
| Height | 1.8 meters |
| Superstructure Parameters | |
| Vehicle Announcement | QL5043XLCA5HA |
| Vehicle Type | Refrigerated Truck |
| Superstructure Brand | Qingling |
| Vehicle Origin | Chongqing |
| Transmission Parameters | |
| Transmission Model | Qingling 5-speed |
| Number of Gears | 5 |
| Chassis Parameters | |
| Chassis Brand | Qingling |
| Chassis Series | Isuzu KV600 |
| Chassis Model | QL1043A5HAY |
| Number of Leaf Springs | 3/3+2 |
| Tires | |
| Number of Tires | 6 |
| Tire Specifications | 7.00R16 8PR |
