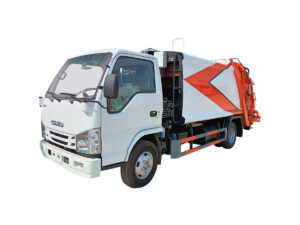

GENERAL | |
Make/Model | ISUZU / GC04QL98L5 |
Drive Type | 4×2 Left Hand Drive |
Overall Dimension
(L x W x H) |
6,020×2,140×2,110(mm) |
Gross Vehicle Weight | 6,720kg |
Curb Weight | 4,600kg |
Wheelbase | 3,360mm |
Chassis Designed | ISUZU 100P |
Cabin | Hydraulic power steering type.
1 driver+2 passengers |
Drive wheel(Tires ) | 4+2 and one spare (total 7 wheels) |
Tire Size | 7.00R16 |
ENGINE | |
Make / Model | ISUZU / 4KH1CN5LS |
Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooler Turbocharged |
Displacement | 2.999L |
Nominal Power | 350HP (72kW) @ 3,400rpm |
Peak Torque | 220N.m@1,700rpm |
Emission Standard | Euro 5 |
TRANSMISSION | |
Make / Model | ISUZU/MSB |
Type | Diesel |
Operation | Manual |
Number of Speeds | 5F+1R |
CONSTRUCTION | ISUZU chassis; Body; Tailgate (rear hopper); Ejection/discharging Plate; Compaction Plate; Slide Plate |
CAPACITY | 4m3 |

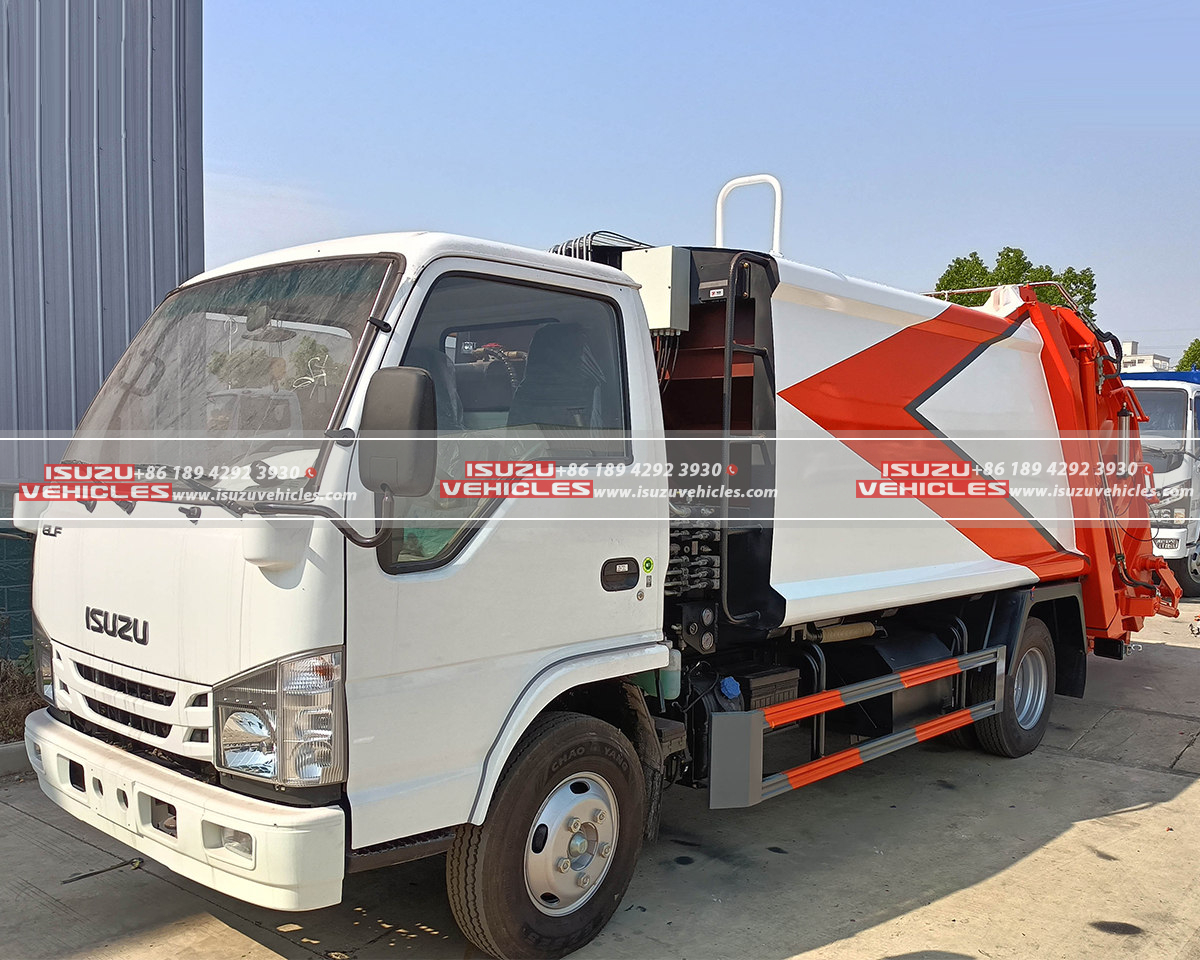

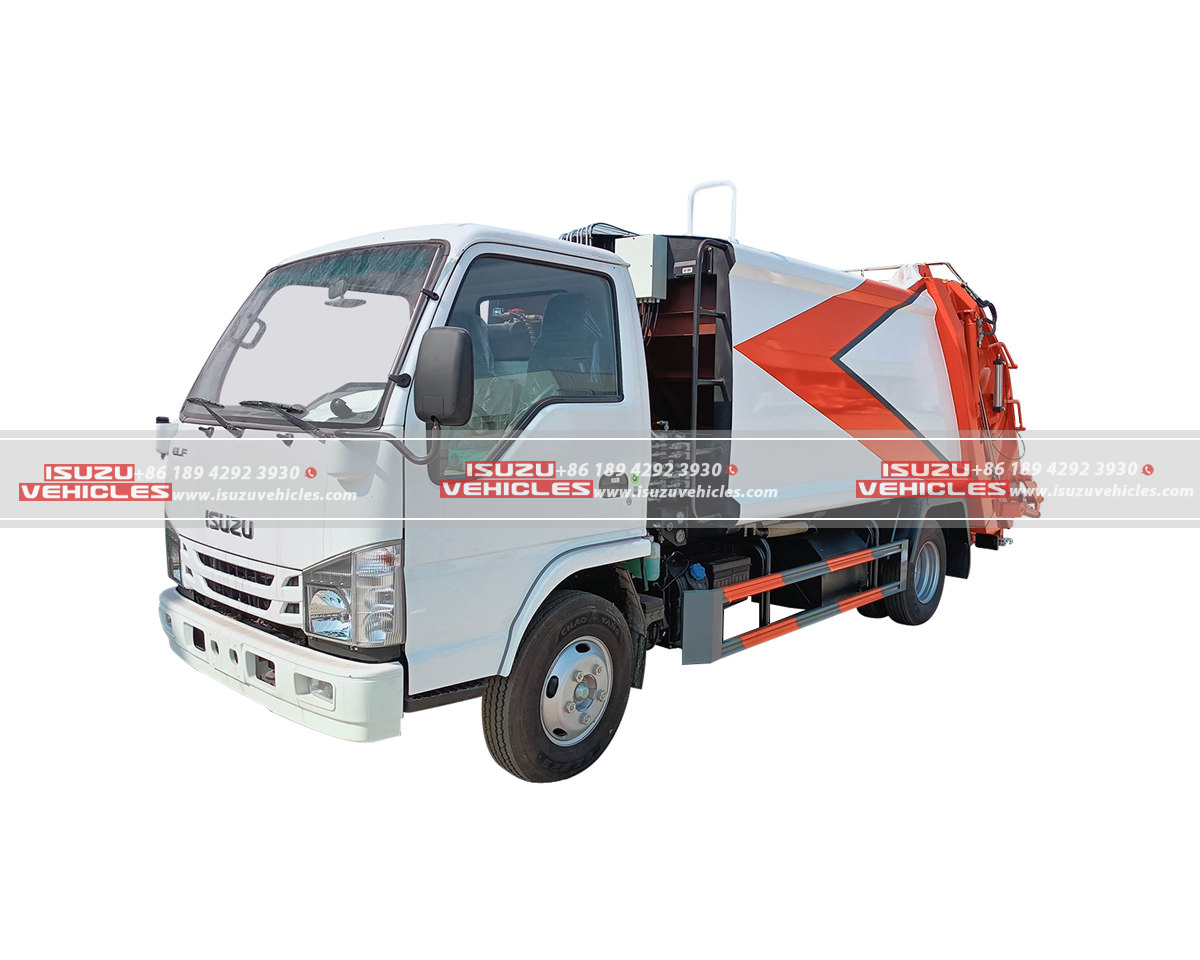

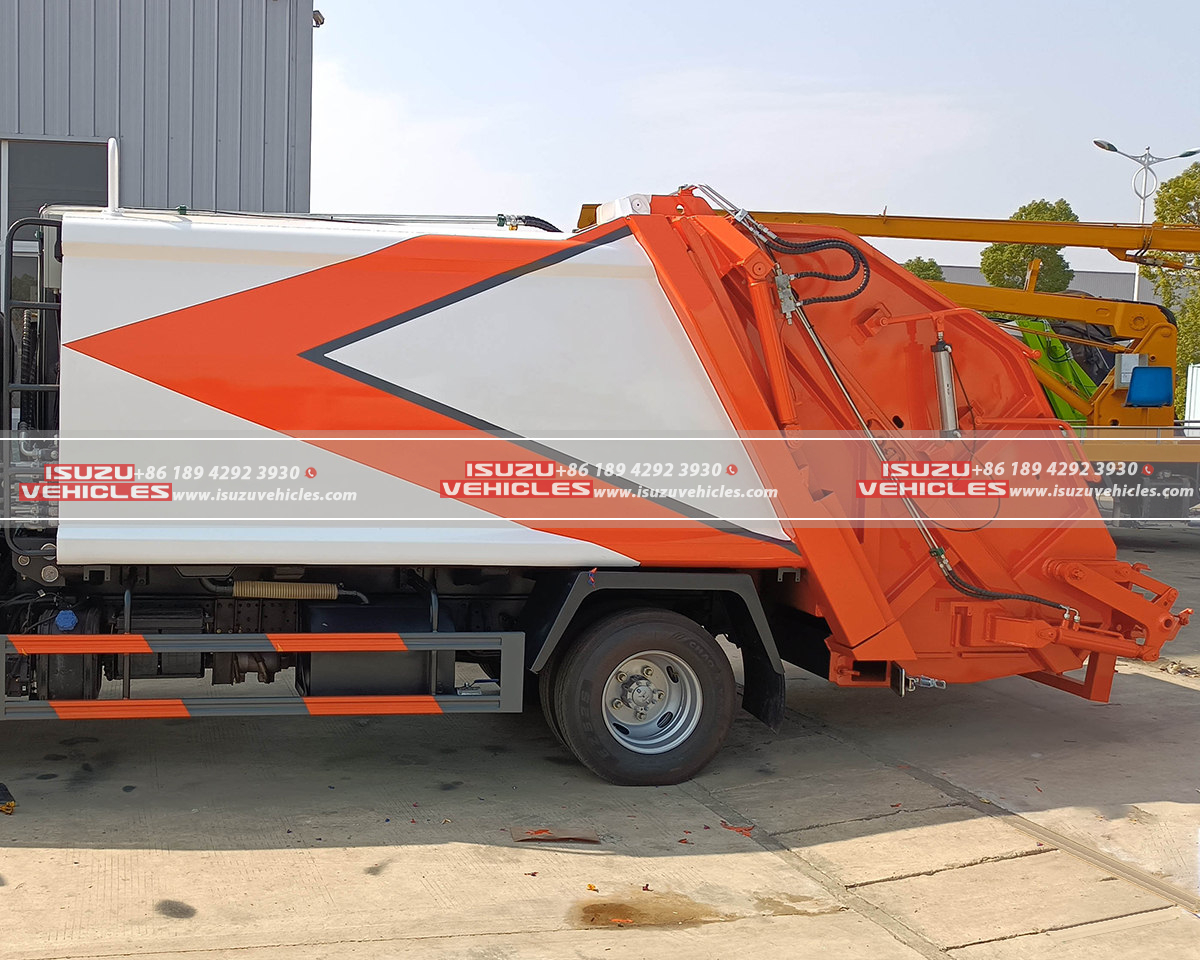

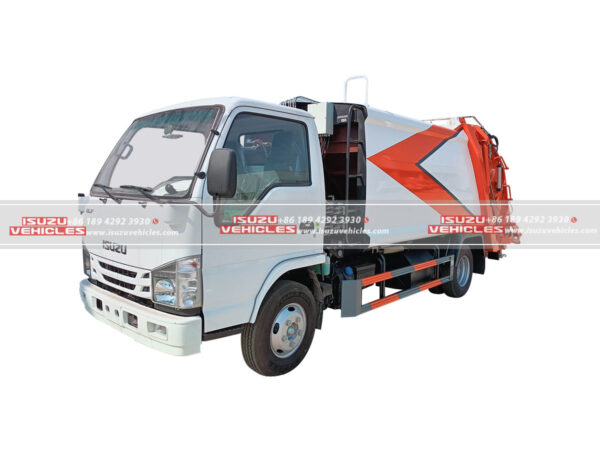

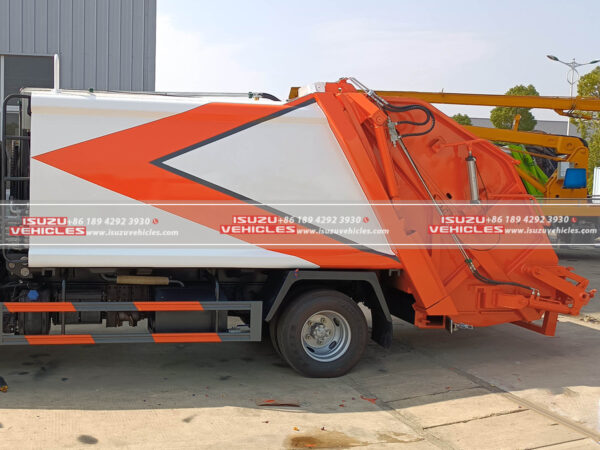

BODY STEEL | |

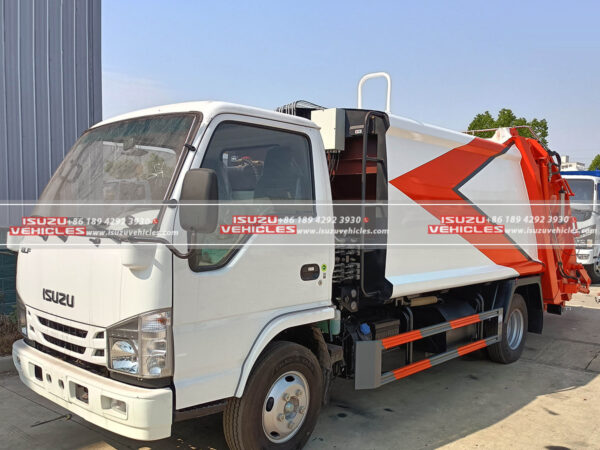

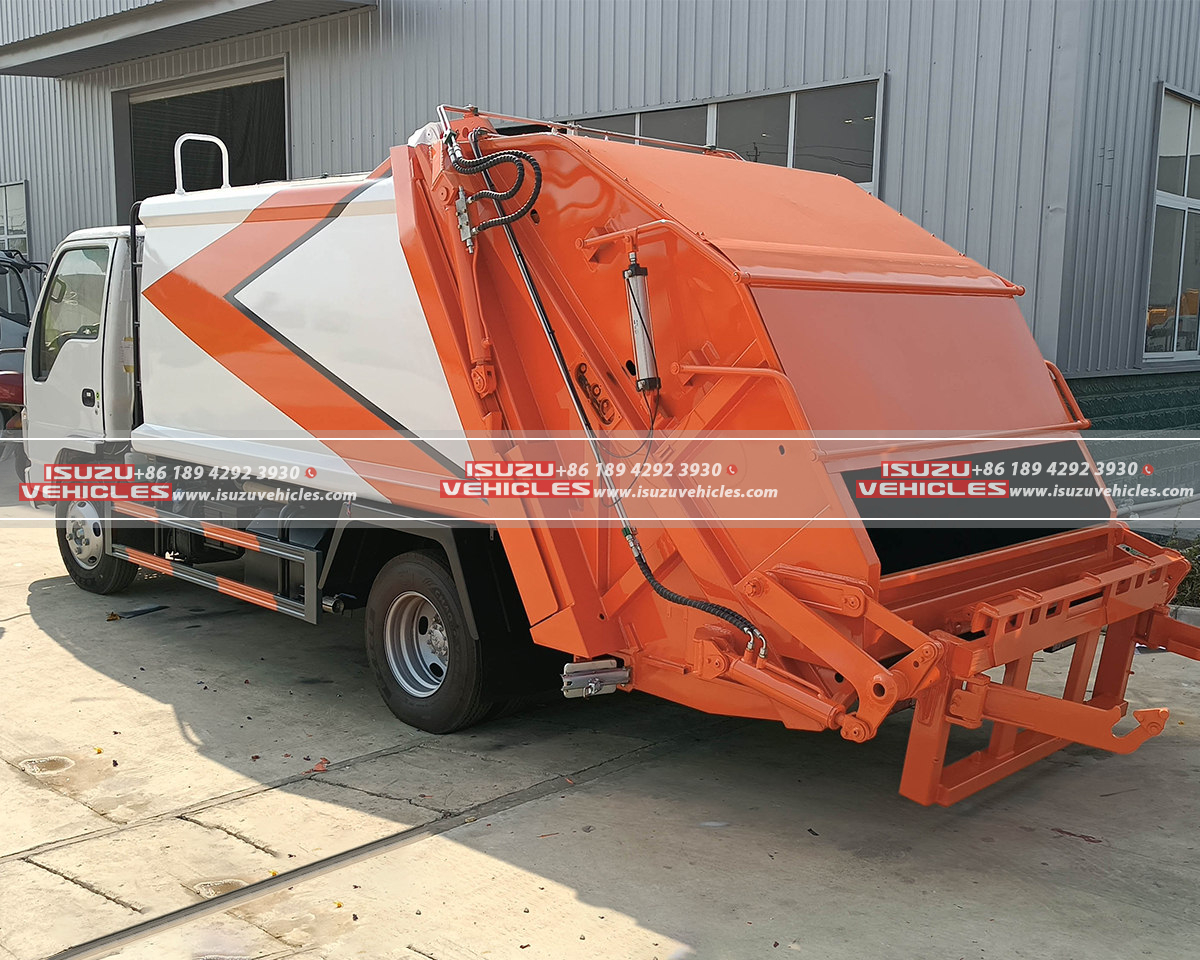

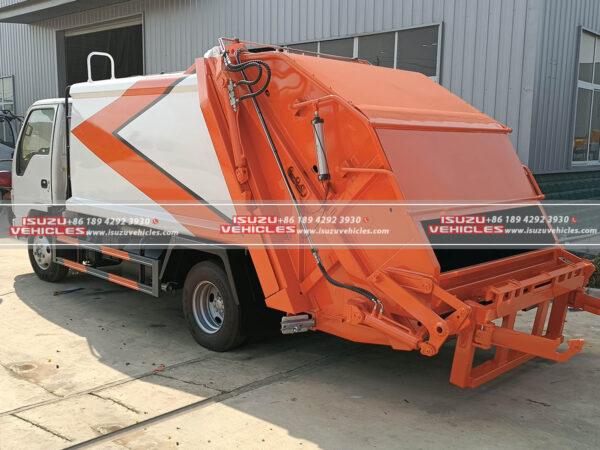

Garbage Container | High corrosion resistance Q235 carbon steel 5mm thickness of body floor, 4mm thickness of side and roof. (equivalent as IS-2062 Grade A or ASTM a36) |
Hopper Floor | NM450 (similar to HARDOX) wear-resistant, high-tensile steel sheet. |
Tailgate Sheet | High tensile steel sheet 4 mm thickness |
Compaction Plate | High tensile steel sheet 5 mm thickness |

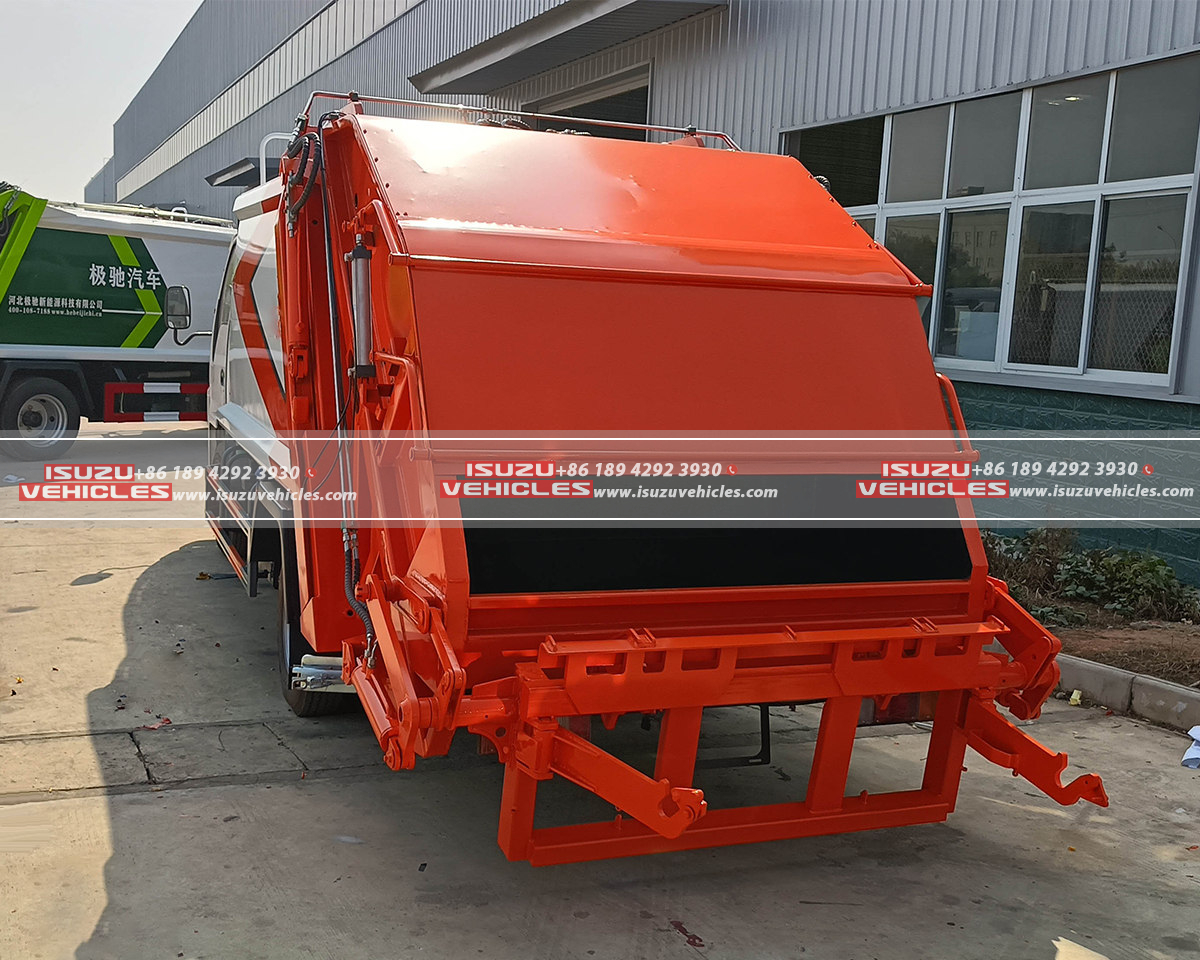

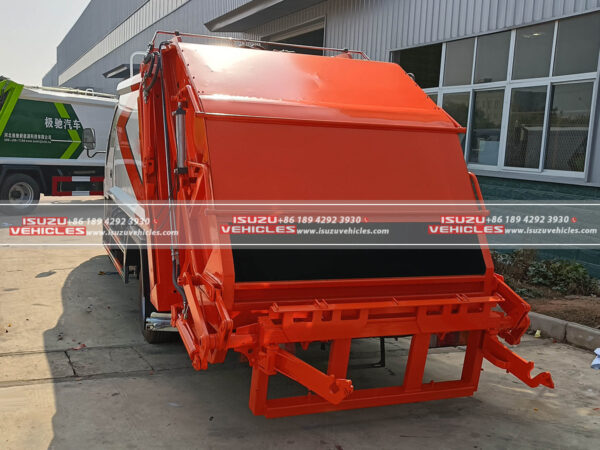

TAILGATE (REAR HOPPER) | The components include the tailgate floor, an extension of the rear hopper floor inside the body, and the side wall. The tailgate is attached to the body through top hinges and can be lifted upwards using two double-acting hydraulic cylinders. |
COMPACTION RATIO | The volumetric compaction ratio varies between 3:1 to 6:1, depending on the characteristics and density of the garbage present in the area. It should be noted that the mentioned ratio is applicable to household garbage. |
HOPPER CAPACITY | The garbage capacity of the loading hopper is around 2m3 |
SEALING | With a special design leak-proof rubber sea between the tailgate and the body |
LOCKING | Hydraulic locking by means of reverse action of two hydraulic tailgate-lifting cylinders. |
SAFETY PROPS | To ensure safety during maintenance, manual safety props are placed between the body and tailgate of the equipment. |
SAFETY VALVE | The tailgate is equipped with a safety valve to prevent dropping and the hydraulic lines are in place to avoid sudden falls. |
CONTROL | The PLC control box manages the system and offers options such as start, stop, 1-cycle, continuous cycles, and rescue activities. The tailgate and ejector controls are located at the front of the body. The loading controls are positioned on the right side of the tailgate and are manually operated for safety reasons. Compaction is controlled using electric push buttons, but there is also a manual control option available. |
DISCHARGE OF GARBAGE | The unloading cycle will last a minimum of 4 minutes and 30 seconds.
Ejection Plate: The movement of discharging plate (panel) will be step by step in the progressive method (in stages). |
HYDRAULIC COMPONENTS | FRONT DIRECTION CONTROL VALVE (Front Distributor)
MAIN SAFETY VALVE. All arc hydraulic and double-acting. The dimensions of the cylinders’ arc are designed to accomplish the stipulated cycle times and compaction ratio. Hydraulic cylinder pipes & bores included. All high-pressure hydraulic oil hoses have an app. burst rating 4 times more than the specific system working pressure. |
Make/Model | ISUZU/GC04QL98L5 |
GVW | 6,720kg, Medium Duty Vehicle |
Cab Truck | ISUZU 100P/ELF 4X2 Day Cab |
Engine | ISUZU / 4KH1CN5LS / 98hp / Euro 5 |
Transmission | ISUZU /MSB / Manual / 5+1 Gear Numbers |
Capacity | 4 CBM |
