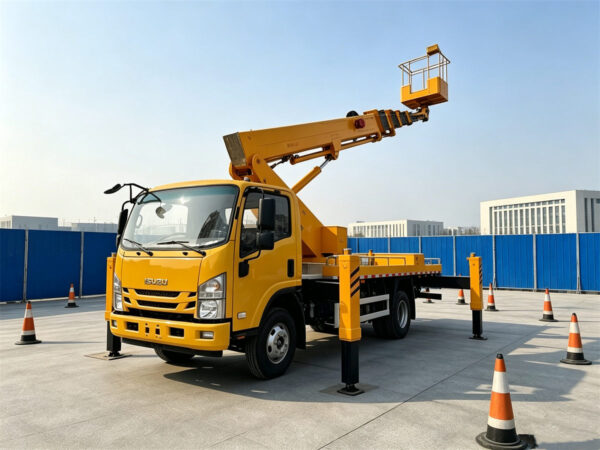

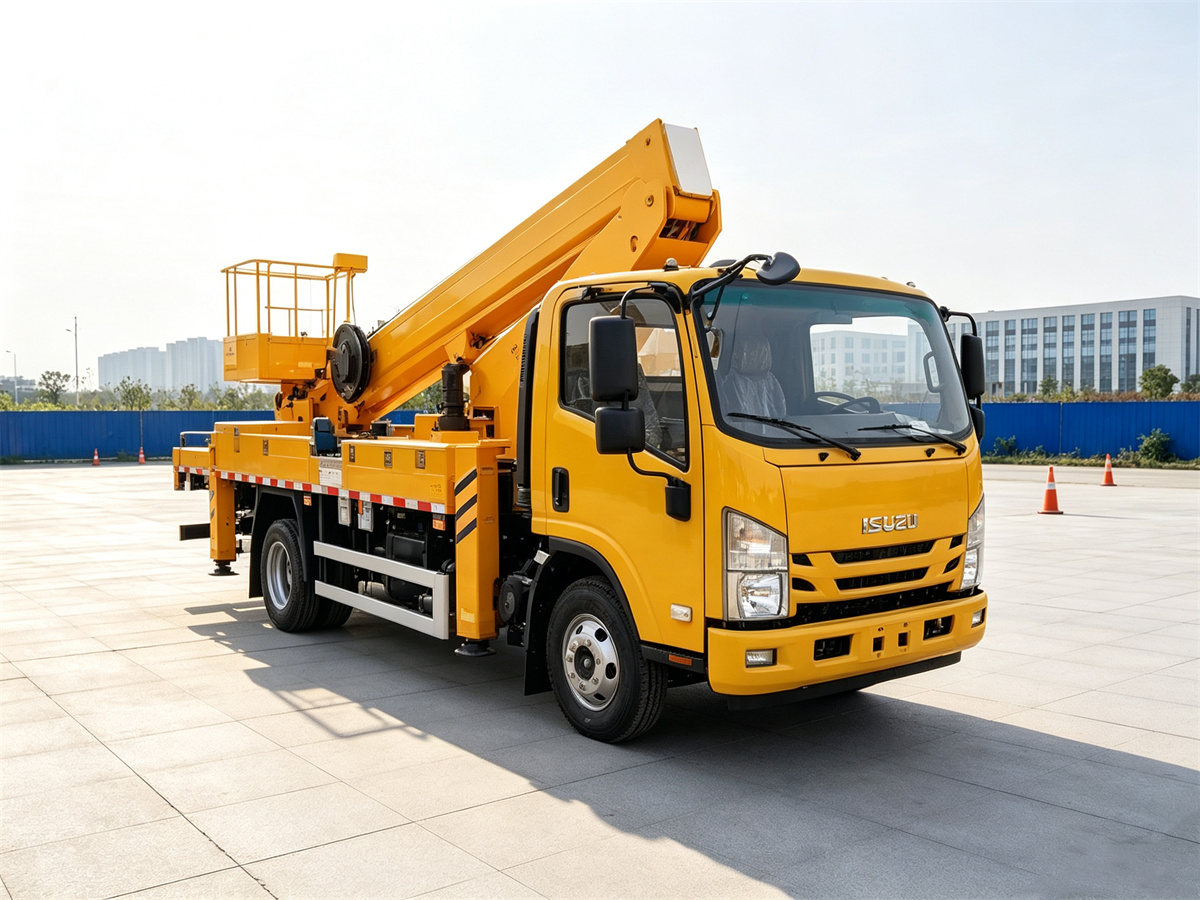

ISUZU 23M Sky Lift Insulated Telescopic Bucket Truck

ISUZU 23M Sky Lift Insulated Telescopic Bucket Truck

The 23M Telescopic Aerial Bucket Truck is a versatile aerial work platform designed to provide safe, efficient, and reliable access for a wide variety of elevated maintenance and installation tasks. Engineered for applications such as power distribution, street lighting maintenance, telecommunications, municipal engineering, landscaping, and industrial facility servicing, this truck combines excellent maneuverability with dependable lifting performance to meet the daily demands of professional operators.

Built on a durable 4×2 commercial truck chassis, the vehicle features compact dimensions of 7,410 × 2,210 × 3,550 mm, making it suitable for both urban streets and narrow working areas where larger aerial platforms may have limited access. With a gross vehicle weight of 8,950 kg and a 3,800 mm wheelbase, the truck offers an ideal balance between road stability, operational flexibility, and equipment carrying capacity.

Power is supplied by the reliable Cummins B140-33 turbocharged diesel engine, producing 141 horsepower from its 3.76-liter displacement. Combined with a maximum road speed of 90 km/h, the truck can travel efficiently between job sites while delivering dependable hydraulic performance for continuous aerial operations.

The truck utilizes a four-section synchronized telescopic boom capable of reaching a maximum working height of 23 meters, allowing operators to safely access elevated work locations while maintaining excellent positioning accuracy. Advanced electronic controls, automatic leveling technology, and comprehensive safety systems further improve working efficiency and operator confidence in demanding environments.

Features

Excellent Working Height with Precision Telescopic Boom

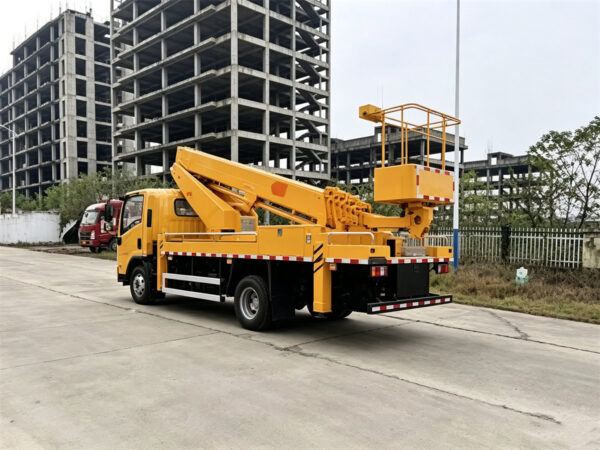

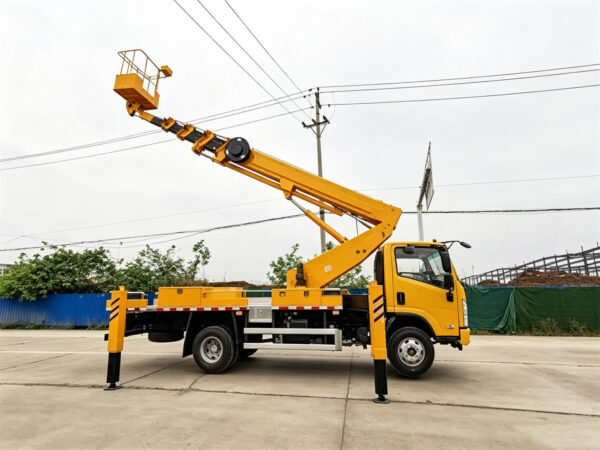

The heart of the vehicle is its advanced four-section synchronized telescopic boom, which is designed to provide smooth extension, stable operation, and precise positioning throughout the working range. The boom reaches a maximum working height of 23 meters, while the bucket floor can be elevated to 22 meters, providing sufficient clearance for most utility maintenance, construction, and inspection projects.

The aerial platform also offers a maximum working radius of 10 meters, allowing operators to reach difficult locations without frequently repositioning the truck. The boom rotates continuously through 360 degrees, while the elevation angle ranges from -12° to 80°, enabling flexible operation around buildings, trees, utility poles, and other obstacles.

These capabilities make the truck particularly suitable for electrical maintenance, communication network installation, traffic signal servicing, billboard installation, and municipal infrastructure maintenance.

Spacious Working Bucket and Intelligent Operating System

The aerial bucket truck is designed to maximize both safety and working comfort. Measuring 1,000 × 650 × 1,200 mm, it provides sufficient room for operators, tools, and essential maintenance equipment while maintaining a compact overall structure.

The bucket supports a rated load of 200 kg, making it suitable for one or two technicians depending on the equipment being carried.

To improve operational convenience, the truck features an advanced electronic control system that allows operators to manage boom movements directly from the bucket. The platform control system includes an LED display with push-button controls, providing clear operating information and precise hydraulic control.

A built-in manual backup control system ensures continued operation if required, while the included walkie-talkie communication system allows seamless communication between ground personnel and aerial operators, improving both coordination and job site safety.

Advanced Stability and Automatic Safety Protection

Safety is a key feature of the ISUZU 23M Telescopic Aerial Bucket Truck, and the vehicle incorporates several intelligent stabilization technologies to support secure operation at elevated working heights.

The truck utilizes H-type hydraulic outriggers with a deployment footprint of 4,000 × 4,000 mm, creating a stable working platform before boom operation begins. A computer-controlled one-touch outrigger deployment system automatically extends and levels the truck, reducing setup time while minimizing operator workload.

The integrated automatic leveling system continuously monitors vehicle position using a tilting angle sensor and level detector, ensuring the platform remains properly balanced during operation.

Additional electronic protection includes an intelligent range monitoring system equipped with a large-angle sensor that continuously detects boom length, rotation angle, and working radius. This helps prevent unsafe operating conditions and supports accurate positioning throughout the entire working envelope.

The truck also incorporates a computerized getting-on and getting-off lock system, providing additional protection by controlling platform access and operational status during aerial work.

Reliable Chassis Performance for Daily Operations

The truck is powered by the dependable Cummins B140-33 diesel engine, a turbocharged, intercooled four-cylinder engine that delivers 141 HP with excellent fuel economy and long-term durability. The engine provides sufficient torque for both highway transportation and hydraulic equipment operation while meeting the reliability expectations of commercial fleet operators.

The 4×2 drivetrain offers efficient road performance and lower maintenance costs, making the truck suitable for municipalities, utility companies, contractors, and rental fleets. The vehicle rides on 7.50-16 tires, with six road wheels plus one spare, providing dependable traction and stability across a variety of road conditions.

The Dongfeng single-row cab accommodates two occupants and is designed to provide comfortable visibility, practical controls, and easy access for daily operation. Combined with the truck’s favorable 21° approach angle and 12° departure angle, the vehicle is capable of handling a variety of urban and light off-road working environments.

The 23M Telescopic Aerial Bucket Truck delivers an excellent combination of working height, intelligent electronic controls, operational safety, and dependable commercial vehicle performance. Whether serving electric utilities, telecommunications companies, municipal engineering departments, or industrial maintenance contractors, this aerial platform provides an efficient solution for elevated work while helping reduce operating costs and improve productivity over the long term.

Specifications
