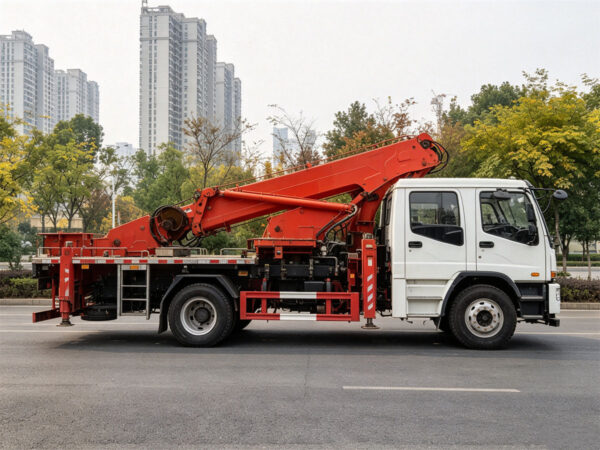

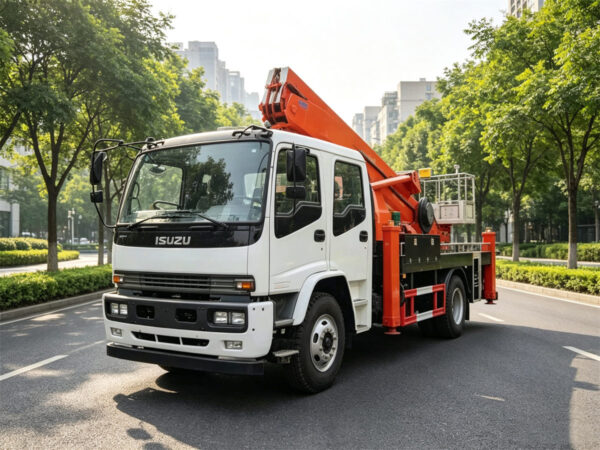

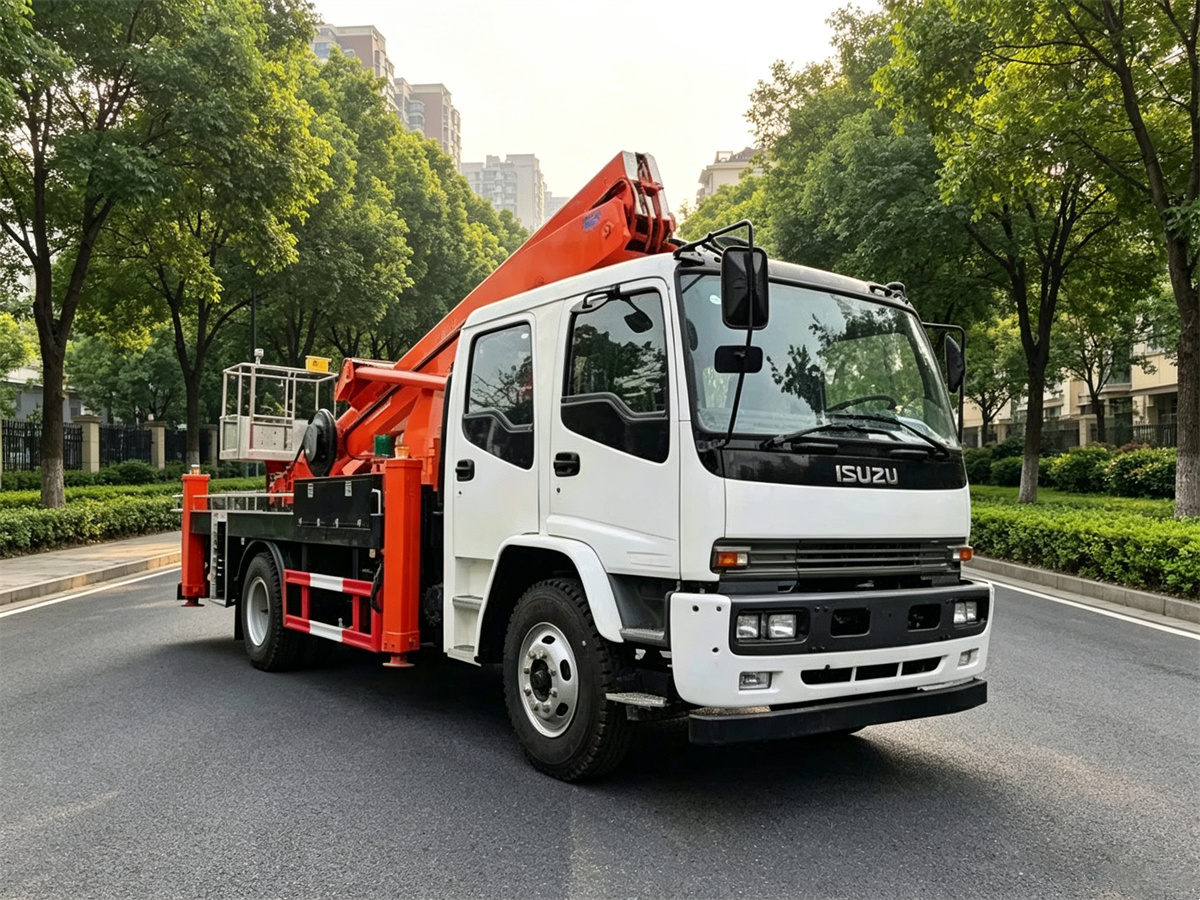

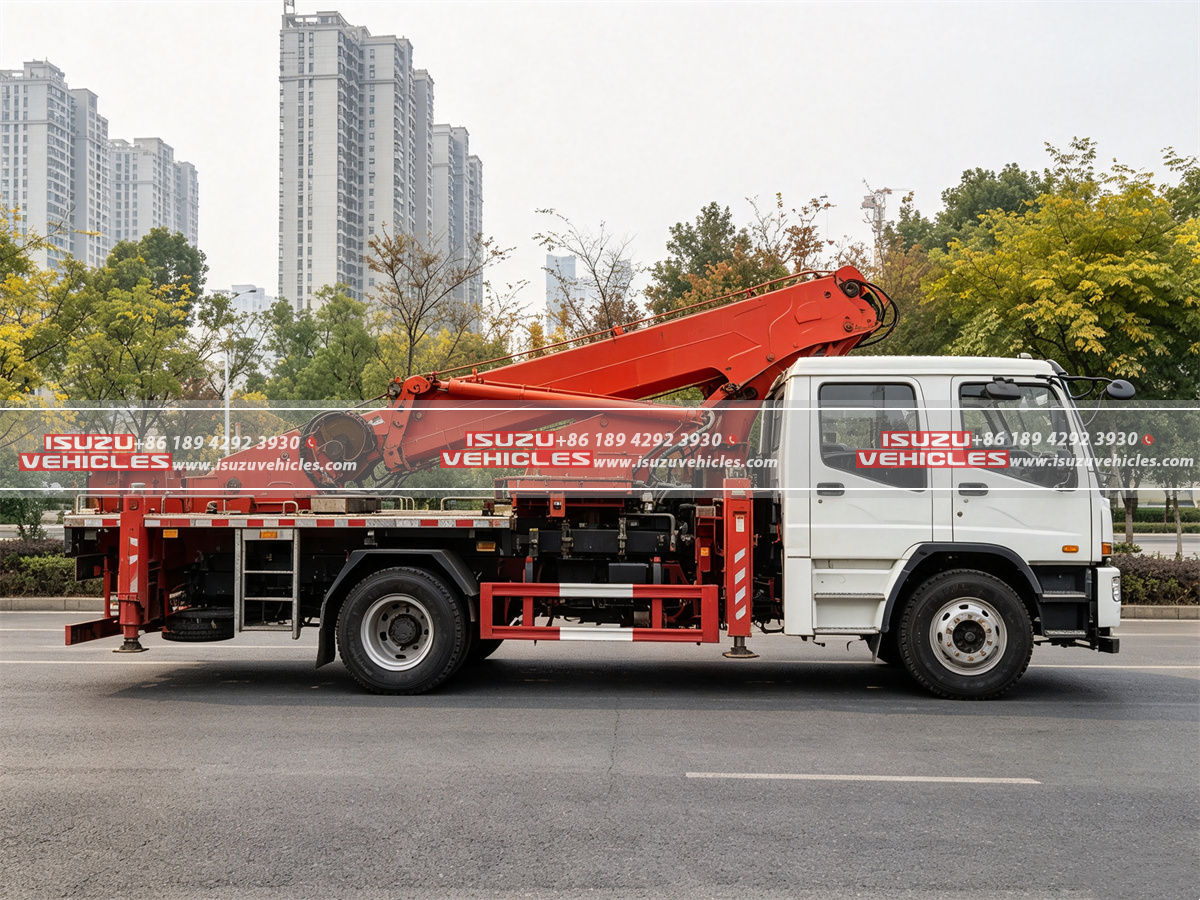

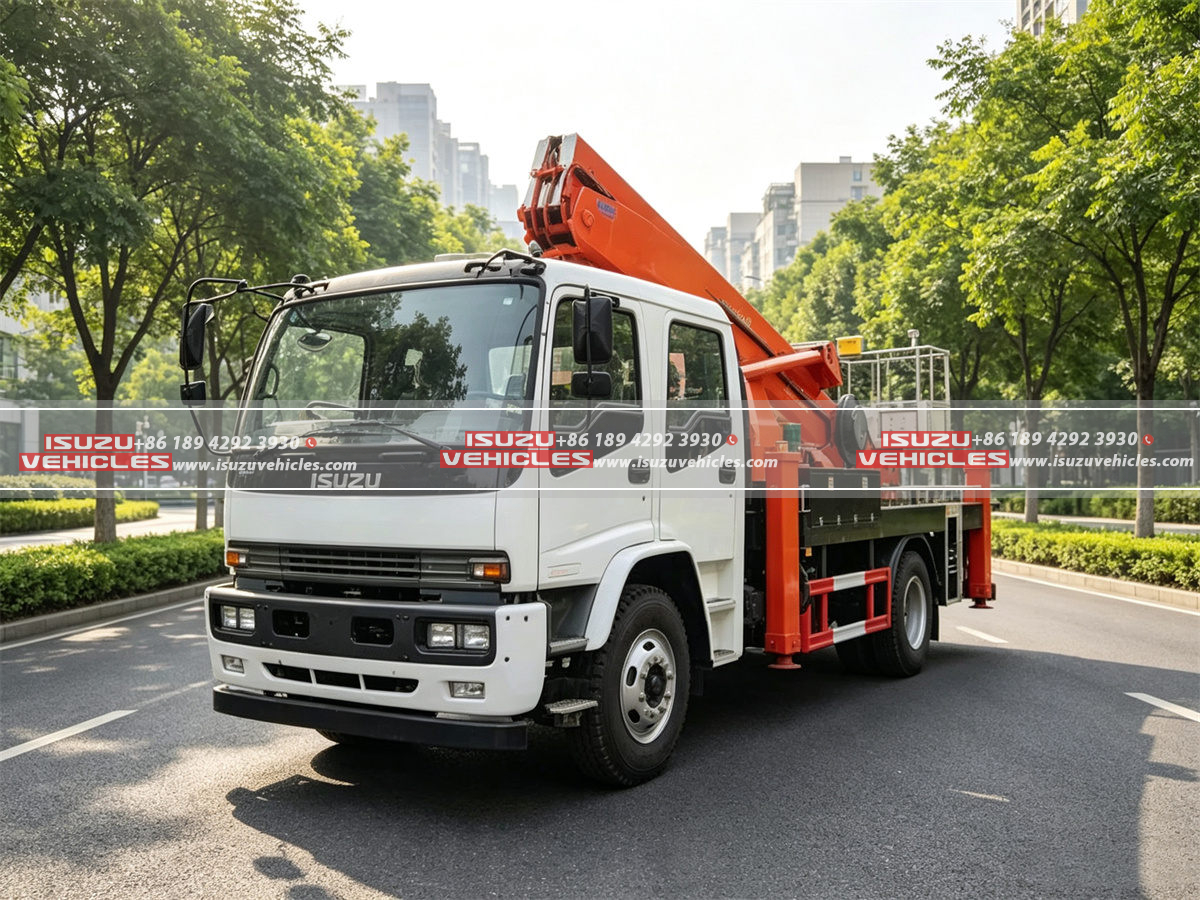

ISUZU 40M Telescopic Boom Lift Bucket Truck

ISUZU 40M Telescopic Boom Lift Bucket Truck

The ISUZU 40M Telescopic Boom Lift Bucket Truck is a professional aerial work platform designed for high-altitude maintenance, utility installation, telecommunications construction, municipal projects, and industrial service applications where reliable lifting performance and precise positioning are essential. Built on a powerful ISUZU 4×4 chassis, this truck combines strong load-carrying capability, advanced telescopic boom technology, and a stable hydraulic support system to provide operators with a safe and efficient solution for elevated operations.

Powered by the proven ISUZU 4HK1-TC50 diesel engine, the vehicle delivers 151 kW of power and 650 N·m of torque, ensuring excellent performance during both transportation and aerial operation. The 5.193-liter turbocharged and water-cooled engine provides strong driving force while maintaining fuel efficiency and durability, making the truck suitable for long-term commercial use in demanding working environments.

The truck features a maximum working height of 40 meters, allowing operators to access high structures, power facilities, communication towers, lighting systems, and industrial equipment without the need for additional lifting machinery. The telescopic boom provides smooth extension and accurate positioning, while the 360° boom rotation capability enables flexible operation around different work areas.

With overall dimensions of 10,100 × 2,500 × 3,900 mm, a wheelbase of 5,000 mm, and a maximum road speed of 110 km/h, the ISUZU Telescopic Boom Lift Truck offers an excellent balance between mobility and working capability. Its reinforced chassis structure, four hydraulic supporting legs, and professional aerial equipment make it a reliable choice for companies requiring efficient high-reach operations.

Features

40-Meter High Reach Telescopic Boom System

The main advantage of this 40M boom lift bucket truck is its advanced telescopic boom system, which provides exceptional vertical access for complex aerial tasks. With a maximum working height of 40 meters and a maximum working radius of 7.5 meters, the vehicle enables operators to complete maintenance and installation work in areas that are difficult to reach with conventional equipment.

The boom system is designed for smooth and stable movement, allowing precise positioning during operations. The boom can rotate through 360 degrees, providing a wide working range around the vehicle without requiring frequent repositioning. With a boom swing speed of 0–2 r/min, operators can make controlled adjustments according to different job requirements.

The aerial platform is capable of carrying a rated hook load of 200 kg, allowing technicians to bring necessary tools, spare parts, and maintenance equipment to elevated working areas. This makes the truck suitable for electrical line servicing, street lamp maintenance, building inspection, communication equipment installation, and other professional applications.

Strong ISUZU 4×4 Chassis Performance

The bucket vehicle is built on a durable ISUZU 4×4 chassis, which provides excellent stability and load capacity for aerial equipment operation. The chassis structure is specifically designed to handle the additional weight and working forces generated by the telescopic boom system while maintaining reliable driving performance.

The truck is equipped with the ISUZU 4HK1-TC50 engine, featuring a four-cylinder inline design, turbocharging, and water cooling technology. With a displacement of 5,193 mL, maximum power of 151 kW, and maximum torque of 650 N·m, the engine delivers strong performance for both road transportation and hydraulic equipment operation.

The engine complies with the Euro V emission standard, offering a balance between environmental performance and operational reliability. Combined with the six-speed transmission with overdrive, power steering, and air braking system, the truck provides smooth handling and dependable operation in different working conditions.

Stable Hydraulic Supporting System

Safety and stability are critical factors for high-altitude work, and this ISUZU aerial bucket truck is equipped with four sets of hydraulic supporting legs to create a secure working foundation before boom operation begins.

The supporting legs effectively distribute the vehicle load and reduce movement during aerial operations, allowing operators to work confidently even when the boom is fully extended. The reinforced chassis frame, heavy-duty suspension system, and professional hydraulic design work together to improve overall stability.

The front axle uses an Elliot I-beam structure with a 6.3-ton capacity, while the rear driving axle supports up to 13 tons, providing strong load-bearing performance. The heavy-duty leaf spring suspension system further improves durability and helps the vehicle maintain stable performance during transportation and job-site operations.

Comfortable Cab and Reliable Daily Operation

The ISUZU cab configuration is designed to provide drivers with a comfortable and practical working environment. Equipped with air conditioning, the cab improves operator comfort during long working hours, especially in hot climates or demanding outdoor environments.

The vehicle features a 24V electrical system, reliable air braking technology, and durable 10.00R20 tires, ensuring dependable operation across different road conditions. With a maximum speed of 110 km/h, the truck can efficiently travel between multiple project locations while maintaining strong road performance.

The compact approach and departure angles of 15° and 17° allow the vehicle to handle urban roads, industrial areas, and construction sites more effectively. The combination of ISUZU engineering, high-reach boom technology, and professional hydraulic equipment creates a versatile platform for companies requiring dependable aerial access.

The ISUZU 40M Telescopic Boom Lift Bucket Truck provides an ideal solution for utility companies, contractors, municipalities, and industrial operators seeking a high-performance aerial work vehicle. With its powerful chassis, advanced boom system, and reliable safety design, it delivers efficient performance for elevated maintenance projects while representing the strong quality and durability expected from ISUZU Vehicles.
