BRIEF:

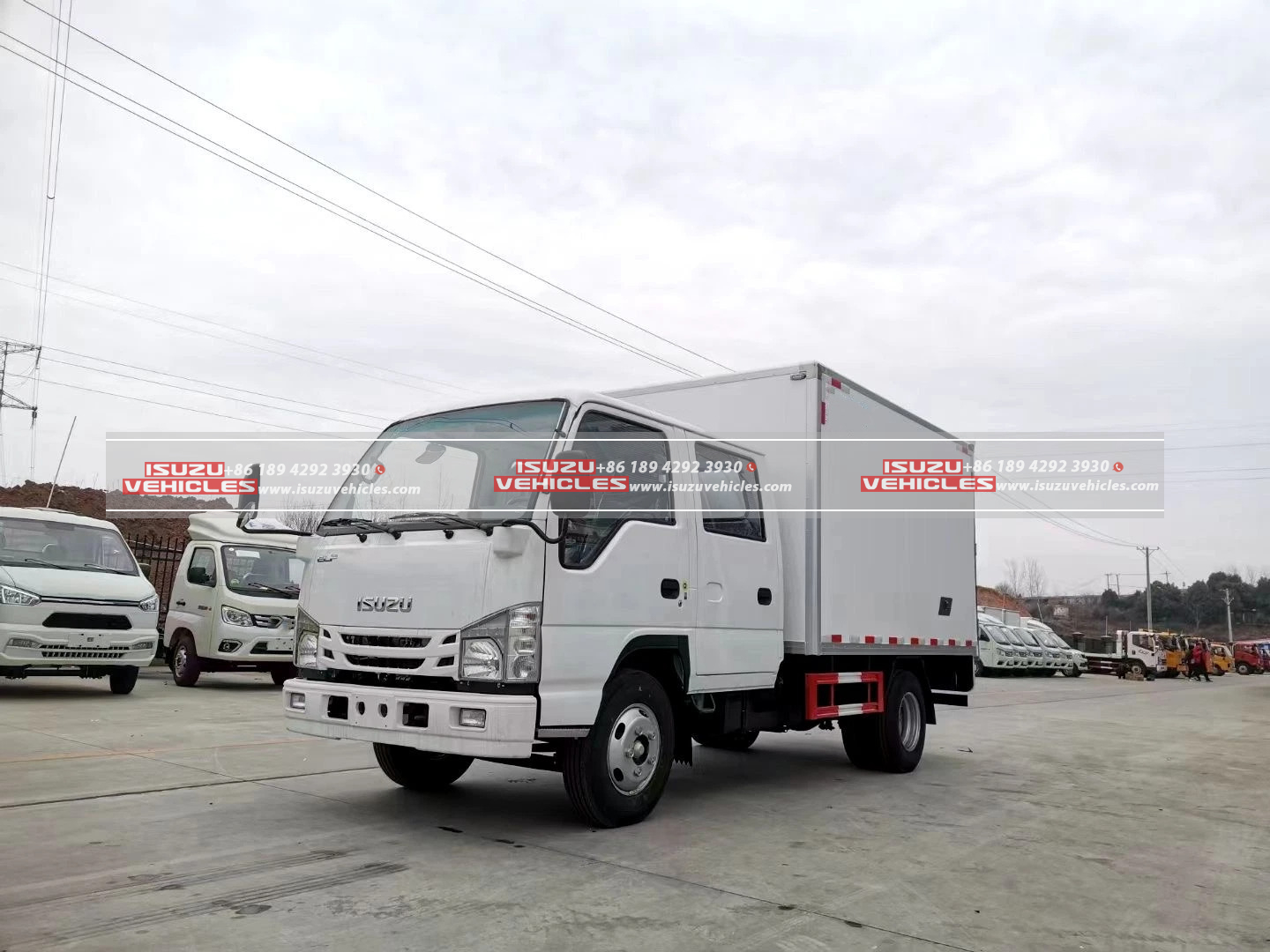

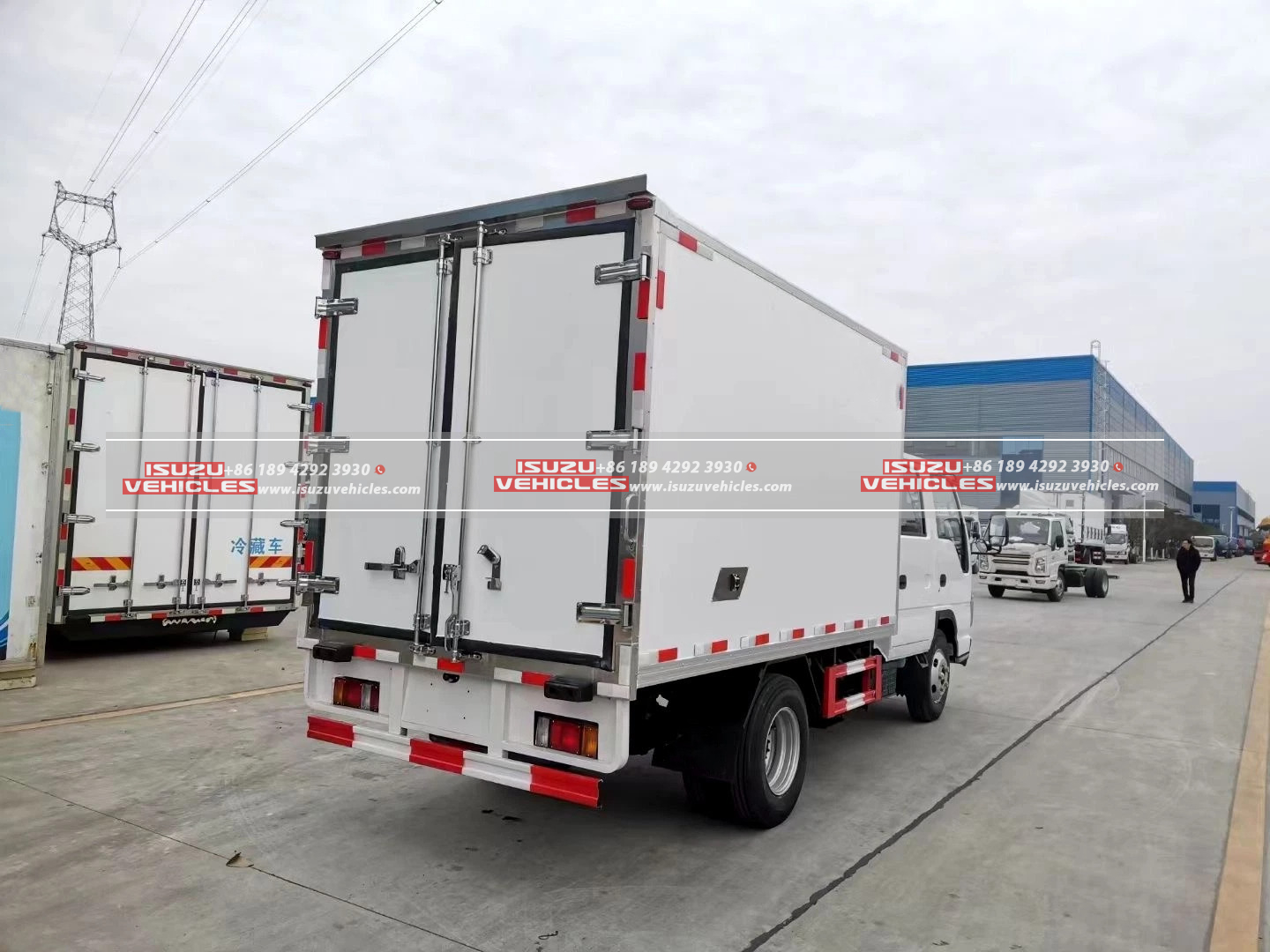

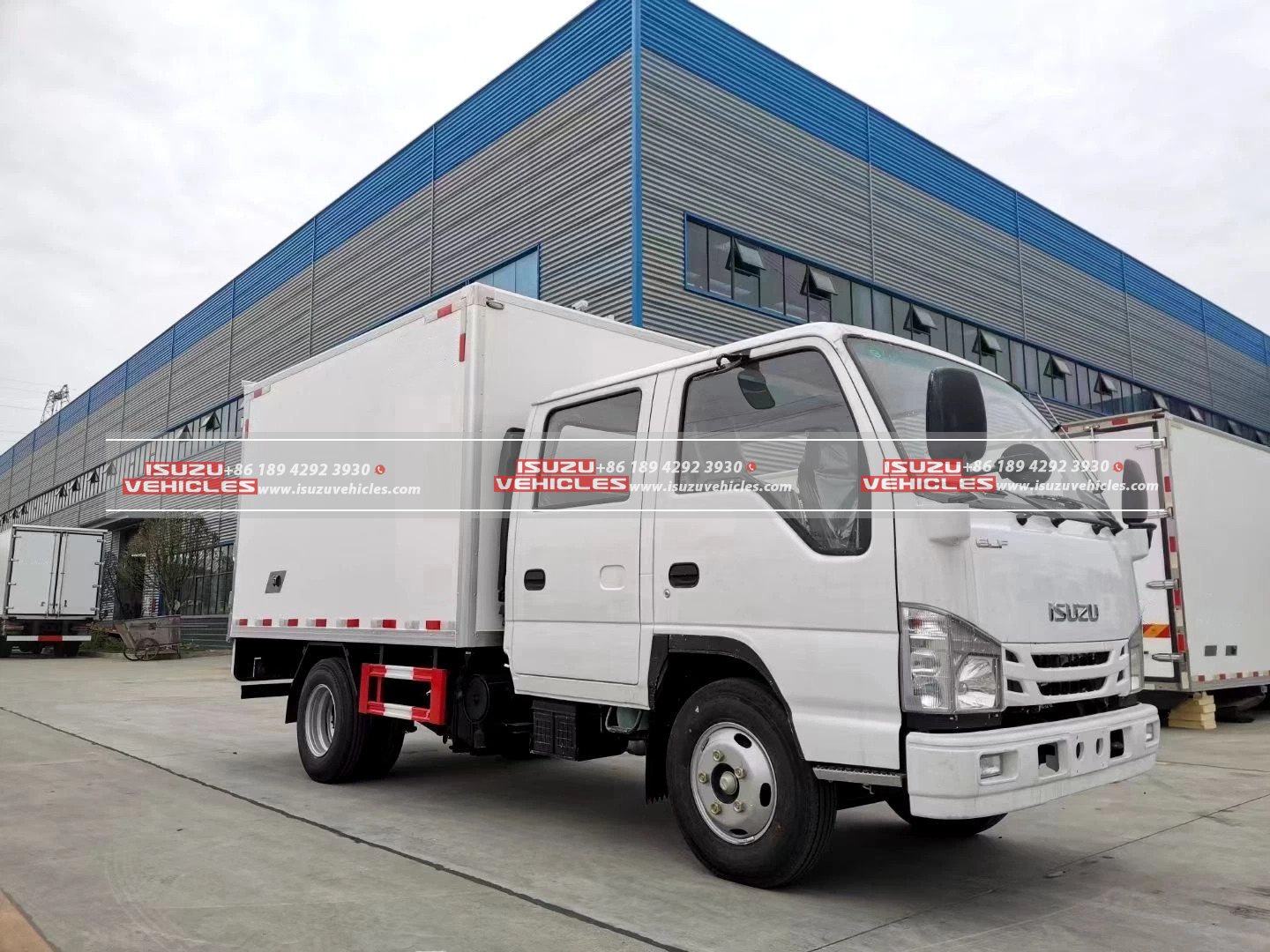

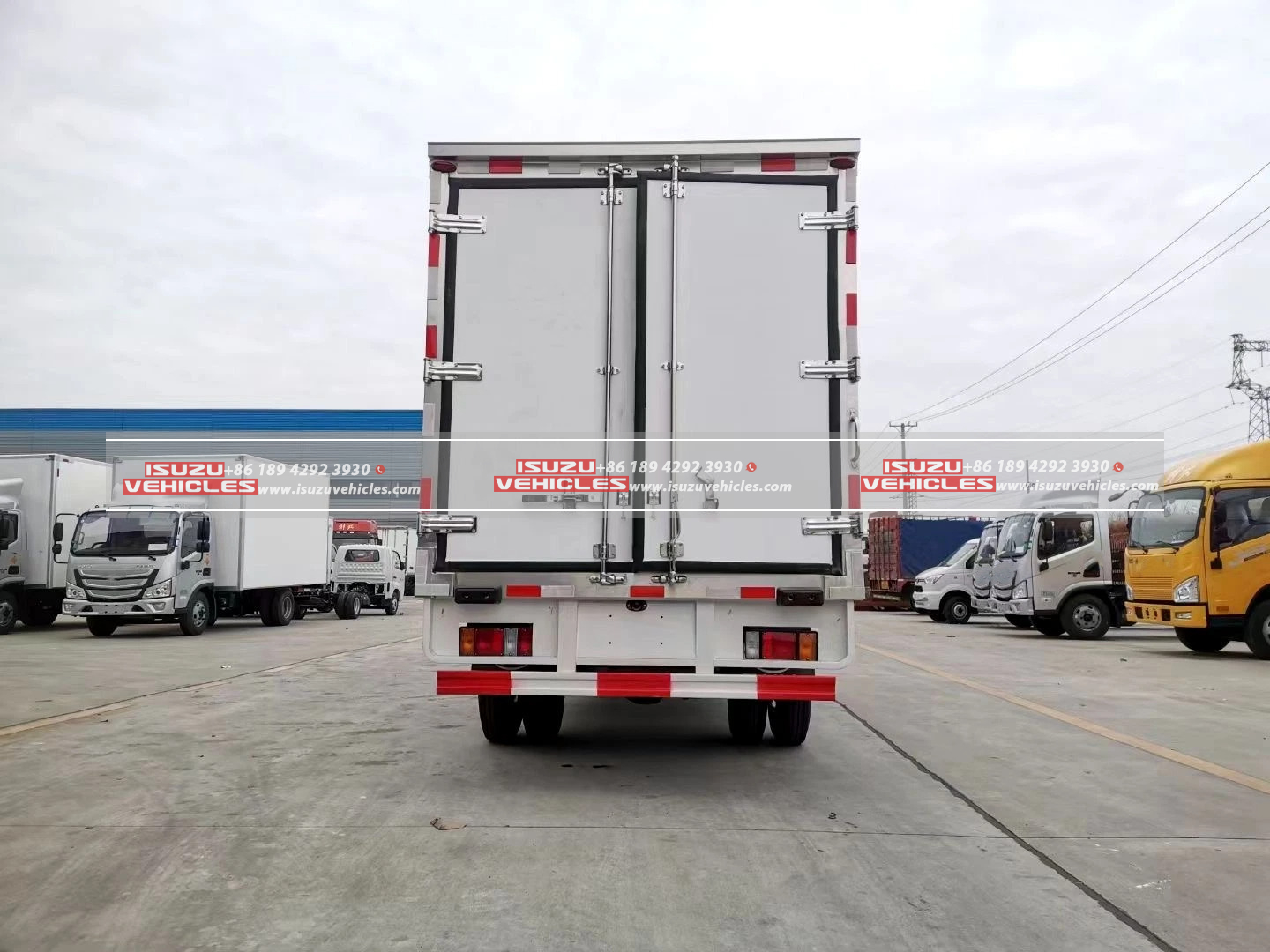

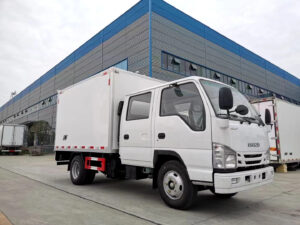

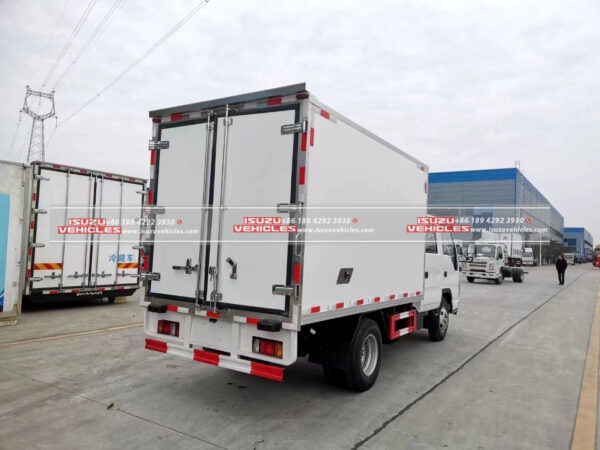

The ISUZU 3 Ton Refrigerated Refrigerator Van Truck is a versatile and efficient solution for transporting temperature-sensitive goods. With its powerful engine and advanced refrigeration system, it ensures the safe delivery of perishable items while maintaining optimal temperature control.
This ISUZU Refrigerated Refrigerator Truck is a dependable and adaptable solution for businesses that require precise temperature-controlled transportation of goods, ensuring their quality and freshness upon arrival.
FEATURES:
- Precision Temperature Control: This refrigerated van truck provides precise temperature control to transport goods ranging from frozen to chilled products, ensuring they reach their destination in perfect condition.
- Robust Chassis: Built on a sturdy ISUZU chassis, it offers reliability and durability even in challenging road conditions.

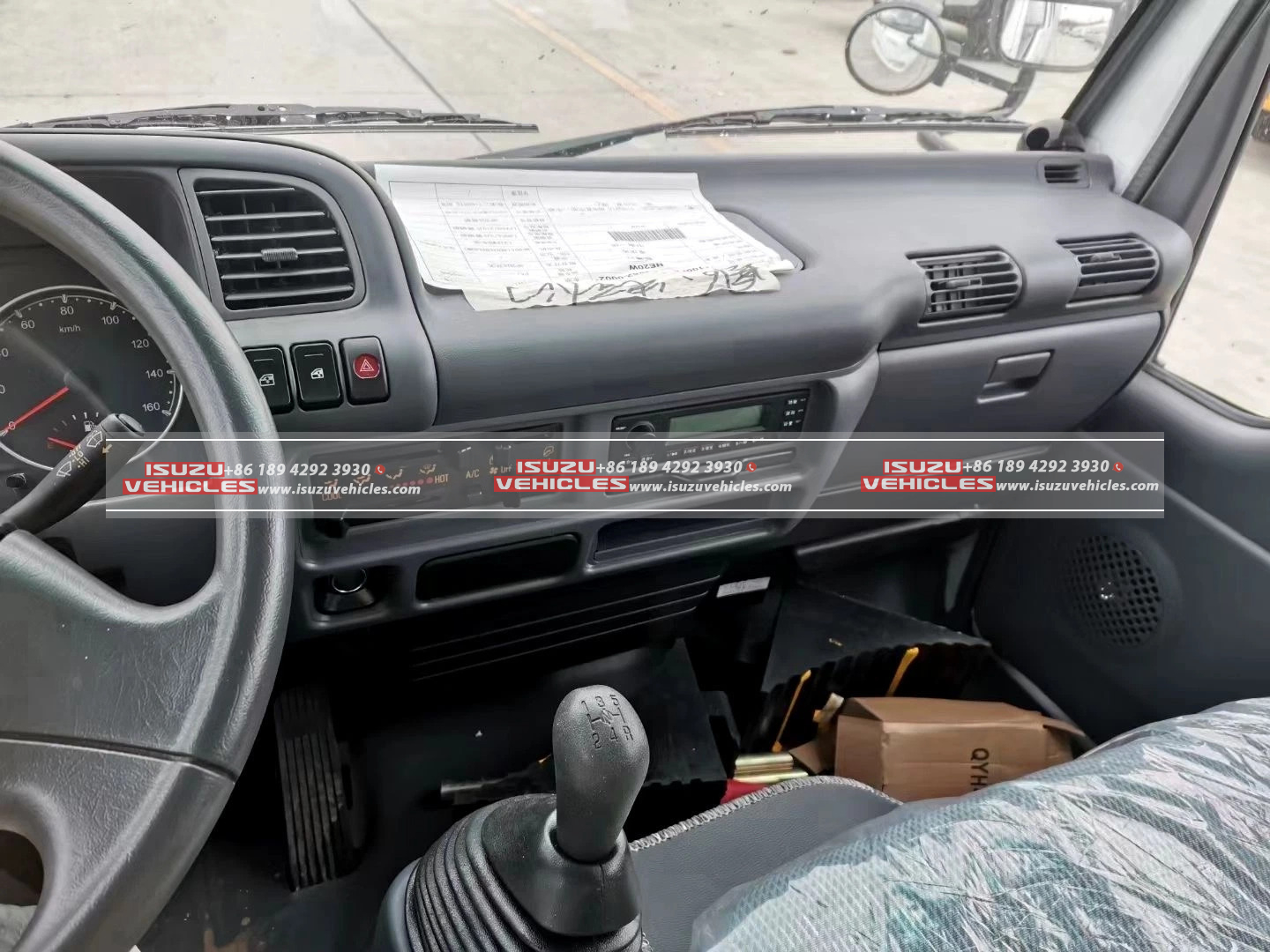

- Spacious Cabin: The double-row cabin design provides comfort for the driver and passengers. It features left-hand driving orientation and includes air conditioning for a pleasant driving experience.
- Efficient Engine: Equipped with the 4KH1CN5LS engine, featuring four cylinders and 98HP, it provides ample power for smooth and efficient operation.
- Environmental Compliance: The truck adheres to EURO IV or V emission standards, minimizing its environmental impact.
- Fuel Efficiency: Its 2.999L diesel engine ensures fuel efficiency, reducing operational costs.
- Smooth Gear Shift: The MSB gearbox offers five forward and one reverse gear, allowing for smooth and precise gear changes.
- Optimal Axle Load: The front and rear axle load capacity of 2.5T/4.8T ensures stability while carrying various loads.
- Adaptive Wheelbase: With a wheelbase of 3360 mm, the vehicle balances stability and maneuverability.
- Ample Overhang: Featuring an overhang of 1130/1505 mm (Front/Rear), it can navigate challenging terrains with ease.
- Approach/Departure Angle: The truck boasts an approach angle of 20° and a departure angle of 16°, facilitating entry and exit from diverse locations.
- Reliable Braking: The oil brake system ensures responsive and reliable braking performance, enhancing safety.
- Powerful Steering: Equipped with power-assisted steering, it offers effortless maneuverability.
- Durable Tires: The vehicle rides on 7.00R16 8PR tires, including a spare tire, ensuring a secure grip on the road.

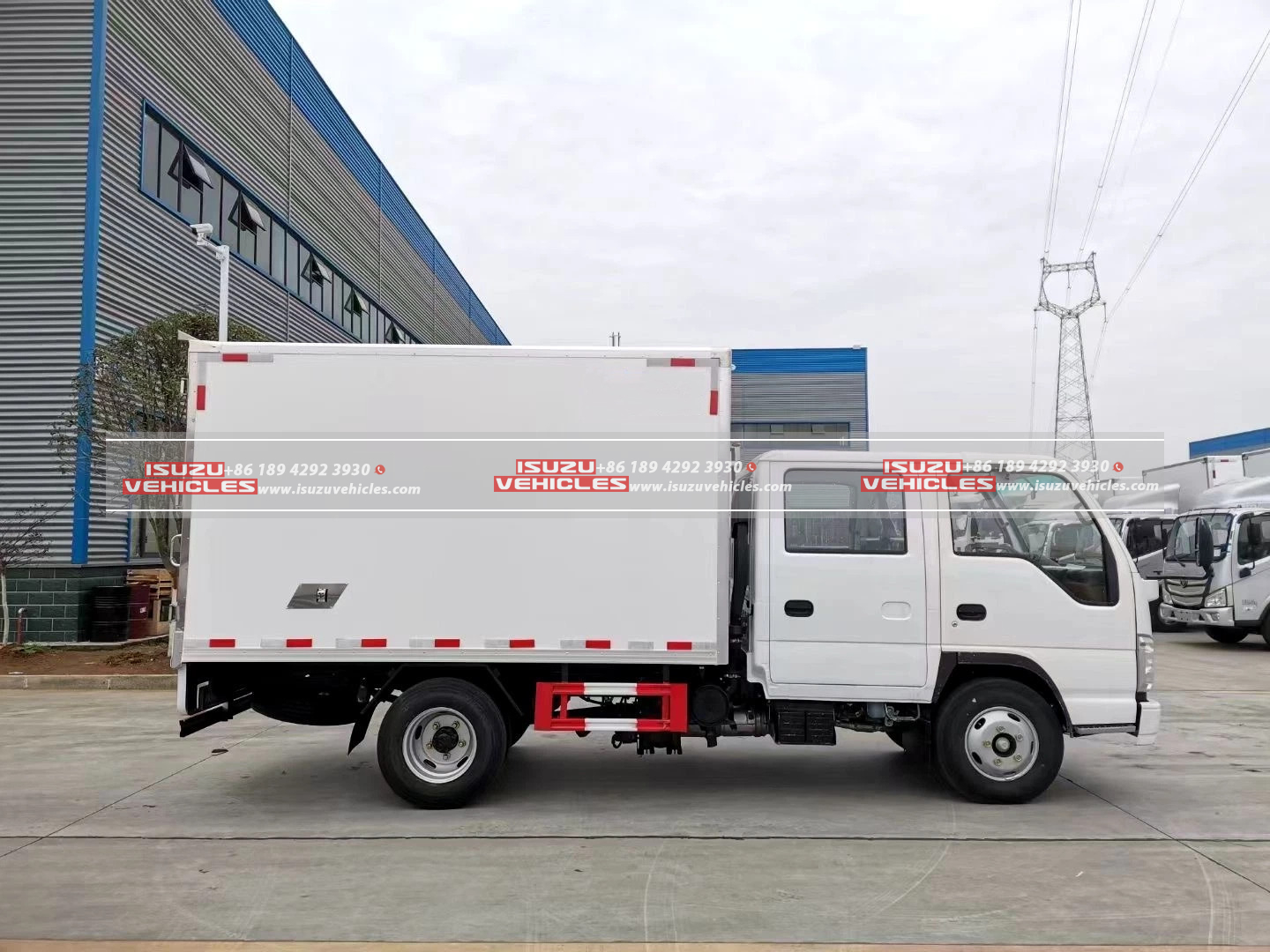

- Spacious Van: The refrigerated van’s box size measures 315017501750 mm, providing ample space for cargo.
- Effective Insulation: Constructed with fiberglass material and an 8cm polyurethane foam insulating layer, it maintains the desired temperature inside the van.
- Truck Refrigeration Unit: The unit, available in THERMOKING, CARRIER, or other Chinese brands, offers an applicable temperature range of -18~0°C, ensuring cargo freshness.
- Optional Features: Customization options include a ventilation slot, meat hook, external power supply, and a side door, enhancing versatility based on specific transport requirements.
SPECIFICATIONS:
Parameter | Unit | Value |
---|---|---|
Overall Dimension | mm | 599521302960 |
Gross Vehicle Weight | Kg | 4495 |
Curb Weight | Kg | 2866 |
Loading Weight | Kg | 1499 |
Chassis Specification
Parameter | Chassis parameters | Value |
---|---|---|
Chassis Brand | ISUZU | |
Cabin | Double row, Left Hand Driving, with A/C | |
Engine | Model | 4KH1CN5LS, 4 Cylinders |
Power | 98HP | |
Emission standard | EURO IV or V | |
Displacement | 2.999L | |
Fuel type | Diesel | |
Gearbox | MSB, 5 Forward & 1 Reverse Gear | |
Front and Rear Axle load | 2.5T/4.8T | |
Wheel base | mm | 3360 |
Overhang (Front/Rear) | mm | 1130/1505 |
Angle (Approach/departure) | ° | 20/16 |
Brake System | Oil brake | |
Steering Gear | Power Assistant | |
Tire | 7.00R16 8PR, 6 Pieces with 1 Spare Tire | |
Maximum speed | km/h | 105 |
Superstructure
Parameter | Van | Value |
---|---|---|
Van | Box size | 315017501750 (mm) |
Material | Fiberglass | |
Insulating Layer | 8cm Polyurethane Foam |
Truck Refrigeration Unit
Parameter | Value | |
---|---|---|
Truck Refrigeration Unit | Brand | ISUZU |
Applicable Temperature (ºC) | -18~0 | |
Remarks | Part Optional: Ventilation slot, Meat Hook, External power supply, Side door |
