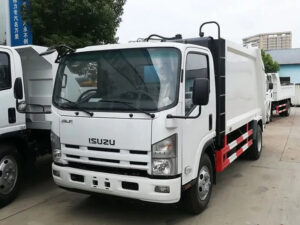

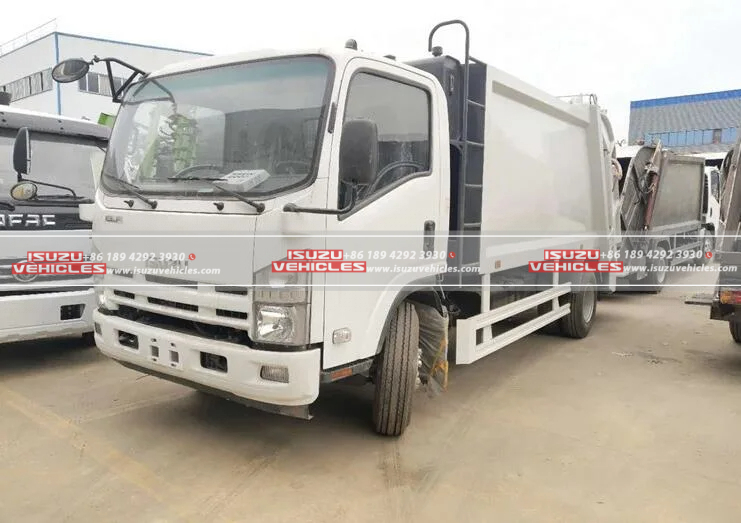

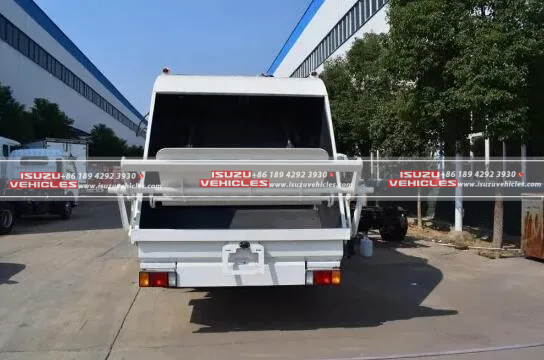

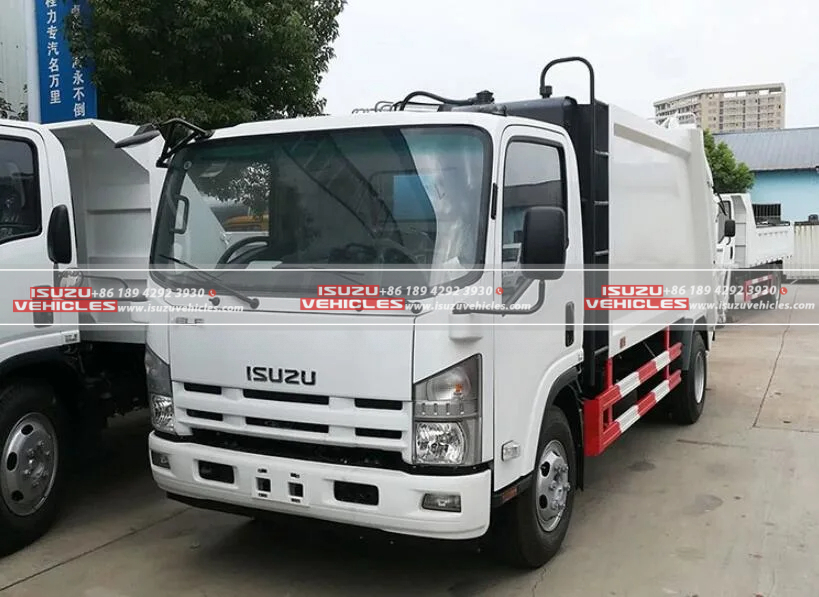

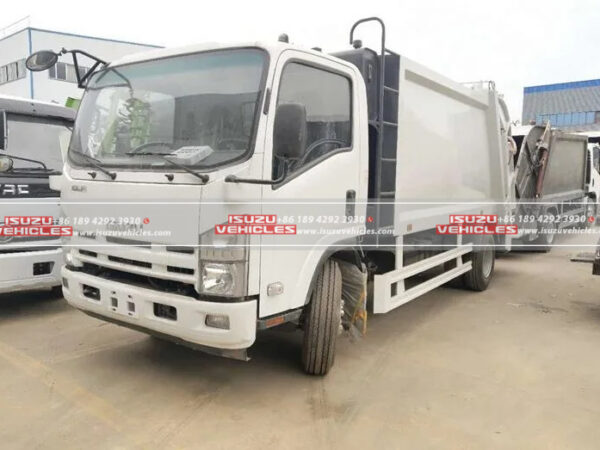

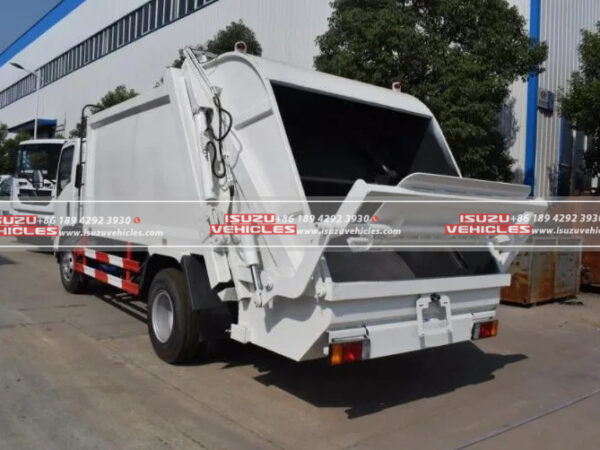

ISUZU 6 Ton Small Light Garbage Compactor Truck

BRIEF:

The ISUZU 6 Ton Small Light Garbage Compactor Truck is a reliable and efficient solution for waste management. Designed with precision and equipped with advanced features, this vehicle ensures streamlined garbage collection and disposal.

This garbage truck is designed to be hermetic, preventing any spillage or odor issues during the collection and disposal of garbage. It also ensures that any generated sewage is efficiently managed within the sewage tank, promoting environmental sustainability.

FEATURES:

Efficient and Powerful Engine:

• Brand: ISUZU
• Model: 4KH1-TCG51
• Type: 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging, and inter-cooling
• Horsepower: 120 HP
• Emission Standard: Euro V

The robust ISUZU engine provides the necessary power to operate the garbage compactor effectively while adhering to stringent emission standards.

Smooth Transmission:

• Gearbox: 5 forwards & 1 reverse
• Clutch: Diaphragm spring clutch

The 5-speed forward and 1-speed reverse gearbox, coupled with a diaphragm spring clutch, ensures smooth and precise gear changes, enhancing overall performance.

Responsive Steering:

• Steering Gear: Power steering

The power steering system makes maneuvering the garbage compactor truck effortless, providing precise control, especially in urban environments.

Sturdy Chassis:

• Driving Type: 4×2
• Wheelbase: 3360 mm
• Wheel Track (Front/Rear): 1504/1425 mm
• Approach/Departure Angle: 24/16 degrees

The 4×2 driving type and sturdy chassis with optimized wheelbase and track dimensions contribute to the vehicle’s stability and adaptability to varied terrains.

Impressive Load Capacity:

• Tare Weight: 5050 KG
• Front Axles Loading Capacity: 2580 KG
• Rear Axles Loading Capacity: 4720 KG

This garbage compactor truck boasts an impressive load capacity, ensuring efficient waste collection without compromising performance.

High-Speed Capability:

• Max. Driving Speed: 110 km/h

With a maximum speed of 110 km/h, this truck can quickly navigate between collection points, optimizing the garbage collection process.

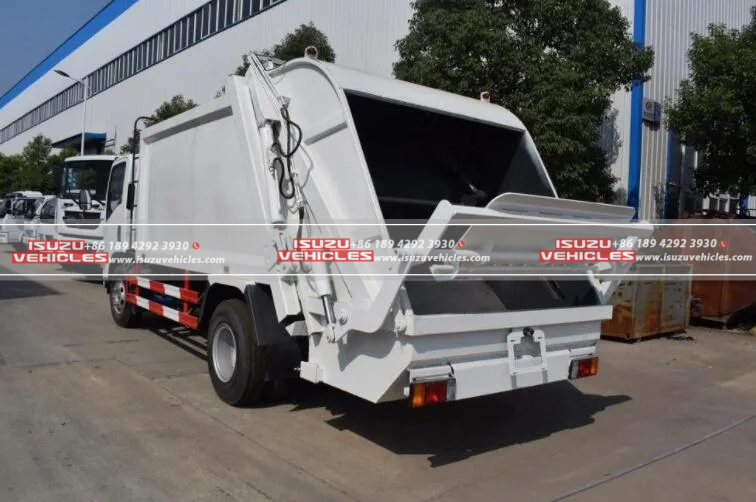

Integrated Compaction System:

• Body Volume: 5m3
• Cycle Time of Filling: ≤40 seconds
• Lifting Time of Filler: 8-10 seconds
• Time of Discharging: ≤60 seconds
• Working Pressure: 16 MPa

The compaction system of this truck is designed for efficiency, with quick cycle times for filling, lifting, and discharging. It operates at a high working pressure to ensure effective garbage compression.

Hermetic and Environmentally Friendly Design:

• Composed of a hermetic garbage tank, hydraulic system, operation system
• The entire truck is hermetic, preventing leakage or odors
• Automatically compresses and disposes of garbage
• Sewage generated during compression is directed to the sewage tank, maintaining cleanliness





SPECIFICATIONS:

Cabin	Driving type 4×2
	with A/C. Left-Hand Drive.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		6800x1960x2600
	Wheelbase (mm)		3360
	Wheel track (front/rear) (mm)		1504/1425
	Approach/Departure angle(°)		24/16
Weight in KGS	Tare Weight		5050
	Front axle loading capacity		2580
	Rear axle loading capacity		4720
Max. driving speed(km/h)			110
Engine	Brand		ISUZU
	Model		4KH1-TCG51
	Type		4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		120 HP
	Emission standard		Euro V
Gearbox	5 forwards &1 reverse
Clutch	Diaphragm spring clutch
Steering Gear	Power steering
Tire	7.00R16 All radial tires with one spare, 7 pieces

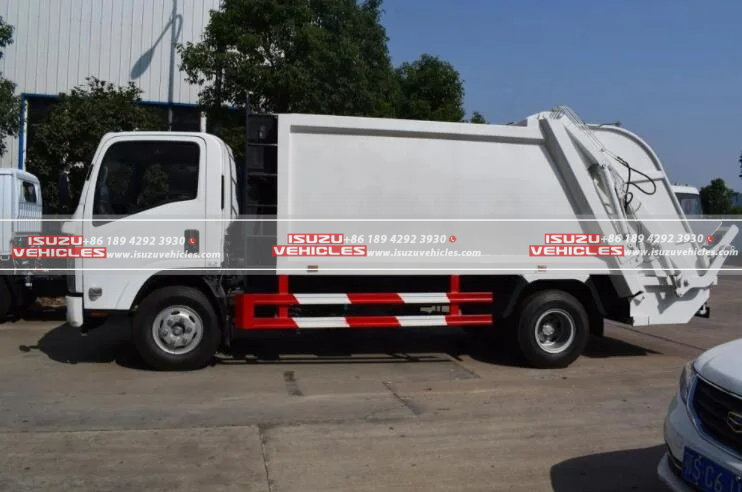

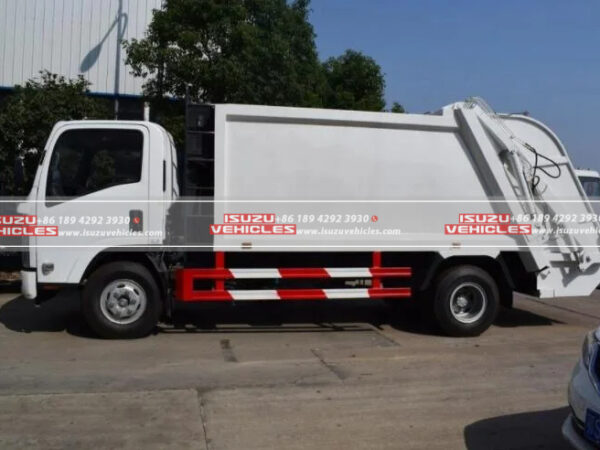

Compression garbage box body system
BodyVolume		5m3
Cycle Time of Filling(S)		≤40
Lifting Time of Filler(S)		8-10
Time of Discharging		≤60
Working Pressure(MPA)		16
Composed of a hermetic garbage tank, hydraulic system, and operation system. The entire truck is hermetic, and can automatically compress and dump the garbage and the sewage generated in the process of the compression all goes into the sewage tank.
